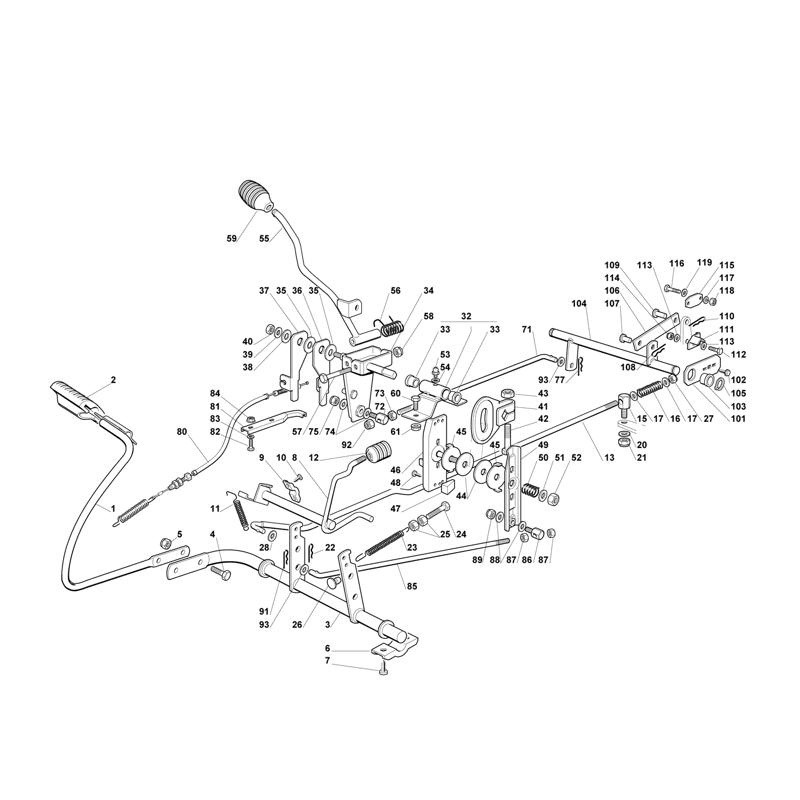

Castel / Twincut / Lawnking XF130HD (2009) Parts Diagram, Page 4
Look at the diagram and find parts that fit a Castel / Twincut / Lawnking XF130HD, or refer to the list below.
All Parts for XF130HD
| # | Part | Price | |
|---|---|---|---|
| 1 |
384503001/0 Castel / Twincut / Lawnking Brake Pedal Assembly |
£23.65 |
 Castel / Twincut / Lawnking Brake Pedal Assembly£23.65
P/N: 384503001/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 2 |
125110267/0 Castel / Twincut / Lawnking Brake Pedal Cover |
£3.79 |
Castel / Twincut / Lawnking Brake Pedal Cover£3.79
P/N: 125110267/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 3 |
384001015/1 Castel / Twincut / Lawnking Brake Pedal Fulcrum Axle |
£46.46 |
Castel / Twincut / Lawnking Brake Pedal Fulcrum Axle£46.46
P/N: 384001015/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 4 |
112793301/0 Castel / Twincut / Lawnking Hex-Head Screw M8 X 25 |
£1.55 |
 Castel / Twincut / Lawnking Hex-Head Screw M8 X 25£1.55
P/N: 112793301/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 5 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.55 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.55
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 6 |
327546015/2 Castel / Twincut / Lawnking Axle Fix Plate |
£1.55 |
Castel / Twincut / Lawnking Axle Fix Plate£1.55
P/N: 327546015/2, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 7 |
112731350/0 Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X19 Uni 6949 C15 |
£1.55 |
Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X19 Uni 6949 C15£1.55
P/N: 112731350/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 8 |
384001011/2 Castel / Twincut / Lawnking Parking Brake Axle |
£12.95 |
Castel / Twincut / Lawnking Parking Brake Axle£12.95
P/N: 384001011/2, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 9 |
325547049/0 Castel / Twincut / Lawnking Axle Fixing Plate |
£3.10 |
Castel / Twincut / Lawnking Axle Fixing Plate£3.10
P/N: 325547049/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 10 |
112731601/0 Castel / Twincut / Lawnking Self-Tap Screw 4.8 X 16 |
£1.97 |
Castel / Twincut / Lawnking Self-Tap Screw 4.8 X 16£1.97
P/N: 112731601/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 11 |
127430552/0 Castel / Twincut / Lawnking Spring |
£1.55 |
Castel / Twincut / Lawnking Spring£1.55
P/N: 127430552/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 12 |
127395050/1 Castel / Twincut / Lawnking Brake Knob [Black] |
£2.95 |
Castel / Twincut / Lawnking Brake Knob [Black]£2.95
P/N: 127395050/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 13 |
127034070/0 Castel / Twincut / Lawnking Brake Control Rod Hy.Tuff Torq |
Castel / Twincut / Lawnking Brake Control Rod Hy.Tuff Torq
P/N: 127034070/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories.
No longer available
|
|
| 15 |
125510067/1 Castel / Twincut / Lawnking Pin |
£4.37 |
Castel / Twincut / Lawnking Pin£4.37
P/N: 125510067/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 16 |
125430236/1 Castel / Twincut / Lawnking Brake Rod Spring |
£1.55 |
Castel / Twincut / Lawnking Brake Rod Spring£1.55
P/N: 125430236/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 17 |
112521360/0 Castel / Twincut / Lawnking Washer M10 10.5 X 20 X 2 Uni 6592 |
£1.55 |
 Castel / Twincut / Lawnking Washer M10 10.5 X 20 X 2 Uni 6592£1.55
P/N: 112521360/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 20 |
112523050/0 Castel / Twincut / Lawnking Washer M6 6.6 X 24 X 2 |
£1.55 |
 Castel / Twincut / Lawnking Washer M6 6.6 X 24 X 2£1.55
P/N: 112523050/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 21 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.55 |
Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.55
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 22 |
124487997/0 Castel / Twincut / Lawnking Spring Clip D=1.8 |
£1.55 |
 Castel / Twincut / Lawnking Spring Clip D=1.8£1.55
P/N: 124487997/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 23 |
125430210/1 Castel / Twincut / Lawnking Brake Spring |
£2.68 |
 Castel / Twincut / Lawnking Brake Spring£2.68
P/N: 125430210/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 24 |
122943005/0 Castel / Twincut / Lawnking Screw |
£2.53 |
Castel / Twincut / Lawnking Screw£2.53
P/N: 122943005/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 25 |
112293200/0 Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S |
£1.55 |
 Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S£1.55
P/N: 112293200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 26 |
127275000/0 Castel / Twincut / Lawnking Rubber Grommet For Brake Pedal |
£3.10 |
Castel / Twincut / Lawnking Rubber Grommet For Brake Pedal£3.10
P/N: 127275000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 27 |
112156602/0 Castel / Twincut / Lawnking Low Self-Locking Nut M10 Uni7474 Acc.6S |
£1.40 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M10 Uni7474 Acc.6S£1.40
P/N: 112156602/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 28 |
325670011/0 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 19 X 0.8 |
£1.55 |
 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 19 X 0.8£1.55
P/N: 325670011/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 32 |
384773568/0 Castel / Twincut / Lawnking Speed Control Lever Bracket |
£37.79 |
Castel / Twincut / Lawnking Speed Control Lever Bracket£37.79
P/N: 384773568/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 33 |
127045080/0 Castel / Twincut / Lawnking Bush |
£5.21 |
Castel / Twincut / Lawnking Bush£5.21
P/N: 127045080/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 34 |
384773561/1 Castel / Twincut / Lawnking Control Lever Bracket |
£43.49 |
Castel / Twincut / Lawnking Control Lever Bracket£43.49
P/N: 384773561/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 35 |
322672151/0 Castel / Twincut / Lawnking Anti-Friction Washer 12.2 X 30 X 0.8 |
£1.82 |
Castel / Twincut / Lawnking Anti-Friction Washer 12.2 X 30 X 0.8£1.82
P/N: 322672151/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 36 |
327772101/0 Castel / Twincut / Lawnking Clamp Plate |
£2.40 |
Castel / Twincut / Lawnking Clamp Plate£2.40
P/N: 327772101/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 37 |
327772103/0 Castel / Twincut / Lawnking Clamp Plate |
£2.12 |
Castel / Twincut / Lawnking Clamp Plate£2.12
P/N: 327772103/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 38 |
322672152/0 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 30 X 0.8 |
£1.82 |
 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 30 X 0.8£1.82
P/N: 322672152/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 39 |
112523060/0 Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593 |
£1.55 |
 Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593£1.55
P/N: 112523060/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 40 |
112155010/0 Castel / Twincut / Lawnking Self-Locking Nut M8 A-Lok Acc.6S |
£2.12 |
 Castel / Twincut / Lawnking Self-Locking Nut M8 A-Lok Acc.6S£2.12
P/N: 112155010/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 41 |
327734055/0 Castel / Twincut / Lawnking Bracket |
£2.95 |
Castel / Twincut / Lawnking Bracket£2.95
P/N: 327734055/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 42 |
112794900/0 Castel / Twincut / Lawnking Hex-Head Screw M10 X 50 |
£1.69 |
Castel / Twincut / Lawnking Hex-Head Screw M10 X 50£1.69
P/N: 112794900/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 43 |
112155020/0 Castel / Twincut / Lawnking Self-Binding Nut M10 |
£1.69 |
 Castel / Twincut / Lawnking Self-Binding Nut M10£1.69
P/N: 112155020/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 44 |
127158000/0 Castel / Twincut / Lawnking Clutch Washer |
£20.96 |
Castel / Twincut / Lawnking Clutch Washer£20.96
P/N: 127158000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 45 |
327670053/0 Castel / Twincut / Lawnking Washer |
£1.55 |
Castel / Twincut / Lawnking Washer£1.55
P/N: 327670053/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 46 |
384773565/0 Castel / Twincut / Lawnking Clutch Bracket Assembly |
£16.82 |
Castel / Twincut / Lawnking Clutch Bracket Assembly£16.82
P/N: 384773565/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 47 |
127063020/0 Castel / Twincut / Lawnking Clutch Control Cam |
£1.55 |
Castel / Twincut / Lawnking Clutch Control Cam£1.55
P/N: 127063020/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 48 |
112735110/0 Castel / Twincut / Lawnking Flanged Self-Tap Screw 4.8 X 13 |
£1.55 |
 Castel / Twincut / Lawnking Flanged Self-Tap Screw 4.8 X 13£1.55
P/N: 112735110/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 49 |
384773563/0 Castel / Twincut / Lawnking Clutch Control Lever |
£6.34 |
Castel / Twincut / Lawnking Clutch Control Lever£6.34
P/N: 384773563/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 50 |
127430560/0 Castel / Twincut / Lawnking Clutch Spring |
£15.28 |
Castel / Twincut / Lawnking Clutch Spring£15.28
P/N: 127430560/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 51 |
325670008/1 Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8 |
£1.55 |
 Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8£1.55
P/N: 325670008/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 52 |
112155020/0 Castel / Twincut / Lawnking Self-Binding Nut M10 |
£1.69 |
Castel / Twincut / Lawnking Self-Binding Nut M10£1.69
P/N: 112155020/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 53 |
112379511/0 Castel / Twincut / Lawnking Straight Grease Nipple M6 X 1 |
£1.55 |
Castel / Twincut / Lawnking Straight Grease Nipple M6 X 1£1.55
P/N: 112379511/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 54 |
112521330/0 Castel / Twincut / Lawnking Washer M6 6.4 X 12 X 1.6 |
£1.55 |
 Castel / Twincut / Lawnking Washer M6 6.4 X 12 X 1.6£1.55
P/N: 112521330/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 55 |
384317101/0 Castel / Twincut / Lawnking Speed Control Lever |
£29.28 |
Castel / Twincut / Lawnking Speed Control Lever£29.28
P/N: 384317101/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 56 |
125430226/0 Castel / Twincut / Lawnking Spring |
£2.26 |
Castel / Twincut / Lawnking Spring£2.26
P/N: 125430226/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 57 |
112692050/0 Castel / Twincut / Lawnking Hex-Head Screw M8X80 Uni 5737 Acc.8.8 |
£1.82 |
 Castel / Twincut / Lawnking Hex-Head Screw M8X80 Uni 5737 Acc.8.8£1.82
P/N: 112692050/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 58 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.55 |
Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.55
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 59 |
182394508/0 Castel / Twincut / Lawnking Gear Control Knob [Black] |
£8.38 |
Castel / Twincut / Lawnking Gear Control Knob [Black]£8.38
P/N: 182394508/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 60 |
112793102/0 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8 |
£1.55 |
 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8£1.55
P/N: 112793102/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 61 |
112293201/0 Castel / Twincut / Lawnking Flanged Hexagon Nut M8 |
£1.69 |
 Castel / Twincut / Lawnking Flanged Hexagon Nut M8£1.69
P/N: 112293201/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 71 |
127034071/0 Castel / Twincut / Lawnking Feed Control Rod |
£12.67 |
Castel / Twincut / Lawnking Feed Control Rod£12.67
P/N: 127034071/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 72 |
125510040/2 Castel / Twincut / Lawnking Pin Bolt |
£5.76 |
Castel / Twincut / Lawnking Pin Bolt£5.76
P/N: 125510040/2, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 73 |
112293200/0 Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S |
£1.55 |
Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S£1.55
P/N: 112293200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 74 |
325670011/0 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 19 X 0.8 |
£1.55 |
Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 19 X 0.8£1.55
P/N: 325670011/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 75 |
112155010/0 Castel / Twincut / Lawnking Self-Locking Nut M8 A-Lok Acc.6S |
£2.12 |
Castel / Twincut / Lawnking Self-Locking Nut M8 A-Lok Acc.6S£2.12
P/N: 112155010/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 77 |
124487997/0 Castel / Twincut / Lawnking Spring Clip D=1.8 |
£1.55 |
Castel / Twincut / Lawnking Spring Clip D=1.8£1.55
P/N: 124487997/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 80 |
184207101/1 Castel / Twincut / Lawnking Clutch Return Cable |
£33.79 |
Castel / Twincut / Lawnking Clutch Return Cable£33.79
P/N: 184207101/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 81 |
327772105/0 Castel / Twincut / Lawnking Clamp Plate |
£1.97 |
Castel / Twincut / Lawnking Clamp Plate£1.97
P/N: 327772105/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 82 |
112791400/0 Castel / Twincut / Lawnking Hex-Head Screw M6 X 20 Uni 5739 4.8 Wz |
£1.40 |
Castel / Twincut / Lawnking Hex-Head Screw M6 X 20 Uni 5739 4.8 Wz£1.40
P/N: 112791400/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 83 |
112521330/0 Castel / Twincut / Lawnking Washer M6 6.4 X 12 X 1.6 |
£1.55 |
Castel / Twincut / Lawnking Washer M6 6.4 X 12 X 1.6£1.55
P/N: 112521330/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 84 |
112292102/0 Castel / Twincut / Lawnking Flanged Hexagonal Nut M6 |
£1.69 |
 Castel / Twincut / Lawnking Flanged Hexagonal Nut M6£1.69
P/N: 112292102/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 85 |
127034074/0 Castel / Twincut / Lawnking Clutch Driving Rod |
£20.28 |
Castel / Twincut / Lawnking Clutch Driving Rod£20.28
P/N: 127034074/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
