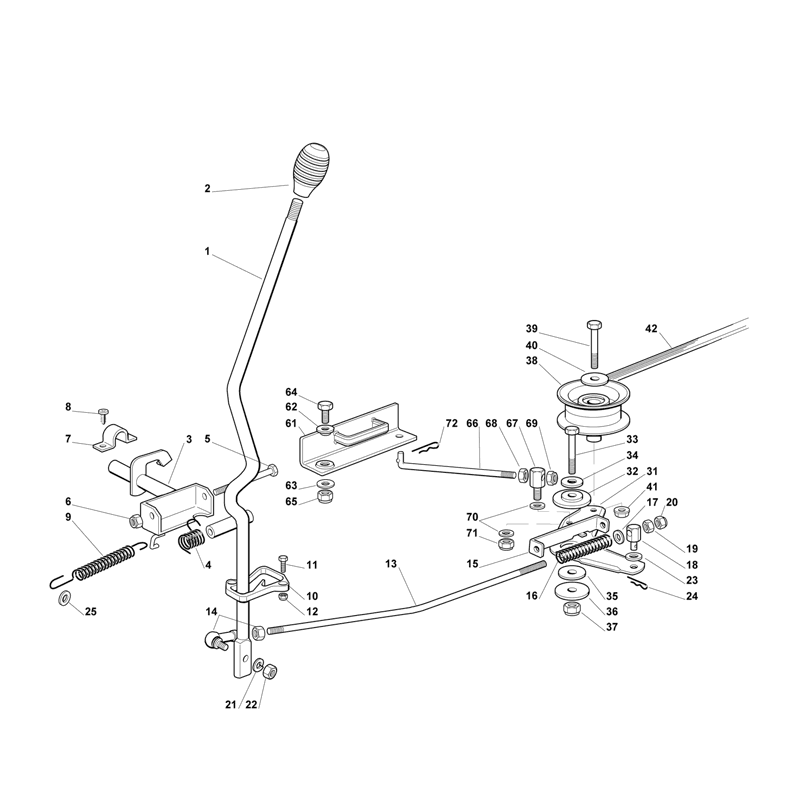

Castel / Twincut / Lawnking XF130HD (2009) Parts Diagram, Page 9
Look at the diagram and find parts that fit a Castel / Twincut / Lawnking XF130HD, or refer to the list below.
All Parts for XF130HD
| # | Part | Price | |
|---|---|---|---|
| 1 |
184317069/1 Castel / Twincut / Lawnking Blade Engagement Lever |
£36.16 |
 Castel / Twincut / Lawnking Blade Engagement Lever£36.16
P/N: 184317069/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 2 |
125394510/0 Castel / Twincut / Lawnking Control Knob [Black] |
£4.07 |
Castel / Twincut / Lawnking Control Knob [Black]£4.07
P/N: 125394510/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 3 |
384001007/0 Castel / Twincut / Lawnking Blade Engage Control Axle |
£14.35 |
Castel / Twincut / Lawnking Blade Engage Control Axle£14.35
P/N: 384001007/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 4 |
125430226/0 Castel / Twincut / Lawnking Spring |
£2.17 |
Castel / Twincut / Lawnking Spring£2.17
P/N: 125430226/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 5 |
112692050/0 Castel / Twincut / Lawnking Hex-Head Screw M8X80 Uni 5737 Acc.8.8 |
£1.75 |
 Castel / Twincut / Lawnking Hex-Head Screw M8X80 Uni 5737 Acc.8.8£1.75
P/N: 112692050/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 6 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.49 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.49
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 7 |
325547049/0 Castel / Twincut / Lawnking Axle Fixing Plate |
£2.98 |
Castel / Twincut / Lawnking Axle Fixing Plate£2.98
P/N: 325547049/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 8 |
112731601/0 Castel / Twincut / Lawnking Self-Tap Screw 4.8 X 16 |
£1.90 |
Castel / Twincut / Lawnking Self-Tap Screw 4.8 X 16£1.90
P/N: 112731601/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 9 |
127430571/0 Castel / Twincut / Lawnking Clutch Return Spring |
£4.48 |
Castel / Twincut / Lawnking Clutch Return Spring£4.48
P/N: 127430571/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 10 |
127487000/0 Castel / Twincut / Lawnking Blade Lever Shoe |
£2.84 |
 Castel / Twincut / Lawnking Blade Lever Shoe£2.84
P/N: 127487000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 11 |
112791213/1 Castel / Twincut / Lawnking Hex-Head Screw M6 X 18 Uni 5739 8.8 |
£1.49 |
 Castel / Twincut / Lawnking Hex-Head Screw M6 X 18 Uni 5739 8.8£1.49
P/N: 112791213/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 12 |
112154510/0 Castel / Twincut / Lawnking Low Self-Locking Nut M6 Uni7474 Acc.6S |
£1.49 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M6 Uni7474 Acc.6S£1.49
P/N: 112154510/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 13 |
127034078/0 Castel / Twincut / Lawnking Blade Engage Control Rod |
£8.40 |
Castel / Twincut / Lawnking Blade Engage Control Rod£8.40
P/N: 127034078/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 14 |
122746610/0 Castel / Twincut / Lawnking Angular Joint Ns13 M8 |
£20.32 |
Castel / Twincut / Lawnking Angular Joint Ns13 M8£20.32
P/N: 122746610/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 15 |
327772143/0 Castel / Twincut / Lawnking Control Bracket |
£6.84 |
Castel / Twincut / Lawnking Control Bracket£6.84
P/N: 327772143/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 16 |
127430576/0 Castel / Twincut / Lawnking Spring |
£9.48 |
Castel / Twincut / Lawnking Spring£9.48
P/N: 127430576/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 17 |
112521350/0 Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6 |
£1.49 |
 Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6£1.49
P/N: 112521350/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 18 |
127510113/0 Castel / Twincut / Lawnking Pin |
£8.40 |
Castel / Twincut / Lawnking Pin£8.40
P/N: 127510113/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 19 |
112293200/0 Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S |
£1.49 |
 Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S£1.49
P/N: 112293200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 20 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.49 |
Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.49
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 21 |
112583500/0 Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A |
£1.49 |
Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A£1.49
P/N: 112583500/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 22 |
112293200/0 Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S |
£1.49 |
Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S£1.49
P/N: 112293200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 23 |
325670008/1 Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8 |
£1.49 |
 Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8£1.49
P/N: 325670008/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 24 |
124487997/0 Castel / Twincut / Lawnking Spring Clip D=1.8 |
£1.49 |
 Castel / Twincut / Lawnking Spring Clip D=1.8£1.49
P/N: 124487997/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 25 |
125670006/0 Castel / Twincut / Lawnking Washer |
£1.49 |
Castel / Twincut / Lawnking Washer£1.49
P/N: 125670006/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 31 |
384317083/0 Castel / Twincut / Lawnking Blade Pulley Lever |
£18.56 |
Castel / Twincut / Lawnking Blade Pulley Lever£18.56
P/N: 384317083/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 32 |
127047000/0 Castel / Twincut / Lawnking Bush |
£4.87 |
Castel / Twincut / Lawnking Bush£4.87
P/N: 127047000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 33 |
112691200/0 Castel / Twincut / Lawnking Hex-Head Screw M8 X 45 Uni 5737 8.8 |
£1.63 |
Castel / Twincut / Lawnking Hex-Head Screw M8 X 45 Uni 5737 8.8£1.63
P/N: 112691200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 34 |
112523060/0 Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593 |
£1.49 |
 Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593£1.49
P/N: 112523060/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 35 |
322672152/0 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 30 X 0.8 |
£1.75 |
 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 30 X 0.8£1.75
P/N: 322672152/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 36 |
112523070/0 Castel / Twincut / Lawnking Washer M8 8.5 X 32 X 2.5 |
£1.49 |
 Castel / Twincut / Lawnking Washer M8 8.5 X 32 X 2.5£1.49
P/N: 112523070/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 37 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.49 |
Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.49
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 38 |
127604008/0 Castel / Twincut / Lawnking Mobile Pulley |
£90.07 |
 Castel / Twincut / Lawnking Mobile Pulley£90.07
P/N: 127604008/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 39 |
112691600/0 Castel / Twincut / Lawnking Hex-Head Screw M8X70 Uni 5737 Acc.8.8 |
£1.75 |
Castel / Twincut / Lawnking Hex-Head Screw M8X70 Uni 5737 Acc.8.8£1.75
P/N: 112691600/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 40 |
112523060/0 Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593 |
£1.49 |
Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593£1.49
P/N: 112523060/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 41 |
112293201/0 Castel / Twincut / Lawnking Flanged Hexagon Nut M8 |
£1.63 |
 Castel / Twincut / Lawnking Flanged Hexagon Nut M8£1.63
P/N: 112293201/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 42 |
135061423/0G Castel / Twincut / Lawnking Deck Drive Belt A49 [Gates] |
£47.11 |
![Castel / Twincut / Lawnking Deck Drive Belt A49 [Gates]](/images/parts/b2fb80e1-2c94-4dfd-8239-e10cb6ef2806.jpg?width=200&height=200&rmode=pad&bgcolor=white) Castel / Twincut / Lawnking Deck Drive Belt A49 [Gates]£47.11
P/N: 135061423/0G, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 61 |
384220501/0 Castel / Twincut / Lawnking Blade Brake |
£9.35 |
Castel / Twincut / Lawnking Blade Brake£9.35
P/N: 384220501/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 62 |
122041980/0 Castel / Twincut / Lawnking Bush |
£1.49 |
Castel / Twincut / Lawnking Bush£1.49
P/N: 122041980/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 63 |
322672152/0 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 30 X 0.8 |
£1.75 |
Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 30 X 0.8£1.75
P/N: 322672152/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 64 |
112793102/0 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8 |
£1.49 |
 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8£1.49
P/N: 112793102/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 65 |
112155010/0 Castel / Twincut / Lawnking Self-Locking Nut M8 A-Lok Acc.6S |
£2.04 |
 Castel / Twincut / Lawnking Self-Locking Nut M8 A-Lok Acc.6S£2.04
P/N: 112155010/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 66 |
127034077/1 Castel / Twincut / Lawnking Blade Brake Control Rod |
£12.60 |
Castel / Twincut / Lawnking Blade Brake Control Rod£12.60
P/N: 127034077/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 67 |
125510040/2 Castel / Twincut / Lawnking Pin Bolt |
£5.54 |
Castel / Twincut / Lawnking Pin Bolt£5.54
P/N: 125510040/2, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 68 |
112293200/0 Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S |
£1.49 |
Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S£1.49
P/N: 112293200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 69 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.49 |
Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.49
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 70 |
325670011/0 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 19 X 0.8 |
£1.49 |
 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 19 X 0.8£1.49
P/N: 325670011/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 71 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.49 |
Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.49
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 72 |
124487997/0 Castel / Twincut / Lawnking Spring Clip D=1.8 |
£1.49 |
Castel / Twincut / Lawnking Spring Clip D=1.8£1.49
P/N: 124487997/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
