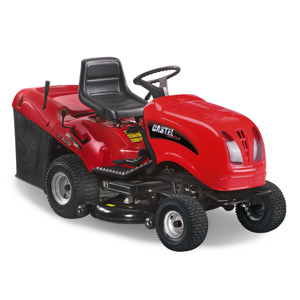

Castel / Twincut / Lawnking TCB16-102H (2011) Parts Diagram, Page 6

Look at the diagram and find parts that fit a Castel / Twincut / Lawnking TCB16-102H, or refer to the list below.

All parts that fit a TCB16-102H


Page:1
Page:1
Page:2
Page:2
Page:3
Page:3
Page:4
Page:4
Page:5
Page:5
Page:6
Page:6
Page:7
Page:7
Page:8
Page:8
Page:9
Page:9
Page:10
Page:10
Page:11
Page:11
Page:12
Page:12
Page:13
Page:13

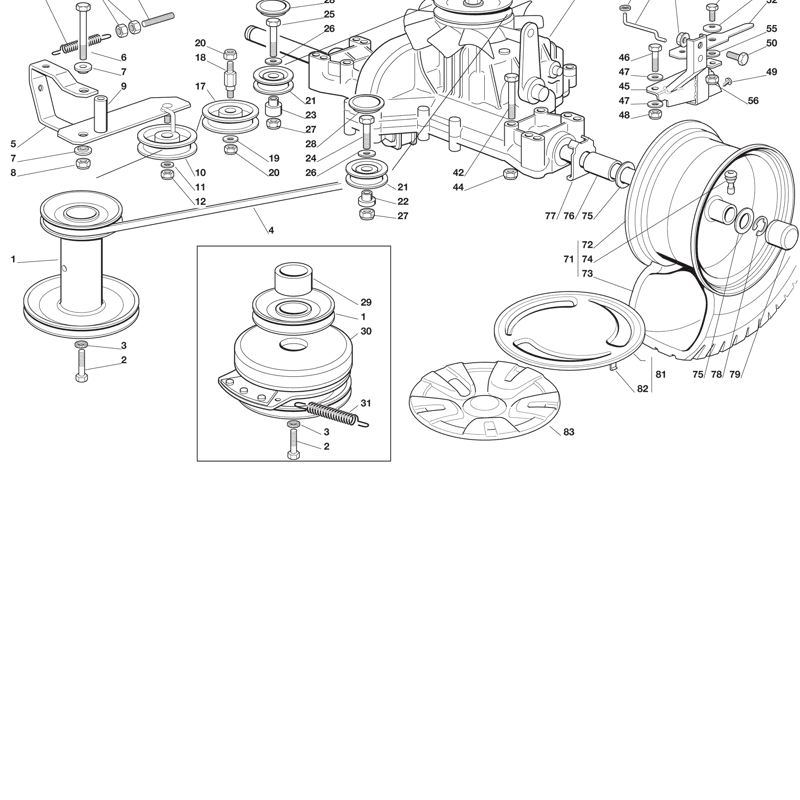

Castel / Twincut / Lawnking TCB16-102H (2011) Parts Diagram, Page 6
# Part Price
1 125601568/0 - Castel / Twincut / Lawnking Motor Pulley £104.45
To Basket
1 125601566/1 - Castel / Twincut / Lawnking Motor Pulley £29.20
To Basket
2 112737310/0 - Castel / Twincut / Lawnking Hex-Head Screw 7/16" X 2" 20 Unf £2.81
To Basket
2 112737320/0 - Castel / Twincut / Lawnking Threaded Screw 7/16" X 3" 20 Unf £4.15
To Basket
3 112543000/0 - Castel / Twincut / Lawnking Safety Washer D=7/16 £1.46
To Basket
4 135062001/0 - Castel / Twincut / Lawnking Transmission Belt A96 £42.12
To Basket
5 382318165/2 - Castel / Twincut / Lawnking Lever £26.39
To Basket
6 112692000/0 - Castel / Twincut / Lawnking Screw M8 X 75 £1.87
To Basket
7 125038002/1 - Castel / Twincut / Lawnking Bush £1.46
To Basket
8 112155000/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz £1.46
To Basket
9 125160027/0 - Castel / Twincut / Lawnking Spacer £2.41
To Basket
10 125601554/0 - Castel / Twincut / Lawnking Pulley £24.43
To Basket
11 112523060/0 - Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593 £1.46
To Basket
12 112155000/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz £1.46
To Basket
13 125840010/1 - Castel / Twincut / Lawnking Tie Rod £1.87
To Basket
14 112293200/0 - Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S £1.46
To Basket
15 125430219/1 - Castel / Twincut / Lawnking Spring £3.48
To Basket
17 125601555/0 - Castel / Twincut / Lawnking Pulley £27.85
To Basket
18 125510036/1 - Castel / Twincut / Lawnking STUD BOLT £7.75
19 112523060/0 - Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593 £1.46
To Basket
20 112155000/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz £1.46
To Basket
21 325601570/1 - Castel / Twincut / Lawnking Belt Pulley £23.16
To Basket
22 125160030/2 - Castel / Twincut / Lawnking Pulley Spacer D=18 X L=11,5 Z Wz £6.16
To Basket
23 125160024/2 - Castel / Twincut / Lawnking Pulley Spacer £7.90
To Basket
24 112691115/0 - Castel / Twincut / Lawnking Hex-Head Screw M8 X 40 £1.46
To Basket
25 112691400/0 - Castel / Twincut / Lawnking Hex-Head Screw M8 X 50 Uni 5737 8.8 £1.46
To Basket
26 112523060/0 - Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593 £1.46
To Basket
27 112155000/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz £1.46
To Basket
28 125109521/1 - Castel / Twincut / Lawnking Cover £1.46
To Basket
29 125160059/0 - Castel / Twincut / Lawnking Pulley Spacer L=25.8 £7.24
To Basket
30 118399062/1 - Castel / Twincut / Lawnking Electromagnetic Clutch I-5217-38 £337.70
To Basket
31 125430210/1 - Castel / Twincut / Lawnking Brake Spring £2.54
To Basket
41 118400950/1 - Castel / Twincut / Lawnking Hydro Transaxle K46F £1,359.04
To Basket
42 112691800/0 - Castel / Twincut / Lawnking Hex-Head Screw M8 X 60 Uni 5737 £1.46
To Basket
44 112154210/0 - Castel / Twincut / Lawnking Self-Lock Winged Nut M8 Din 6927 £1.61
To Basket
45 382785109/1 - Castel / Twincut / Lawnking Support Bracket £19.02
To Basket
46 112691200/0 - Castel / Twincut / Lawnking Hex-Head Screw M8 X 45 Uni 5737 8.8 £1.61
To Basket
47 112521350/0 - Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6 £1.46
To Basket
48 112155000/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz £1.46
To Basket
49 112735120/0 - Castel / Twincut / Lawnking Flanged Self-Tap Screw 6.3 X 16 £1.46
To Basket
50 112792611/0 - Castel / Twincut / Lawnking Screw Te M8 X 16 Uni 5739 Acc.8.8 £1.46
To Basket
51 112293201/0 - Castel / Twincut / Lawnking Flanged Hexagon Nut M8 £1.61
To Basket
52 325318157/0 - Castel / Twincut / Lawnking Lever £5.10
To Basket
53 112793102/0 - Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8 £1.46
To Basket
54 112369500/0 - Castel / Twincut / Lawnking Spring Washer D=8 £1.34
To Basket
55 325670011/0 - Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 19 X 0.8 £1.46
To Basket
56 112155000/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz £1.46
To Basket
57 125033033/1 - Castel / Twincut / Lawnking Rod £2.02
To Basket
58 112604896/0 - Castel / Twincut / Lawnking Starlock Washer D=6 £1.46
To Basket
71 382680057/0 - Castel / Twincut / Lawnking Rear Wheel Ass.Y 18" Clm+Wanda P512 Pr4 £180.77
To Basket
72 182000594/1 - Castel / Twincut / Lawnking Rear Wheel Rim [Yellow] £96.68
73 382680067/0 - Castel / Twincut / Lawnking Compl.Wheel Ass.Y 18" Clm+Carlisle Pr4 £187.46
To Basket
74 125950000/0 - Castel / Twincut / Lawnking Pneumatic Valve £5.10
To Basket
75 125670005/2 - Castel / Twincut / Lawnking Spindle Washer £3.88
To Basket
76 125160023/0 - Castel / Twincut / Lawnking Wheels Spacer Gr.Transm. Tuff Torq Tc Hy £6.96
To Basket
77 325670025/0 - Castel / Twincut / Lawnking Spacer Washer £3.88
To Basket
78 112001010/0 - Castel / Twincut / Lawnking Circlip Id=0.580" Th=0.050" £1.74
To Basket
79 122110230/0 - Castel / Twincut / Lawnking Hub Cover £1.46
To Basket
81 382110253/0 - Castel / Twincut / Lawnking Rear Hub Cap £14.98
To Basket
82 125430209/0 - Castel / Twincut / Lawnking Spring £4.15
To Basket
83 382110275/0 - Castel / Twincut / Lawnking Rear Wheel Disccover Assy Tx £15.80
To Basket
