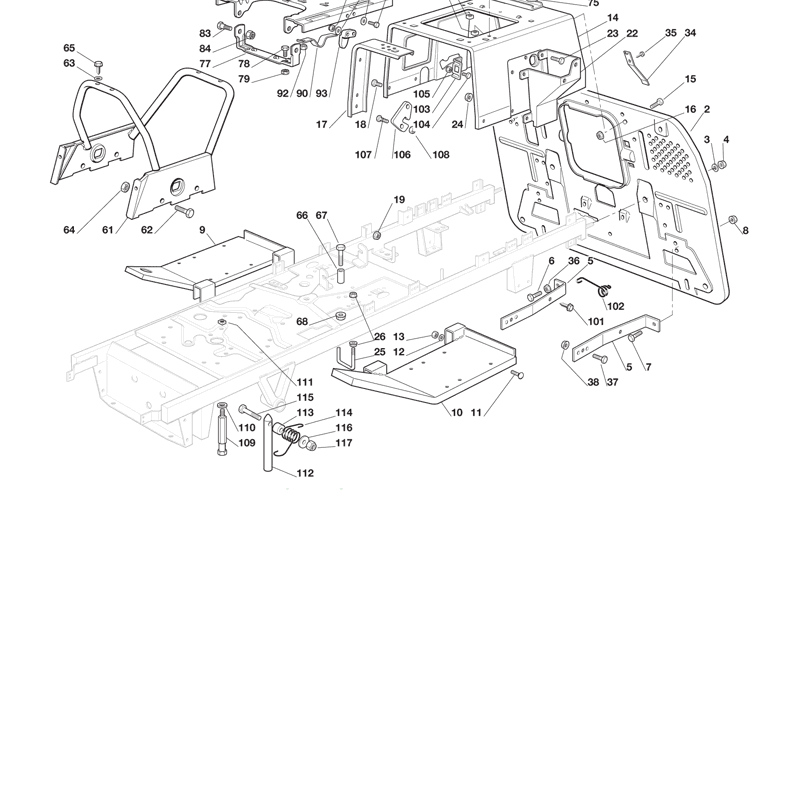

Castel / Twincut / Lawnking TCB16-102H (2011) Parts Diagram, Page 1

Look at the diagram and find parts that fit a Castel / Twincut / Lawnking TCB16-102H, or refer to the list below.

All parts that fit a TCB16-102H


Page:1
Page:1
Page:2
Page:2
Page:3
Page:3
Page:4
Page:4
Page:5
Page:5
Page:6
Page:6
Page:7
Page:7
Page:8
Page:8
Page:9
Page:9
Page:10
Page:10
Page:11
Page:11
Page:12
Page:12
Page:13
Page:13


Castel / Twincut / Lawnking TCB16-102H (2011) Parts Diagram, Page 1
# Part Price
2 382547053/1 - Castel / Twincut / Lawnking Rear Plate £140.59
To Basket
2 382547053/1 - Castel / Twincut / Lawnking Rear Plate £140.59
To Basket
3 112585100/0 - Castel / Twincut / Lawnking Spring Lock Washer M10 Uni1751 Type A Wz £1.46
To Basket
4 112295200/0 - Castel / Twincut / Lawnking Hexagon Nut M10 Uni 5588 (Wz) £1.34
To Basket
5 325774273/2 - Castel / Twincut / Lawnking Reinforcing Bracket £8.44
To Basket
6 112691100/0 - Castel / Twincut / Lawnking Hex-Head Screw M8 X 35 £1.46
To Basket
7 112793102/0 - Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8 £1.46
To Basket
8 112293201/0 - Castel / Twincut / Lawnking Flanged Hexagon Nut M8 £1.61
To Basket
9 382510041/2 - Castel / Twincut / Lawnking Right Footboard Support £81.68
To Basket
10 382510043/2 - Castel / Twincut / Lawnking Left Footboard Support £77.66
To Basket
11 112815245/0 - Castel / Twincut / Lawnking Screw M6 X 45 £1.46
To Basket
12 112523040/0 - Castel / Twincut / Lawnking Washer M6 6.6 X 18 X 1.6 £1.46
To Basket
13 112154510/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M6 Uni7474 Acc.6S £1.46
To Basket
14 325785133/5 - Castel / Twincut / Lawnking Seat Support £65.62
To Basket
15 112791011/0 - Castel / Twincut / Lawnking Hex-Head Screw M6 X 14 Uni 5739 8.8 Wz £1.34
To Basket
16 112292102/0 - Castel / Twincut / Lawnking Flanged Hexagonal Nut M6 £1.61
To Basket
17 325650065/1 - Castel / Twincut / Lawnking Reinforcing Bracket £8.83
To Basket
18 112791011/0 - Castel / Twincut / Lawnking Hex-Head Screw M6 X 14 Uni 5739 8.8 Wz £1.34
To Basket
19 112292102/0 - Castel / Twincut / Lawnking Flanged Hexagonal Nut M6 £1.61
To Basket
20 325650067/1 - Castel / Twincut / Lawnking Reinforcing Plate £5.63
To Basket
21 112360420/0 - Castel / Twincut / Lawnking Nut £1.46
To Basket
22 325785137/1 - Castel / Twincut / Lawnking Support Plate £33.48
To Basket
23 112791011/0 - Castel / Twincut / Lawnking Hex-Head Screw M6 X 14 Uni 5739 8.8 Wz £1.34
To Basket
24 112292102/0 - Castel / Twincut / Lawnking Flanged Hexagonal Nut M6 £1.61
To Basket
25 125580019/1 - Castel / Twincut / Lawnking Belt Guide £3.76
To Basket
26 112292102/0 - Castel / Twincut / Lawnking Flanged Hexagonal Nut M6 £1.61
To Basket
34 125430238/1 - Castel / Twincut / Lawnking Spring £3.88
To Basket
35 112731580/0 - Castel / Twincut / Lawnking Self-Tap Screw Te 4.8 X 9.5 C15 Bz £1.46
To Basket
36 112293200/0 - Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S £1.46
To Basket
37 112793102/0 - Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8 £1.46
To Basket
38 112293201/0 - Castel / Twincut / Lawnking Flanged Hexagon Nut M8 £1.61
To Basket
61 382650041/1 - Castel / Twincut / Lawnking Central Stiffening £42.01
To Basket
62 112792611/0 - Castel / Twincut / Lawnking Screw Te M8 X 16 Uni 5739 Acc.8.8 £1.46
To Basket
63 112521330/0 - Castel / Twincut / Lawnking Washer M6 6.4 X 12 X 1.6 £1.46
To Basket
64 112293201/0 - Castel / Twincut / Lawnking Flanged Hexagon Nut M8 £1.61
To Basket
65 112731350/0 - Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X19 Uni 6949 C15 £1.46
To Basket
66 122167840/0 - Castel / Twincut / Lawnking Spacer £1.46
To Basket
67 112691200/0 - Castel / Twincut / Lawnking Hex-Head Screw M8 X 45 Uni 5737 8.8 £1.61
To Basket
68 112293201/0 - Castel / Twincut / Lawnking Flanged Hexagon Nut M8 £1.61
To Basket
71 125430205/1 - Castel / Twincut / Lawnking Seat Shock Absorber Spring £5.63
To Basket
73 125943001/1 - Castel / Twincut / Lawnking Screw £1.87
To Basket
74 112293201/0 - Castel / Twincut / Lawnking Flanged Hexagon Nut M8 £1.61
To Basket
75 112523070/0 - Castel / Twincut / Lawnking Washer M8 8.5 X 32 X 2.5 £1.46
To Basket
77 382774305/0 - Castel / Twincut / Lawnking Seat Support Bracket £11.11
To Basket
78 112792611/0 - Castel / Twincut / Lawnking Screw Te M8 X 16 Uni 5739 Acc.8.8 £1.46
To Basket
79 112293201/0 - Castel / Twincut / Lawnking Flanged Hexagon Nut M8 £1.61
To Basket
80 325785149/2 - Castel / Twincut / Lawnking Fixed Seat Support £25.31
To Basket
81 125430203/1 - Castel / Twincut / Lawnking Spring £3.22
To Basket
82 112731580/0 - Castel / Twincut / Lawnking Self-Tap Screw Te 4.8 X 9.5 C15 Bz £1.46
To Basket
83 122524970/2 - Castel / Twincut / Lawnking Seat Fulcrum Pin £1.80
To Basket
84 112155010/0 - Castel / Twincut / Lawnking Self-Locking Nut M8 A-Lok Acc.6S £2.02
To Basket
85 325785147/2 - Castel / Twincut / Lawnking Moving Seat Support £38.83
To Basket
86 325318109/1 - Castel / Twincut / Lawnking Stop Lever £4.28
To Basket
87 125510000/0 - Castel / Twincut / Lawnking Pin £1.34
To Basket
88 125430202/1 - Castel / Twincut / Lawnking Spring £1.61
To Basket
89 112604897/0 - Castel / Twincut / Lawnking Starlock Washer D=5 £1.46
To Basket
90 125430223/2 - Castel / Twincut / Lawnking Seat Lifting Spring £5.89
To Basket
91 112789000/0 - Castel / Twincut / Lawnking Hex-Head Screw M5 X 12 Uni 5739 8.8 £1.46
To Basket
92 112154330/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M5 Uni7474 Acc.6S £1.46
To Basket
93 325060033/0 - Castel / Twincut / Lawnking Seat Switch Cam £9.28
To Basket
94 112815050/0 - Castel / Twincut / Lawnking Screw M5 X 25 £1.46
To Basket
95 112521320/0 - Castel / Twincut / Lawnking Washer M5 5.3 X 10 X 1 Uni 6592 £1.46
To Basket
96 112154330/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M5 Uni7474 Acc.6S £1.46
To Basket
97 325755025/2 - Castel / Twincut / Lawnking Seat Switch Support £5.63
To Basket
98 112735110/0 - Castel / Twincut / Lawnking Flanged Self-Tap Screw 4.8 X 13 £1.46
To Basket
99 112437502/0 - Castel / Twincut / Lawnking Fixing Plate £1.46
To Basket
100 325430255/0 - Castel / Twincut / Lawnking Seat Protection Spring £3.76
To Basket
101 112735120/0 - Castel / Twincut / Lawnking Flanged Self-Tap Screw 6.3 X 16 £1.46
To Basket
102 125430235/0 - Castel / Twincut / Lawnking Spring £3.61
To Basket
103 325755016/0 - Castel / Twincut / Lawnking Plate (Blade Switch) £1.87
To Basket
104 112789000/0 - Castel / Twincut / Lawnking Hex-Head Screw M5 X 12 Uni 5739 8.8 £1.46
To Basket
105 112154330/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M5 Uni7474 Acc.6S £1.46
To Basket
106 125486020/0 - Castel / Twincut / Lawnking Lever Guide Shoe Tc £1.87
To Basket
107 112789000/0 - Castel / Twincut / Lawnking Hex-Head Screw M5 X 12 Uni 5739 8.8 £1.46
To Basket
108 112154330/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M5 Uni7474 Acc.6S £1.46
To Basket
109 125580014/0 - Castel / Twincut / Lawnking Blade Belt Guide £7.68
110 112523060/0 - Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593 £1.46
To Basket
111 112360425/0 - Castel / Twincut / Lawnking Square Nut M8 £1.74
To Basket
112 125580022/0 - Castel / Twincut / Lawnking Belt Guide £4.43
To Basket
113 125160032/0 - Castel / Twincut / Lawnking Spacer £1.87
To Basket
114 125430241/0 - Castel / Twincut / Lawnking Spring £2.54
To Basket
115 112689515/0 - Castel / Twincut / Lawnking Hex-Head Screw M6 X 45 £1.46
To Basket
116 112523050/0 - Castel / Twincut / Lawnking Washer M6 6.6 X 24 X 2 £1.46
To Basket
117 112154510/0 - Castel / Twincut / Lawnking Low Self-Locking Nut M6 Uni7474 Acc.6S £1.46
To Basket
