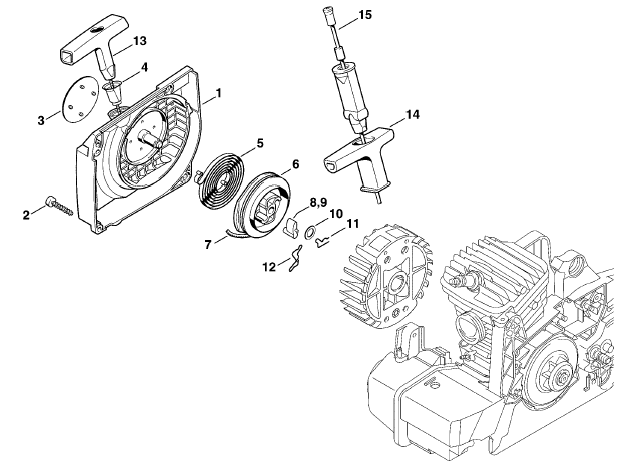

Stihl MS 290 Chainsaw (MS290) Parts Diagram, Fan housing with rewind starter

Look at the diagram and find parts that fit a Stihl MS 290 Chainsaw, or refer to the list below.

All parts that fit a MS 290 Chainsaw


Cylinder MS 290
Cylinder MS 290
Engine housing
Engine housing
Oil pump - Clutch
Oil pump - Clutch
Chain brake - Muffler
Chain brake - Muffler
Ignition system
Ignition system
Fan housing with rewind starter
Fan housing with rewind starter
Handle housing
Handle housing

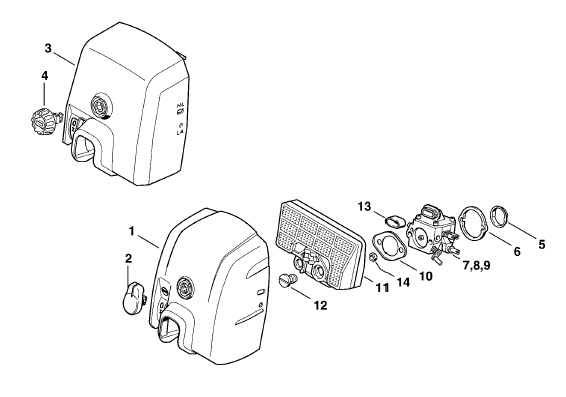

Carburetor box cover-Air filter
Carburetor box cover-Air filter

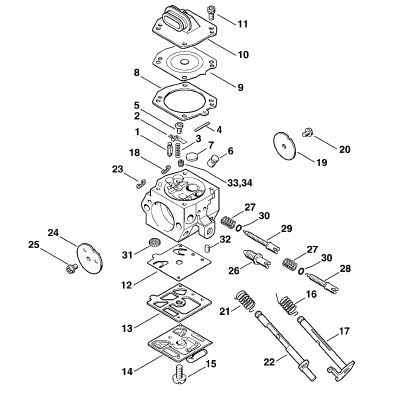

Carburetor HD-19B
Carburetor HD-19B
Carb. HD-18B-HD-21B (only USA)
Carb. HD-18B-HD-21B (only USA)

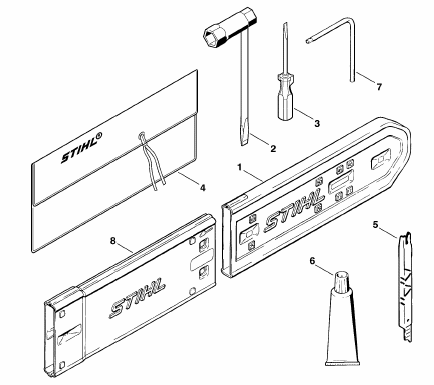

Tools - Extras
Tools - Extras


Stihl MS 290 Chainsaw (MS290) Parts Diagram, Fan housing with rewind starter
# Part Price
1 1127 080 1802 - Stihl Fan housing £49.16
To Basket
2 9075 478 4155 - Stihl Pan head self-tapping screw IS-D5x24 £0.84
To Basket
3 1127 967 1501 - Stihl Model plate MS 290 £4.39
To Basket
4 1110 084 9102 - Stihl Bushing £1.87
To Basket
5 1129 190 0601 - Stihl Rewind spring £10.48
To Basket
6 1128 195 0400 - Stihl Rope rotor £8.45
To Basket
7 1113 195 8200 - Stihl Starter rope 3.5mm x 96cm £3.85
To Basket
8 1125 195 7200 - Stihl Pawl £2.17
To Basket
10 0000 958 0923 - Stihl Washer £1.04
To Basket
11 1118 195 3500 - Stihl Spring £1.03
To Basket
13 1121 195 3400 - Stihl Handle £3.80
To Basket
14 1128 190 3400 - Stihl Starter grip ElastoStart 3.5mm £19.16
To Basket
15a 1128 190 2900 - Stihl Starter rope 3.5 x 945mm £3.85
To Basket
15b 0000 930 2267 - Stihl Elastostart cord 3.5mm x 28m £89.60
To Basket
17 1127 080 2108 - Stihl Fan housing with rewind £75.32
To Basket
18 0000 930 2203 - Stihl Starter cord 3.5mm x 30.5m £40.67
To Basket
