Stihl MS 192 Chainsaw (MS192TC-EZ) Parts Diagram, Rewind Starter ErgoStart

Look at the diagram and find parts that fit a Stihl MS 192 Chainsaw, or refer to the list below.

All parts that fit a MS 192 Chainsaw

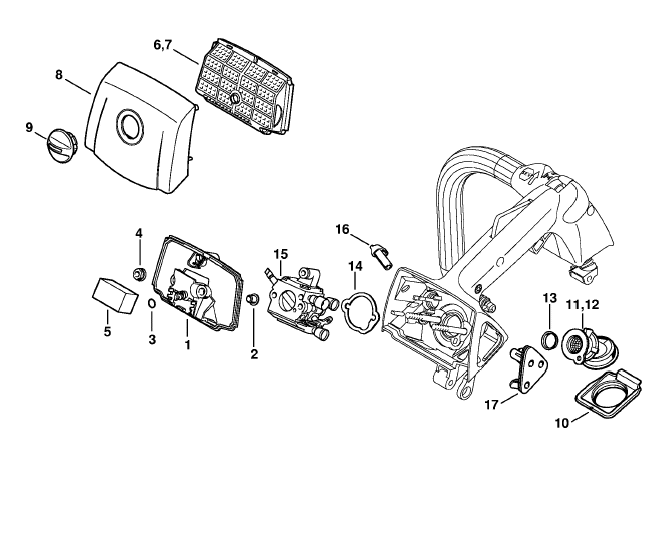

Air Filter
Air Filter

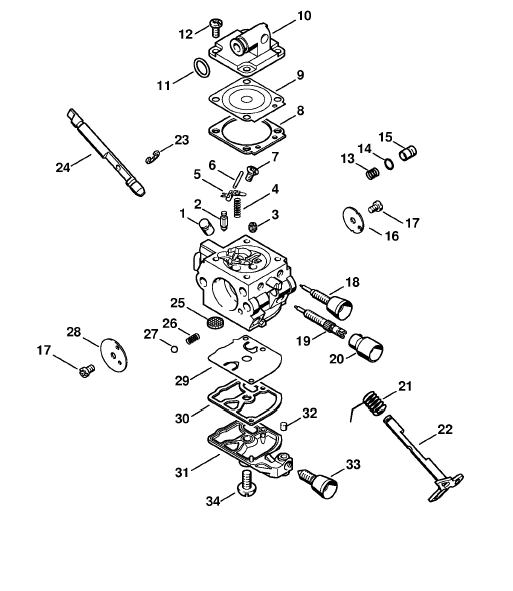

Carburetor C1Q-S125 BR
Carburetor C1Q-S125 BR

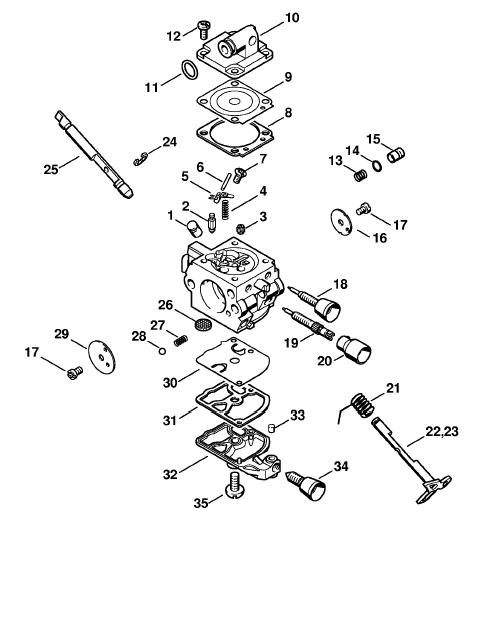

Carburetor C1Q-S134
Carburetor C1Q-S134

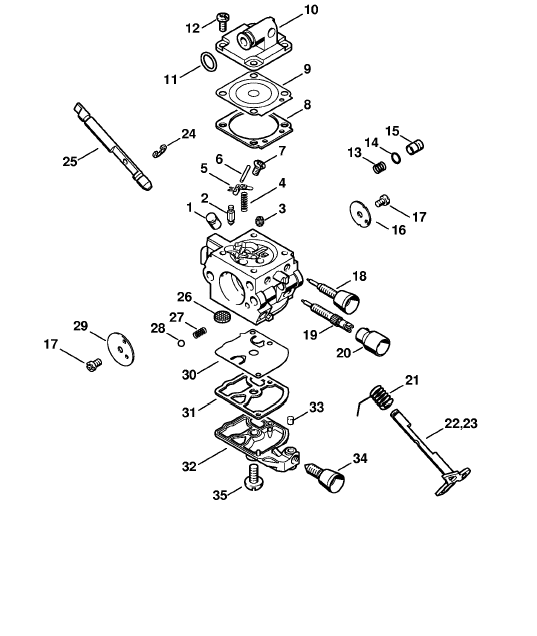

Carburetor C1Q-S135
Carburetor C1Q-S135

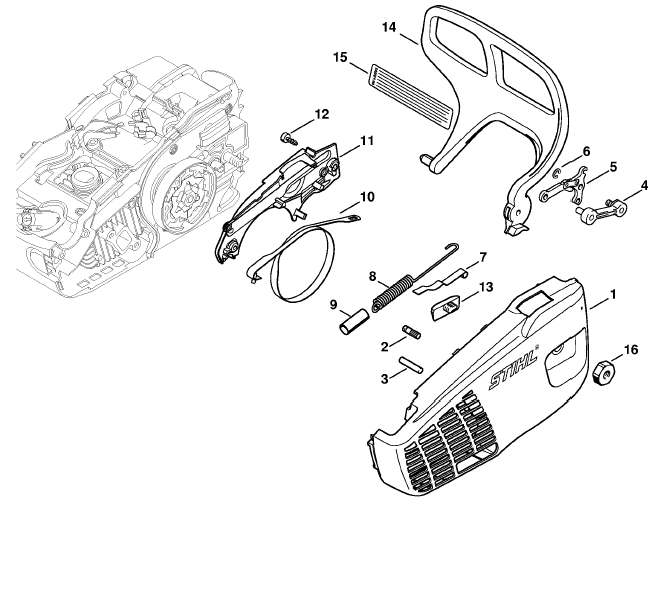

Chain Sprocket Cover
Chain Sprocket Cover

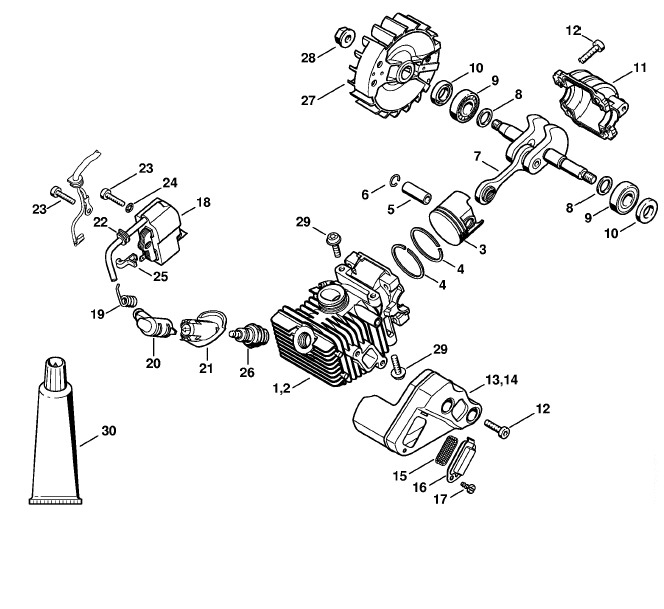

Cylinder with Piston
Cylinder with Piston

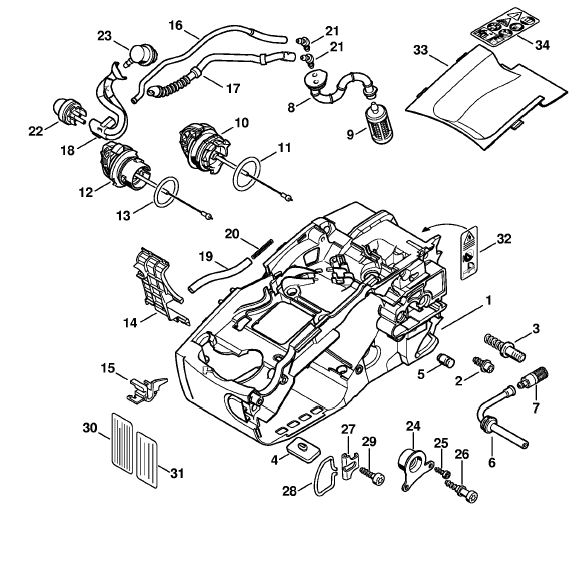

Engine Housing
Engine Housing

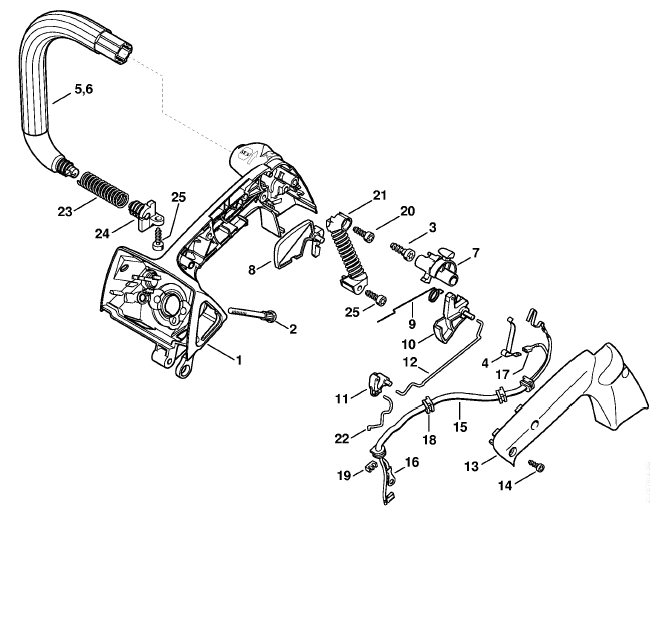

Handle Housing
Handle Housing

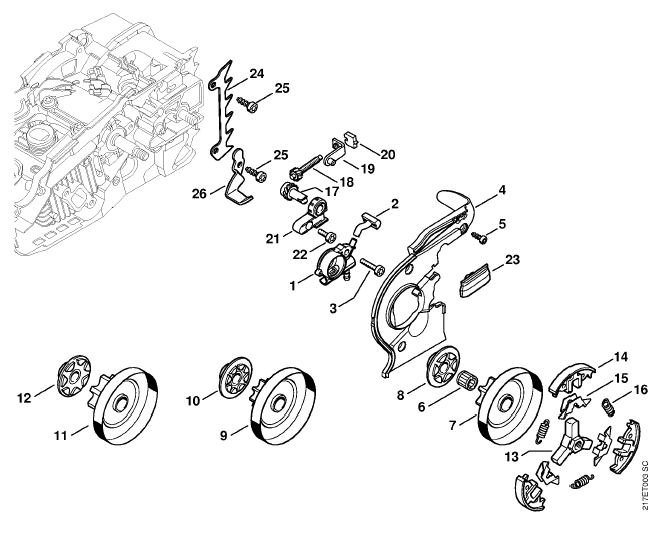

Oil Pump
Oil Pump
Rewind Starter ErgoStart
Rewind Starter ErgoStart

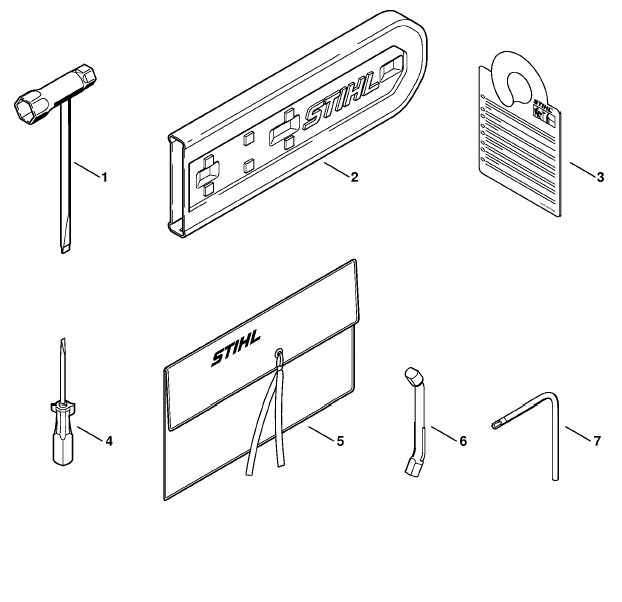

Tools
Tools

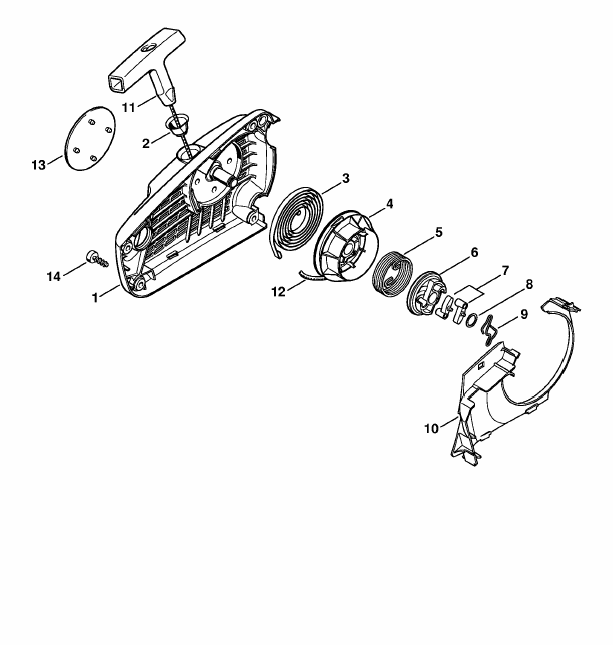

Stihl MS 192 Chainsaw (MS192TC-EZ) Parts Diagram, Rewind Starter ErgoStart
# Part Price
1 11370801809 - Stihl Fan housing £14.78
2 1110 084 9102 - Stihl Bushing £1.87
To Basket
3 1123 190 0600 - Stihl Rewind spring £8.57
To Basket
4 1137 190 1000 - Stihl Rope rotor £11.16
To Basket
5 1137 195 3501 - Stihl Spring £2.90
To Basket
6 1137 190 1000 - Stihl Rope rotor £11.16
To Basket
7 1123 195 7200 - Stihl Pawl £2.17
To Basket
8 0000 958 0923 - Stihl Washer £1.04
To Basket
9 1128 195 3500 - Stihl Spring £1.04
To Basket
10 1137 084 7800 - Stihl Segment £5.66
To Basket
11 1121 195 3400 - Stihl Handle £3.80
To Basket
12 0000 195 8204 - Stihl Starter rope 2.7x800mm £2.47
To Basket
14 9074 477 4130 - Stihl Pan head self-tapping screw IS-P5x16 £0.84
To Basket
