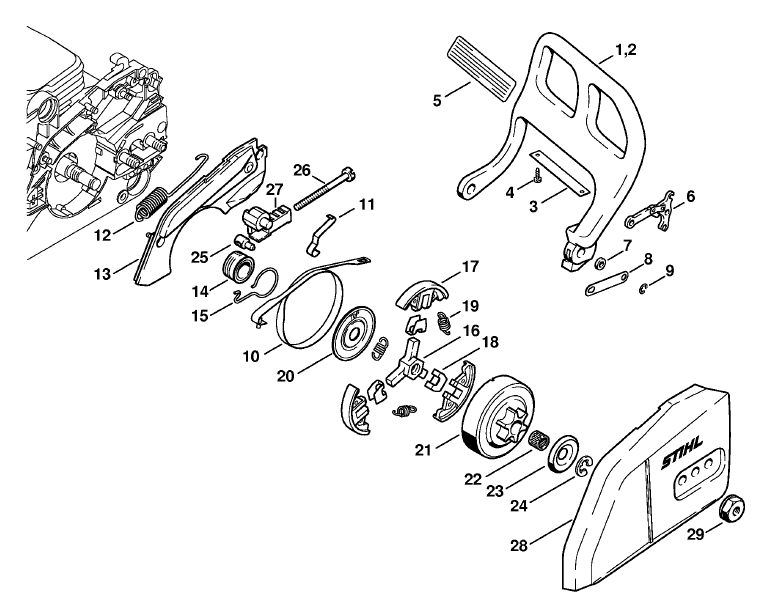

Stihl MS 170 Chainsaw (MS170Z) Parts Diagram, Hand guard

#	Part	Price
1	1130 792 9100 - Stihl Hand guard	£29.46	To Basket
5	0000 967 3630 - Stihl Instruction label kickback	£2.09	To Basket
6	1128 160 5000 - Stihl Lever	£9.49	To Basket
7	0000 958 0521 - Stihl Washer	£1.04	To Basket
8	1123 162 5800 - Stihl Strap	£1.58	To Basket
9	9460 624 0400 - Stihl E-clip DIN6799-4	£0.14	To Basket
10	1123 160 5400 - Stihl Brake band	£7.21	To Basket
11	1123 162 7800 - Stihl Flat spring	£1.26	To Basket
12	1123 162 7900 - Stihl Tension spring	£2.29	To Basket
13	1130 021 1100 - Stihl Cover	£3.47	To Basket
14	1123 640 7102 - Stihl Worm	£7.70	To Basket
15	1123 647 2400 - Stihl Spring	£1.26	To Basket
16	1123 160 2050 - Stihl Clutch	£35.47	To Basket
17	1129 162 0800 - Stihl Clutch shoe	£4.98	To Basket
18	1127 162 3000 - Stihl Retainer	£1.28	To Basket
19	0000 997 5515 - Stihl Tension spring	£0.79	To Basket
20	1121 162 1001 - Stihl Cover washer	£2.92	To Basket
21	1123 640 2003 - Stihl Chain sprocket 3/8'' Picco 6T	£21.46	To Basket
22	9512 933 2260 - Stihl Needle cage 10x13x10	£6.61	To Basket
23	0000 958 1022 - Stihl Washer 27mm	£1.46	To Basket
24	9460 624 0801 - Stihl E-clip DIN6799-8x1.3	£0.28	To Basket
25	1120 664 1500 - Stihl Tensioning nut	£1.25	To Basket
26	1123 664 1605 - Stihl Adjusting screw	£1.67	To Basket
27	1123 664 2205 - Stihl Cover	£2.12	To Basket
28	1123 640 1704 - Stihl Chain sprocket cover	£21.54	To Basket
29	0000 955 0801 - Stihl Nut	£2.04	To Basket
