Look at the diagram and find parts that fit a Stihl HT 100 Pole Pruner, or refer to the list below.

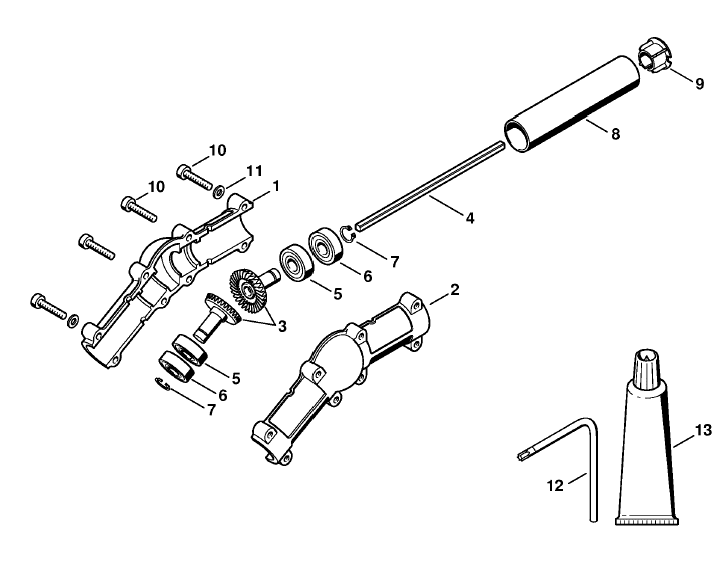

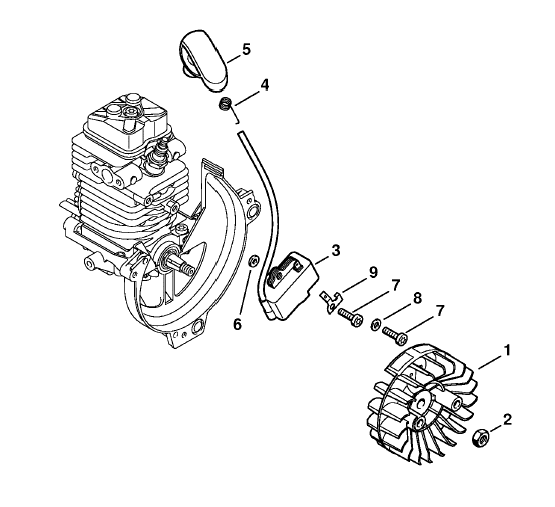

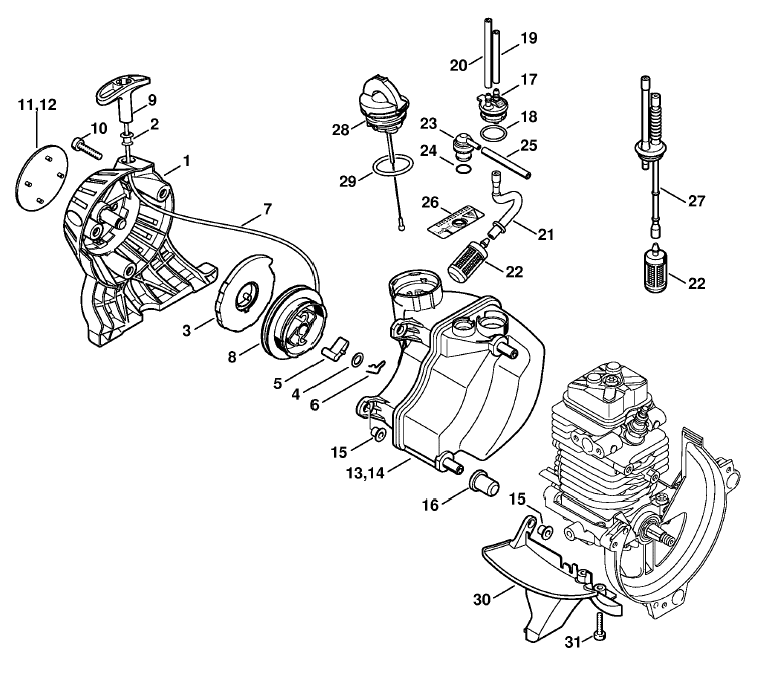

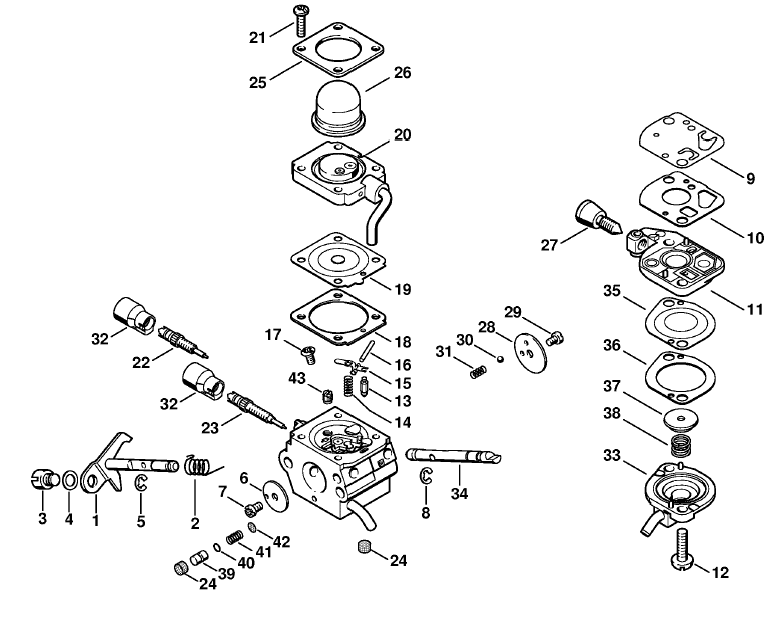

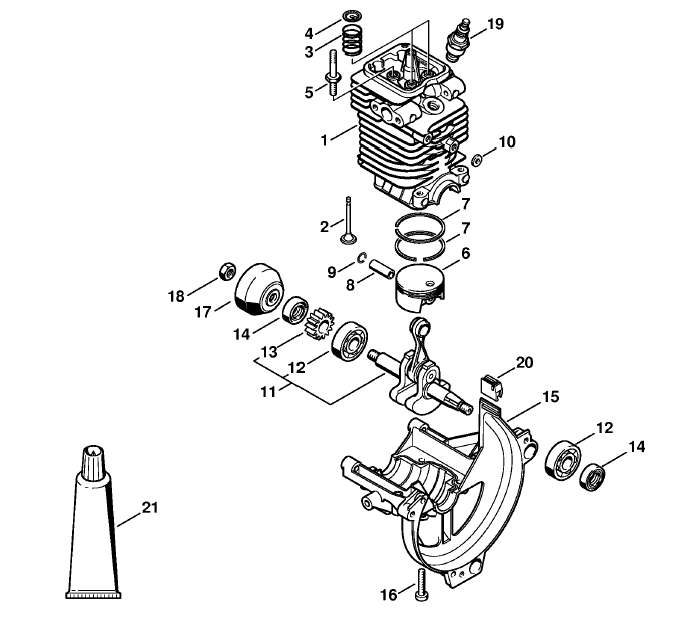

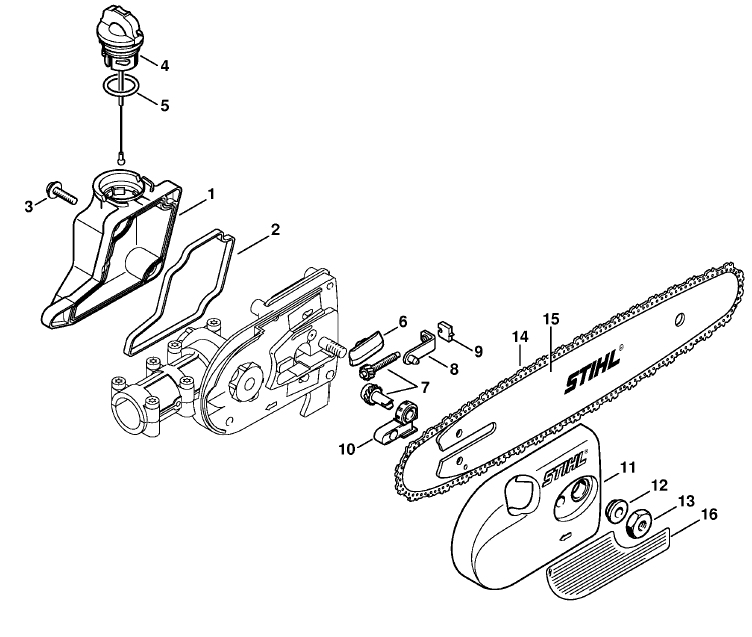

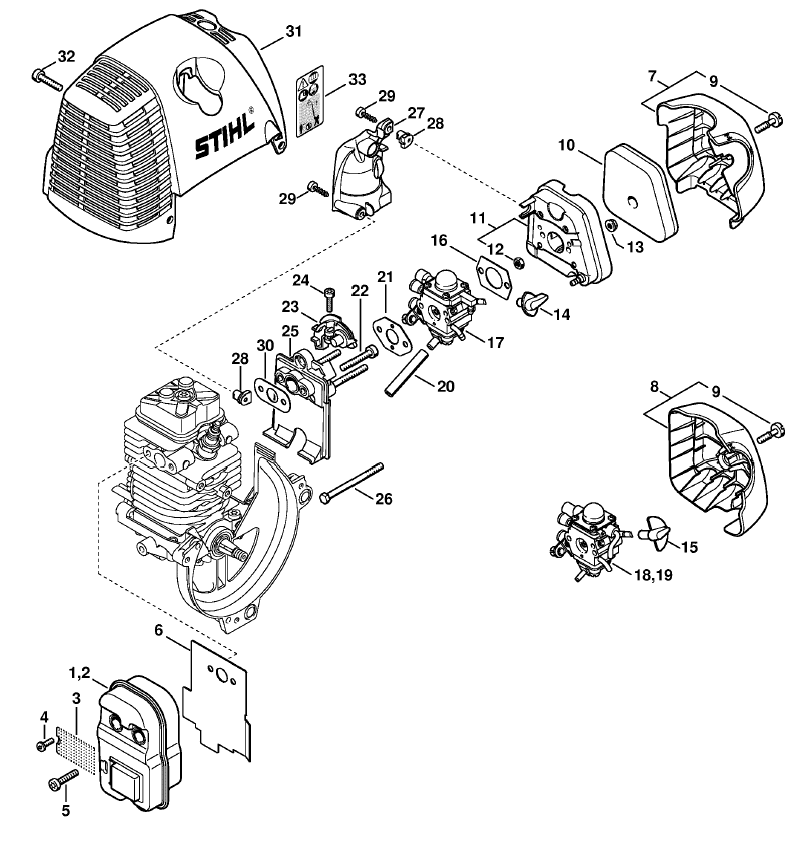

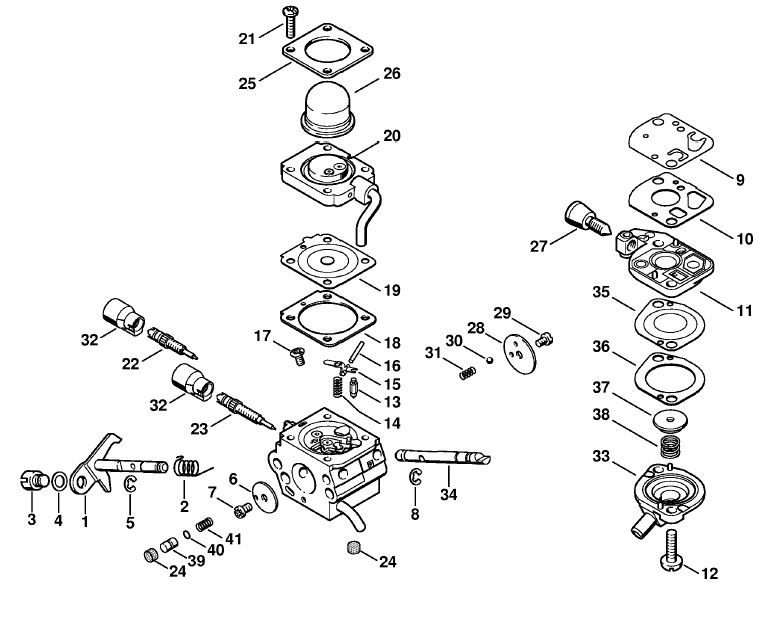

All Parts for HT 100 Pole Pruner

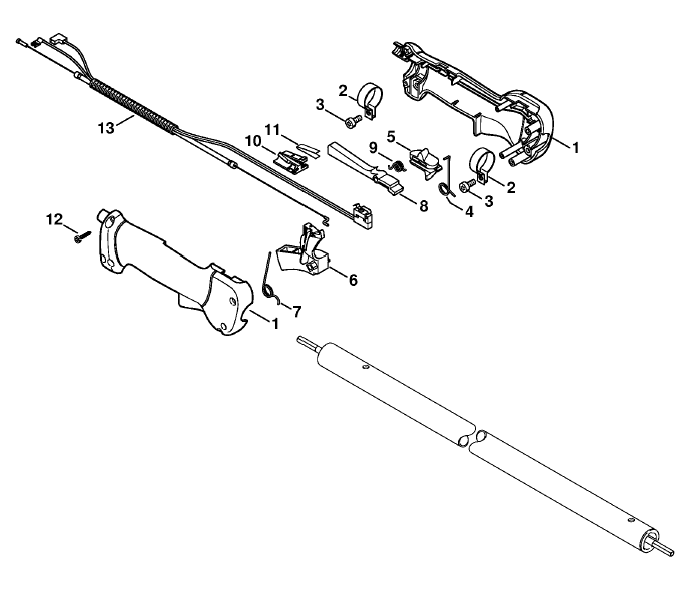

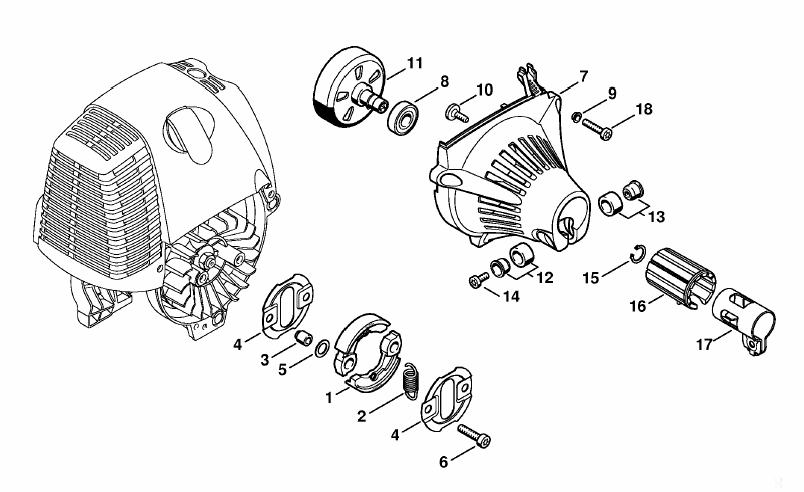

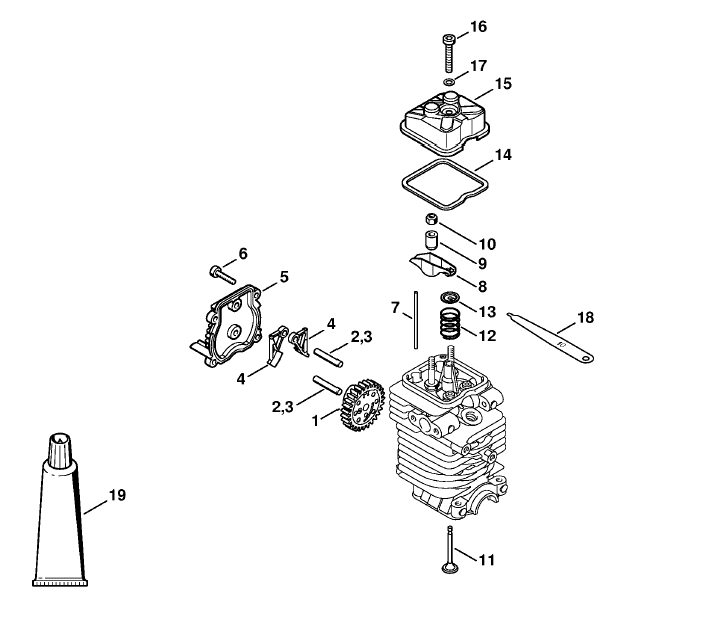

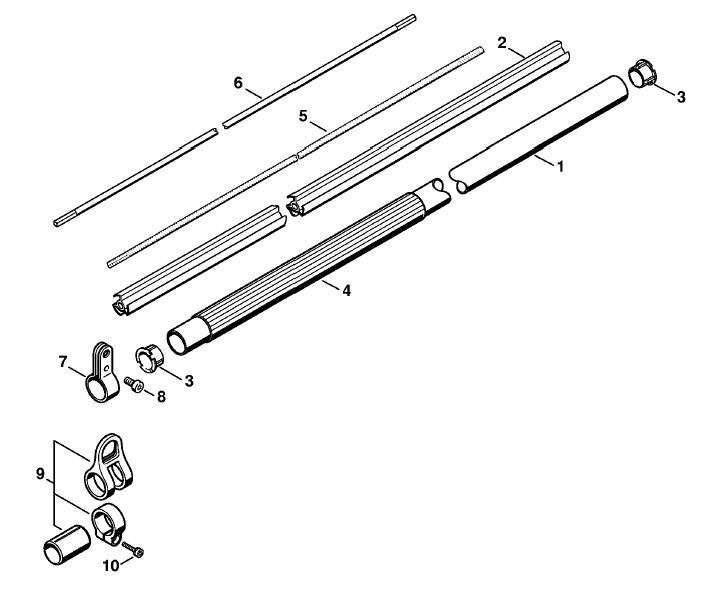

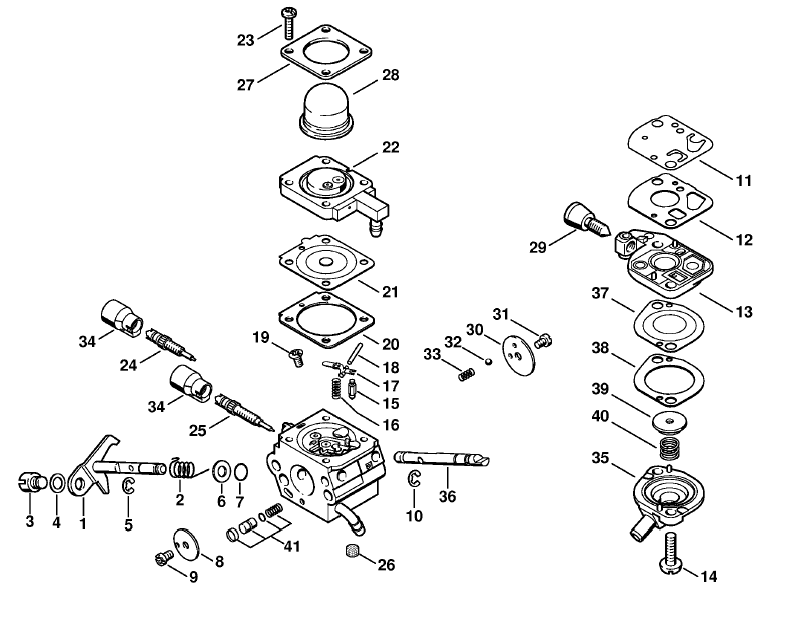

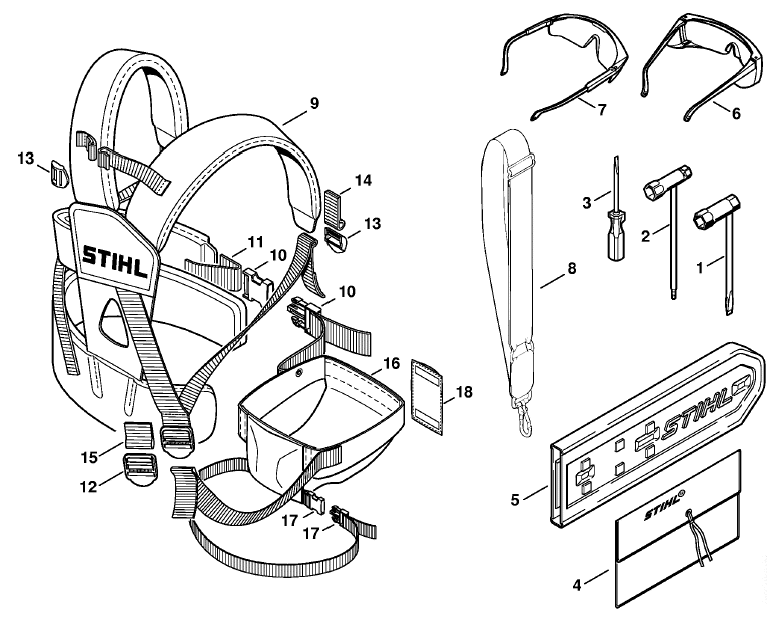

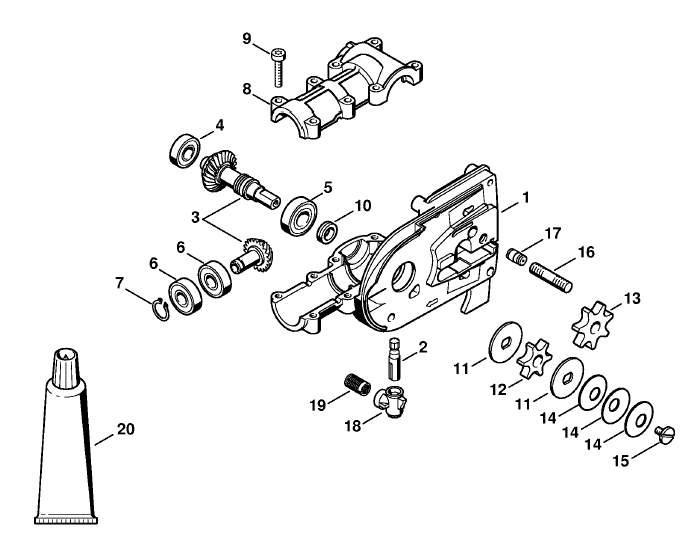

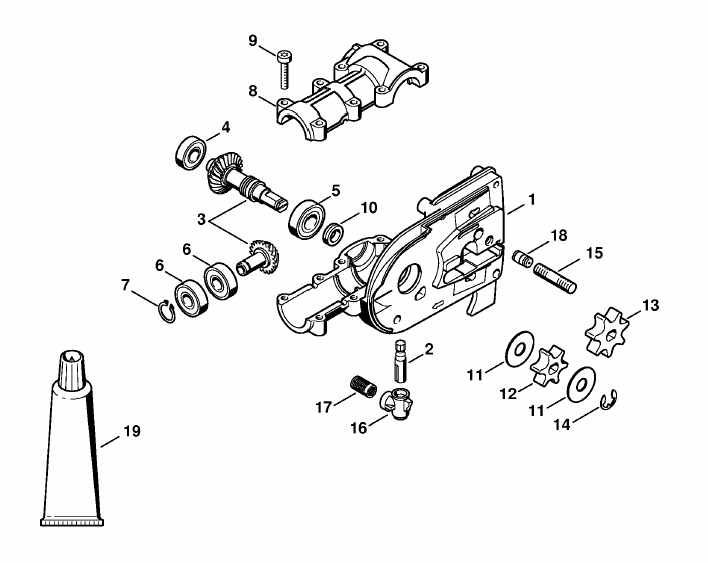

Stihl HT 100 Pole Pruner (HT100) Parts Diagram, Gear head

#	Part	Price
1	4182 641 0300 Stihl Gear housing	£100.63	Stihl Gear housing £100.63 P/N: 4182 641 0300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	4138 640 3200 Stihl Oil pump	£26.22	Stihl Oil pump £26.22 P/N: 4138 640 3200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	4138 640 7303 Stihl Set of pinions 1.27	£131.10	Stihl Set of pinions 1.27 £131.10 P/N: 4138 640 7303, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	9503 003 9860 Stihl Grooved ball bearing DIN625-609-2RS	£12.53	Stihl Grooved ball bearing DIN625-609-2RS £12.53 P/N: 9503 003 9860, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	9503 003 5190 Stihl Grooved ball bearing 6001-C-2HRS-C3	£13.91	Stihl Grooved ball bearing 6001-C-2HRS-C3 £13.91 P/N: 9503 003 5190, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9503 003 5030 Stihl Grooved ball bearing DIN625-6000-2RS	£13.91	Stihl Grooved ball bearing DIN625-6000-2RS £13.91 P/N: 9503 003 5030, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	9455 621 0850 Stihl Circlips DIN471-10x1	£0.70	Stihl Circlips DIN471-10x1 £0.70 P/N: 9455 621 0850, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	4138 641 0400 Stihl Gearbox cover	£26.57	Stihl Gearbox cover £26.57 P/N: 4138 641 0400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	9022 371 1050 Stihl Spline screw IS-M5x25-12.9	£1.03	Stihl Spline screw IS-M5x25-12.9 £1.03 P/N: 9022 371 1050, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	4138 642 8200 Stihl Ring	£11.84	Stihl Ring £11.84 P/N: 4138 642 8200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	0000 958 0506 Stihl Washer	£1.73	Stihl Washer £1.73 P/N: 0000 958 0506, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	4138 642 1201 Stihl Chain sprocket 3/8"P 6 teeth	£8.98	Stihl Chain sprocket 3/8"P 6 teeth £8.98 P/N: 4138 642 1201, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	1206 642 1301 Stihl Chain sprocket 3/8'' Picco 7T	£15.64	Stihl Chain sprocket 3/8'' Picco 7T £15.64 P/N: 1206 642 1301, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	9460 624 0801 Stihl E-clip DIN6799-8x1.3	£0.35	Stihl E-clip DIN6799-8x1.3 £0.35 P/N: 9460 624 0801, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	0000 953 1402 Stihl Stud	£4.94	Stihl Stud £4.94 P/N: 0000 953 1402, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	4138 353 2700 Stihl Connecting piece	£2.65	Stihl Connecting piece £2.65 P/N: 4138 353 2700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	1117 647 6801 Stihl Filter	£3.00	Stihl Filter £3.00 P/N: 1117 647 6801, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	1128 640 9100 Stihl Valve	£4.60	Stihl Valve £4.60 P/N: 1128 640 9100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	0783 830 2000 Stihl Tube of sealant HT red 70ml		Stihl Tube of sealant HT red 70ml £18.52 P/N: 0783 830 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
20	0781 120 1118 Stihl Heavy duty gear grease 225g	£27.71	Stihl Heavy duty gear grease 225g £27.71 P/N: 0781 120 1118, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	4138 640 0120 Stihl Gear head		Stihl Gear head £307.45 P/N: 4138 640 0120, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
