Stihl FS 90 Brushcutter (FS90) Parts Diagram, Drive tube assembly

Look at the diagram and find parts that fit a Stihl FS 90 Brushcutter, or refer to the list below.

All parts that fit a FS 90 Brushcutter

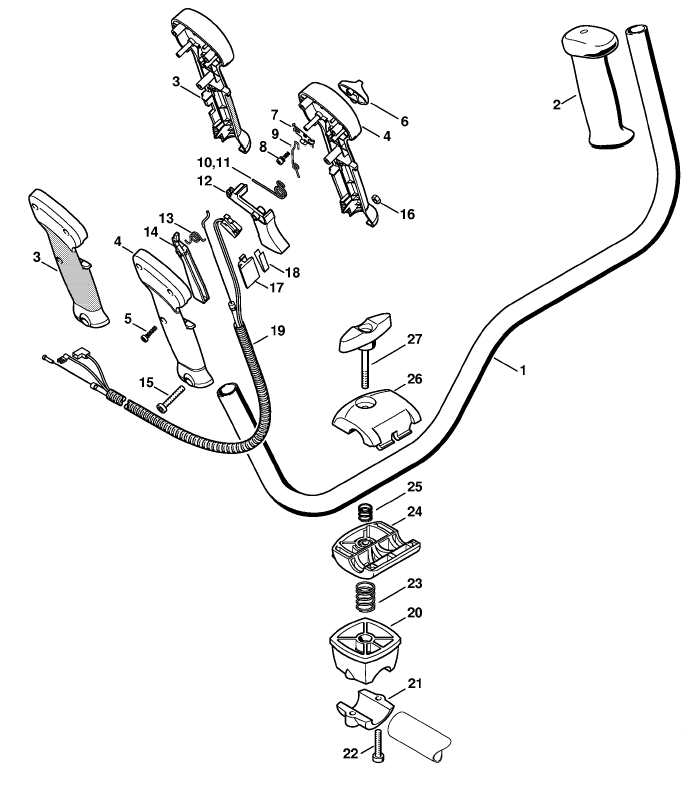

Bike handle
Bike handle

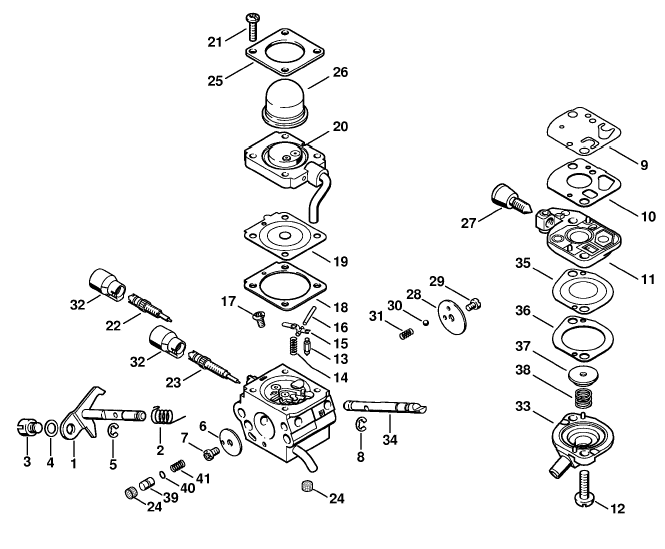

Carburetor C1Q-S110C
Carburetor C1Q-S110C

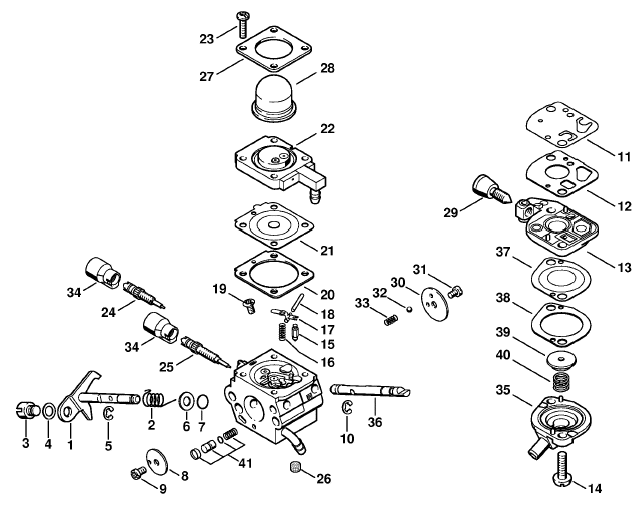

Carburetor C1Q-S131
Carburetor C1Q-S131

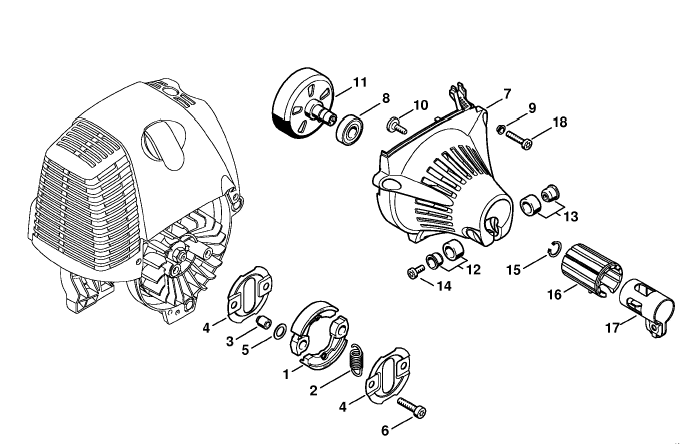

Clutch, Fan housing
Clutch, Fan housing

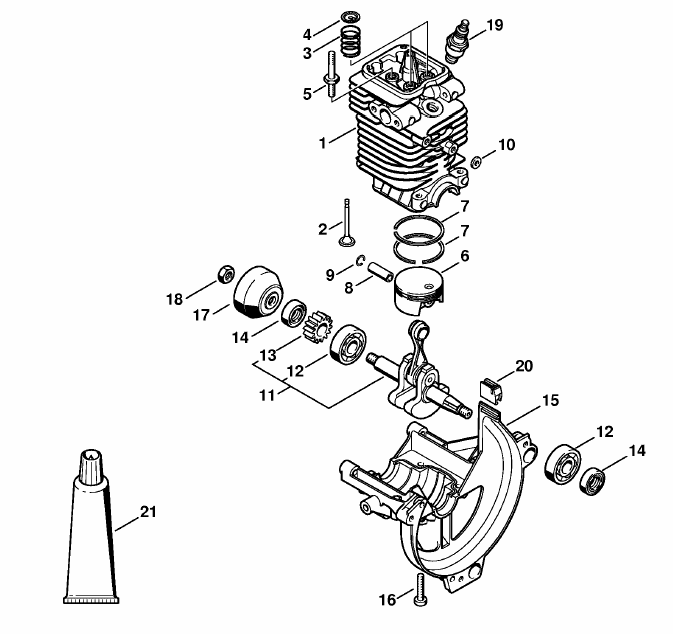

Cylinder, Engine pan
Cylinder, Engine pan

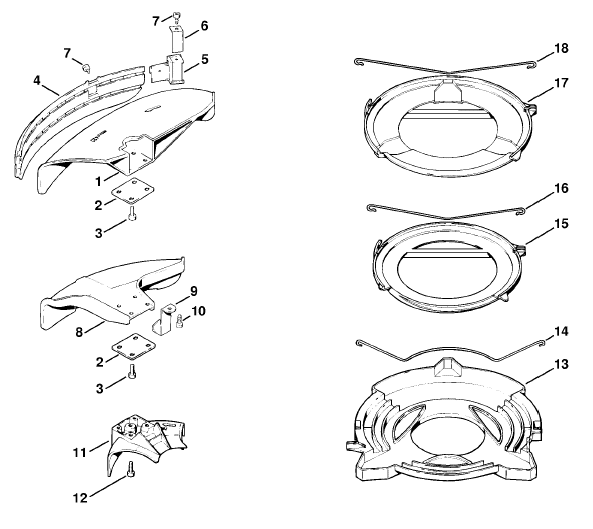

Deflector
Deflector
Drive tube assembly
Drive tube assembly

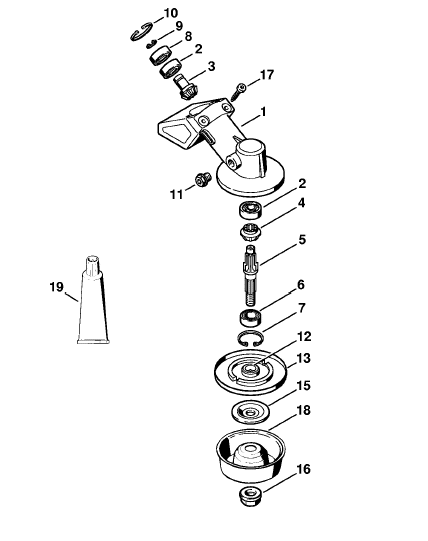

Gear head
Gear head

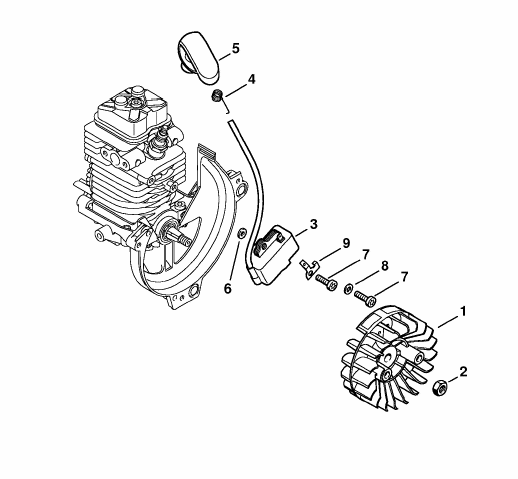

Ignition system
Ignition system

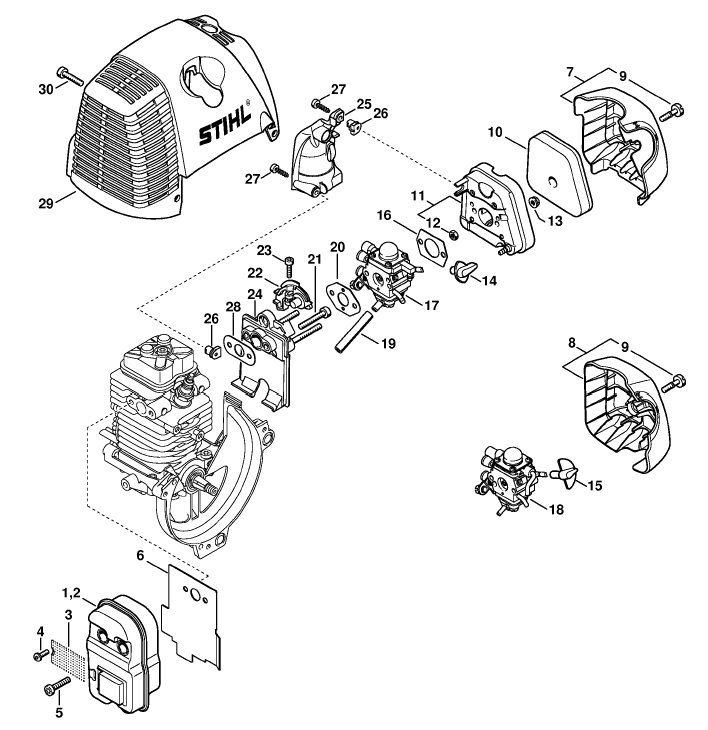

Muffler, Air filter
Muffler, Air filter

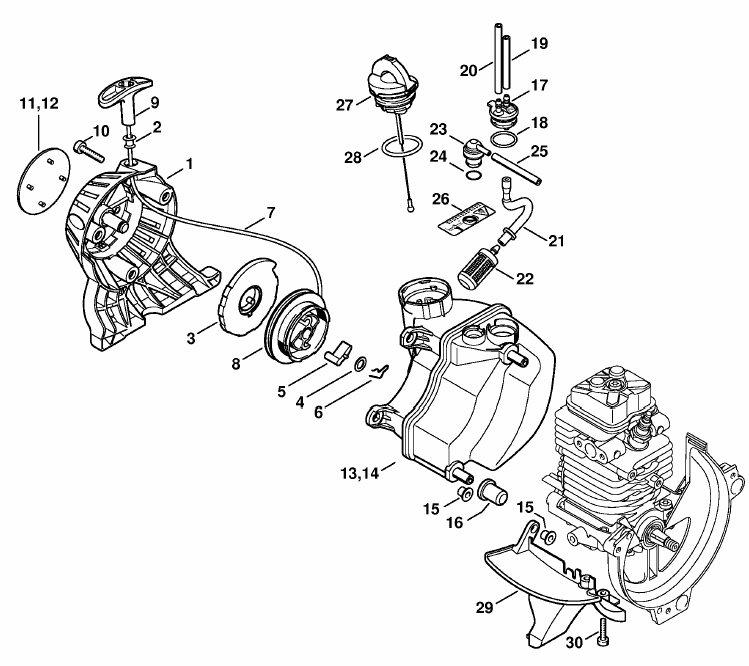

Rewind starter, Fuel tank
Rewind starter, Fuel tank

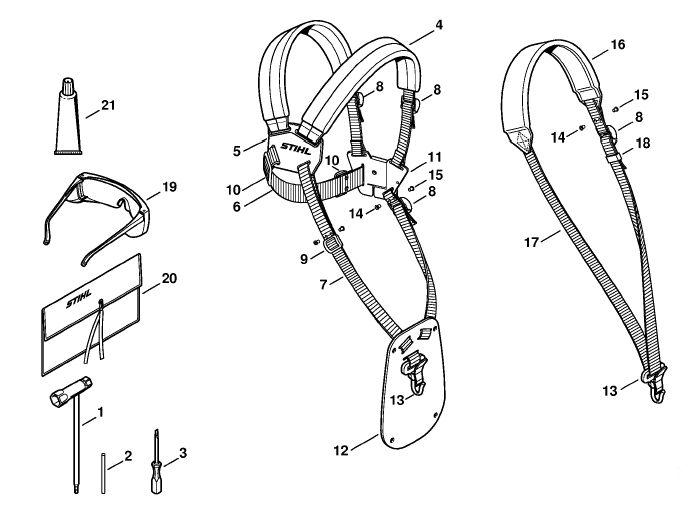

Tools, Extras
Tools, Extras

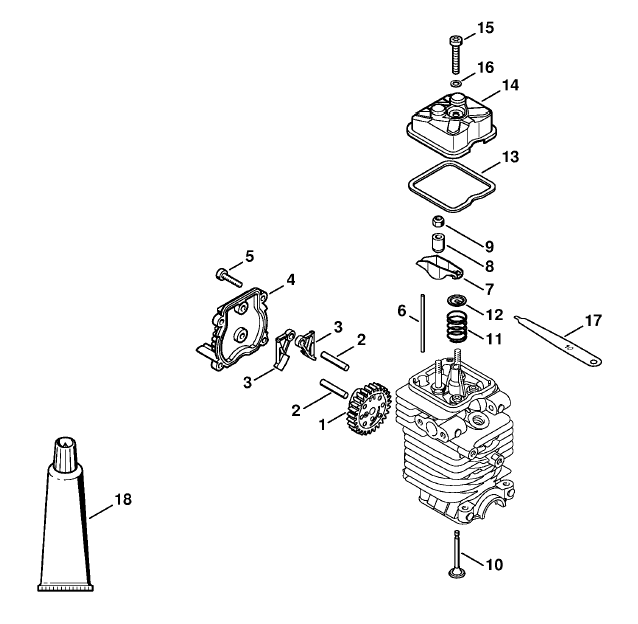

Valve timing gear
Valve timing gear

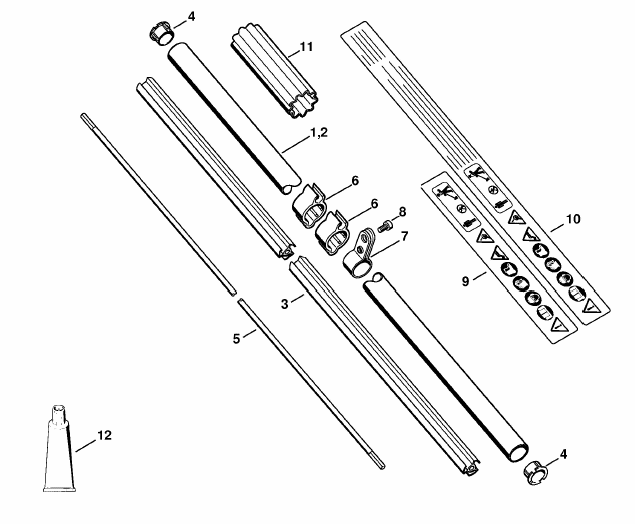

Stihl FS 90 Brushcutter (FS90) Parts Diagram, Drive tube assembly
# Part Price
1 4137 710 7136 - Stihl Drive tube assembly Dia 25.4 mm x 1,5 m / 1" x 58 7/8" £66.70
To Basket
2 4137 710 7100 - Stihl Drive tube assembly 25.4mm / 1" £64.56
To Basket
3 4137 711 7300 - Stihl Flexible liner 1455mm / 57 5/16" £12.43
To Basket
4 4137 711 2101 - Stihl Plug £0.67
To Basket
5 4137 711 3200 - Stihl Drive shaft £49.93
To Basket
6 0000 182 2100 - Stihl Support Dia 25.4mm £3.56
To Basket
7 4140 007 1006 - Stihl Hose clamp kit £9.11
To Basket
8 9022 341 1270 - Stihl Spline screw IS-M6x14 £0.84
To Basket
9 0000 967 7253 - Stihl Warning pictogram FS £2.09
To Basket
10 0000 967 3684 - Stihl Warning pictogram FS £1.69
11 0000 711 2500 - Stihl Sleeve £7.57
To Basket
12 0781 120 1110 - Stihl Multipurpose grease 225 g Tube £27.68
