Stihl FS 85 Brushcutter (FS85) Parts Diagram, R_-Handle

Look at the diagram and find parts that fit a Stihl FS 85 Brushcutter, or refer to the list below.

All parts that fit a FS 85 Brushcutter

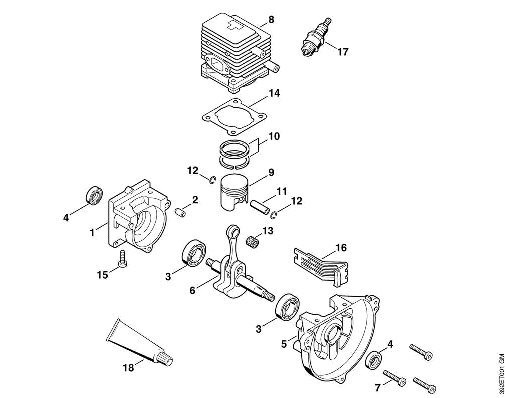

A-Crankcase, Cylinder
A-Crankcase, Cylinder

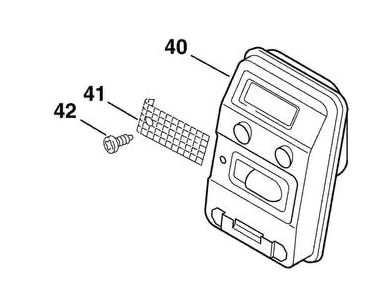

B_-Rewind starter, Muffler
B_-Rewind starter, Muffler

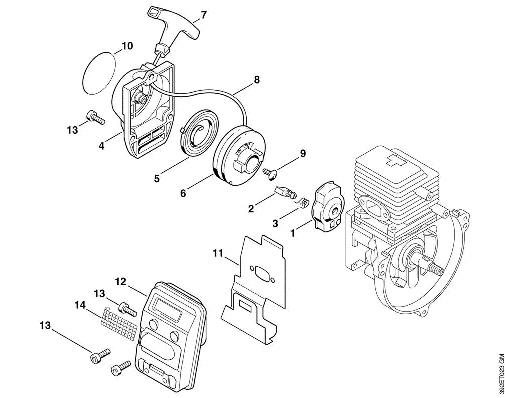

B-Rewind starter, Muffler
B-Rewind starter, Muffler
C_-Ignition system, Clutch
C_-Ignition system, Clutch
C-Ignition system, Clutch
C-Ignition system, Clutch
D_-Air filter, Fuel tank
D_-Air filter, Fuel tank

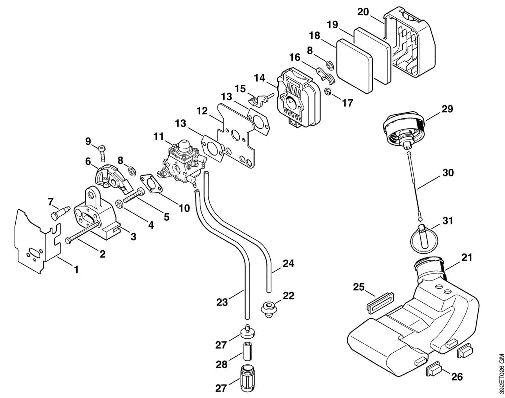

D-Air filter, Fuel tank
D-Air filter, Fuel tank

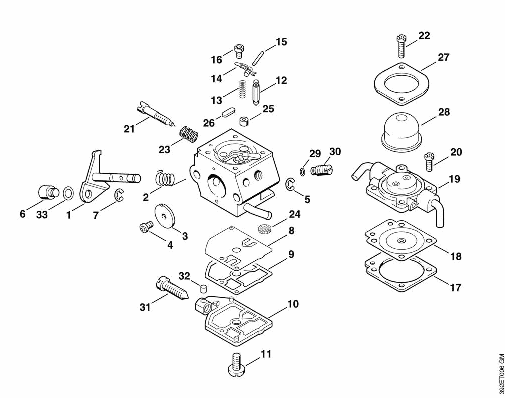

E-Carburetor C1Q-S28C, C1Q-S41A
E-Carburetor C1Q-S28C, C1Q-S41A
F_-Drive tube FS 75, Wrap around handle
F_-Drive tube FS 75, Wrap around handle

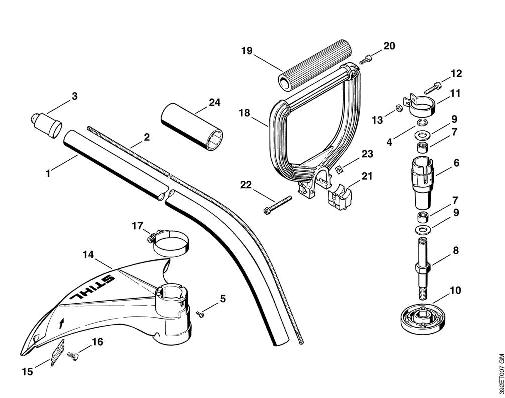

F-Drive tube FS 75, Wrap around handle
F-Drive tube FS 75, Wrap around handle

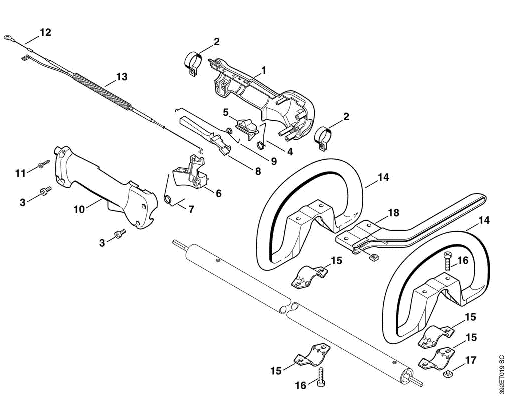

G-Handle
G-Handle

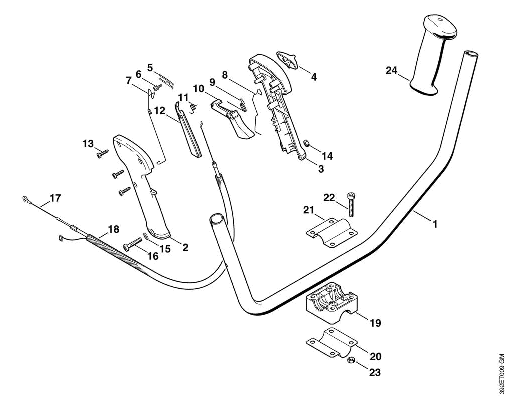

H-Two-handed handle bar
H-Two-handed handle bar

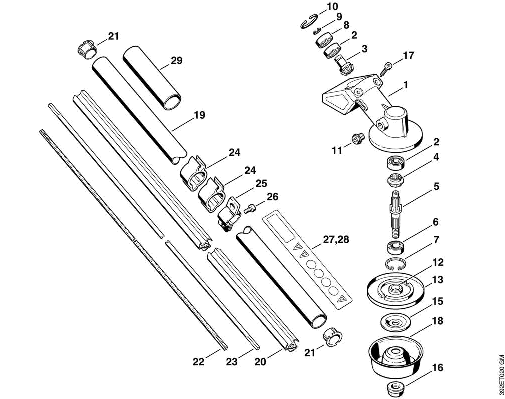

J-Gear head, Drive tube FS 80
J-Gear head, Drive tube FS 80
K-Cutting tools,Autocut mowing head
K-Cutting tools,Autocut mowing head

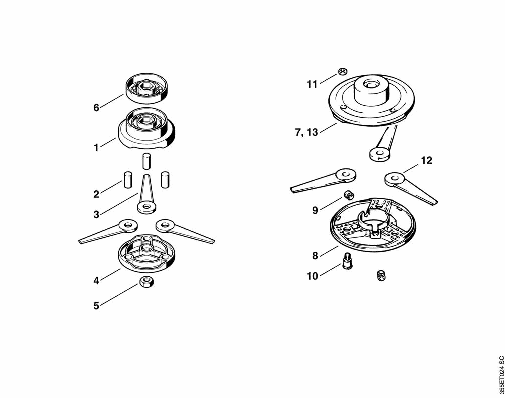

L-Cutting tools, Cutting head Polycut
L-Cutting tools, Cutting head Polycut
M_-Schneidwerkzeuge, Schutz
M_-Schneidwerkzeuge, Schutz
M-Schneidwerkzeuge, Schutz
M-Schneidwerkzeuge, Schutz
N-Cutting tools, Mowing head
N-Cutting tools, Mowing head

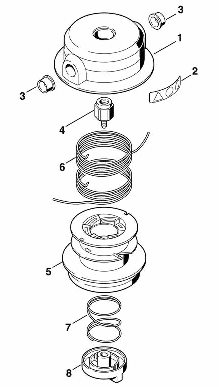

O-Trimcut head
O-Trimcut head
P-Cutting tools, Grass cutting blade
P-Cutting tools, Grass cutting blade

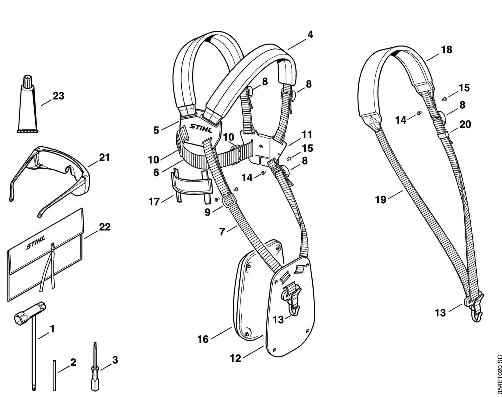

Q-Tools, Extras
Q-Tools, Extras
R_-Handle
R_-Handle

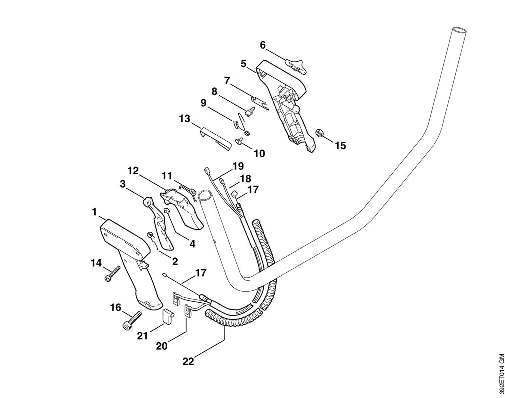

S_-Two-handed handle bar
S_-Two-handed handle bar
T_-Carburetor WT-447
T_-Carburetor WT-447
U_-Gear head FS 80, FS85
U_-Gear head FS 80, FS85
U-Gear head FS 80, FS85
U-Gear head FS 80, FS85

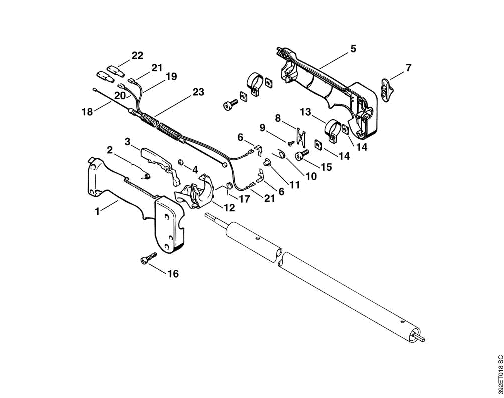

Stihl FS 85 Brushcutter (FS85) Parts Diagram, R_-Handle
# Part Price
1 4126 791 0821 - Stihl Handle moulding outer £14.65
To Basket
2 4126 182 4506 - Stihl Torsion spring £4.34
3 4126 182 0806 - Stihl Lockout lever £4.07
To Basket
4 4126 182 6210 - Stihl Collar screw £2.90
To Basket
5 4126 790 1102 - Stihl Handle Moulding Inner £19.51
6 4126 791 5300 - Stihl Connector Tag £1.62
7 4126 182 1705 - Stihl Slide control £3.53
To Basket
8 4126 182 4705 - Stihl Detent spring £1.02
9 4126 182 6205 - Stihl SCREW £1.72
10 4126 182 4505 - Stihl Torsion spring £1.26
To Basket
11 9417 003 7510 - Stihl NUT £0.56
12 4126 182 1007 - Stihl Throttle trigger £4.98
13 4133 791 9400 - Stihl Clamp £2.77
14 4126 792 6100 - Stihl Square washer £0.85
15 9039 488 0984 - Stihl Screw DIN 7500-M5x16 £0.92
To Basket
16 9074 478 3065 - Stihl Pan head self-tapping screw IS-4x19 £0.71
17 4126 182 4507 - Stihl HOOK ON SPRING £2.95
18 4133 180 1105 - Stihl Throttle cable £19.25
To Basket
150 4133 790 1301 - Stihl CONTROL HANDLE £106.69
152 4203 711 7201 - Stihl Hose 960mm / 37 13/16" £3.16
To Basket
153 4119 790 1302 - Stihl Control handle £31.68
