Stihl FS 450 Clearing Saw (FS450) Parts Diagram, K-Gear head

Look at the diagram and find parts that fit a Stihl FS 450 Clearing Saw, or refer to the list below.

All parts that fit a FS 450 Clearing Saw

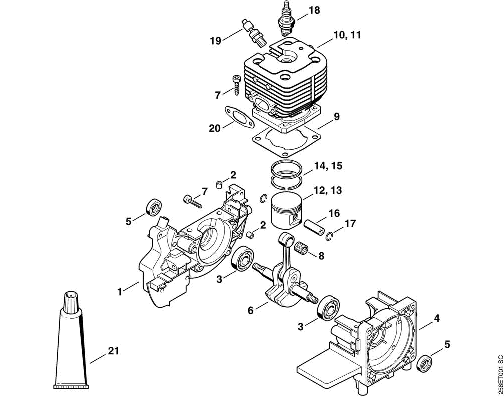

A-Crankcase
A-Crankcase

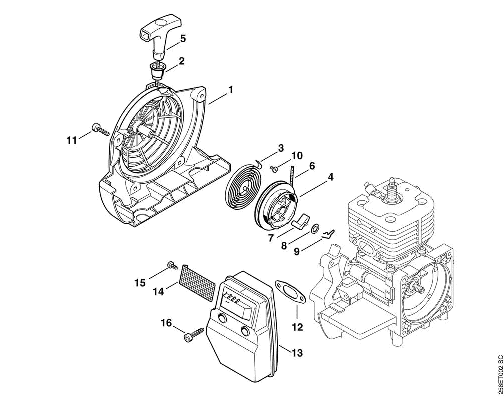

B-Rewind starter
B-Rewind starter

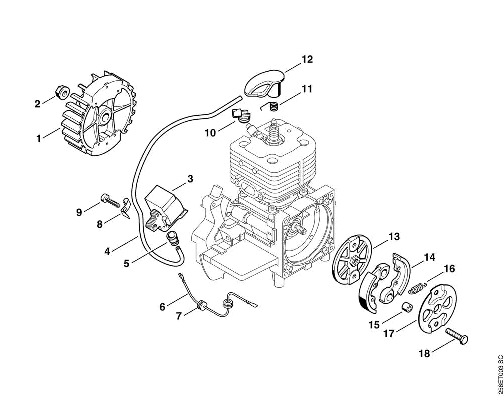

C-Ignition system
C-Ignition system

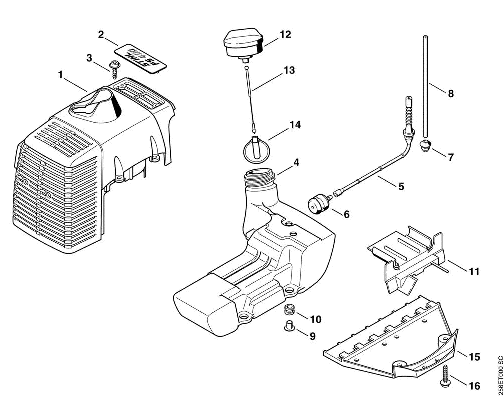

D-Cover
D-Cover
E_-Carburetor housing
E_-Carburetor housing

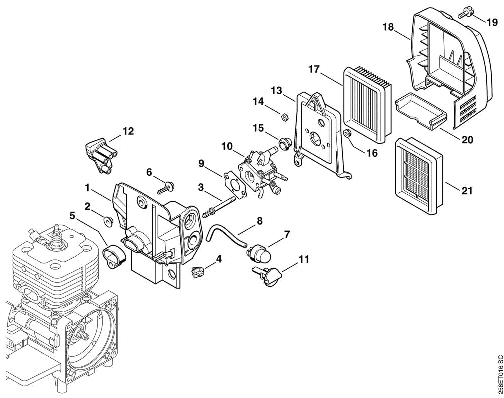

E-Carburetor housing
E-Carburetor housing

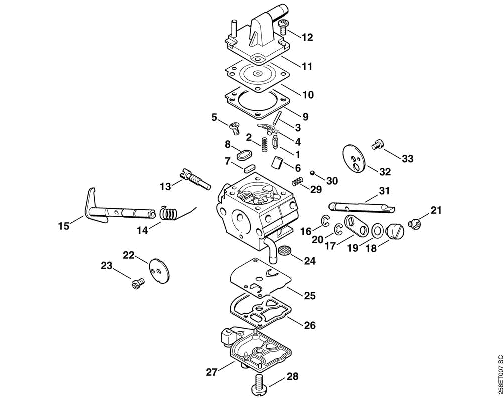

F-Carburetor C1Q#S34B
F-Carburetor C1Q#S34B
G_-Carburetor C1Q#S33B
G_-Carburetor C1Q#S33B

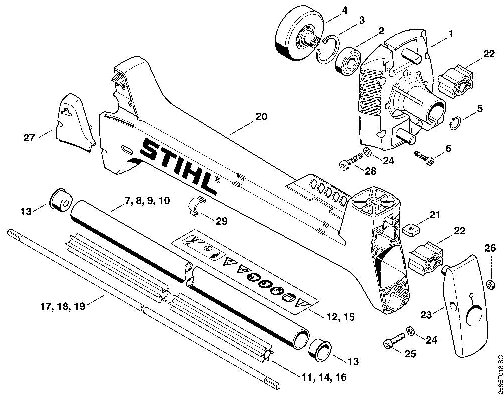

H-Clutch housing
H-Clutch housing

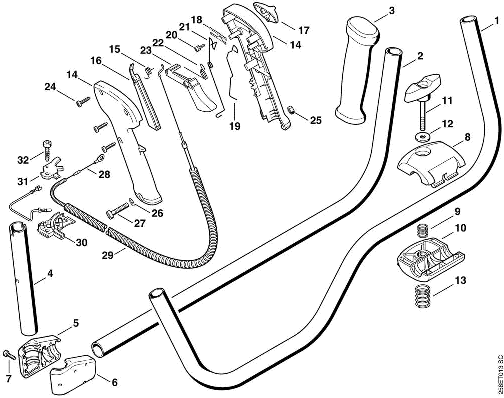

J-Handlebar
J-Handlebar
K-Gear head
K-Gear head
L_-Gear head
L_-Gear head
M-Polycut head
M-Polycut head

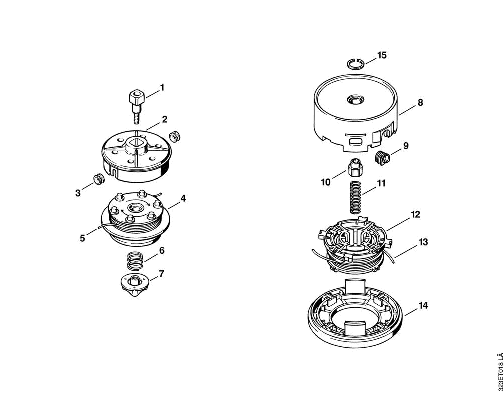

N-Cutting head Polymatic
N-Cutting head Polymatic

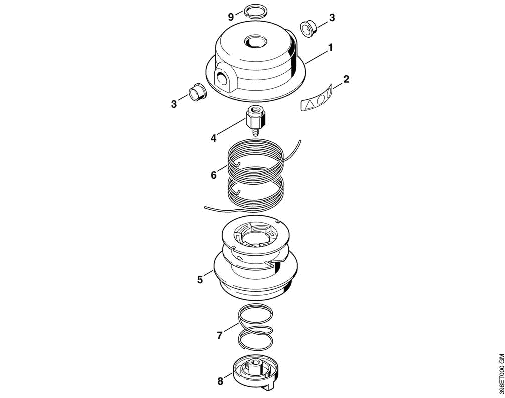

O-Trimcut 40 # 2 head
O-Trimcut 40 # 2 head

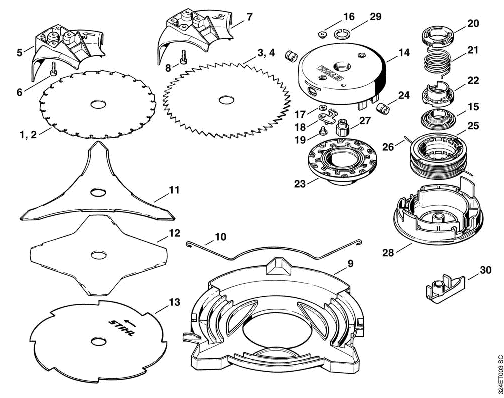

P-Cutting tools
P-Cutting tools

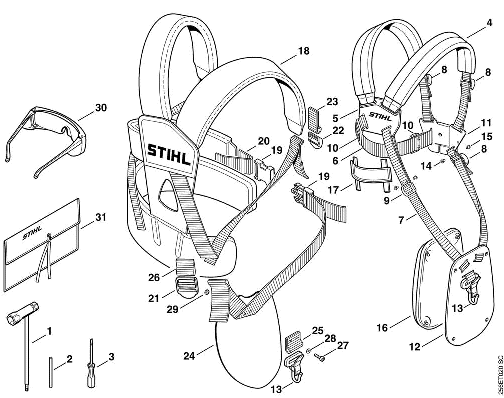

Q-Tools
Q-Tools

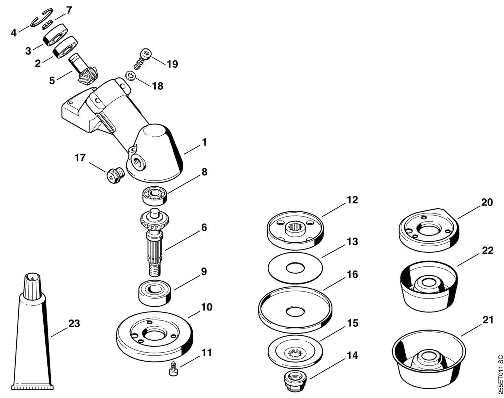

Stihl FS 450 Clearing Saw (FS450) Parts Diagram, K-Gear head
# Part Price
1 4128 641 0350 - Stihl Gear housing £125.96
To Basket
2 9503 003 0210 - Stihl Grooved ball bearing DIN625-6001 £10.94
To Basket
3 9503 003 5180 - Stihl Grooved ball bearing DIN625-6001-Z £13.14
To Basket
4 9456 621 3100 - Stihl Circlips DIN472-28x1.2 £1.13
To Basket
7 9455 621 1130 - Stihl Circlips DIN471-12x1 £0.56
To Basket
8 9503 003 0102 - Stihl Grooved ball bearing DIN625-6000 £10.94
To Basket
9 9503 003 7452 - Stihl Grooved ball bearing 6202-C3 £15.06
To Basket
10 4128 717 2701 - Stihl Guard ring
11 9075 478 4095 - Stihl Pan head self-tapping screw IS-D5x12 £0.71
To Basket
12 4147 710 3800 - Stihl Thrust plate £16.63
To Basket
13 4116 717 2800 - Stihl Guard washer 60mm / 2 3/8'' £2.87
To Basket
14 4119 642 7600 - Stihl Collar nut M12x1.5 left hand thread £4.70
To Basket
15 4128 713 1600 - Stihl Thrust washer £6.71
To Basket
16 4119 717 2800 - Stihl Protection £5.74
To Basket
17 4119 713 6500 - Stihl Screw plug £3.12
To Basket
18 9291 021 0140 - Stihl Washer DIN125-A6,4 £0.28
To Basket
19 9075 478 4712 - Stihl Pan head self-tapping screw IS-D6x28 £0.98
To Basket
20 4128 717 2706 - Stihl GUARD RING
21 4119 713 3100 - Stihl Rider plate £9.82
To Basket
22 4116 713 3100 - Stihl Rider plate £6.94
To Basket
150 4128 640 0101 - Stihl Gear head £190.06
To Basket
151 4128 640 7301 - Stihl Set of pinions £79.57
To Basket
