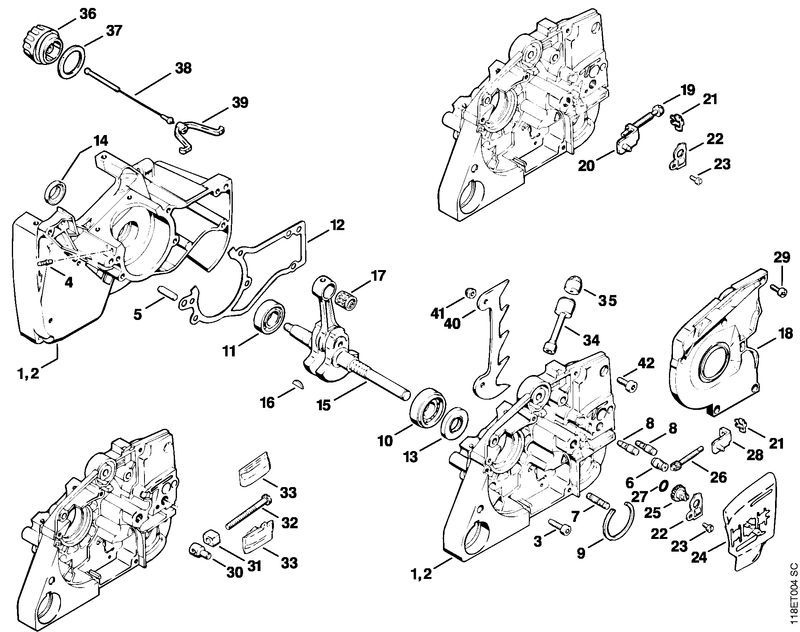

Stihl 028 Chainsaw (028Q) Parts Diagram, Crankcase

#	Part	Price
	1125 007 1021 - Stihl Spur gear / chain adjusting screw kit	£11.44	To Basket
3	9022 341 1010 - Stihl Spline screw IS-M5x18	£0.84	To Basket
4	0000 988 5211 - Stihl Connector	£1.78	To Basket
5	9371 470 2610 - Stihl Cylindrical pin (DIN7) - 5m6x18	£0.56	To Basket
6	1128 640 9100 - Stihl Valve	£4.28	To Basket
7	1118 162 5200 - Stihl Pin	£1.64	To Basket
8	1117 162 5225 - Stihl Pin	£0.76	To Basket
9	9465 620 2620 - Stihl Snap ring 37	£1.27	To Basket
10	9523 003 4260 - Stihl Grooved ball bearing 15x35x13	£16.85	To Basket
11	9503 003 0310 - Stihl Grooved ball bearing DIN625-6002-C3	£12.06	To Basket
12	1118 029 0500 - Stihl Gasket	£1.38
13	9640 003 1600 - Stihl Oil seal DIN3760-BS15x29,6x4	£6.34	To Basket
14	9640 003 1340 - Stihl Oil seal DIN3760-BS13x22x5	£5.50	To Basket
16	1120 036 8500 - Stihl Woodruff key 2x3.7	£1.01	To Basket
17	9512 003 2340 - Stihl Needle cage 10x14x13	£7.85	To Basket
18	1118 021 1104 - Stihl Obsolete Part 2008
21	1125 664 1400 - Stihl Thrust pad	£1.27	To Basket
22	1122 664 2200 - Stihl Cover plate	£1.08	To Basket
23	9041 216 0630 - Stihl Pan head screw DIN84-M4x8-8.8	£0.71	To Basket
24	1122 664 1001 - Stihl Inner side plate	£11.68	To Basket
27	9646 945 0490 - Stihl O-ring DIN3771-S7x1.5	£0.43	To Basket
28	1125 640 1900 - Stihl Tensioner slide	£2.95	To Basket
29	9022 313 0660 - Stihl Spline screw IS-M4x12	£0.71	To Basket
34	1106 647 9404 - Stihl Hose	£5.45	To Basket
35	1106 640 3801 - Stihl Pickup body	£1.31	To Basket
36	0000 350 0510 - Stihl Filler cap	£7.21	To Basket
37	0000 359 1210 - Stihl Sealing ring	£1.34	To Basket
38	0000 350 0900 - Stihl Rope	£1.13	To Basket
39	0000 353 0600 - Stihl Hook	£1.07	To Basket
40	1110 664 0501 - Stihl Spiked bumper	£5.90	To Basket
41	9214 320 0700 - Stihl Lock nut ISO7042-M5	£0.43	To Basket
42	9022 341 0960 - Stihl Spline screw IS-M5x12	£0.71	To Basket
