Stiga Multiclip Pro 53S (2011) Parts Diagram, Page 1

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stiga Multiclip Pro 53S, or refer to the list below.

All Parts for Multiclip Pro 53S

Stiga Multiclip Pro 53S (2011) Parts Diagram, Page 1

#	Part	Price
1	381004736/0 Stiga Aluminium Deck Mc53 [Grey]	£429.35	Stiga Aluminium Deck Mc53 [Grey] £429.35 P/N: 381004736/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
2	322226120/0 Stiga Belt Cover [Yellow]	£12.73	Stiga Belt Cover [Yellow] £12.73 P/N: 322226120/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
3	112728440/0 Stiga Self-Tapping Screw 4.8 X 13	£1.40	Stiga Self-Tapping Screw 4.8 X 13 £1.40 P/N: 112728440/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
4	112728519/0 Stiga Self-Tap Screw Tcb 5.5 X 16	£1.40	Stiga Self-Tap Screw Tcb 5.5 X 16 £1.40 P/N: 112728519/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.

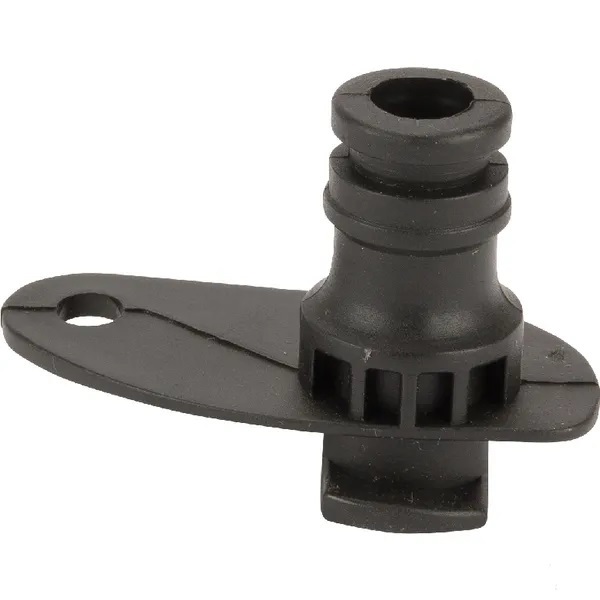

5	122034000/0 Stiga Washing Connection	£1.69	Stiga Washing Connection £1.69 P/N: 122034000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
6	119035000/0 Stiga O Ring 10.77 X 2.62	£5.06	Stiga O Ring 10.77 X 2.62 £5.06 P/N: 119035000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
8	322820054/0 Stiga Plastic Cap [White]	£3.35	Stiga Plastic Cap [White] £3.35 P/N: 322820054/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
9	322778417/0 Stiga Right Handle Bracket	£9.72	Stiga Right Handle Bracket £9.72 P/N: 322778417/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
10	12735595/0 Stiga Hexag.Head Screw		Stiga Hexag.Head Screw P/N: 12735595/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. No longer available
11	112800815/0 Stiga Screw Te Fl M8 X 16	£1.55	Stiga Screw Te Fl M8 X 16 £1.55 P/N: 112800815/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
12	322735569/0 Stiga Height Adjust Quadrant	£16.06	Stiga Height Adjust Quadrant £16.06 P/N: 322735569/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
13	322778415/0 Stiga Left Handle Bracket	£17.60	Stiga Left Handle Bracket £17.60 P/N: 322778415/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
14	381006369/2 Stiga Middle Handle Mc Pro [Grey]	£88.68	Stiga Middle Handle Mc Pro [Grey] £88.68 P/N: 381006369/2, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
15	112293200/0 Stiga Hexagon Nut M8 Uni 5588 Acc.6S	£1.55	Stiga Hexagon Nut M8 Uni 5588 Acc.6S £1.55 P/N: 112293200/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
16	112523080/0 Stiga Washer M10 11 X 30 X 2.5	£1.55	Stiga Washer M10 11 X 30 X 2.5 £1.55 P/N: 112523080/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
17	322399813/0 Stiga Handle Knob [Black]	£11.48	Stiga Handle Knob [Black] £11.48 P/N: 322399813/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
25	122524329/0 Stiga Hexagon Pin M8	£12.25	Stiga Hexagon Pin M8 £12.25 P/N: 122524329/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
26	322672201/0 Stiga Rubber Grommet	£5.92	Stiga Rubber Grommet £5.92 P/N: 322672201/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
27	81207220/0 Stiga Motor Flange		Stiga Motor Flange P/N: 81207220/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. No longer available
28	322250012/0 Stiga Avs Rubber Damper	£8.59	Stiga Avs Rubber Damper £8.59 P/N: 322250012/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
30	122671651/0 Stiga Washer 8.3 X 22 X 2	£1.97	Stiga Washer 8.3 X 22 X 2 £1.97 P/N: 122671651/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
31	112155000/0 Stiga Low Self-Locking Nut M8 Uni7474 6S Wz	£1.55	Stiga Low Self-Locking Nut M8 Uni7474 6S Wz £1.55 P/N: 112155000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
32	112735108/1 Stiga Telf-Form Screw 3/8" X 1�" Unc	£2.12	Stiga Telf-Form Screw 3/8" X 1�" Unc £2.12 P/N: 112735108/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
33	112791400/0 Stiga Hex-Head Screw M6 X 20 Uni 5739 4.8 Wz	£1.40	Stiga Hex-Head Screw M6 X 20 Uni 5739 4.8 Wz £1.40 P/N: 112791400/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
34	122450444/0 Stiga Spring	£2.40	Stiga Spring £2.40 P/N: 122450444/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
41	322869713/0 Stiga Front Bumper Handle	£28.01	Stiga Front Bumper Handle £28.01 P/N: 322869713/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
42	381008657/0 Stiga Bumper Screws Kit	£13.87	Stiga Bumper Screws Kit £13.87 P/N: 381008657/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
81	381006363/3 Stiga Upper Handle Pro Mc/Mcs [Yellow]	£128.46	Stiga Upper Handle Pro Mc/Mcs [Yellow] £128.46 P/N: 381006363/3, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
82	112727783/0 Stiga Cross-Head Screw M6 X 40	£1.69	Stiga Cross-Head Screw M6 X 40 £1.69 P/N: 112727783/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
83	181000732/0 Stiga Engine Brake Cable L=975 Honda	£15.38	Stiga Engine Brake Cable L=975 £15.38 Honda P/N: 181000732/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
83	181000769/1 Stiga Engine Brake Cable L=1206 GGP	£14.92	Stiga Engine Brake Cable L=1206 £14.92 GGP P/N: 181000769/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
83	181000728/0 Stiga Engine Brake Cable L=1020		Stiga Engine Brake Cable L=1020 P/N: 181000728/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
84	322551685/0 Stiga Cable Holder Block D=22	£7.52	Stiga Cable Holder Block D=22 £7.52 P/N: 322551685/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
85	112154510/0 Stiga Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55	Stiga Low Self-Locking Nut M6 Uni7474 Acc.6S £1.55 P/N: 112154510/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
86	381003318/1 Stiga Engine Brake Lever	£40.82	Stiga Engine Brake Lever £40.82 P/N: 381003318/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
87	112154510/0 Stiga Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55	Stiga Low Self-Locking Nut M6 Uni7474 Acc.6S £1.55 P/N: 112154510/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
88	112521330/0 Stiga Washer M6 6.4 X 12 X 1.6	£1.55	Stiga Washer M6 6.4 X 12 X 1.6 £1.55 P/N: 112521330/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
89	122671660/1 Stiga Washer	£4.08	Stiga Washer £4.08 P/N: 122671660/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
90	112727784/0 Stiga Cross-Head Screw M6 X 45	£1.40	Stiga Cross-Head Screw M6 X 45 £1.40 P/N: 112727784/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
114	122524342/0 Stiga Fixing Pin	£1.69	Stiga Fixing Pin £1.69 P/N: 122524342/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
115	112604897/0 Stiga Starlock Washer D=5	£1.55	Stiga Starlock Washer D=5 £1.55 P/N: 112604897/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
161	181007130/0 Stiga Throttle Cable T60 L=1010 Honda	£33.23	Stiga Throttle Cable T60 L=1010 Honda £33.23 P/N: 181007130/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
162	112154510/0 Stiga Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55	Stiga Low Self-Locking Nut M6 Uni7474 Acc.6S £1.55 P/N: 112154510/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
163	112727786/0 Stiga Cross-Head Screw M6 X 60 4.8 Zn	£1.97	Stiga Cross-Head Screw M6 X 60 4.8 Zn £1.97 P/N: 112727786/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
171	112291000/0 Stiga Hexagon Nut M5 M5 Uni 5588 Acc.6S Wz	£1.55	Stiga Hexagon Nut M5 M5 Uni 5588 Acc.6S Wz £1.55 P/N: 112291000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
172	112581500/0 Stiga Grower Washer M5 Uni 1751 Type A Wz	£1.55	Stiga Grower Washer M5 Uni 1751 Type A Wz £1.55 P/N: 112581500/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
173	322171006/0 Stiga Spacer D=28	£1.51	Stiga Spacer D=28 £1.51 P/N: 322171006/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
174	112521360/0 Stiga Washer M10 10.5 X 20 X 2 Uni 6592	£1.55	Stiga Washer M10 10.5 X 20 X 2 Uni 6592 £1.55 P/N: 112521360/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
175	112508100/0 Stiga Spring Washer 10.2 X 20 X 0.8	£1.55	Stiga Spring Washer 10.2 X 20 X 0.8 £1.55 P/N: 112508100/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
176	381007279/1 Stiga Throttle Lever	£1.52	Stiga Throttle Lever £1.52 P/N: 381007279/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
177	481007080/0 Stiga Throttle Cable	£24.49	Stiga Throttle Cable £24.49 P/N: 481007080/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
178	12815030/0 Stiga Screw		Stiga Screw P/N: 12815030/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. No longer available
179	14361404/0 Stiga Use 114361404/0		Stiga Use 114361404/0 P/N: 14361404/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. No longer available
531	122465632/0 Stiga Friction Blade Boss D=25mm Hole 0 = 25 mm	£12.66	Stiga Friction Blade Boss D=25mm £12.66 Hole 0 = 25 mm P/N: 122465632/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
531	122465621/0 Stiga Friction Blade Boss 22.2mm	£13.86	Stiga Friction Blade Boss 22.2mm £13.86 P/N: 122465621/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
532	1111-9132-02 Stiga Multiclip Friction Blade 51cm	£21.20	Stiga Multiclip Friction Blade 51cm £21.20 P/N: 1111-9132-02, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
533	322672110/1 Stiga Friction Washer 18.3 X 60 X 1.5	£1.82	Stiga Friction Washer 18.3 X 60 X 1.5 £1.82 P/N: 322672110/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
534	322672105/0 Stiga Blade Washer 60 X 18 X 2	£3.56	Stiga Blade Washer 60 X 18 X 2 £3.56 P/N: 322672105/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
535	112508120/0 Stiga Spring Washer 18.4 X 50 X 2	£3.52	Stiga Spring Washer 18.4 X 50 X 2 £3.52 P/N: 112508120/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
536	122041940/0 Stiga Metal Bush 25 X 19 X 15	£6.62	Stiga Metal Bush 25 X 19 X 15 £6.62 P/N: 122041940/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
537	112736850/0 Stiga Hex-Head Screw 3/8" X 2�"	£2.40	Stiga Hex-Head Screw 3/8" X 2�" £2.40 P/N: 112736850/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
538	112139100/0 Stiga Woodruff Key 4X6.5 D16 Uni 6606 C40	£1.55	Stiga Woodruff Key 4X6.5 D16 Uni 6606 C40 £1.55 P/N: 112139100/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
538	112139150/0 Stiga Woodruff Key X Shaft D=25mm	£2.12	Stiga Woodruff Key X Shaft D=25mm £2.12 P/N: 112139150/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
