Stiga Estate President (2008) Parts Diagram, Page 4
Look at the diagram and find parts that fit a Stiga Estate President, or refer to the list below.
All Parts for Estate President
| # | Part | Price | |
|---|---|---|---|
| 1 |
325038004/0 Stiga Bush [Black] |
£2.40 |
![Stiga Bush [Black]](/images/brands/d13c54cc-0c28-40b6-9198-d295a744de9e.jpg?width=200&height=200&rmode=pad&bgcolor=white) Stiga Bush [Black]£2.40
P/N: 325038004/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 2 |
125520006/1 Stiga Steering Column D=16 |
£21.34 |
Stiga Steering Column D=16£21.34
P/N: 125520006/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 3 |
127570050/0 Stiga Steering Pinion |
£11.12 |
Stiga Steering Pinion£11.12
P/N: 127570050/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 4 |
112622650/0 Stiga Cylindrical Pin D=6 X 35 |
£1.69 |
Stiga Cylindrical Pin D=6 X 35£1.69
P/N: 112622650/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 5 |
325743000/0 Stiga Joint |
£2.68 |
 Stiga Joint£2.68
P/N: 325743000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 6 |
112521370/0 Stiga Washer M12 13 24 X 2.5 |
£1.55 |
 Stiga Washer M12 13 24 X 2.5£1.55
P/N: 112521370/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 7 |
112436030/0 Stiga Pin Plate |
£1.82 |
 Stiga Pin Plate£1.82
P/N: 112436030/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 8 |
325785213/1 Stiga Steering Joint Support |
£2.40 |
Stiga Steering Joint Support£2.40
P/N: 325785213/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 9 |
112729600/0 Stiga Self-Tap Screw Te 5.5X16 Uni 6949 C15 Wz |
£1.55 |
Stiga Self-Tap Screw Te 5.5X16 Uni 6949 C15 Wz£1.55
P/N: 112729600/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 11 |
382547045/0 Stiga Support Plate Assembly |
£77.42 |
Stiga Support Plate Assembly£77.42
P/N: 382547045/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 12 |
112379511/0 Stiga Straight Grease Nipple M6 X 1 |
£1.55 |
Stiga Straight Grease Nipple M6 X 1£1.55
P/N: 112379511/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 13 |
325040624/0 Stiga Steering Bush |
£1.69 |
 Stiga Steering Bush£1.69
P/N: 325040624/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 14 |
112815200/0 Stiga Screw Ttdq M6X16 Uni 5732 8.8 Wz |
£1.55 |
 Stiga Screw Ttdq M6X16 Uni 5732 8.8 Wz£1.55
P/N: 112815200/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 15 |
112292102/0 Stiga Flanged Hexagonal Nut M6 |
£1.69 |
 Stiga Flanged Hexagonal Nut M6£1.69
P/N: 112292102/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 16 |
125510092/0 Stiga Pin |
£19.14 |
Stiga Pin£19.14
P/N: 125510092/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 17 |
125670019/0 Stiga Anti-Friction Washer 40 X 19.5 X 0.8 |
£3.38 |
 Stiga Anti-Friction Washer 40 X 19.5 X 0.8£3.38
P/N: 125670019/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 18 |
325735513/0 Stiga Steering Quadrant |
£14.22 |
Stiga Steering Quadrant£14.22
P/N: 325735513/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 19 |
112523080/0 Stiga Washer M10 11 X 30 X 2.5 |
£1.55 |
 Stiga Washer M10 11 X 30 X 2.5£1.55
P/N: 112523080/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 20 |
112155020/0 Stiga Self-Binding Nut M10 |
£1.69 |
 Stiga Self-Binding Nut M10£1.69
P/N: 112155020/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 21 |
325318205/0 Stiga Steering Control Lever |
£5.76 |
Stiga Steering Control Lever£5.76
P/N: 325318205/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 22 |
112523080/0 Stiga Washer M10 11 X 30 X 2.5 |
£1.55 |
Stiga Washer M10 11 X 30 X 2.5£1.55
P/N: 112523080/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 23 |
112794985/0 Stiga Screw M10 X 120 |
£4.08 |
Stiga Screw M10 X 120£4.08
P/N: 112794985/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 24 |
325743000/0 Stiga Joint |
£2.68 |
Stiga Joint£2.68
P/N: 325743000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 25 |
325785213/1 Stiga Steering Joint Support |
£2.40 |
Stiga Steering Joint Support£2.40
P/N: 325785213/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 26 |
112791213/1 Stiga Hex-Head Screw M6 X 18 Uni 5739 8.8 |
£1.55 |
 Stiga Hex-Head Screw M6 X 18 Uni 5739 8.8£1.55
P/N: 112791213/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 27 |
112521330/0 Stiga Washer M6 6.4 X 12 X 1.6 |
£1.55 |
 Stiga Washer M6 6.4 X 12 X 1.6£1.55
P/N: 112521330/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 28 |
112154510/0 Stiga Low Self-Locking Nut M6 Uni7474 Acc.6S |
£1.55 |
 Stiga Low Self-Locking Nut M6 Uni7474 Acc.6S£1.55
P/N: 112154510/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 29 |
382000538/1 Stiga Steering Rod Assembly 13" |
£61.93 |
Stiga Steering Rod Assembly 13"£61.93
P/N: 382000538/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 29 |
382000539/1 Stiga Steering Rod Assembly 15" |
£57.71 |
Stiga Steering Rod Assembly 15"£57.71
P/N: 382000539/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 30 |
112523070/0 Stiga Washer M8 8.5 X 32 X 2.5 |
£1.55 |
 Stiga Washer M8 8.5 X 32 X 2.5£1.55
P/N: 112523070/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 31 |
112155010/0 Stiga Self-Locking Nut M8 A-Lok Acc.6S |
£2.12 |
 Stiga Self-Locking Nut M8 A-Lok Acc.6S£2.12
P/N: 112155010/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 41 |
382034021/1 Stiga Front Axle Assembly 13in Inkl. pos 42 - 43 Inkl. pos 42 - 43 |
Stiga Front Axle Assembly 13in£97.80 Inkl. pos 42 - 43 Inkl. pos 42 - 43
P/N: 382034021/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
No longer available
|
|
| 41 |
382034024/1 Stiga Front Axle Assembly 15" |
£175.97 |
Stiga Front Axle Assembly 15"£175.97
P/N: 382034024/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 42 |
325040622/0 Stiga Square Bush |
£3.38 |
 Stiga Square Bush£3.38
P/N: 325040622/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 43 |
112379511/0 Stiga Straight Grease Nipple M6 X 1 |
£1.55 |
Stiga Straight Grease Nipple M6 X 1£1.55
P/N: 112379511/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 44 |
125160016/1 Stiga Equalizer Spacer |
£6.20 |
Stiga Equalizer Spacer£6.20
P/N: 125160016/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 45 |
112692695/0 Stiga Hex-Head Screw M12 X 60 |
£1.55 |
Stiga Hex-Head Screw M12 X 60£1.55
P/N: 112692695/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 46 |
112523100/0 Stiga Washer M12 14 X 36 X 3 |
£1.97 |
Stiga Washer M12 14 X 36 X 3£1.97
P/N: 112523100/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 47 |
112587100/0 Stiga Spring Lock Washer M12 Uni1751 |
£1.55 |
Stiga Spring Lock Washer M12 Uni1751£1.55
P/N: 112587100/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 48 |
112295300/0 Stiga Hexagon Nut M12 Uni 5588 |
£1.55 |
Stiga Hexagon Nut M12 Uni 5588£1.55
P/N: 112295300/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 49 |
382230363/0 Stiga Right Stub Axle |
£77.42 |
Stiga Right Stub Axle£77.42
P/N: 382230363/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 50 |
382230365/0 Stiga Left Stub Axle |
£78.84 |
Stiga Left Stub Axle£78.84
P/N: 382230365/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 51 |
112001000/0 Stiga Circlip Id=15 Th=1.5 Din 6799 |
£1.82 |
Stiga Circlip Id=15 Th=1.5 Din 6799£1.82
P/N: 112001000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 57 |
125840022/0 Stiga Tie Rod |
£87.41 |
Stiga Tie Rod£87.41
P/N: 125840022/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 58 |
125510096/0 Stiga Tie Rod Pin |
£4.74 |
Stiga Tie Rod Pin£4.74
P/N: 125510096/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 59 |
112295200/0 Stiga Hexagon Nut M10 Uni 5588 (Wz) |
£1.40 |
 Stiga Hexagon Nut M10 Uni 5588 (Wz)£1.40
P/N: 112295200/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 60 |
112156602/0 Stiga Low Self-Locking Nut M10 Uni7474 Acc.6S |
£1.40 |
 Stiga Low Self-Locking Nut M10 Uni7474 Acc.6S£1.40
P/N: 112156602/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 61 |
112000956/0 Stiga Circlip D=9 C60 Din 6799 |
£1.40 |
Stiga Circlip D=9 C60 Din 6799£1.40
P/N: 112000956/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 71 |
382680002/2 Stiga Compl.Wheel Assy 13" Clm+Carlisle Pr2 |
£95.74 |
Stiga Compl.Wheel Assy 13" Clm+Carlisle Pr2£95.74
P/N: 382680002/2, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 71 |
382680002/2 Stiga Compl.Wheel Assy 13" Clm+Carlisle Pr2 |
£95.74 |
Stiga Compl.Wheel Assy 13" Clm+Carlisle Pr2£95.74
P/N: 382680002/2, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 71A |

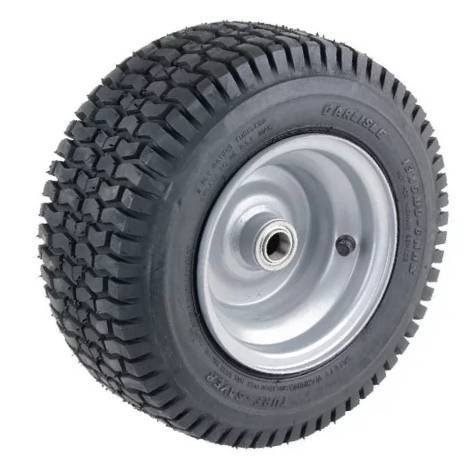

382680007/1 Stiga Compl.Wheel Assy 15" Clm+Carlisle Pr2 |
£128.10 |
Stiga Compl.Wheel Assy 15" Clm+Carlisle Pr2£128.10
P/N: 382680007/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 72 |
182000590/1 Stiga Front Wheel Rim |
£68.99 |
Stiga Front Wheel Rim£68.99
P/N: 182000590/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 72 A |
182000590/1 Stiga Front Wheel Rim |
£68.99 |
Stiga Front Wheel Rim£68.99
P/N: 182000590/1, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 73 |
125122200/2 Stiga Wheel Bearing D=20 |
£11.82 |
 Stiga Wheel Bearing D=20£11.82
P/N: 125122200/2, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 74 |
125590000/0 Stiga Tyre 13X5.00-6 Pr2 Turf Saver Carlisle Turf Saver |
£39.96 |
Stiga Tyre 13X5.00-6 Pr2 Turf Saver Carlisle£39.96 Turf Saver
P/N: 125590000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 74 |
125590000/0 Stiga Tyre 13X5.00-6 Pr2 Turf Saver Carlisle |
£39.96 |
Stiga Tyre 13X5.00-6 Pr2 Turf Saver Carlisle£39.96
P/N: 125590000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 74 A |
125590047/0 Stiga Tyre 15 X 6.00-6 [Obor] Pr2 Tl P519 |
£44.93 |
Stiga Tyre 15 X 6.00-6 [Obor] Pr2 Tl P519£44.93
P/N: 125590047/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 75 |
125950000/0 Stiga Pneumatic Valve |
£5.35 |
Stiga Pneumatic Valve£5.35
P/N: 125950000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 76 |
125670005/2 Stiga Spindle Washer |
£4.08 |
 Stiga Spindle Washer£4.08
P/N: 125670005/2, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 77 |
112001000/0 Stiga Circlip Id=15 Th=1.5 Din 6799 |
£1.82 |
Stiga Circlip Id=15 Th=1.5 Din 6799£1.82
P/N: 112001000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
| 78 |
122110230/0 Stiga Hub Cover |
£1.55 |
 Stiga Hub Cover£1.55
P/N: 122110230/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories. |
