Stiga Primo (13-2411-12 [2009]) Parts Diagram, Chassis_0

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stiga Primo, or refer to the list below.

All Parts for Primo

Stiga Primo (13-2411-12 [2009]) Parts Diagram, Chassis_0

#	Part	Price
1	1134-6741-01 Stiga Switch Bracket		Stiga Switch Bracket P/N: 1134-6741-01, Genuine OEM spare part. Find other Stiga spares, parts and accessories. No longer available
2	9838-8822-19 Stiga Screw K60 X 22	£1.55	Stiga Screw K60 X 22 £1.55 P/N: 9838-8822-19, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
3	1134-3134-01 Stiga Rubber Spring	£11.96	Stiga Rubber Spring £11.96 P/N: 1134-3134-01, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
4	9959-0820-16 Stiga Flanged Screw M8 X 20 8.8 Din 6921	£1.55	Stiga Flanged Screw M8 X 20 8.8 Din 6921 £1.55 P/N: 9959-0820-16, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
5	112523060/0 Stiga Washer M8 8.4 X 24 X 2 Uni 6593	£1.55	Stiga Washer M8 8.4 X 24 X 2 Uni 6593 £1.55 P/N: 112523060/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
6	1134-5302-01 Stiga Spring	£8.52	Stiga Spring £8.52 P/N: 1134-5302-01, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
7	112155000/0 Stiga Low Self-Locking Nut M8 Uni7474 6S Wz	£1.55	Stiga Low Self-Locking Nut M8 Uni7474 6S Wz £1.55 P/N: 112155000/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
10	9838-8822-19 Stiga Screw K60 X 22	£1.55	Stiga Screw K60 X 22 £1.55 P/N: 9838-8822-19, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
11	112523060/0 Stiga Washer M8 8.4 X 24 X 2 Uni 6593	£1.55	Stiga Washer M8 8.4 X 24 X 2 Uni 6593 £1.55 P/N: 112523060/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
12	1134-7735-01 Stiga Seat Bracket		Stiga Seat Bracket P/N: 1134-7735-01, Genuine OEM spare part. Find other Stiga spares, parts and accessories. No longer available
13	9959-0820-16 Stiga Flanged Screw M8 X 20 8.8 Din 6921	£1.55	Stiga Flanged Screw M8 X 20 8.8 Din 6921 £1.55 P/N: 9959-0820-16, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
14	1134-7741-01 Stiga Seat Cushion Assy	£147.80	Stiga Seat Cushion Assy £147.80 P/N: 1134-7741-01, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
15	1134-7022-01 Stiga Backrest Cushion		Stiga Backrest Cushion P/N: 1134-7022-01, Genuine OEM spare part. Find other Stiga spares, parts and accessories. No longer available
16	1134-7739-01 Stiga Back Rest Bracket Assy		Stiga Back Rest Bracket Assy P/N: 1134-7739-01, Genuine OEM spare part. Find other Stiga spares, parts and accessories. No longer available
17	9959-0820-16 Stiga Flanged Screw M8 X 20 8.8 Din 6921	£1.55	Stiga Flanged Screw M8 X 20 8.8 Din 6921 £1.55 P/N: 9959-0820-16, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
20	1134-7834-01 Stiga Seat Plate Assy		Stiga Seat Plate Assy P/N: 1134-7834-01, Genuine OEM spare part. Find other Stiga spares, parts and accessories. No longer available
21	9959-0820-16 Stiga Flanged Screw M8 X 20 8.8 Din 6921	£1.55	Stiga Flanged Screw M8 X 20 8.8 Din 6921 £1.55 P/N: 9959-0820-16, Genuine OEM spare part. Find other Stiga spares, parts and accessories.

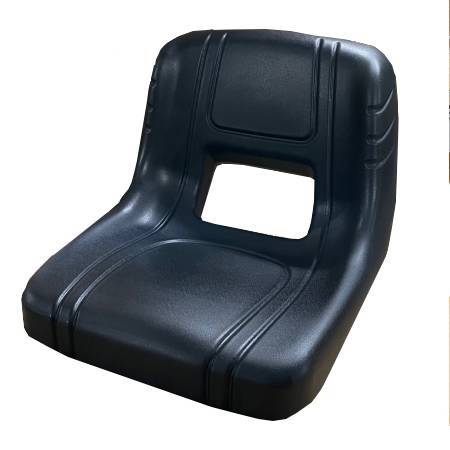

22	125722463/0 Stiga Seat	£204.12	Stiga Seat £204.12 P/N: 125722463/0, Genuine OEM spare part. Find other Stiga spares, parts and accessories.
