Oleo-Mac 740 T (740 T) Parts Diagram, Accessories

Look at the diagram and find parts that fit a Oleo-Mac 740 T, or refer to the list below.

All parts that fit a 740 T


Accessories
Accessories

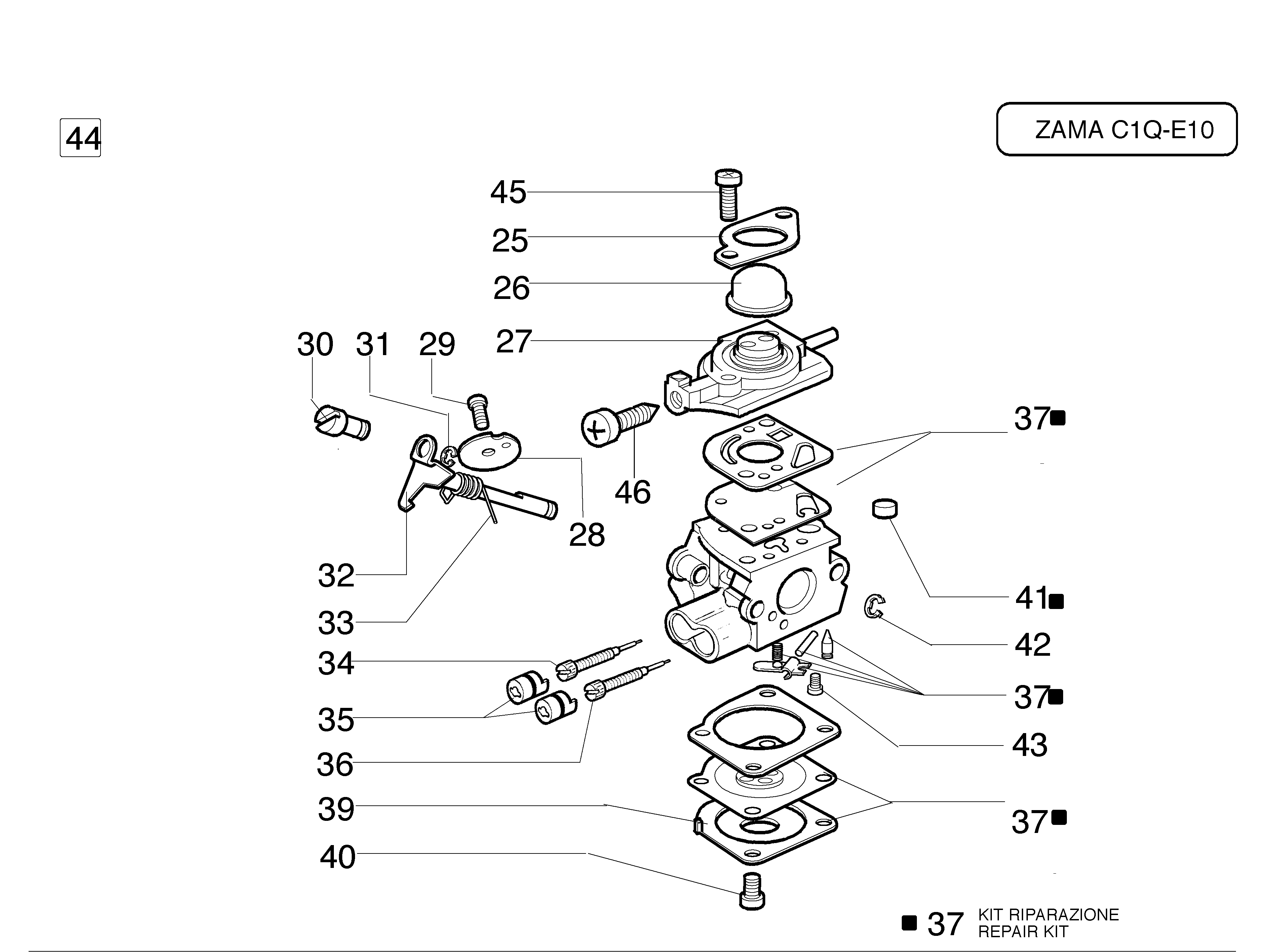

E10
E10

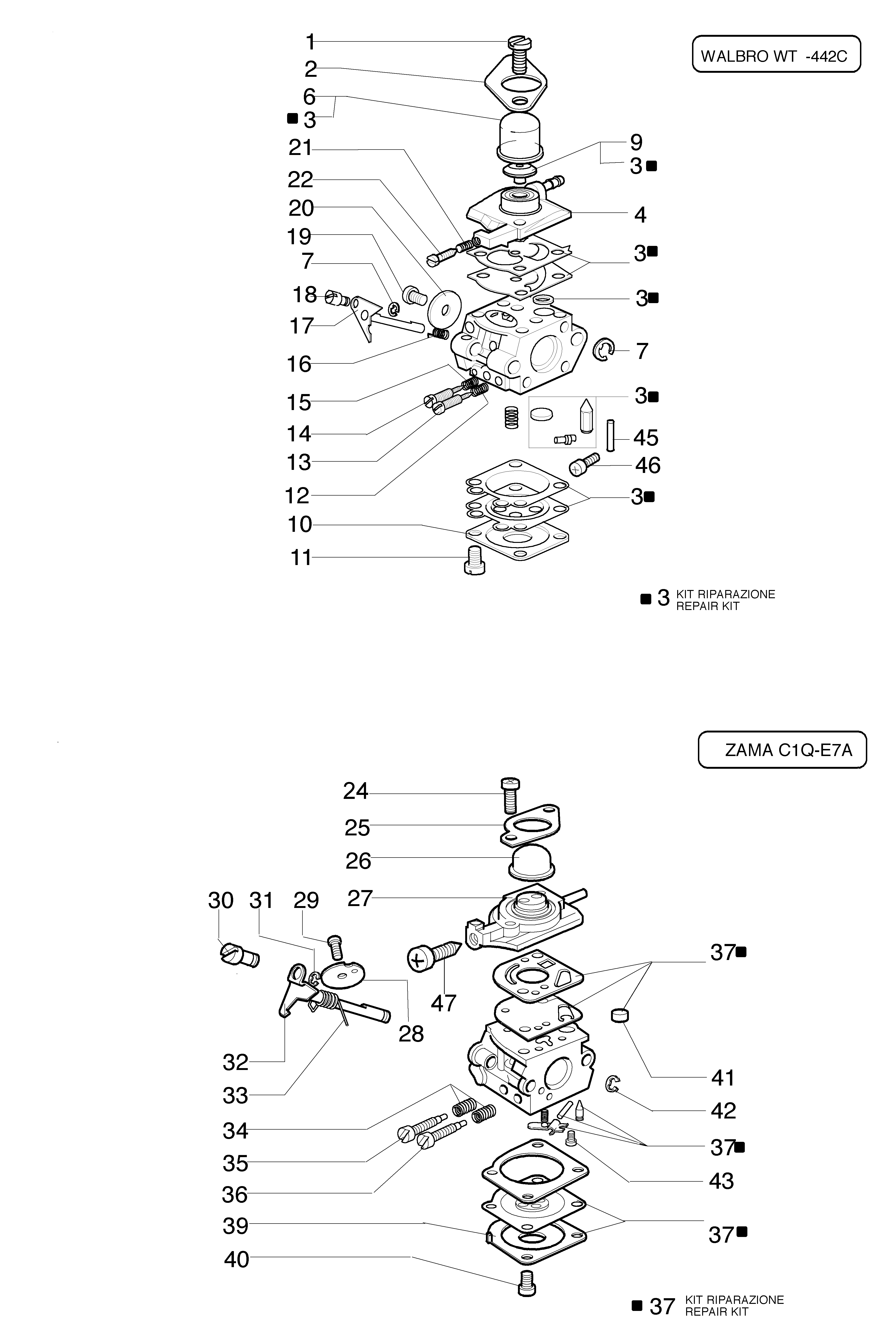

E7
E7

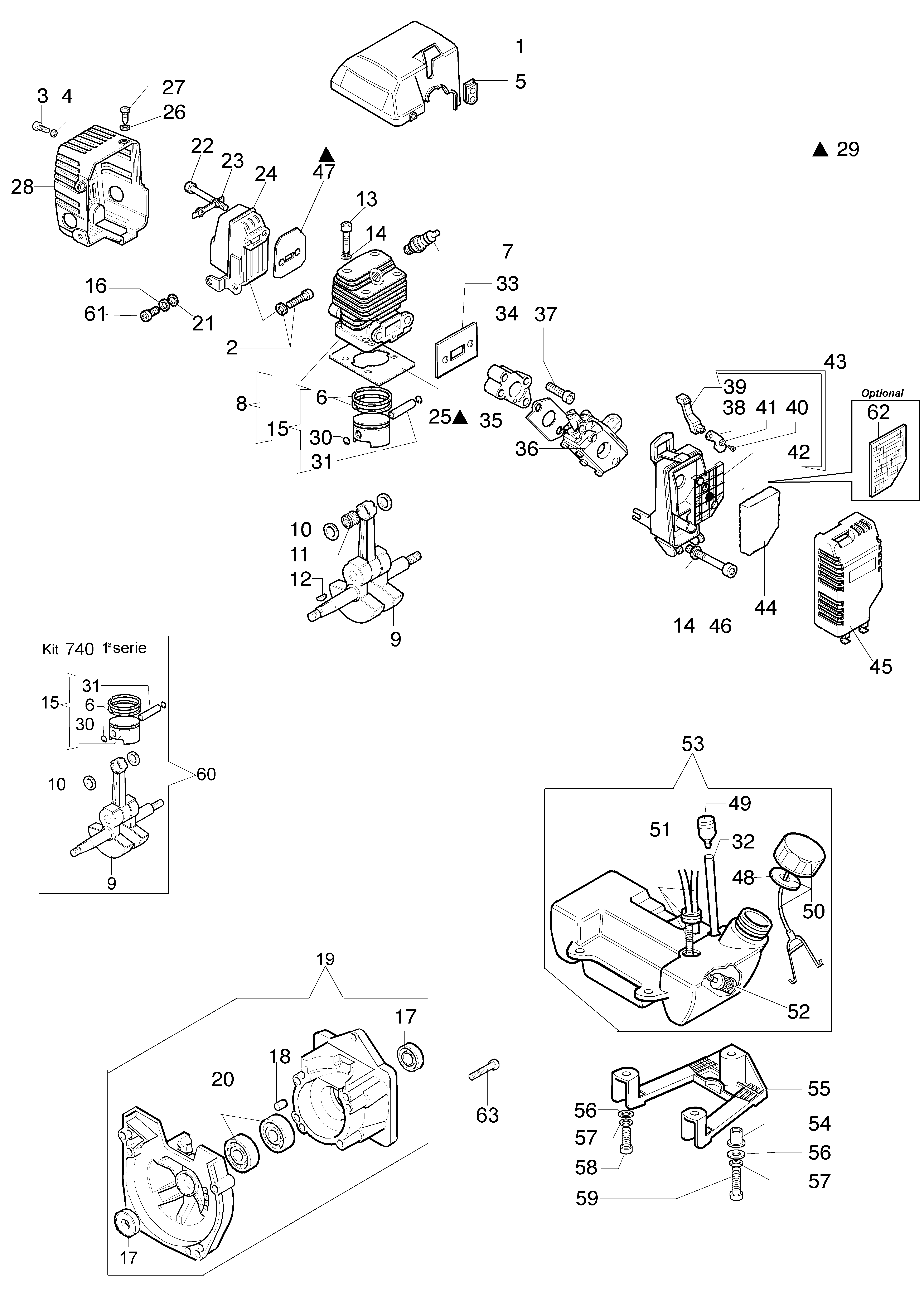

Engine
Engine

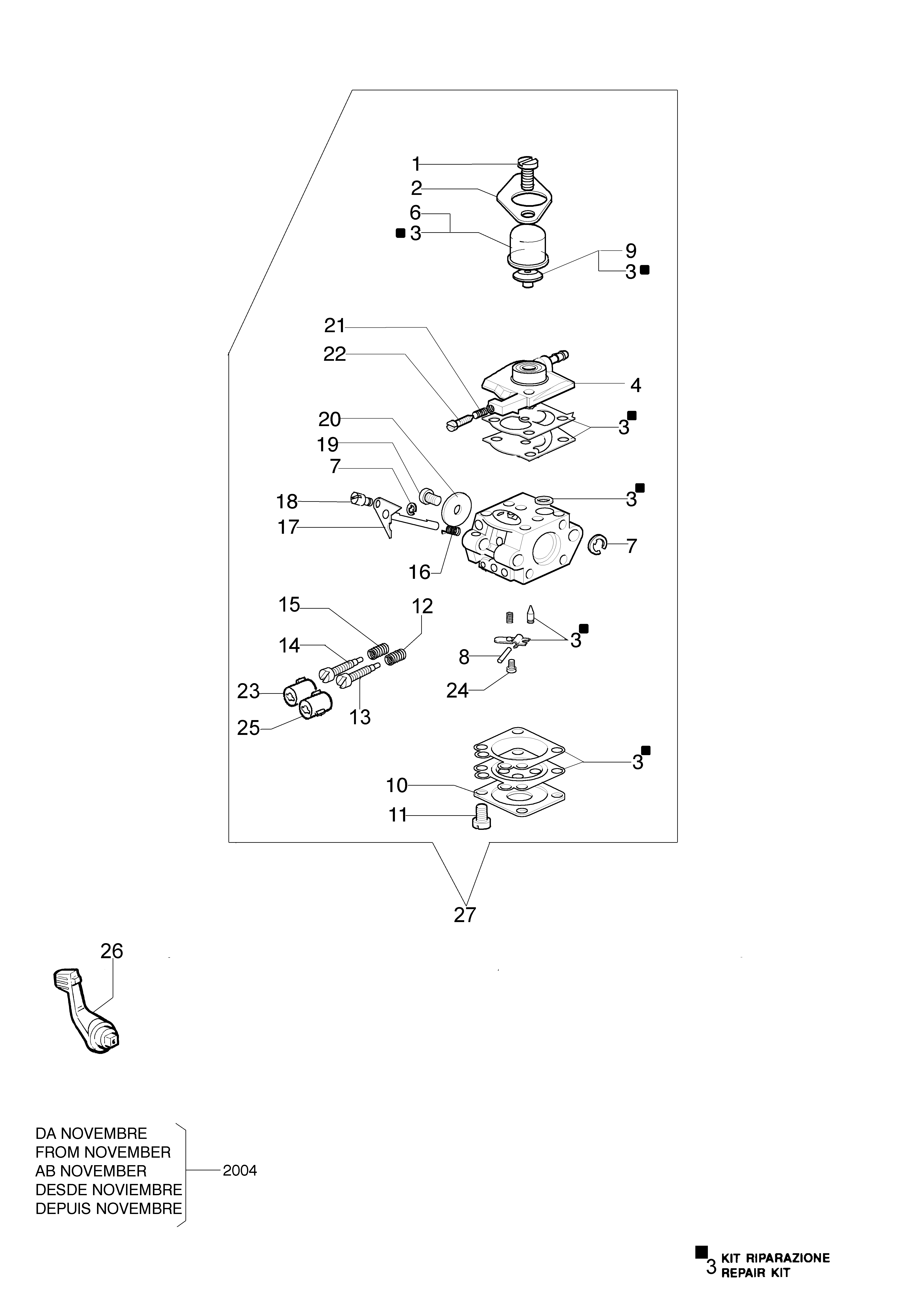

460B
460B

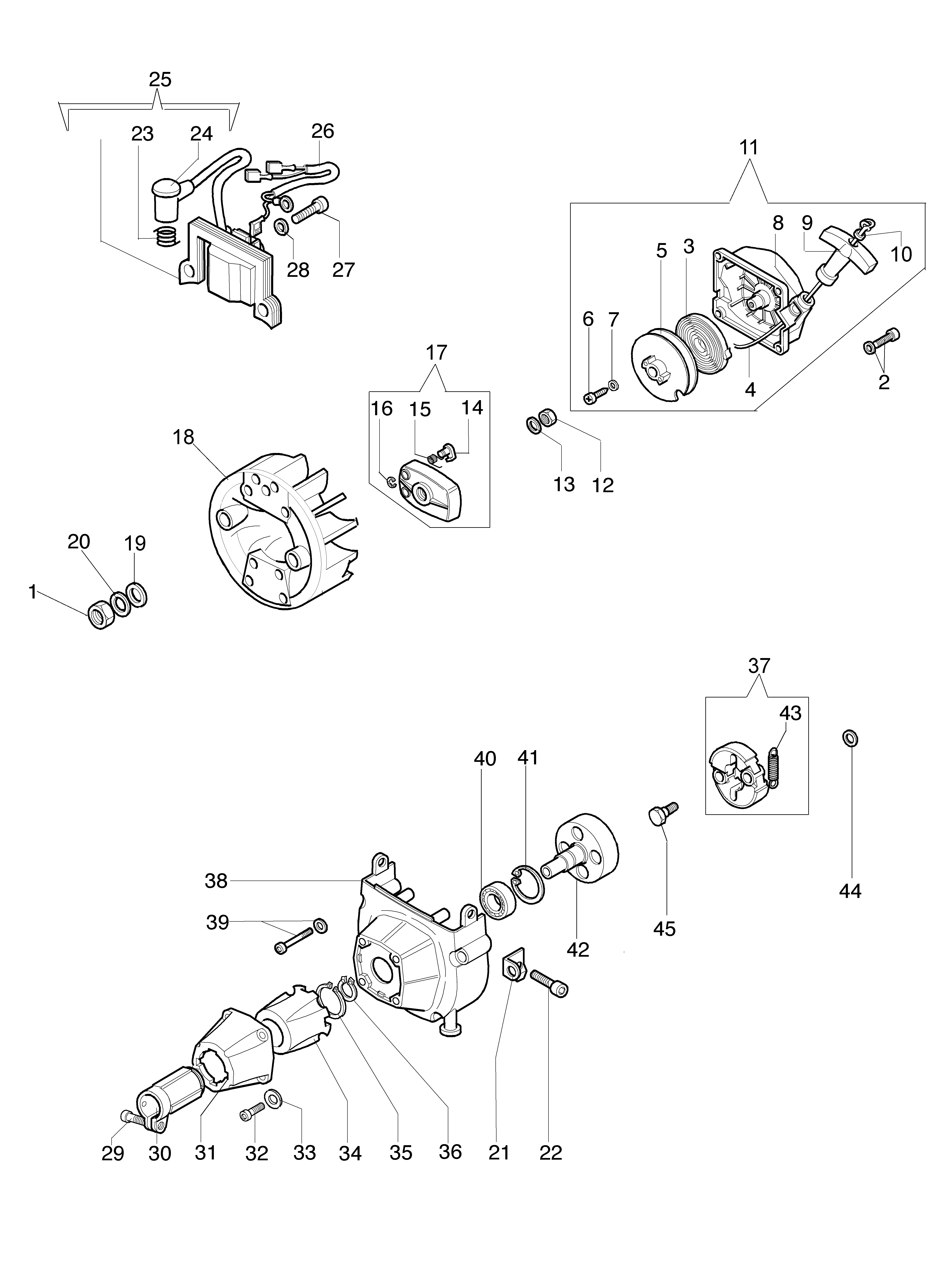

Starter assy and clutch
Starter assy and clutch

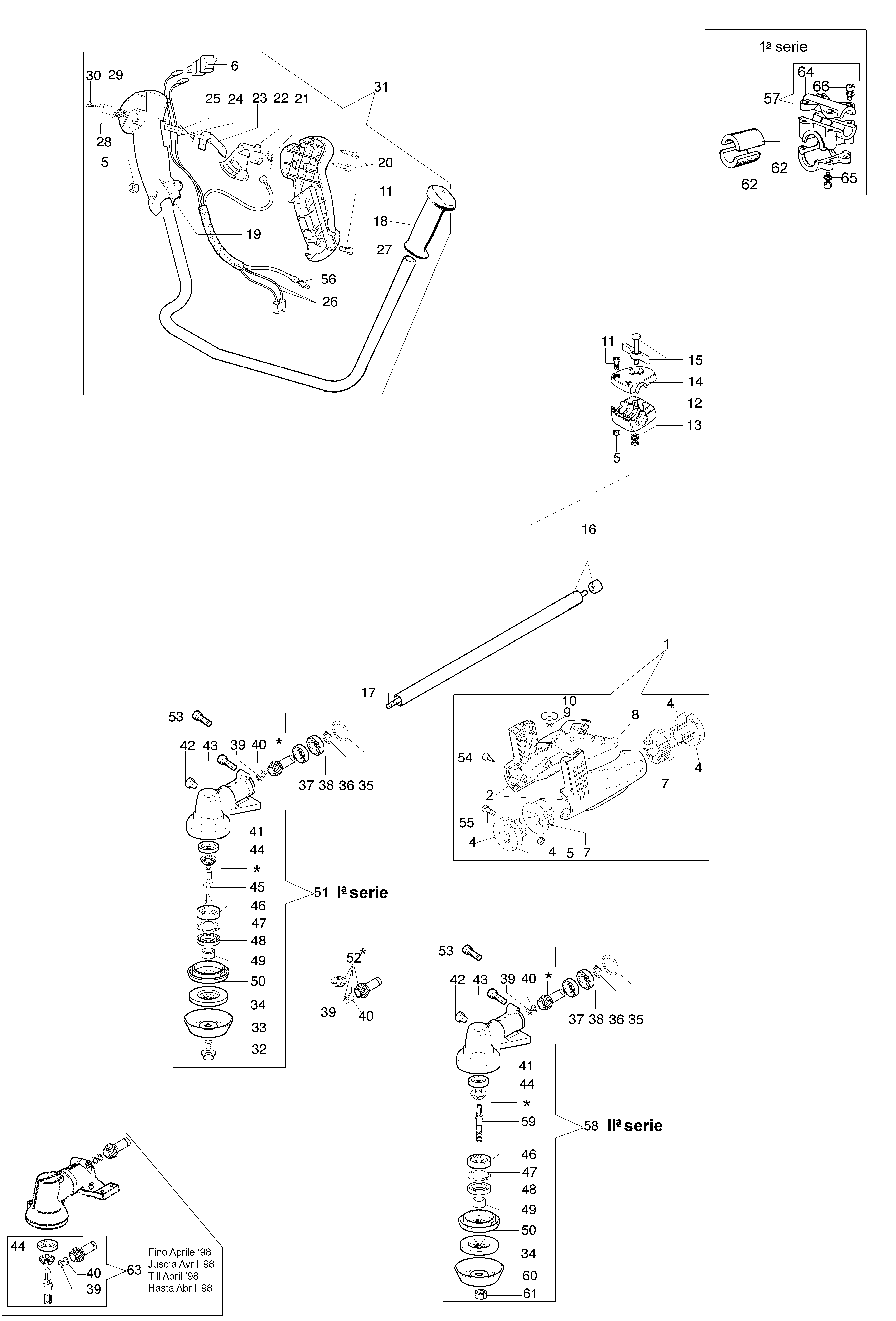

Transmission
Transmission

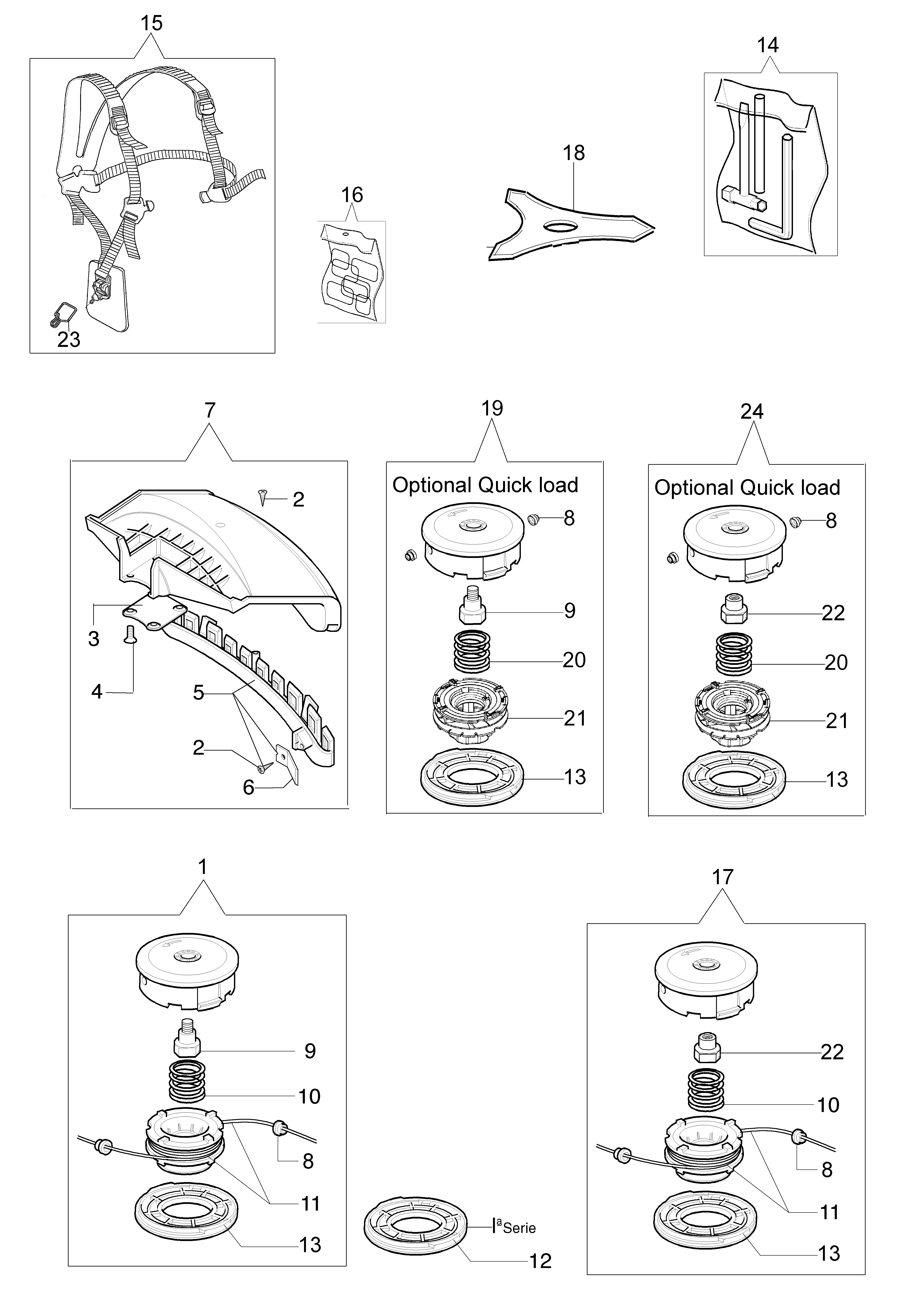

Oleo-Mac 740 T (740 T) Parts Diagram, Accessories
# Part Price
1 61459102 - Oleo-Mac Tap N Go Evo Om 130mm D3 M10X1.25Lh SX £21.42
To Basket
2 3960040R - Oleo-Mac Screw £0.89
To Basket
3 4174278R - Oleo-Mac Mounting Plate £3.62
To Basket
4 3802004DR - Oleo-Mac Screw £1.81
To Basket
5 61380126 - Oleo-Mac Skirt Blade £16.80
To Basket
6 4174275R - Oleo-Mac Line Knife £2.72
To Basket
7 61380125 - Oleo-Mac Disc Guard £56.54
To Basket
8 4199005AR - Oleo-Mac Bushing £2.72
To Basket
11 4199052 - Oleo-Mac Spool - Without Line £8.62
To Basket
12 4199026A - Oleo-Mac Cover For ST214 Series 1 £10.45
To Basket
13 4199046 - Oleo-Mac Cover £10.45
To Basket
14 61052031R - Oleo-Mac Tool Kit £9.31
To Basket
16 074000328 - Oleo-Mac Decals Set £13.54
To Basket
17 61459102 - Oleo-Mac Tap N Go Evo Om 130mm D3 M10X1.25Lh SX £21.42
To Basket
19 63129008 - Oleo-Mac Longlife Load + Go Head 130mm £32.92
To Basket
20 4199048R - Oleo-Mac Spring - For ST214B/50709019 Quick Load Head £3.62
To Basket
21 4199049 - Oleo-Mac Spool - Quick Load
23 63050016 - Oleo-Mac Clip - Harnesss £1.81
To Basket
24 63129008 - Oleo-Mac Longlife Load + Go Head 130mm £32.92
To Basket
