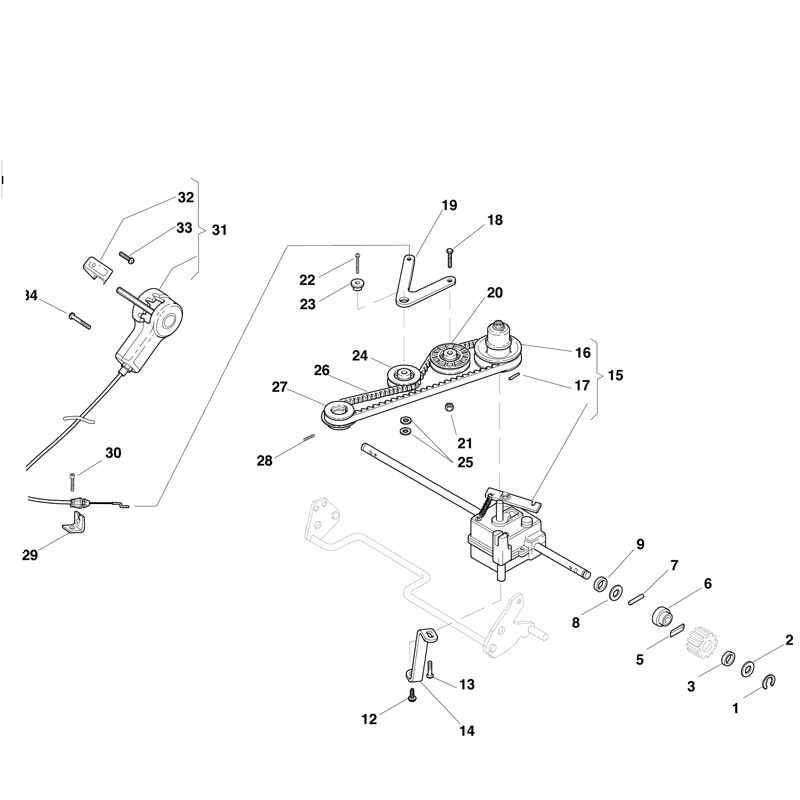

Look at the diagram and find parts that fit a Mountfield M64PD, or refer to the list below.

All Parts for M64PD

Mountfield M64PD (2009) Parts Diagram, Page 6

#	Part	Price
1	112000957/0 Mountfield Circlip D=10	£1.55	Mountfield Circlip D=10 £1.55 P/N: 112000957/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
2	112520032/0 Mountfield Washer 12 X 18 X 1	£1.55	Mountfield Washer 12 X 18 X 1 £1.55 P/N: 112520032/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
3	322160520/0 Mountfield Dust Cover	£1.55	Mountfield Dust Cover £1.55 P/N: 322160520/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
5	122076645/0 Mountfield Drive Key 4 X 8 X 15	£1.69	Mountfield Drive Key 4 X 8 X 15 £1.69 P/N: 122076645/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
6	322170630/1 Mountfield Pinion Spacer	£4.93	Mountfield Pinion Spacer £4.93 P/N: 322170630/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
7	122753002/0 Mountfield Cylindrical Pin 5 X 25	£1.97	Mountfield Cylindrical Pin 5 X 25 £1.97 P/N: 122753002/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
8	112520032/0 Mountfield Washer 12 X 18 X 1	£1.55	Mountfield Washer 12 X 18 X 1 £1.55 P/N: 112520032/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
9	119035152/0 Mountfield Seal Ring 12 X 18 X 4	£4.78	Mountfield Seal Ring 12 X 18 X 4 £4.78 P/N: 119035152/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
12	112728300/0 Mountfield Self-Tapping Screw K50 X 22	£1.55	Mountfield Self-Tapping Screw K50 X 22 £1.55 P/N: 112728300/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
13	112735664/0 Mountfield Screw M6 X 16	£1.40	Mountfield Screw M6 X 16 £1.40 P/N: 112735664/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
14	322778407/0 Mountfield Gearbox Support Bracket 454 -	£11.12	Mountfield Gearbox Support Bracket £11.12 454 - P/N: 322778407/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
15	181003086/0 Mountfield Gearbox 4 Speed [Black] 504 -	£225.24	Mountfield Gearbox 4 Speed [Black] £225.24 504 - P/N: 181003086/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
16	122601916/0 Mountfield Variator Pulley		Mountfield Variator Pulley P/N: 122601916/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
17	112645700/0 Mountfield Pin	£1.55	Mountfield Pin £1.55 P/N: 112645700/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
18	112674550/0 Mountfield Hex-Head Screw M6 X 30 Uni 5737 8.8	£1.55	Mountfield Hex-Head Screw M6 X 30 Uni 5737 8.8 £1.55 P/N: 112674550/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
19	322320003/0 Mountfield Tension Arm 554		Mountfield Tension Arm 554 P/N: 322320003/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
20	122601914/0 Mountfield Belt Guide Pulley	£21.54	Mountfield Belt Guide Pulley £21.54 P/N: 122601914/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
21	112154510/0 Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55	Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S £1.55 P/N: 112154510/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
22	112735669/0 Mountfield Screw Tcb Torx M6 X 50	£1.55	Mountfield Screw Tcb Torx M6 X 50 £1.55 P/N: 112735669/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
23	122671656/0 Mountfield Washer	£7.31	Mountfield Washer £7.31 P/N: 122671656/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
24	122601915/0 Mountfield Tension Pulley	£21.40	Mountfield Tension Pulley £21.40 P/N: 122601915/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
25	112523040/0 Mountfield Washer M6 6.6 X 18 X 1.6	£1.55	Mountfield Washer M6 6.6 X 18 X 1.6 £1.55 P/N: 112523040/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
26	135064383/0 Mountfield Trapezoidal Belt Xpz Lp=837 554	£14.41	Mountfield Trapezoidal Belt Xpz Lp=837 £14.41 554 P/N: 135064383/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
27	122601917/0 Mountfield Drive Engine Pulley D=22mm	£24.36	Mountfield Drive Engine Pulley D=22mm £24.36 P/N: 122601917/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
28	112714312/0 Mountfield Dowel Pin M6 X 12	£1.55	Mountfield Dowel Pin M6 X 12 £1.55 P/N: 112714312/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
29	322806619/0 Mountfield Speed Cable Bracket	£4.66	Mountfield Speed Cable Bracket £4.66 P/N: 322806619/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
30	112735664/0 Mountfield Screw M6 X 16	£1.40	Mountfield Screw M6 X 16 £1.40 P/N: 112735664/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
31	381007098/0 Mountfield 4 Speed Cable Assembly 554	£46.46	Mountfield 4 Speed Cable Assembly £46.46 554 P/N: 381007098/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
32	322399809/0 Mountfield 4 Speed Cable Knob	£1.55	Mountfield 4 Speed Cable Knob £1.55 P/N: 322399809/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
33	112728300/0 Mountfield Self-Tapping Screw K50 X 22	£1.55	Mountfield Self-Tapping Screw K50 X 22 £1.55 P/N: 112728300/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
34	112728702/0 Mountfield Self-Tap Screw Pt Torx Wn1451 K50 X 40	£1.55	Mountfield Self-Tap Screw Pt Torx Wn1451 K50 X 40 £1.55 P/N: 112728702/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
