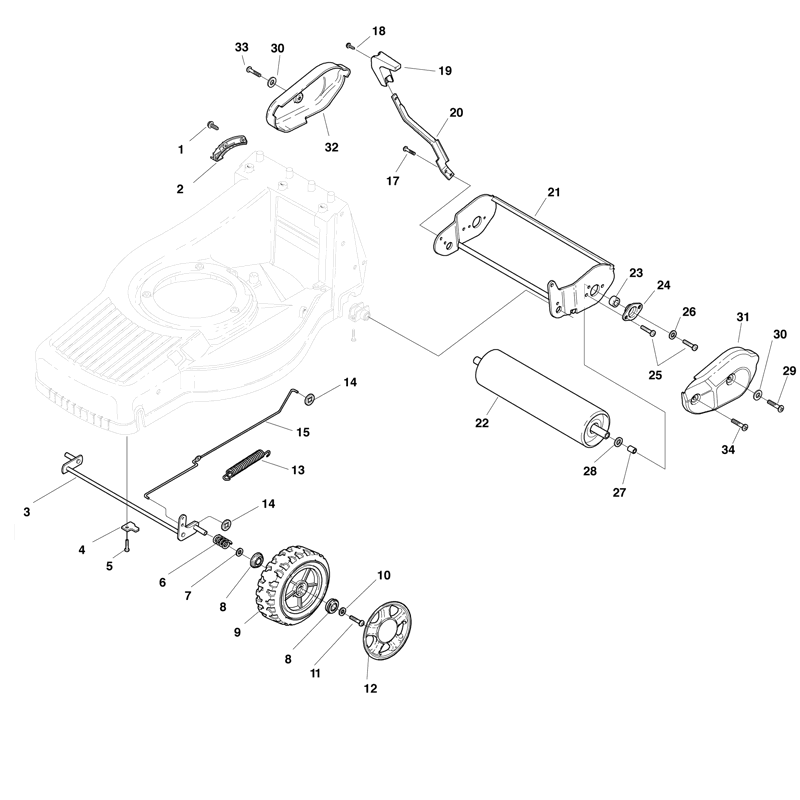

Mountfield M554R (2009) Parts Diagram, Page 2
Look at the diagram and find parts that fit a Mountfield M554R , or refer to the list below.
All Parts for M554R

# | Part | Price | |
---|---|---|---|
1 |
112728300/0 Mountfield Self-Tapping Screw K50 X 22 |
£1.46 |
![]() Mountfield Self-Tapping Screw K50 X 22£1.46 ![]() P/N: 112728300/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
2 |
322735553/0 Mountfield Height Adjust Quadrant |
£8.64 |
![]() Mountfield Height Adjust Quadrant£8.64 ![]() P/N: 322735553/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
3 |
381002847/0 Mountfield Front Wheels Axle |
![]() Mountfield Front Wheels Axle![]() P/N: 381002847/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
4 |
322545160/0 Mountfield Front Axle Plate |
![]() Mountfield Front Axle Plate![]() P/N: 322545160/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
|
5 |
112735664/0 Mountfield Screw M6 X 16 |
£1.34 |
![]() Mountfield Screw M6 X 16£1.34 ![]() P/N: 112735664/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
6 |
122430210/0 Mountfield Spring |
£1.61 |
![]() Mountfield Spring£1.61 ![]() P/N: 122430210/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
7 |
112521370/0 Mountfield Washer M12 13 24 X 2.5 |
£1.46 |
![]() Mountfield Washer M12 13 24 X 2.5£1.46 ![]() P/N: 112521370/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
8 |
122122206/0 Mountfield Bearing D=12 Omet 1000861 |
£1.74 |
![]() Mountfield Bearing D=12 Omet 1000861£1.74 ![]() P/N: 122122206/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
9 |
381007351/0 Mountfield Wheel D=170 |
£12.98 |
![]() Mountfield Wheel D=170£12.98 ![]() P/N: 381007351/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
10 |
112521460/0 Mountfield Washer M6 6.5 X 22 X 1.5 |
£1.34 |
![]() Mountfield Washer M6 6.5 X 22 X 1.5£1.34 ![]() P/N: 112521460/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
11 |
112735662/1 Mountfield Screw Tcb Torx M6 X 12 |
£2.28 |
![]() Mountfield Screw Tcb Torx M6 X 12£2.28 ![]() P/N: 112735662/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
13 |
122446181/0 Mountfield Spring |
£7.63 |
![]() Mountfield Spring£7.63 ![]() P/N: 122446181/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
14 |
112604898/0 Mountfield Starlock Washer D=7 |
£1.46 |
![]() Mountfield Starlock Washer D=7£1.46 ![]() P/N: 112604898/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
15 |
22033326/0 Mountfield Use 122033326/0 |
![]() Mountfield Use 122033326/0![]() P/N: 22033326/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
17 |
112735664/0 Mountfield Screw M6 X 16 |
£1.34 |
![]() Mountfield Screw M6 X 16£1.34 ![]() P/N: 112735664/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
18 |
112728690/0 Mountfield Self-Tapping Screw Ka50 X 25 |
£1.46 |
![]() Mountfield Self-Tapping Screw Ka50 X 25£1.46 ![]() P/N: 112728690/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
19 |
322399805/0 Mountfield Height Adjust Knob |
£13.06 |
![]() Mountfield Height Adjust Knob£13.06 ![]() P/N: 322399805/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
20 |
322321505/0 Mountfield Height Adjust Lever [Roller] |
£34.69 |
![]() Mountfield Height Adjust Lever [Roller]£34.69 ![]() P/N: 322321505/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
21 |
381005117/0 Mountfield Roller Support Assembly 55cm |
£147.30 |
![]() Mountfield Roller Support Assembly 55cm£147.30 ![]() P/N: 381005117/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
22 |
1111-3430-01 Mountfield Roller Assembly [Black] 55-R |
£266.28 |
![]() Mountfield Roller Assembly [Black] 55-R£266.28 ![]() P/N: 1111-3430-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
23 |
119216036/0 Mountfield Bearing 6201-2RS Nr C3 |
£9.11 |
![]() Mountfield Bearing 6201-2RS Nr C3£9.11 ![]() P/N: 119216036/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
24 |
322207325/0 Mountfield Bearing Support Plate |
£1.87 |
![]() Mountfield Bearing Support Plate£1.87 ![]() P/N: 322207325/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
25 |
112735662/1 Mountfield Screw Tcb Torx M6 X 12 |
£2.28 |
![]() Mountfield Screw Tcb Torx M6 X 12£2.28 ![]() P/N: 112735662/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
26 |
112523040/0 Mountfield Washer M6 6.6 X 18 X 1.6 |
£1.46 |
![]() Mountfield Washer M6 6.6 X 18 X 1.6£1.46 ![]() P/N: 112523040/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
27 |
122170820/0 Mountfield Roller Spacer |
£16.87 |
![]() Mountfield Roller Spacer£16.87 ![]() P/N: 122170820/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
28 |
112523100/0 Mountfield Washer M12 14 X 36 X 3 |
£1.87 |
![]() Mountfield Washer M12 14 X 36 X 3£1.87 ![]() P/N: 112523100/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
29 |
112735592/0 Mountfield Self-Tap Screw M6 X 20 |
£1.87 |
![]() Mountfield Self-Tap Screw M6 X 20£1.87 ![]() P/N: 112735592/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
30 |
112523040/0 Mountfield Washer M6 6.6 X 18 X 1.6 |
£1.46 |
![]() Mountfield Washer M6 6.6 X 18 X 1.6£1.46 ![]() P/N: 112523040/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
31 |
322060203/0 Mountfield Left Roller Cover [Red] |
![]() Mountfield Left Roller Cover [Red]![]() P/N: 322060203/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
32 |
322060201/0 Mountfield Right Roller Chain Cover [Red] |
£2.08 |
![]() Mountfield Right Roller Chain Cover [Red]£2.08 ![]() P/N: 322060201/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
33 |
112735592/0 Mountfield Self-Tap Screw M6 X 20 |
£1.87 |
![]() Mountfield Self-Tap Screw M6 X 20£1.87 ![]() P/N: 112735592/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
34 |
112735594/0 Mountfield Hex-Head Screw M6 X 30 |
£1.46 |
![]() Mountfield Hex-Head Screw M6 X 30£1.46 ![]() P/N: 112735594/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
34 |
112735592/0 Mountfield Self-Tap Screw M6 X 20 |
£1.87 |
![]() Mountfield Self-Tap Screw M6 X 20£1.87 ![]() P/N: 112735592/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
