Mountfield R25V Ride-on (2T0030436-BQ [2011-2013]) Parts Diagram, Seat & Steering Wheel

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Mountfield R25V Ride-on, or refer to the list below.

All Parts for R25V Ride-on

Blades Engagement with Electromagnetic Clutch

Mountfield R25V Ride-on (2T0030436-BQ [2011-2013]) Parts Diagram, Seat & Steering Wheel

#	Part	Price
1	125722488/0 Mountfield Seat	£190.04	Mountfield Seat £190.04 P/N: 125722488/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
2	327546039/1 Mountfield Seat Support Plate		Mountfield Seat Support Plate P/N: 327546039/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
3	112793102/0 Mountfield Screw Te M8X20 Uni 5739 Acc.8.8	£1.55	Mountfield Screw Te M8X20 Uni 5739 Acc.8.8 £1.55 P/N: 112793102/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
4	112583500/0 Mountfield Spring Lock Washer M8 Uni 1751 Type A	£1.55	Mountfield Spring Lock Washer M8 Uni 1751 Type A £1.55 P/N: 112583500/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
5	112523060/0 Mountfield Washer M8 8.4 X 24 X 2 Uni 6593	£1.55	Mountfield Washer M8 8.4 X 24 X 2 Uni 6593 £1.55 P/N: 112523060/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
6	127864052/1 Mountfield Seat Rod	£6.62	Mountfield Seat Rod £6.62 P/N: 127864052/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
7	124487997/0 Mountfield Spring Clip D=1.8	£1.55	Mountfield Spring Clip D=1.8 £1.55 P/N: 124487997/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
8	327063021/1 Mountfield Micro Seat Operation Cam	£7.85	Mountfield Micro Seat Operation Cam £7.85 P/N: 327063021/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
9	112789100/0 Mountfield Hex-Head Screw M5 X 30	£1.55	Mountfield Hex-Head Screw M5 X 30 £1.55 P/N: 112789100/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
10	112154330/0 Mountfield Low Self-Locking Nut M5 Uni7474 Acc.6S	£1.55	Mountfield Low Self-Locking Nut M5 Uni7474 Acc.6S £1.55 P/N: 112154330/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
21	127961230/0 Mountfield Steering Wheel		Mountfield Steering Wheel P/N: 127961230/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
22	325120230/0 Mountfield Cover	£3.10	Mountfield Cover £3.10 P/N: 325120230/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.

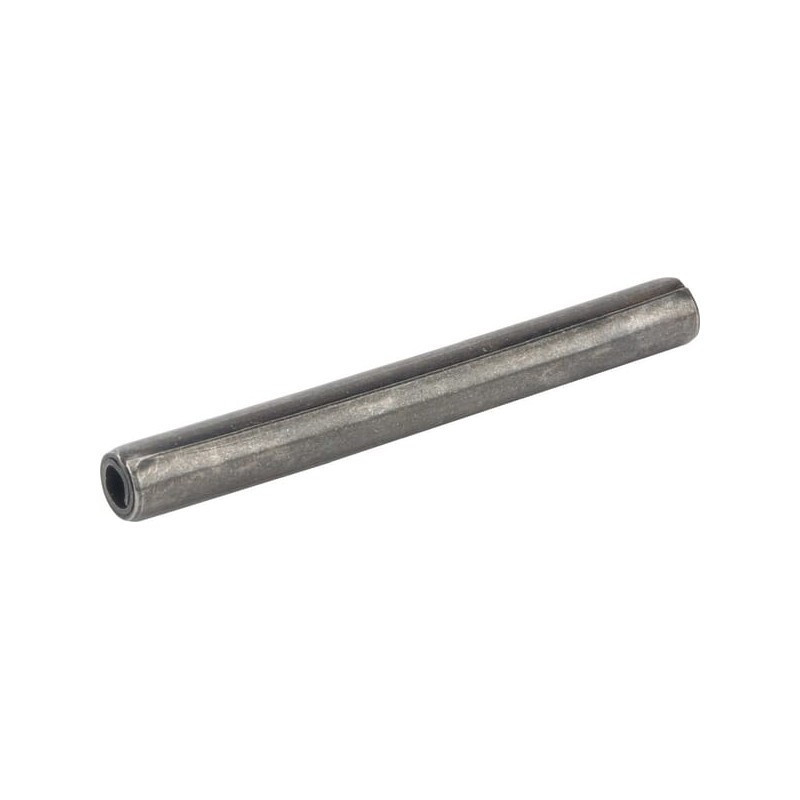

23	112620305/0 Mountfield Spirol Pin 6 X 55	£1.82	Mountfield Spirol Pin 6 X 55 £1.82 P/N: 112620305/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
