Mountfield 4135H Ride-on (01-2005) Parts Diagram, Page 2

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Mountfield 4135H Ride-on, or refer to the list below.

All Parts for 4135H Ride-on

Mountfield 4135H Ride-on (01-2005) Parts Diagram, Page 2

#	Part	Price
1	387205001/0 Mountfield Tension Arm Assembly	£45.04	Mountfield Tension Arm Assembly £45.04 P/N: 387205001/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.

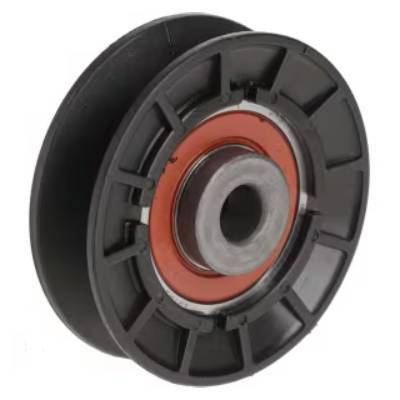

2	387605028/0 Mountfield Tension Pulley Assembly [Ntn]	£46.46	Mountfield Tension Pulley Assembly [Ntn] £46.46 P/N: 387605028/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
3	112794117/0 Mountfield Screw Mf6S M10 X 40 Din7991	£1.55	Mountfield Screw Mf6S M10 X 40 Din7991 £1.55 P/N: 112794117/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
4	112295200/0 Mountfield Hexagon Nut M10 Uni 5588 (Wz)	£1.40	Mountfield Hexagon Nut M10 Uni 5588 (Wz) £1.40 P/N: 112295200/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
5	1134-9058-01 Mountfield Transmission Belt	£21.67	Mountfield Transmission Belt £21.67 P/N: 1134-9058-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
6	112791500/0 Mountfield Screw Te M6X25 Uni 5739 Acc.8.8	£1.55	Mountfield Screw Te M6X25 Uni 5739 Acc.8.8 £1.55 P/N: 112791500/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
7	112292102/0 Mountfield Flanged Hexagonal Nut M6	£1.69	Mountfield Flanged Hexagonal Nut M6 £1.69 P/N: 112292102/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
7A	112154510/0 Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55	Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S £1.55 P/N: 112154510/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
8	1134-3377-02 Mountfield Control Rod	£16.46	Mountfield Control Rod £16.46 P/N: 1134-3377-02, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
10	137510345/0 Mountfield Pivot Pin Traction Galoppine	£7.96	Mountfield Pivot Pin Traction Galoppine £7.96 P/N: 137510345/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
11	1134-4183-01 Mountfield Compression Spring	£8.23	Mountfield Compression Spring £8.23 P/N: 1134-4183-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
12	1134-3456-01 Mountfield Bush	£5.76	Mountfield Bush £5.76 P/N: 1134-3456-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
13	112154510/0 Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55	Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S £1.55 P/N: 112154510/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
14	137038008/0 Mountfield Spacer	£8.65	Mountfield Spacer £8.65 P/N: 137038008/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
15	9997-0870-16 Mountfield Screw M6S M8 X 70	£2.12	Mountfield Screw M6S M8 X 70 £2.12 P/N: 9997-0870-16, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
16	112523060/0 Mountfield Washer M8 8.4 X 24 X 2 Uni 6593	£1.55	Mountfield Washer M8 8.4 X 24 X 2 Uni 6593 £1.55 P/N: 112523060/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
17	112155000/0 Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz	£1.55	Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz £1.55 P/N: 112155000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
18	1134-6414-01 Mountfield Spring	£5.35	Mountfield Spring £5.35 P/N: 1134-6414-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
19	112523040/0 Mountfield Washer M6 6.6 X 18 X 1.6	£1.55	Mountfield Washer M6 6.6 X 18 X 1.6 £1.55 P/N: 112523040/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
20	1137-0123-01 Mountfield Transaxle K46Ci	£1,554.77	Mountfield Transaxle K46Ci £1,554.77 P/N: 1137-0123-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
21	112691910/0 Mountfield Screw M8X65 Uni 5737 Acc. 8.8 Znb		Mountfield Screw M8X65 Uni 5737 Acc. 8.8 Znb £1.73 P/N: 112691910/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
22	112155000/0 Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz	£1.55	Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz £1.55 P/N: 112155000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
23	1134-3913-01 Mountfield Strut Bracket	£17.17	Mountfield Strut Bracket £17.17 P/N: 1134-3913-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
24	9959-0825-16 Mountfield Screw Flanged Te M6Sf M8 X 25	£1.55	Mountfield Screw Flanged Te M6Sf M8 X 25 £1.55 P/N: 9959-0825-16, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
25	112691200/0 Mountfield Hex-Head Screw M8 X 45 Uni 5737 8.8	£1.69	Mountfield Hex-Head Screw M8 X 45 Uni 5737 8.8 £1.69 P/N: 112691200/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
26	112521350/0 Mountfield Washer M8 8.4 X 16 X 1.6	£1.55	Mountfield Washer M8 8.4 X 16 X 1.6 £1.55 P/N: 112521350/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
27	112155000/0 Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz	£1.55	Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz £1.55 P/N: 112155000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
28	112154510/0 Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55	Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S £1.55 P/N: 112154510/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
29	337735117/0 Mountfield Oil Tank Park 2Wd	£43.64	Mountfield Oil Tank Park 2Wd £43.64 P/N: 337735117/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
30	1134-2777-02 Mountfield Oil Tank Cap	£16.40	Mountfield Oil Tank Cap £16.40 P/N: 1134-2777-02, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
31	1134-3734-01 Mountfield Vent Plug	£13.09	Mountfield Vent Plug £13.09 P/N: 1134-3734-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
32	1134-2778-01 Mountfield Band	£13.81	Mountfield Band £13.81 P/N: 1134-2778-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
33	9852-8013-16 Mountfield Screw	£2.12	Mountfield Screw £2.12 P/N: 9852-8013-16, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
34	9699-0099-02 Mountfield Washer 5.2 X 14 X 1.0	£1.82	Mountfield Washer 5.2 X 14 X 1.0 £1.82 P/N: 9699-0099-02, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
35	9578-0023-04 Mountfield Hose Clamp	£6.05	Mountfield Hose Clamp £6.05 P/N: 9578-0023-04, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
36	1134-2779-03 Mountfield Tube	£9.65	Mountfield Tube £9.65 P/N: 1134-2779-03, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
40	1134-4015-01 Mountfield Pull Rod	£11.27	Mountfield Pull Rod £11.27 P/N: 1134-4015-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
41	1134-4014-01 Mountfield Knob	£4.78	Mountfield Knob £4.78 P/N: 1134-4014-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
42	1134-4713-01 Mountfield Bracket	£13.50	Mountfield Bracket £13.50 P/N: 1134-4713-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
43	1134-2790-01 Mountfield Rubber Grommet	£6.47	Mountfield Rubber Grommet £6.47 P/N: 1134-2790-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
44	112800815/0 Mountfield Screw Te Fl M8 X 16	£1.55	Mountfield Screw Te Fl M8 X 16 £1.55 P/N: 112800815/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
45	112293201/0 Mountfield Flanged Hexagon Nut M8	£1.69	Mountfield Flanged Hexagon Nut M8 £1.69 P/N: 112293201/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
46	112604896/0 Mountfield Starlock Washer D=6	£1.55	Mountfield Starlock Washer D=6 £1.55 P/N: 112604896/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
51	1134-3289-02 Mountfield Belt Guide	£21.12	Mountfield Belt Guide £21.12 P/N: 1134-3289-02, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
52	9959-0820-16 Mountfield Flanged Screw M8 X 20 8.8 Din 6921	£1.55	Mountfield Flanged Screw M8 X 20 8.8 Din 6921 £1.55 P/N: 9959-0820-16, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
53	112523060/0 Mountfield Washer M8 8.4 X 24 X 2 Uni 6593	£1.55	Mountfield Washer M8 8.4 X 24 X 2 Uni 6593 £1.55 P/N: 112523060/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
54	112293201/0 Mountfield Flanged Hexagon Nut M8	£1.69	Mountfield Flanged Hexagon Nut M8 £1.69 P/N: 112293201/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
