Mountfield M4SP (01-2003) Parts Diagram, Page 4

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

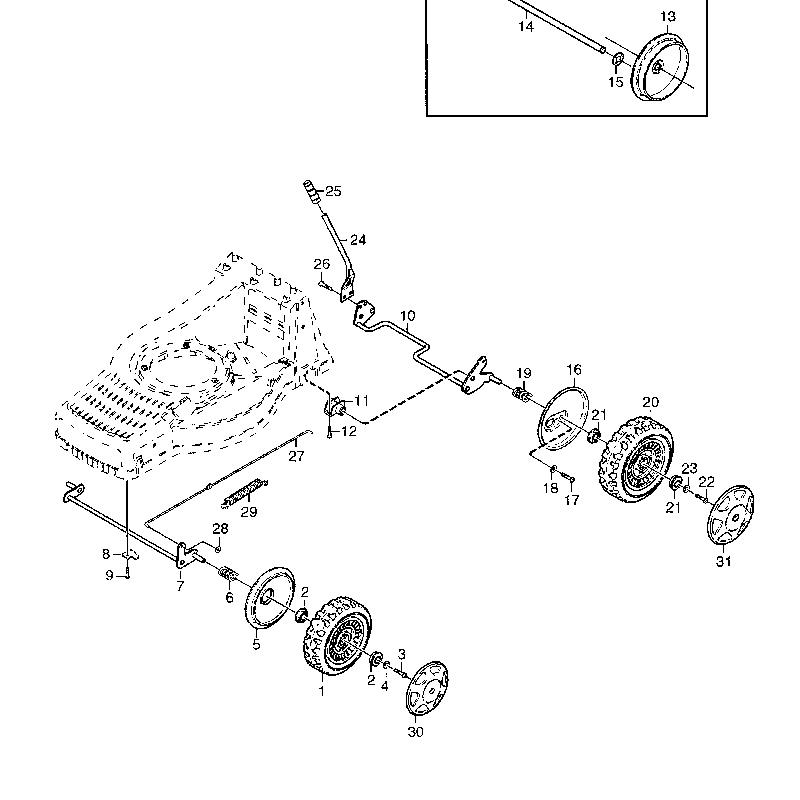

Look at the diagram and find parts that fit a Mountfield M4SP, or refer to the list below.

All Parts for M4SP

Mountfield M4SP (01-2003) Parts Diagram, Page 4

#	Part	Price
1	1111-2784-01 Mountfield Wheel Assembly 175mm	£18.59	Mountfield Wheel Assembly 175mm £18.59 P/N: 1111-2784-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
2	122122201/0 Mountfield Bearing-Plastic Case	£2.26	Mountfield Bearing-Plastic Case £2.26 P/N: 122122201/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
3	112735662/1 Mountfield Screw Tcb Torx M6 X 12	£2.40	Mountfield Screw Tcb Torx M6 X 12 £2.40 P/N: 112735662/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
4	112521460/0 Mountfield Washer M6 6.5 X 22 X 1.5	£1.40	Mountfield Washer M6 6.5 X 22 X 1.5 £1.40 P/N: 112521460/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
6	122430210/0 Mountfield Spring	£1.69	Mountfield Spring £1.69 P/N: 122430210/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
7	81002821/0 Mountfield Front Wheel Axle Turbo 50		Mountfield Front Wheel Axle Turbo 50 P/N: 81002821/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
8	322545160/0 Mountfield Front Axle Plate		Mountfield Front Axle Plate P/N: 322545160/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
9	112735664/0 Mountfield Screw M6 X 16	£1.40	Mountfield Screw M6 X 16 £1.40 P/N: 112735664/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
10	381002823/0 Mountfield Rear Wheels Axle		Mountfield Rear Wheels Axle P/N: 381002823/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
11	322785153/0 Mountfield Gearbox Support Bracket	£15.62	Mountfield Gearbox Support Bracket £15.62 P/N: 322785153/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
12	112735664/0 Mountfield Screw M6 X 16	£1.40	Mountfield Screw M6 X 16 £1.40 P/N: 112735664/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
16	322600121/0 Mountfield Wheel Cover Plate D=190		Mountfield Wheel Cover Plate D=190 P/N: 322600121/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
17	112735661/0 Mountfield Screw Tcb Torx M6 X 10	£1.55	Mountfield Screw Tcb Torx M6 X 10 £1.55 P/N: 112735661/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
18	112523040/0 Mountfield Washer M6 6.6 X 18 X 1.6	£1.55	Mountfield Washer M6 6.6 X 18 X 1.6 £1.55 P/N: 112523040/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
19	122430215/0 Mountfield Spring	£3.24	Mountfield Spring £3.24 P/N: 122430215/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
20	1111-2665-01 Mountfield Wheel Assembly C/W Bearing D=190	£32.03	Mountfield Wheel Assembly C/W Bearing D=190 £32.03 P/N: 1111-2665-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
21	122122201/0 Mountfield Bearing-Plastic Case	£2.26	Mountfield Bearing-Plastic Case £2.26 P/N: 122122201/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
22	112735662/1 Mountfield Screw Tcb Torx M6 X 12	£2.40	Mountfield Screw Tcb Torx M6 X 12 £2.40 P/N: 112735662/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
23	112521460/0 Mountfield Washer M6 6.5 X 22 X 1.5	£1.40	Mountfield Washer M6 6.5 X 22 X 1.5 £1.40 P/N: 112521460/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
24	322321515/0 Mountfield Use 1111-2816-01		Mountfield Use 1111-2816-01 P/N: 322321515/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
25	322399808/0 Mountfield Height Adjust Knob	£2.40	Mountfield Height Adjust Knob £2.40 P/N: 322399808/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
26	112735662/1 Mountfield Screw Tcb Torx M6 X 12	£2.40	Mountfield Screw Tcb Torx M6 X 12 £2.40 P/N: 112735662/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
27	122033322/0 Mountfield Wheels Control Rod TU50 (L=592,5)		Mountfield Wheels Control Rod TU50 (L=592,5) P/N: 122033322/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
28	112604898/0 Mountfield Starlock Washer D=7	£1.55	Mountfield Starlock Washer D=7 £1.55 P/N: 112604898/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
29	122446181/0 Mountfield Spring	£8.02	Mountfield Spring £8.02 P/N: 122446181/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
30	322110383/0 Mountfield Hub Cap D=175 [Grey]	£6.76	Mountfield Hub Cap D=175 [Grey] £6.76 P/N: 322110383/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
31	322110384/0 Mountfield Hub Cap 190/215 [Grey]	£7.19	Mountfield Hub Cap 190/215 [Grey] £7.19 P/N: 322110384/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
