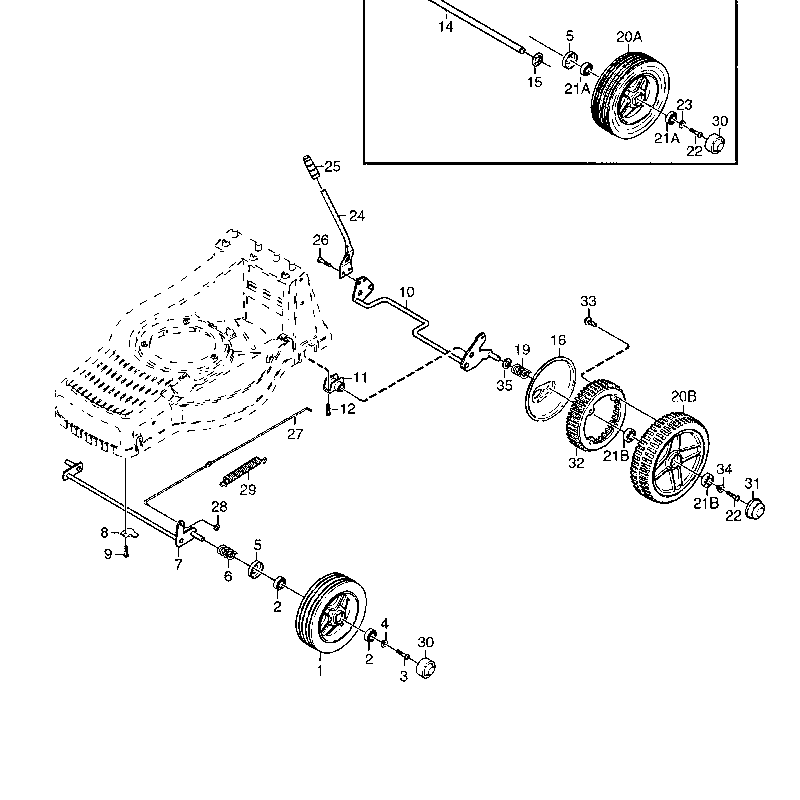

Mountfield M4SP (01-2002) Parts Diagram, Page 3

Look at the diagram and find parts that fit a Mountfield M4SP, or refer to the list below.

Mountfield M4SP (01-2002) Parts Diagram, Page 3

#	Part	Price
1	1111-0817-03 Mountfield Wheel		Mountfield Wheel P/N: 1111-0817-03, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
2	9549-0015-00 Mountfield Ball Bearing	£36.56	Mountfield Ball Bearing £36.56 P/N: 9549-0015-00, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
3	9943-0620-16 Mountfield Screw Torx M6 X 20		Mountfield Screw Torx M6 X 20 P/N: 9943-0620-16, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
4	112521460/0 Mountfield Washer M6 6.5 X 22 X 1.5	£1.36	Mountfield Washer M6 6.5 X 22 X 1.5 £1.36 P/N: 112521460/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
5	322160522/0 Mountfield Dust Cover	£3.38	Mountfield Dust Cover £3.38 P/N: 322160522/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
6	122430210/0 Mountfield Spring	£1.63	Mountfield Spring £1.63 P/N: 122430210/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
7	1111-2805-01 Mountfield Front Axle		Mountfield Front Axle P/N: 1111-2805-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
8	322545160/0 Mountfield Front Axle Plate		Mountfield Front Axle Plate P/N: 322545160/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
9	112735664/0 Mountfield Screw M6 X 16	£1.36	Mountfield Screw M6 X 16 £1.36 P/N: 112735664/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
10	381002823/0 Mountfield Rear Wheels Axle		Mountfield Rear Wheels Axle P/N: 381002823/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
11	322785153/0 Mountfield Gearbox Support Bracket	£15.04	Mountfield Gearbox Support Bracket £15.04 P/N: 322785153/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
12	112735664/0 Mountfield Screw M6 X 16	£1.36	Mountfield Screw M6 X 16 £1.36 P/N: 112735664/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
16	322600127/0 Mountfield Wheel Protection D=205/215	£10.57	Mountfield Wheel Protection D=205/215 £10.57 P/N: 322600127/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
19	122430215/0 Mountfield Spring	£3.12	Mountfield Spring £3.12 P/N: 122430215/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
20B	381007367/0 Mountfield Aluminium Wheel Assembly 205mm	£96.17	Mountfield Aluminium Wheel Assembly 205mm £96.17 P/N: 381007367/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
21B	119216038/0 Mountfield Bearing 6201-2RS C3	£5.69	Mountfield Bearing 6201-2RS C3 £5.69 P/N: 119216038/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
22	9943-0620-16 Mountfield Screw Torx M6 X 20		Mountfield Screw Torx M6 X 20 P/N: 9943-0620-16, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
24	322321515/0 Mountfield Use 1111-2816-01		Mountfield Use 1111-2816-01 P/N: 322321515/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
25	322399808/0 Mountfield Height Adjust Knob	£2.30	Mountfield Height Adjust Knob £2.30 P/N: 322399808/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
26	112735662/1 Mountfield Screw Tcb Torx M6 X 12	£2.30	Mountfield Screw Tcb Torx M6 X 12 £2.30 P/N: 112735662/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
27	122033322/0 Mountfield Wheels Control Rod TU50 (L=592,5)		Mountfield Wheels Control Rod TU50 (L=592,5) P/N: 122033322/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
28	112604898/0 Mountfield Starlock Washer D=7	£1.49	Mountfield Starlock Washer D=7 £1.49 P/N: 112604898/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
29	122446181/0 Mountfield Spring	£7.72	Mountfield Spring £7.72 P/N: 122446181/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
30	322110379/0 Mountfield Hub Cap D=175/190 [Black]	£11.24	Mountfield Hub Cap D=175/190 [Black] £11.24 P/N: 322110379/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
31	322110380/0 Mountfield Hub Cap [Black]	£2.70	Mountfield Hub Cap [Black] £2.70 P/N: 322110380/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
32	322120108/0 Mountfield Plastic Drive Gear	£11.24	Mountfield Plastic Drive Gear £11.24 P/N: 322120108/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
33	112728210/0 Mountfield Screw Torx M4 X 10	£1.36	Mountfield Screw Torx M4 X 10 £1.36 P/N: 112728210/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
34	122671656/0 Mountfield Washer	£7.03	Mountfield Washer £7.03 P/N: 122671656/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
35	112521370/0 Mountfield Washer M12 13 24 X 2.5	£1.49	Mountfield Washer M12 13 24 X 2.5 £1.49 P/N: 112521370/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
