Mountfield 46SP (01-2002) Parts Diagram, Page 1

Look at the diagram and find parts that fit a Mountfield 46SP, or refer to the list below.

All parts that fit a 46SP


Page:1
Page:1
Page:2
Page:2


Mountfield 46SP (01-2002) Parts Diagram, Page 1
# Part Price
1 81002375/0 - Mountfield Red Chassis Tdl 48 Tr £111.37
2 112793701/0 - Mountfield Hex - Head Screw M8 X 30 £1.48
To Basket
7 122399900/0 - Mountfield 3 Spoke Handwheel - Black £1.48
To Basket
10 112819201/0 - Mountfield Carriage Bolt M8 X 60 £2.68
To Basket
10A 181003801/1 - Mountfield Bolt/Pull Cord Guide £3.22
To Basket
11 122680006/1 - Mountfield Plastic Washer £1.74
To Basket
12 112293201/0 - Mountfield Hexagon Nut M8 With Exagonal Flange £1.61
To Basket
15 181000649/0 - Mountfield Engine Brake Cable £12.46
To Basket
16 122450410/1 - Mountfield R/H Deflector Spring £11.53
To Basket
17 381008143/0 - Mountfield Deflector Assembly - Black £20.22
To Basket
18 122450420/1 - Mountfield L/H Deflector Spring £1.87
To Basket
19 122517906/1 - Mountfield Deflector Rod £4.15
To Basket
28 381006637/0 - Mountfield Upper Handle £31.94
39 322545152/0 - Mountfield Axle Bracket £1.48
To Basket
40 112731350/0 - Mountfield Self - Tap Screw Te 5.5 X 19 Uni 6949 C15 £1.48
To Basket
41 122060192/0 - Mountfield Belt Protection Guard [Td/TDL 48] £5.35
To Basket
42 112727791/0 - Mountfield Cross - Head Screw M6X20 Uni 7687 Acc.4.8 £1.48
To Basket
43 112000930/0 - Mountfield Circlip D=6 £1.48
To Basket
52 322785081/1 - Mountfield Handle Support £4.55
To Basket
53 122785082/0 - Mountfield Right Internal Support £3.22
To Basket
54 122785083/1 - Mountfield Left Internal Support £3.22
To Basket
56 122551575/0 - Mountfield Inside Plate £1.48
To Basket
57 112793701/0 - Mountfield Hex - Head Screw M8 X 30 £1.48
To Basket
58 112155000/0 - Mountfield Low Self - Locking Nut M8 £1.48
To Basket
59 112521350/0 - Mountfield Washer M8 8.4 X 16 X 1.6 £1.48
To Basket
60 112691810/0 - Mountfield Screw Te M8 X 60 £1.74
To Basket
61 122399900/0 - Mountfield 3 Spoke Handwheel - Black £1.48
To Basket
70 322551685/0 - Mountfield Cable Holder Block D=22 £7.16
To Basket
71 112691810/0 - Mountfield Screw Te M8 X 60 £1.74
To Basket
72 112154510/0 - Mountfield Low Self - Locking Nut M6 Uni7474 Acc.6S £1.48
To Basket
73 381003298/1 - Mountfield Brake Control Lever £30.80
To Basket
74 381003297/1 - Mountfield Drive Control Lever £21.02
To Basket
75 1111-3287-01 - Mountfield Engine Cover [black] £46.44
76 118562804/0 - Mountfield Self - Tapping Screw Torx 20 £3.61
To Basket
99 81008638/1 - Mountfield SCREWS ASSEMBLY KIT £13.12

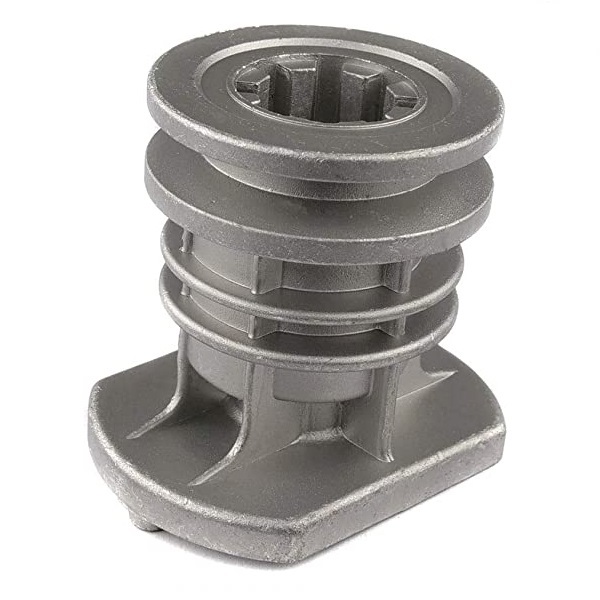

501 122465607/4 - Mountfield Blade Boss D=22.2mm £9.24
To Basket
502 181004346/3 - Mountfield Blade 46cm £14.06
To Basket
503 122160400/0 - Mountfield Spring Washer 50 X 2 X 10.2 £1.74
To Basket
504 112523080/0 - Mountfield Washer M10 11 X 30 X 2.5 £1.48
To Basket
505 112735698/0 - Mountfield Hex - Head Screw 3/8" X 2" £1.74
To Basket
506 112139100/0 - Mountfield Woodruff Key 4 X 6.5 D=16 Uni6606 C40 £1.48
To Basket
555 181006418/0 - Mountfield Grasscatcher Frame £36.16
To Basket
556 81002208/0 - Mountfield GRASSBAG £41.28
