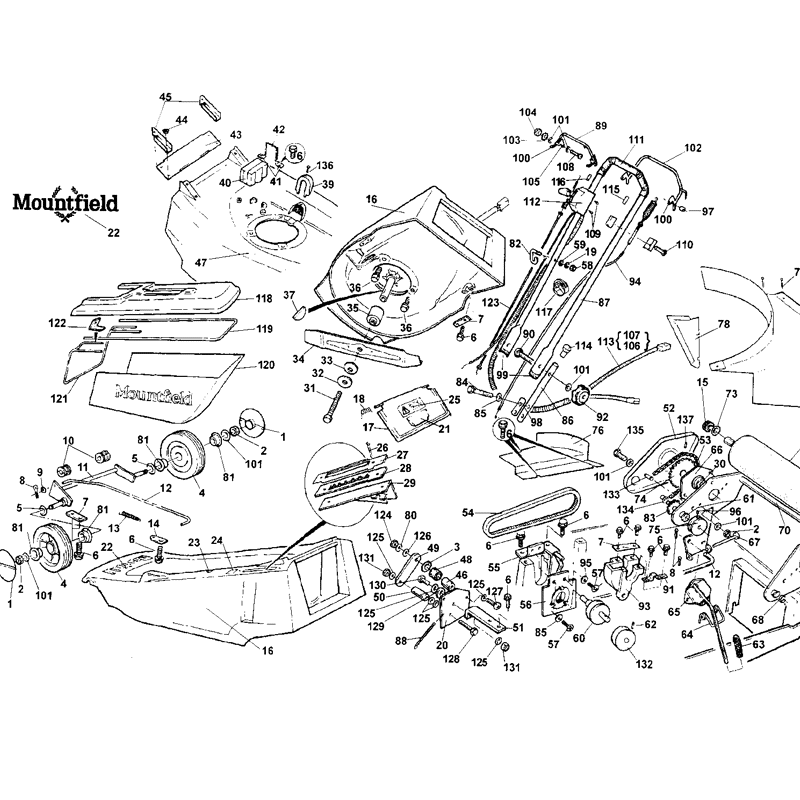

Mountfield MP86201 (01-1995) Parts Diagram, Page 1

Look at the diagram and find parts that fit a Mountfield MP86201, or refer to the list below.

All parts that fit a MP86201




Mountfield MP86201 (01-1995) Parts Diagram, Page 1
# Part Price
1 M4886 - Mountfield HUB CAP
2 M084-08 - Mountfield Nut £2.76
3 M015-1301 - Mountfield Washer £2.76
4 MF6145 - Mountfield Obsolete
5 MX1038 - Mountfield SPRING WASHER £2.76
6 M037-0612 - Mountfield Screw £2.76
7 M3067 - Mountfield CLAMP PLATE £5.34
8 M001-0319 - Mountfield SPLIT PIN £2.76
9 M010-1001 - Mountfield WASHER £2.76
10 M2690 - Mountfield AXLE BUSH £4.08
11 MF4718 - Mountfield FRONT AXLE £47.90
12 M6466 - Mountfield Obsolete
13 M4171 - Mountfield Balance Spring £5.82
14 M1312 - Mountfield ANCHOR PLATE £5.34
15 MX365 - Mountfield V' Ring £5.82
16 M4357 - Mountfield Obsolete
17 MF5188 - Mountfield DEFLECTOR (18" Empress) £21.52
18 M3059 - Mountfield Obsolete
19 M013-06 - Mountfield WASHER
20 M5984 - Mountfield JOCKEY LEVER £11.77
21 M5109 - Mountfield Obsolete
22 M7354 - Mountfield Badge (Silver/Black) £14.96
23 MX652 - Mountfield Plastic Plug £4.45
24 M2701 - Mountfield Obsolete
25 M6709 - Mountfield Warning Label £5.82
26 MX319 - Mountfield Rivet £2.76
27 M3141 - Mountfield PLATE £29.92
28 M3142 - Mountfield Flexible Cover £5.82
29 MF4143 - Mountfield Quadrant Assy £16.02
30 MX1294 - Mountfield Obsolete
31 112735694/0 - Mountfield Hex-Head Screw 3/8" X 1 1/2" 24 Unf £1.87
32 M3251 - Mountfield SHOULDER WASHER
33 MX621 - Mountfield BLADE WASHER
34 M6991 - Mountfield Blade 18"-Empress/Mirage £20.22
35 M3252 - Mountfield Blade Boss £26.18
36 120001064/0 - Mountfield Screw £9.65
37 112139100/0 - Mountfield Woodruff Key 4X6.5 D16 Uni 6606 C40 £1.46
38 M013-05 - Mountfield WASHER £2.76
39 M6293 - Mountfield Obsolete
40 118120064/0 - Mountfield Battery 12V 4Ah C/W Fg20451 Cable £44.18
41 M1313 - Mountfield Obsolete
42 M3452 - Mountfield BATTERY STRAP
43 MF4254 - Mountfield Obsolete
44 MX589 - Mountfield Obsolete
45 M3143 - Mountfield Obsolete
46 M4359 - Mountfield Obsolete
47 M6250 - Mountfield Obsolete
48 M4191 - Mountfield Obsolete
49 M6327 - Mountfield Obsolete
50 M6468 - Mountfield SPACER
51 M6326 - Mountfield Obsolete
52 M5994 - Mountfield Obsolete
53 M5990 - Mountfield Obsolete
54 MX1287 - Mountfield Belt-Xpz 687 £22.79
55 MF6312 - Mountfield Obsolete
56 MF4764 - Mountfield Obsolete
58 M062-06 - Mountfield Dome Nut £2.76
59 M019-0601 - Mountfield Washer £2.76
60 MF6028 - Mountfield Obsolete
61 MX1294 - Mountfield Obsolete
62 M035-0606 - Mountfield GRUB SCREW £2.76
63 MX588 - Mountfield Ball Knob £6.53
64 M4164 - Mountfield Spring £5.82
65 MF6454 - Mountfield Height Adj Lever £19.92
66 M6072 - Mountfield BEARING RET PLATE
67 M4165 - Mountfield Pin £14.95
68 M4212 - Mountfield BUSH £4.08
69 M4523 - Mountfield Roller Hub Bearing £7.66
70 MF5997 - Mountfield Obsolete
71 M4524 - Mountfield End Cap £5.82
72 MF6068 - Mountfield Obsolete
73 M4537 - Mountfield Distance Piece £4.45
74 MF5991 - Mountfield Obsolete
75 M5999 - Mountfield Obsolete
76 M6033 - Mountfield Obsolete
77 MF3413 - Mountfield Obsolete
78 M3414 - Mountfield Obsolete
79 MX527 - Mountfield Rivet £2.76
80 M013-05 - Mountfield WASHER £2.76
81 MX617 - Mountfield Obsolete
82 122430311/0 - Mountfield Pull Cord Guide £6.56
83 MF5987 - Mountfield Obsolete
84 M029-0850 - Mountfield BOLT £2.76
85 M011-0801 - Mountfield WASHER £2.76
86 M5956 - Mountfield Lower Handle £13.52
87 M6341 - Mountfield Obsolete
88 M6129 - Mountfield TENSION SPRING £4.08
89 MF6305 - Mountfield Opc Lever £40.21
90 M074-0850 - Mountfield Carriage Bolt M8 X 50 £2.76
91 M5995 - Mountfield RETAINING PLATE £5.34
92 MX1143 - Mountfield Handwheel £13.31
93 M5966 - Mountfield Obsolete
94 M6491 - Mountfield Clutch Cable
95 M083-0502 - Mountfield Obsolete
96 MX835 - Mountfield Ignition Keys X 2 £2.76
97 M6414 - Mountfield Obsolete
98 M4823 - Mountfield CLAMP PLATE £5.34
99 M4782 - Mountfield Handle Cap £4.45
100 MX1311 - Mountfield Obsolete
101 M011-0801 - Mountfield WASHER £2.76
102 MF6300 - Mountfield Clutch Lever £72.59
103 M013-08 - Mountfield Shakeproof Washer £2.76
104 M062-08 - Mountfield NUT £2.67
106 MX1122 - Mountfield KEY SWITCH ASSEMBLY
107 MX835 - Mountfield Ignition Keys X 2 £2.76
108 M074-0850 - Mountfield Carriage Bolt M8 X 50 £2.76
110 M081-0645 - Mountfield SCREW £2.76
111 G90892286 - Mountfield Handle Cover £13.28
112 M6464 - Mountfield Obsolete
113 M6052 - Mountfield Obsolete
114 MX1183 - Mountfield Belt £19.99
115 M6101 - Mountfield Obsolete
116 M6102 - Mountfield LABEL OPC LEVR £5.34
117 M4780 - Mountfield CABLE CLIP £4.08
118 M3404 - Mountfield Obsolete
119 M3438 - Mountfield U TUBE £18.25
120 M3436 - Mountfield Obsolete
121 MF6487 - Mountfield A FRAME-18" Empress £39.86
122 M3041 - Mountfield CLIP £5.34
123 M7030 - Mountfield Opc Cable
125 M011-0601 - Mountfield Washer £2.76
126 RCL010-0501 - Mountfield WASHER £2.76
127 M102-0532 - Mountfield SCREW £2.76
129 M6328 - Mountfield STEPPED BUSH £5.34
131 M089-06 - Mountfield Nut £2.76
132 M5409 - Mountfield COLLAR £6.31
133 M6465 - Mountfield Obsolete
134 MX1291 - Mountfield NYLON BUSH
136 M046-0310 - Mountfield Screw £2.76
137 RCL138-0624 - Mountfield Roll Pin £2.76
