Jonsered 2234 (04-2009) Parts Diagram, Page 1

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Jonsered 2234, or refer to the list below.

All Parts for 2234

Jonsered 2234 (04-2009) Parts Diagram, Page 1

#	Part	Price
3	5300579-40 Jonsered Assy. Front Link	£18.55	Jonsered Assy. Front Link £18.55 P/N: 5300579-40, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.
4	5747803-01 Jonsered Screw	£2.75	Jonsered Screw £2.75 P/N: 5747803-01, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.
5	5300164-15 Jonsered Spring Compression	£5.90	Jonsered Spring Compression £5.90 P/N: 5300164-15, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.
6	5300161-10 Jonsered Screw	£3.30	Jonsered Screw £3.30 P/N: 5300161-10, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.
7	5300385-93 Jonsered Retainer	£2.47	Jonsered Retainer £2.47 P/N: 5300385-93, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.
8	5300158-26 Jonsered Pin	£1.92	Jonsered Pin £1.92 P/N: 5300158-26, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.
10	5300159-13 Jonsered Pin	£1.38	Jonsered Pin £1.38 P/N: 5300159-13, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.
11	5300579-23 Jonsered Brake Band	£12.36	Jonsered Brake Band £12.36 P/N: 5300579-23, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.
12	5450710-02 Jonsered Cover	£8.35	Jonsered Cover £8.35 P/N: 5450710-02, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.
13	5300160-64 Jonsered Screw		Jonsered Screw £1.19 P/N: 5300160-64, Genuine OEM spare part. Find other Jonsered spares, parts and accessories. No longer available
14	5300159-17 Jonsered Nut	£3.16	Jonsered Nut £3.16 P/N: 5300159-17, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.
15	5451187-01 Jonsered Decal	£3.02	Jonsered Decal £3.02 P/N: 5451187-01, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.

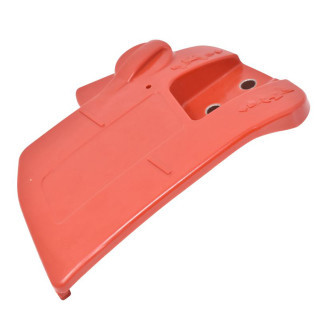

16	5256115-01 Jonsered Chain Brake Assy	£77.36	Jonsered Chain Brake Assy £77.36 P/N: 5256115-01, Genuine OEM spare part. Find other Jonsered spares, parts and accessories.
