Jonsered LT2223 (01-2010) Parts Diagram, Page 8

Look at the diagram and find parts that fit a Jonsered LT2223, or refer to the list below.

All parts that fit a LT2223


Page:1
Page:1
Page:2
Page:2
Page:3
Page:3
Page:4
Page:4
Page:5
Page:5
Page:6
Page:6
Page:7
Page:7
Page:8
Page:8
Page:9
Page:9
Page:10
Page:10
Page:11
Page:11


Jonsered LT2223 (01-2010) Parts Diagram, Page 8
# Part Price
6 5321972-48 - Jonsered Cover,Mandrel £18.95
7 5321991-02 - Jonsered Mandrel Cover Rh £13.96
8 5321930-03 - Jonsered Bolt £15.79
To Basket

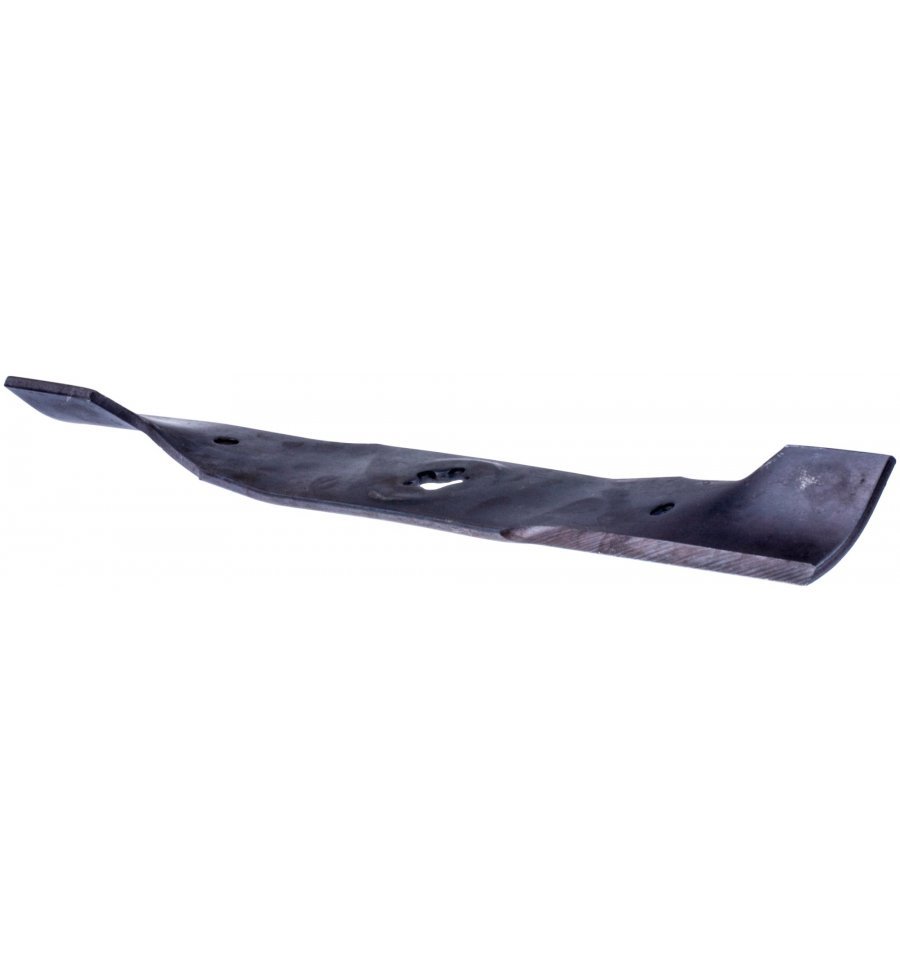

11 5321800-54 - Jonsered Blade, 48" Hi-Lift £27.98
To Basket
12 5324048-51 - Jonsered Rod £20.88
To Basket
13 5321872-91 - Jonsered Shaft Asm. W/Lower Bear £65.96
To Basket
14 5321872-81 - Jonsered Housing - Mandrel £73.13
15 5321104-85 - Jonsered Bearing £8.42
To Basket
16 7341172-01 - Jonsered Washer £1.72

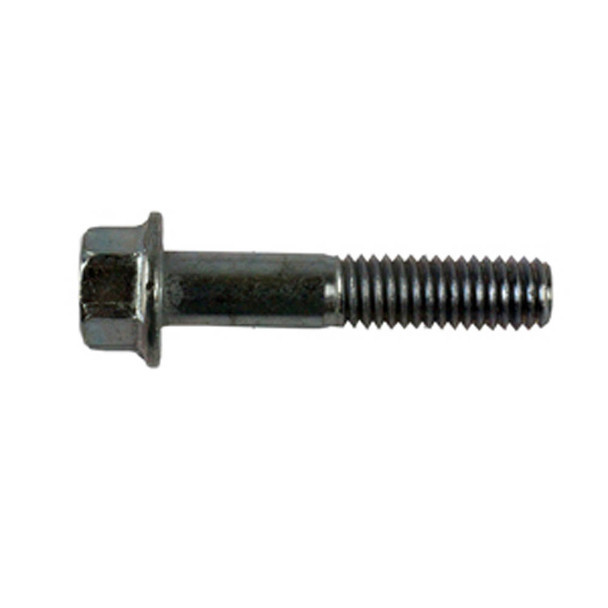

17 8721105-05 - Jonsered Bolt £3.43
To Basket
18 5961364-01 - Jonsered Bolt Square Round Head Square £3.92
To Basket
19 5321942-08 - Jonsered Pin £1.58
To Basket
20 5321743-78 - Jonsered Baffle £34.61
21 8738005-00 - Jonsered Locknut £2.47
To Basket
22 5321744-93 - Jonsered Stripper. Mandrel.Black £13.64
To Basket
24 5321053-04 - Jonsered Cap £3.50
To Basket
25 5391076-09 - Jonsered Spring £12.35
To Basket
26 5321104-52 - Jonsered Nut £2.00
To Basket
27 5321817-07 - Jonsered Deflector £52.70
29 5321314-91 - Jonsered Shaft £6.77
30 5321739-84 - Jonsered Screw £4.66
31 5321876-90 - Jonsered Washer Spacer £3.65
To Basket

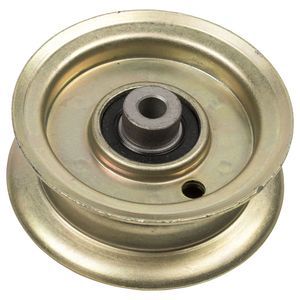

32 5321734-35 - Jonsered Pulley £34.99
To Basket
33 5324002-34 - Jonsered Nut £1.25
To Basket

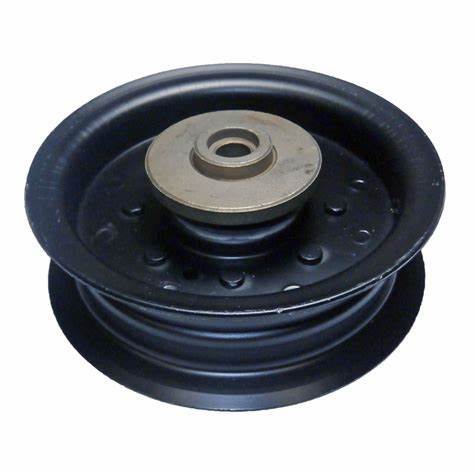

39 5321961-04 - Jonsered Idler Pulley £122.57
To Basket
43 5321960-65 - Jonsered Arm £52.00
To Basket
46 5321377-29 - Jonsered Screw £2.56
To Basket
47 5321972-42 - Jonsered Belt £111.96
48 5321779-68 - Jonsered Pulley £60.70
To Basket
49 5324091-49 - Jonsered Nut £4.81
To Basket
50 8174906-36 - Jonsered Screw £7.28

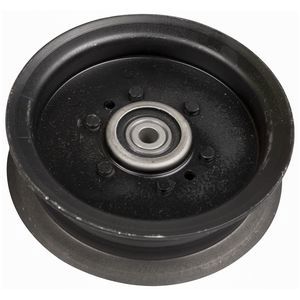

52 5321961-06 - Jonsered Idler Pulley £99.79
To Basket
54 8721106-12 - Jonsered Bolt £6.77
To Basket
97 5321785-15 - Jonsered Washer £8.58
To Basket

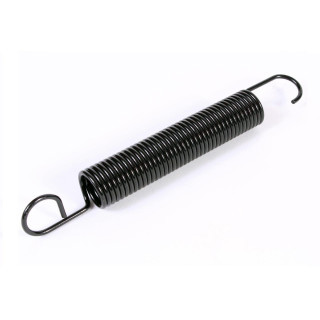

98 5321961-05 - Jonsered Spring £20.17
To Basket
113 8721105-08 - Jonsered Bolt £3.65
To Basket
114 5321974-51 - Jonsered Rod £25.30
116 5964344-04 - Jonsered Bolt Shoulder, 3/8-16 X 3-5/8 £5.46
To Basket
117 5895273-01 - Jonsered Wheel Gauge, Rally £20.44
To Basket
120 7341174-41 - Jonsered Washer £4.68
To Basket
122 5321875-57 - Jonsered Bushing Tension Relief £18.47
185 8739007-00 - Jonsered Nut £5.04
To Basket
187 5321951-61 - Jonsered Stud £2.88
To Basket
188 8739005-00 - Jonsered Nut £2.70
To Basket
189 5321951-85 - Jonsered Arm £33.23
190 5321965-39 - Jonsered Bolt £6.37
To Basket
194 8744907-36 - Jonsered Bolt £8.71
To Basket
241 5321529-27 - Jonsered Screw £2.56
To Basket
242 5324155-98 - Jonsered Connection £6.18
To Basket
