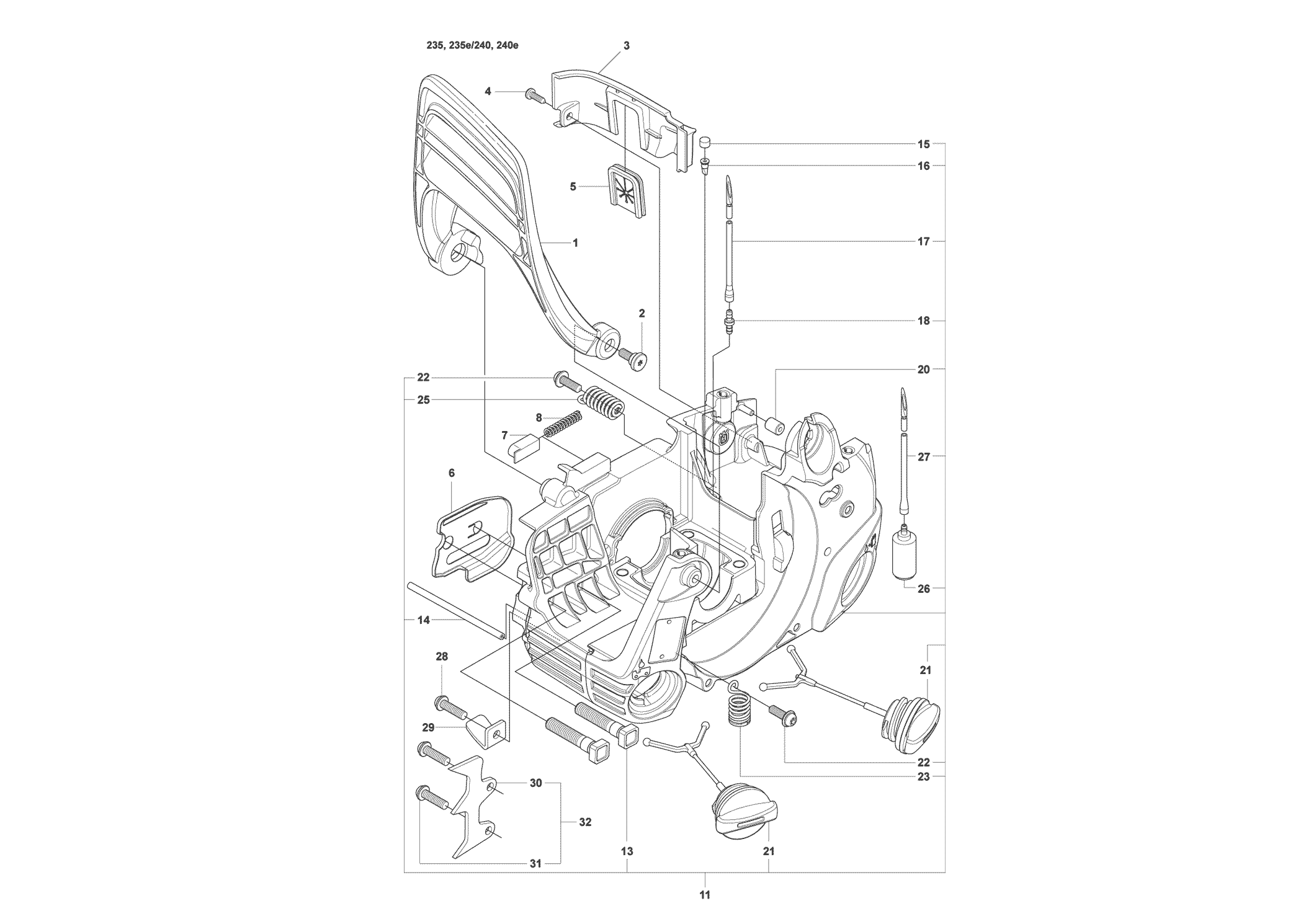

Husqvarna 235e Chainsaw (2008) Parts Diagram, Page 13
Look at the diagram and find parts that fit a Husqvarna 235e Chainsaw, or refer to the list below.
All Parts for Husqvarna 235e Chainsaw

# | Part | Price | |
---|---|---|---|
1 |
5756369-01 Husqvarna Handguard |
£28.44 |
![]() Husqvarna Handguard£28.44 ![]() P/N: 5756369-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
2 |
5451273-01 Husqvarna Boss Screw. Handguard |
£2.76 |
![]() Husqvarna Boss Screw. Handguard£2.76 ![]() P/N: 5451273-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
3 |
5450612-01 Husqvarna Rear Wall |
£13.30 |
![]() Husqvarna Rear Wall£13.30 ![]() P/N: 5450612-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
4 |
5300160-64 Husqvarna Screw |
![]() Husqvarna Screw£1.19 ![]() P/N: 5300160-64, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
5 |
5450754-01 Husqvarna Grommet. Rear Wall |
![]() Husqvarna Grommet. Rear Wall£4.60 ![]() P/N: 5450754-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
6 |
5450714-01 Husqvarna Plate Bar Mounting |
£9.85 |
![]() Husqvarna Plate Bar Mounting£9.85 ![]() P/N: 5450714-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
7 |
5450713-01 Husqvarna Cap. Spring Handguard |
£6.04 |
![]() Husqvarna Cap. Spring Handguard£6.04 ![]() P/N: 5450713-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
8 |
5450712-01 Husqvarna Spring. Handguard Position |
£3.80 |
![]() Husqvarna Spring. Handguard Position£3.80 ![]() P/N: 5450712-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
11 |

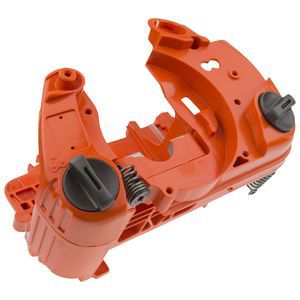

5796652-01 Husqvarna Chassis |
![]() Husqvarna Chassis£147.55 ![]() P/N: 5796652-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
13 |
5450335-01 Husqvarna Hose |
£12.55 |
![]() Husqvarna Hose£12.55 ![]() P/N: 5450335-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
14 |
5300298-68 Husqvarna Plug |
£4.46 |
![]() Husqvarna Plug£4.46 ![]() P/N: 5300298-68, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
15 |
5300261-19 Husqvarna Valve |
£6.73 |
![]() Husqvarna Valve£6.73 ![]() P/N: 5300261-19, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
16 |
5300692-16 Husqvarna Fuel Pipe |
£13.30 |
![]() Husqvarna Fuel Pipe£13.30 ![]() P/N: 5300692-16, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
17 |
5300238-77 Husqvarna Nipple |
£7.22 |
![]() Husqvarna Nipple£7.22 ![]() P/N: 5300238-77, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
18 |
5450619-01 Husqvarna Isolator Filter Housing |
£1.73 |
![]() Husqvarna Isolator Filter Housing£1.73 ![]() P/N: 5450619-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
20 |
5778583-01 Husqvarna Assy-Oil/Fuel Cap W/Ret. |
£9.85 |
![]() Husqvarna Assy-Oil/Fuel Cap W/Ret.£9.85 ![]() P/N: 5778583-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
21 |
5300159-06 Husqvarna Screw |
£1.84 |
![]() Husqvarna Screw£1.84 ![]() P/N: 5300159-06, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
22 |
5450338-01 Husqvarna Ass Y Front Isolator |
£12.42 |
![]() Husqvarna Ass Y Front Isolator£12.42 ![]() P/N: 5450338-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
24 |
5450631-01 Husqvarna Rear Isolator Spring |
£13.87 |
![]() Husqvarna Rear Isolator Spring£13.87 ![]() P/N: 5450631-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
25 |
5300956-46 Husqvarna Filter |
£8.50 |
![]() Husqvarna Filter£8.50 ![]() P/N: 5300956-46, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
26 |
5450783-02 Husqvarna Line. Fuel |
£5.17 |
![]() Husqvarna Line. Fuel£5.17 ![]() P/N: 5450783-02, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
27 |
5300158-14 Husqvarna Screw |
£2.10 |
![]() Husqvarna Screw£2.10 ![]() P/N: 5300158-14, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
28 |
5300298-50 Husqvarna Chain Catcher |
£5.05 |
![]() Husqvarna Chain Catcher£5.05 ![]() P/N: 5300298-50, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
29 |
5300143-81 Husqvarna Felling Dog |
£13.96 |
![]() Husqvarna Felling Dog£13.96 ![]() P/N: 5300143-81, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
30 |
5300164-39 Husqvarna Screw |
£1.84 |
![]() Husqvarna Screw£1.84 ![]() P/N: 5300164-39, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
31 |
5300143-81 Husqvarna Felling Dog |
£13.96 |
![]() Husqvarna Felling Dog£13.96 ![]() P/N: 5300143-81, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
