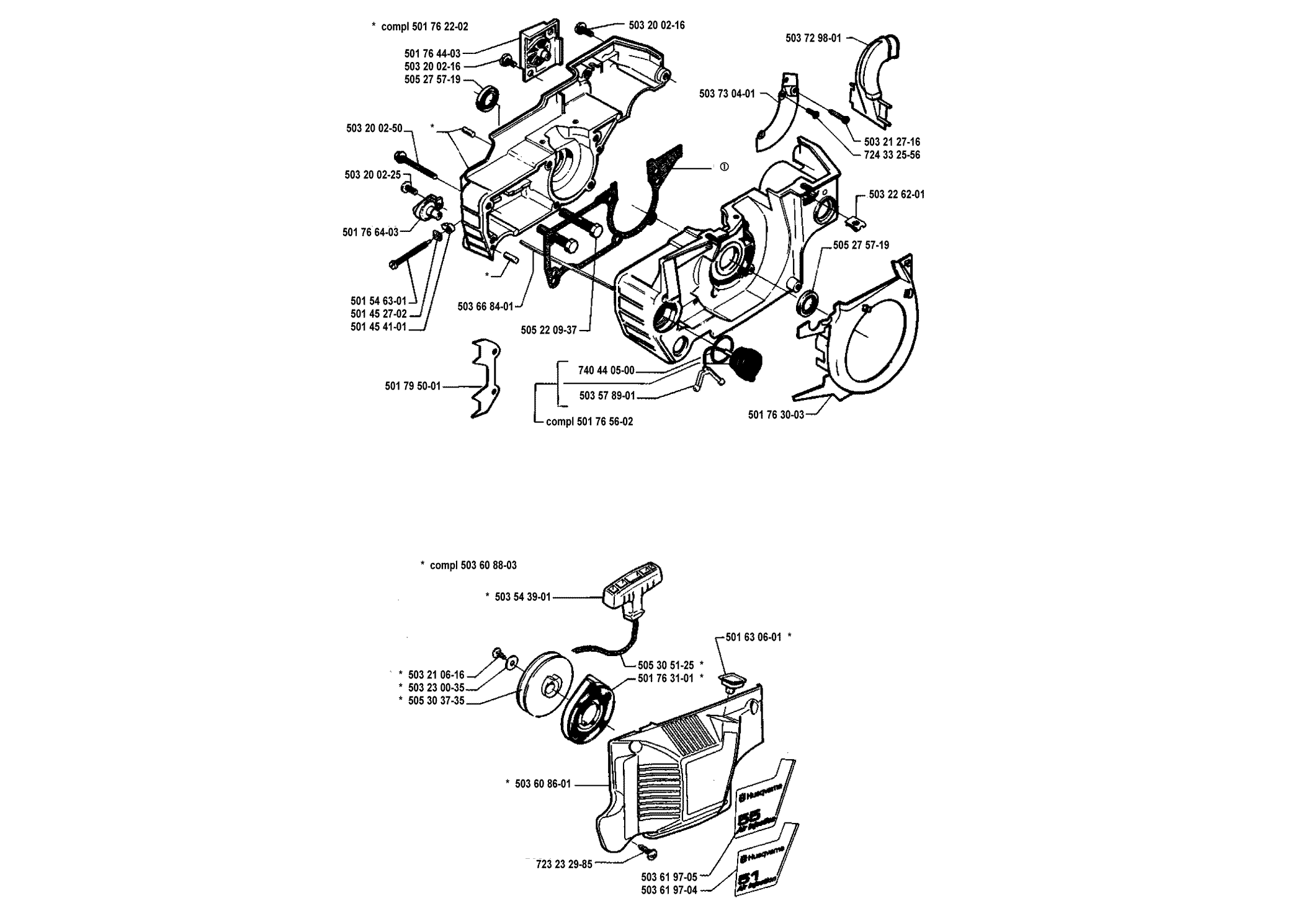

Husqvarna 55 Chainsaw (1994) Parts Diagram, Page 5

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Husqvarna 55 Chainsaw, or refer to the list below.

All Parts for Husqvarna 55 Chainsaw

Husqvarna 55 Chainsaw (1994) Parts Diagram, Page 5

#	Part	Price
5014527-02	5014527-02 Husqvarna Nut	£3.02	Husqvarna Nut £3.02 P/N: 5014527-02, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5014541-01	5014541-01 Husqvarna Pawl	£6.88	Husqvarna Pawl £6.88 P/N: 5014541-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5015463-01	5015463-01 Husqvarna Screw	£3.02	Husqvarna Screw £3.02 P/N: 5015463-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5016306-01	5016306-01 Husqvarna Sleeve	£9.62	Husqvarna Sleeve £9.62 P/N: 5016306-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5017622-02	5017622-02 Husqvarna Crankcase	£324.14	Husqvarna Crankcase £324.14 P/N: 5017622-02, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5017630-03	5017630-03 Husqvarna Air Conductor	£9.62	Husqvarna Air Conductor £9.62 P/N: 5017630-03, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5017631-01	5017631-01 Husqvarna Recoil Spring	£17.39	Husqvarna Recoil Spring £17.39 P/N: 5017631-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5017644-03	5017644-03 Husqvarna Cap		Husqvarna Cap £9.74 P/N: 5017644-03, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
5017656-02	5017656-02 Husqvarna Tank Cap	£10.31	Husqvarna Tank Cap £10.31 P/N: 5017656-02, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5017664-03	5017664-03 Husqvarna Chain Catcher	£5.28	Husqvarna Chain Catcher £5.28 P/N: 5017664-03, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5017950-01	5017950-01 Husqvarna Felling Dog	£14.62	Husqvarna Felling Dog £14.62 P/N: 5017950-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5032002-16	5032002-16 Husqvarna Screw	£2.20	Husqvarna Screw £2.20 P/N: 5032002-16, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5032002-25	5032002-25 Husqvarna Screw	£2.47	Husqvarna Screw £2.47 P/N: 5032002-25, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5032002-50	5032074-50 Husqvarna Screw		Husqvarna Screw £1.99 P/N: 5032074-50, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
5032106-16	5032149-72 Husqvarna Screw Ihscft	£2.20	Husqvarna Screw Ihscft £2.20 P/N: 5032149-72, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5032127-16	5032127-16 Husqvarna Screw	£1.64	Husqvarna Screw £1.64 P/N: 5032127-16, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5032262-01	5032262-01 Husqvarna Plate Nut		Husqvarna Plate Nut £1.64 P/N: 5032262-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
5032300-35	5382272-59 Husqvarna Washer	£2.75	Husqvarna Washer £2.75 P/N: 5382272-59, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5035439-01	5035439-01 Husqvarna Starter Handle	£9.74	Husqvarna Starter Handle £9.74 P/N: 5035439-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5035789-01	5035789-01 Husqvarna Holder	£6.18	Husqvarna Holder £6.18 P/N: 5035789-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5036086-01	5036086-01 Husqvarna Starter Housing	£43.97	Husqvarna Starter Housing £43.97 P/N: 5036086-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5036088-03	5036088-03 Husqvarna Starter Ass'Y	£80.00	Husqvarna Starter Ass'Y £80.00 P/N: 5036088-03, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5036197-04	5036197-04 Husqvarna Decal		Husqvarna Decal £3.30 P/N: 5036197-04, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
5036197-05	5373598-01 Husqvarna Decal	£8.93	Husqvarna Decal £8.93 P/N: 5373598-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5036684-01	5036684-01 Husqvarna Tank Vent	£5.56	Husqvarna Tank Vent £5.56 P/N: 5036684-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5037298-01	5037298-01 Husqvarna Jet	£7.56	Husqvarna Jet £7.56 P/N: 5037298-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5037304-01	5037304-01 Husqvarna Plate		Husqvarna Plate £9.67 P/N: 5037304-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
5052209-37	5052209-37 Husqvarna Bar Bolt	£5.90	Husqvarna Bar Bolt £5.90 P/N: 5052209-37, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5052757-19	5052757-19 Husqvarna Seal Ring	£15.34	Husqvarna Seal Ring £15.34 P/N: 5052757-19, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5053037-35	5053037-35 Husqvarna Starter Pulley	£21.56	Husqvarna Starter Pulley £21.56 P/N: 5053037-35, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5053051-25	5053051-25 Husqvarna Starter Rope	£5.56	Husqvarna Starter Rope £5.56 P/N: 5053051-25, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
7232329-85	7241329-55 Husqvarna Screw	£2.20	Husqvarna Screw £2.20 P/N: 7241329-55, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
7243325-56	7243325-56 Husqvarna Screw		Husqvarna Screw £1.64 P/N: 7243325-56, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
7404405-00	7404405-00 Husqvarna O-Ring	£4.08	Husqvarna O-Ring £4.08 P/N: 7404405-00, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
