Husqvarna LTH1536 (01-2005) Parts Diagram, Page 9

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Husqvarna LTH1536, or refer to the list below.

All Parts for LTH1536

Husqvarna LTH1536 (01-2005) Parts Diagram, Page 9

#	Part	Price
1	5830913-01 Husqvarna Kit.Housing.Deck.36		Husqvarna Kit.Housing.Deck.36 £268.02 P/N: 5830913-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
2	5959016-01 Husqvarna Bolt Square Round Head Square	£3.85	Husqvarna Bolt Square Round Head Square £3.85 P/N: 5959016-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
3	5321380-17 Husqvarna Bracke	£21.29	Husqvarna Bracke £21.29 P/N: 5321380-17, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
4	5830707-01 Husqvarna Brkt.Sway	£27.48	Husqvarna Brkt.Sway £27.48 P/N: 5830707-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5	5969196-01 Husqvarna Pin Hair Cotter Pin 1/8 X 1-3/	£2.05	Husqvarna Pin Hair Cotter Pin 1/8 X 1-3/ £2.05 P/N: 5969196-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
6	5321780-24 Husqvarna Arm	£24.73	Husqvarna Arm £24.73 P/N: 5321780-24, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
7	5321406-08 Husqvarna Holder, L.H.	£19.93	Husqvarna Holder, L.H. £19.93 P/N: 5321406-08, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
8	5328508-57 Husqvarna Bolt, Blade	£6.88	Husqvarna Bolt, Blade £6.88 P/N: 5328508-57, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
9	5962387-01 Husqvarna Washer Spring Lock Washer With	£2.75	Husqvarna Washer Spring Lock Washer With £2.75 P/N: 5962387-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
10	5321402-96 Husqvarna Washer	£8.93	Husqvarna Washer £8.93 P/N: 5321402-96, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
11	5321384-96 Husqvarna Blade, Hi-Lift	£31.67	Husqvarna Blade, Hi-Lift £31.67 P/N: 5321384-96, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
13	5321376-46 Husqvarna Shaft	£86.36	Husqvarna Shaft £86.36 P/N: 5321376-46, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
14	5321287-74 Husqvarna Bearing Housing	£81.34	Husqvarna Bearing Housing £81.34 P/N: 5321287-74, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
15	5321104-85 Husqvarna Bearing	£9.14	Husqvarna Bearing £9.14 P/N: 5321104-85, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.

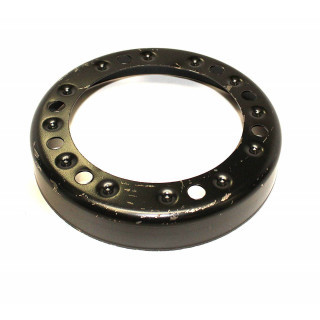

16	5311677-01 Husqvarna Service Kit Mandrel Stripper.M	£14.42	Husqvarna Service Kit Mandrel Stripper.M £14.42 P/N: 5311677-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
19	5321328-27 Husqvarna Spec. Bolt		Husqvarna Spec. Bolt £7.56 P/N: 5321328-27, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
21	8738005-00 Husqvarna Locknut	£2.60	Husqvarna Locknut £2.60 P/N: 8738005-00, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
23	5321366-31 Husqvarna Bracket		Husqvarna Bracket £15.80 P/N: 5321366-31, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
24	5321053-04 Husqvarna Cap	£3.71	Husqvarna Cap £3.71 P/N: 5321053-04, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
25	5321237-13 Husqvarna Spring	£12.36	Husqvarna Spring £12.36 P/N: 5321237-13, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
26	5321104-52 Husqvarna Nut	£2.20	Husqvarna Nut £2.20 P/N: 5321104-52, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
27	5321750-29 Husqvarna Deflector	£57.71	Husqvarna Deflector £57.71 P/N: 5321750-29, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
28	7341163-01 Husqvarna Washer	£2.16	Husqvarna Washer £2.16 P/N: 7341163-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
29	5938851-01 Husqvarna Rod Hinge, 30 Hinge, 30	£10.31	Husqvarna Rod Hinge, 30 Hinge, 30 £10.31 P/N: 5938851-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
30	5321739-84 Husqvarna Screw		Husqvarna Screw £4.66 P/N: 5321739-84, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
31	5321876-90 Husqvarna Washer Spacer	£3.85	Husqvarna Washer Spacer £3.85 P/N: 5321876-90, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
32	5321734-34 Husqvarna Pulley	£35.16	Husqvarna Pulley £35.16 P/N: 5321734-34, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
33	5961348-01 Husqvarna Hexagon Nut Hexagon Nut With F	£1.64	Husqvarna Hexagon Nut Hexagon Nut With F £1.64 P/N: 5961348-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
34	8721106-14 Husqvarna Bolt	£7.56	Husqvarna Bolt £7.56 P/N: 8721106-14, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
36	5321734-38 Husqvarna Pulley Idler Flt 3.06	£59.62	Husqvarna Pulley Idler Flt 3.06 £59.62 P/N: 5321734-38, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
40	8736806-00 Husqvarna Nut	£4.13	Husqvarna Nut £4.13 P/N: 8736806-00, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
45	5320044-97 Husqvarna Clip	£1.92	Husqvarna Clip £1.92 P/N: 5320044-97, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
53	5311651-01 Husqvarna Service Kit Brake Assembly	£11.00	Husqvarna Service Kit Brake Assembly £11.00 P/N: 5311651-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
54	5321785-15 Husqvarna Washer	£9.62	Husqvarna Washer £9.62 P/N: 5321785-15, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
55	5321338-40 Husqvarna Arm	£28.86	Husqvarna Arm £28.86 P/N: 5321338-40, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
56	5321657-23 Husqvarna Spacer	£13.06	Husqvarna Spacer £13.06 P/N: 5321657-23, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
67	5321069-32 Husqvarna Knob	£11.00	Husqvarna Knob £11.00 P/N: 5321069-32, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
68	5830661-01 Husqvarna V-Belt.Mower	£67.07	Husqvarna V-Belt.Mower £67.07 P/N: 5830661-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
89	7341172-01 Husqvarna Washer		Husqvarna Washer £1.72 P/N: 7341172-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
92	8736806-00 Husqvarna Nut	£4.13	Husqvarna Nut £4.13 P/N: 8736806-00, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
107	5321335-02 Husqvarna Spacer	£7.56	Husqvarna Spacer £7.56 P/N: 5321335-02, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
108	5321335-03 Husqvarna Arm	£16.49	Husqvarna Arm £16.49 P/N: 5321335-03, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
113	8174905-08 Husqvarna Screw	£3.85	Husqvarna Screw £3.85 P/N: 8174905-08, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
122	5830633-01 Husqvarna Rod.Brake.	£11.00	Husqvarna Rod.Brake. £11.00 P/N: 5830633-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
123	5830632-01 Husqvarna Rod.Brake		Husqvarna Rod.Brake £15.11 P/N: 5830632-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
129	7341172-01 Husqvarna Washer		Husqvarna Washer £1.72 P/N: 7341172-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
130	8747806-16 Husqvarna Bolt	£6.73	Husqvarna Bolt £6.73 P/N: 8747806-16, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
131	8721106-08 Husqvarna Bolt	£7.56	Husqvarna Bolt £7.56 P/N: 8721106-08, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
146	5321719-77 Husqvarna Shaft	£17.58	Husqvarna Shaft £17.58 P/N: 5321719-77, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
148	5321690-22 Husqvarna Spring	£5.35	Husqvarna Spring £5.35 P/N: 5321690-22, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
149	5321658-98 Husqvarna Spring	£4.13	Husqvarna Spring £4.13 P/N: 5321658-98, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
150	7341154-41 Husqvarna Washer	£2.75	Husqvarna Washer £2.75 P/N: 7341154-41, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
152	5830756-01 Husqvarna Cable.Clutch	£52.22	Husqvarna Cable.Clutch £52.22 P/N: 5830756-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
158	8177204-08 Husqvarna Screw		Husqvarna Screw £1.86 P/N: 8177204-08, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
164	5830659-01 Husqvarna Idler.Asm	£52.22	Husqvarna Idler.Asm £52.22 P/N: 5830659-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
168	5321723-77 Husqvarna Bracket		Husqvarna Bracket £19.61 P/N: 5321723-77, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
169	5321749-77 Husqvarna Bracket		Husqvarna Bracket £24.65 P/N: 5321749-77, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
170	5324000-96 Husqvarna Support		Husqvarna Support £23.35 P/N: 5324000-96, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
171	5321652-37 Husqvarna Brace Support		Husqvarna Brace Support £33.40 P/N: 5321652-37, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
172	5321723-55 Husqvarna Bracket		Husqvarna Bracket £16.30 P/N: 5321723-55, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
184	7341172-01 Husqvarna Washer		Husqvarna Washer £1.72 P/N: 7341172-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
185	5321882-34 Husqvarna Head Asm. Cable Clutch	£65.26	Husqvarna Head Asm. Cable Clutch £65.26 P/N: 5321882-34, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
