Husqvarna GTH250XP (01-2005) Parts Diagram, Page 3
Look at the diagram and find parts that fit a Husqvarna GTH250XP, or refer to the list below.
All Parts for GTH250XP
| # | Part | Price | |
|---|---|---|---|
| 2 |
5320070-70 Husqvarna Key |
Husqvarna Key£8.71
P/N: 5320070-70, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 3 |
5320075-63 Husqvarna Washer |
Husqvarna Washer£7.57
P/N: 5320075-63, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 6 |
8760204-12 Husqvarna Split Pin |
Husqvarna Split Pin£0.80
P/N: 8760204-12, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 7 |
5321405-07 Husqvarna Wheel Hub |
Husqvarna Wheel Hub£181.79
P/N: 5321405-07, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 9 |
5321400-80 Husqvarna Bolt |
£7.37 |
 Husqvarna Bolt£7.37
P/N: 5321400-80, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 20 |
8736108-00 Husqvarna Nut |
£6.16 |
Husqvarna Nut£6.16
P/N: 8736108-00, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 22 |
5321802-35 Husqvarna Lever |
Husqvarna Lever£35.68
P/N: 5321802-35, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 23 |
5321408-45 Husqvarna Knob |
Husqvarna Knob£22.09
P/N: 5321408-45, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 33 |
8120000-53 Husqvarna E-Ring |
£0.94 |
Husqvarna E-Ring£0.94
P/N: 8120000-53, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 34 |
5320716-73 Husqvarna Cover |
£3.79 |
Husqvarna Cover£3.79
P/N: 5320716-73, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 35 |
5321376-48 Husqvarna Rod |
Husqvarna Rod£18.29
P/N: 5321376-48, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 36 |
5321494-12 Husqvarna Spring |
Husqvarna Spring£15.20
P/N: 5321494-12, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 37 |
5321217-49 Husqvarna Washer |
£3.48 |
 Husqvarna Washer£3.48
P/N: 5321217-49, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 38 |
5321500-35 Husqvarna Bushing |
Husqvarna Bushing£5.72
P/N: 5321500-35, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 42 |
5320088-83 Husqvarna Pedal Rubber |
£11.39 |
Husqvarna Pedal Rubber£11.39
P/N: 5320088-83, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 48 |
8721106-14 Husqvarna Bolt |
£7.37 |
Husqvarna Bolt£7.37
P/N: 8721106-14, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 50 |
5321734-38 Husqvarna Pulley Idler Flt 3.06 |
£58.10 |
 Husqvarna Pulley Idler Flt 3.06£58.10
P/N: 5321734-38, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 52 |
5321392-45 Husqvarna Pulley |
£40.22 |
 Husqvarna Pulley£40.22
P/N: 5321392-45, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 55 |
5321057-06 Husqvarna Bearing |
Husqvarna Bearing£6.22
P/N: 5321057-06, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 56 |
5321615-97 Husqvarna V-Belt |
£64.14 |
Husqvarna V-Belt£64.14
P/N: 5321615-97, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 58 |
8747607-24 Husqvarna Bolt |
Husqvarna Bolt£4.84
P/N: 8747607-24, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 61 |
5321439-95 Husqvarna Pulley |
Husqvarna Pulley£54.24
P/N: 5321439-95, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 65 |
5321796-13 Husqvarna Bolt |
Husqvarna Bolt£9.10
P/N: 5321796-13, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 69 |
5321238-00 Husqvarna Washer |
Husqvarna Washer£5.05
P/N: 5321238-00, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 73 |
8744905-48 Husqvarna Bolt |
Husqvarna Bolt£7.37
P/N: 8744905-48, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 74 |
5321424-32 Husqvarna Screw |
£2.41 |
Husqvarna Screw£2.41
P/N: 5321424-32, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 77 |
8747807-16 Husqvarna Bolt |
£7.37 |
Husqvarna Bolt£7.37
P/N: 8747807-16, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 89 |
8736807-00 Husqvarna Nut |
Husqvarna Nut£4.12
P/N: 8736807-00, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 94 |
5321338-35 Husqvarna Xmas Tree Fastner |
£1.34 |
Husqvarna Xmas Tree Fastner£1.34
P/N: 5321338-35, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 106 |
5321429-18 Husqvarna Nipple |
£16.94 |
Husqvarna Nipple£16.94
P/N: 5321429-18, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 108 |
5321429-17 Husqvarna Valve |
£29.15 |
Husqvarna Valve£29.15
P/N: 5321429-17, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 114 |
8738005-00 Husqvarna Locknut |
£2.54 |
 Husqvarna Locknut£2.54
P/N: 8738005-00, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 120 |
8170006-12 Husqvarna Screw |
£6.04 |
Husqvarna Screw£6.04
P/N: 8170006-12, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 121 |
5321756-11 Husqvarna Bracket |
Husqvarna Bracket£14.06
P/N: 5321756-11, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 122 |
8720105-20 Husqvarna Bolt |
£7.37 |
Husqvarna Bolt£7.37
P/N: 8720105-20, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 124 |
5321654-92 Husqvarna Bolt |
£5.22 |
 Husqvarna Bolt£5.22
P/N: 5321654-92, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 125 |
8174905-10 Husqvarna Screw 5/16-18 X 5/8 |
£4.15 |
Husqvarna Screw 5/16-18 X 5/8£4.15
P/N: 8174905-10, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 126 |
5321660-02 Husqvarna Washer |
£5.09 |
Husqvarna Washer£5.09
P/N: 5321660-02, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 130 |
8191310-16 Husqvarna Washer |
£2.41 |
Husqvarna Washer£2.41
P/N: 8191310-16, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 135 |
5321773-64 Husqvarna Link |
Husqvarna Link£19.61
P/N: 5321773-64, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 138 |
5320013-70 Husqvarna Washer |
£4.81 |
Husqvarna Washer£4.81
P/N: 5320013-70, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 143 |
8174905-08 Husqvarna Screw |
£3.76 |
Husqvarna Screw£3.76
P/N: 8174905-08, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 145 |
5321631-68 Husqvarna Washer |
Husqvarna Washer£29.27
P/N: 5321631-68, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 146 |

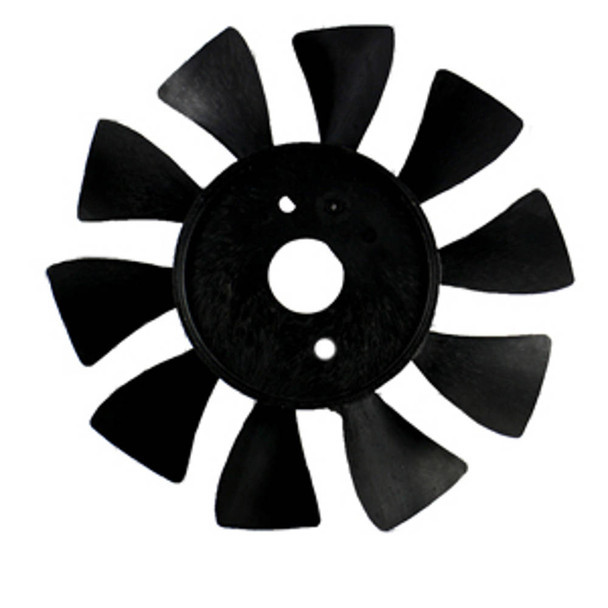

5321404-62 Husqvarna Fan |
£14.06 |
 Husqvarna Fan£14.06
P/N: 5321404-62, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
| 147 |
5321413-22 Husqvarna Washer |
Husqvarna Washer£5.81
P/N: 5321413-22, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 151 |
8747605-14 Husqvarna Bolt |
Husqvarna Bolt£4.69
P/N: 8747605-14, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 152 |
5321787-05 Husqvarna Bolt |
Husqvarna Bolt£4.33
P/N: 5321787-05, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
No longer available
|
|
| 153 |
5320044-97 Husqvarna Clip |
£1.87 |
 Husqvarna Clip£1.87
P/N: 5320044-97, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. |
