Husqvarna CTH210XP (01-2005) Parts Diagram, Page 9

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Husqvarna CTH210XP, or refer to the list below.

All Parts for CTH210XP

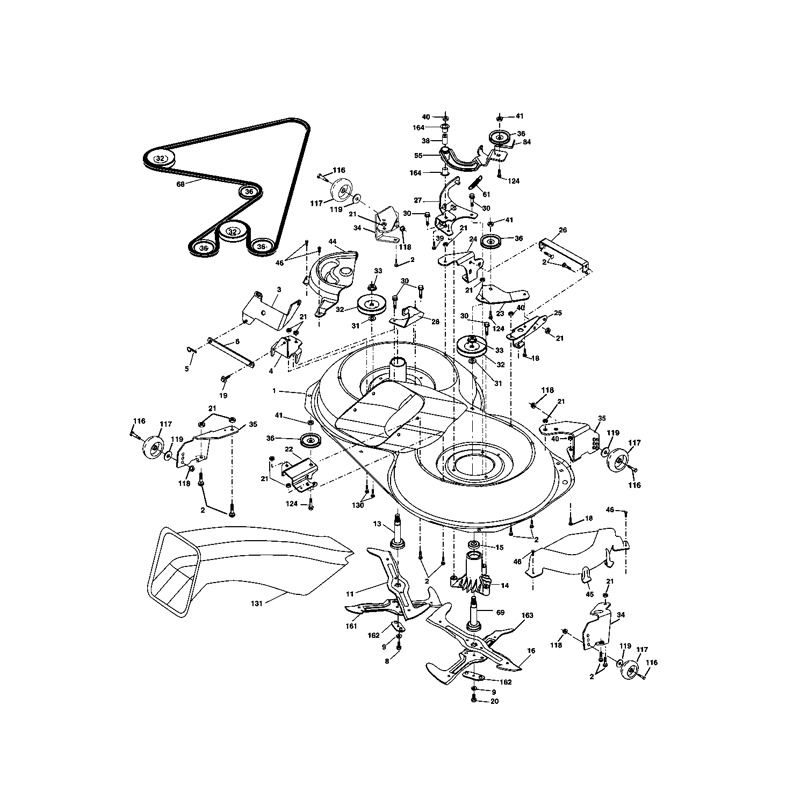

Husqvarna CTH210XP (01-2005) Parts Diagram, Page 9

#	Part	Price
1	5830750-01 Husqvarna Kit.Hsg.Mwr.107Crd	£325.12	Husqvarna Kit.Hsg.Mwr.107Crd £325.12 P/N: 5830750-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
2	5959016-01 Husqvarna Bolt Square Round Head Square	£3.76	Husqvarna Bolt Square Round Head Square £3.76 P/N: 5959016-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
3	5321655-69 Husqvarna Bracket		Husqvarna Bracket £31.33 P/N: 5321655-69, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
4	5321691-67 Husqvarna Bracket		Husqvarna Bracket £40.67 P/N: 5321691-67, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
5	5969196-01 Husqvarna Pin Hair Cotter Pin 1/8 X 1-3/	£2.02	Husqvarna Pin Hair Cotter Pin 1/8 X 1-3/ £2.02 P/N: 5969196-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
6	5321655-57 Husqvarna Rod	£23.63	Husqvarna Rod £23.63 P/N: 5321655-57, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
8	5831169-01 Husqvarna Bolt.3/8-24X1.25 Gr8	£7.37	Husqvarna Bolt.3/8-24X1.25 Gr8 £7.37 P/N: 5831169-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
9	5399901-18 Husqvarna Washer	£3.22	Husqvarna Washer £3.22 P/N: 5399901-18, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
11	5321805-83 Husqvarna Blade	£34.38	Husqvarna Blade £34.38 P/N: 5321805-83, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
13	5321376-46 Husqvarna Shaft	£84.18	Husqvarna Shaft £84.18 P/N: 5321376-46, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
14	5321287-74 Husqvarna Bearing Housing	£79.28	Husqvarna Bearing Housing £79.28 P/N: 5321287-74, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
15	5321104-85 Husqvarna Bearing	£8.93	Husqvarna Bearing £8.93 P/N: 5321104-85, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
16	5321805-84 Husqvarna Blade	£34.38	Husqvarna Blade £34.38 P/N: 5321805-84, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
18	8721106-06 Husqvarna Bolt		Husqvarna Bolt £4.25 P/N: 8721106-06, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
19	5321328-27 Husqvarna Spec. Bolt	£7.37	Husqvarna Spec. Bolt £7.37 P/N: 5321328-27, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
20	5831170-01 Husqvarna Bolt.3/8-24X1.25Gr8. LHthrd	£7.37	Husqvarna Bolt.3/8-24X1.25Gr8. LHthrd £7.37 P/N: 5831170-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
21	8738005-00 Husqvarna Locknut	£2.54	Husqvarna Locknut £2.54 P/N: 8738005-00, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
22	5321691-65 Husqvarna Bracket		Husqvarna Bracket £39.16 P/N: 5321691-65, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
23	5321691-66 Husqvarna Bracket		Husqvarna Bracket £35.94 P/N: 5321691-66, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
24	5321691-70 Husqvarna Bracket Suspension LF		Husqvarna Bracket Suspension LF £31.11 P/N: 5321691-70, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
25	5321691-71 Husqvarna Bracket		Husqvarna Bracket £61.81 P/N: 5321691-71, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
26	5321652-37 Husqvarna Brace Support		Husqvarna Brace Support £33.40 P/N: 5321652-37, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
27	5321691-72 Husqvarna Bracket	£45.53	Husqvarna Bracket £45.53 P/N: 5321691-72, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
28	5830294-01 Husqvarna Bracket.Asm.Susp.Lr.107.Crd	£41.51	Husqvarna Bracket.Asm.Susp.Lr.107.Crd £41.51 P/N: 5830294-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
30	5321739-84 Husqvarna Screw		Husqvarna Screw £4.66 P/N: 5321739-84, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
31	5321876-90 Husqvarna Washer Spacer	£3.76	Husqvarna Washer Spacer £3.76 P/N: 5321876-90, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
32	5830711-01 Husqvarna Pulley.Mandr	£39.48	Husqvarna Pulley.Mandr £39.48 P/N: 5830711-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
33	5961348-01 Husqvarna Hexagon Nut Hexagon Nut With F	£1.60	Husqvarna Hexagon Nut Hexagon Nut With F £1.60 P/N: 5961348-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
34	5324001-03/0 Husqvarna Bracket Gauge Wheel Lf/Rr		Husqvarna Bracket Gauge Wheel Lf/Rr £15.73 P/N: 5324001-03/0, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
35	5324001-04 Husqvarna Bracket Gauge Wheel Rf/Lr,		Husqvarna Bracket Gauge Wheel Rf/Lr, £31.26 P/N: 5324001-04, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
36	5321467-63 Husqvarna Pulley	£58.10	Husqvarna Pulley £58.10 P/N: 5321467-63, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
38	5321698-51 Husqvarna Spacer	£12.05	Husqvarna Spacer £12.05 P/N: 5321698-51, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
39	8721106-22 Husqvarna Bolt	£8.71	Husqvarna Bolt £8.71 P/N: 8721106-22, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
40	8736806-00 Husqvarna Nut	£4.02	Husqvarna Nut £4.02 P/N: 8736806-00, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
44	5324311-70 Husqvarna Cover	£32.54	Husqvarna Cover £32.54 P/N: 5324311-70, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
45	5321755-39 Husqvarna Cover		Husqvarna Cover £38.83 P/N: 5321755-39, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
46	5321377-29 Husqvarna Screw	£2.68	Husqvarna Screw £2.68 P/N: 5321377-29, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
55	5321698-49 Husqvarna Arm	£37.50	Husqvarna Arm £37.50 P/N: 5321698-49, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
61	5830676-01 Husqvarna Spring.Belt		Husqvarna Spring.Belt £20.09 P/N: 5830676-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
68	5848970-01 Husqvarna Belt 107 Crd Non Tex Deck Belt	£97.14	Husqvarna Belt 107 Crd Non Tex Deck Belt £97.14 P/N: 5848970-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
69	5321654-82 Husqvarna Shaft	£69.28	Husqvarna Shaft £69.28 P/N: 5321654-82, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
84	5970249-01 Husqvarna Keeper Belt Idler Clear Zinc	£7.37	Husqvarna Keeper Belt Idler Clear Zinc £7.37 P/N: 5970249-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
116	5964344-04 Husqvarna Bolt Shoulder, 3/8-16 X 3-5/8	£5.63	Husqvarna Bolt Shoulder, 3/8-16 X 3-5/8 £5.63 P/N: 5964344-04, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
117	5321339-57 Husqvarna Wheel	£27.04	Husqvarna Wheel £27.04 P/N: 5321339-57, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
118	8736806-00 Husqvarna Nut	£4.02	Husqvarna Nut £4.02 P/N: 8736806-00, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
119	7341172-01 Husqvarna Washer		Husqvarna Washer £1.72 P/N: 7341172-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories. No longer available
124	8721106-12 Husqvarna Bolt	£7.37	Husqvarna Bolt £7.37 P/N: 8721106-12, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
130	8721105-06 Husqvarna Bolt	£4.15	Husqvarna Bolt £4.15 P/N: 8721105-06, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
131	5321656-61 Husqvarna Pipe	£120.53	Husqvarna Pipe £120.53 P/N: 5321656-61, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
161	5324469-93 Husqvarna Blade	£34.38	Husqvarna Blade £34.38 P/N: 5324469-93, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
162	5835889-01 Husqvarna Adaptor.Crossblade.107	£14.72	Husqvarna Adaptor.Crossblade.107 £14.72 P/N: 5835889-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
163	5321804-25 Husqvarna Blade	£34.38	Husqvarna Blade £34.38 P/N: 5321804-25, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
164	5320033-66 Husqvarna Bearing	£6.04	Husqvarna Bearing £6.04 P/N: 5320033-66, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
