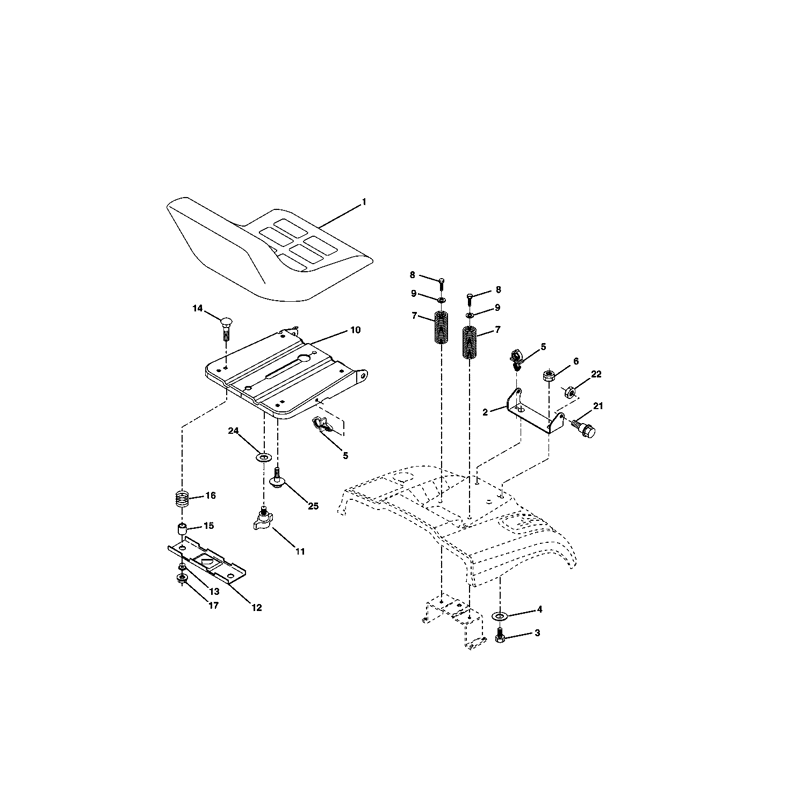

Husqvarna CTH210XP (01-2005) Parts Diagram, Page 5

#	Part	Price
1	5321887-15/9 - Husqvarna Seat	£219.89
2	5321405-51 - Husqvarna Bracket	£23.03	To Basket
3	8711106-16 - Husqvarna Screw	£5.82	To Basket
4	8191316-10 - Husqvarna Washer	£4.68	To Basket
5	5321450-06 - Husqvarna Clip	£0.86	To Basket
6	8736806-00 - Husqvarna Nut	£3.88	To Basket
7	5876133-01 - Husqvarna Spring Compression Seat Black	£20.26	To Basket
8	8170006-16 - Husqvarna Screw	£6.37	To Basket
9	8191316-12/7 - Husqvarna Washer	£3.17
10	5321824-93 - Husqvarna Pan	£42.97
11	5321663-69 - Husqvarna Wingnut	£10.01	To Basket
12	5321746-48 - Husqvarna Bracket	£18.97
13	5321212-48 - Husqvarna Bushing	£6.11	To Basket
14	8720504-12 - Husqvarna Bolt	£3.65	To Basket
15	5321212-49 - Husqvarna Spacer	£4.50	To Basket
16	5321237-40 - Husqvarna Spring	£4.15
17	8736804-00 - Husqvarna Nut	£2.00	To Basket
21	5879078-01 - Husqvarna Bolt 5/16-18X5/8,Shoulder	£2.59	To Basket
22	8738005-00 - Husqvarna Locknut	£2.47	To Basket
24	8191719-12 - Husqvarna Washer	£4.68	To Basket
25	5321270-18 - Husqvarna Bolt	£6.62	To Basket
