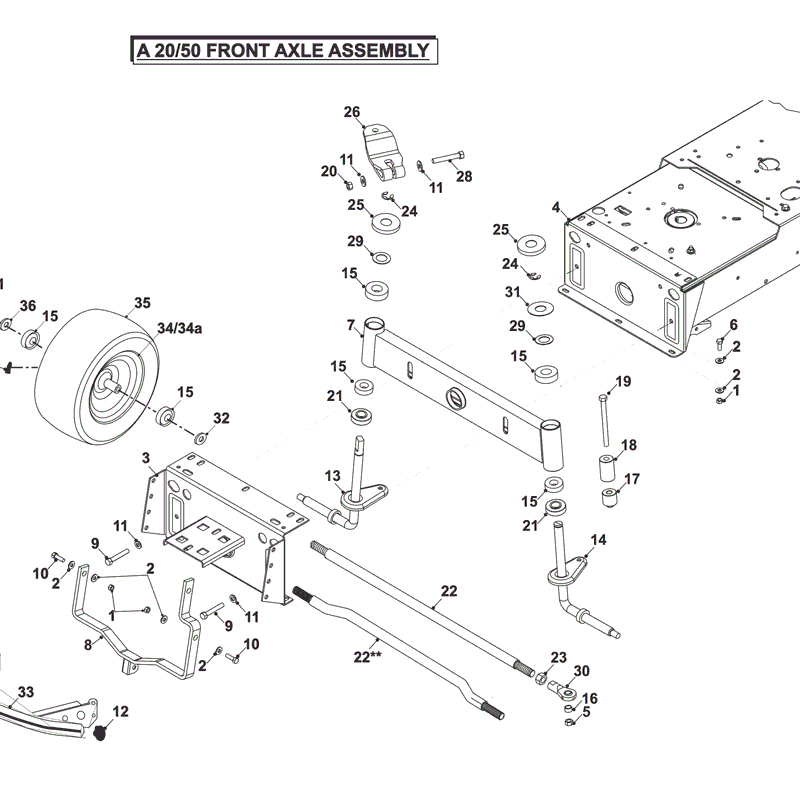

Countax A2050 Lawn Tractor 2004 (2004) Parts Diagram, FRONT AXLE ASSEMBLY

#	Part	Price
1	04920100 - Countax M8 Nyloc Nut	£0.31	To Basket
2	08819500 - Countax Washer 5/16 T3 Lp Zinc Plated	£0.72	To Basket
3	327014600 - Countax Uni Front Axle Assy	£144.32	To Basket
4	327006300 - Countax 20/50 Chassis	£1,248.56	To Basket
5	049381100 - Countax M12 Nyloc Nut	£0.31
6	028893500 - Countax Screw Hex Hd Din933 M8 X 20 Grade 10.9	£1.03	To Basket
7	327014700 - Countax 20/50 Axle Beam	£196.90	To Basket
8	402002000 - Countax Kit, Front Cradle	£129.82	To Basket
9	018005000 - Countax M10 X 60mm Coach Bolt Zinc/clear	£0.77	To Basket
10	01902300 - Countax Shcs M61 X 20 Drilled 306686	£0.44	To Basket
11	088002400 - Countax Washer 10.8id X 20.7od X 2mm Thk	£0.36
12	148014400 - Countax Bullbar Plas Cap	£1.31	To Basket
13	327178200 - Countax R/H Stub Axle 2002	£153.32	To Basket
14	327178300 - Countax L/H Stub Axle 2002	£158.12	To Basket
15	10802200 - Countax Front Wheel Bearing	£26.95	To Basket
16	183012800 - Countax Spacer	£5.78	To Basket
17	183012700 - Countax Spacer	£8.87	To Basket
18	183012600 - Countax Spacer	£5.96	To Basket
19	018002200 - Countax Bolt M12 X 120mm	£1.12	To Basket
20	04920100 - Countax M8 Nyloc Nut	£0.31	To Basket
21	183006200 - Countax Stub Axle Spacer	£9.14	To Basket
22	183012900 - Countax 20/50 Track Rod	£30.01	To Basket
22**	183018200 - Countax Shaped T/Rod 2050
23	049381200 - Countax Nut M12	£0.61	To Basket
24	07921200 - Countax 19mm External Circlip C1a1400/19	£0.36
25	32121800 - Countax Slinger	£8.30	To Basket
26	327177000 - Countax Steering Arm	£55.26	To Basket
27	14811800 - Countax Hub Cap (Moulded)	£7.81	To Basket
28	018001800 - Countax Bolt M8 X 50mm	£2.94	To Basket
29	30127900 - Countax Washer	£2.87	To Basket
30	108728000 - Countax M12 Rod Joint 20/50	£40.27	To Basket
31	30128100 - Countax Washer	£2.21	To Basket
32	089423700 - Countax Transaxle Washer 46 X 20 X 2	£2.21	To Basket
33	327807600 - Countax Bullbar Assembly	£210.78	To Basket
34	198005100 - Countax A/D/K Fr Whe Assy	£225.86	To Basket
34a	198000700 - Countax 20/50 Front Wheel	£94.93	To Basket
35	198000600 - Countax Tyre -16X650-8 C2050	£163.03	To Basket
35a	14889200 - Countax Wheel Valve	£12.58	To Basket
36	088003600 - Countax Washer - M12 X 24 X 1.6	£0.70	To Basket
37	049381100 - Countax M12 Nyloc Nut	£0.31
