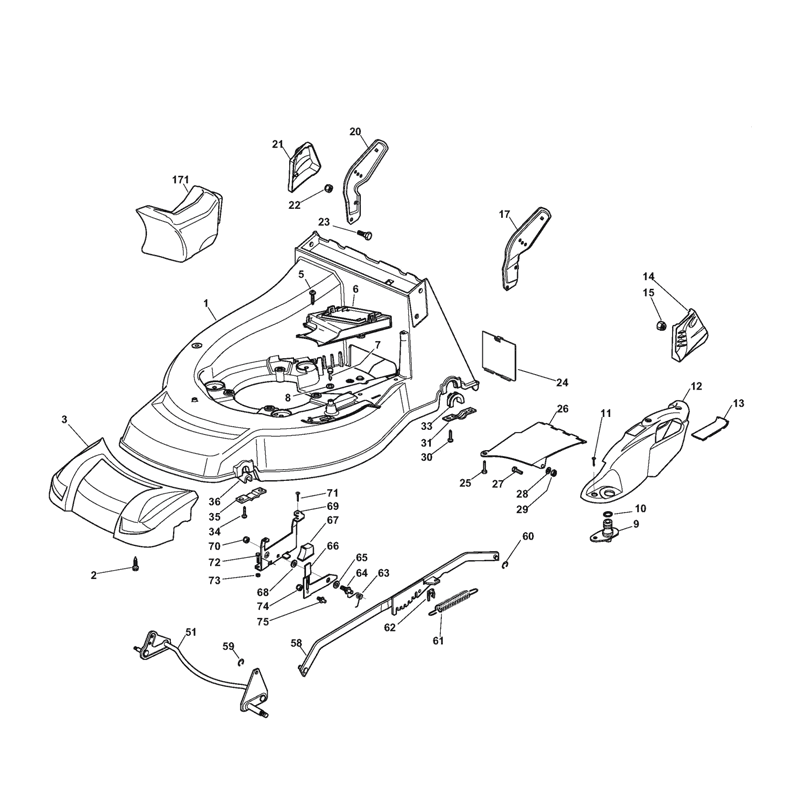

Castel / Twincut / Lawnking XA52MBS (2011) Parts Diagram, Page 1
Look at the diagram and find parts that fit a Castel / Twincut / Lawnking XA52MBS, or refer to the list below.
All Parts for XA52MBS
| # | Part | Price | |
|---|---|---|---|
| 1 |
381004743/1 Castel / Twincut / Lawnking Aluminium Deck Pan 50 [Grey] |
£487.58 |
![Castel / Twincut / Lawnking Aluminium Deck Pan 50 [Grey]](/images/brands/5cee464b-d10f-4655-a8e2-e8534af714a8.jpg?width=200&height=200&rmode=pad&bgcolor=white) Castel / Twincut / Lawnking Aluminium Deck Pan 50 [Grey]£487.58
P/N: 381004743/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 2 |
112735420/0 Castel / Twincut / Lawnking Flanged Screw D=6 X 16 |
£4.48 |
Castel / Twincut / Lawnking Flanged Screw D=6 X 16£4.48
P/N: 112735420/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 3 |
322226112/1 Castel / Twincut / Lawnking Plastic Front Cover [Grey] |
£10.36 |
Castel / Twincut / Lawnking Plastic Front Cover [Grey]£10.36
P/N: 322226112/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 5 |
112728522/0 Castel / Twincut / Lawnking Self-Tap Screw Tcb 5.5 X 19 |
£1.49 |
Castel / Twincut / Lawnking Self-Tap Screw Tcb 5.5 X 19£1.49
P/N: 112728522/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 6 |
322060221/0 Castel / Twincut / Lawnking Belt Protection Carter Pan 50 |
£5.15 |
Castel / Twincut / Lawnking Belt Protection Carter Pan 50£5.15
P/N: 322060221/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 7 |
112729600/0 Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X16 Uni 6949 C15 Wz |
£1.49 |
Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X16 Uni 6949 C15 Wz£1.49
P/N: 112729600/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 8 |
112523040/0 Castel / Twincut / Lawnking Washer M6 6.6 X 18 X 1.6 |
£1.49 |
 Castel / Twincut / Lawnking Washer M6 6.6 X 18 X 1.6£1.49
P/N: 112523040/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 9 |
122034000/0 Castel / Twincut / Lawnking Washing Connection |
£1.63 |
 Castel / Twincut / Lawnking Washing Connection£1.63
P/N: 122034000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 10 |
119035000/0 Castel / Twincut / Lawnking O Ring 10.77 X 2.62 |
£4.87 |
 Castel / Twincut / Lawnking O Ring 10.77 X 2.62£4.87
P/N: 119035000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 11 |
112728520/0 Castel / Twincut / Lawnking Self-Tap Screw Tcb 5.5 X 13 |
£1.36 |
Castel / Twincut / Lawnking Self-Tap Screw Tcb 5.5 X 13£1.36
P/N: 112728520/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 12 |
122060146/0 Castel / Twincut / Lawnking Deck Height Adjuster |
£5.02 |
Castel / Twincut / Lawnking Deck Height Adjuster£5.02
P/N: 122060146/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 13 |
122546070/0 Castel / Twincut / Lawnking Locking Plate Handle Height Adj. |
£1.49 |
Castel / Twincut / Lawnking Locking Plate Handle Height Adj.£1.49
P/N: 122546070/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 14 |
322601003/0 Castel / Twincut / Lawnking Protective Cover L/H |
£2.98 |
Castel / Twincut / Lawnking Protective Cover L/H£2.98
P/N: 322601003/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 15 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.49 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.49
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 17 |
322778397/1 Castel / Twincut / Lawnking Left Handle Bracket |
£12.86 |
Castel / Twincut / Lawnking Left Handle Bracket£12.86
P/N: 322778397/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 20 |
322778396/1 Castel / Twincut / Lawnking Right Handle Bracket |
£12.86 |
Castel / Twincut / Lawnking Right Handle Bracket£12.86
P/N: 322778396/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 21 |
322601002/1 Castel / Twincut / Lawnking Protective Cover R/H |
£1.49 |
Castel / Twincut / Lawnking Protective Cover R/H£1.49
P/N: 322601002/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 22 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.49 |
Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.49
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 23 |
112793301/0 Castel / Twincut / Lawnking Hex-Head Screw M8 X 25 |
£1.49 |
 Castel / Twincut / Lawnking Hex-Head Screw M8 X 25£1.49
P/N: 112793301/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 24 |
122595352/0 Castel / Twincut / Lawnking Inspection Door |
£2.17 |
Castel / Twincut / Lawnking Inspection Door£2.17
P/N: 122595352/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 25 |
112729600/0 Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X16 Uni 6949 C15 Wz |
£1.49 |
Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X16 Uni 6949 C15 Wz£1.49
P/N: 112729600/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 26 |
322108205/1 Castel / Twincut / Lawnking Cover Plate |
£9.82 |
Castel / Twincut / Lawnking Cover Plate£9.82
P/N: 322108205/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 27 |
112789000/0 Castel / Twincut / Lawnking Hex-Head Screw M5 X 12 Uni 5739 8.8 |
£1.49 |
Castel / Twincut / Lawnking Hex-Head Screw M5 X 12 Uni 5739 8.8£1.49
P/N: 112789000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 28 |
112523020/0 Castel / Twincut / Lawnking Washer M5 5.5 X 15 X 1.6 Uni 6593 |
£1.49 |
Castel / Twincut / Lawnking Washer M5 5.5 X 15 X 1.6 Uni 6593£1.49
P/N: 112523020/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 29 |
112154330/0 Castel / Twincut / Lawnking Low Self-Locking Nut M5 Uni7474 Acc.6S |
£1.49 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M5 Uni7474 Acc.6S£1.49
P/N: 112154330/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 30 |
112731350/0 Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X19 Uni 6949 C15 |
£1.49 |
Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X19 Uni 6949 C15£1.49
P/N: 112731350/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 31 |
322545147/0 Castel / Twincut / Lawnking Axle Plate |
£1.90 |
Castel / Twincut / Lawnking Axle Plate£1.90
P/N: 322545147/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 33 |
322038407/0 Castel / Twincut / Lawnking Axle U Plate |
£1.49 |
 Castel / Twincut / Lawnking Axle U Plate£1.49
P/N: 322038407/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 34 |
112731350/0 Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X19 Uni 6949 C15 |
£1.49 |
Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X19 Uni 6949 C15£1.49
P/N: 112731350/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 35 |
322545156/0 Castel / Twincut / Lawnking Stop Plate |
£1.36 |
Castel / Twincut / Lawnking Stop Plate£1.36
P/N: 322545156/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 36 |
122038400/1 Castel / Twincut / Lawnking Front Axle Bush |
£1.75 |
Castel / Twincut / Lawnking Front Axle Bush£1.75
P/N: 122038400/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 51 |
381002801/1 Castel / Twincut / Lawnking Front Wheels Axle |
£37.93 |
Castel / Twincut / Lawnking Front Wheels Axle£37.93
P/N: 381002801/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 58 |
381001137/0 Castel / Twincut / Lawnking Wheel Adjustment Rod |
£28.44 |
Castel / Twincut / Lawnking Wheel Adjustment Rod£28.44
P/N: 381001137/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 59 |
112000930/0 Castel / Twincut / Lawnking Circlip D=6 Acc. C60 Din 6799 |
£1.49 |
 Castel / Twincut / Lawnking Circlip D=6 Acc. C60 Din 6799£1.49
P/N: 112000930/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 60 |
112000930/0 Castel / Twincut / Lawnking Circlip D=6 Acc. C60 Din 6799 |
£1.49 |
Castel / Twincut / Lawnking Circlip D=6 Acc. C60 Din 6799£1.49
P/N: 112000930/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 61 |
122446187/0 Castel / Twincut / Lawnking Spring |
£7.03 |
Castel / Twincut / Lawnking Spring£7.03
P/N: 122446187/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 62 |
112436050/0 Castel / Twincut / Lawnking Pin Plate D=8 (Eurofix Fx70308Ph) |
£1.75 |
 Castel / Twincut / Lawnking Pin Plate D=8 (Eurofix Fx70308Ph)£1.75
P/N: 112436050/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 63 |
122446176/1 Castel / Twincut / Lawnking Height Adjust Spring |
£2.84 |
Castel / Twincut / Lawnking Height Adjust Spring£2.84
P/N: 122446176/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 64 |
122517880/1 Castel / Twincut / Lawnking Fulcrum Pin |
£4.20 |
Castel / Twincut / Lawnking Fulcrum Pin£4.20
P/N: 122517880/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 65 |
322672152/0 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 30 X 0.8 |
£1.75 |
 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 30 X 0.8£1.75
P/N: 322672152/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 66 |
322322829/1 Castel / Twincut / Lawnking Height Adjust Lever |
£2.70 |
Castel / Twincut / Lawnking Height Adjust Lever£2.70
P/N: 322322829/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 67 |
122602000/0 Castel / Twincut / Lawnking Height Adj.Lever Control Button |
£1.49 |
Castel / Twincut / Lawnking Height Adj.Lever Control Button£1.49
P/N: 122602000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 68 |
322672151/0 Castel / Twincut / Lawnking Anti-Friction Washer 12.2 X 30 X 0.8 |
£1.75 |
Castel / Twincut / Lawnking Anti-Friction Washer 12.2 X 30 X 0.8£1.75
P/N: 322672151/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 69 |
322785115/0 Castel / Twincut / Lawnking Wheels Adj.Support Znw Pan 50 |
£6.37 |
Castel / Twincut / Lawnking Wheels Adj.Support Znw Pan 50£6.37
P/N: 322785115/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 70 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.49 |
Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.49
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 71 |
112729600/0 Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X16 Uni 6949 C15 Wz |
£1.49 |
Castel / Twincut / Lawnking Self-Tap Screw Te 5.5X16 Uni 6949 C15 Wz£1.49
P/N: 112729600/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 72 |
112793102/0 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8 |
£1.49 |
 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8£1.49
P/N: 112793102/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 73 |
112293201/0 Castel / Twincut / Lawnking Flanged Hexagon Nut M8 |
£1.63 |
 Castel / Twincut / Lawnking Flanged Hexagon Nut M8£1.63
P/N: 112293201/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 74 |
112154510/0 Castel / Twincut / Lawnking Low Self-Locking Nut M6 Uni7474 Acc.6S |
£1.49 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M6 Uni7474 Acc.6S£1.49
P/N: 112154510/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 75 |
122519746/0 Castel / Twincut / Lawnking Pin |
£2.17 |
Castel / Twincut / Lawnking Pin£2.17
P/N: 122519746/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 171 |
322140224/1 Castel / Twincut / Lawnking Mulching Plug [NP53] |
£37.93 |
![Castel / Twincut / Lawnking Mulching Plug [NP53]](/images/parts/04fc9aa7-8497-4200-a0a0-f526e5af7643.jpg?width=200&height=200&rmode=pad&bgcolor=white) Castel / Twincut / Lawnking Mulching Plug [NP53]£37.93
P/N: 322140224/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
