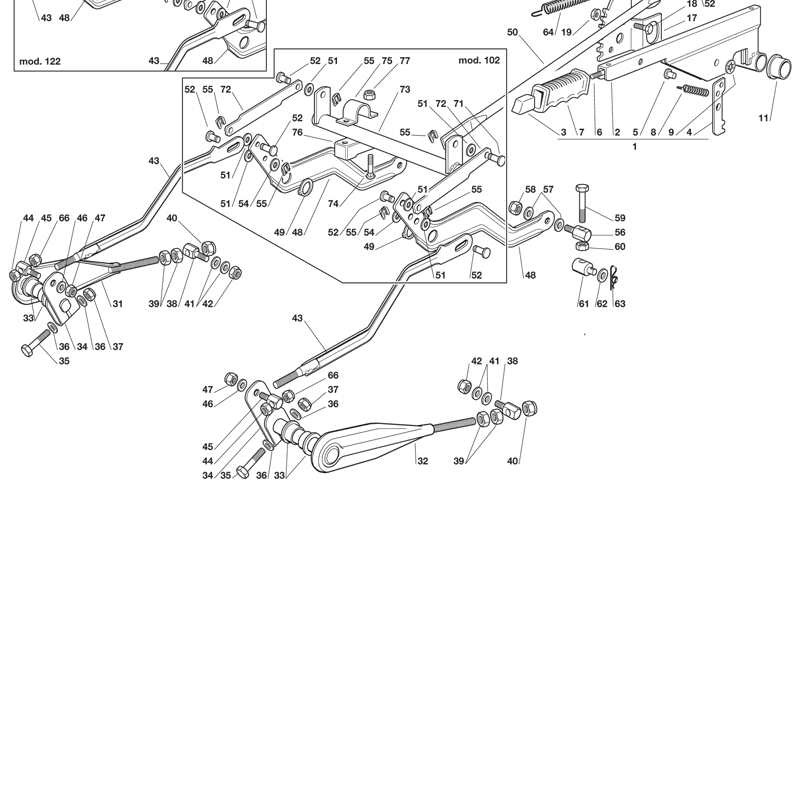

Castel / Twincut / Lawnking TCB16-102H (2011) Parts Diagram, Page 7
Look at the diagram and find parts that fit a Castel / Twincut / Lawnking TCB16-102H, or refer to the list below.
All Parts for TCB16-102H

# | Part | Price | |
---|---|---|---|
1 |
382300002/1 Castel / Twincut / Lawnking Lever |
£57.58 |
![]() Castel / Twincut / Lawnking Lever£57.58 ![]() P/N: 382300002/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
2 |
382318139/1 Castel / Twincut / Lawnking Deck Lifting Lever |
£38.83 |
![]() Castel / Twincut / Lawnking Deck Lifting Lever£38.83 ![]() P/N: 382318139/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
3 |
125605000/1 Castel / Twincut / Lawnking Button |
£2.14 |
![]() Castel / Twincut / Lawnking Button£2.14 ![]() P/N: 125605000/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
4 |
325470901/1 Castel / Twincut / Lawnking Dog Plate |
£10.97 |
![]() Castel / Twincut / Lawnking Dog Plate£10.97 ![]() P/N: 325470901/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
5 |
25510011/0 Castel / Twincut / Lawnking Pin |
£1.46 |
![]() Castel / Twincut / Lawnking Pin£1.46 ![]() P/N: 25510011/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
6 |
125033002/1 Castel / Twincut / Lawnking Push Rod |
£4.02 |
![]() Castel / Twincut / Lawnking Push Rod£4.02 ![]() P/N: 125033002/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
7 |
125394504/1 Castel / Twincut / Lawnking Knob |
£2.41 |
![]() Castel / Twincut / Lawnking Knob£2.41 ![]() P/N: 125394504/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
8 |
125430213/0 Castel / Twincut / Lawnking Spring |
£1.61 |
![]() Castel / Twincut / Lawnking Spring£1.61 ![]() P/N: 125430213/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
9 |
112604899/0 Castel / Twincut / Lawnking Starlock Washer Rpco 308 D=8 |
£1.46 |
![]() Castel / Twincut / Lawnking Starlock Washer Rpco 308 D=8£1.46 ![]() P/N: 112604899/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
10 |
382000551/0 Castel / Twincut / Lawnking Lifting Axle |
£23.44 |
![]() Castel / Twincut / Lawnking Lifting Axle£23.44 ![]() P/N: 382000551/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
11 |
122034523/0 Castel / Twincut / Lawnking Bush |
£1.46 |
![]() Castel / Twincut / Lawnking Bush£1.46 ![]() P/N: 122034523/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
12 |
125160025/1 Castel / Twincut / Lawnking Spacer |
£5.89 |
![]() Castel / Twincut / Lawnking Spacer£5.89 ![]() P/N: 125160025/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
13 |
322672153/0 Castel / Twincut / Lawnking Anti-Friction Washer 20.2 X 30 X 0.8 |
£1.46 |
![]() Castel / Twincut / Lawnking Anti-Friction Washer 20.2 X 30 X 0.8£1.46 ![]() P/N: 322672153/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
16 |
112620206/0 Castel / Twincut / Lawnking Pin |
£1.34 |
![]() Castel / Twincut / Lawnking Pin£1.34 ![]() P/N: 112620206/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
17 |
325735506/2 Castel / Twincut / Lawnking Height Adjust Quadrant |
£21.02 |
![]() Castel / Twincut / Lawnking Height Adjust Quadrant£21.02 ![]() P/N: 325735506/2, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
18 |
112792611/0 Castel / Twincut / Lawnking Screw Te M8 X 16 Uni 5739 Acc.8.8 |
£1.46 |
![]() Castel / Twincut / Lawnking Screw Te M8 X 16 Uni 5739 Acc.8.8£1.46 ![]() P/N: 112792611/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
19 |
112293201/0 Castel / Twincut / Lawnking Flanged Hexagon Nut M8 |
£1.61 |
![]() Castel / Twincut / Lawnking Flanged Hexagon Nut M8£1.61 ![]() P/N: 112293201/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
31 |
382318159/0 Castel / Twincut / Lawnking Front R/H Fulcrum Lever |
£19.15 |
![]() Castel / Twincut / Lawnking Front R/H Fulcrum Lever£19.15 ![]() P/N: 382318159/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
31 |
382318155/0 Castel / Twincut / Lawnking Front R/H Fulcrum Lever |
£25.57 |
![]() Castel / Twincut / Lawnking Front R/H Fulcrum Lever£25.57 ![]() P/N: 382318155/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
32 |
382318161/0 Castel / Twincut / Lawnking Front L/H Fulcrum Lever |
£22.10 |
![]() Castel / Twincut / Lawnking Front L/H Fulcrum Lever£22.10 ![]() P/N: 382318161/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
32 |
382318157/0 Castel / Twincut / Lawnking Front L/H Fulcrum Lever |
£23.30 |
![]() Castel / Twincut / Lawnking Front L/H Fulcrum Lever£23.30 ![]() P/N: 382318157/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
33 |
125040605/0 Castel / Twincut / Lawnking Bush |
£1.46 |
![]() Castel / Twincut / Lawnking Bush£1.46 ![]() P/N: 125040605/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
34 |
325318161/1 Castel / Twincut / Lawnking Lever |
£8.57 |
![]() Castel / Twincut / Lawnking Lever£8.57 ![]() P/N: 325318161/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
35 |
112691700/0 Castel / Twincut / Lawnking Hex-Head Screw M8 X 55 Uni 5737 8.8 |
£1.74 |
![]() Castel / Twincut / Lawnking Hex-Head Screw M8 X 55 Uni 5737 8.8£1.74 ![]() P/N: 112691700/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
36 |
112521350/0 Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6 |
£1.46 |
![]() Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6£1.46 ![]() P/N: 112521350/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
37 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.46 |
![]() Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.46 ![]() P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
38 |
125510056/1 Castel / Twincut / Lawnking Pin |
£5.10 |
![]() Castel / Twincut / Lawnking Pin£5.10 ![]() P/N: 125510056/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
39 |
112295200/0 Castel / Twincut / Lawnking Hexagon Nut M10 Uni 5588 (Wz) |
£1.34 |
![]() Castel / Twincut / Lawnking Hexagon Nut M10 Uni 5588 (Wz)£1.34 ![]() P/N: 112295200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
40 |
112156602/0 Castel / Twincut / Lawnking Low Self-Locking Nut M10 Uni7474 Acc.6S |
£1.34 |
![]() Castel / Twincut / Lawnking Low Self-Locking Nut M10 Uni7474 Acc.6S£1.34 ![]() P/N: 112156602/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
41 |
325670008/1 Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8 |
£1.46 |
![]() Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8£1.46 ![]() P/N: 325670008/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
42 |
112156602/0 Castel / Twincut / Lawnking Low Self-Locking Nut M10 Uni7474 Acc.6S |
£1.34 |
![]() Castel / Twincut / Lawnking Low Self-Locking Nut M10 Uni7474 Acc.6S£1.34 ![]() P/N: 112156602/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
43 |
382000477/3 Castel / Twincut / Lawnking Connecting Rod |
£17.41 |
![]() Castel / Twincut / Lawnking Connecting Rod£17.41 ![]() P/N: 382000477/3, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
44 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.46 |
![]() Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.46 ![]() P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
45 |
125510055/1 Castel / Twincut / Lawnking Pin |
£3.88 |
![]() Castel / Twincut / Lawnking Pin£3.88 ![]() P/N: 125510055/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
46 |
112521350/0 Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6 |
£1.46 |
![]() Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6£1.46 ![]() P/N: 112521350/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
47 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.46 |
![]() Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.46 ![]() P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
48 |
325318153/2 Castel / Twincut / Lawnking Rear Cutter Deck Lever |
£13.79 |
![]() Castel / Twincut / Lawnking Rear Cutter Deck Lever£13.79 ![]() P/N: 325318153/2, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
49 |
112609255/0 Castel / Twincut / Lawnking Circlip D=19 Uni 7435 C60 |
£1.46 |
![]() Castel / Twincut / Lawnking Circlip D=19 Uni 7435 C60£1.46 ![]() P/N: 112609255/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
50 |
325033071/0 Castel / Twincut / Lawnking Connecting Rod |
£11.64 |
![]() Castel / Twincut / Lawnking Connecting Rod£11.64 ![]() P/N: 325033071/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
51 |
325670011/0 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 19 X 0.8 |
£1.46 |
![]() Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 19 X 0.8£1.46 ![]() P/N: 325670011/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
52 |
125510053/2 Castel / Twincut / Lawnking Lift Deck Rod Fixing Pin |
£1.87 |
![]() Castel / Twincut / Lawnking Lift Deck Rod Fixing Pin£1.87 ![]() P/N: 125510053/2, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
53 |
125510048/1 Castel / Twincut / Lawnking Fixing Pin |
£2.28 |
![]() Castel / Twincut / Lawnking Fixing Pin£2.28 ![]() P/N: 125510048/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
54 |
112521350/0 Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6 |
£1.46 |
![]() Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6£1.46 ![]() P/N: 112521350/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
55 |
112436050/0 Castel / Twincut / Lawnking Pin Plate D=8 (Eurofix Fx70308Ph) |
£1.74 |
![]() Castel / Twincut / Lawnking Pin Plate D=8 (Eurofix Fx70308Ph)£1.74 ![]() P/N: 112436050/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
56 |
125510056/1 Castel / Twincut / Lawnking Pin |
£5.10 |
![]() Castel / Twincut / Lawnking Pin£5.10 ![]() P/N: 125510056/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
57 |
325670008/1 Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8 |
£1.46 |
![]() Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8£1.46 ![]() P/N: 325670008/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
58 |
112156602/0 Castel / Twincut / Lawnking Low Self-Locking Nut M10 Uni7474 Acc.6S |
£1.34 |
![]() Castel / Twincut / Lawnking Low Self-Locking Nut M10 Uni7474 Acc.6S£1.34 ![]() P/N: 112156602/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
59 |
112794980/0 Castel / Twincut / Lawnking Hex-Head Screw M10 X 100 Uni5739 8.8 |
£2.02 |
![]() Castel / Twincut / Lawnking Hex-Head Screw M10 X 100 Uni5739 8.8£2.02 ![]() P/N: 112794980/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
59 |
112794985/0 Castel / Twincut / Lawnking Screw M10 X 120 |
£3.88 |
![]() Castel / Twincut / Lawnking Screw M10 X 120£3.88 ![]() P/N: 112794985/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
60 |
112295200/0 Castel / Twincut / Lawnking Hexagon Nut M10 Uni 5588 (Wz) |
£1.34 |
![]() Castel / Twincut / Lawnking Hexagon Nut M10 Uni 5588 (Wz)£1.34 ![]() P/N: 112295200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
61 |
125510070/1 Castel / Twincut / Lawnking Pin |
£5.89 |
![]() Castel / Twincut / Lawnking Pin£5.89 ![]() P/N: 125510070/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
62 |
112523090/0 Castel / Twincut / Lawnking Washer M10 11 X 40 X 2.5 |
£1.74 |
![]() Castel / Twincut / Lawnking Washer M10 11 X 40 X 2.5£1.74 ![]() P/N: 112523090/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
63 |
124487998/0 Castel / Twincut / Lawnking R Clip D=2 |
£1.46 |
![]() Castel / Twincut / Lawnking R Clip D=2£1.46 ![]() P/N: 124487998/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
64 |
125430218/1 Castel / Twincut / Lawnking Deck Lift Spring |
£5.48 |
![]() Castel / Twincut / Lawnking Deck Lift Spring£5.48 ![]() P/N: 125430218/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
66 |
112293200/0 Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S |
£1.46 |
![]() Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S£1.46 ![]() P/N: 112293200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
71 |
125510048/1 Castel / Twincut / Lawnking Fixing Pin |
£2.28 |
![]() Castel / Twincut / Lawnking Fixing Pin£2.28 ![]() P/N: 125510048/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
72 |
325318223/0 Castel / Twincut / Lawnking Connecting Lift Lever |
£6.42 |
![]() Castel / Twincut / Lawnking Connecting Lift Lever£6.42 ![]() P/N: 325318223/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
73 |
382000547/0 Castel / Twincut / Lawnking Cutting Deck Lifting Control Axle |
£25.18 |
![]() Castel / Twincut / Lawnking Cutting Deck Lifting Control Axle£25.18 ![]() P/N: 382000547/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
74 |
112815240/0 Castel / Twincut / Lawnking Screw M6 X 40 |
£2.04 |
![]() Castel / Twincut / Lawnking Screw M6 X 40£2.04 ![]() P/N: 112815240/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
75 |
325547203/0 Castel / Twincut / Lawnking Plate Fix Axle |
£5.22 |
![]() Castel / Twincut / Lawnking Plate Fix Axle£5.22 ![]() P/N: 325547203/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
76 |
325785292/0 Castel / Twincut / Lawnking Support Block |
£10.91 |
![]() Castel / Twincut / Lawnking Support Block£10.91 ![]() P/N: 325785292/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
77 |
112154510/0 Castel / Twincut / Lawnking Low Self-Locking Nut M6 Uni7474 Acc.6S |
£1.46 |
![]() Castel / Twincut / Lawnking Low Self-Locking Nut M6 Uni7474 Acc.6S£1.46 ![]() P/N: 112154510/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
