Alpina A102HG (2011) Parts Diagram, Page 11

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Alpina A102HG, or refer to the list below.

All Parts for A102HG

Alpina A102HG (2011) Parts Diagram, Page 11

#	Part	Price
1	382564151/1 Alpina Cutter Deck Casing Nj102 [Black]	£699.40	Alpina Cutter Deck Casing Nj102 [Black] £699.40 P/N: 382564151/1, Genuine OEM spare part. Find other Alpina spares, parts and accessories.

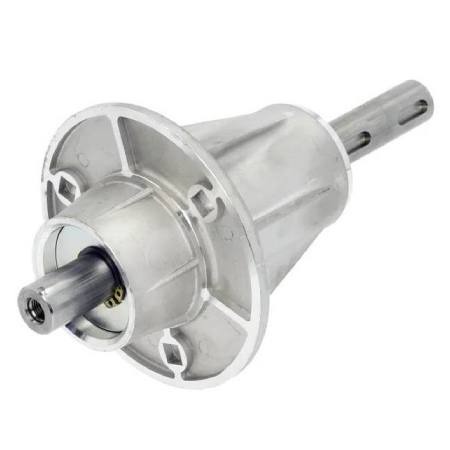

8	382207200/2LC Alpina Main Blade Shaft Assembly	£101.35	Alpina Main Blade Shaft Assembly £101.35 P/N: 382207200/2LC, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
9	382207201/3LC Alpina Secondary Blade Shaft Assembly	£91.51	Alpina Secondary Blade Shaft Assembly £91.51 P/N: 382207201/3LC, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
10	125020800/1 Alpina Main Blade Shaft	£46.46	Alpina Main Blade Shaft £46.46 P/N: 125020800/1, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
11	125020801/2 Alpina Secondary Blade Shaft	£42.23	Alpina Secondary Blade Shaft £42.23 P/N: 125020801/2, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
13	119216047/0 Alpina Bearing 6204-C-2Hrs	£15.78	Alpina Bearing 6204-C-2Hrs £15.78 P/N: 119216047/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
14	325160501/1 Alpina Dust Cover Washer	£1.55	Alpina Dust Cover Washer £1.55 P/N: 325160501/1, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
15	112609260/0 Alpina Circlip For Shaft D=20 Uni 7435 C60	£1.82	Alpina Circlip For Shaft D=20 Uni 7435 C60 £1.82 P/N: 112609260/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
16	112818700/0 Alpina Screw M8 X 25 Uni 5732 8.8	£1.55	Alpina Screw M8 X 25 Uni 5732 8.8 £1.55 P/N: 112818700/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
17	112154210/0 Alpina Self-Lock Winged Nut M8 Din 6927	£1.69	Alpina Self-Lock Winged Nut M8 Din 6927 £1.69 P/N: 112154210/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
18	125463200/0 Alpina Blade Boss	£9.08	Alpina Blade Boss £9.08 P/N: 125463200/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
19	112139100/0 Alpina Woodruff Key 4X6.5 D16 Uni 6606 C40	£1.55	Alpina Woodruff Key 4X6.5 D16 Uni 6606 C40 £1.55 P/N: 112139100/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
20	182004348/0 Alpina Right Mulching Blade 102cm	£30.97	Alpina Right Mulching Blade 102cm £30.97 P/N: 182004348/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
21	182004347/0 Alpina Left Mulching Blade 102cm	£30.97	Alpina Left Mulching Blade 102cm £30.97 P/N: 182004347/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
22	122160400/0 Alpina Spring Washer 50 X 2 X 10.2	£1.82	Alpina Spring Washer 50 X 2 X 10.2 £1.82 P/N: 122160400/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
23	112523080/0 Alpina Washer M10 11 X 30 X 2.5	£1.55	Alpina Washer M10 11 X 30 X 2.5 £1.55 P/N: 112523080/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
24	112735694/0 Alpina Hex-Head Screw 3/8" X 1 1/2" 24 Unf	£1.97	Alpina Hex-Head Screw 3/8" X 1 1/2" 24 Unf £1.97 P/N: 112735694/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
25	112735695/1 Alpina Hex-Head Screw 3/8" X 1 1/2" L/H Thread	£3.79	Alpina Hex-Head Screw 3/8" X 1 1/2" L/H Thread £3.79 P/N: 112735695/1, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
26	182700001/0 Alpina Anti-Scalp Wheel D=100mm	£5.48	Alpina Anti-Scalp Wheel D=100mm £5.48 P/N: 182700001/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
27	125510072/1 Alpina Wheel Spacer	£1.82	Alpina Wheel Spacer £1.82 P/N: 125510072/1, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
28	112692050/0 Alpina Hex-Head Screw M8X80 Uni 5737 Acc.8.8	£1.82	Alpina Hex-Head Screw M8X80 Uni 5737 Acc.8.8 £1.82 P/N: 112692050/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
29	112523060/0 Alpina Washer M8 8.4 X 24 X 2 Uni 6593	£1.55	Alpina Washer M8 8.4 X 24 X 2 Uni 6593 £1.55 P/N: 112523060/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
30	112293201/0 Alpina Flanged Hexagon Nut M8	£1.69	Alpina Flanged Hexagon Nut M8 £1.69 P/N: 112293201/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
41	182004341/1 Alpina Right Winged Blade 102cm Tc/TCP	£29.63	Alpina Right Winged Blade 102cm Tc/TCP £29.63 P/N: 182004341/1, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
42	182004340/1 Alpina Left Winged Blade 102cm Tc/TCP	£29.63	Alpina Left Winged Blade 102cm Tc/TCP £29.63 P/N: 182004340/1, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
51	382000474/1 Alpina Equalizer Rod	£32.38	Alpina Equalizer Rod £32.38 P/N: 382000474/1, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
52	325670008/1 Alpina Anti-Friction Washer 10.8 X 19 X 0.8	£1.55	Alpina Anti-Friction Washer 10.8 X 19 X 0.8 £1.55 P/N: 325670008/1, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
53	112523060/0 Alpina Washer M8 8.4 X 24 X 2 Uni 6593	£1.55	Alpina Washer M8 8.4 X 24 X 2 Uni 6593 £1.55 P/N: 112523060/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
54	112156602/0 Alpina Low Self-Locking Nut M10 Uni7474 Acc.6S	£1.40	Alpina Low Self-Locking Nut M10 Uni7474 Acc.6S £1.40 P/N: 112156602/0, Genuine OEM spare part. Find other Alpina spares, parts and accessories.
