Stihl SR 430 Mistblower (SR430) parts diagram

Select a page from the Stihl SR 430 Mistblower diagram to view the parts list and exploded view diagram.

Pages in this diagram

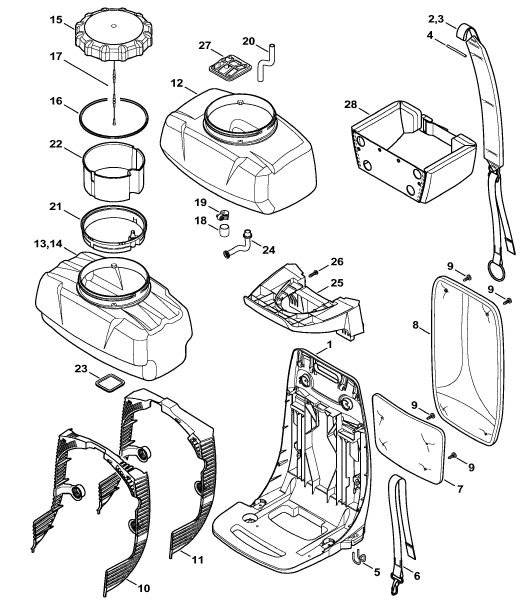

Backplate

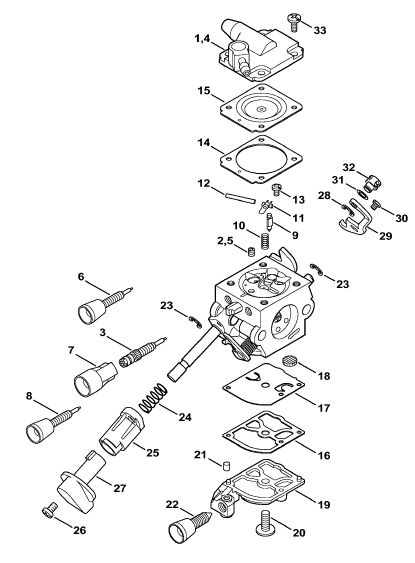

Carburetor C1Q-S165

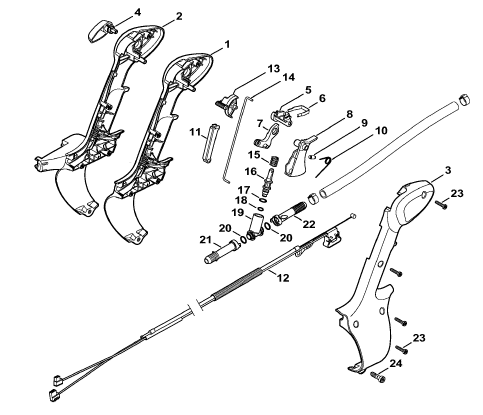

Control Handle

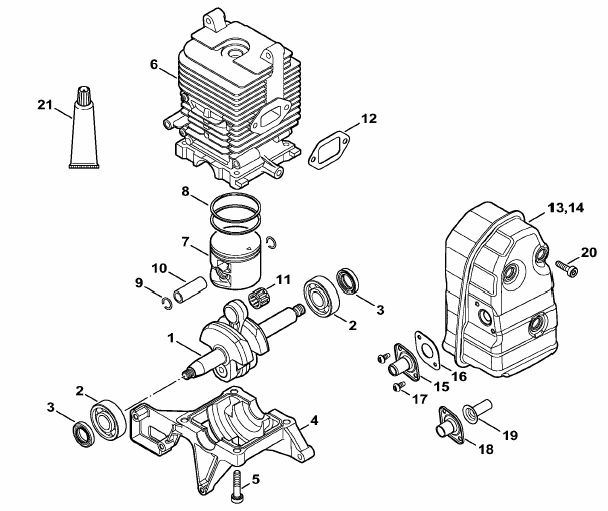

Crankshaft

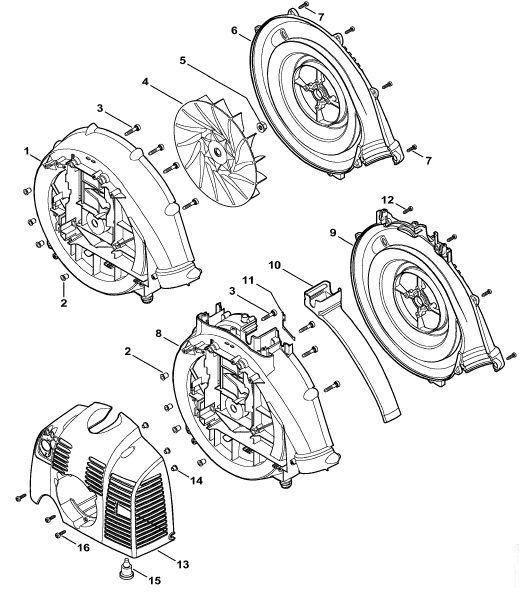

Fan Housing

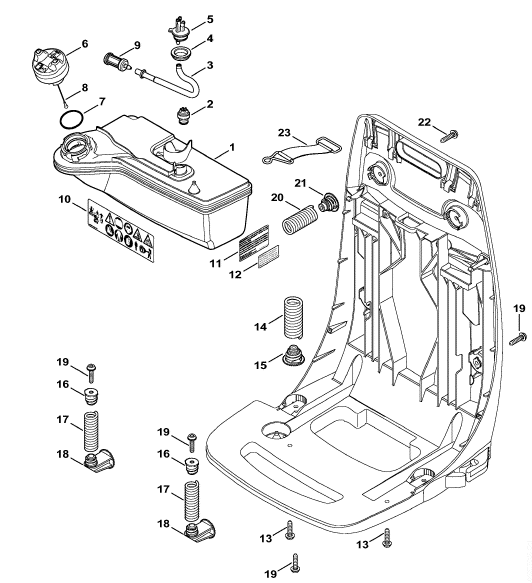

Fuel tank

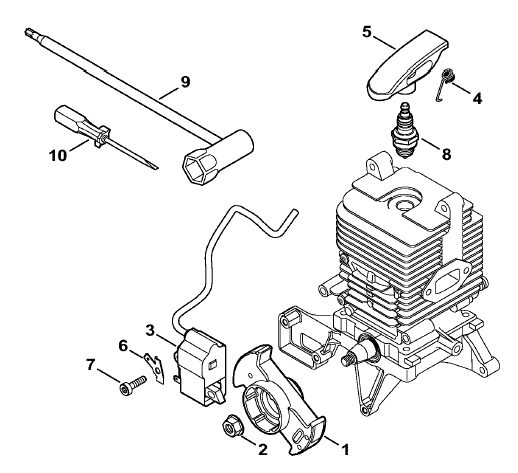

Ignition System

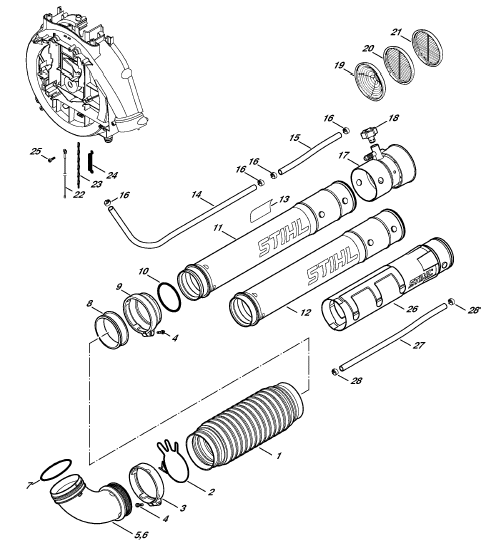

Pleated Hose

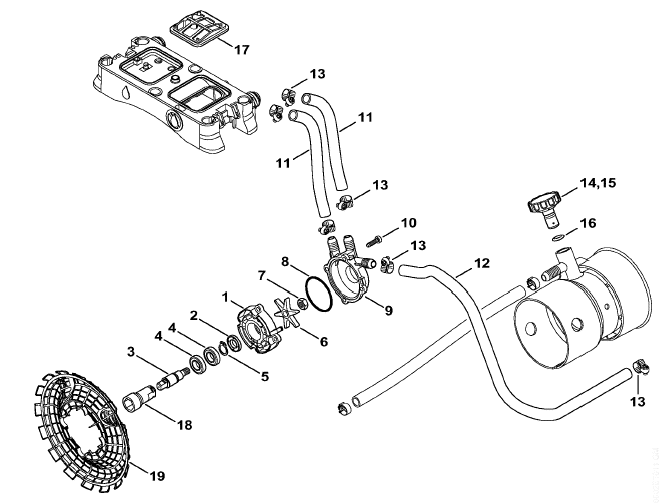

Pressure Pump

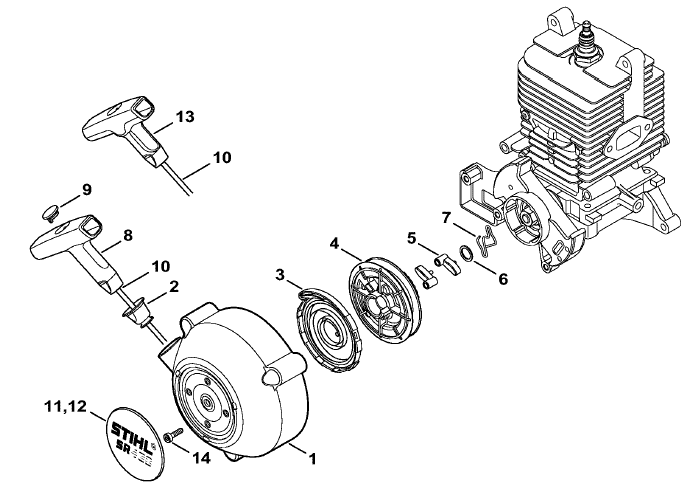

Rewind Starter

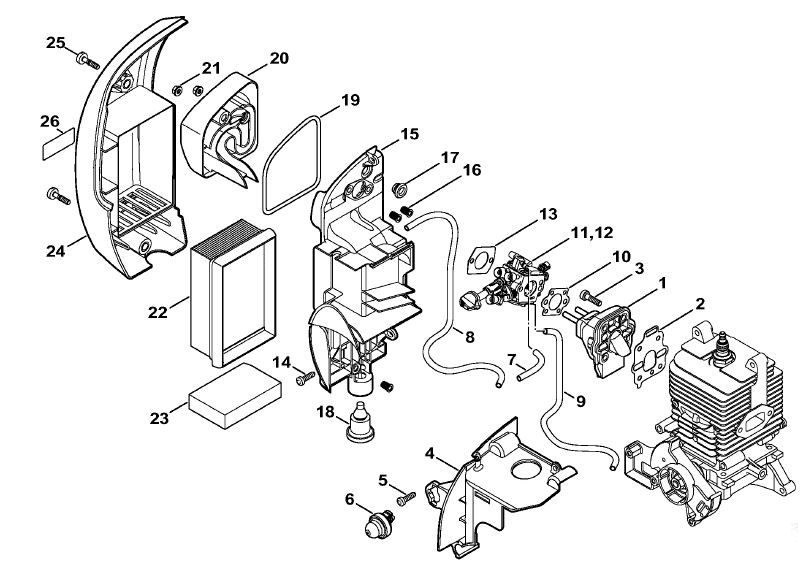

Spacer flange
