Stihl MS 180 Chainsaw (MS180C-B) Parts Diagram, Cylinder

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl MS 180 Chainsaw, or refer to the list below.

All Parts for MS 180 Chainsaw

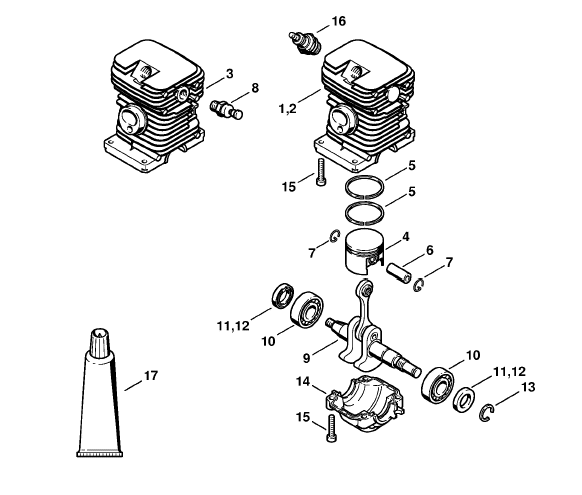

Stihl MS 180 Chainsaw (MS180C-B) Parts Diagram, Cylinder

#	Part	Price
3	1130 020 1209 Stihl Cylinder and piston		Stihl Cylinder and piston £75.98 P/N: 1130 020 1209, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
4	1130 030 2004 Stihl Piston 38mm	£67.27	Stihl Piston 38mm £67.27 P/N: 1130 030 2004, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	1130 034 3002 Stihl Piston ring 38x1.2mm	£6.79	Stihl Piston ring 38x1.2mm £6.79 P/N: 1130 034 3002, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	1132 034 1501 Stihl Piston pin 10x6.5x25	£7.25	Stihl Piston pin 10x6.5x25 £7.25 P/N: 1132 034 1501, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	9463 650 1000 Stihl Snap ring DIN73130-C10	£0.70	Stihl Snap ring DIN73130-C10 £0.70 P/N: 9463 650 1000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	1123 020 9400 Stihl Decompression valve	£35.64	Stihl Decompression valve £35.64 P/N: 1123 020 9400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	1132 030 0402 Stihl Crankshaft	£65.56	Stihl Crankshaft £65.56 P/N: 1132 030 0402, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9503 003 0311 Stihl Grooved ball bearing DIN625-6002-C3	£12.77	Stihl Grooved ball bearing DIN625-6002-C3 £12.77 P/N: 9503 003 0311, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	9638 003 1581 Stihl Oil seal BS15x25x5	£13.45	Stihl Oil seal BS15x25x5 £13.45 P/N: 9638 003 1581, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	9639 003 1585 Stihl Oil seal DIN3760-AS15x25x5	£6.79	Stihl Oil seal DIN3760-AS15x25x5 £6.79 P/N: 9639 003 1585, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	9468 621 1520 Stihl Circlips 15x1	£0.80	Stihl Circlips 15x1 £0.80 P/N: 9468 621 1520, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	1130 021 2504 Stihl Engine pan	£13.69	Stihl Engine pan £13.69 P/N: 1130 021 2504, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	9075 478 4159 Stihl Pan head self-tapping screw IS-D5x24	£0.92	Stihl Pan head self-tapping screw IS-D5x24 £0.92 P/N: 9075 478 4159, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	0000 400 7000 Stihl Spark plug NGK BPMR7A	£4.03	Stihl Spark plug NGK BPMR7A £4.03 P/N: 0000 400 7000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	0783 830 2000 Stihl Tube of sealant HT red 70ml		Stihl Tube of sealant HT red 70ml £18.52 P/N: 0783 830 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
