Stihl 034 Chainsaw (034) parts diagram

Select a page from the Stihl 034 Chainsaw diagram to view the parts list and exploded view diagram.

View all parts for the Stihl 034 Chainsaw

Pages in this diagram

Stihl 034 Chainsaw
Air Filter (08.2000), (31.2001)

Air Filter (08.2000), (31.2001)
Air Filter/Throttle Control

Air Filter/Throttle Control
AV System

AV System

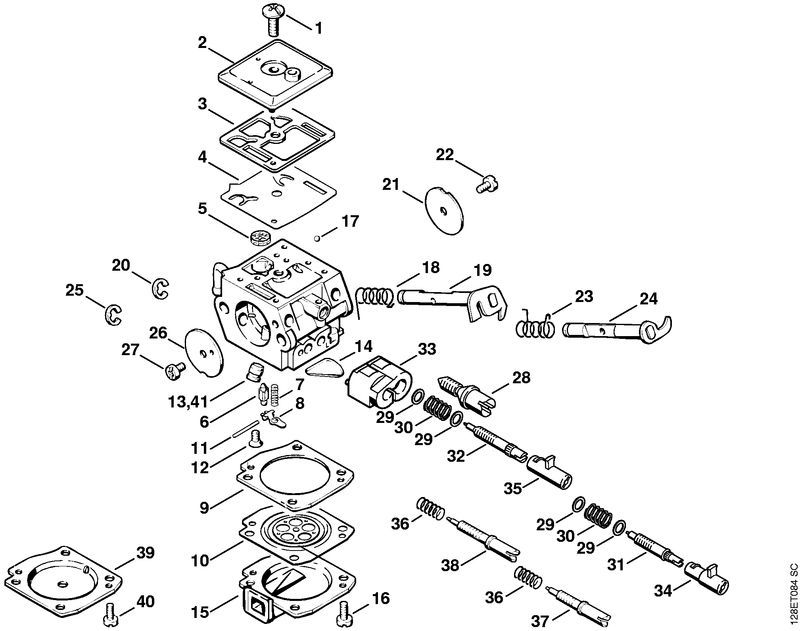

Carburetor C3A-S31E

Carburetor C3A-S31E
Carburetor C3A-S39E

Carburetor C3A-S39E

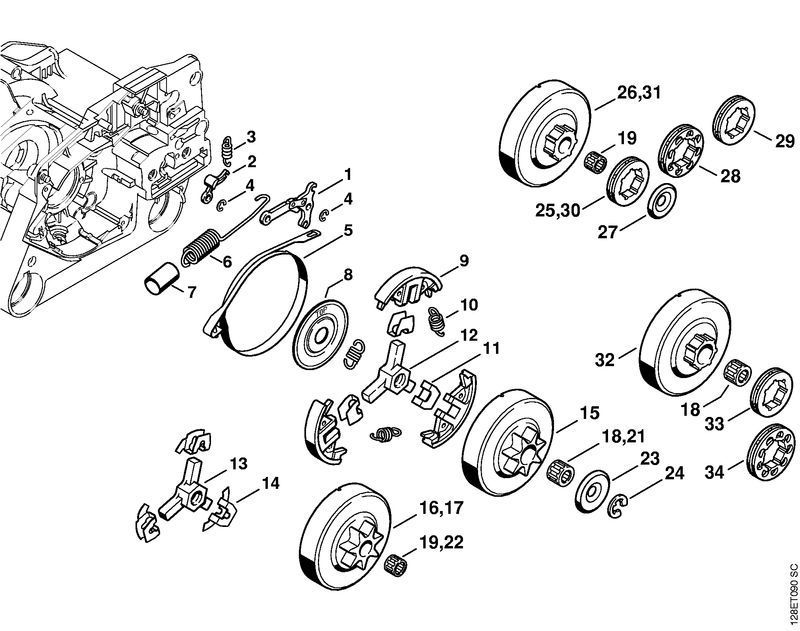

Chain Brake/Clutch

Chain Brake/Clutch

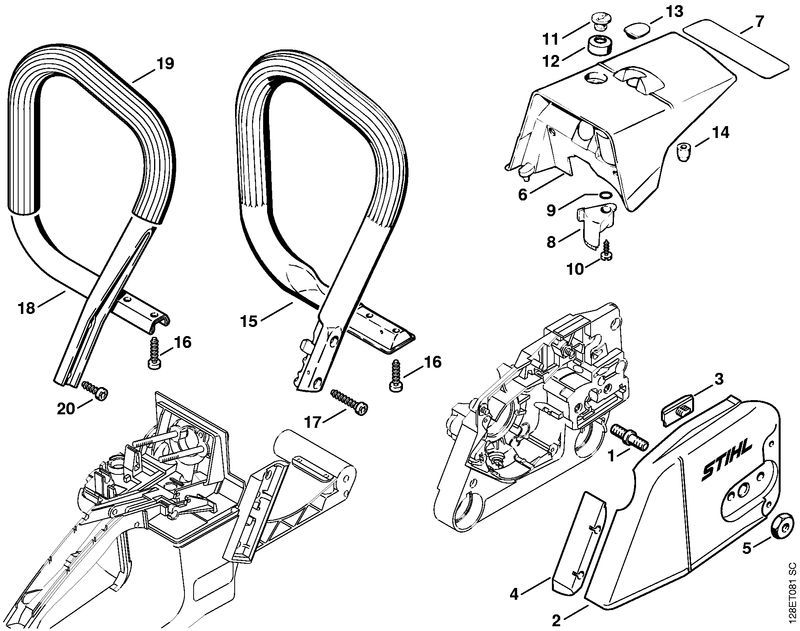

Chain Cover/ Handle Bar

Chain Cover/ Handle Bar

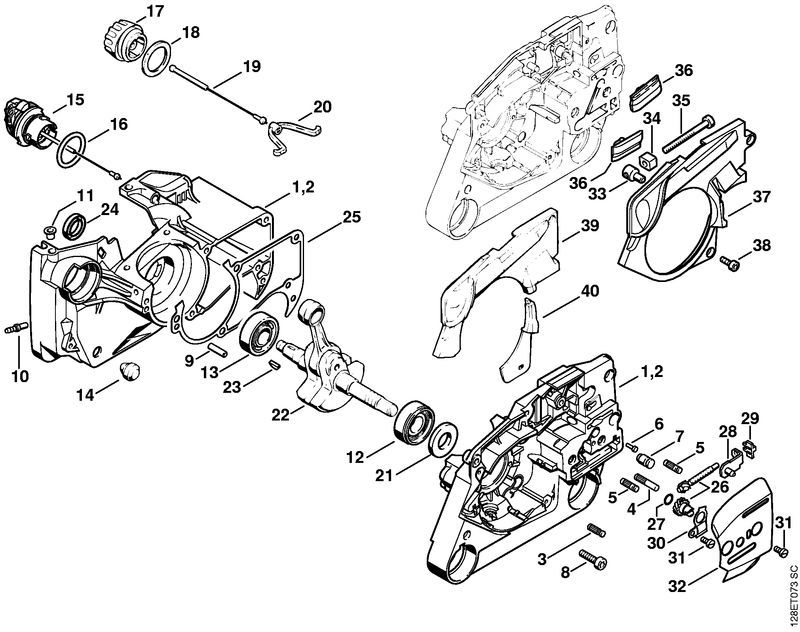

Crankcase

Crankcase
Cylinder

Cylinder

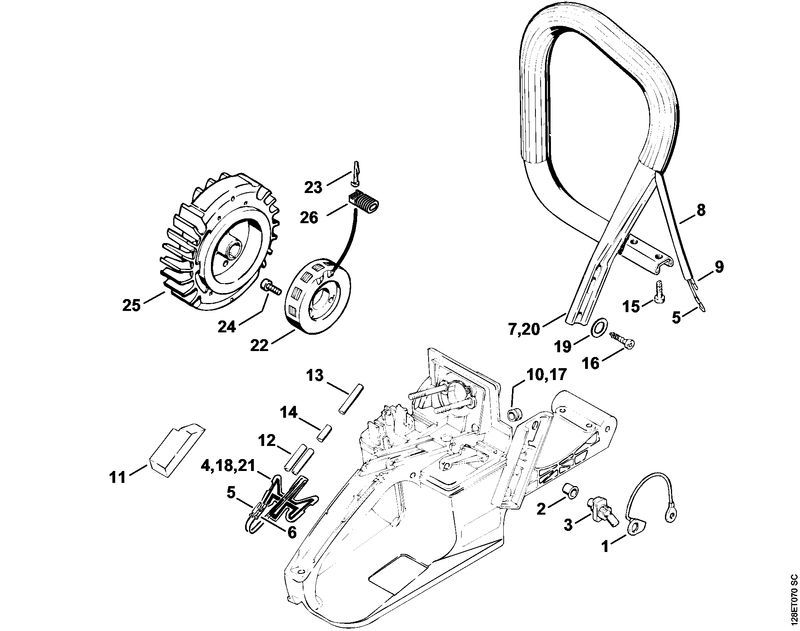

Heating

Heating
Ignition

Ignition

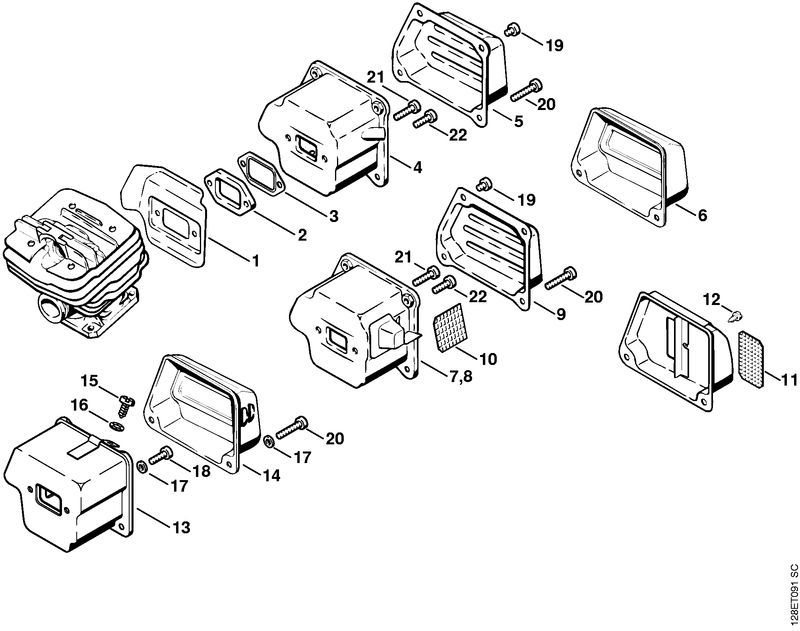

Muffler

Muffler
Oil Pump

Oil Pump
Shroud (31.2001)

Shroud (31.2001)
Starter

Starter

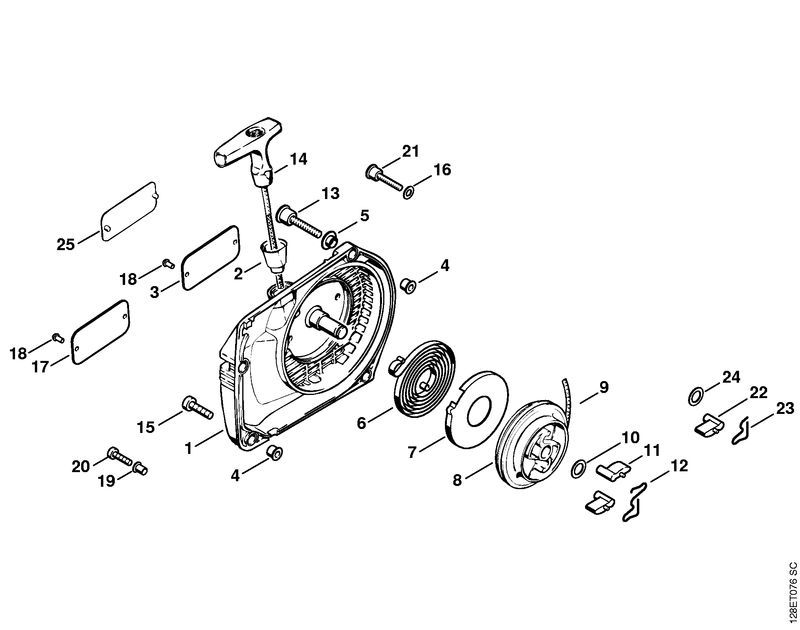

Starter (31.2001)

Starter (31.2001)

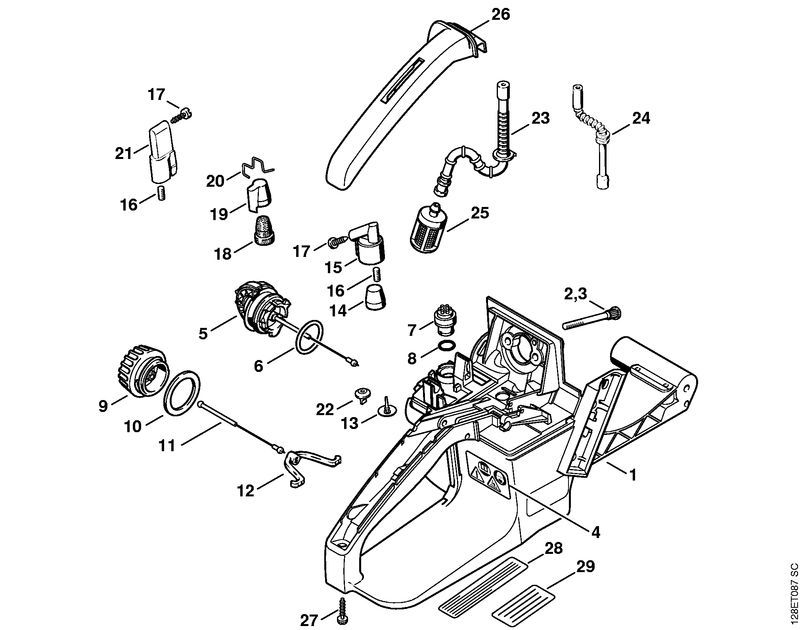

Tank Handle

Tank Handle
Tools

Tools
