SP534ES Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a SP534ES.

Popular for this machine

Mountfield Battery C/W Cable 12V 5Ah
M3863
£54.00
Mountfield Blade Boss D=22.2Mm
122465607/3
£11.33
Mountfield Cable Holder Block
322551640/0
£6.86
Mountfield Engine Brake Cable
181030001/0
£9.86
Mountfield Handwheel W/O Nut M8 [Black]
322399804/1
£5.86
Mountfield Woodruff Key 4 X 6.5 D=16
112139100/0
£2.76

All parts that fit a SP534ES

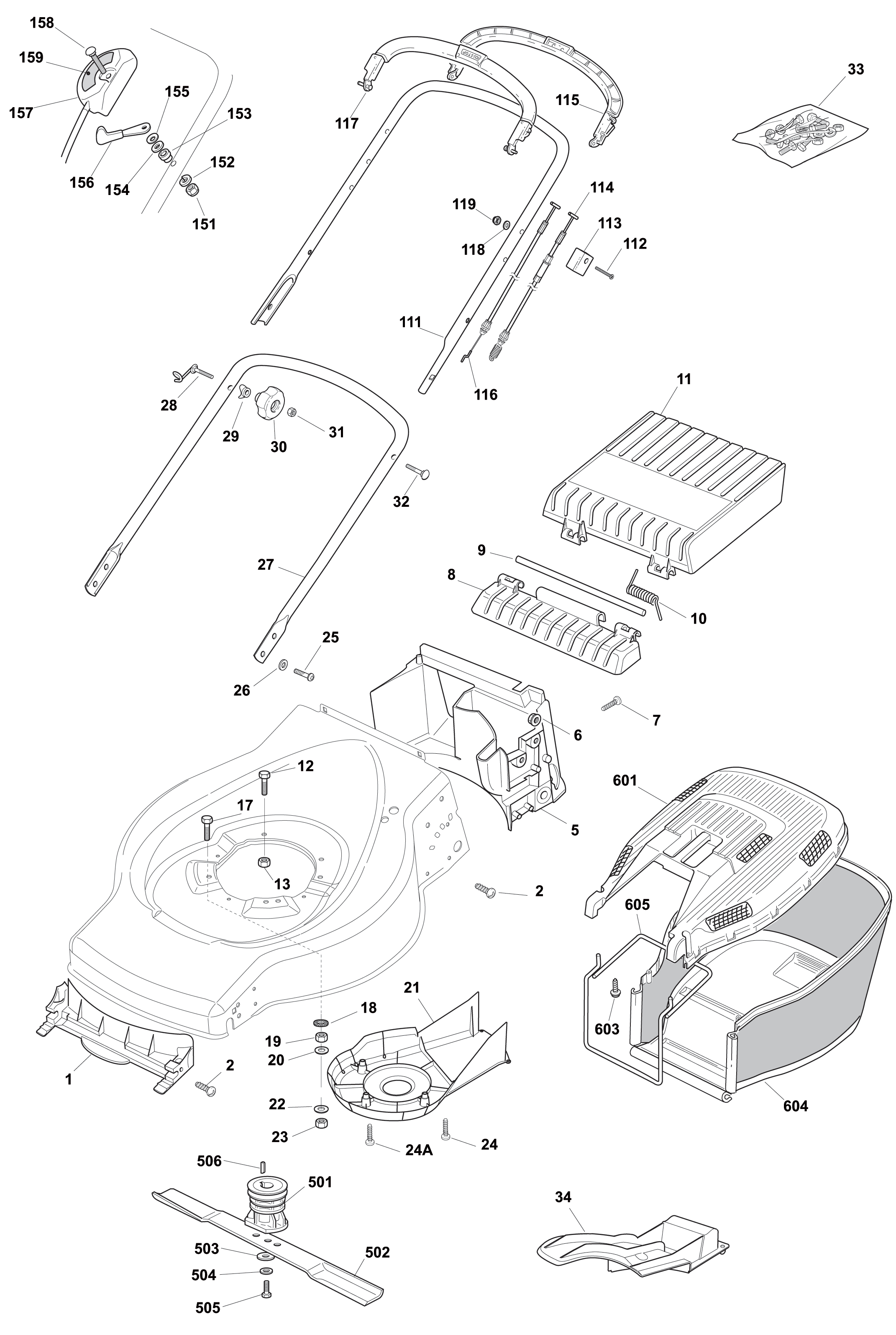

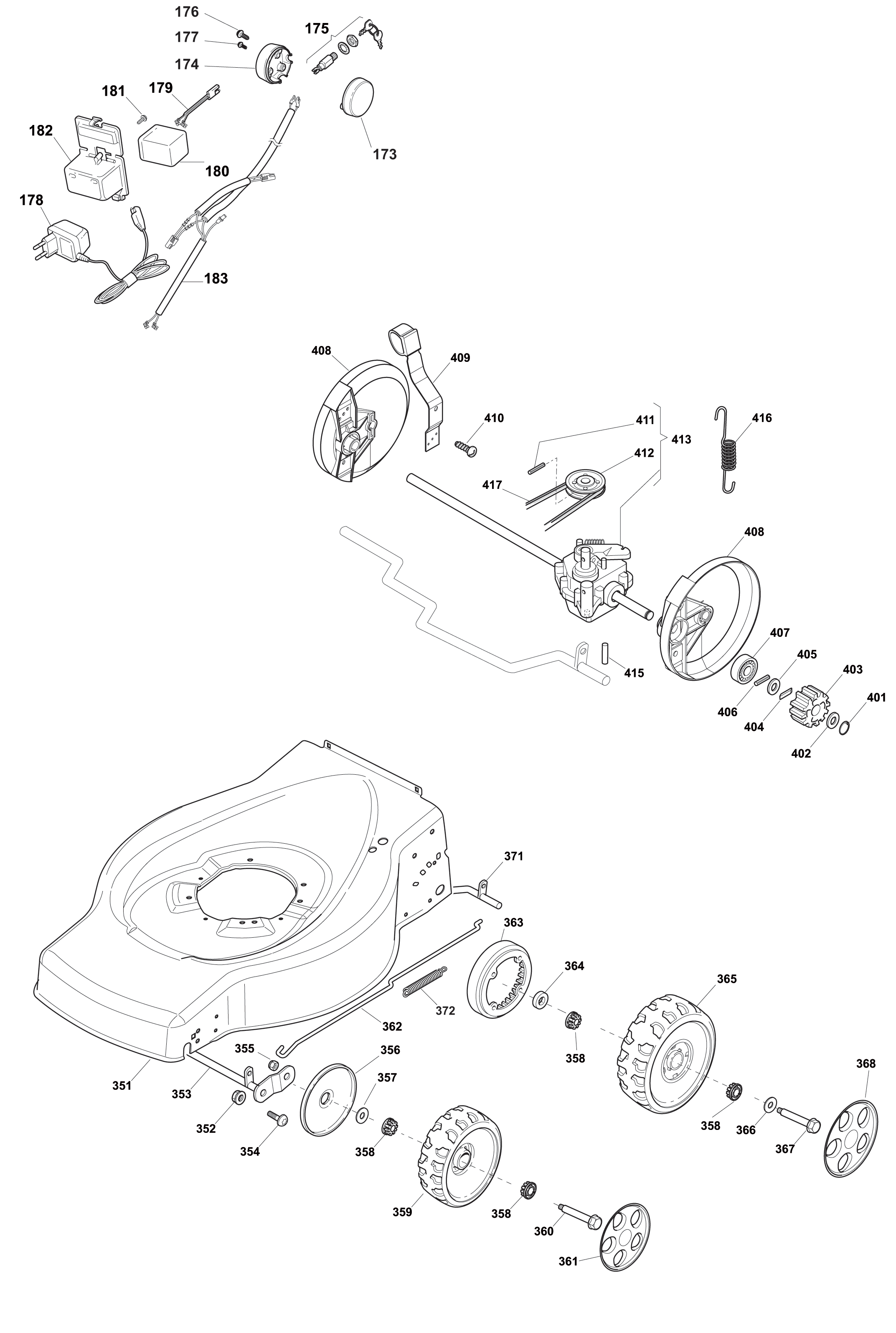

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

2008

Can't see your part ?
