HP465R Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a HP465R.

Popular for this machine

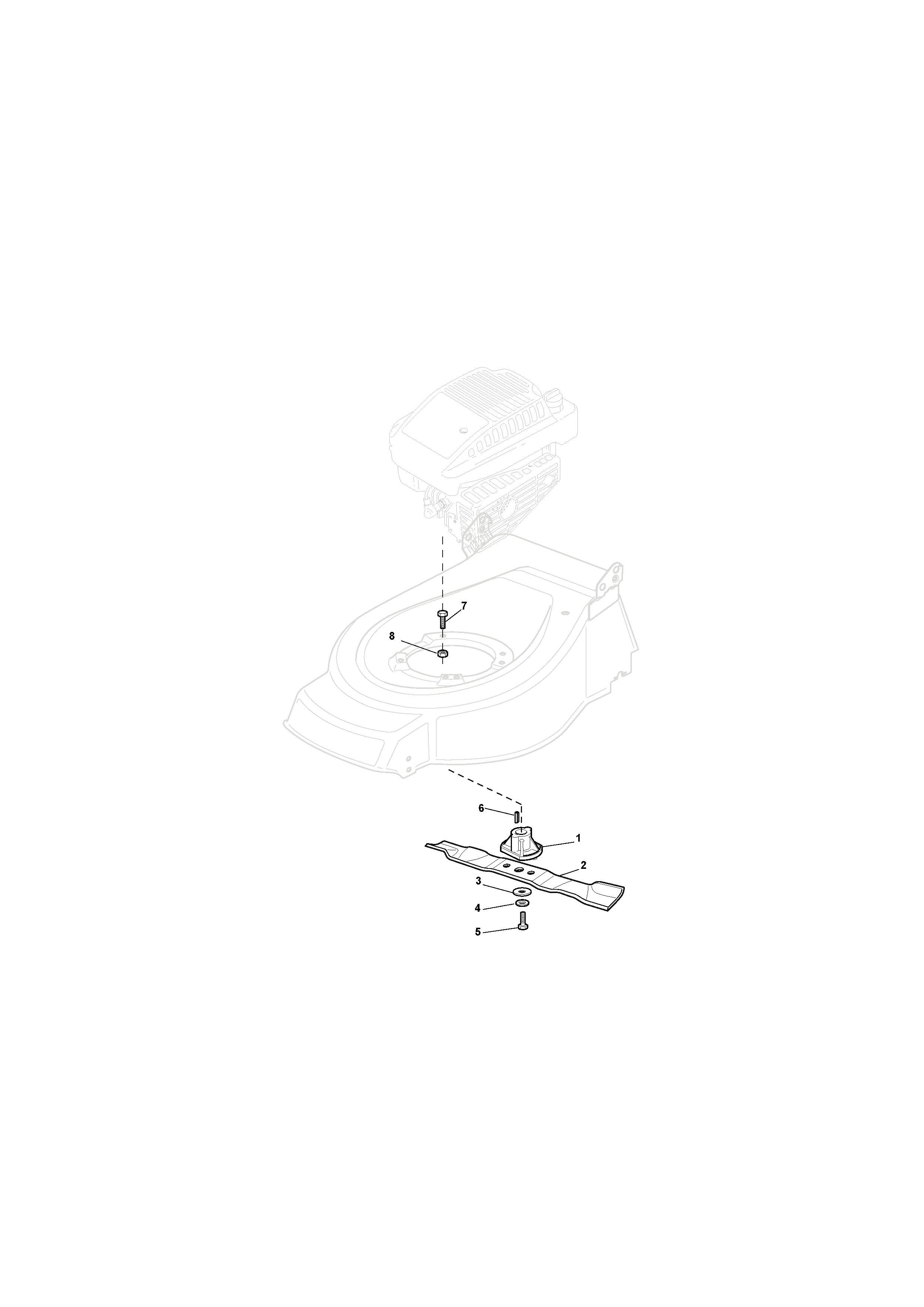

Mountfield Blade 46Cm
181004346/3
£13.93
Mountfield Blade Boss D=25Mm
122463020/1
£7.99
Mountfield Handwheel W/O Nut M8 [Black]
322399804/1
£3.50
Mountfield Hex-Head Screw 3/8" X 2"
112735698/0
£1.39

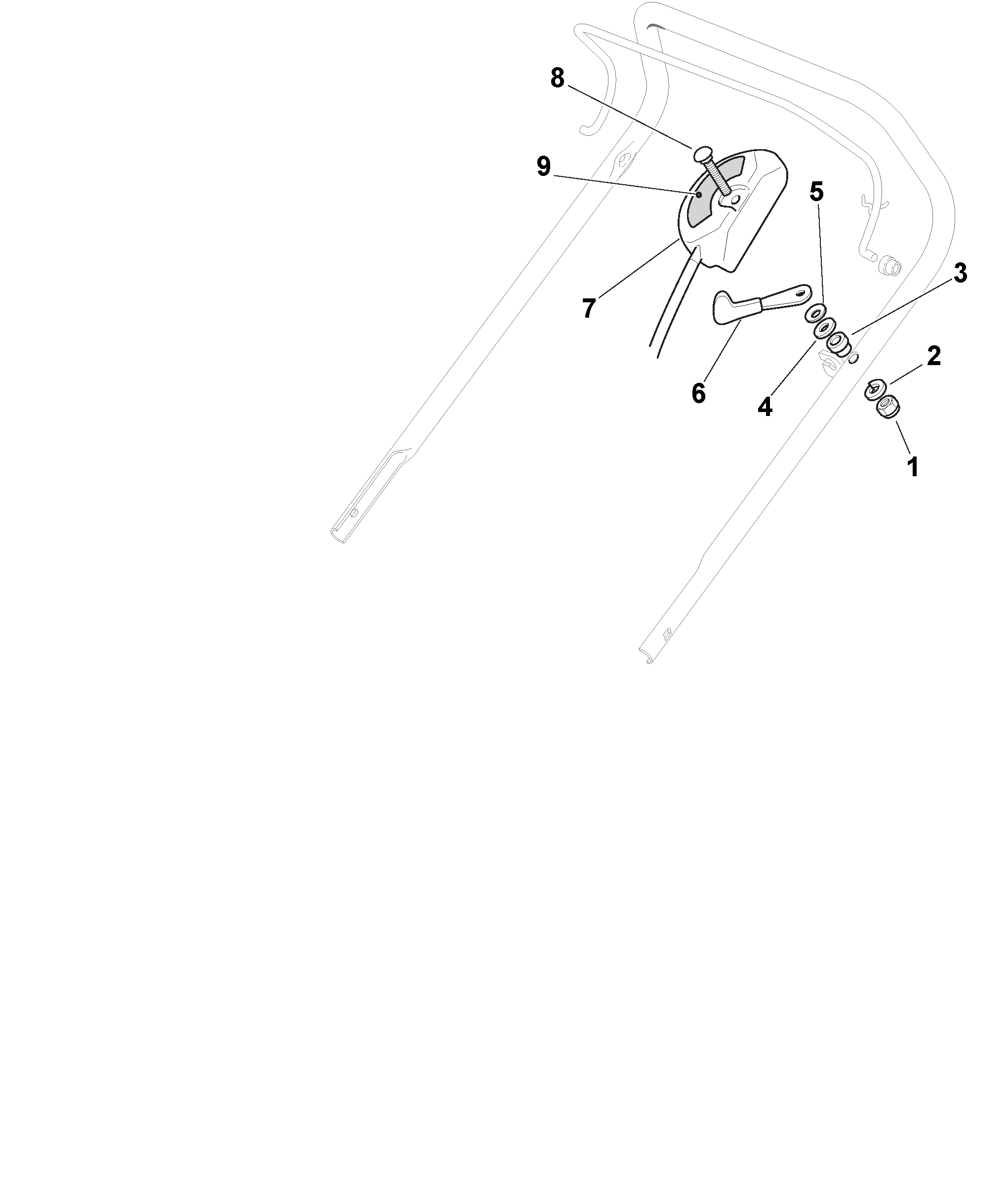

Mountfield Throttle Cable L=1100
181005501/1
£21.72

All parts that fit a HP465R

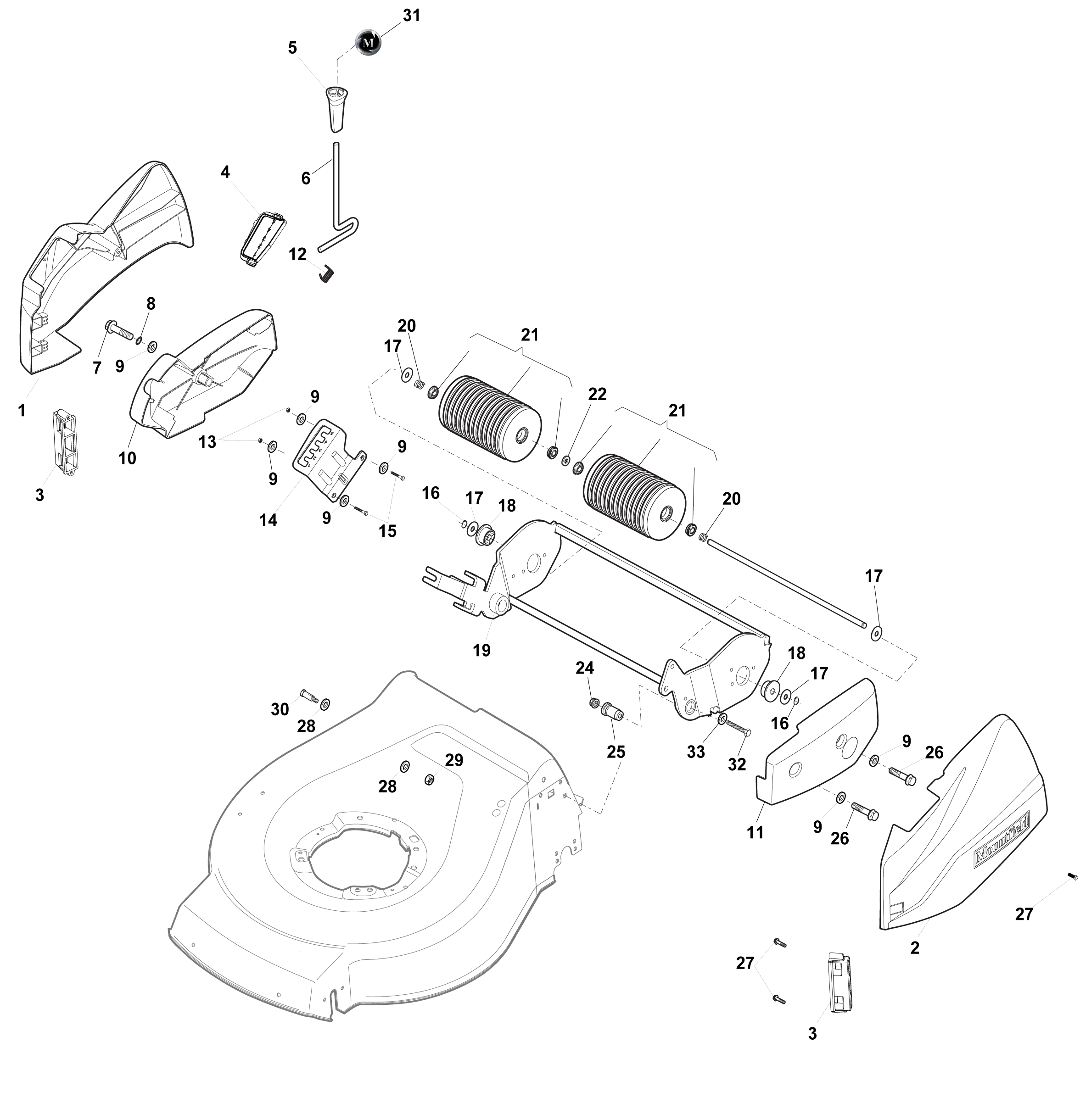

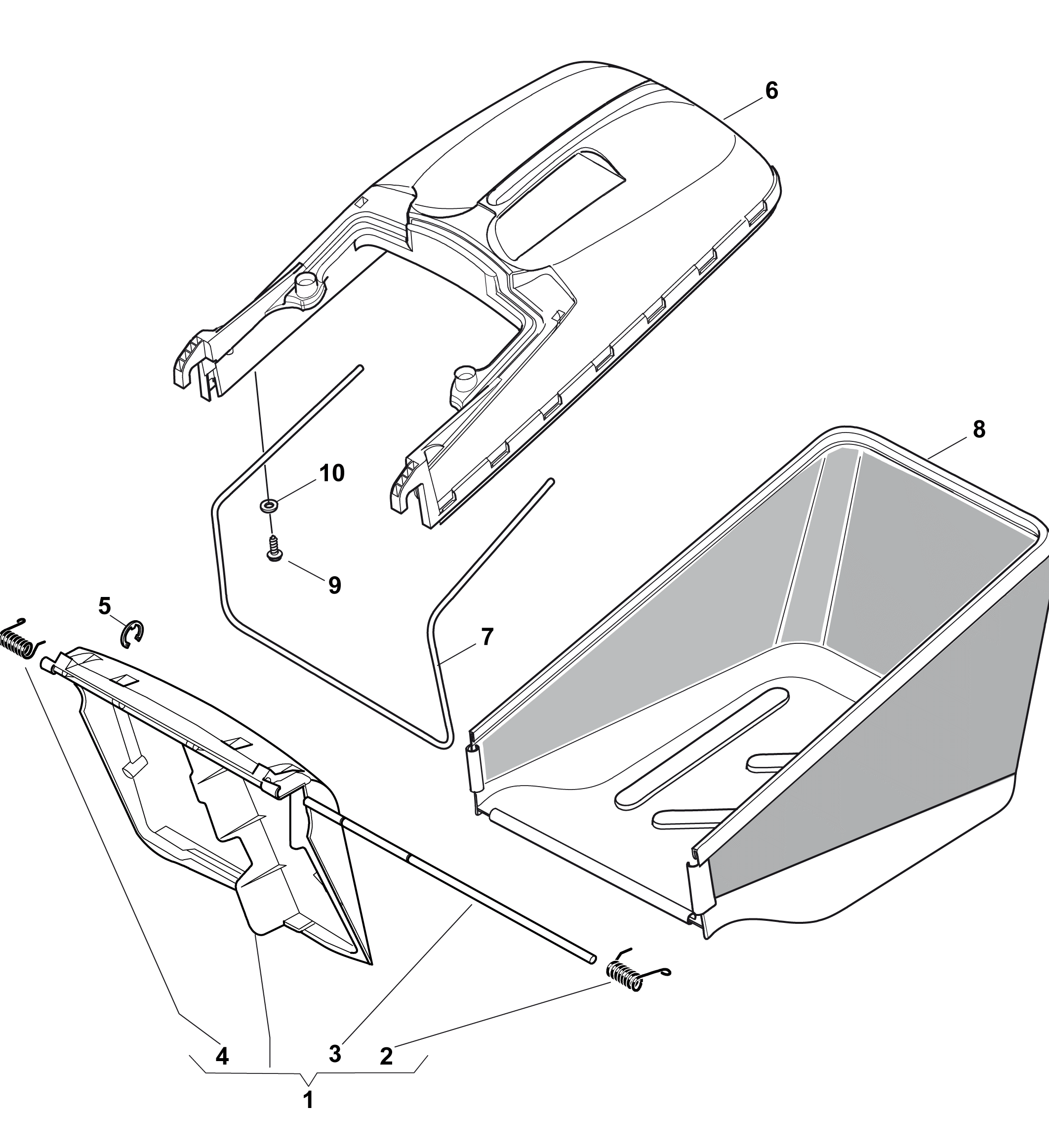

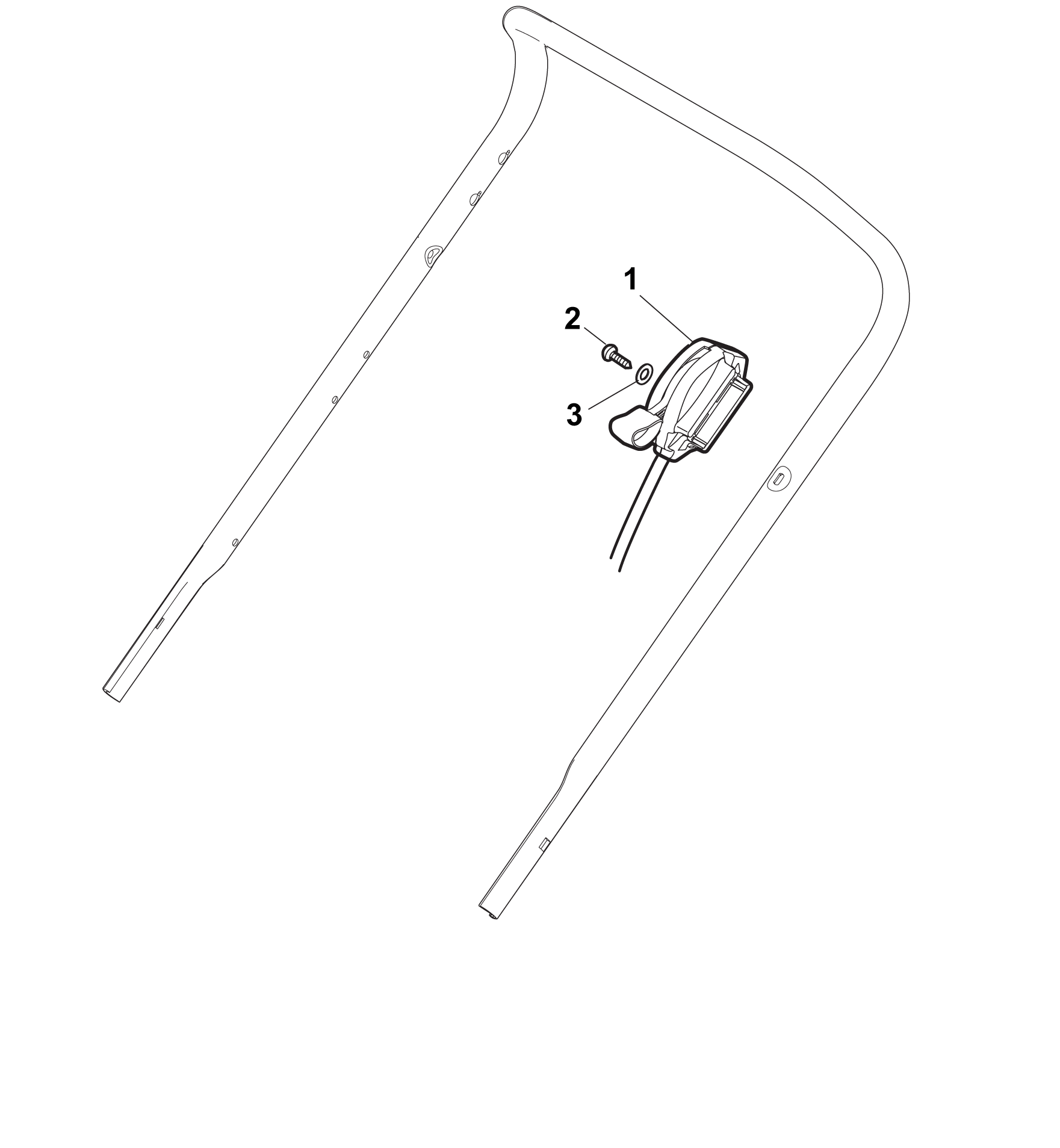

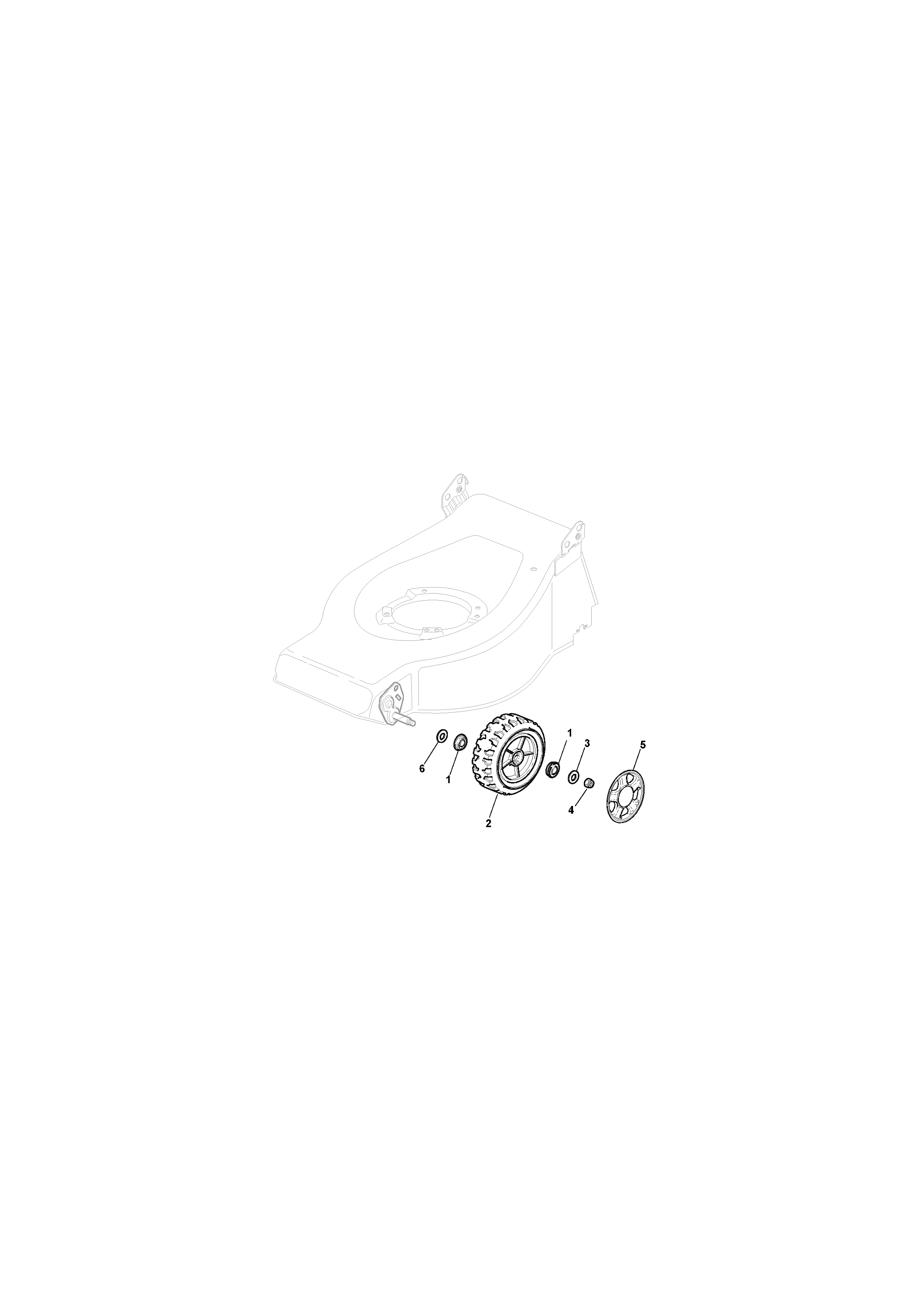

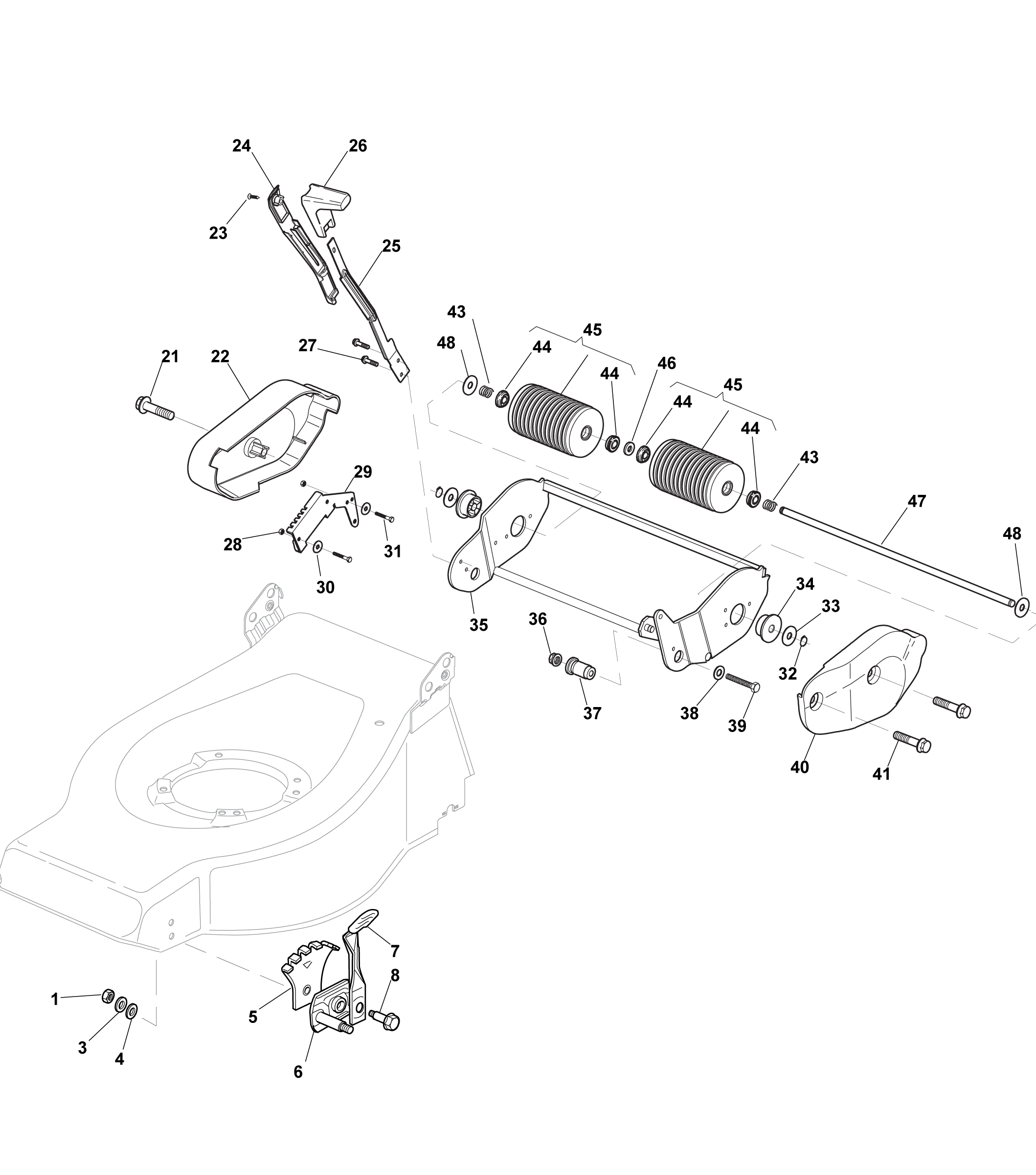

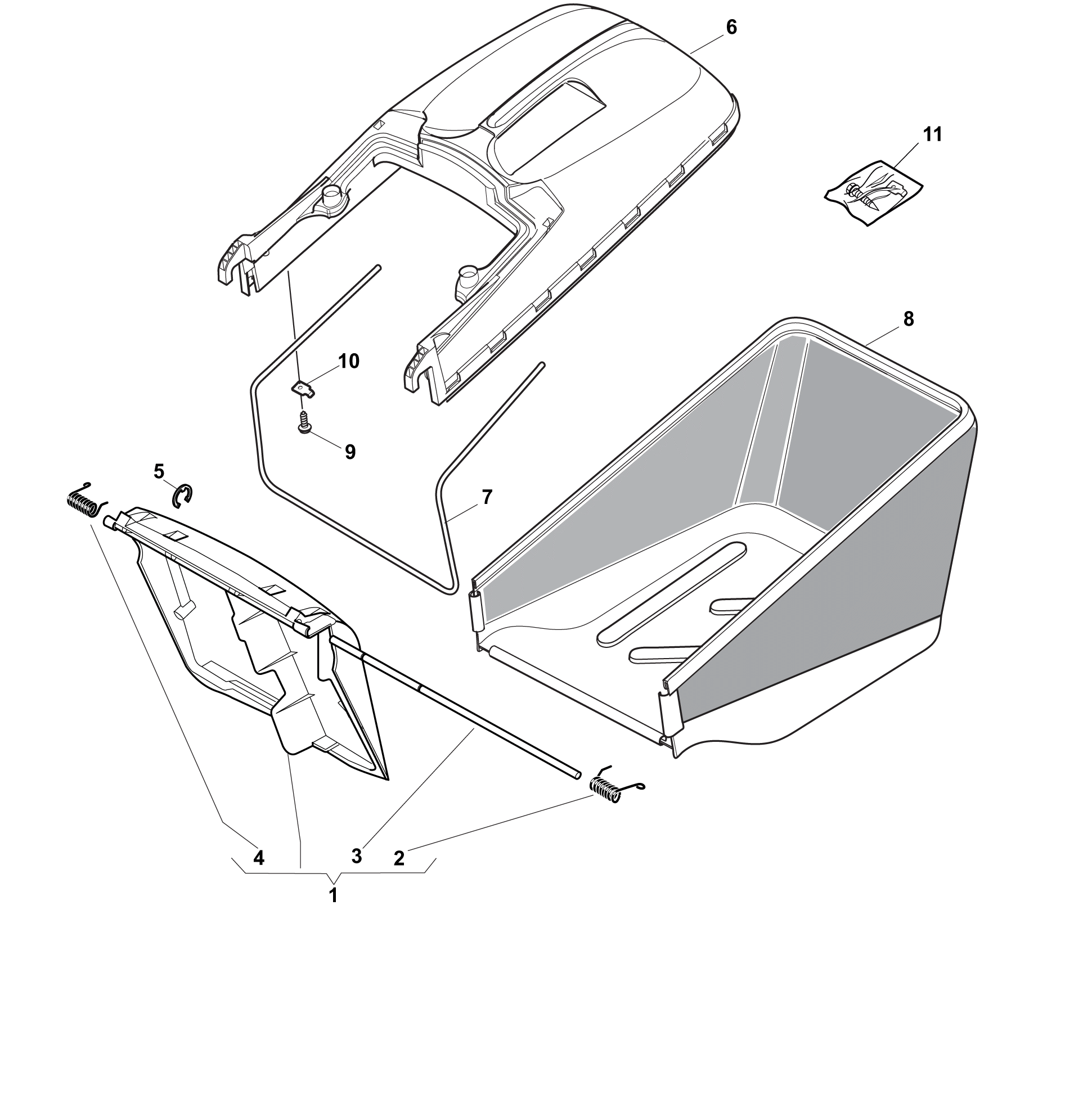

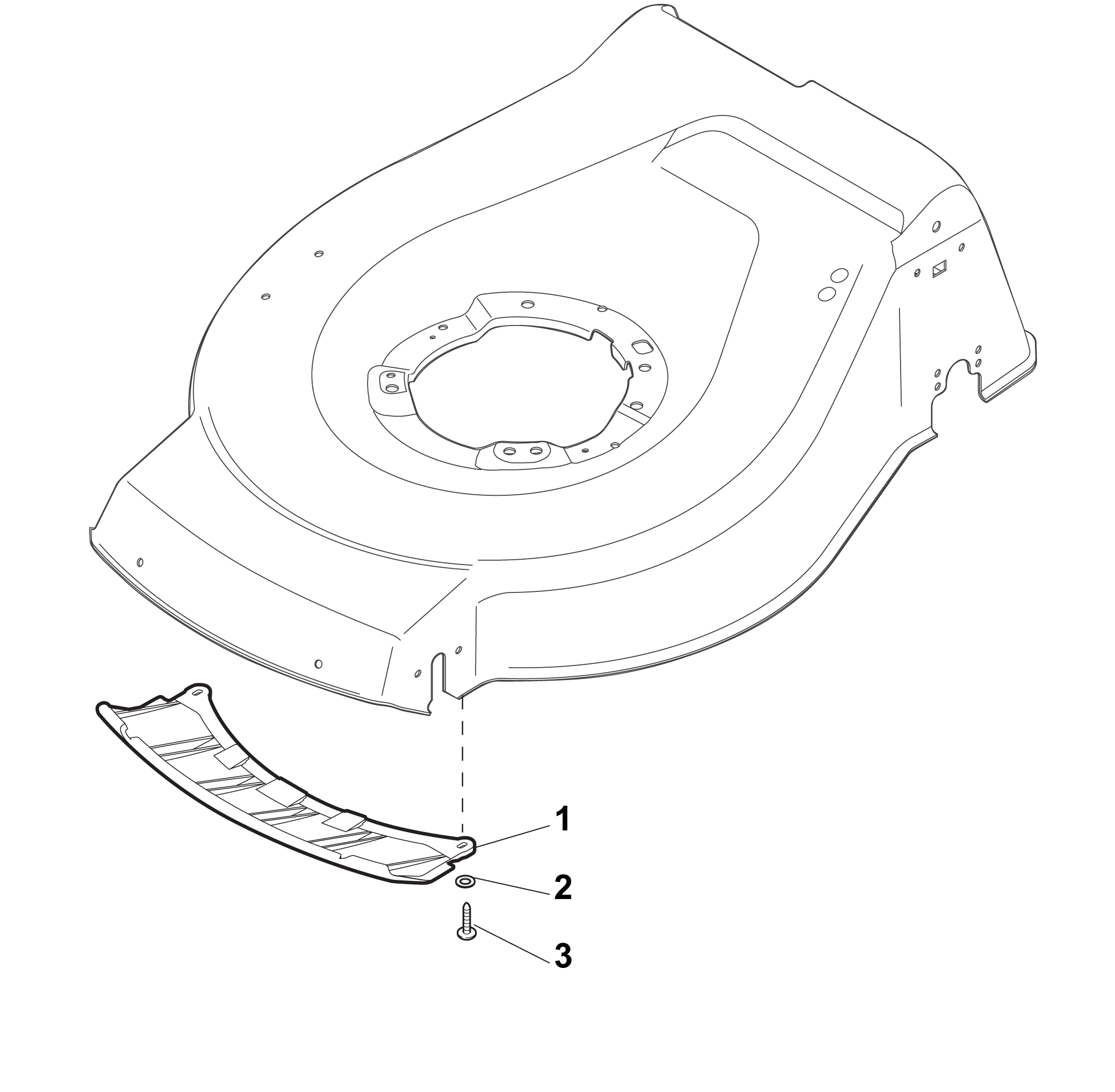

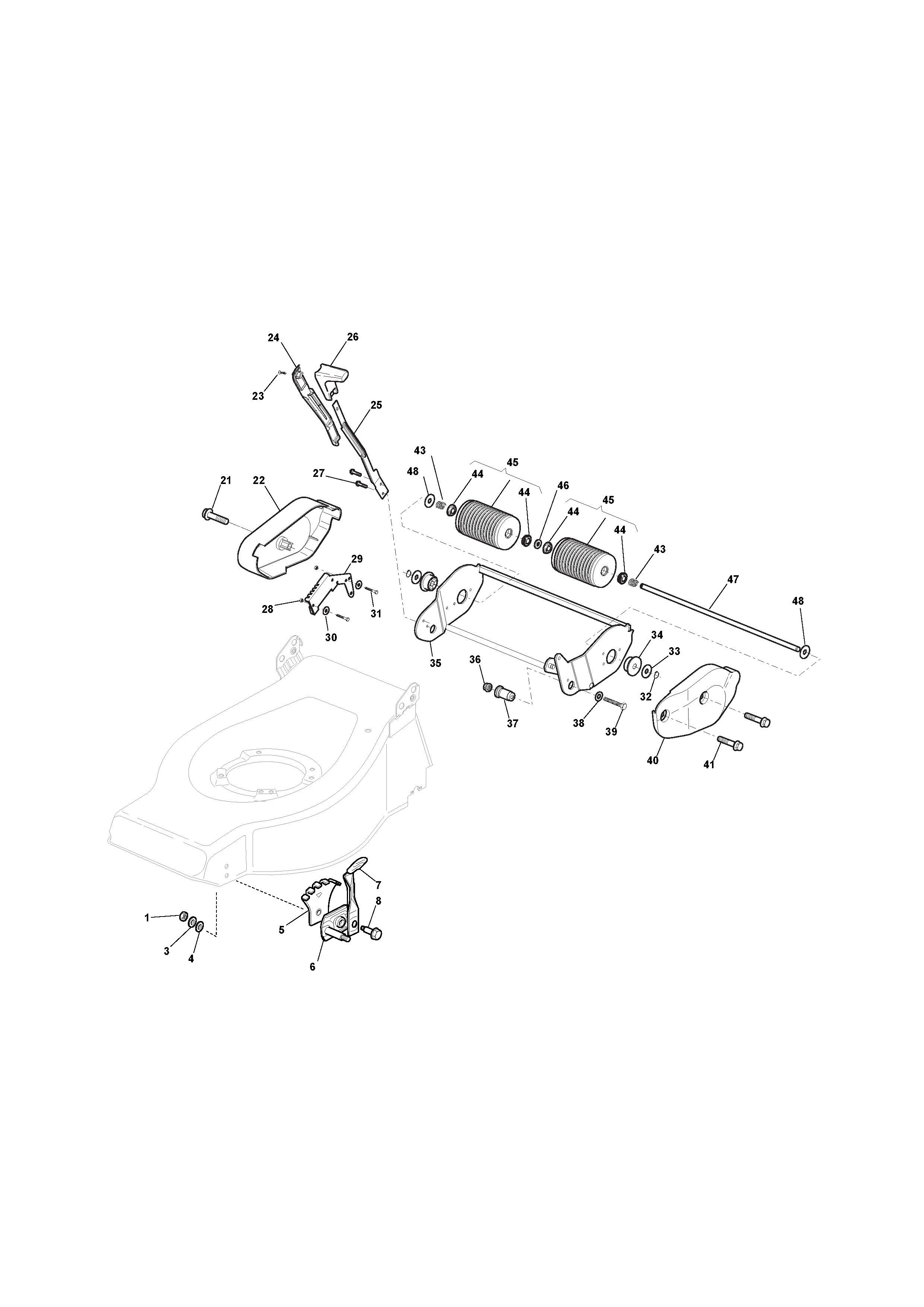

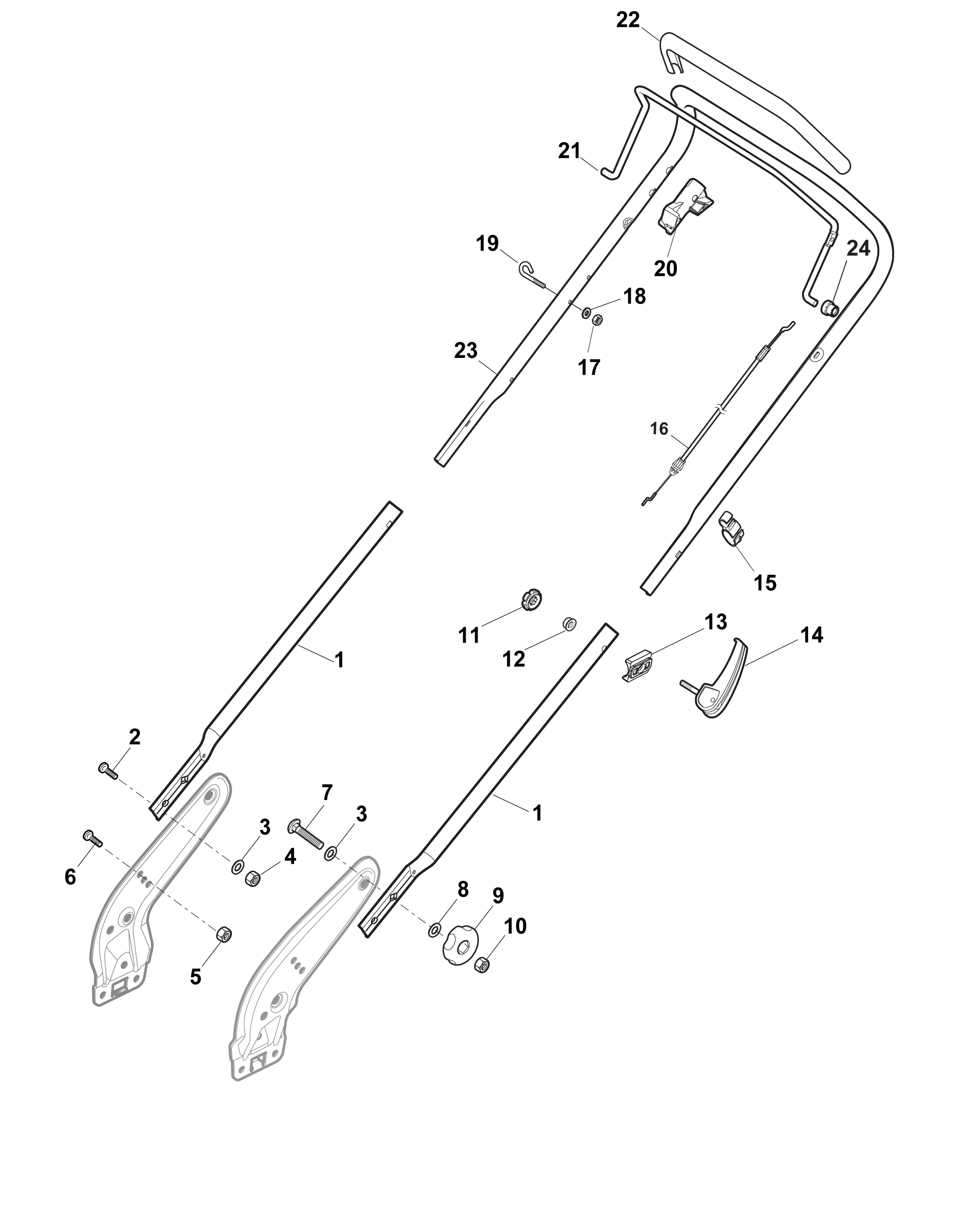

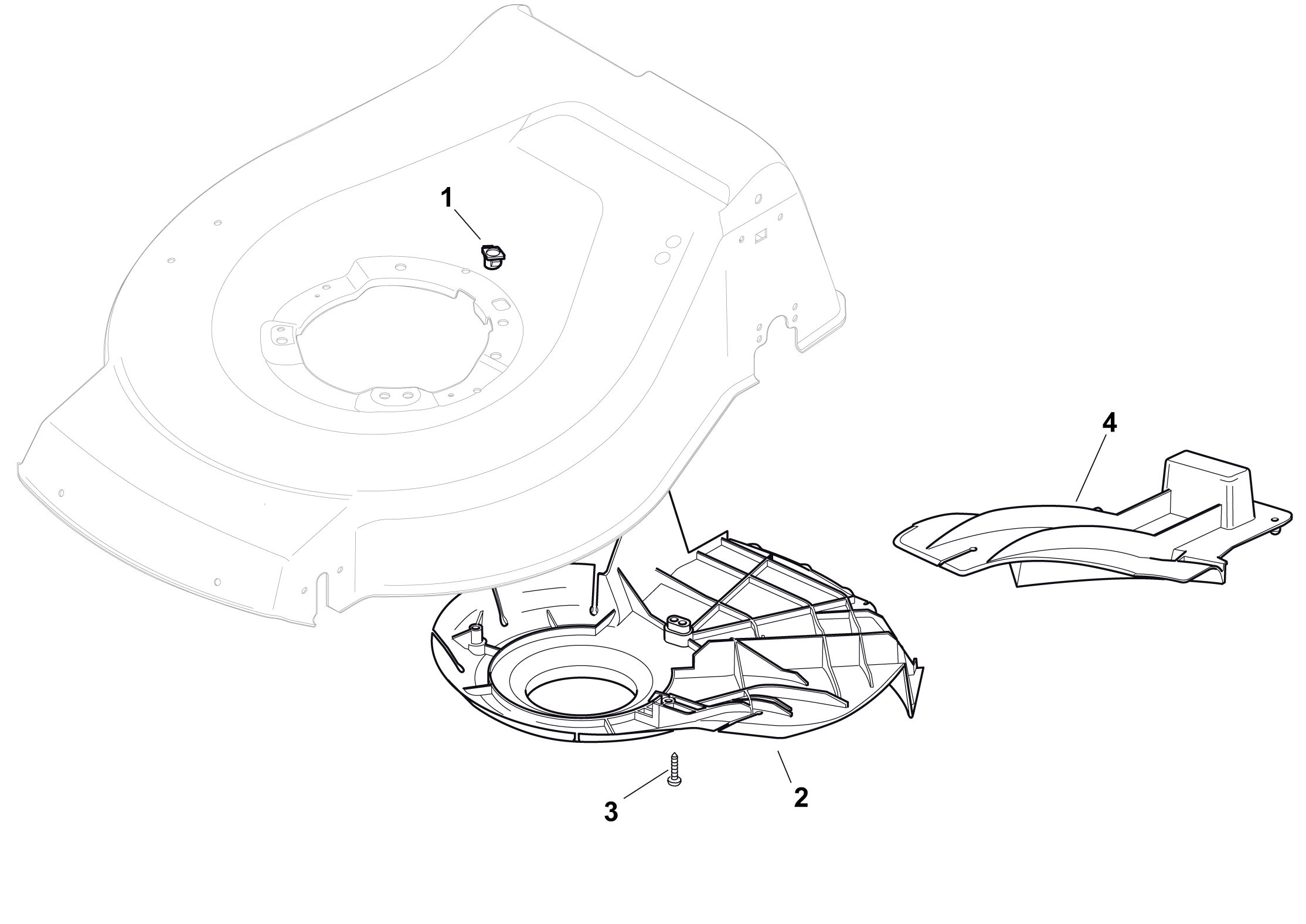

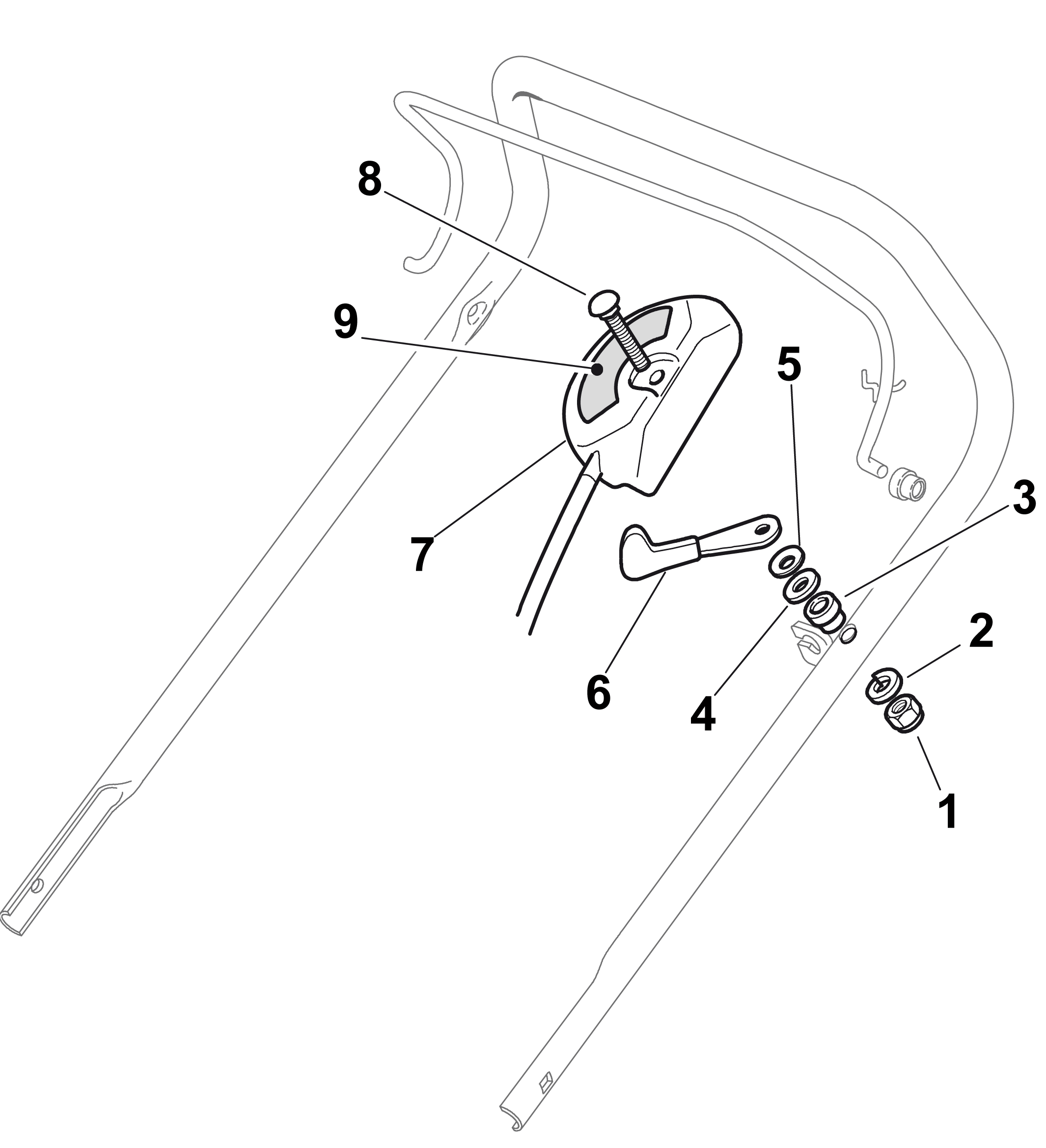

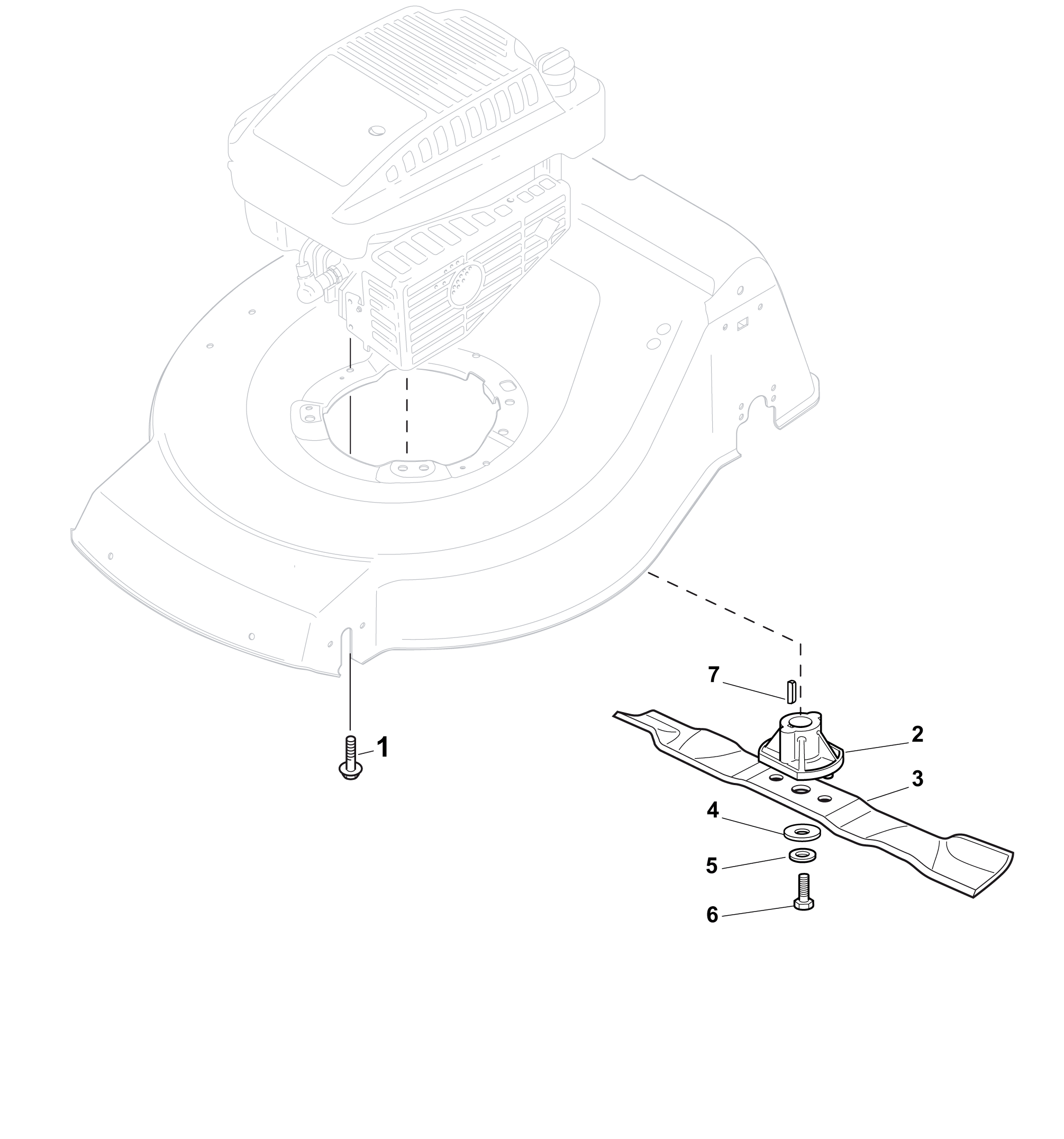

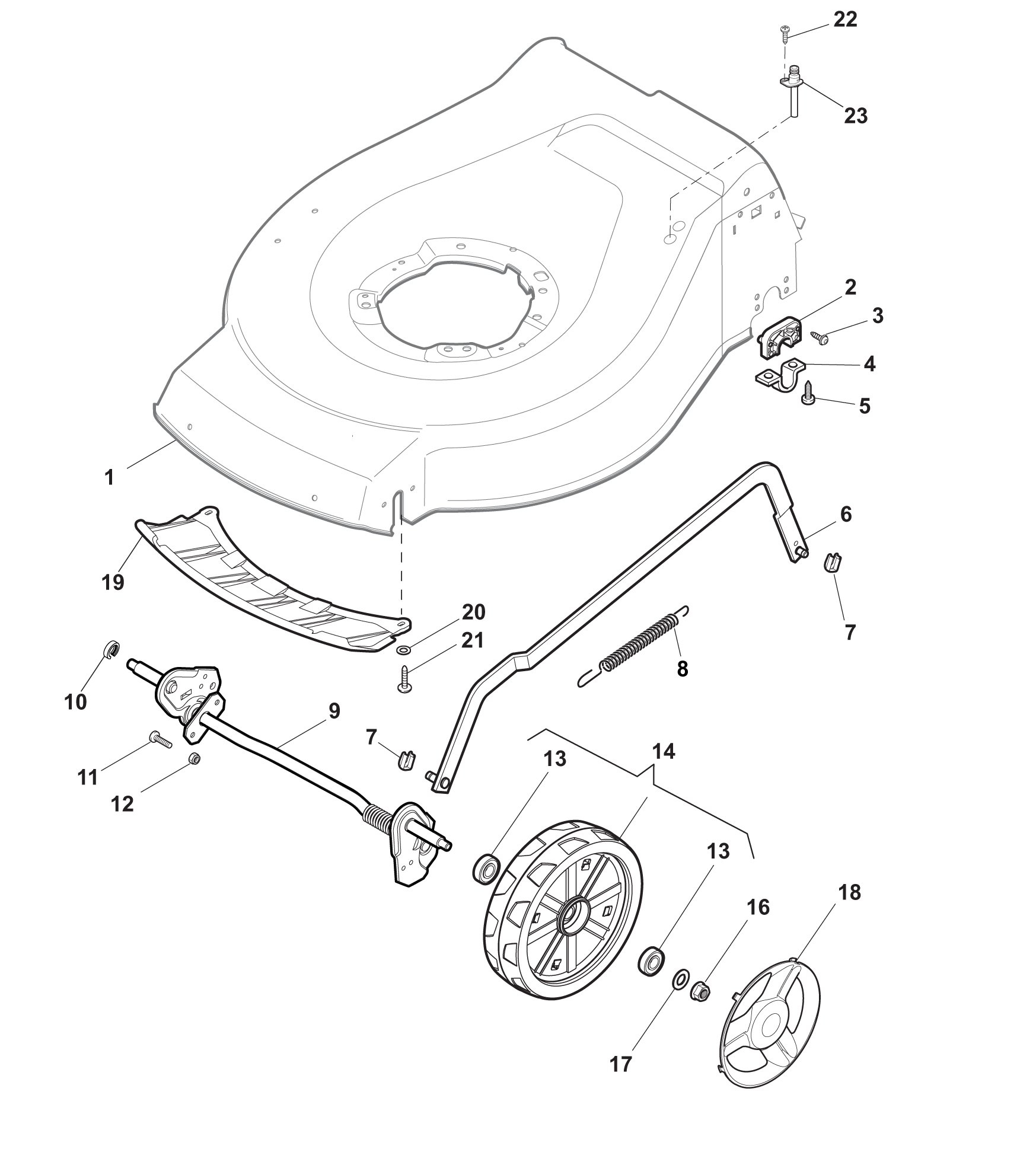

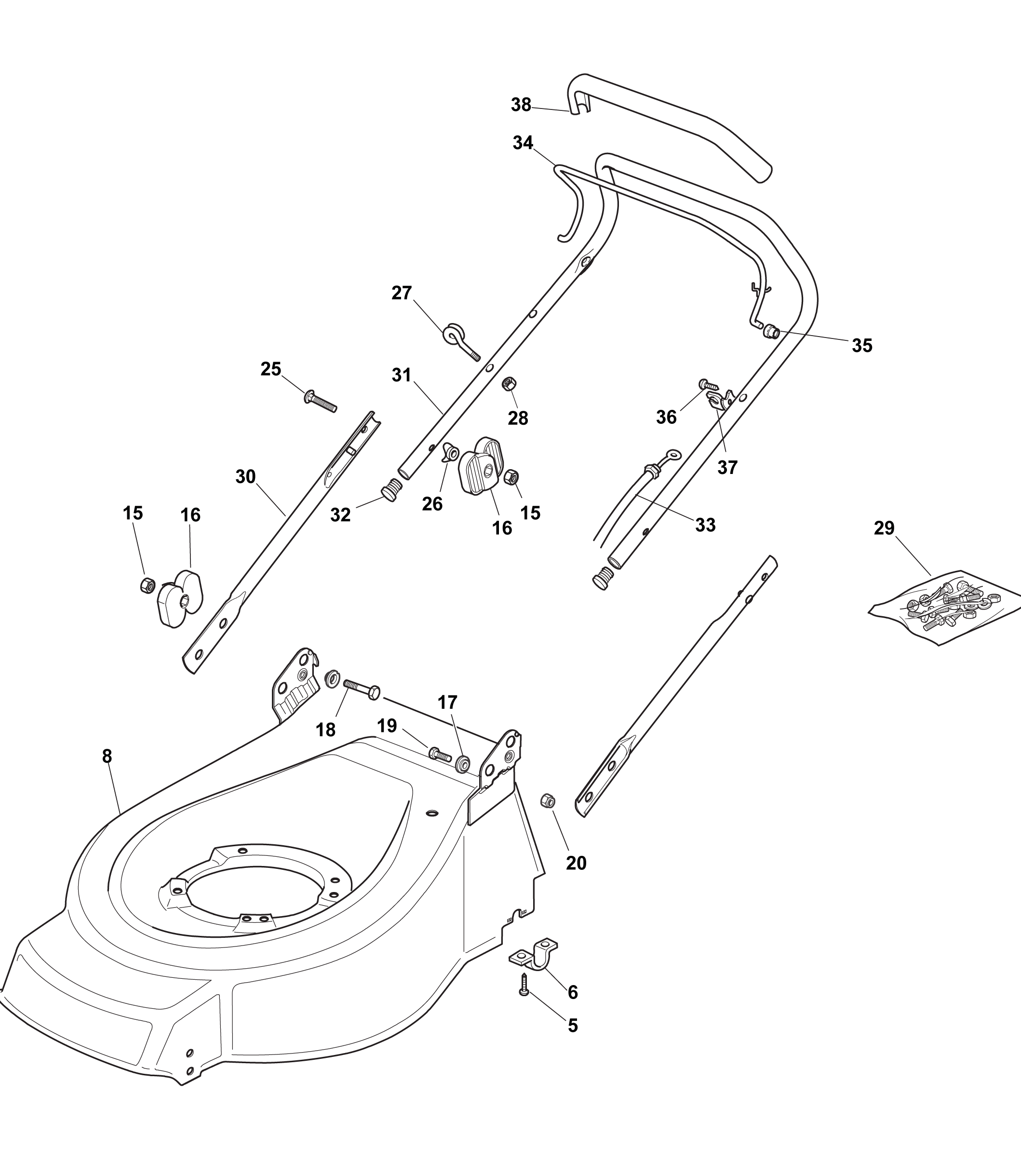

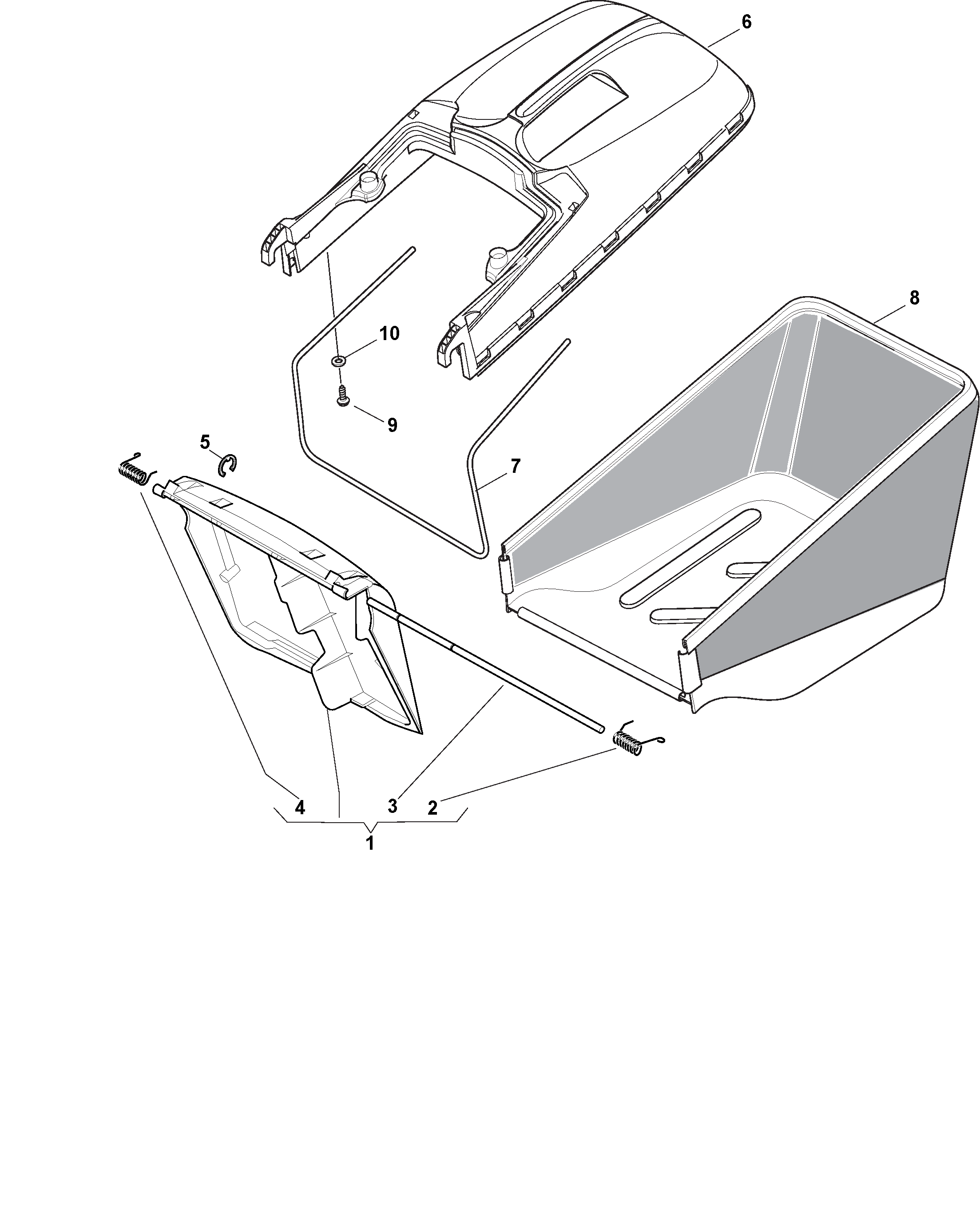

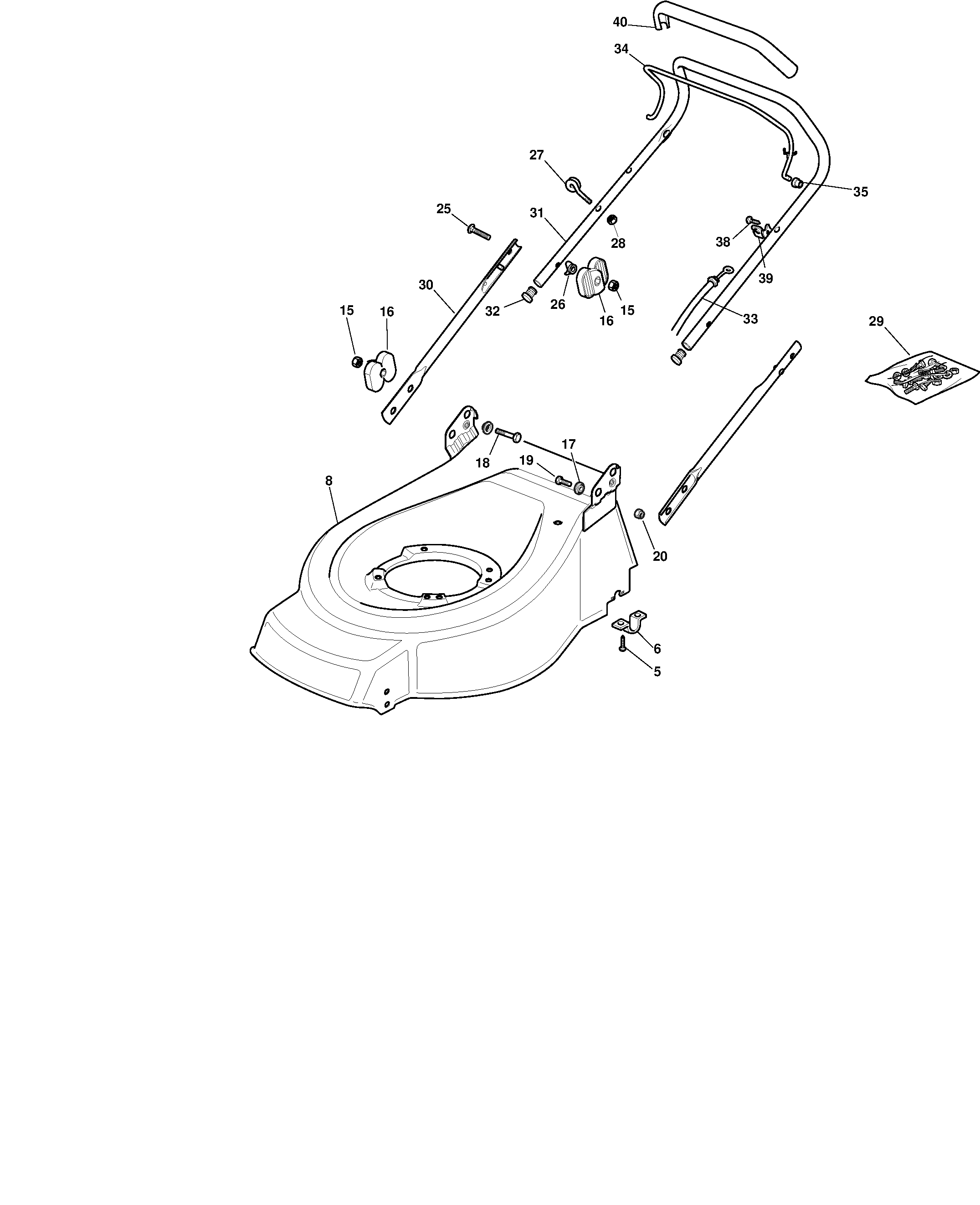

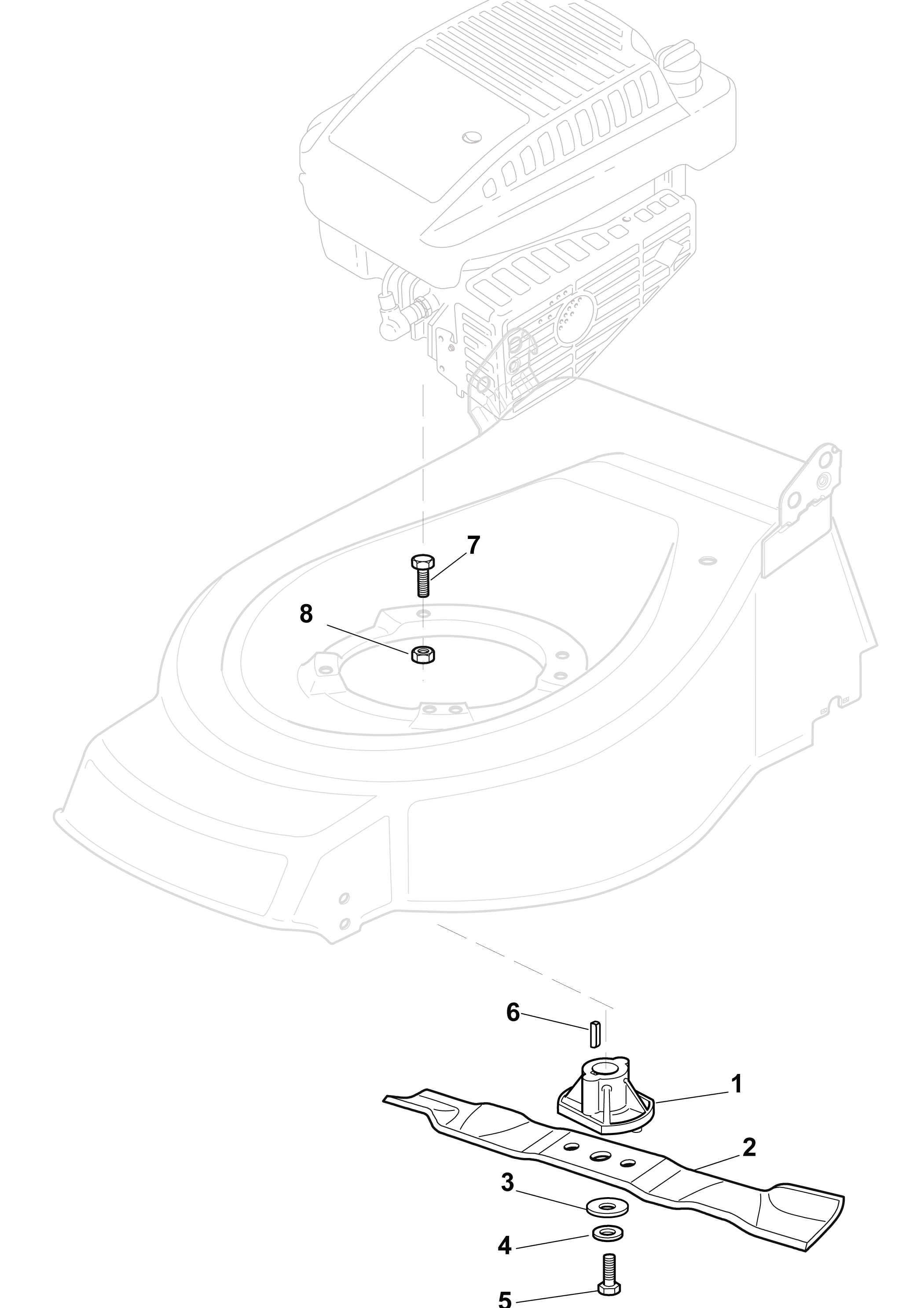

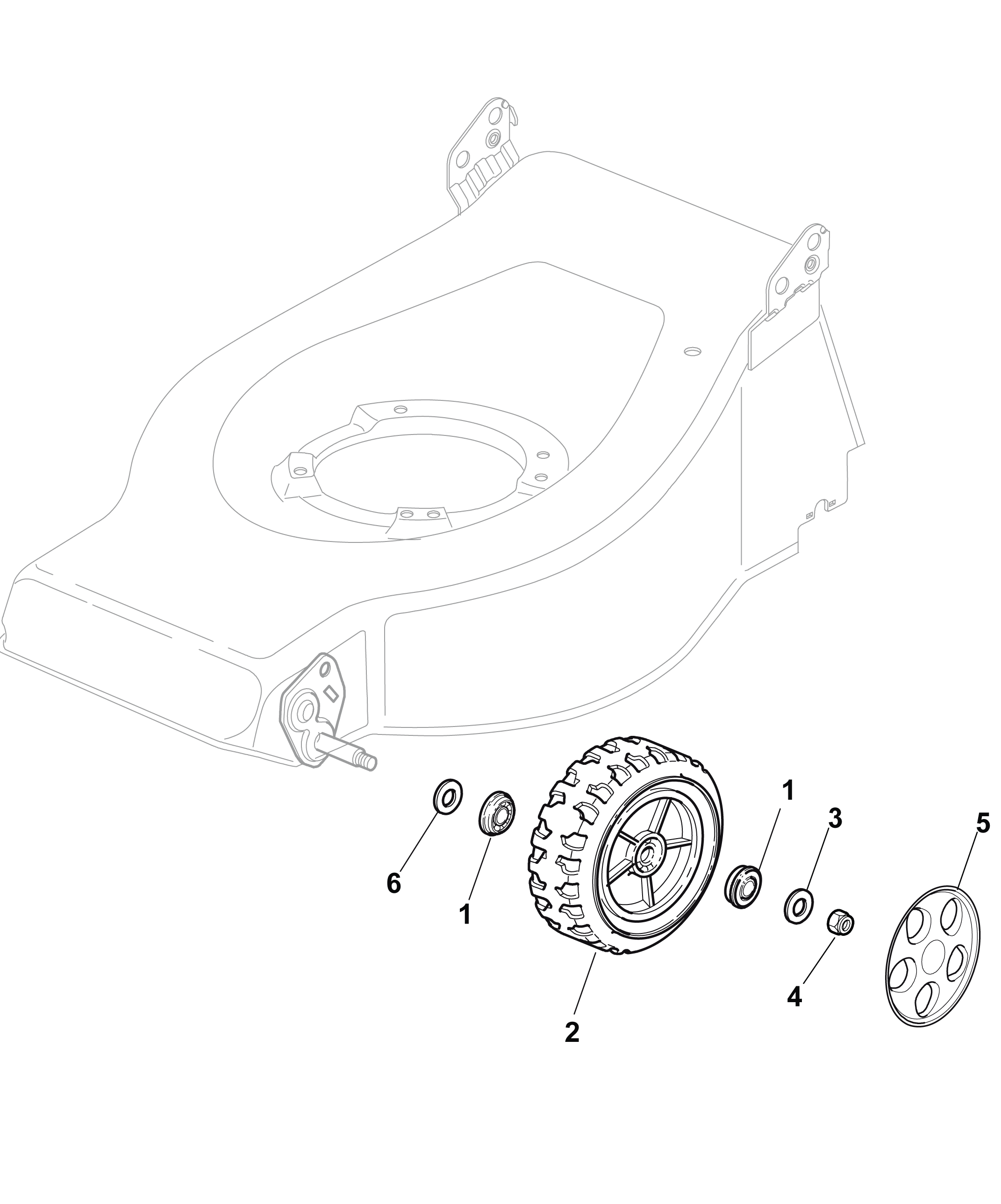

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

2012

2011

Can't see your part?
