- 1638H Twin Lawn Tractor
Diagrams for the Mountfield 1638H Twin Lawn Tractor
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Mountfield 1638H Twin Lawn Tractor.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Mountfield 1638H Twin Lawn Tractor
2T2610683-M19 [2019]

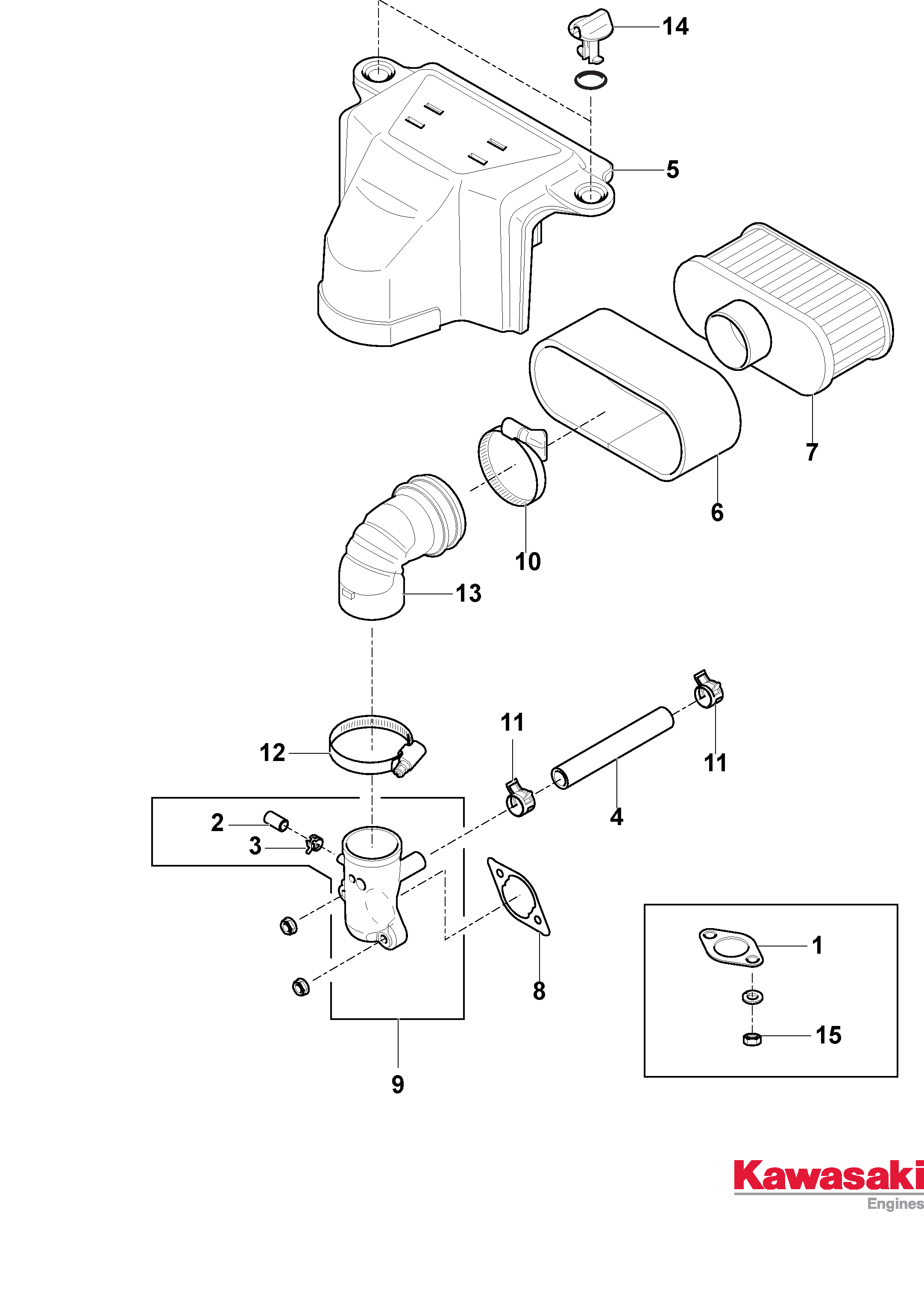

Muffler

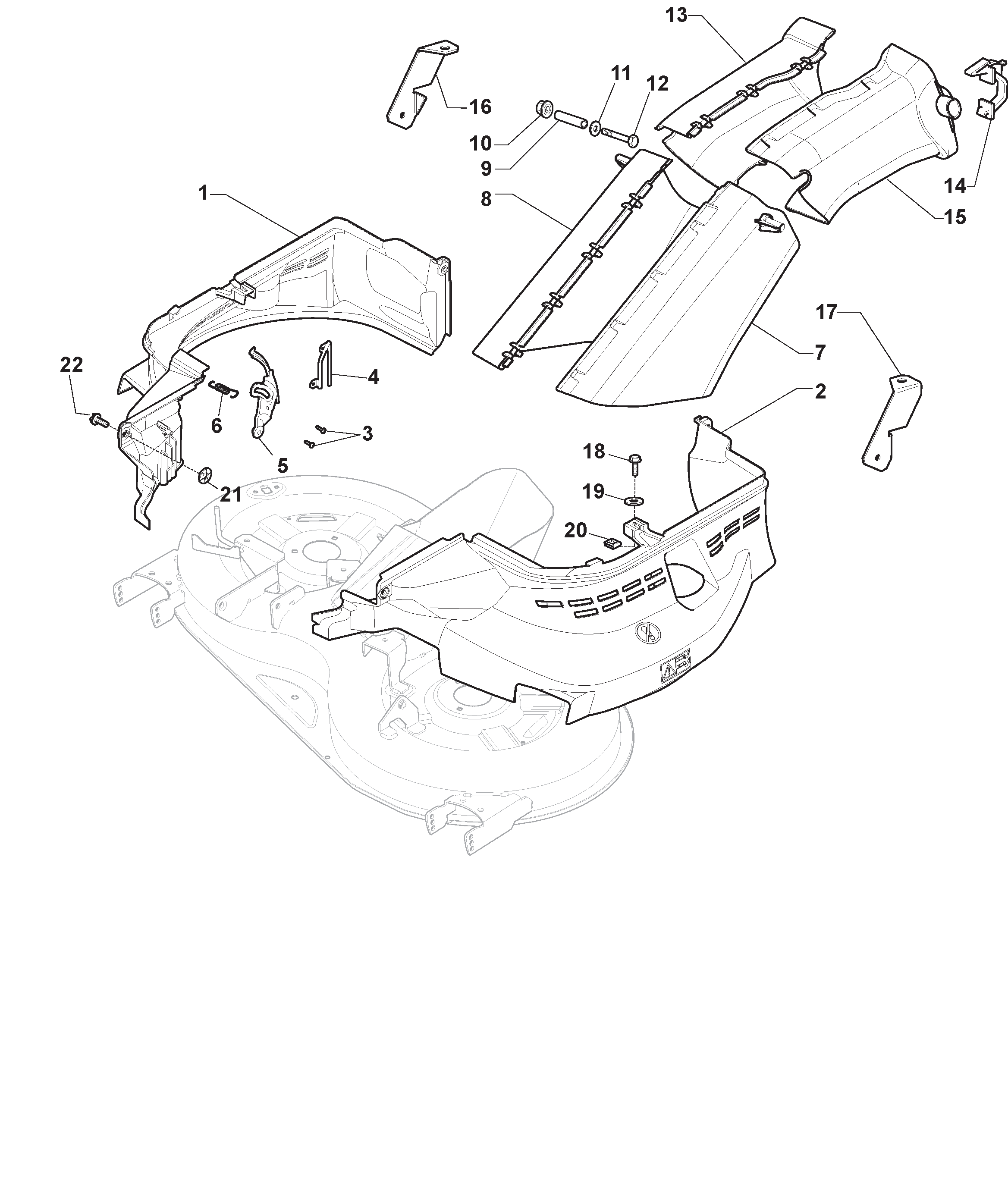

Belt Protection

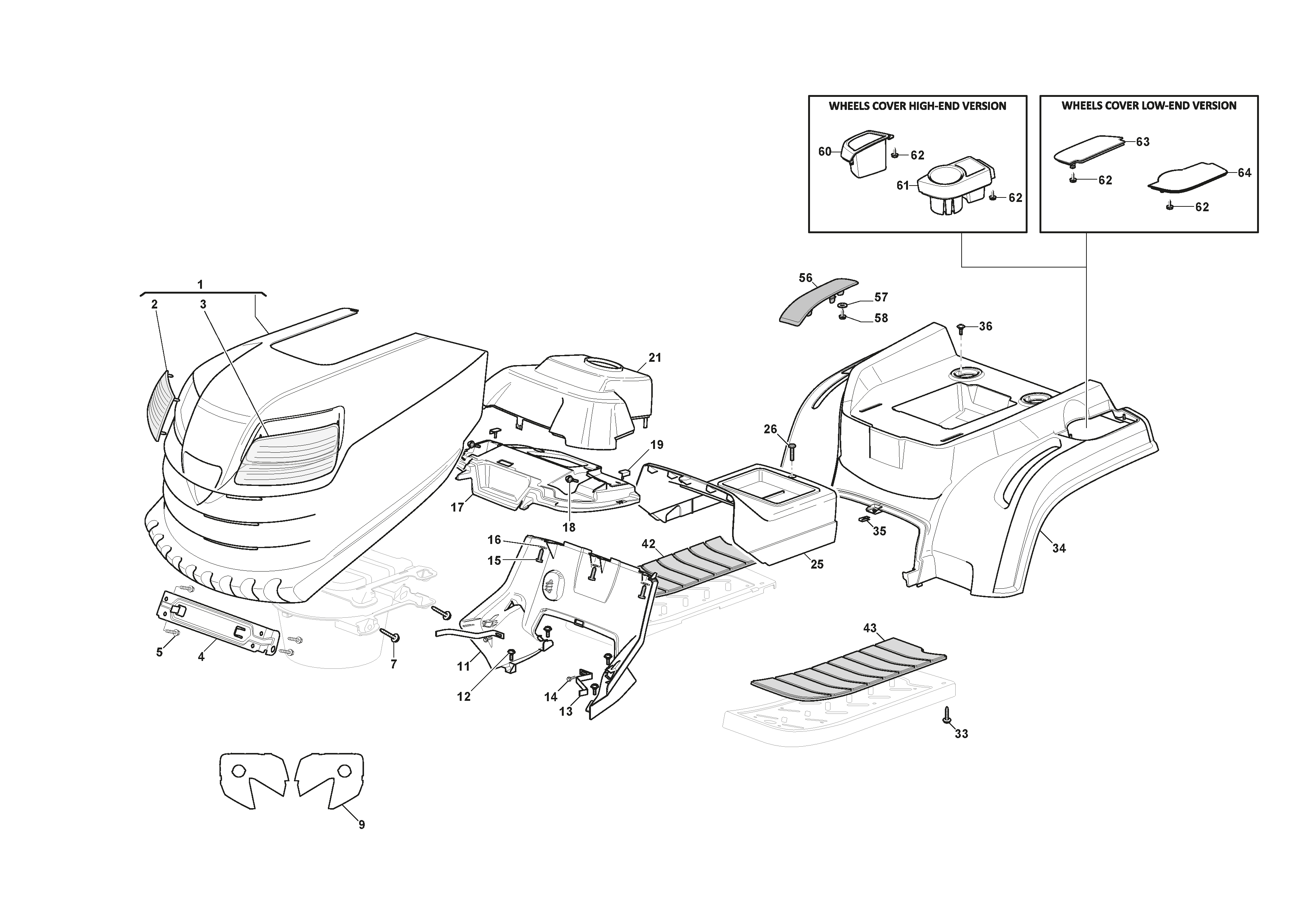

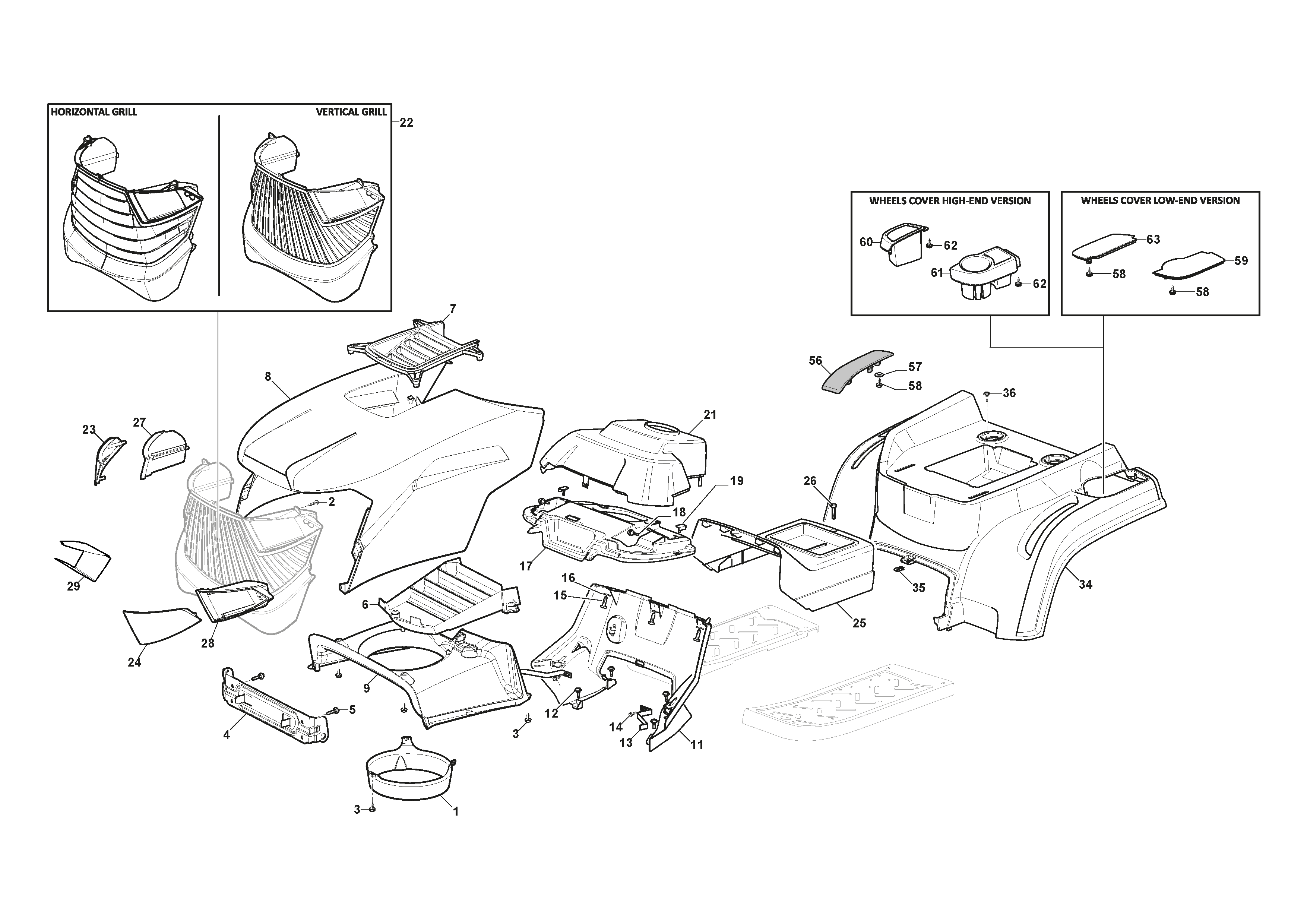

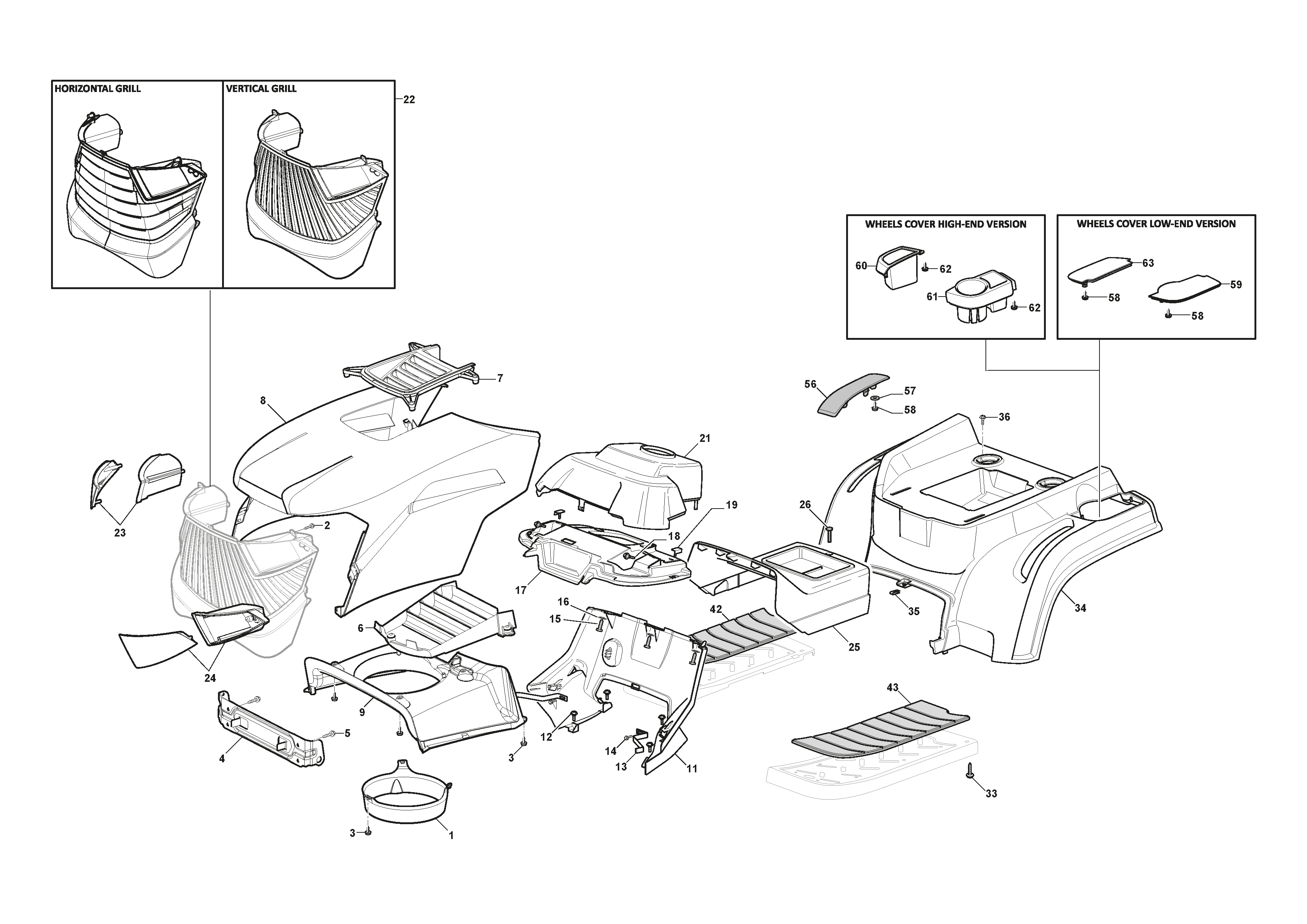

Body Work

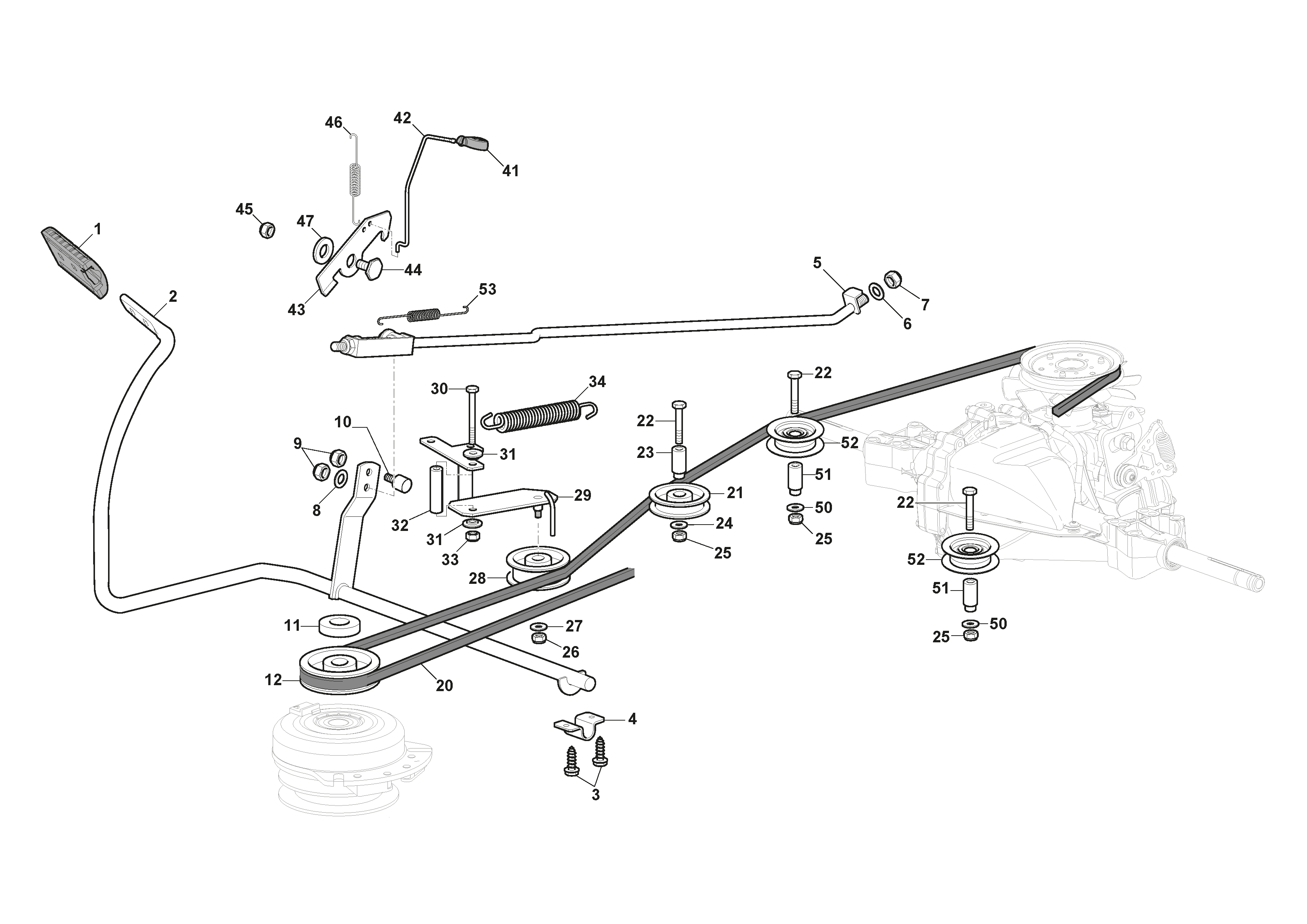

Brake And Gearbox Controls

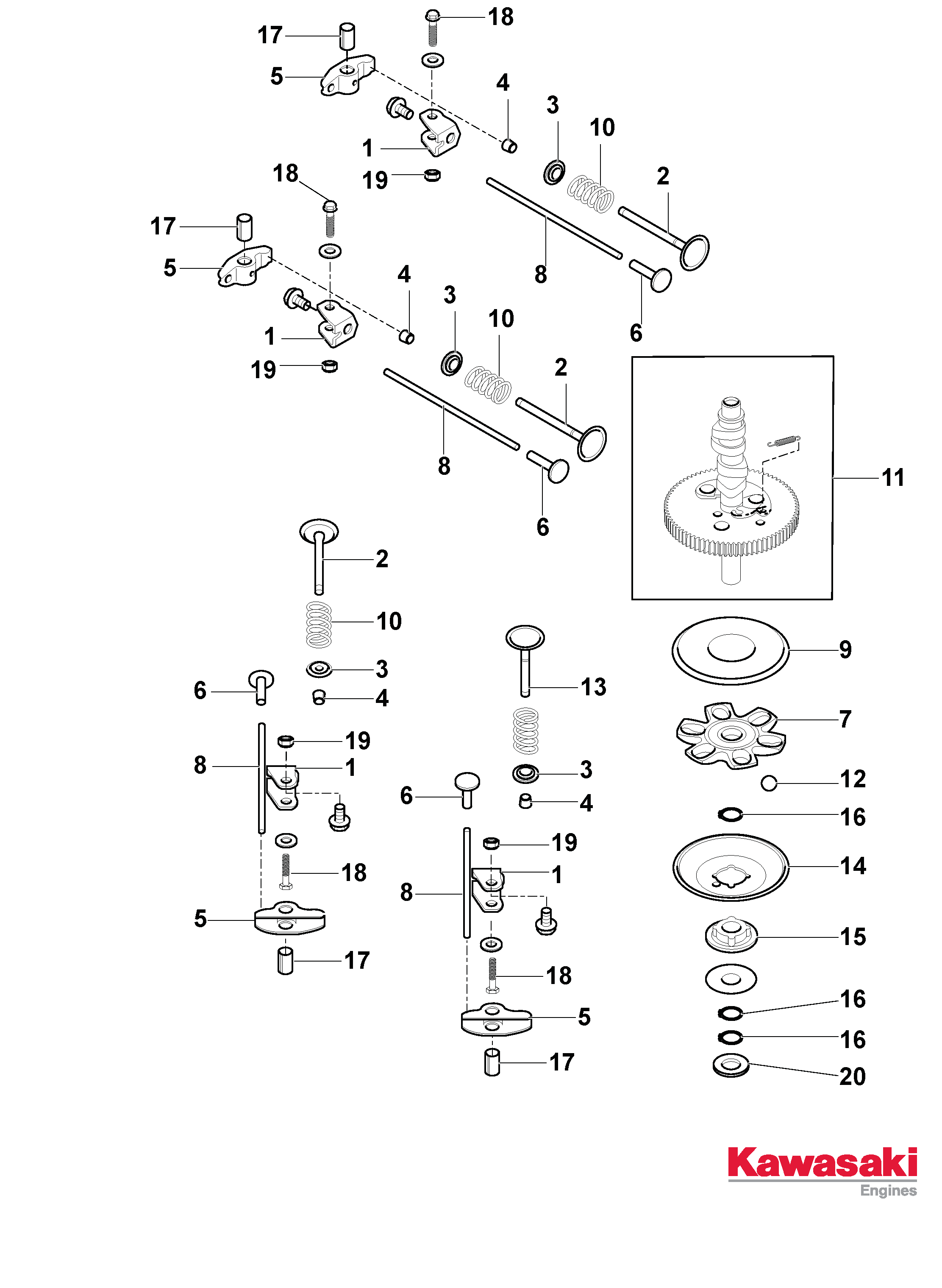

Cam Shaft

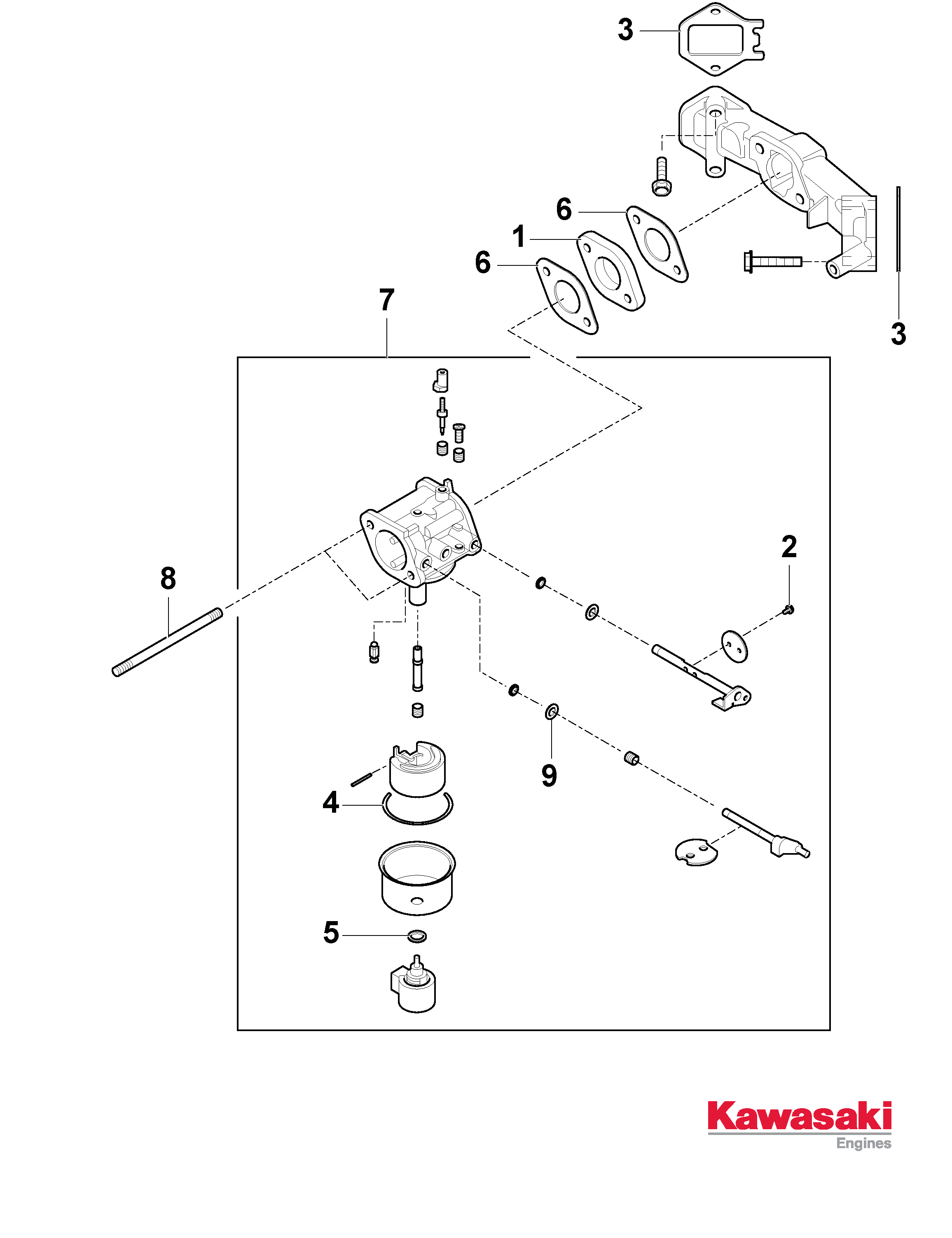

Carburetor

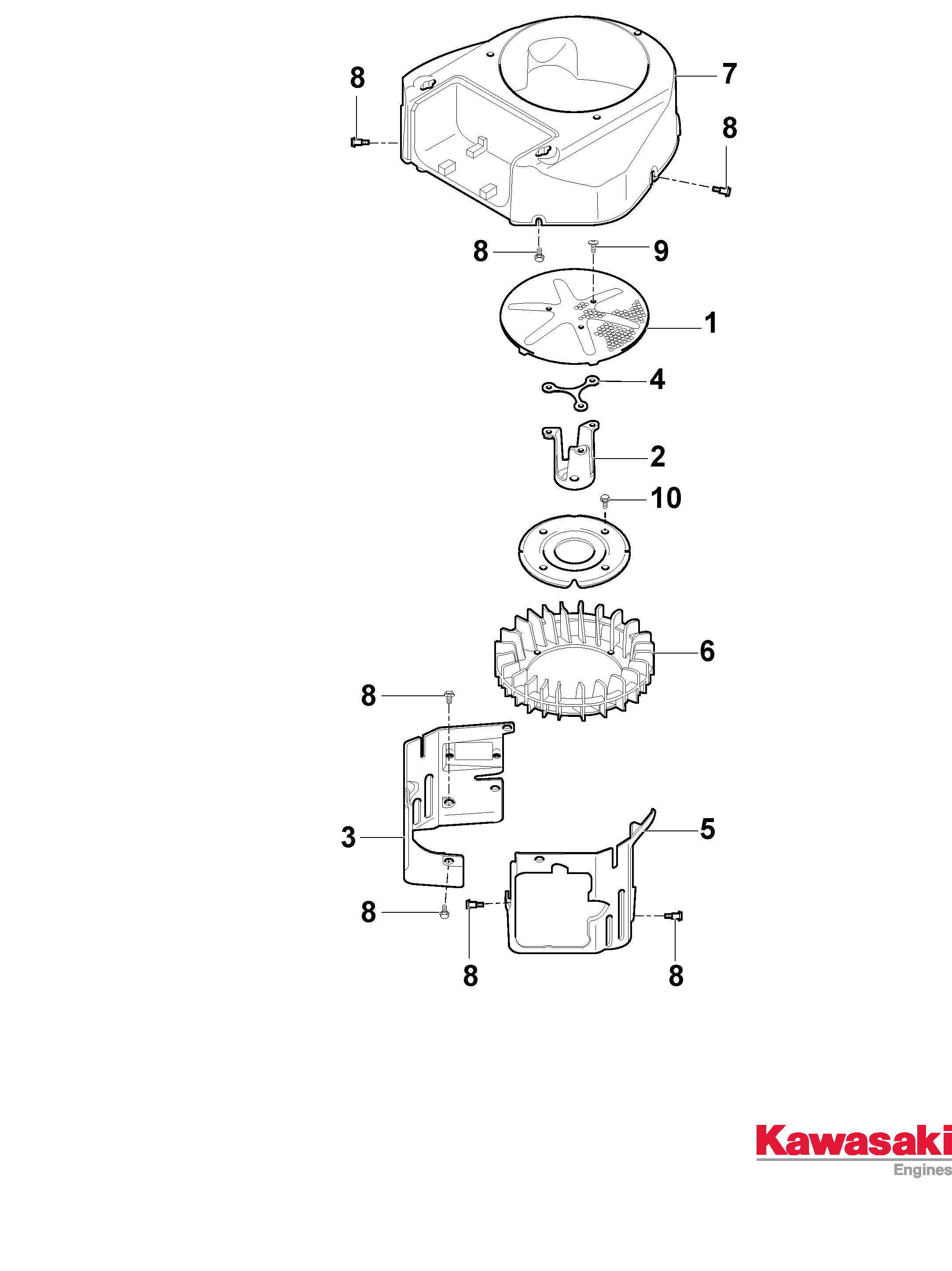

Equipment

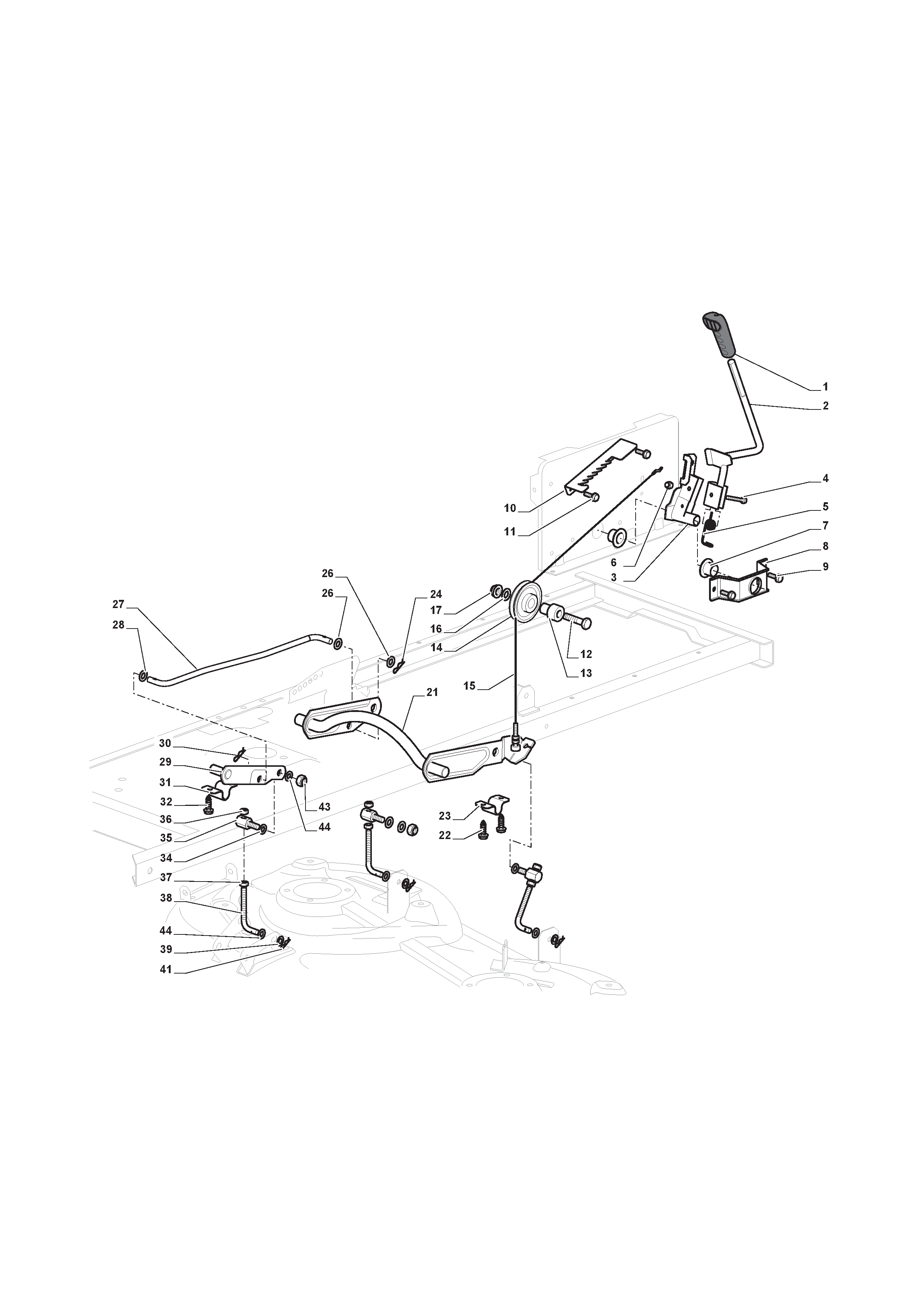

Cutting Plate Lifting

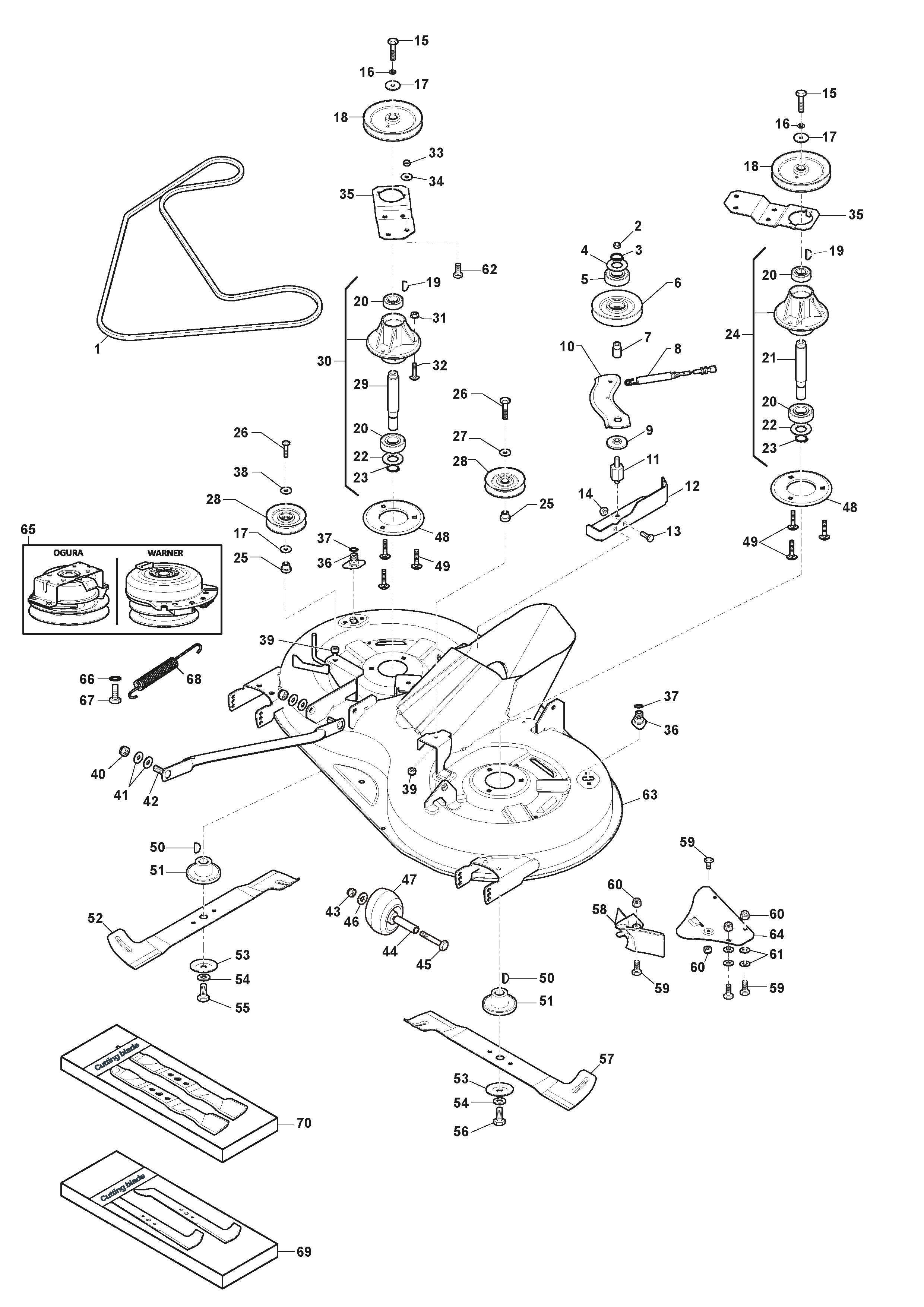

Cutting Plate with Electromagnetic Clutch
Crankcase

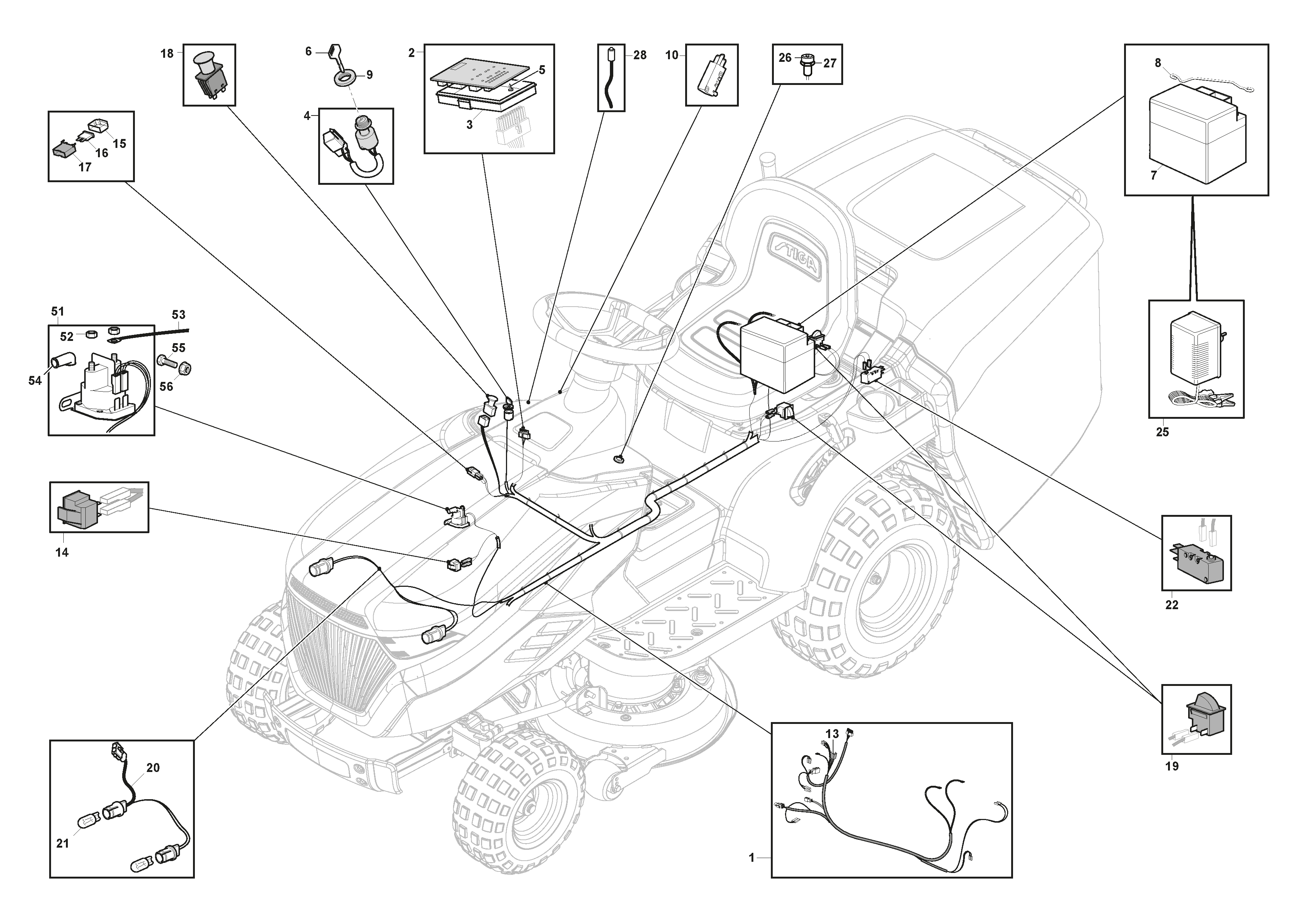

Electrical Parts
Kawasaki
Rear Plate

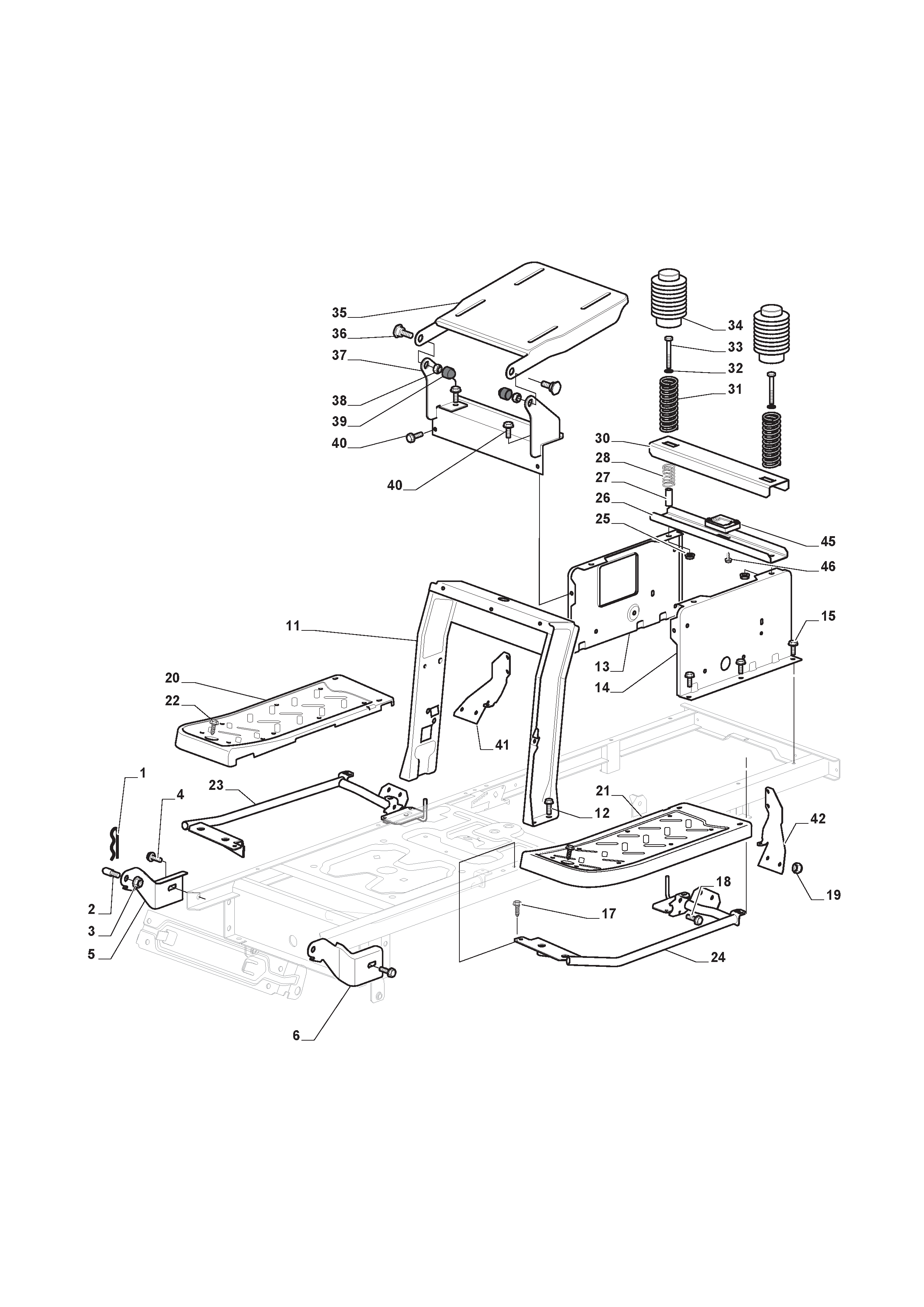

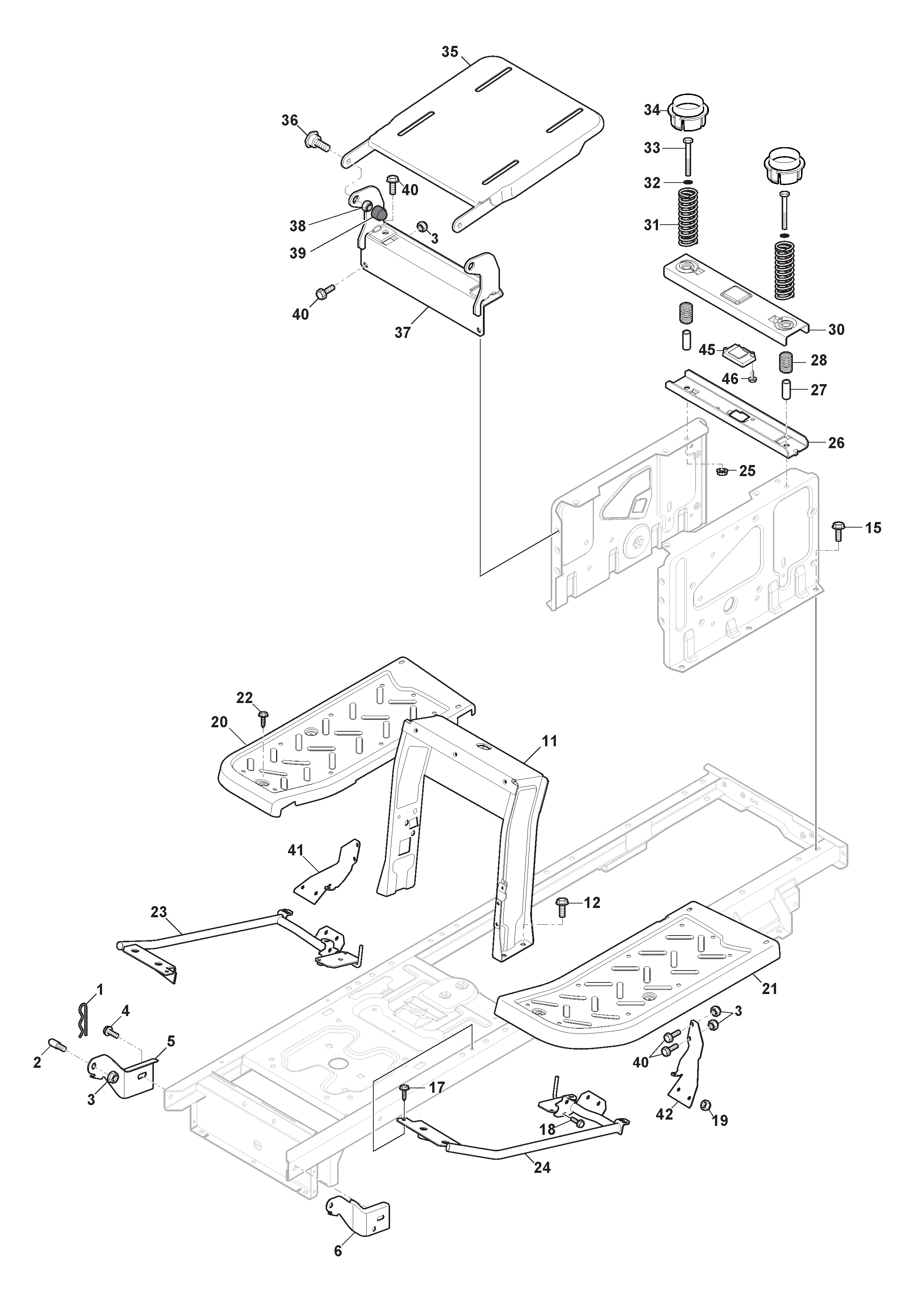

Frame

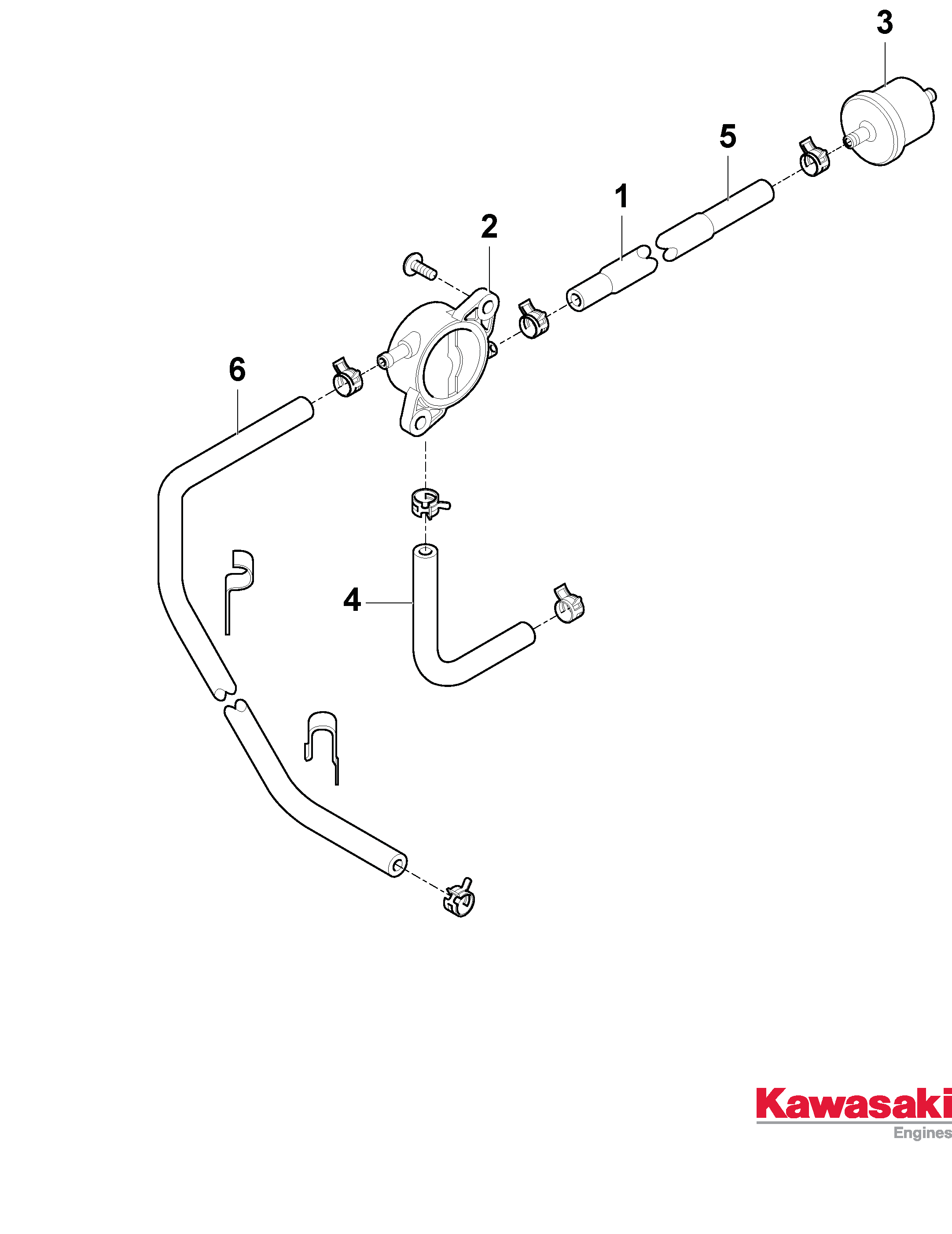

Valve

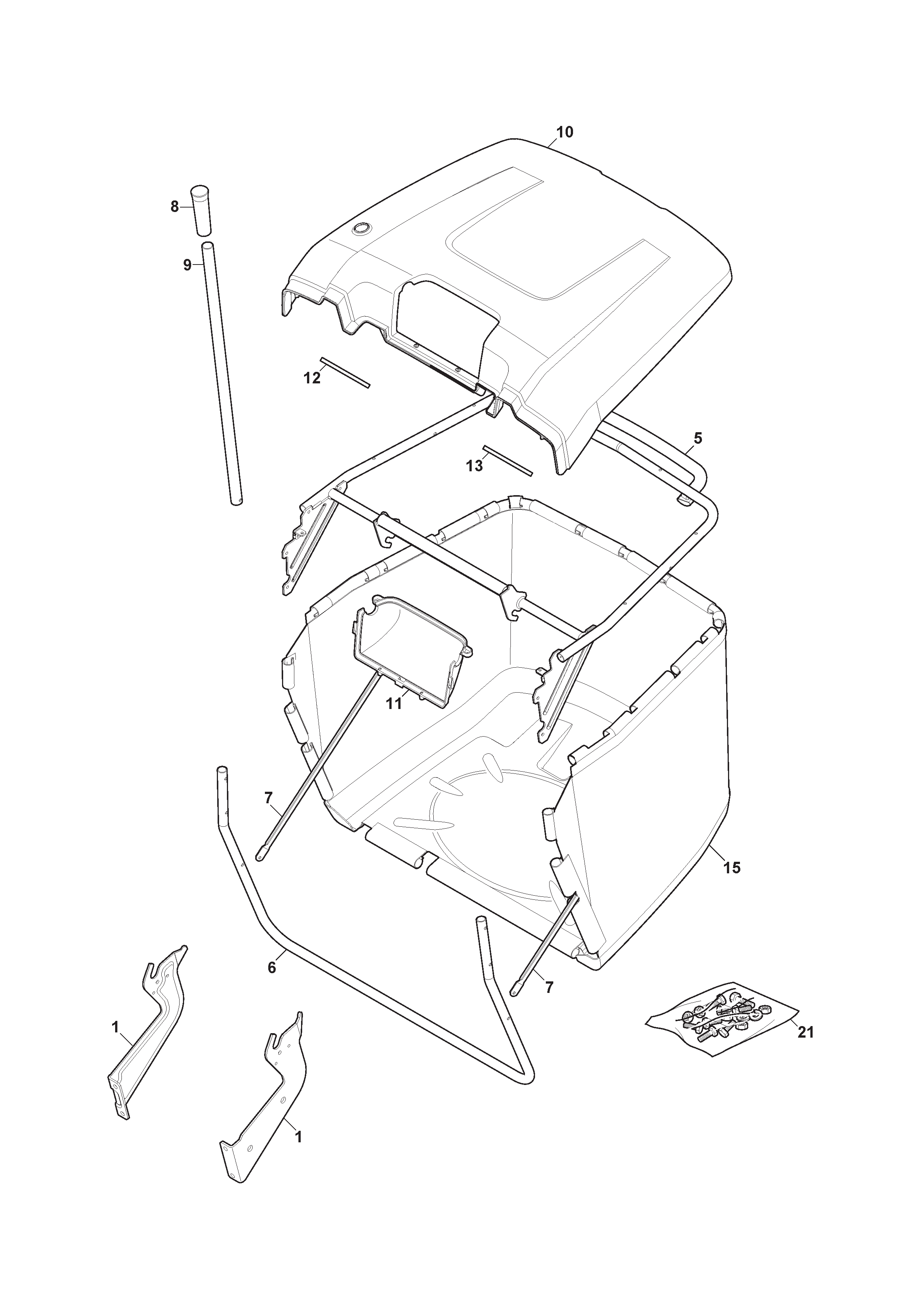

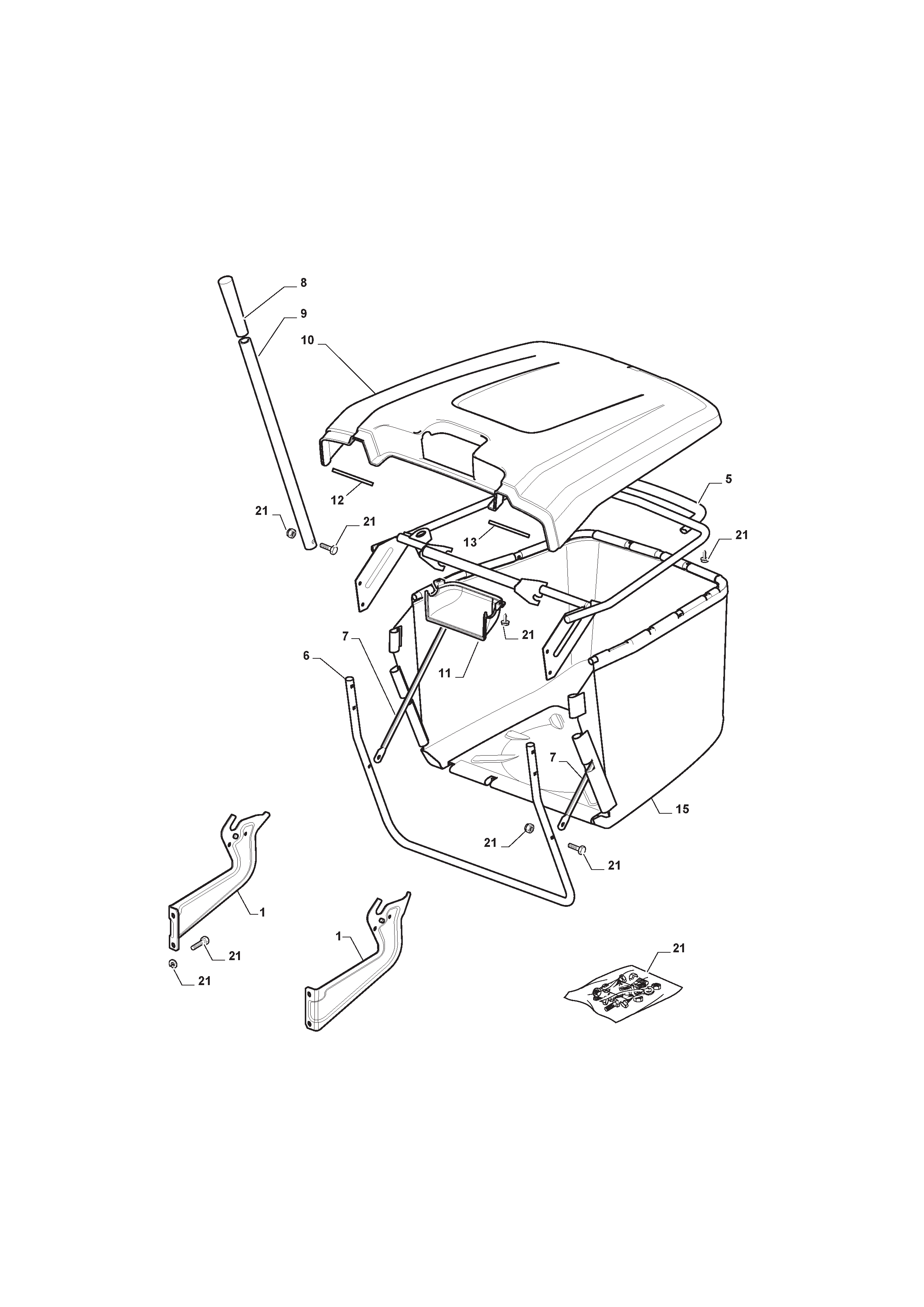

Grasscatcher
Labels
Optionals On Request

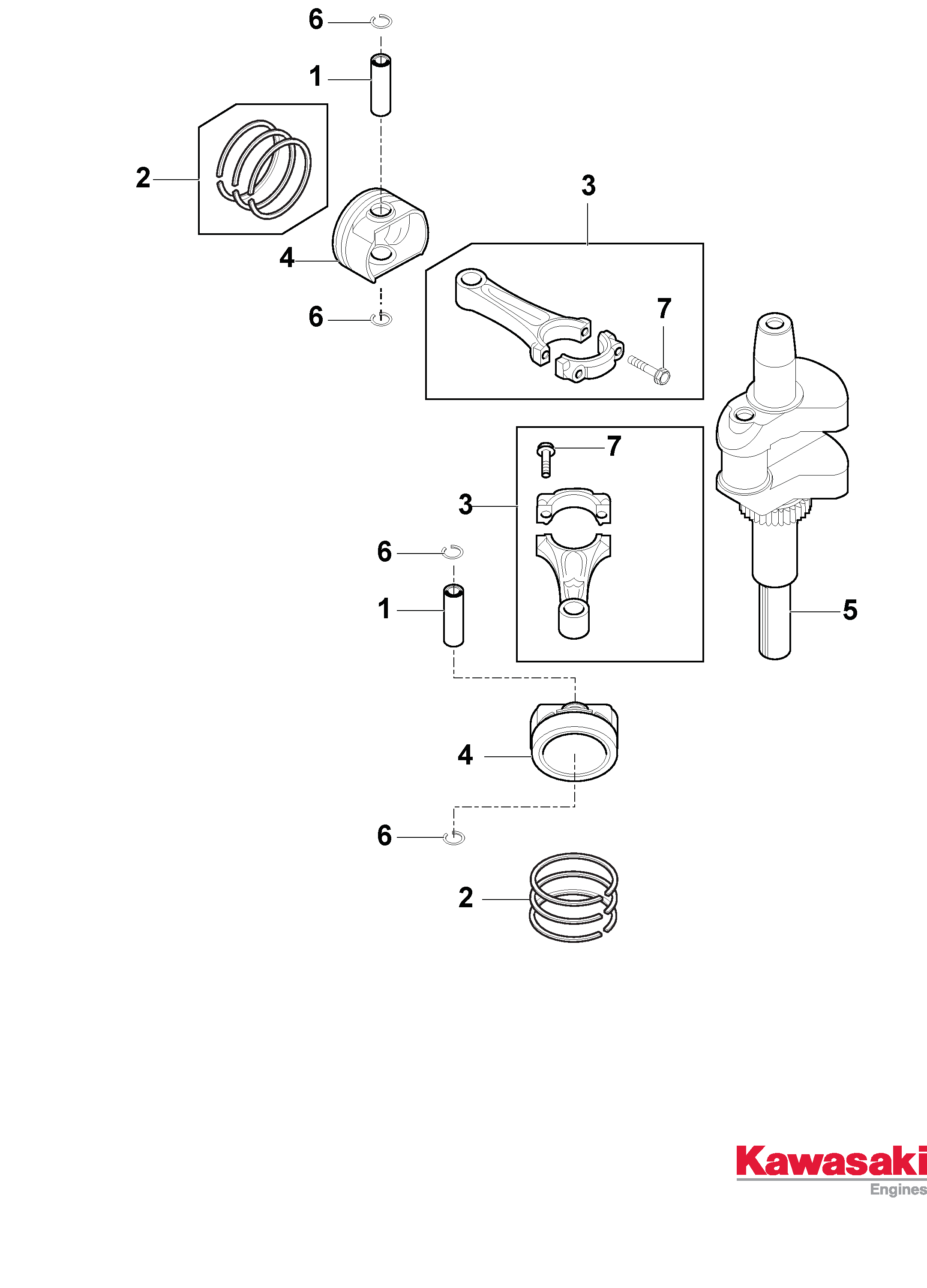

Crankshaft

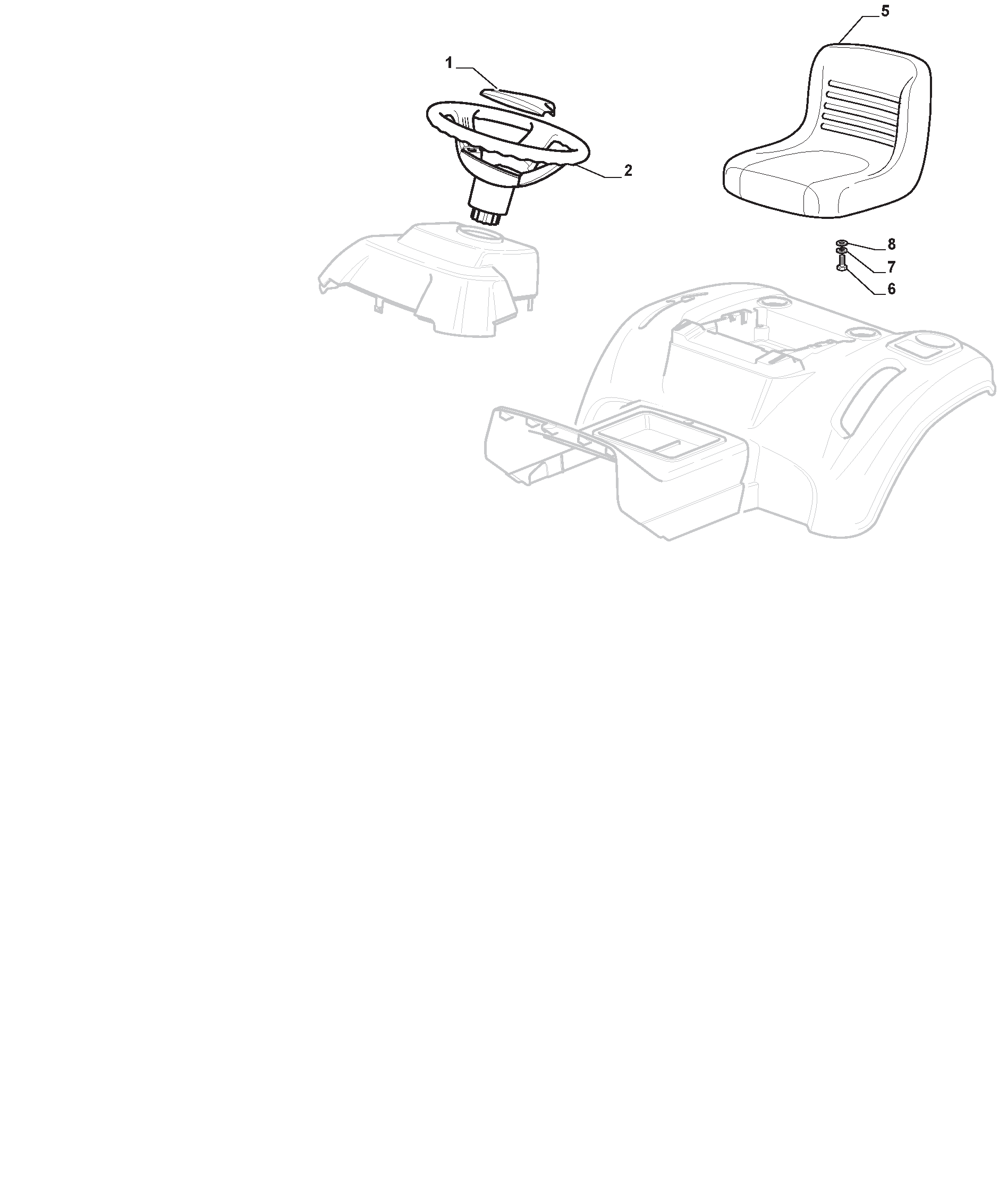

Seat & Steering Wheel

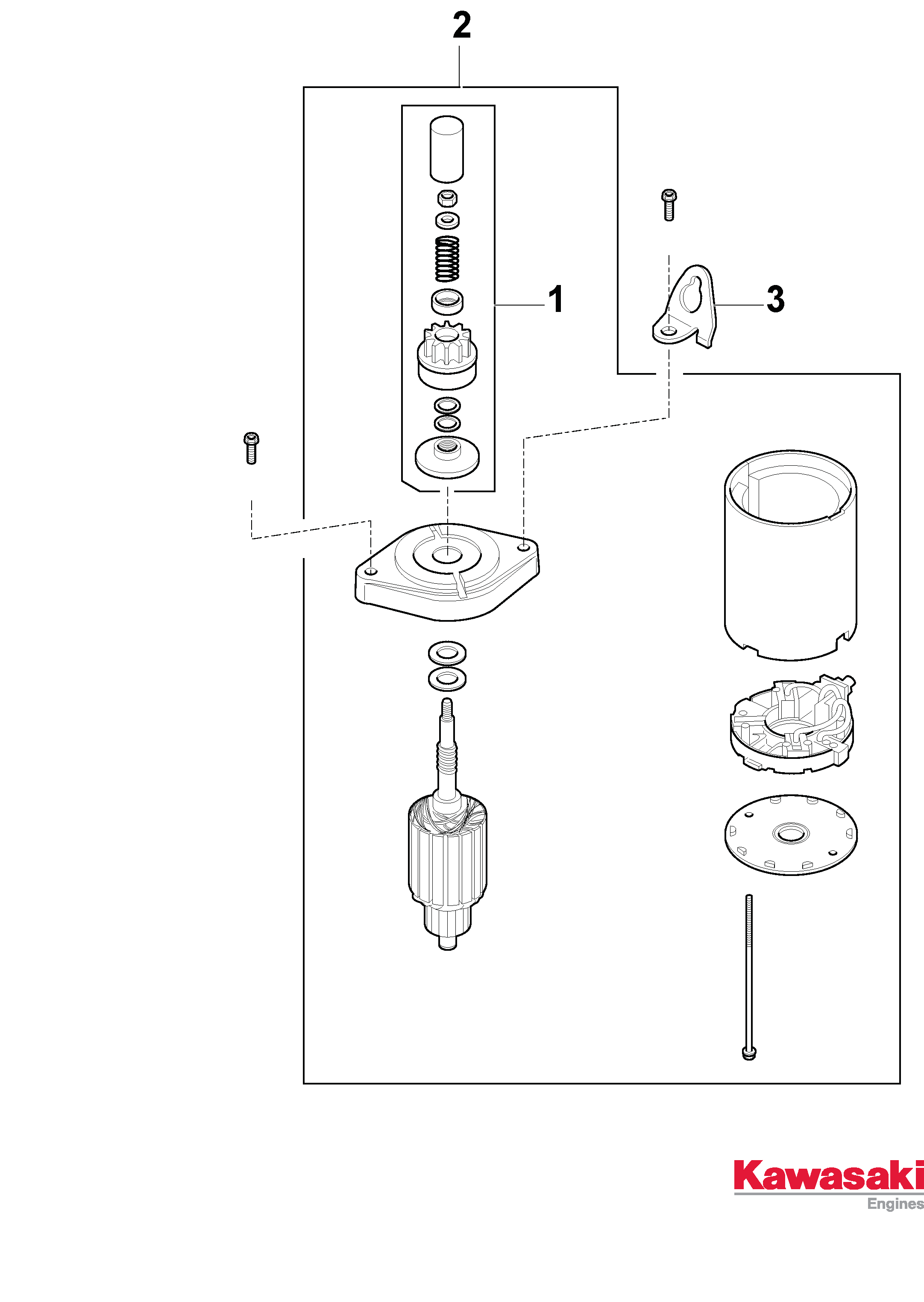

Starter

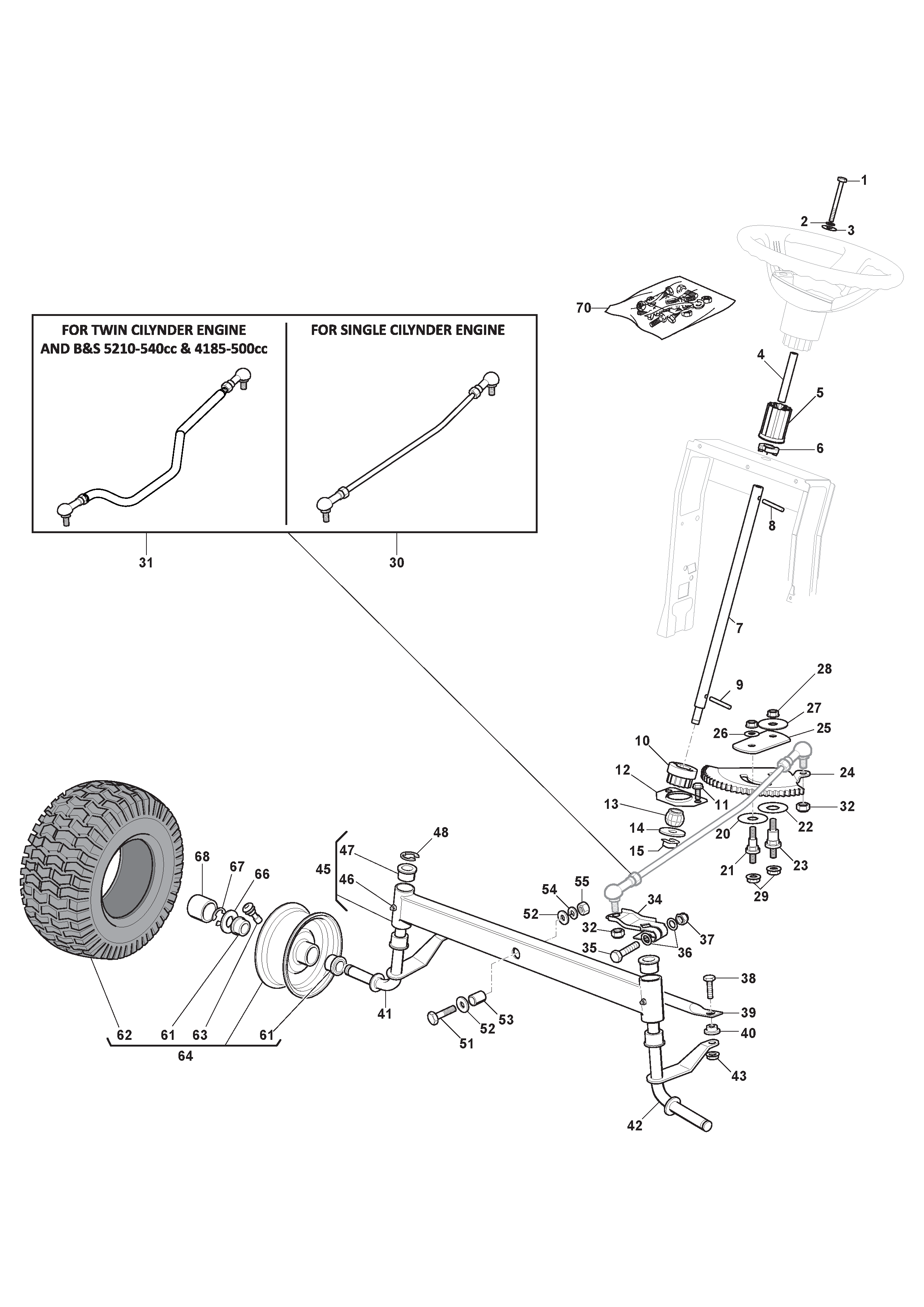

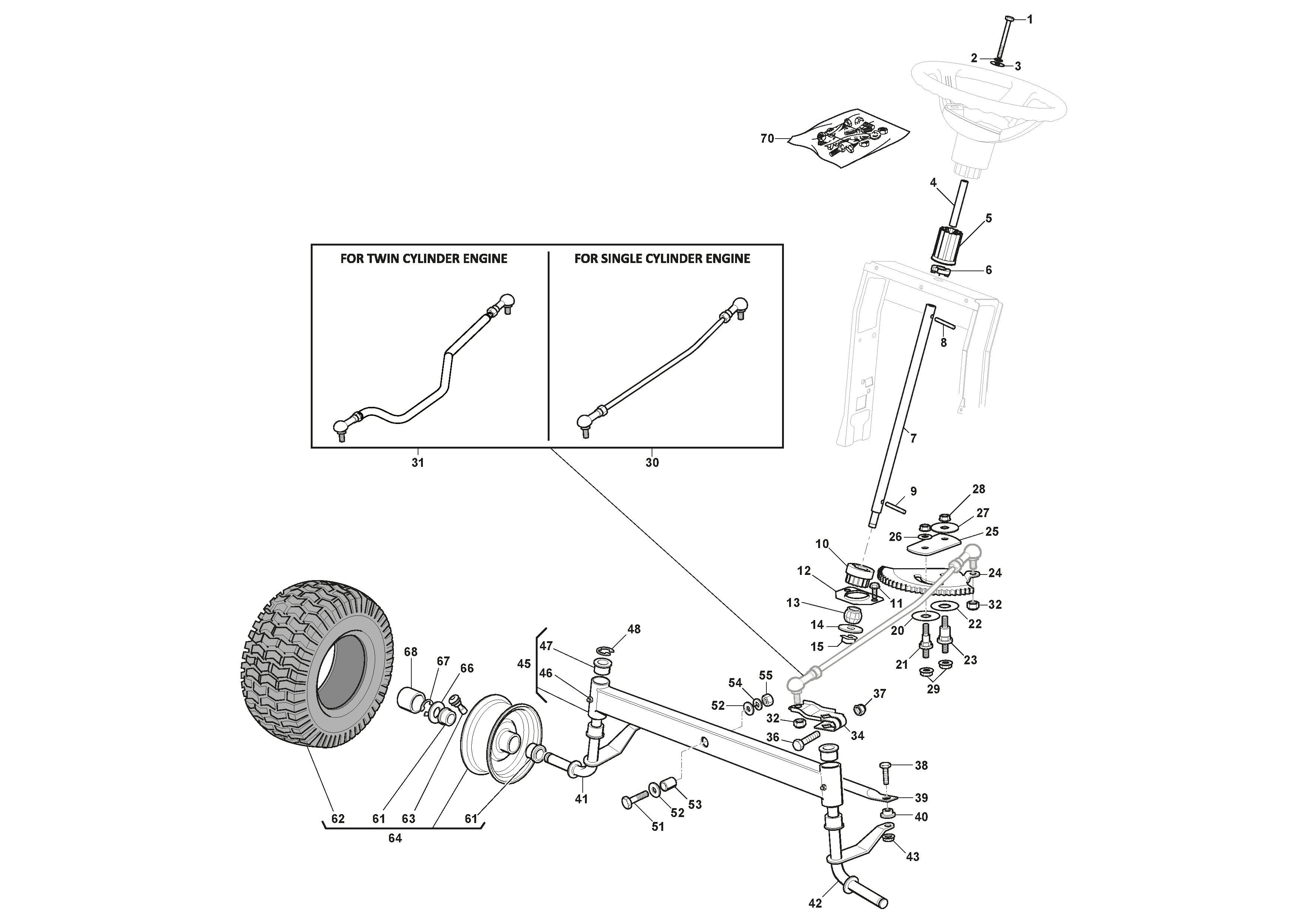

Steering

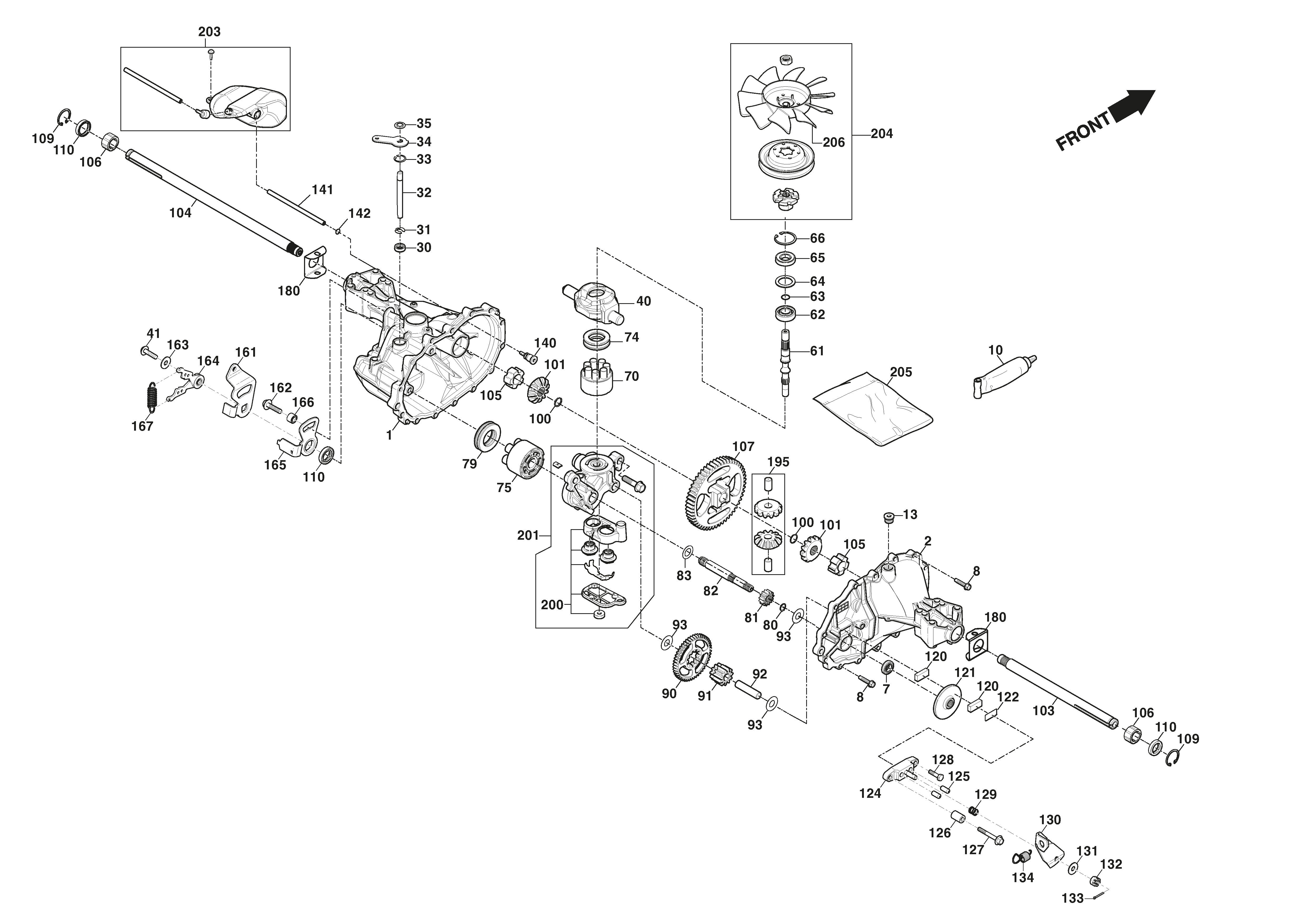

1RX1

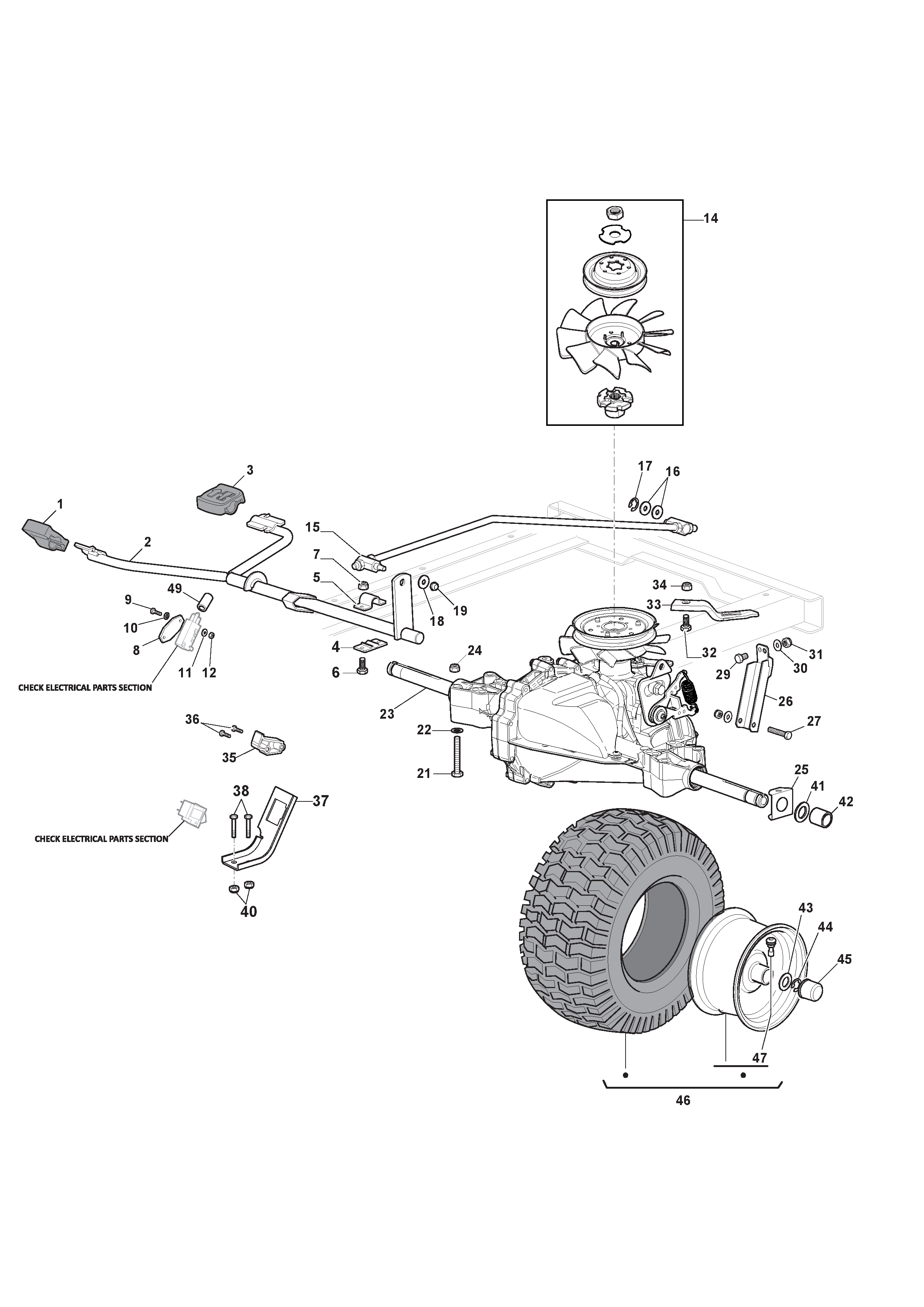

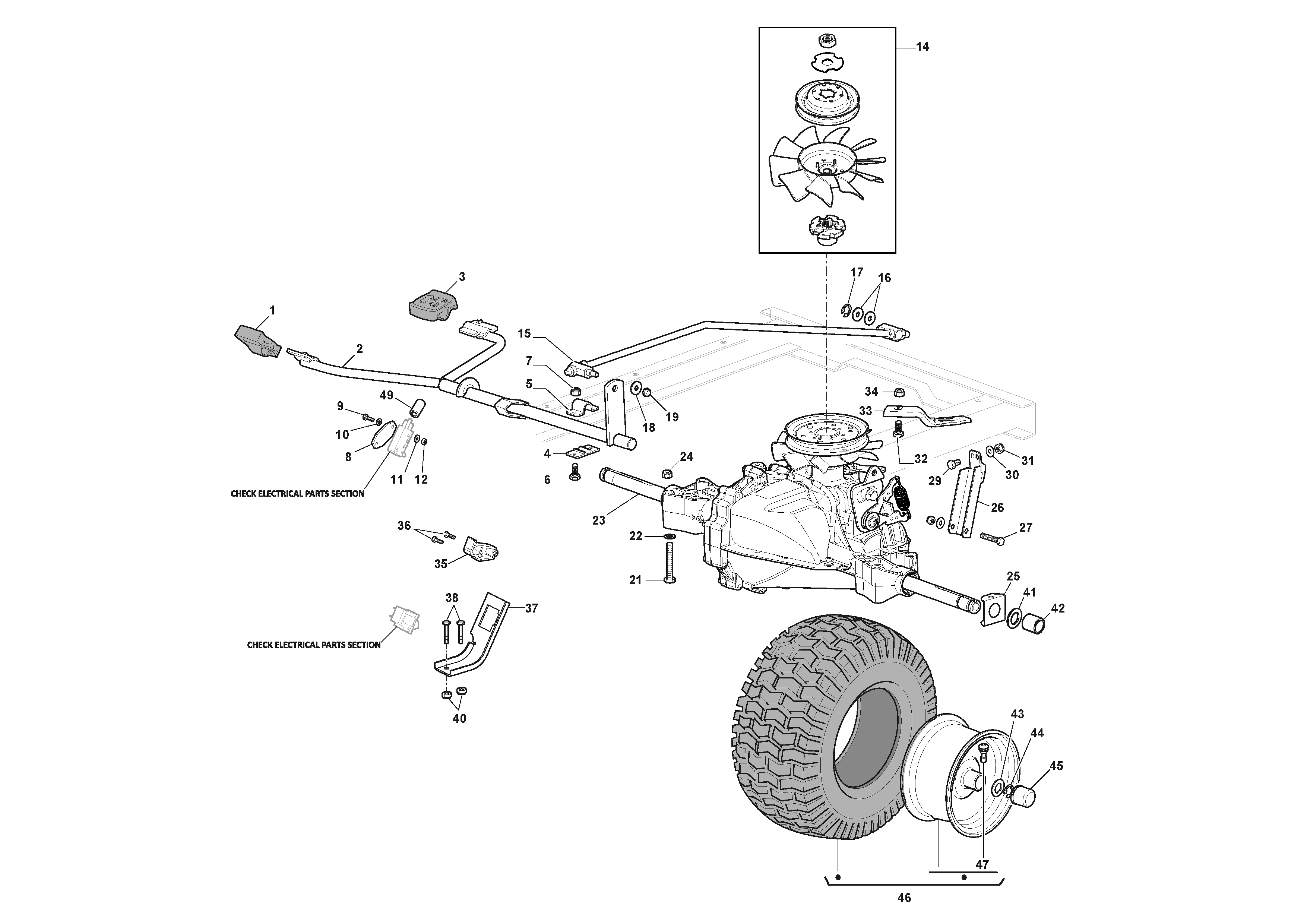

Transmission
2T2610683-M20 [2020]
Muffler
Belt Protection
Body Work
Brake And Gearbox Controls
Cam Shaft
Carburetor

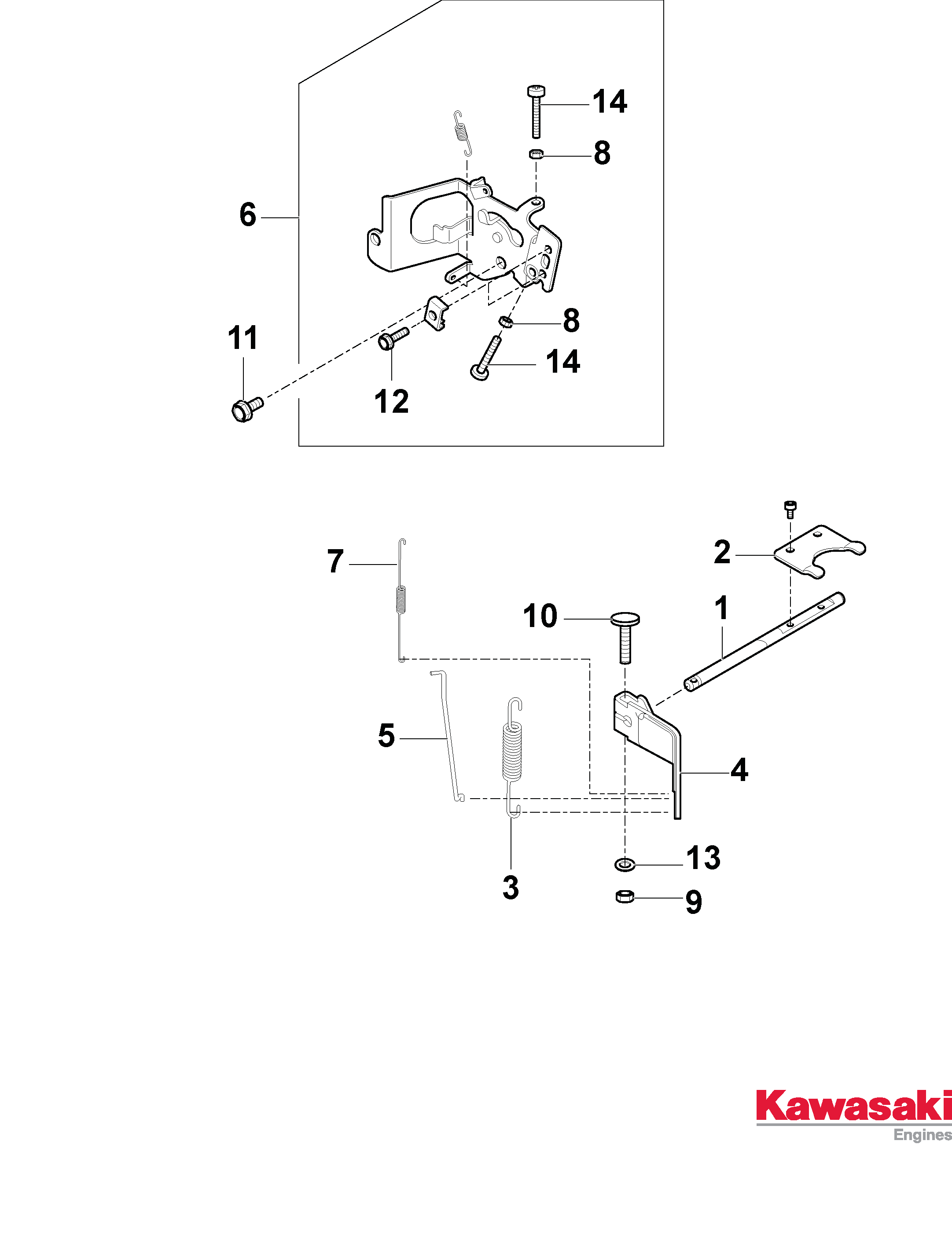

Equipment
MP98
Cutting Plate Lifting

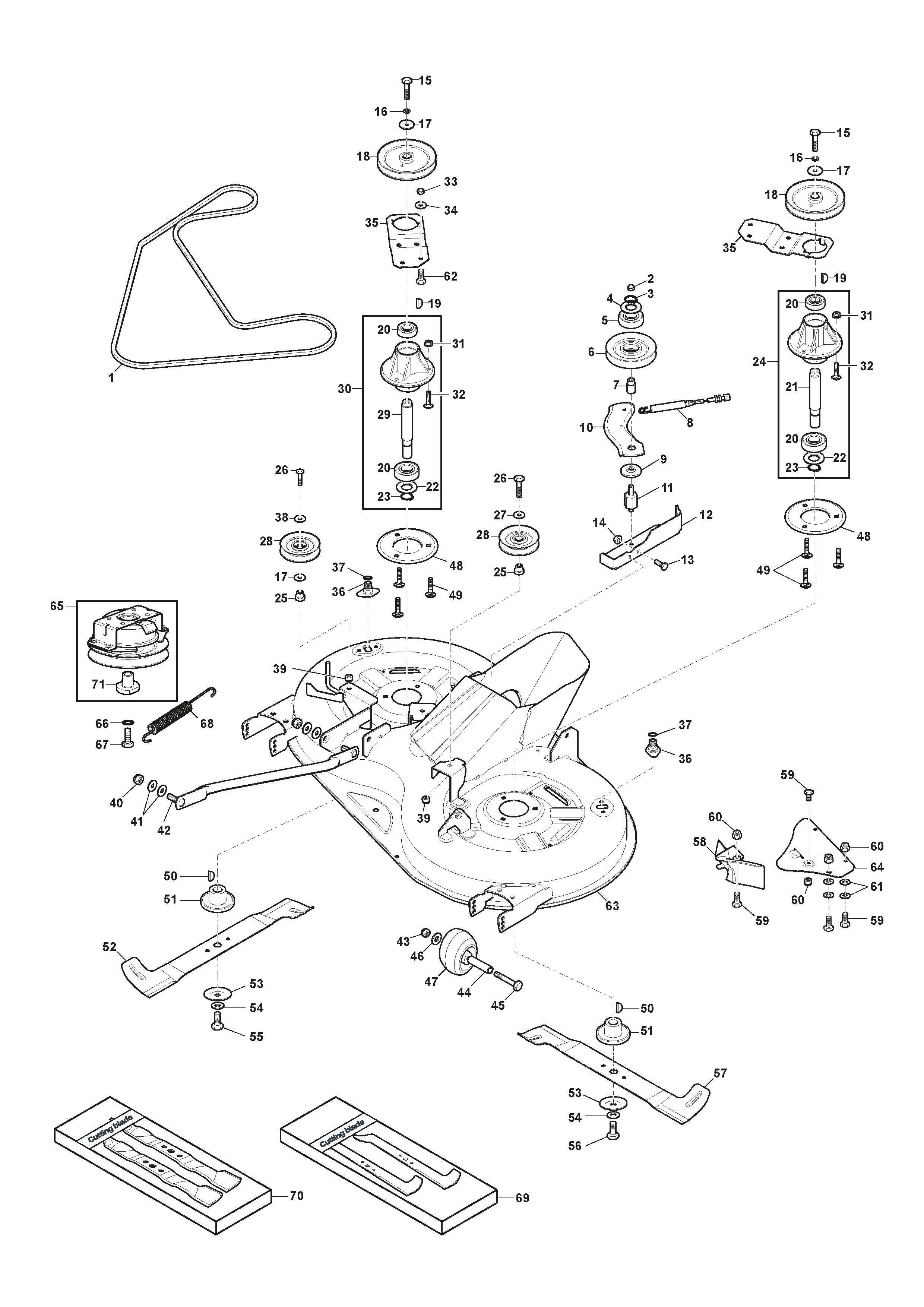

Cutting Plate with Electromagnetic Clutch

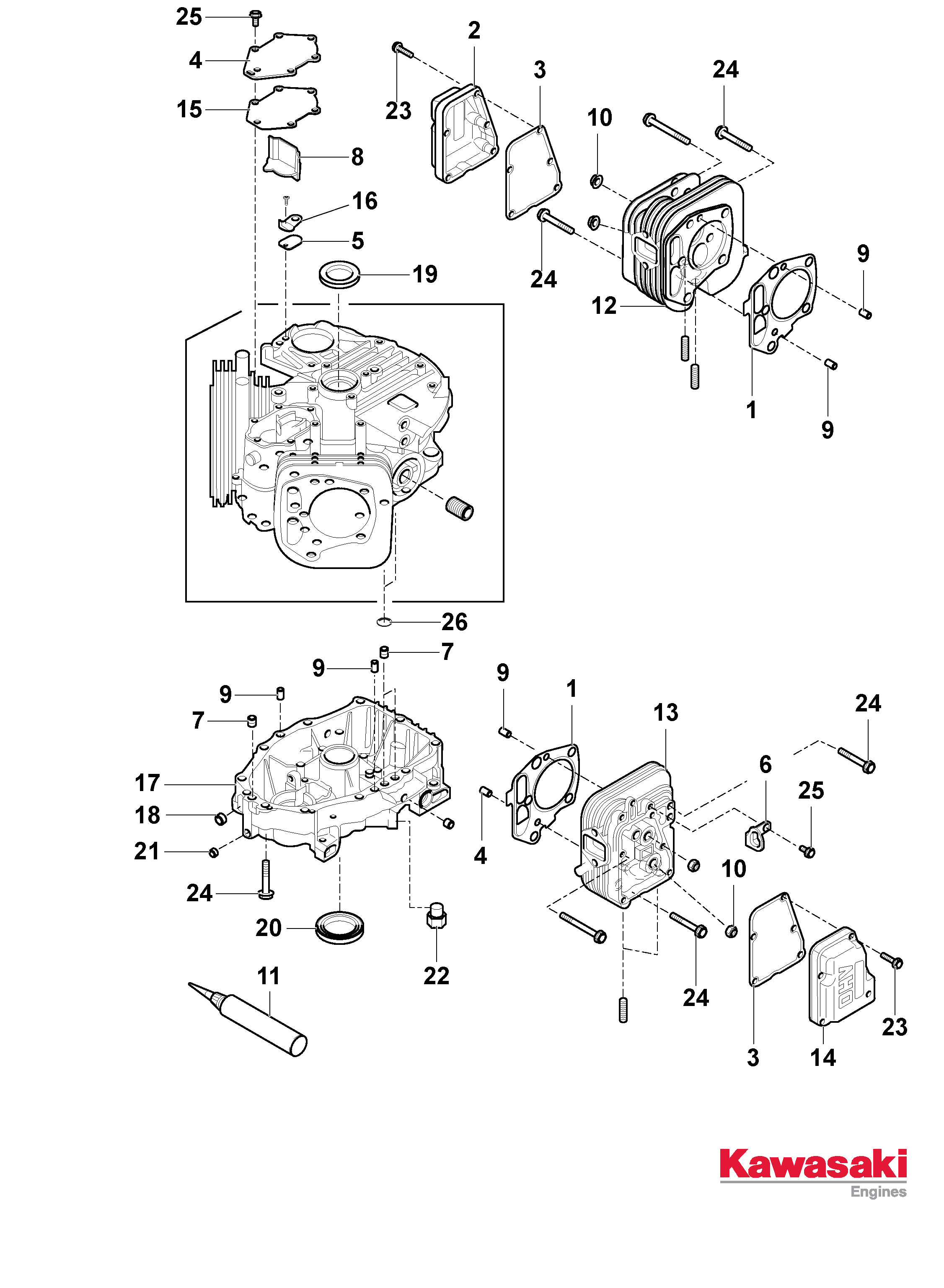

Crankcase
Electrical Parts

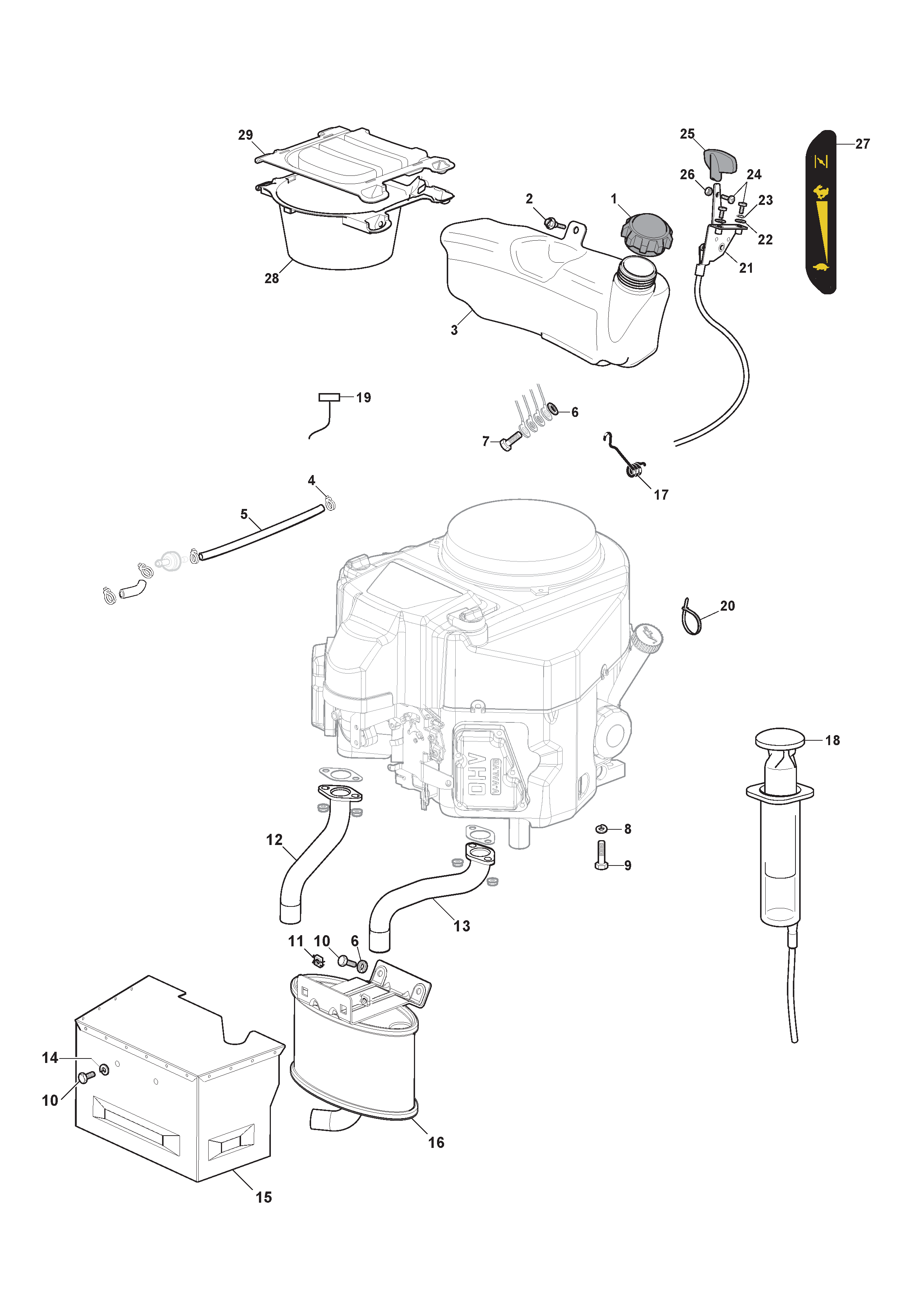

Kawasaki
Rear Plate
Frame
Valve
Grasscatcher
Labels
Optionals On Request
Crankshaft
Seat & Steering Wheel
Starter
Steering
1RX1
Transmission
2T2630483-M21 [2021]
Belt Protection
Body Work
Brake And Gearbox Controls

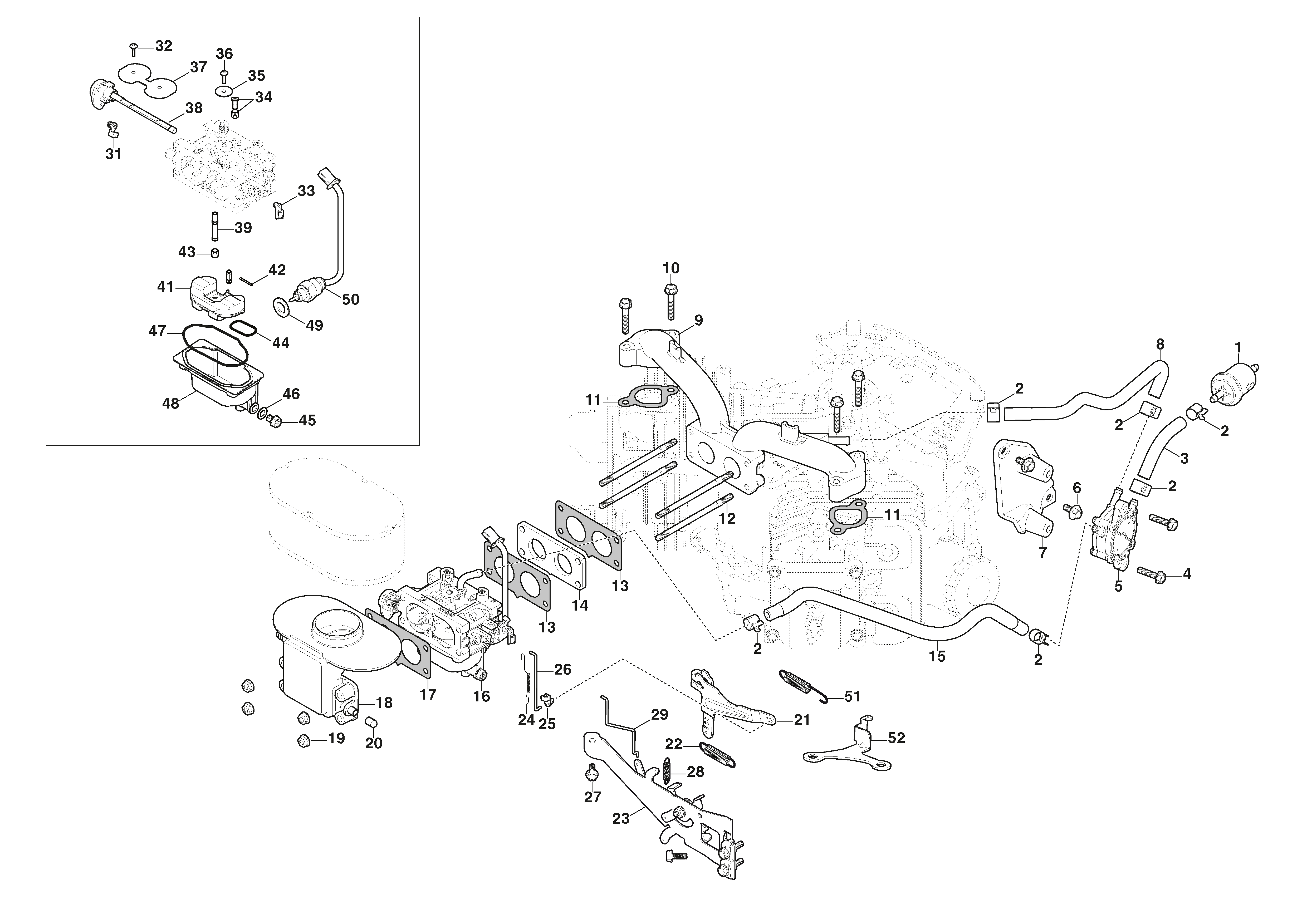

Carburetor, Fuel Pump
MP98
Cutting Plate Lifting
Cutting Plate with Electromagnetic Clutch

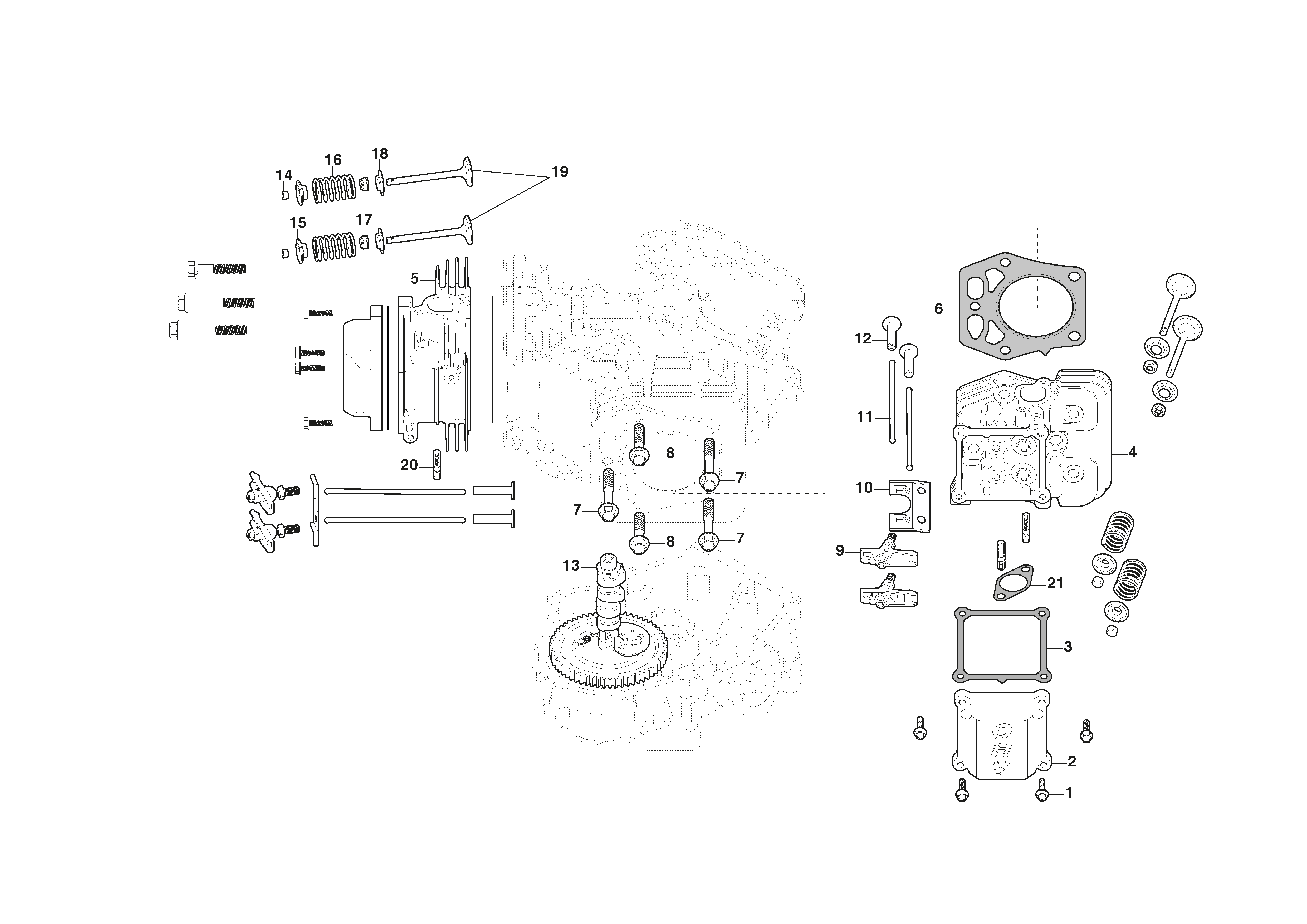

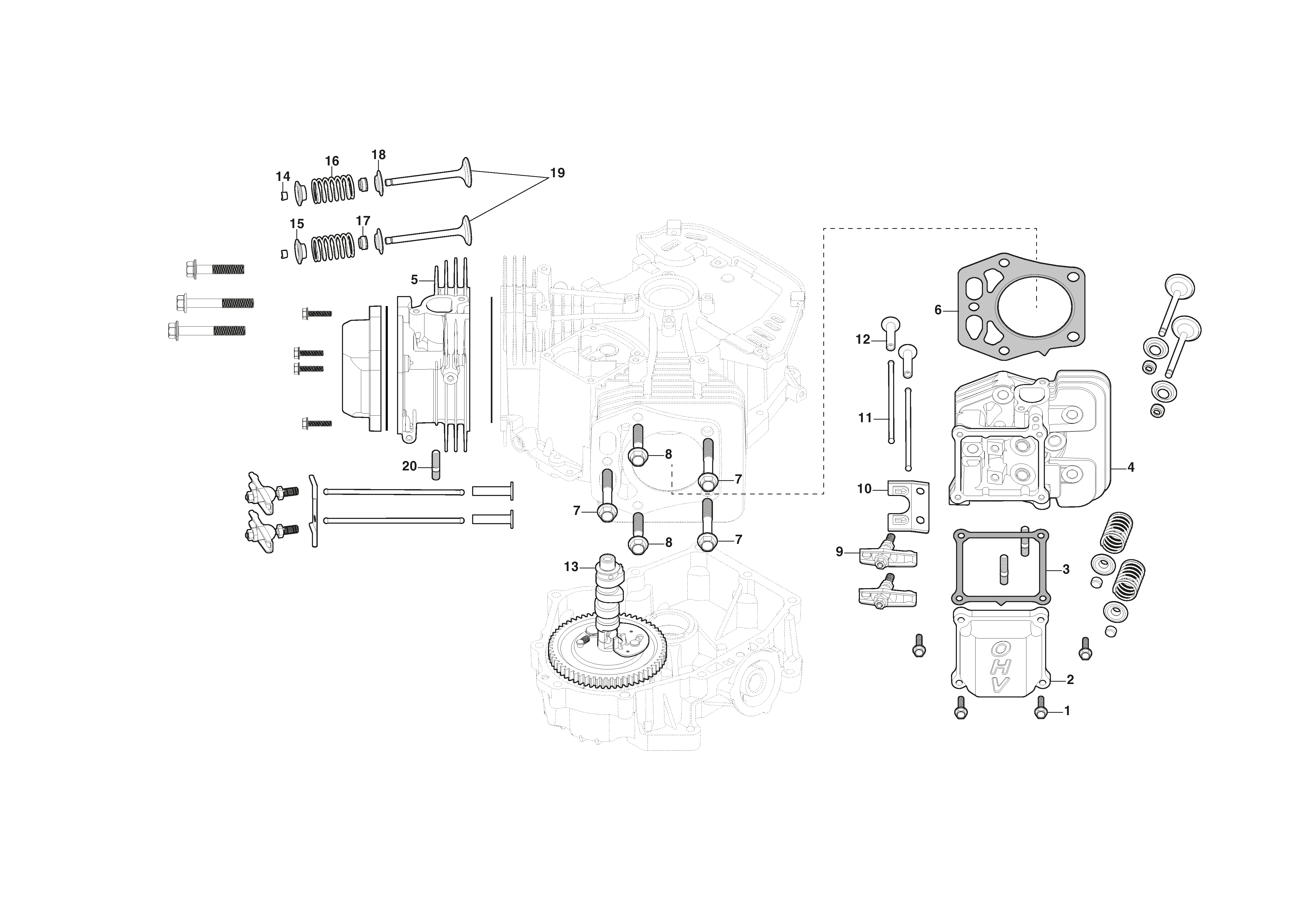

Cylinder Head
Electrical Parts

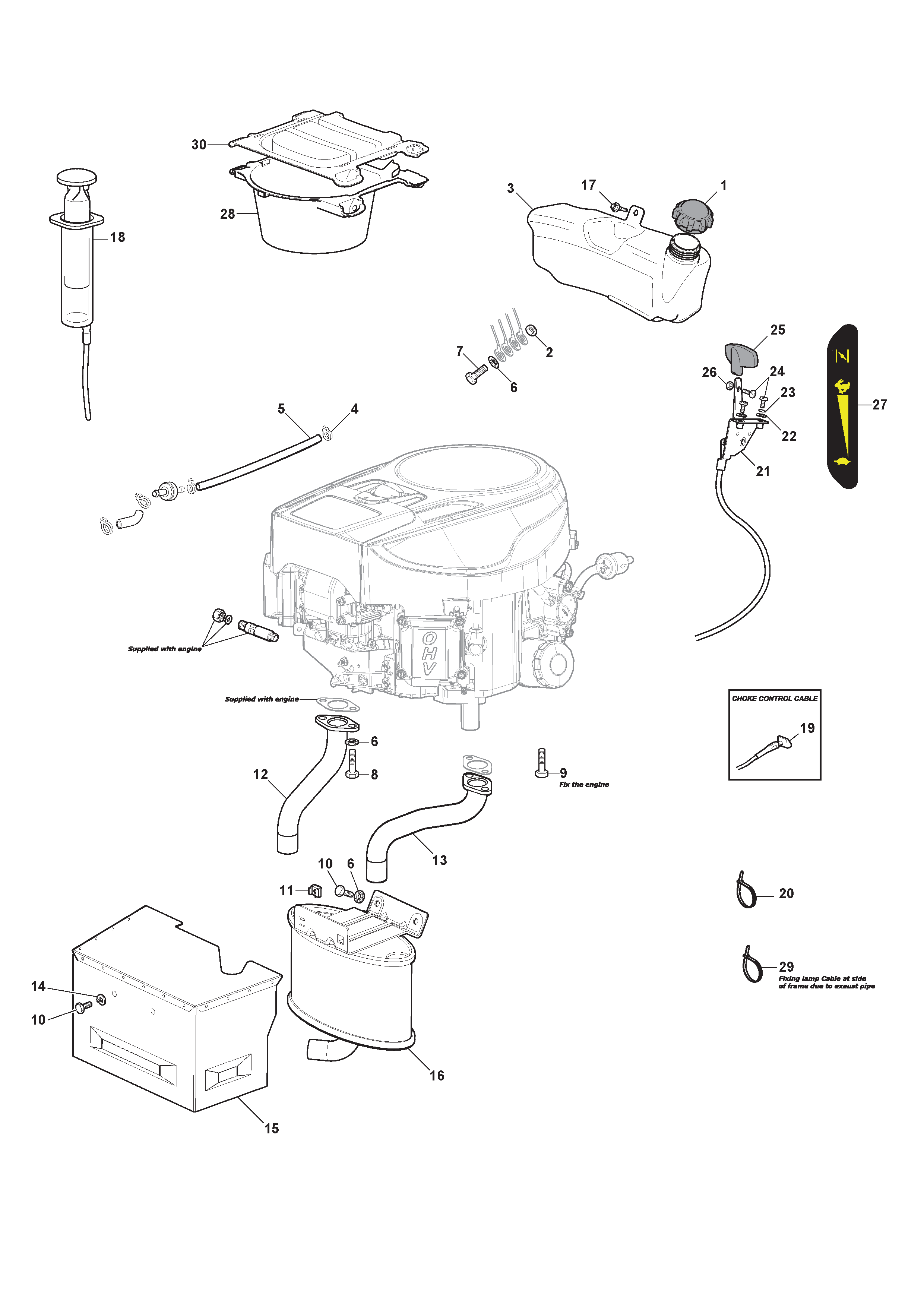

21Hp
Engine, Engine Cover

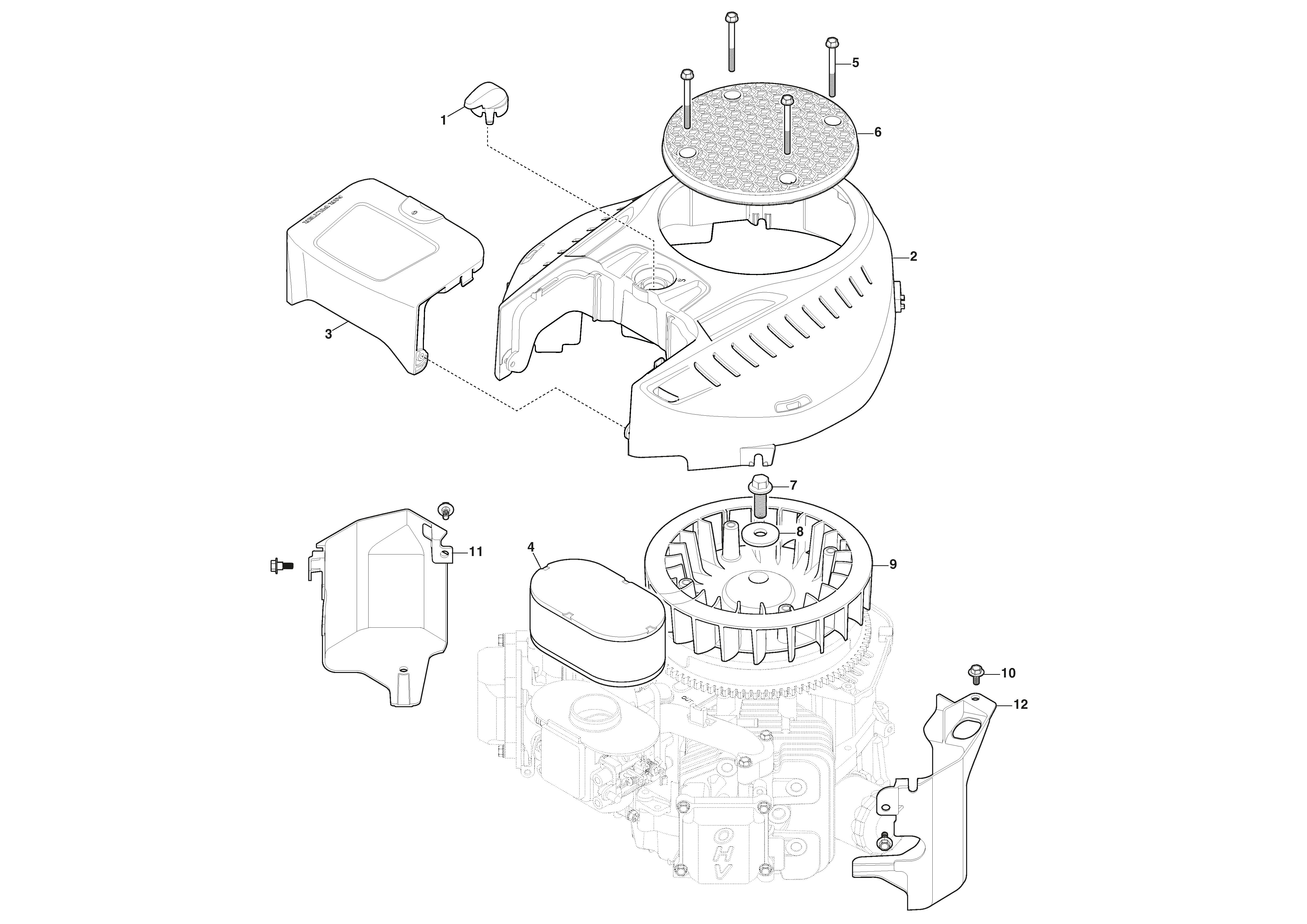

Fan Cover, Air Cleaner
Rear Plate
Frame
Grasscatcher

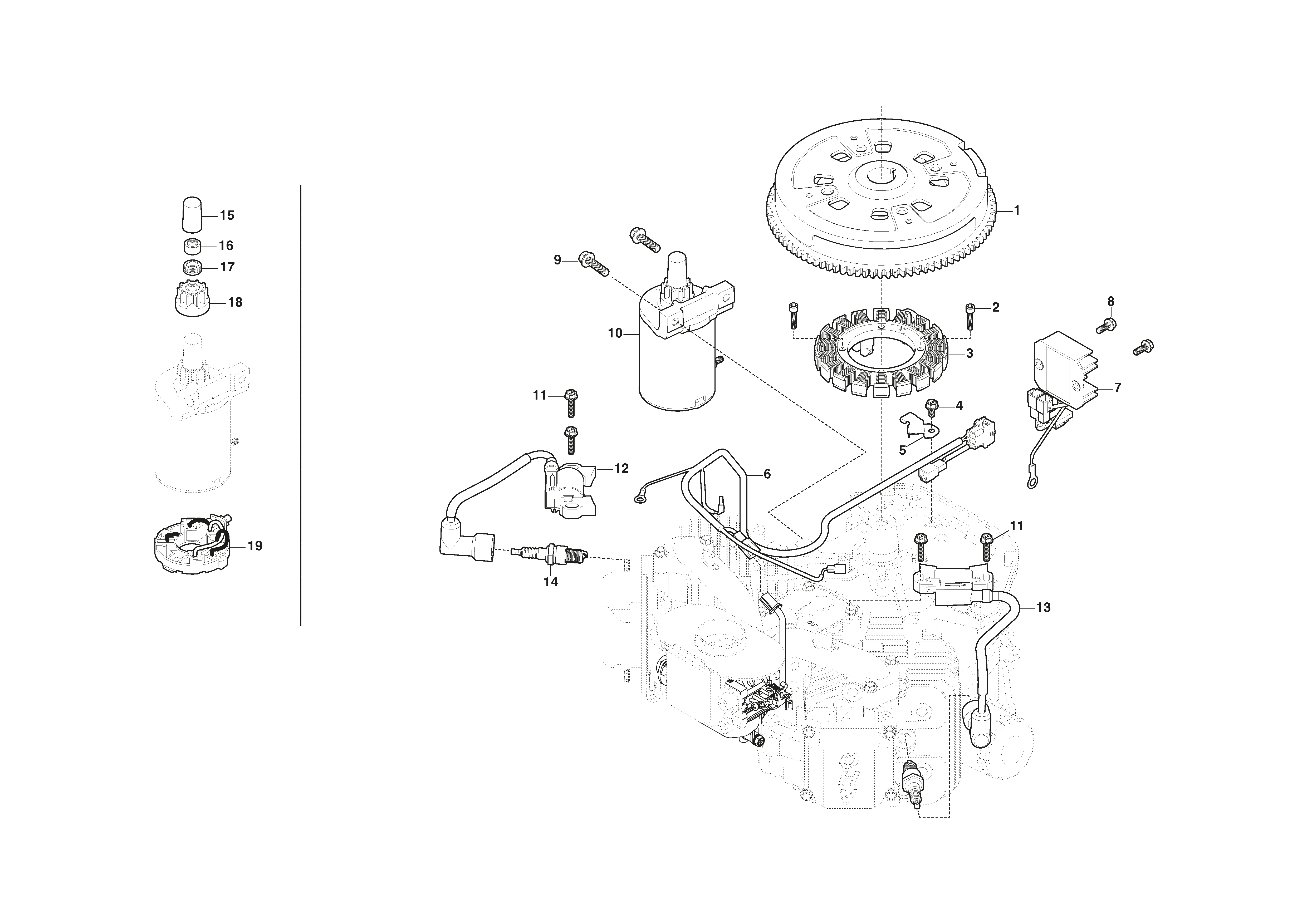

Ignition Coil, Starter Motor, Flywheel

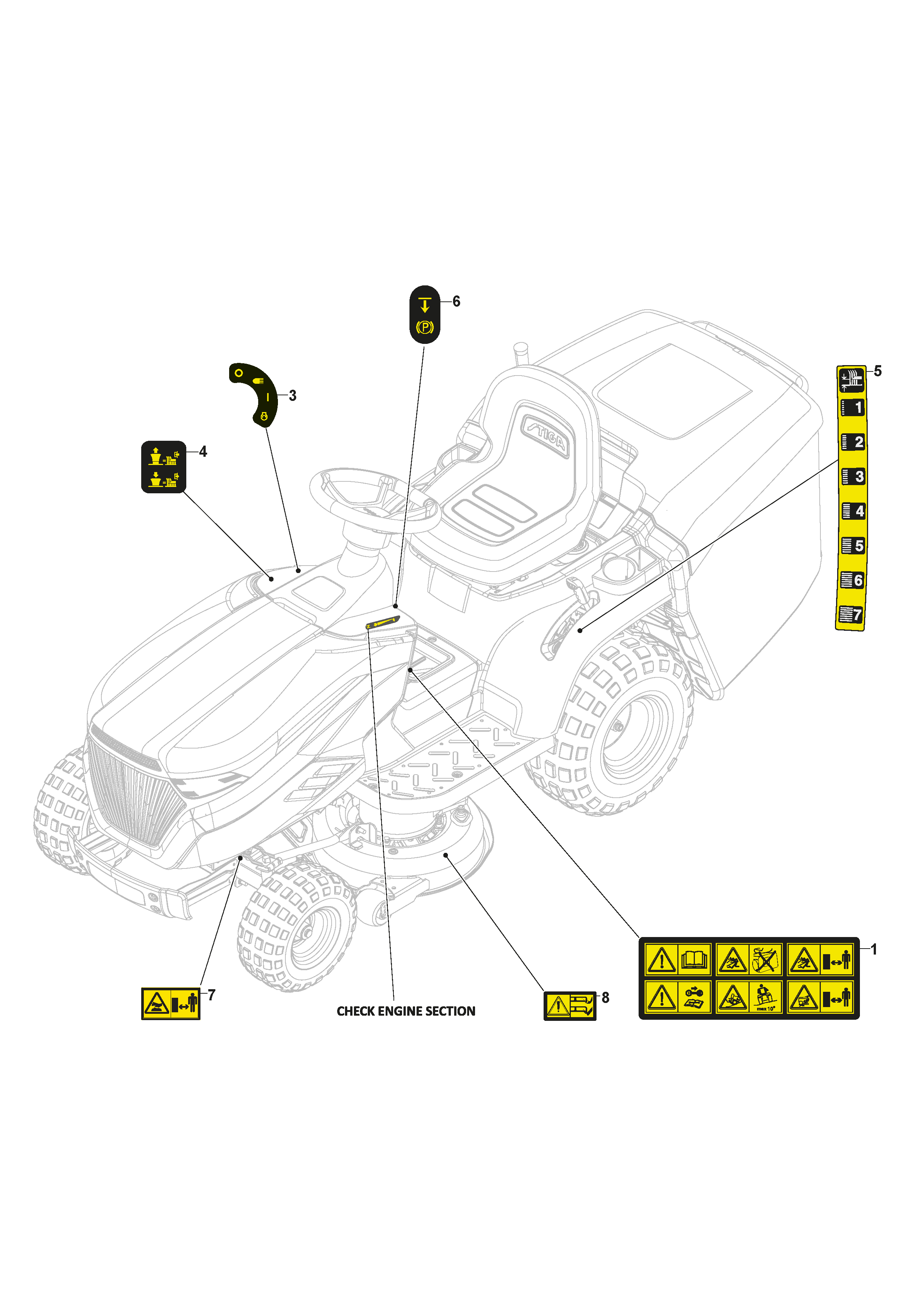

Labels

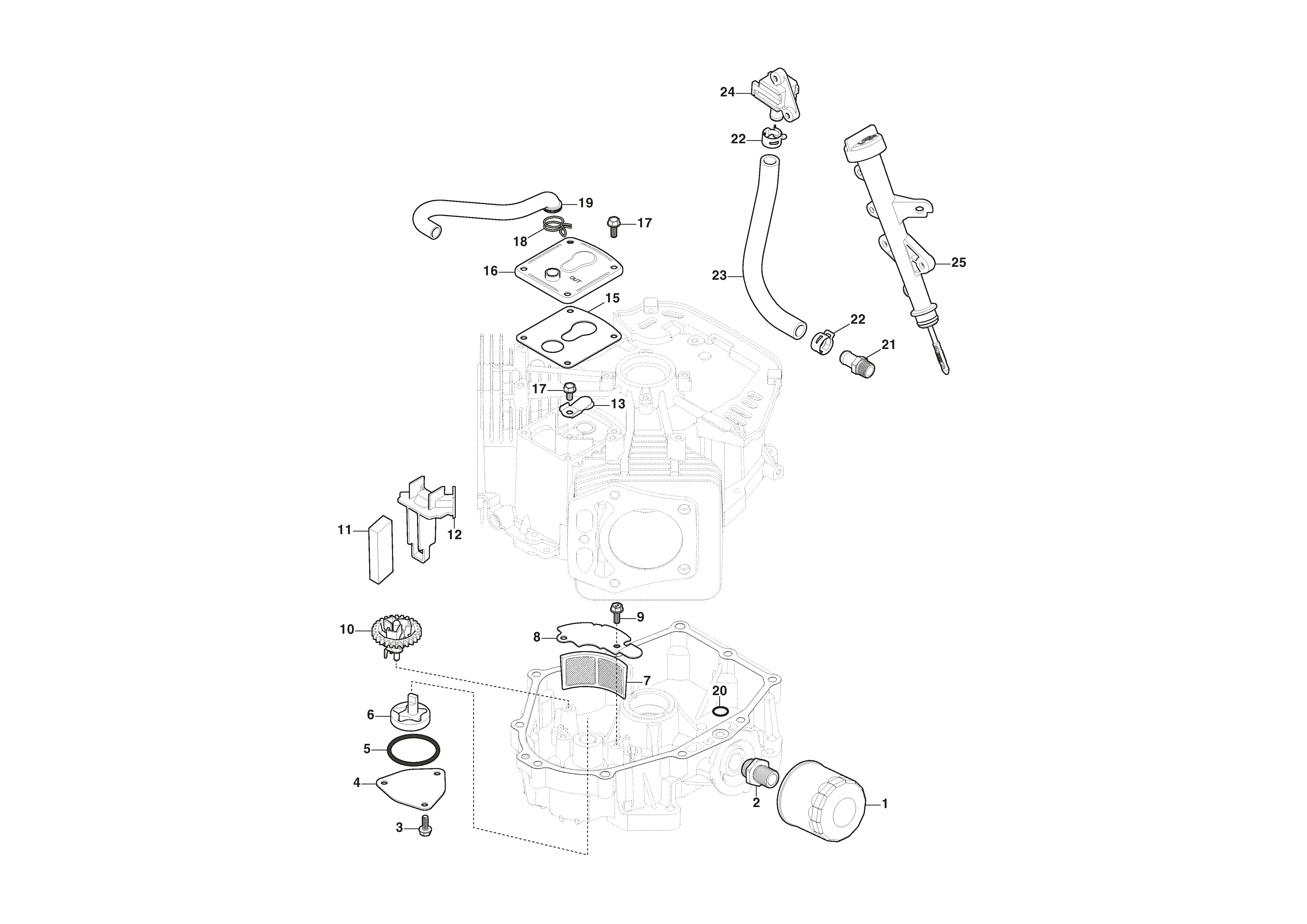

Oil Filter

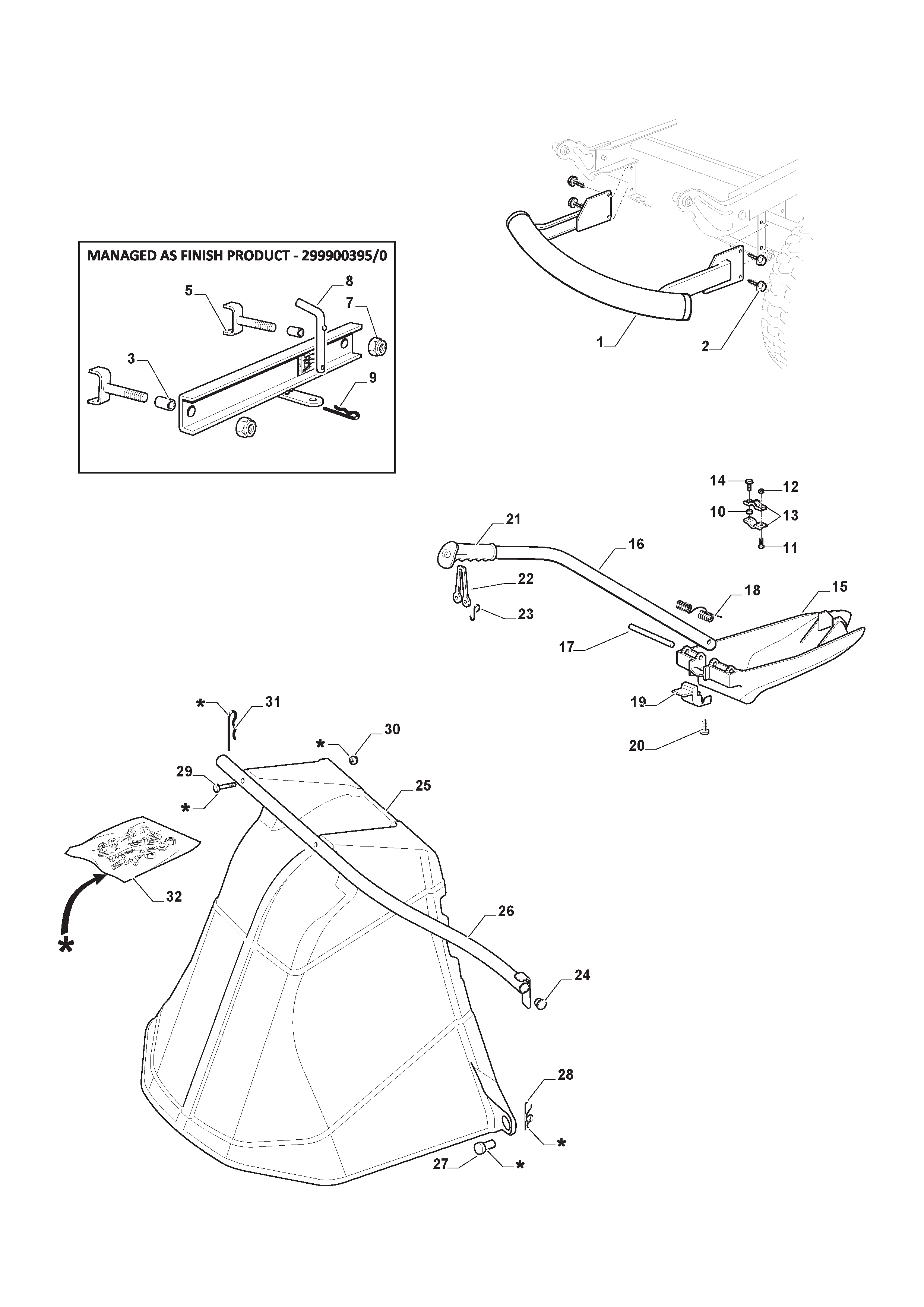

Optionals On Request

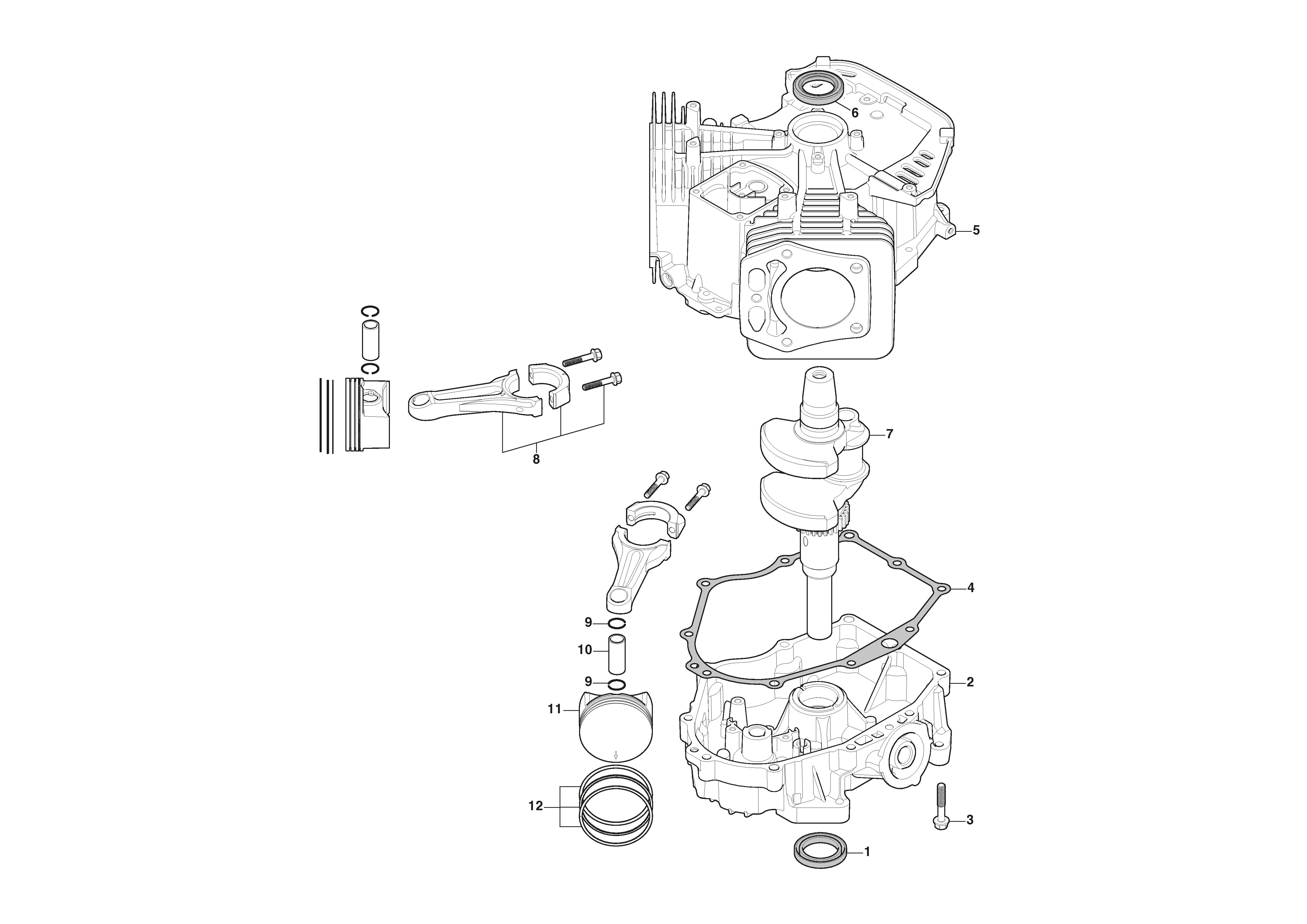

Piston, Crankshaft, Crankcase

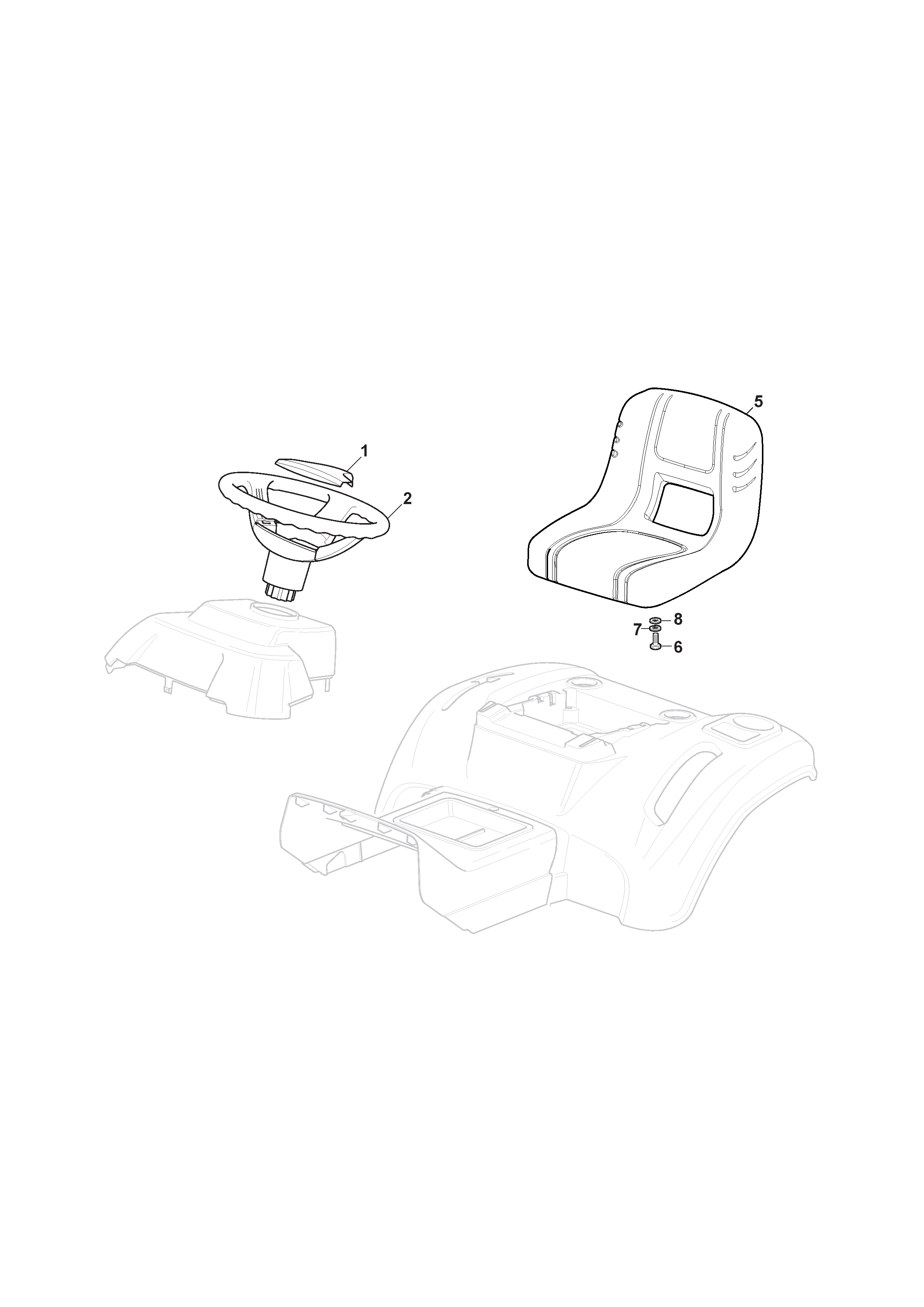

Seat & Steering Wheel

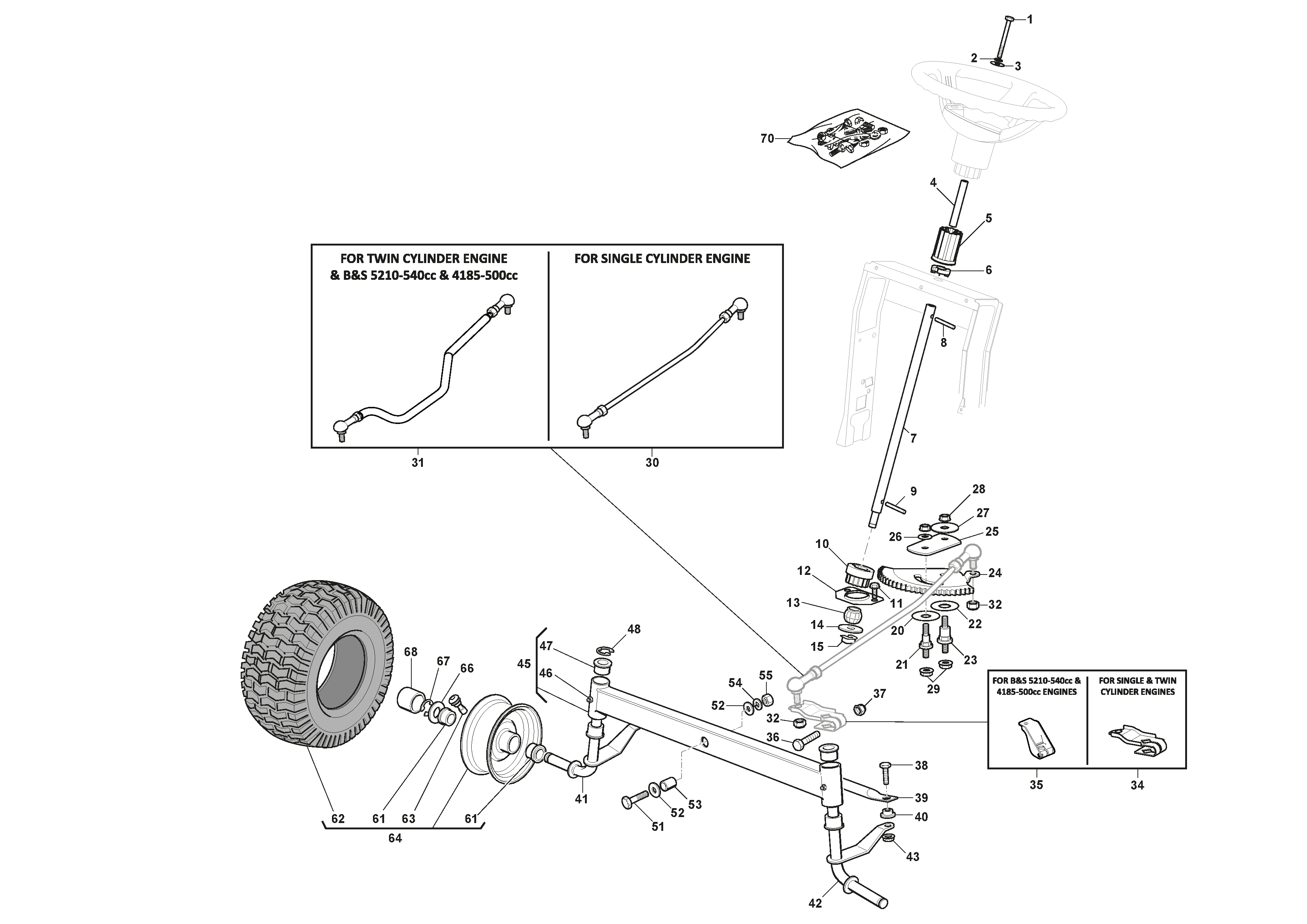

Steering
1RX1
Transmission
2T2630483-M22 [2022-2023]

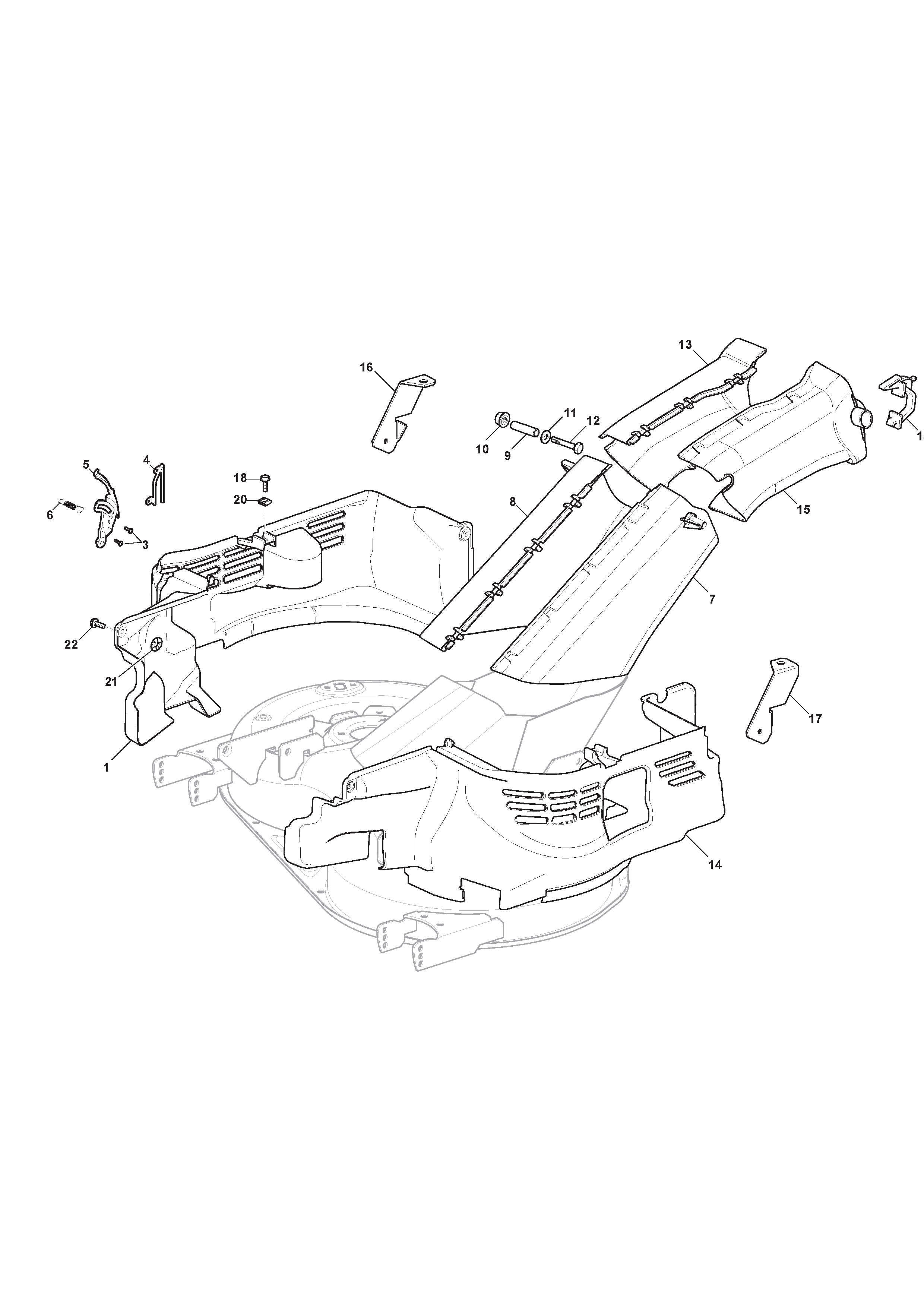

Belt Protections
Body Work
Brake And Gearbox Controls
Carburetor, Fuel Pump
MP98

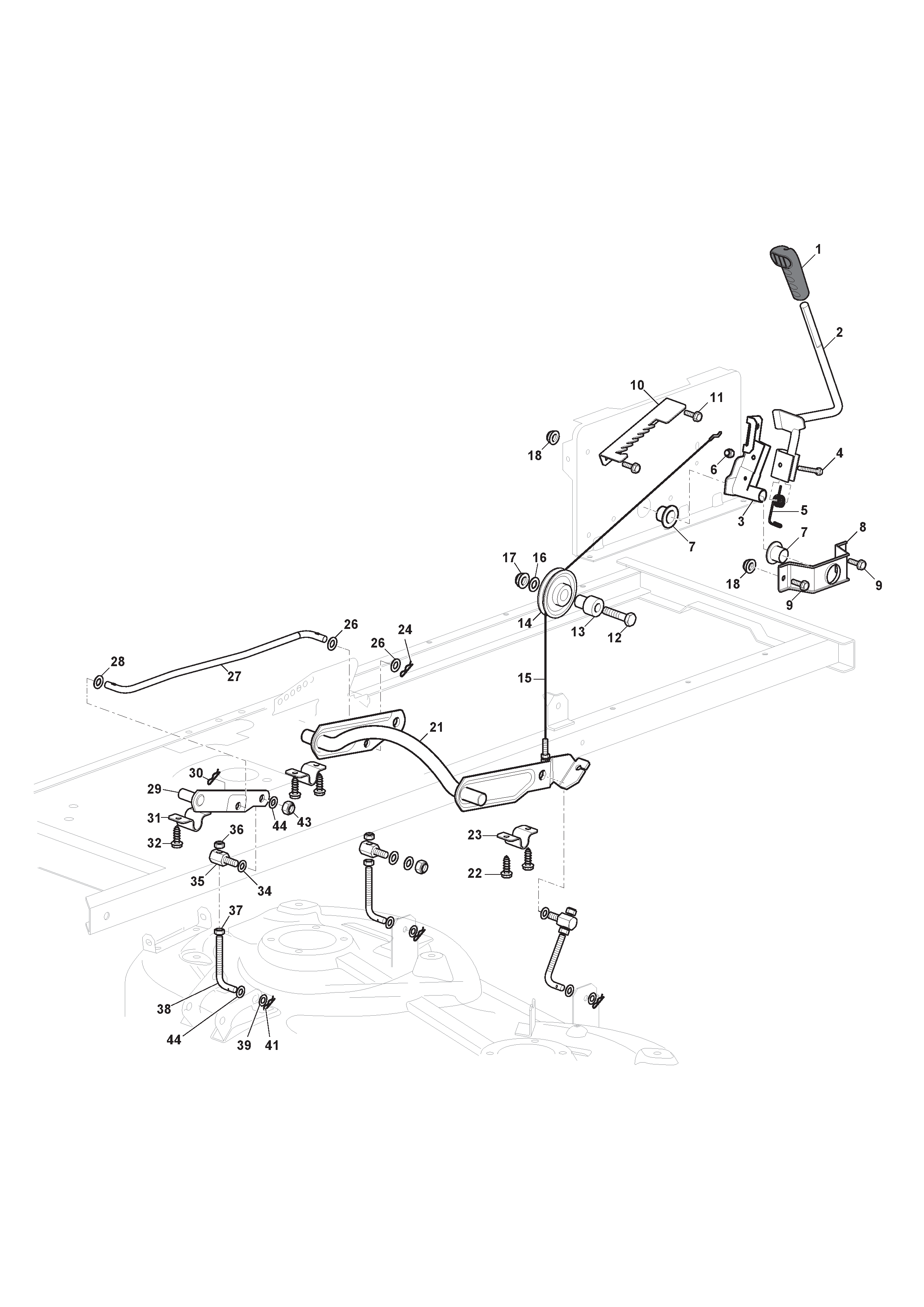

Cutting Plate Lifting
Cutting Plate with Electromagnetic Clutch
Cylinder Head

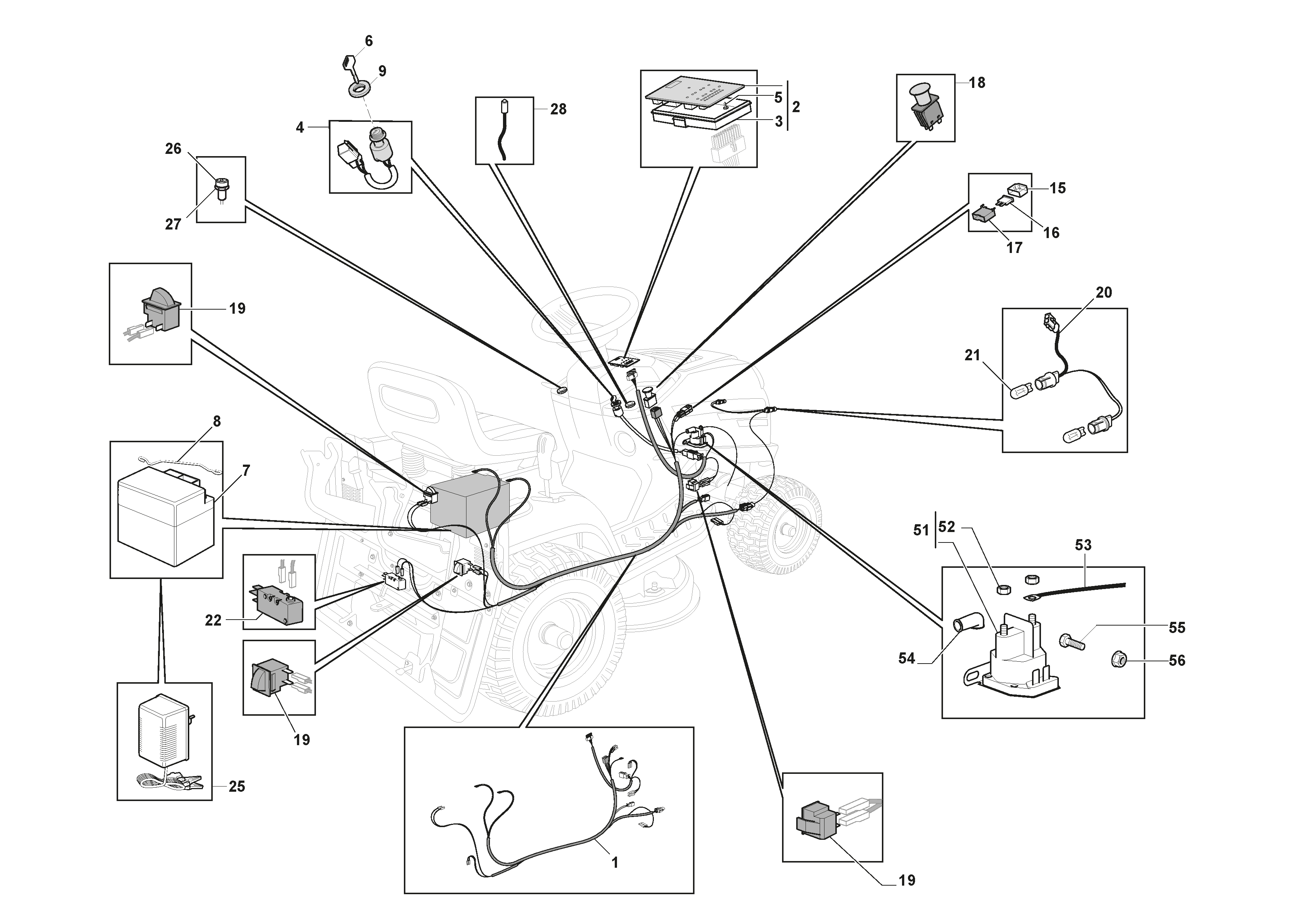

Electrical Parts
21Hp

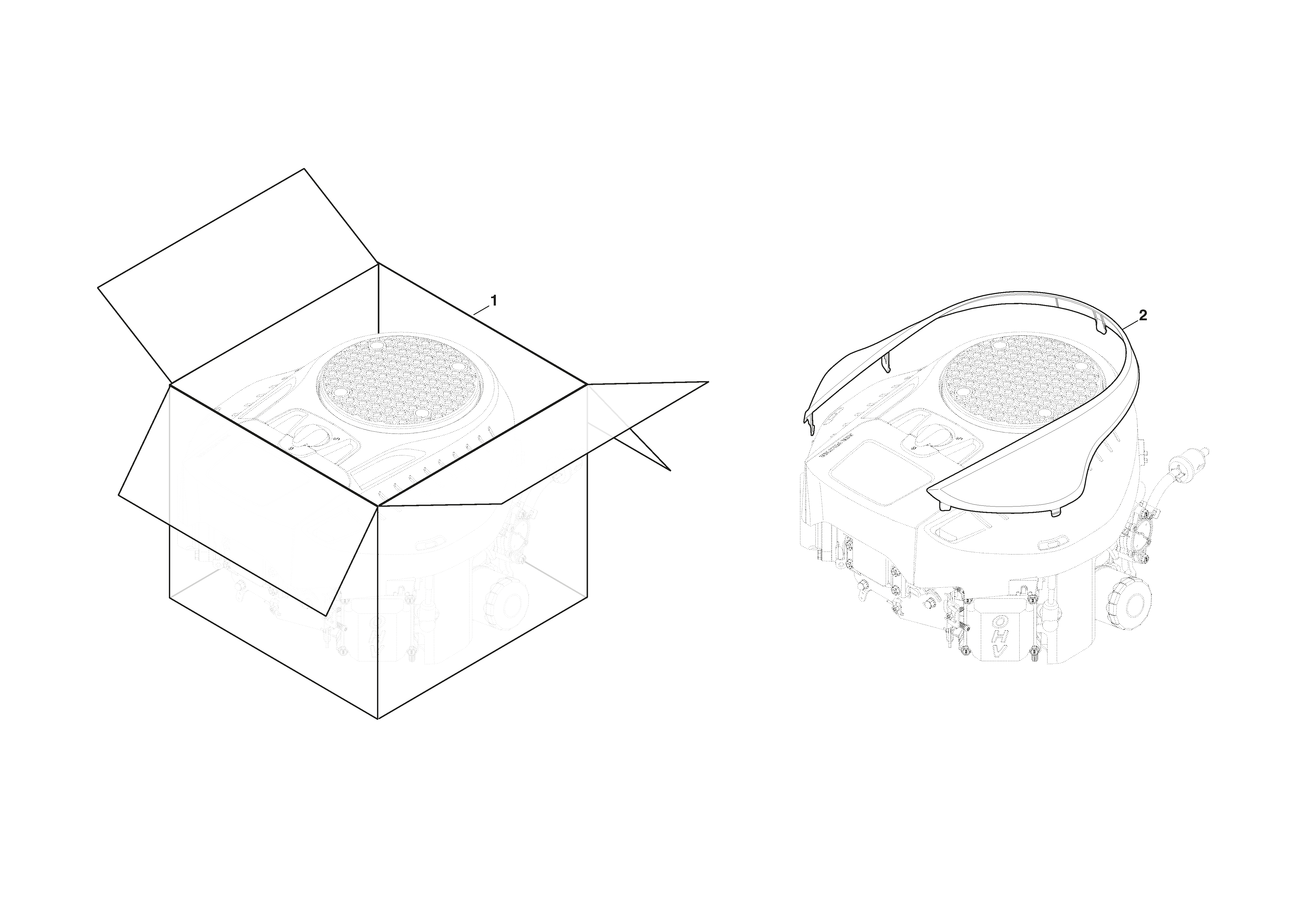

Engine, Engine Cover
Fan Cover, Air Cleaner

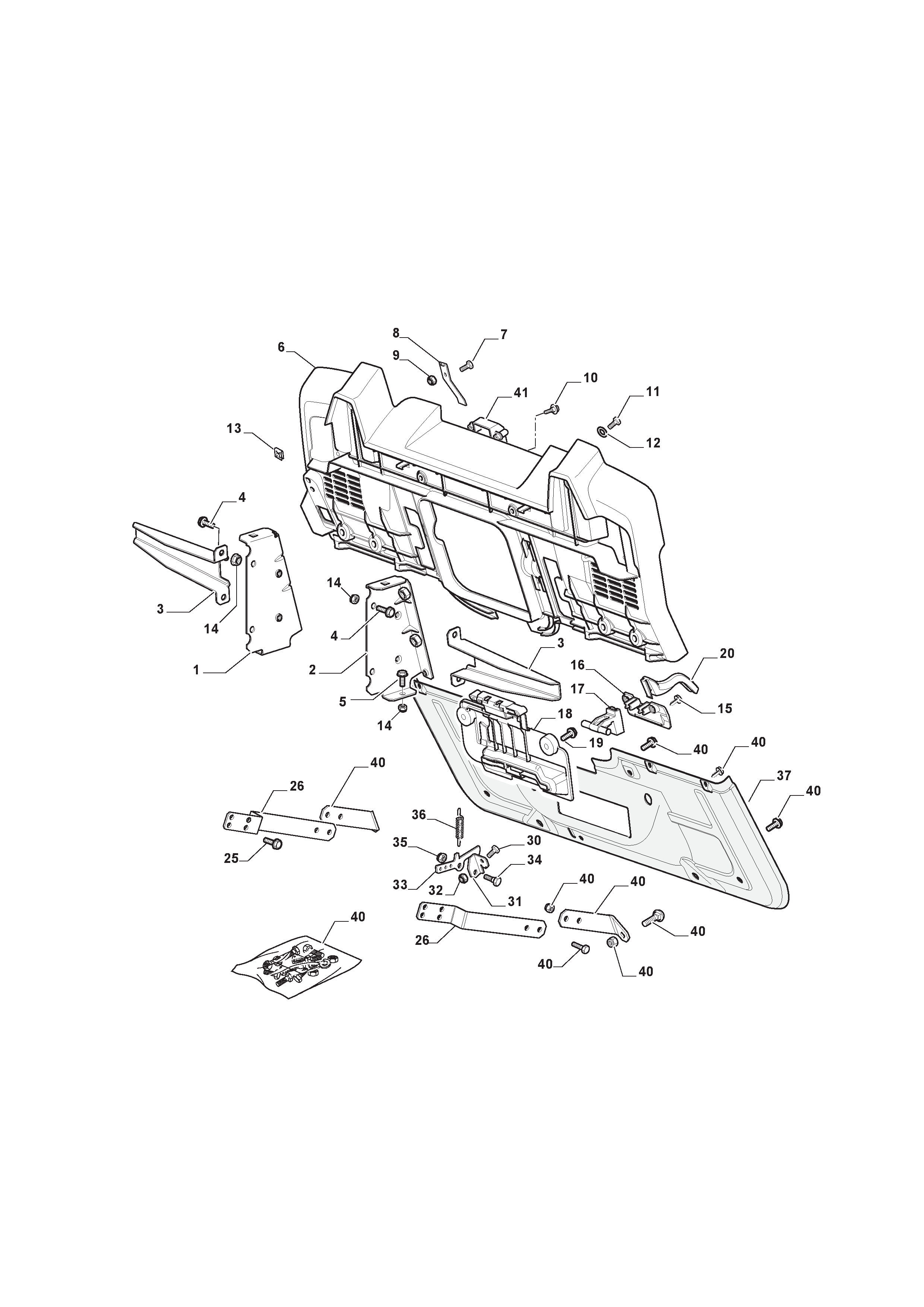

Rear Plate
Frame
Grasscatcher

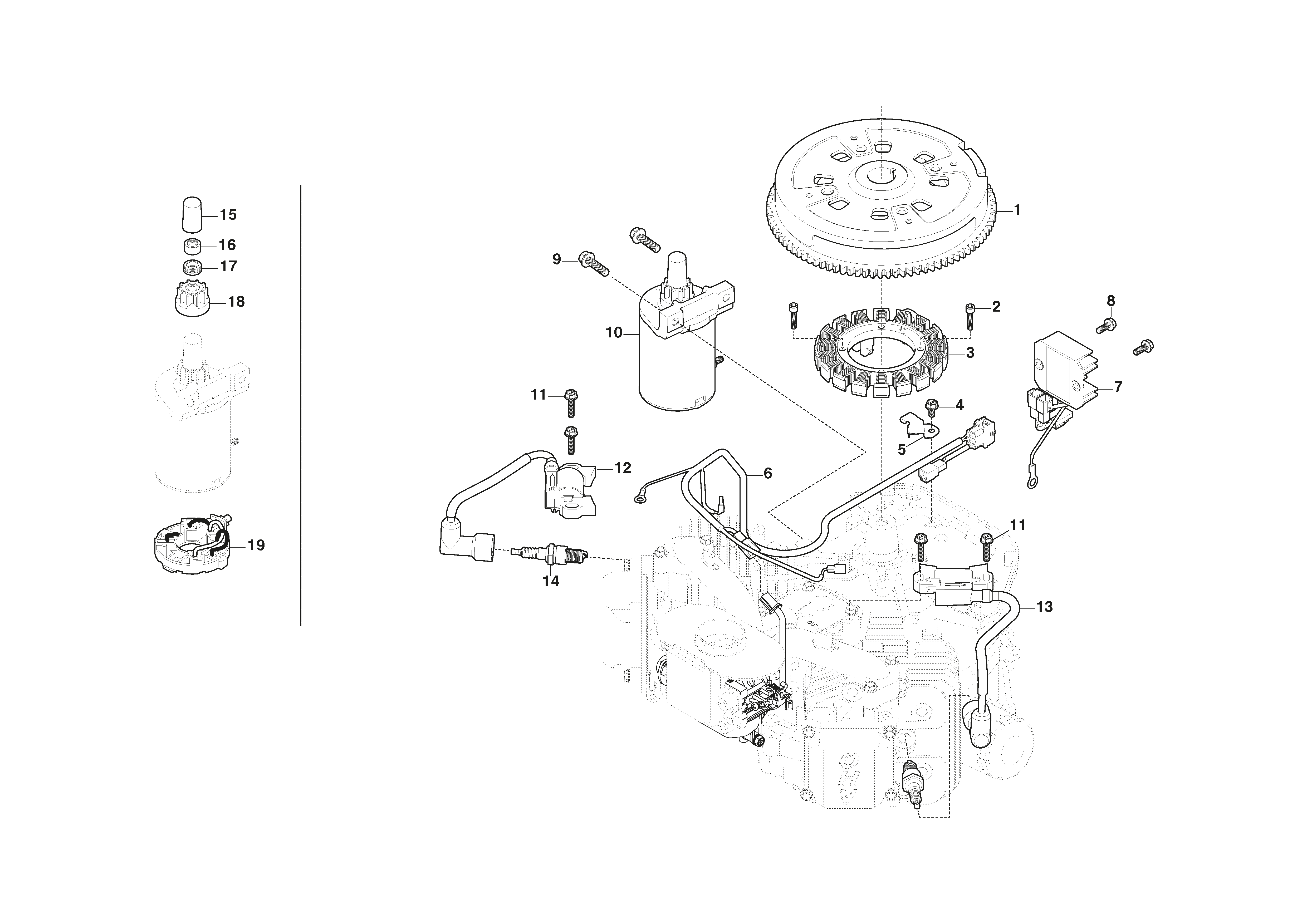

Ignition Coil, Starter Motor, Flywheel
Labels

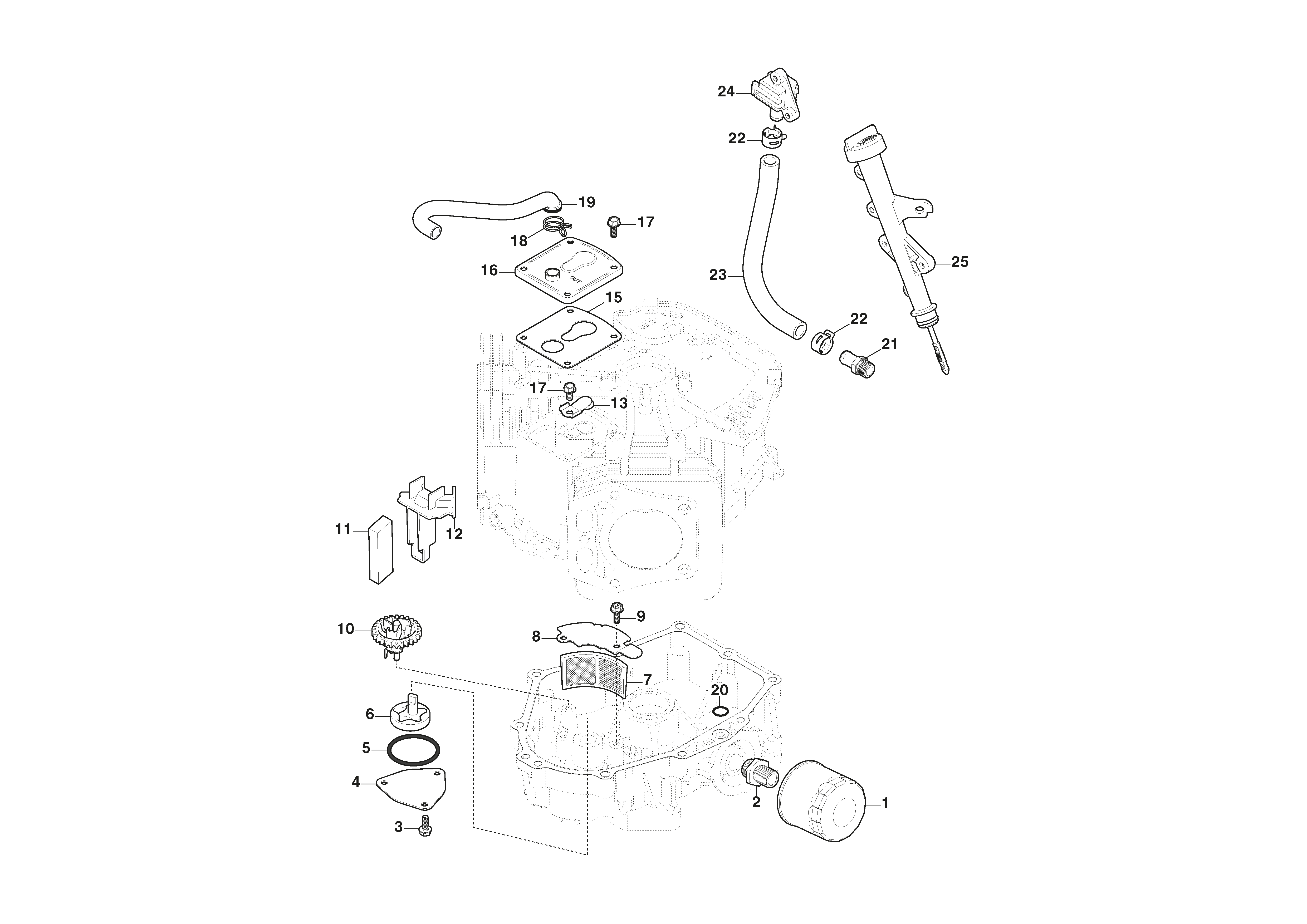

Oil Filter
Optionals On Request
Piston, Crankshaft, Crankcase
Seat & Steering Wheel
Steering
1RX1
Transmission
