1736H Twin Lawn Tractor Parts and Diagrams

Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a 1736H Twin Lawn Tractor.

All parts that fit a 1736H Twin Lawn Tractor

Diagrams for this machine

Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.

Choose your Year/Serial Number

2T0440483-M20 [2020-2022]

2T0785483-M22 [2022-2023]

Top

2T0440483-M20 [2020-2022]

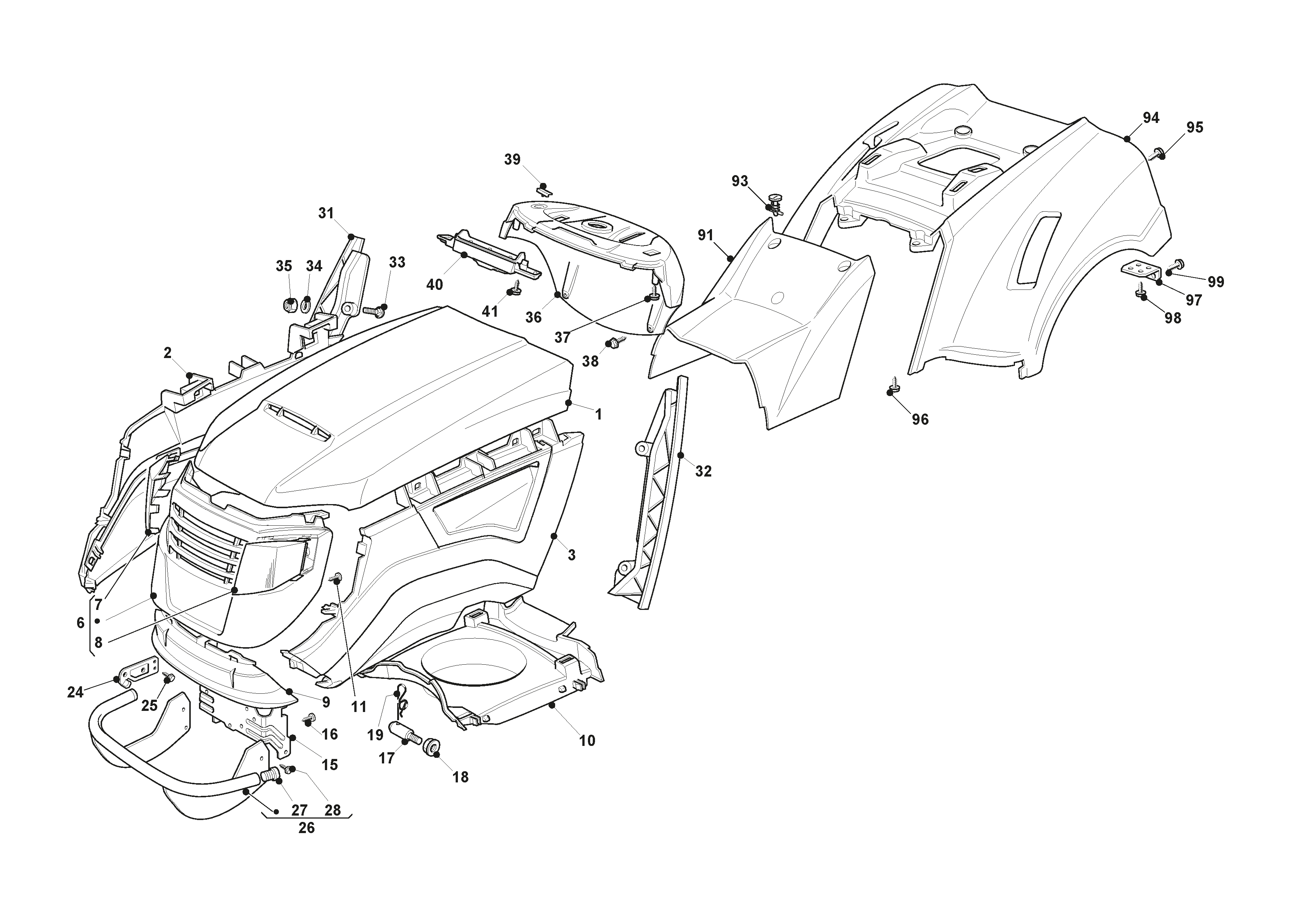

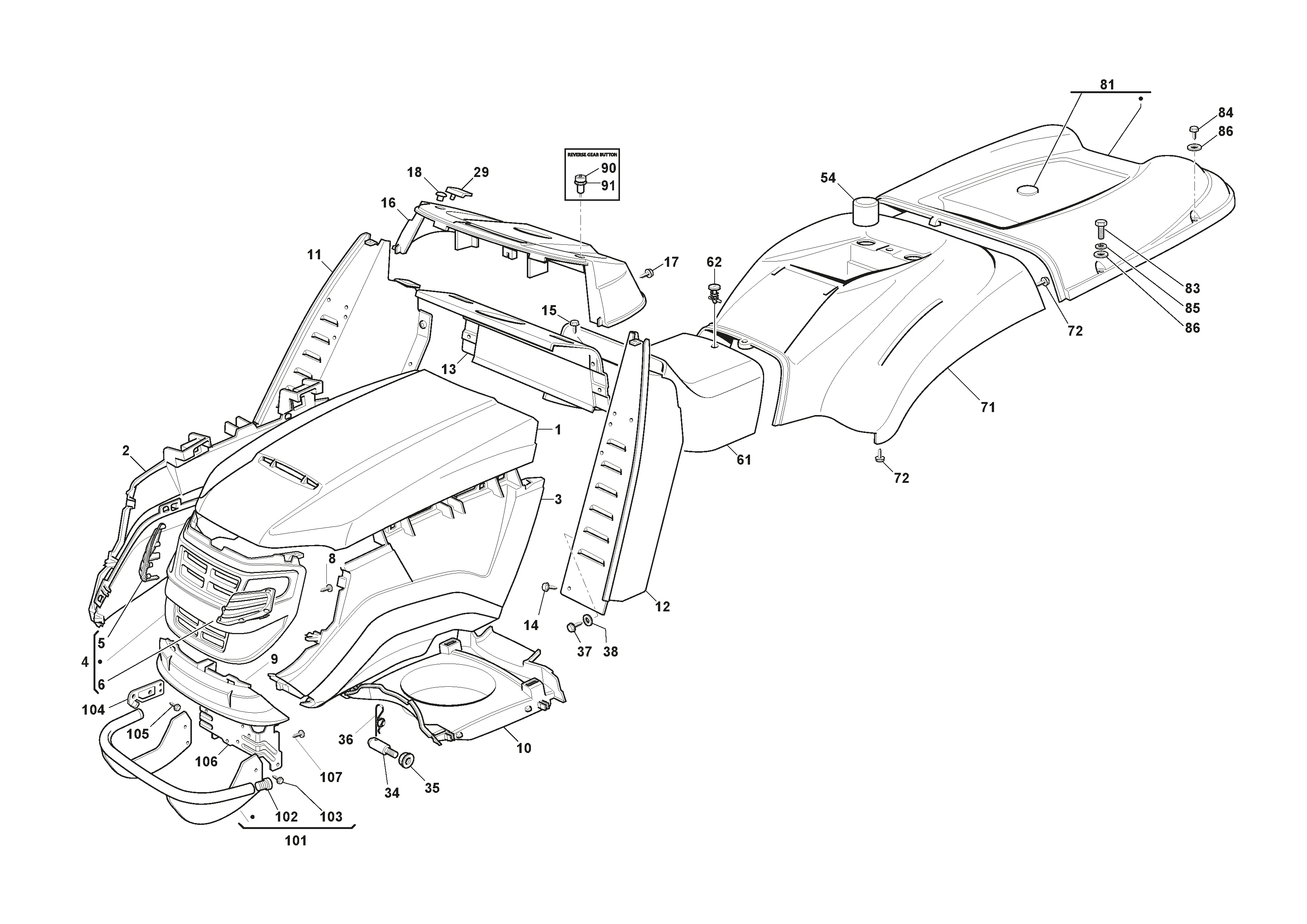

Body Work

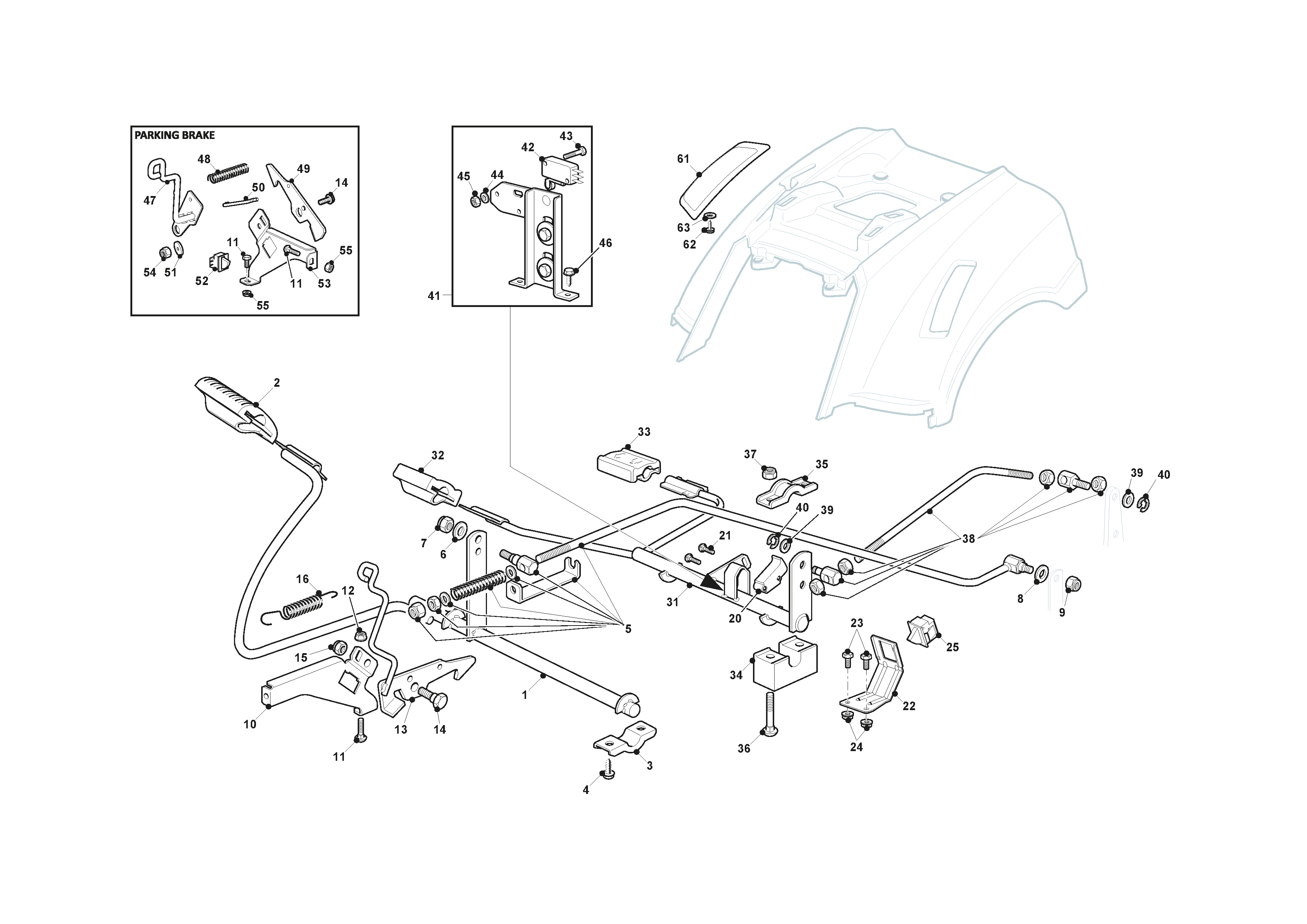

Hydrogear

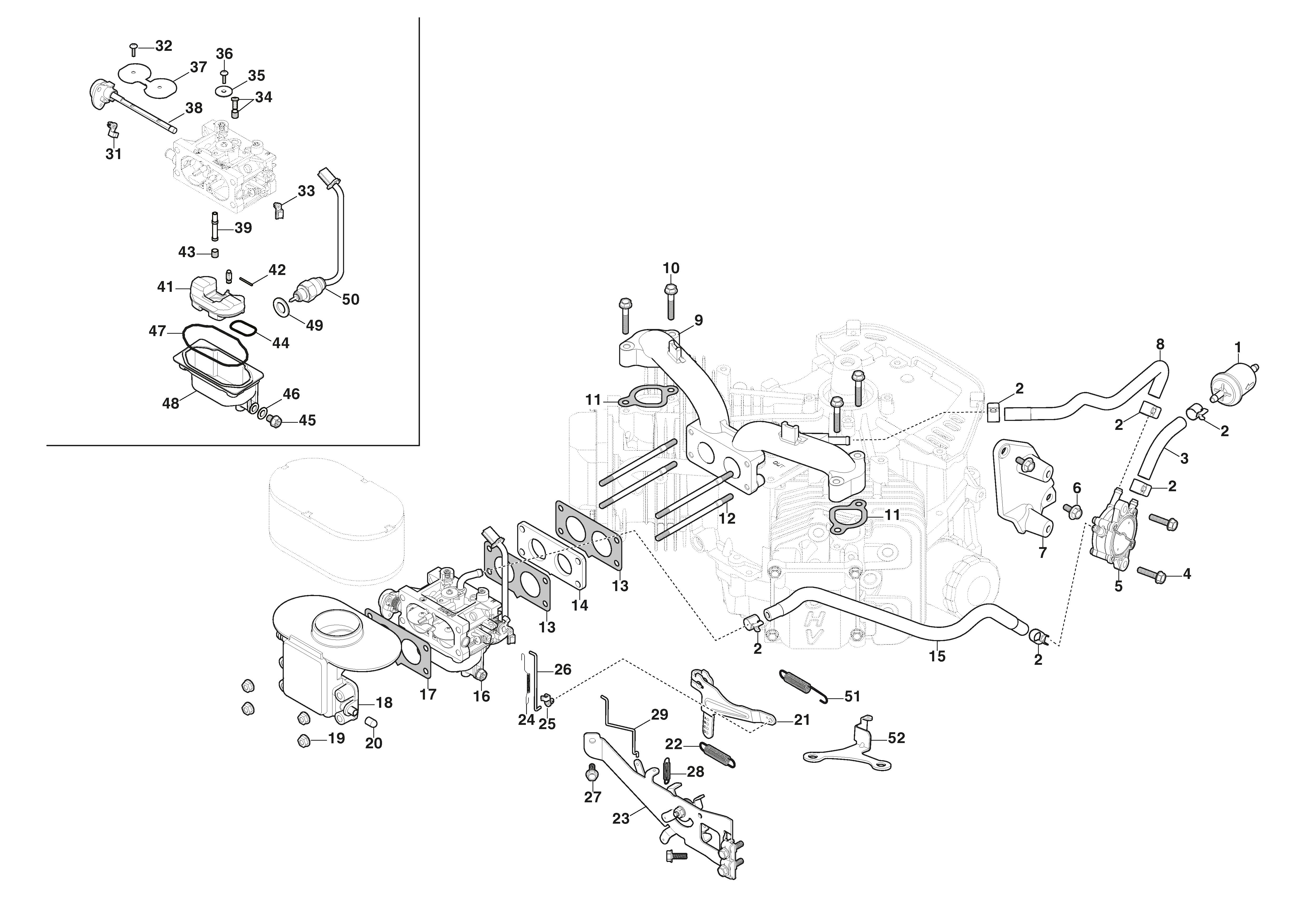

Carburetor, Fuel Pump

Carburetor, Fuel Pump

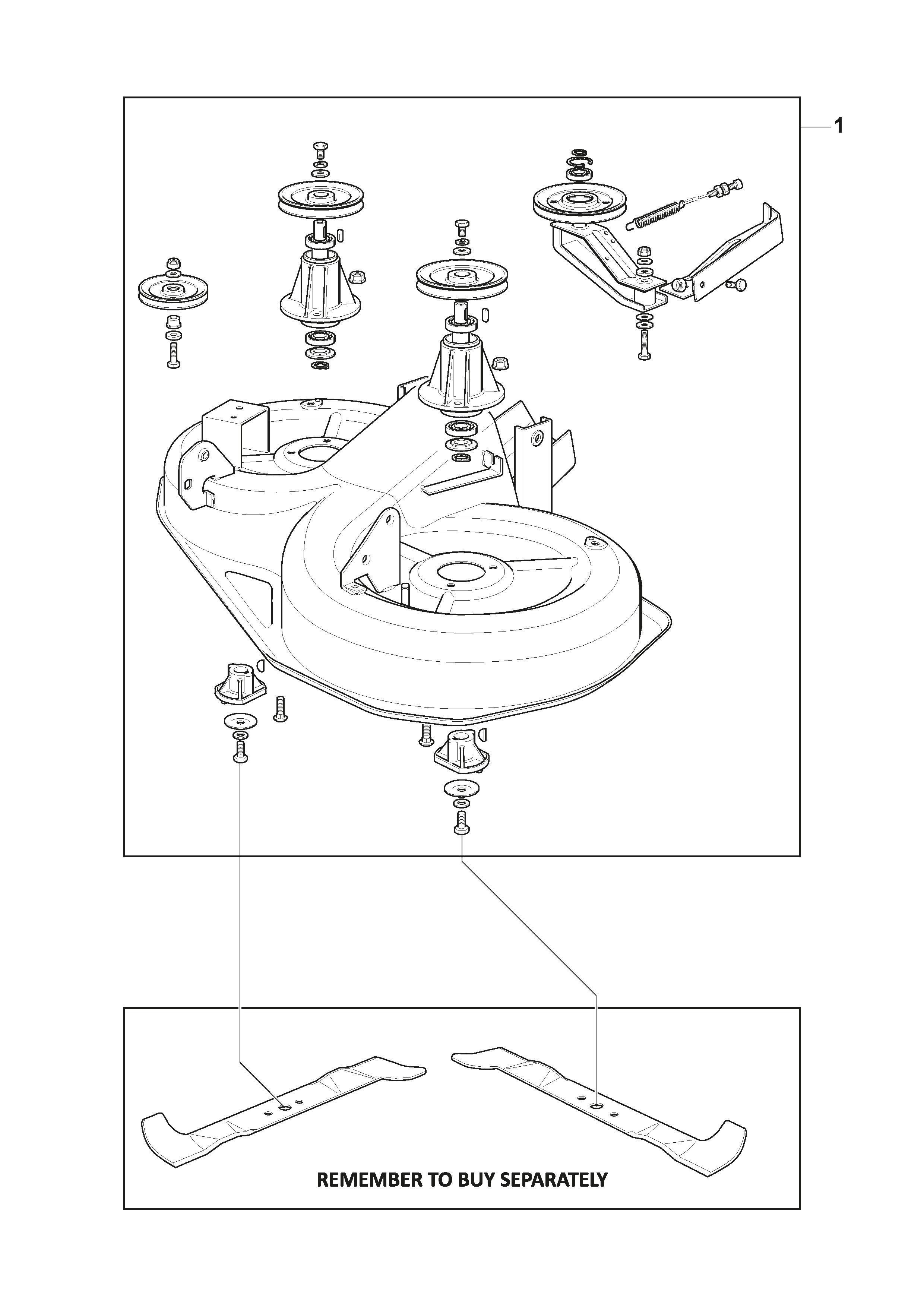

NJ92

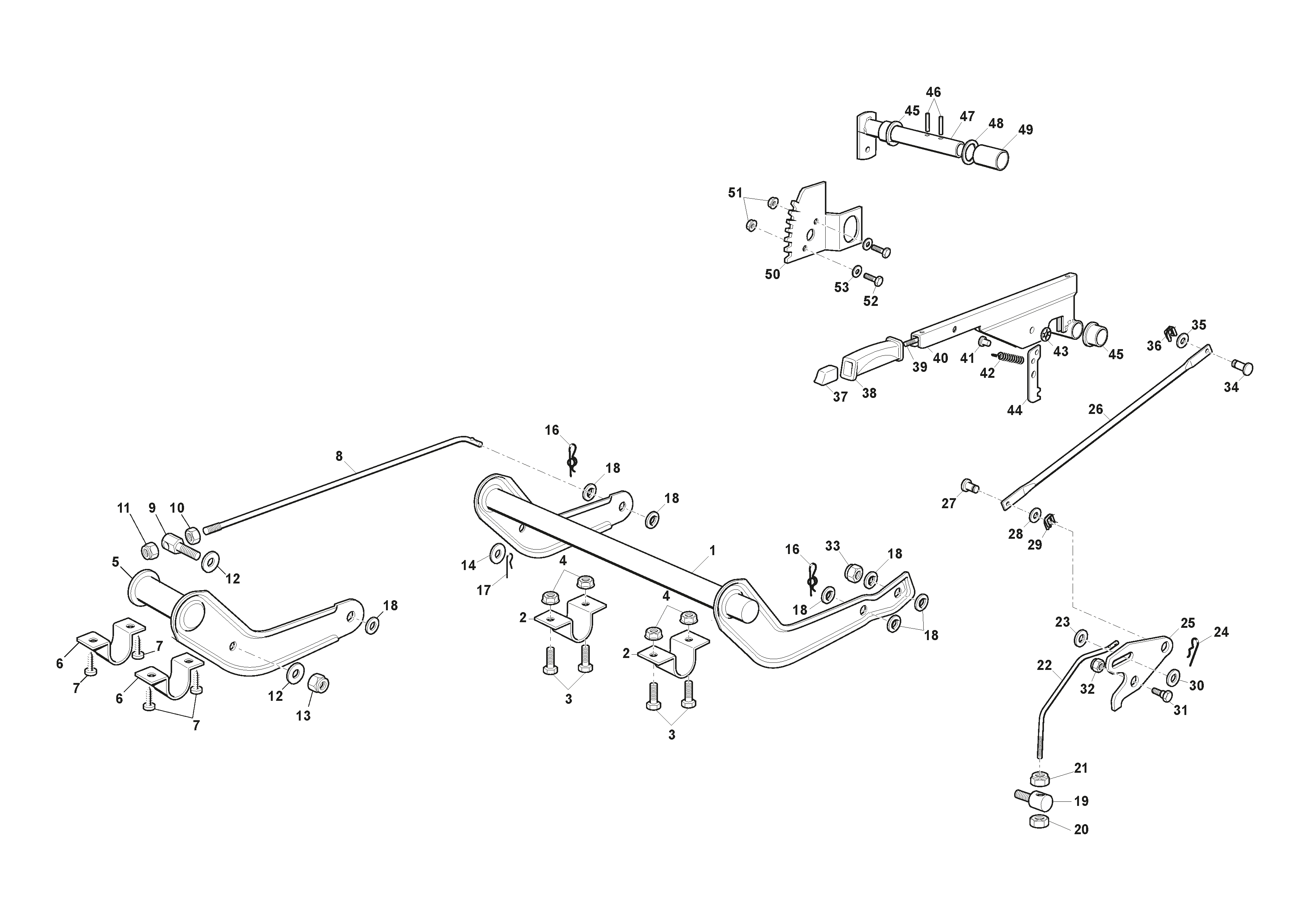

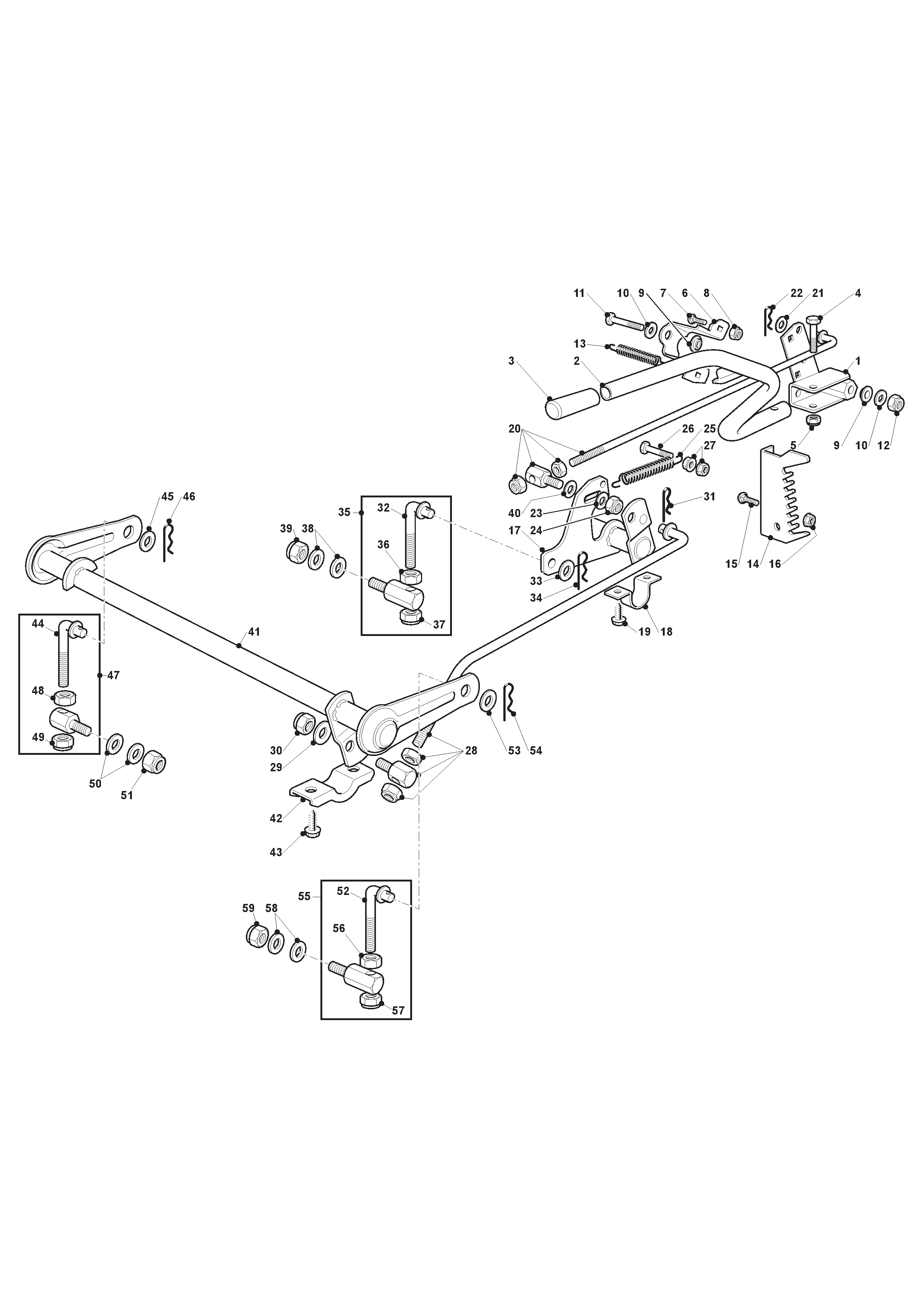

Cutting Plate Lifting

Cutting Plate Lifting

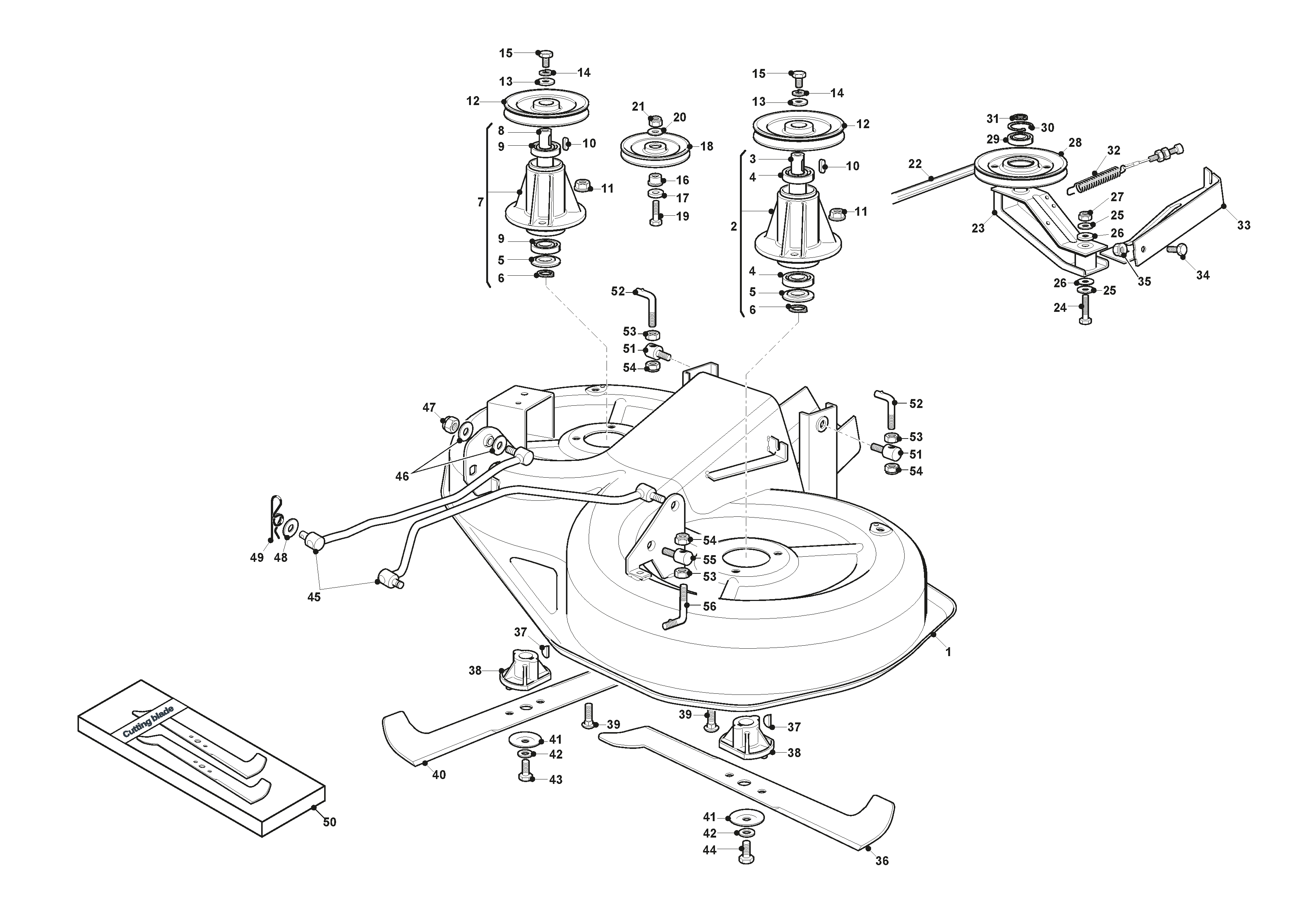

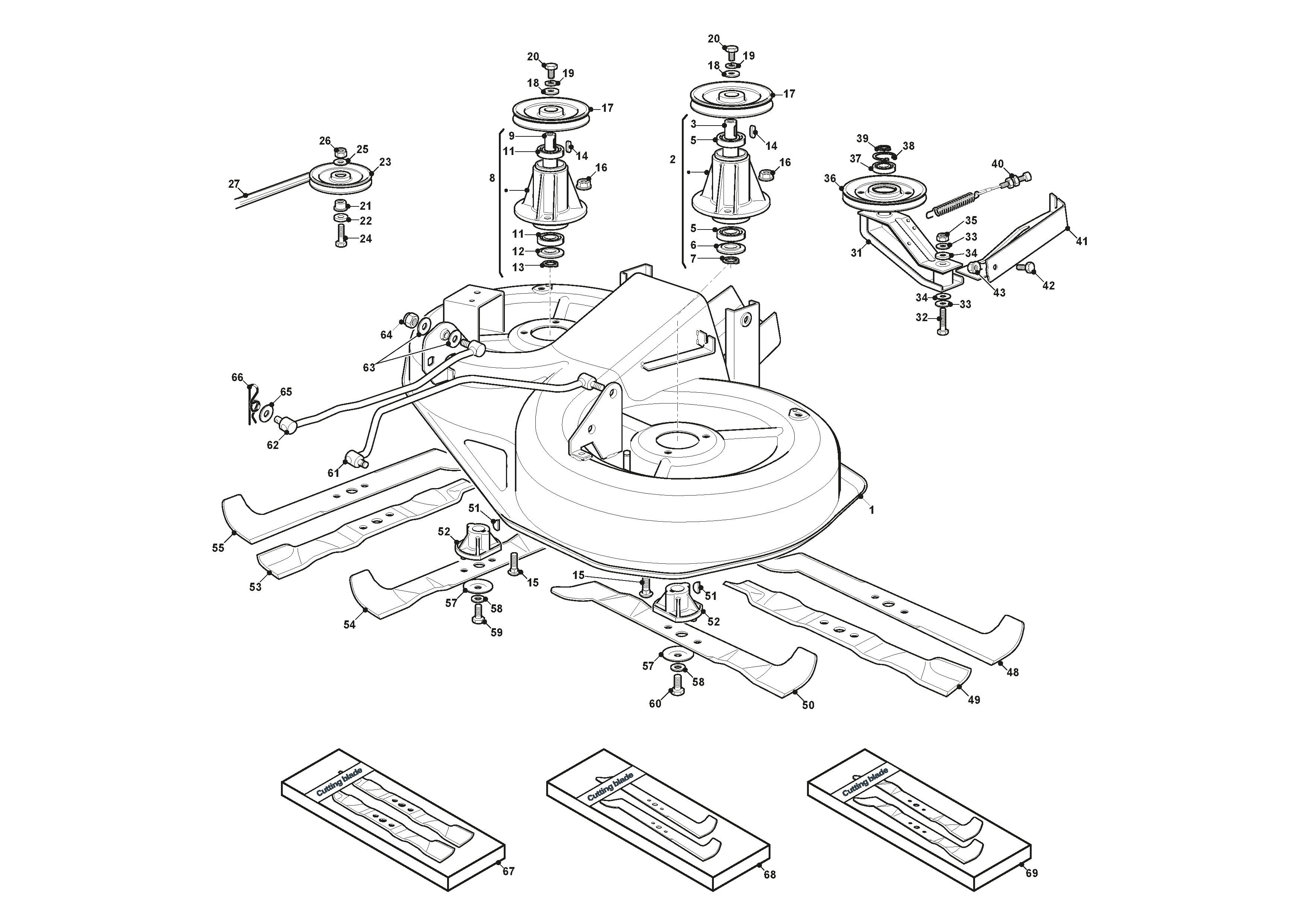

Cutting Plate

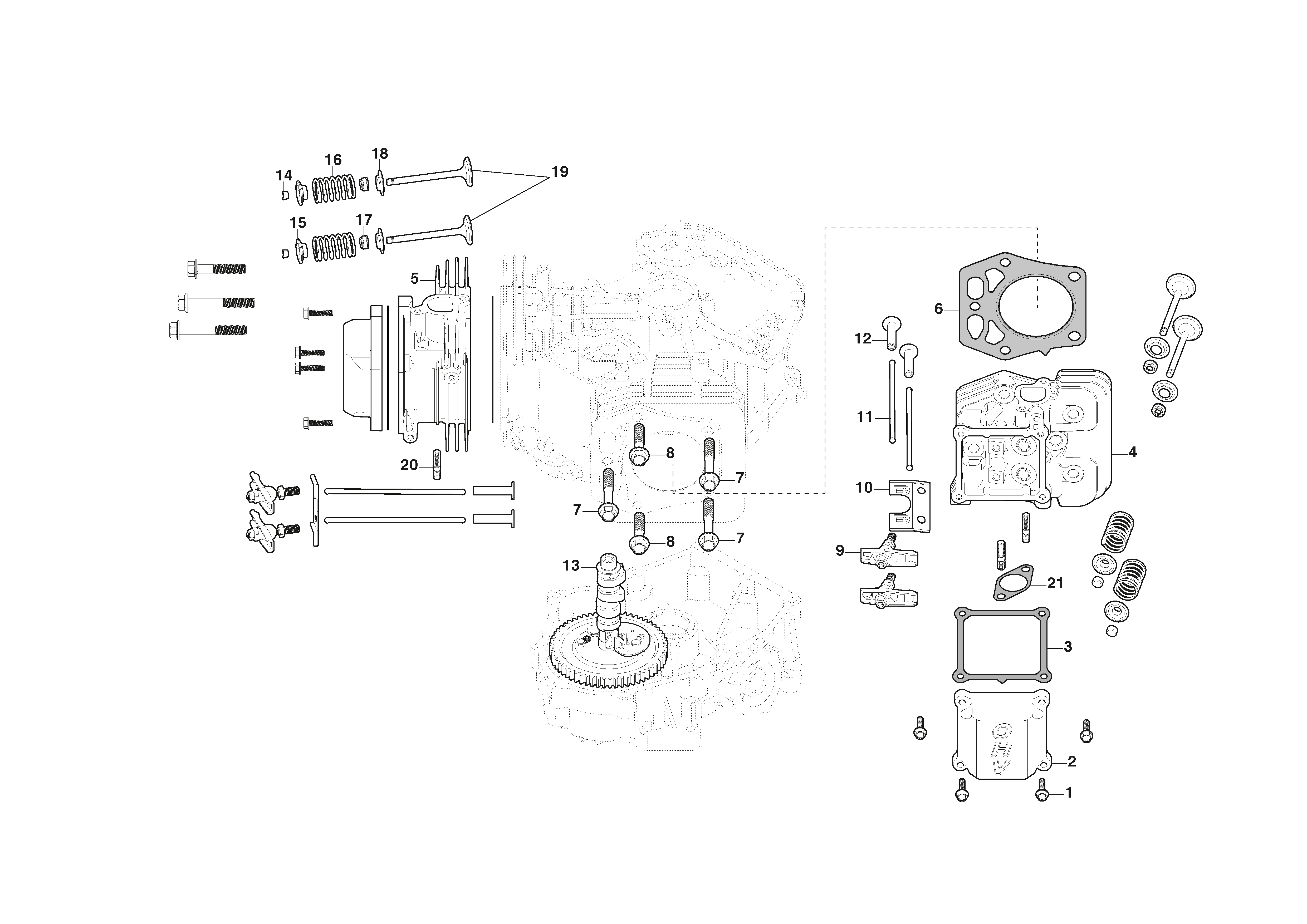

Cylinder Head

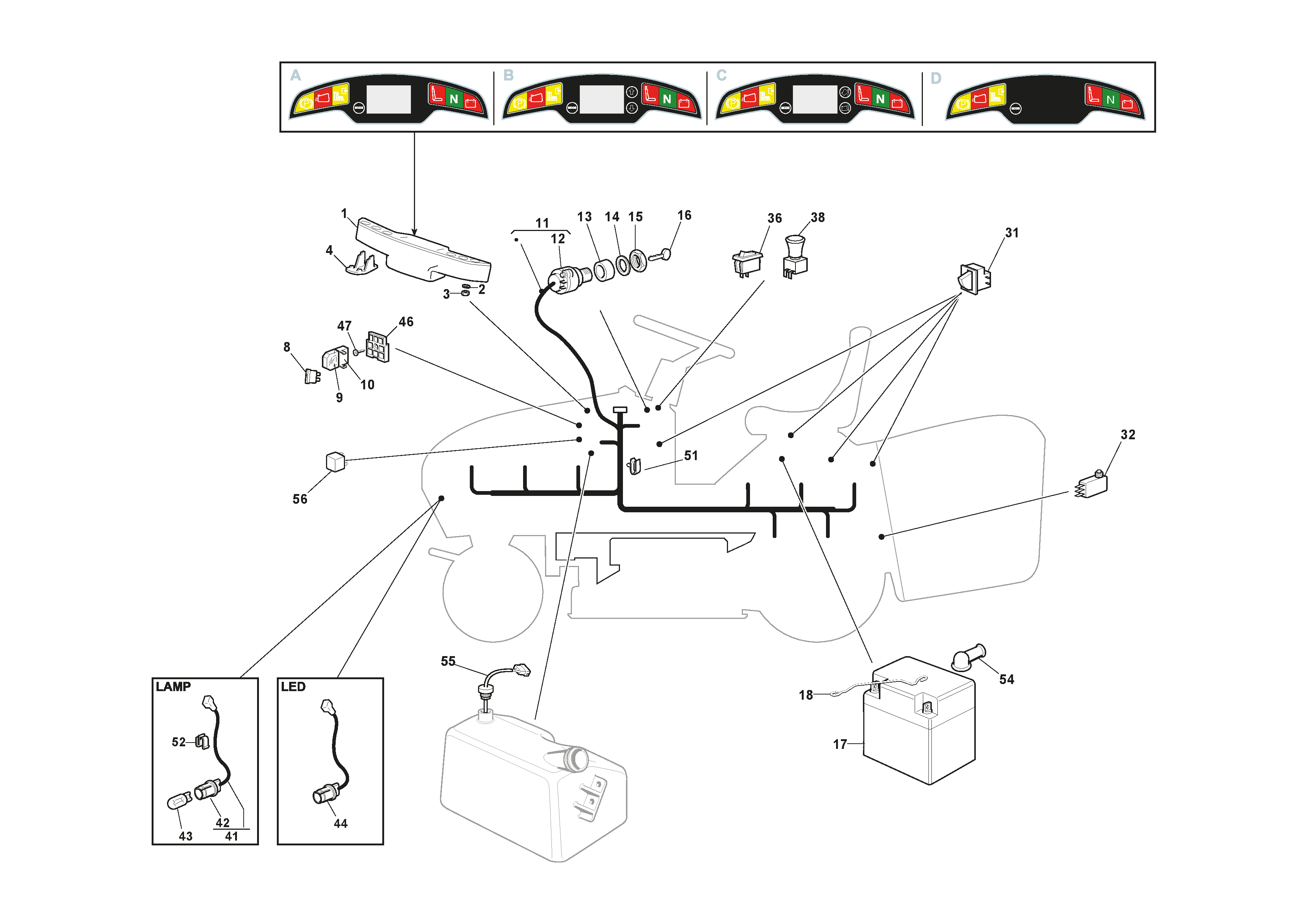

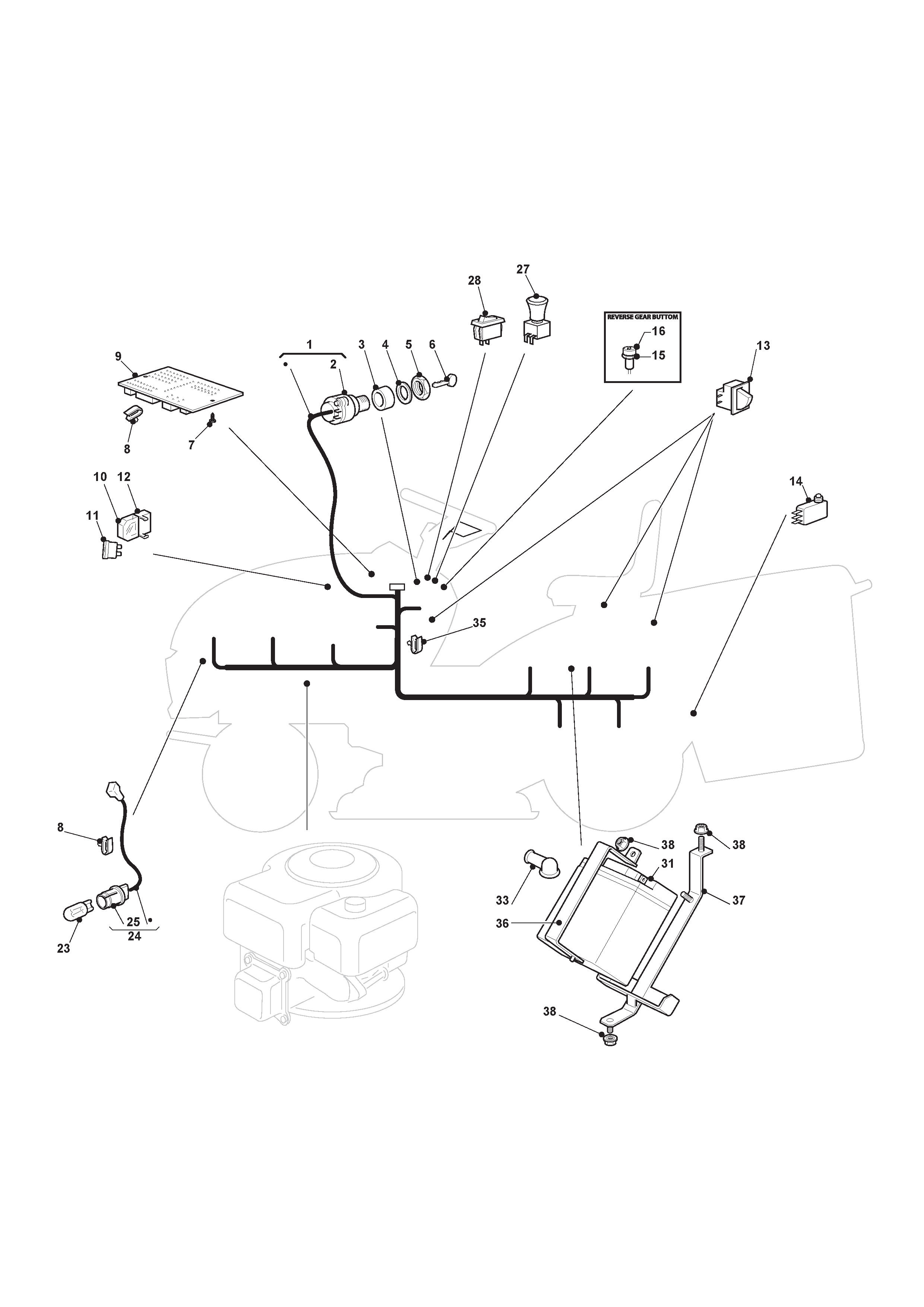

Electrical Parts

Electrical Parts

19Hp

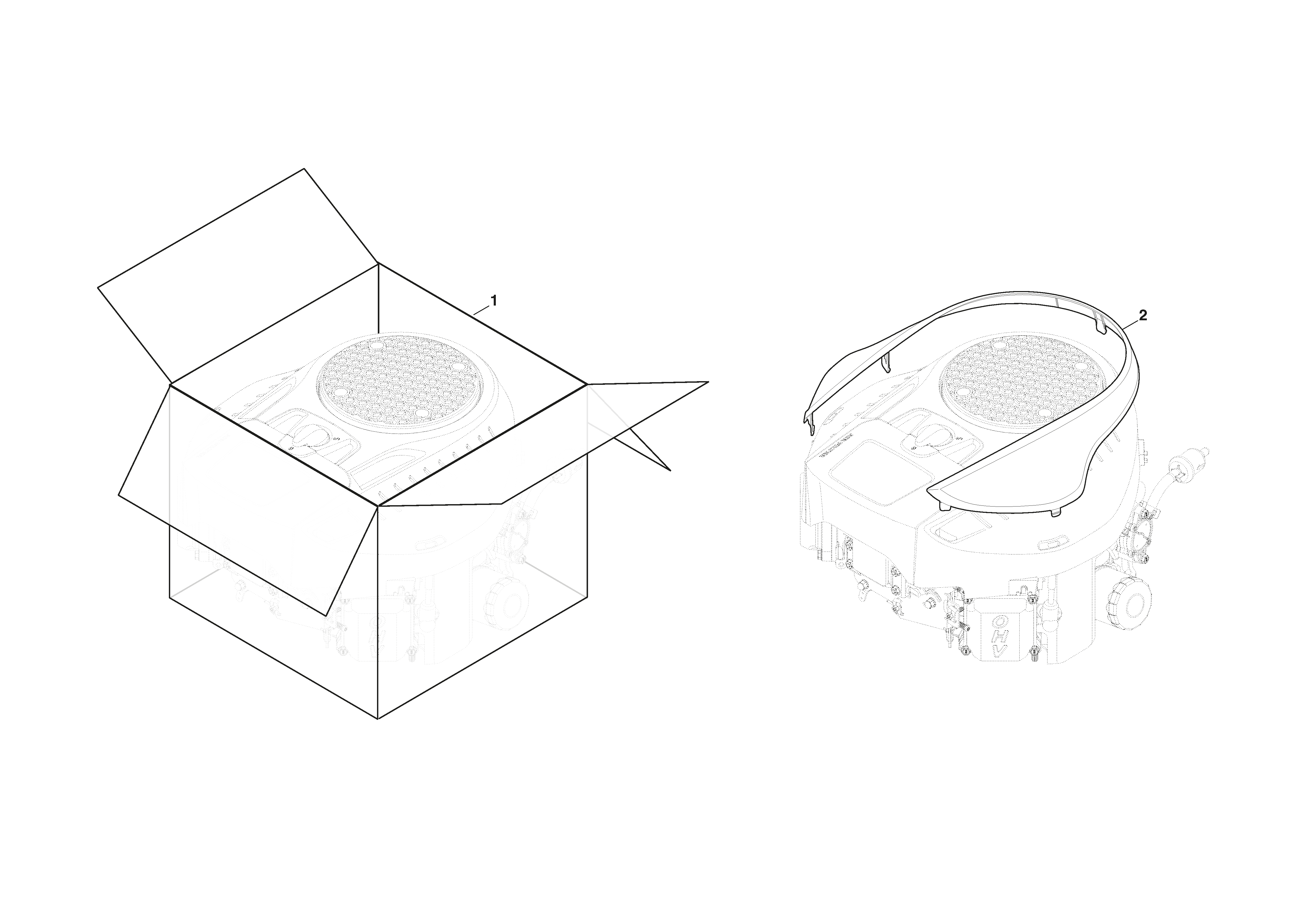

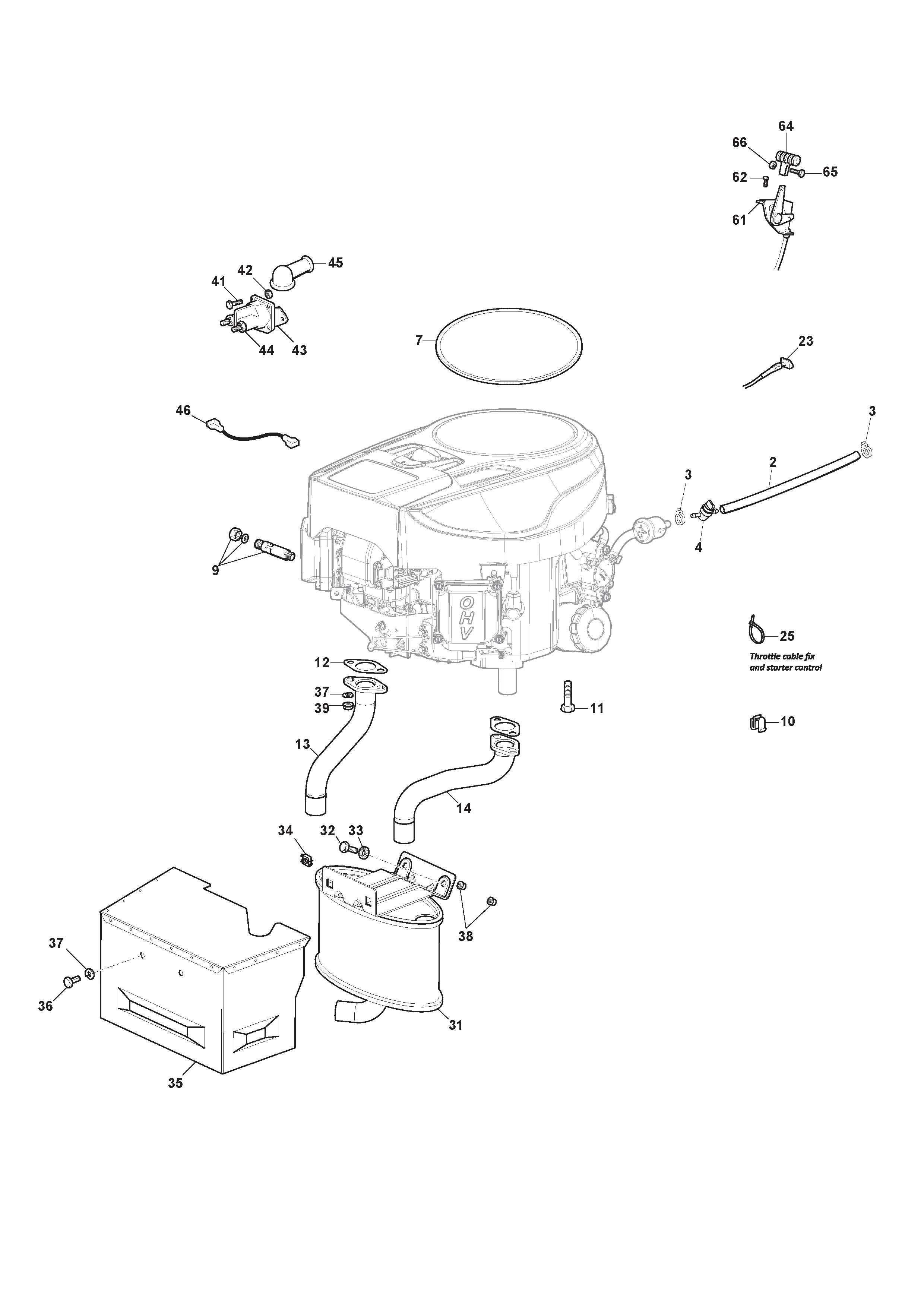

Engine, Engine Cover

Engine, Engine Cover

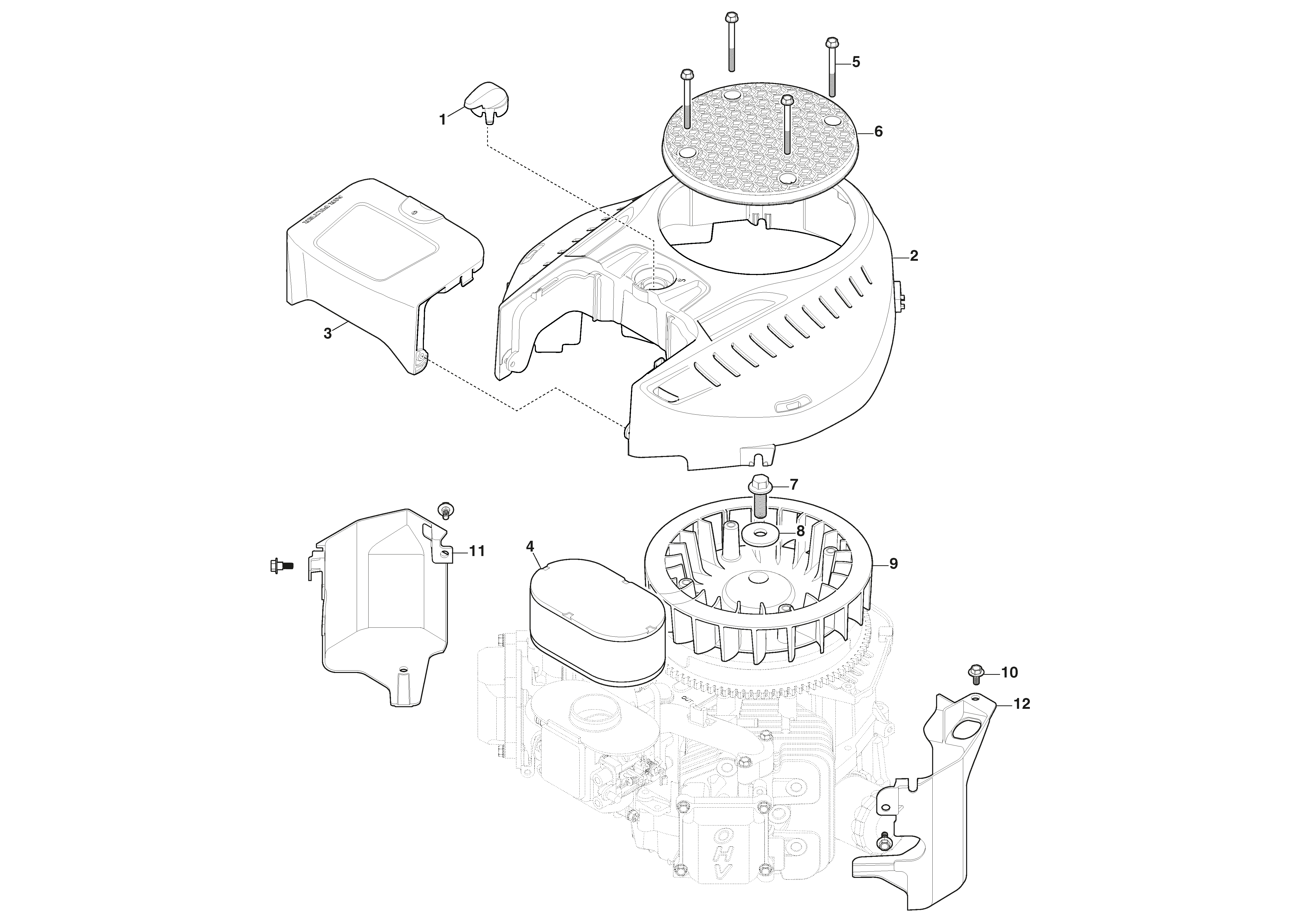

Fan Cover, Air Cleaner

Fan Cover, Air Cleaner

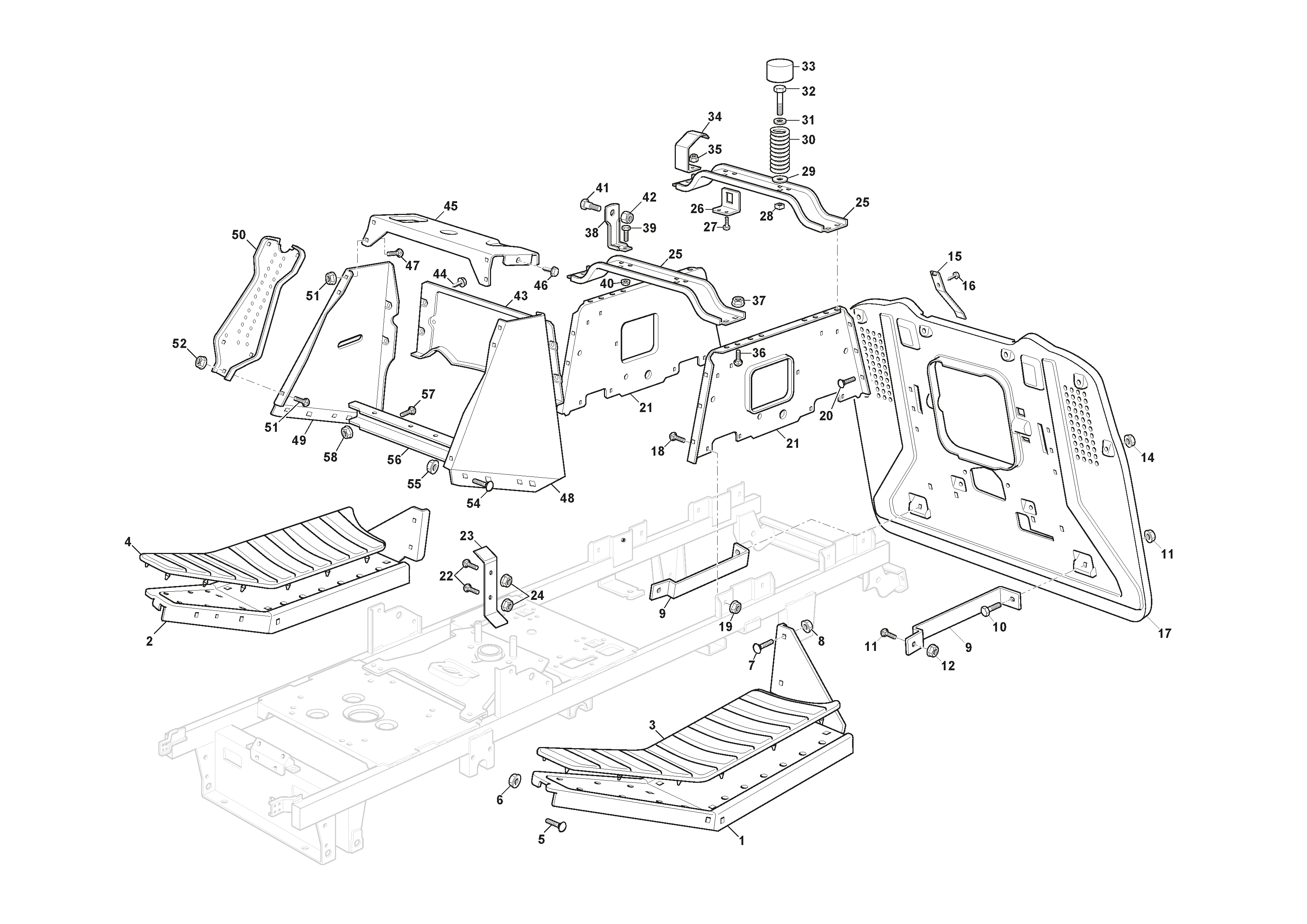

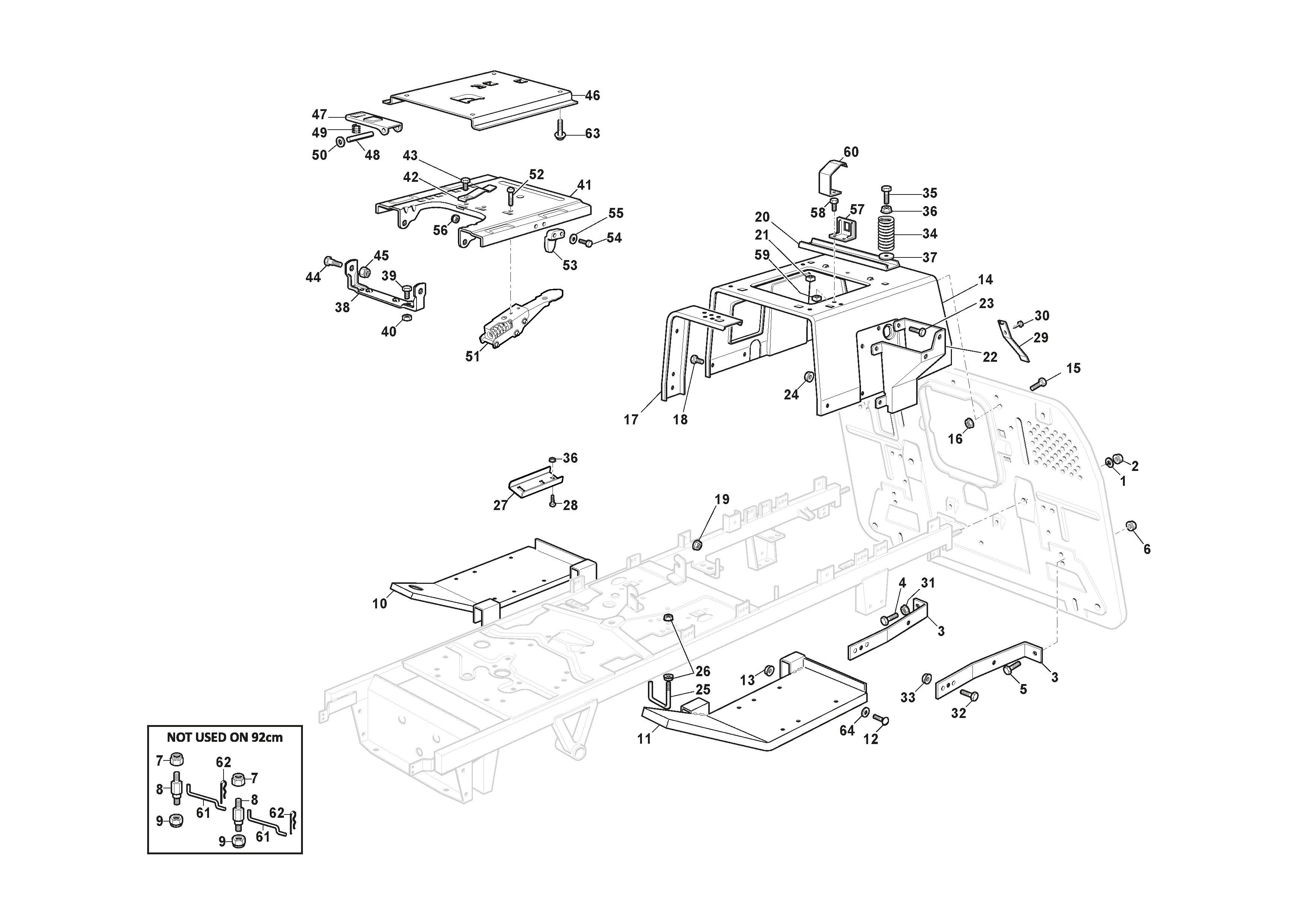

Frame

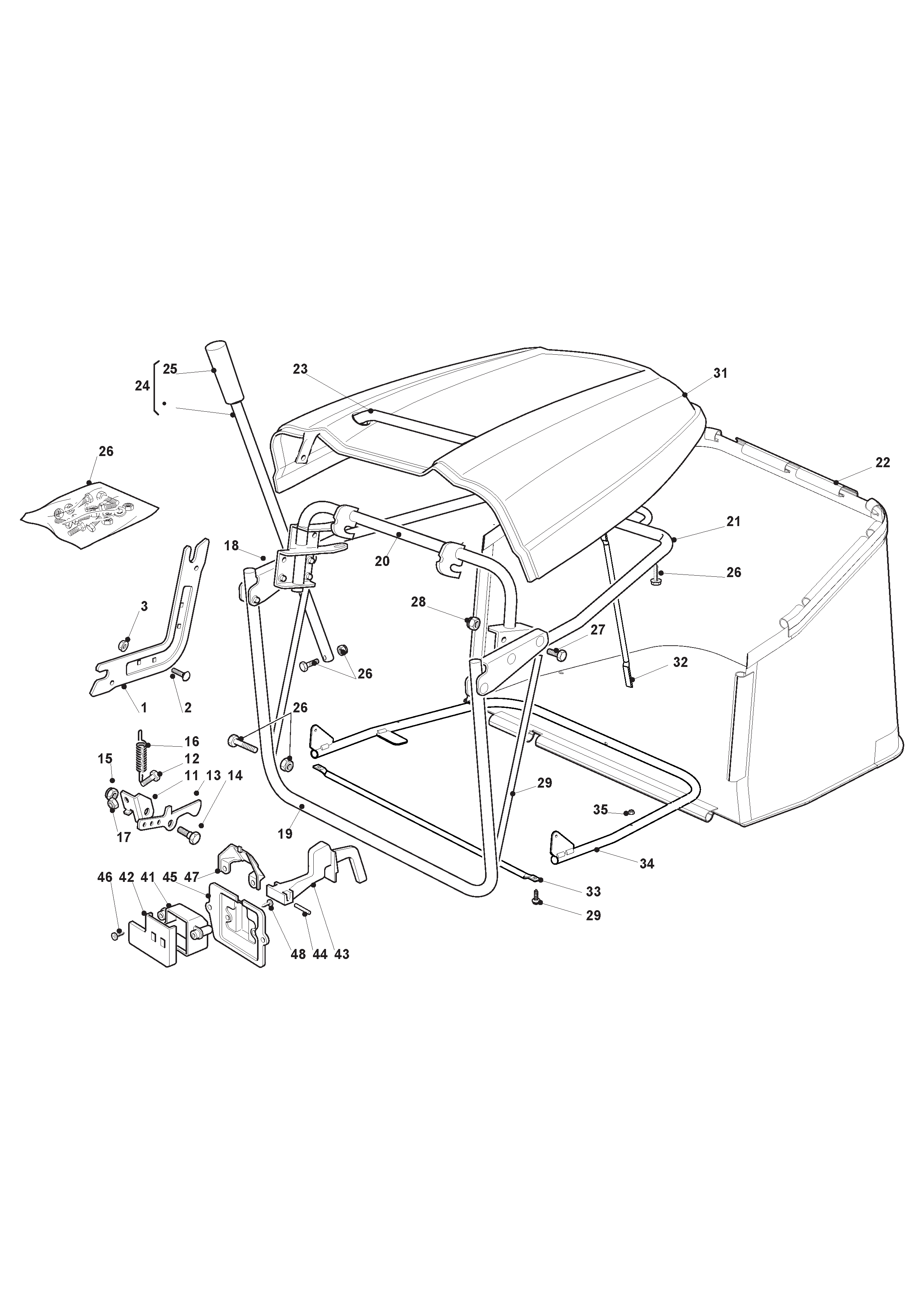

290 lt

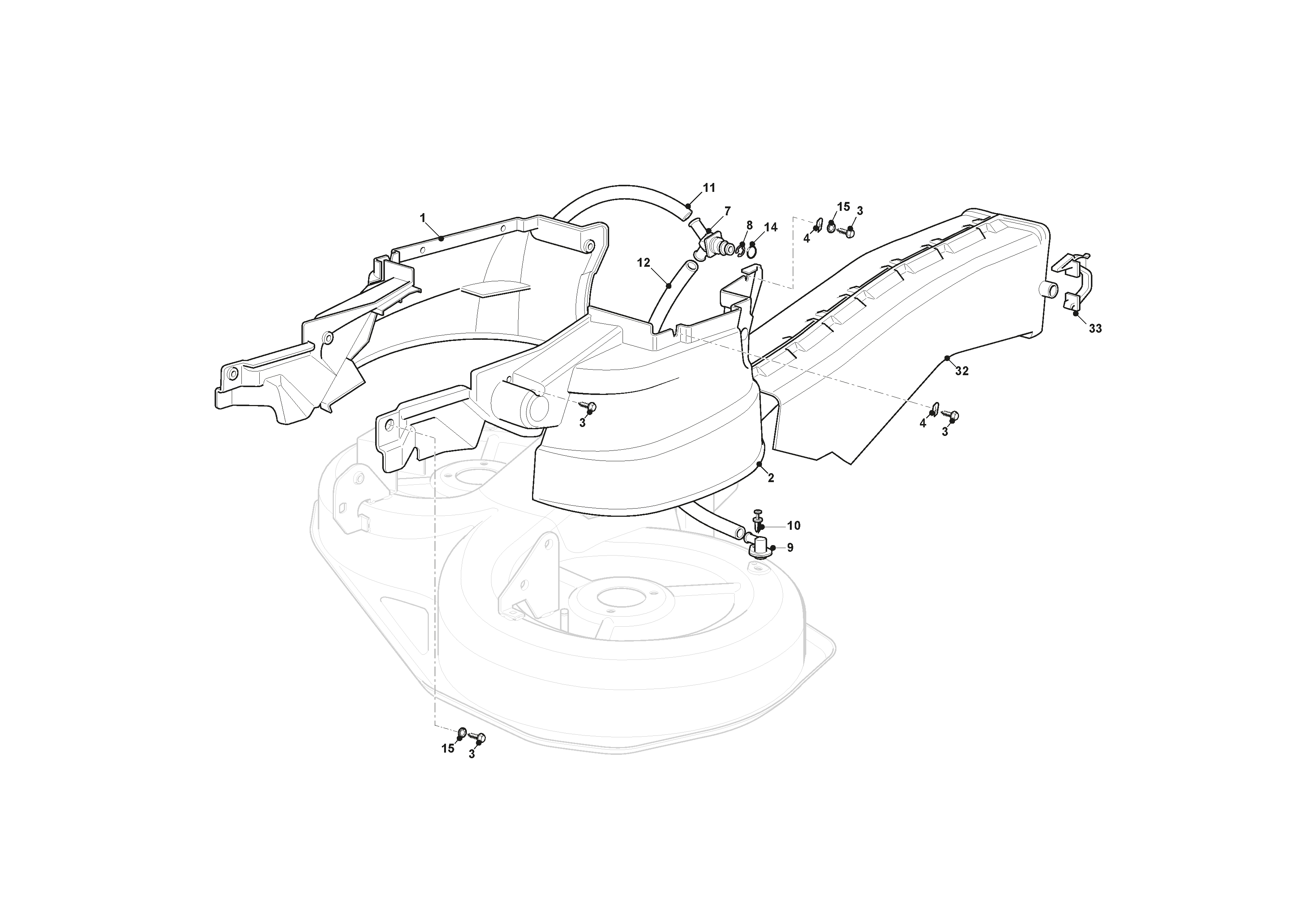

Guards And Conveyor

Guards And Conveyor

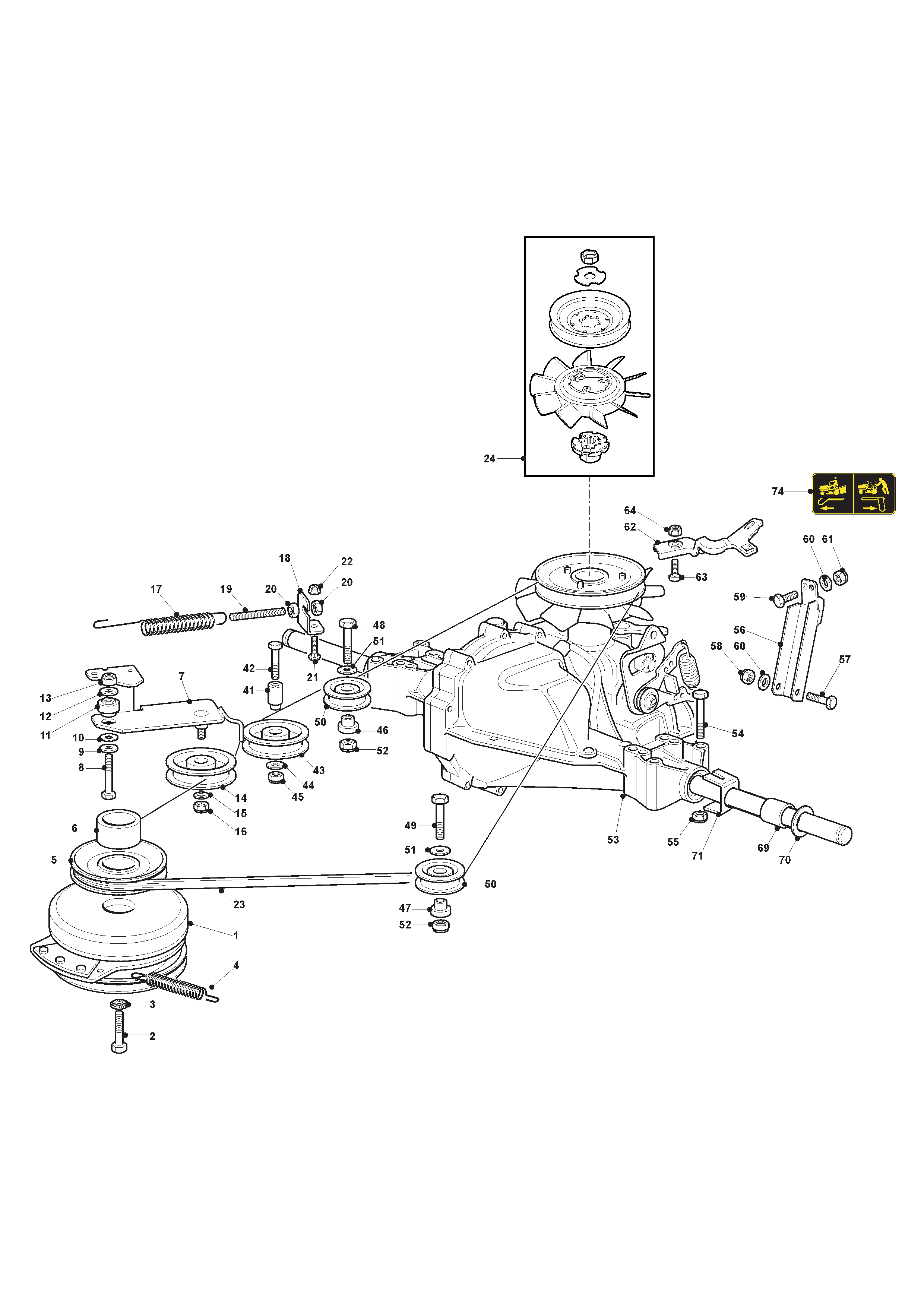

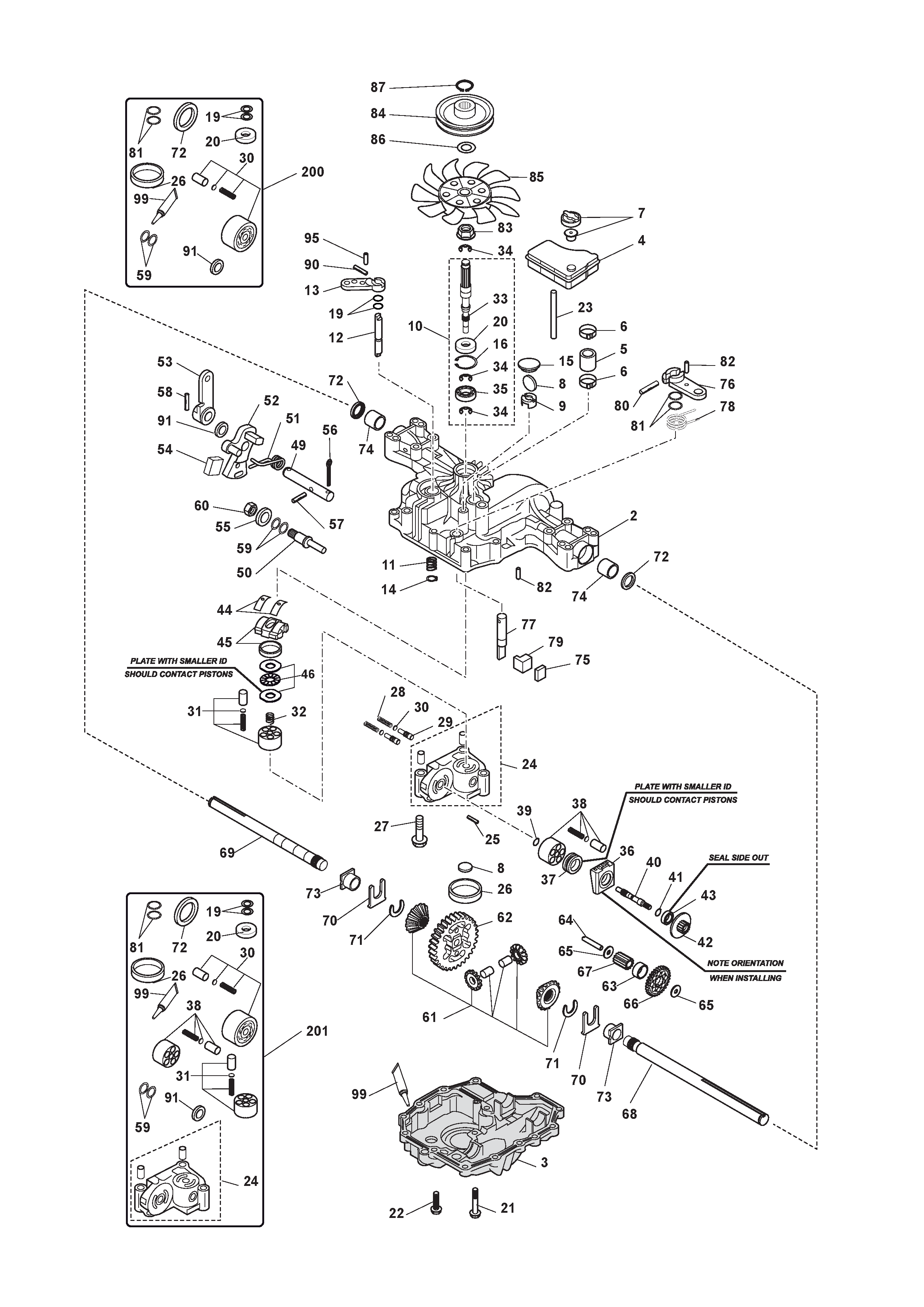

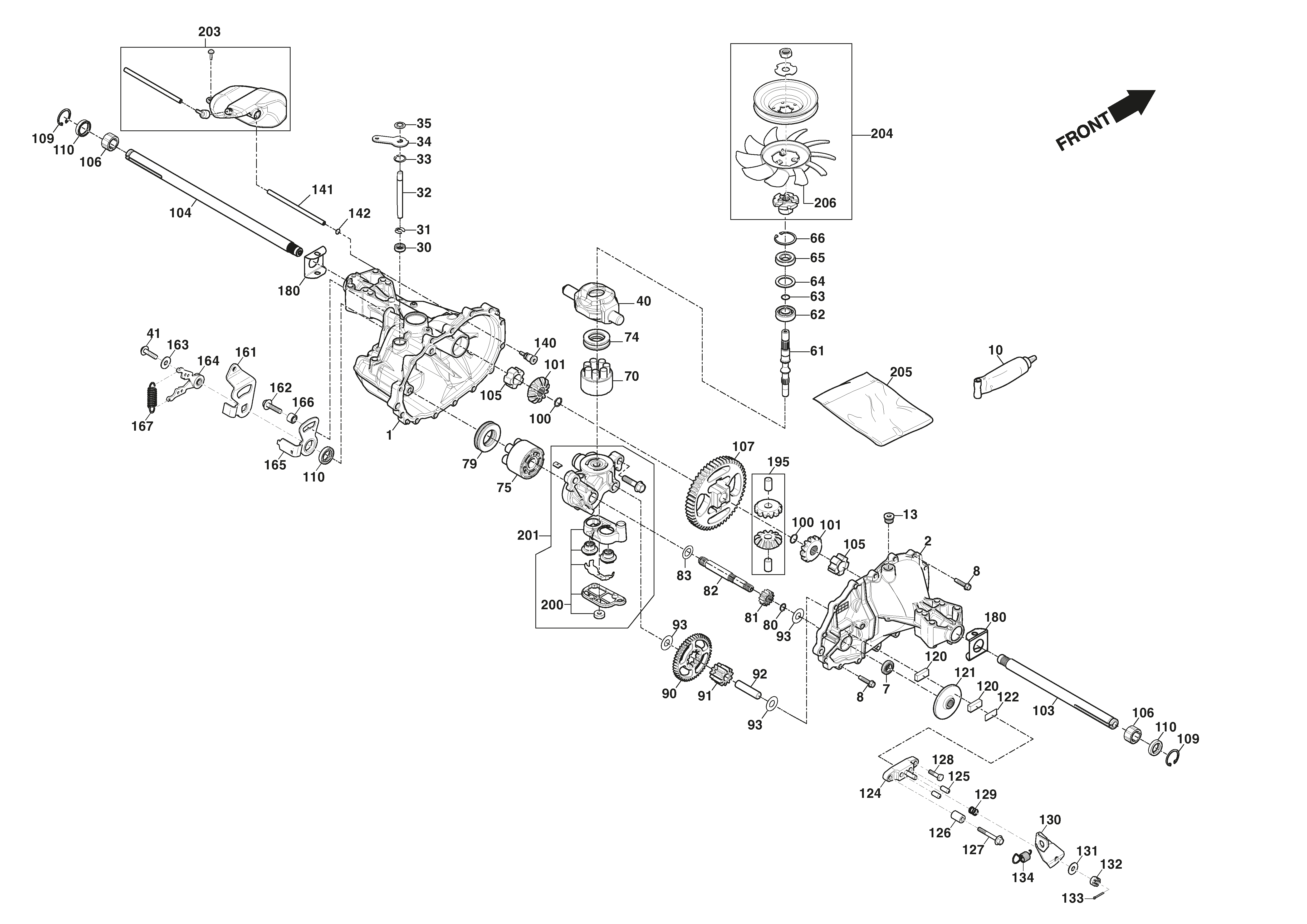

Hydrogear Transmission with Electromagnetic Clutch

Hydrogear Transmission with Electromagnetic Clutch

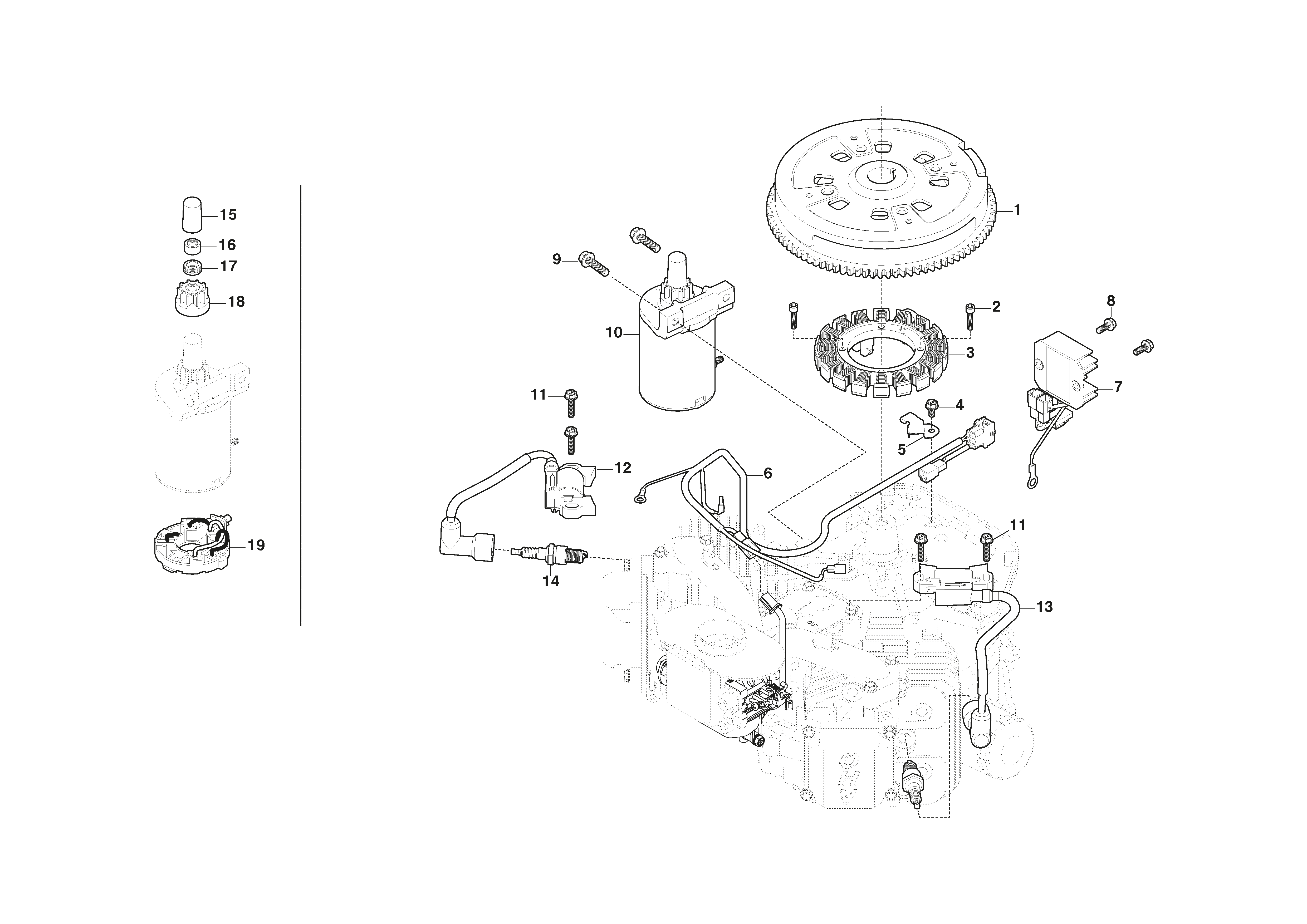

Ignition Coil, Starter Motor, Flywheel

Ignition Coil, Starter Motor, Flywheel

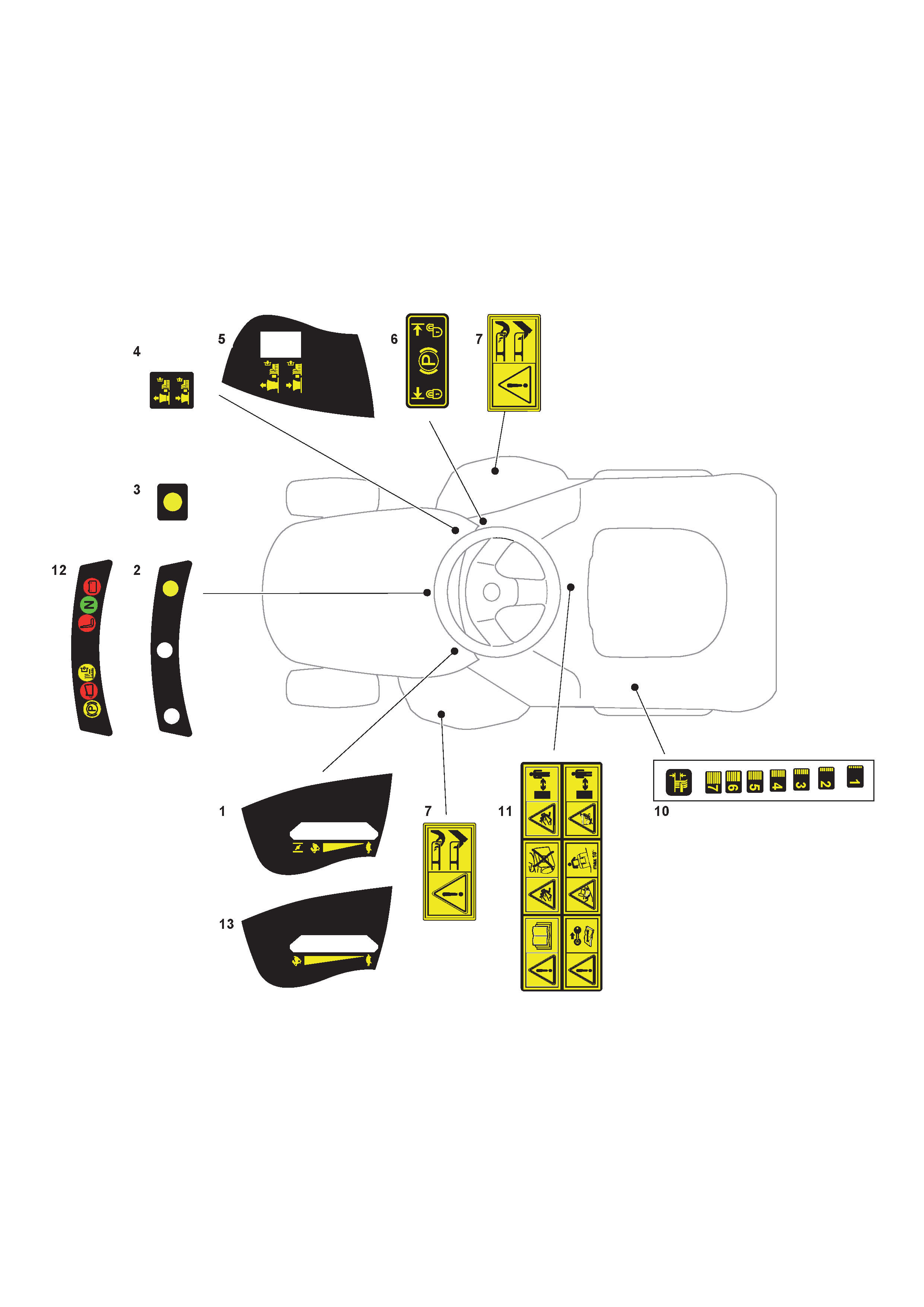

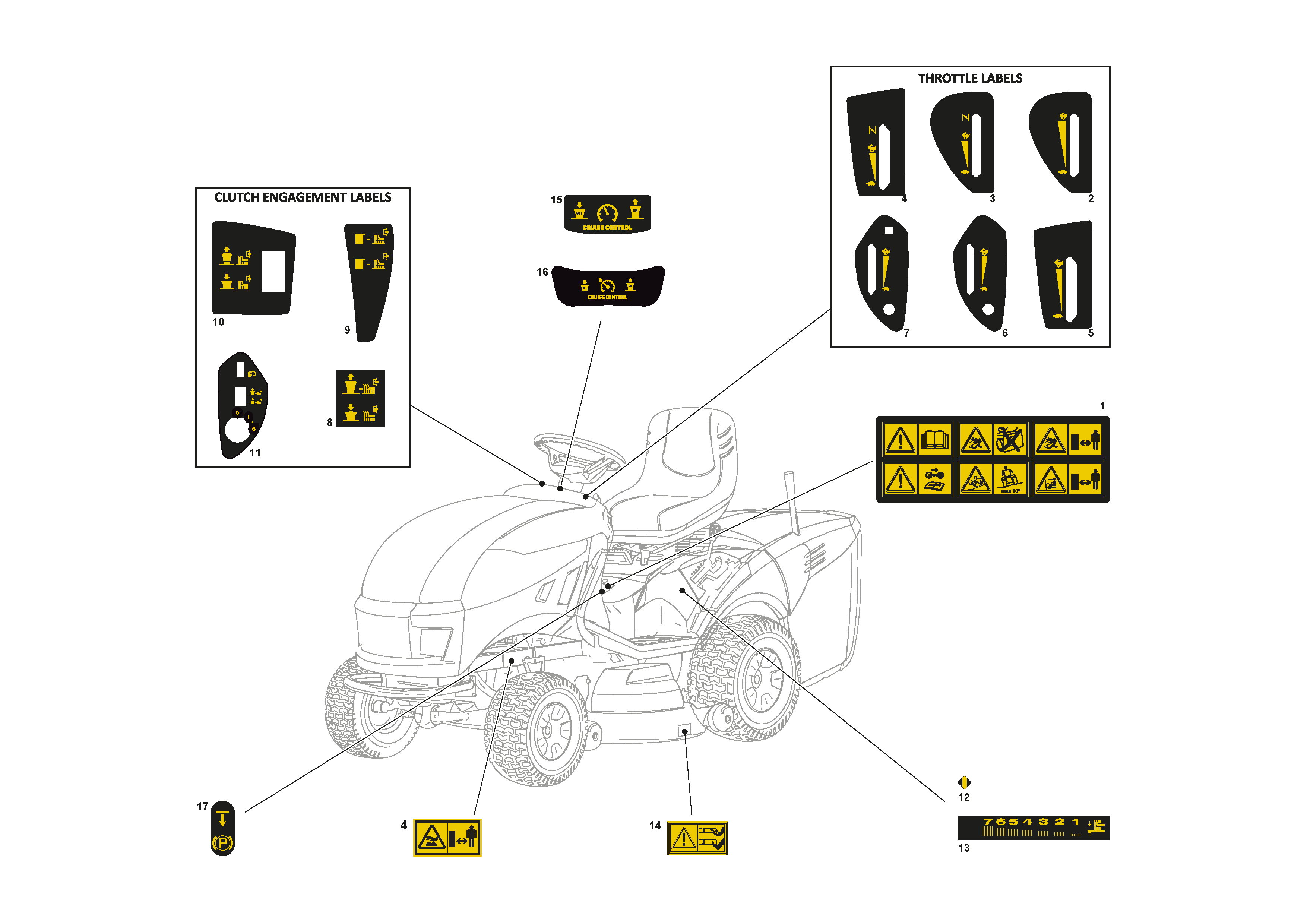

Labels

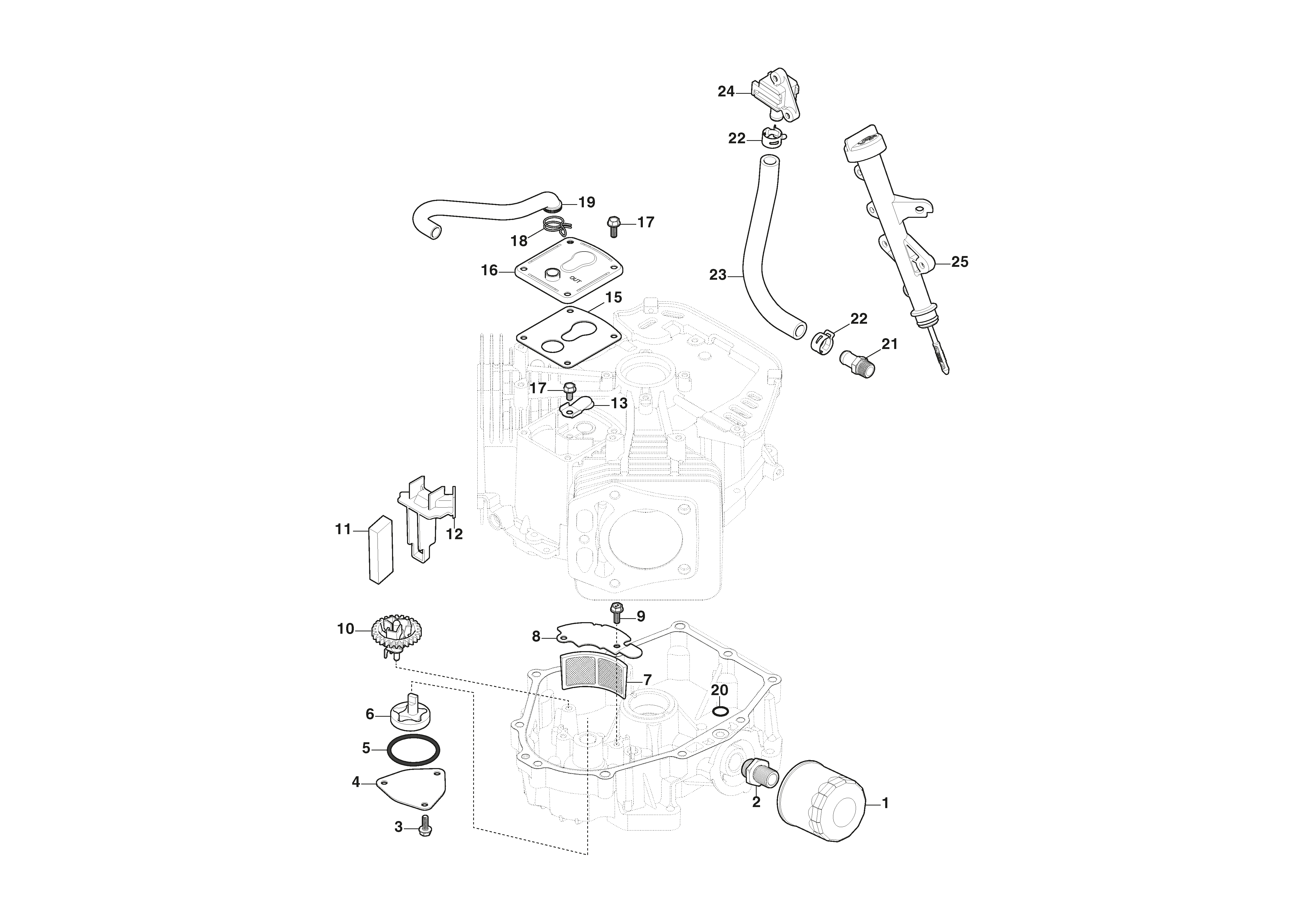

Oil Filter

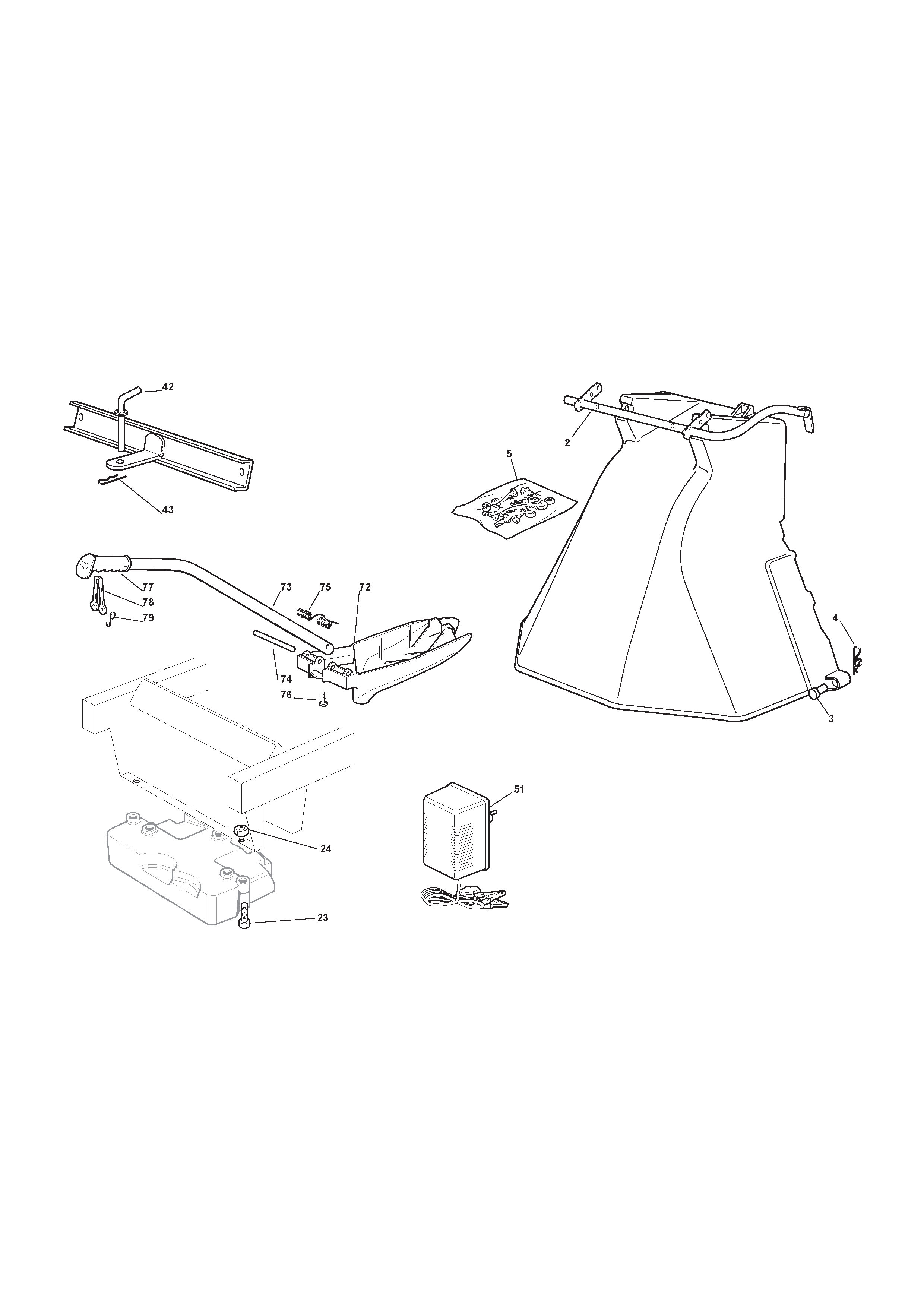

Optionals On Request

Optionals On Request

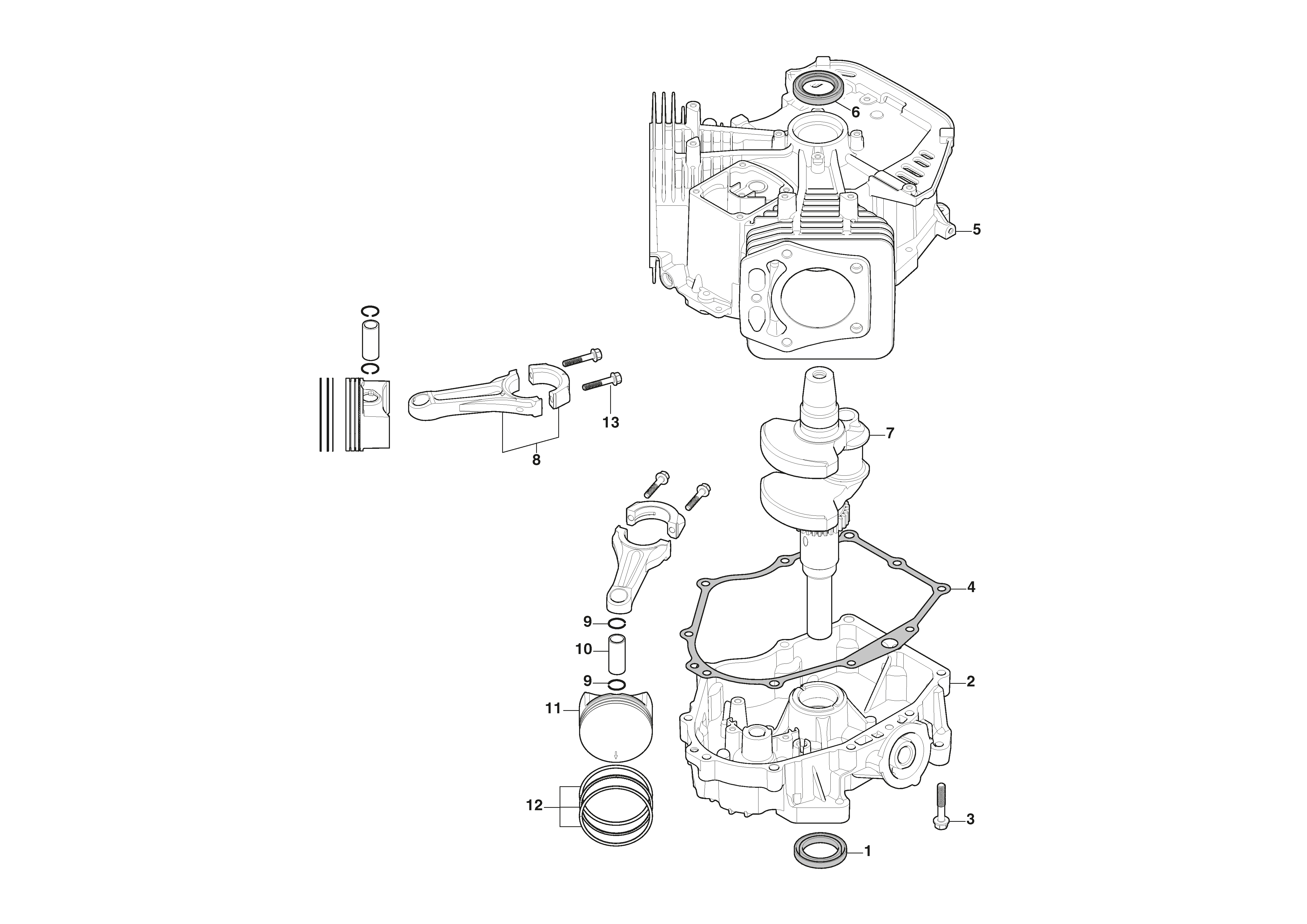

Piston, Crankshaft, Crankcase

Piston, Crankshaft, Crankcase

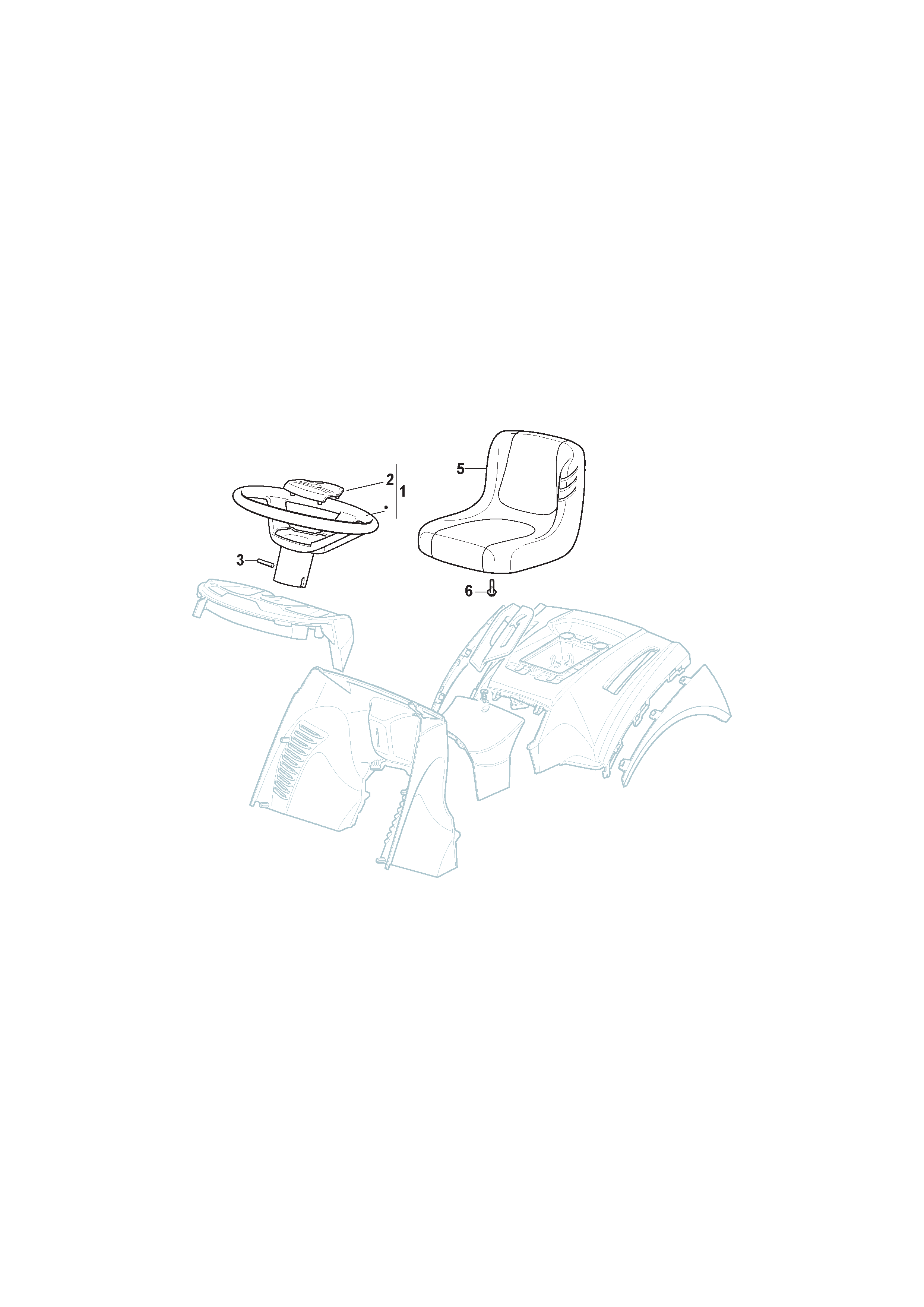

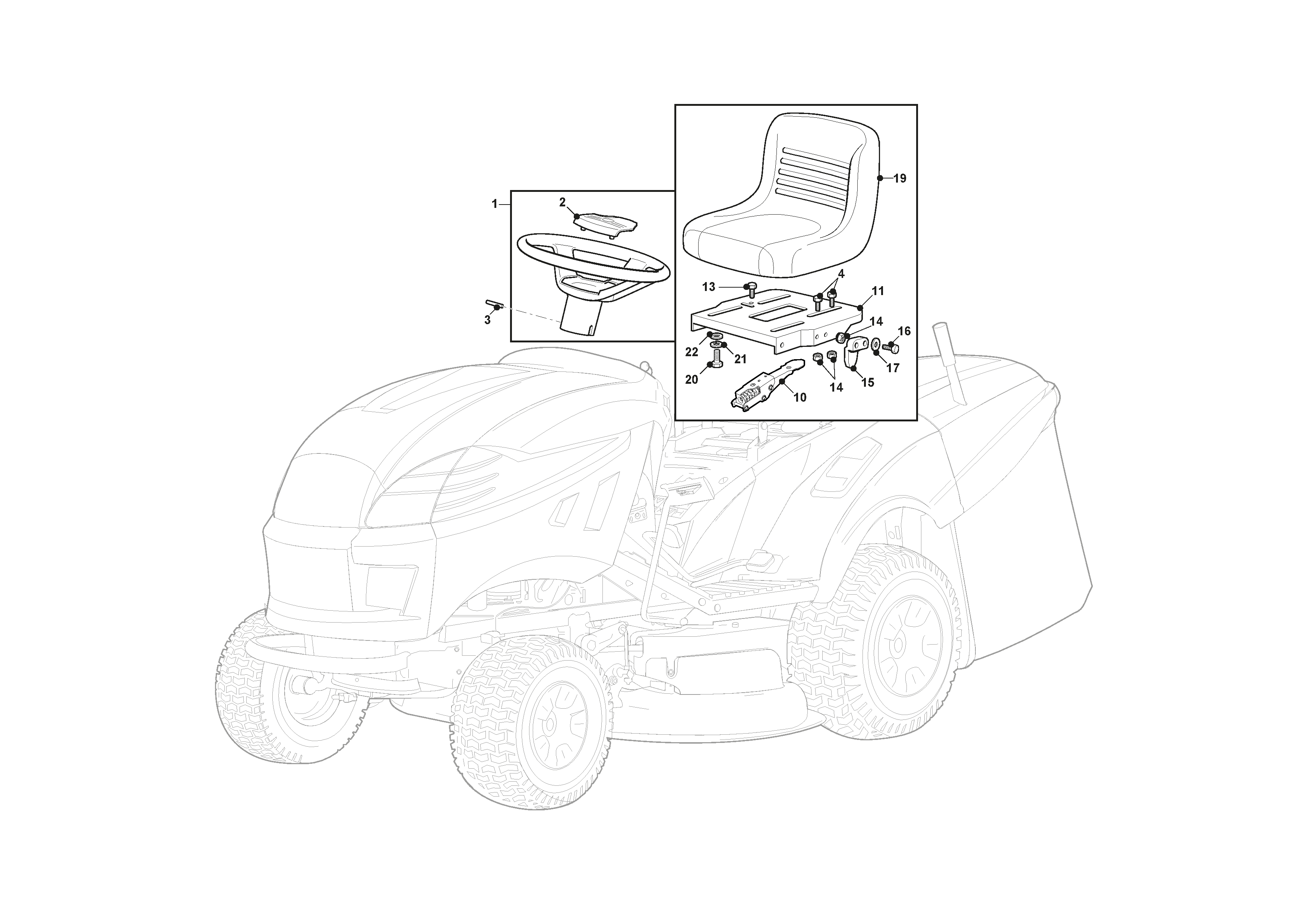

Seat & Steering Wheel

Seat & Steering Wheel

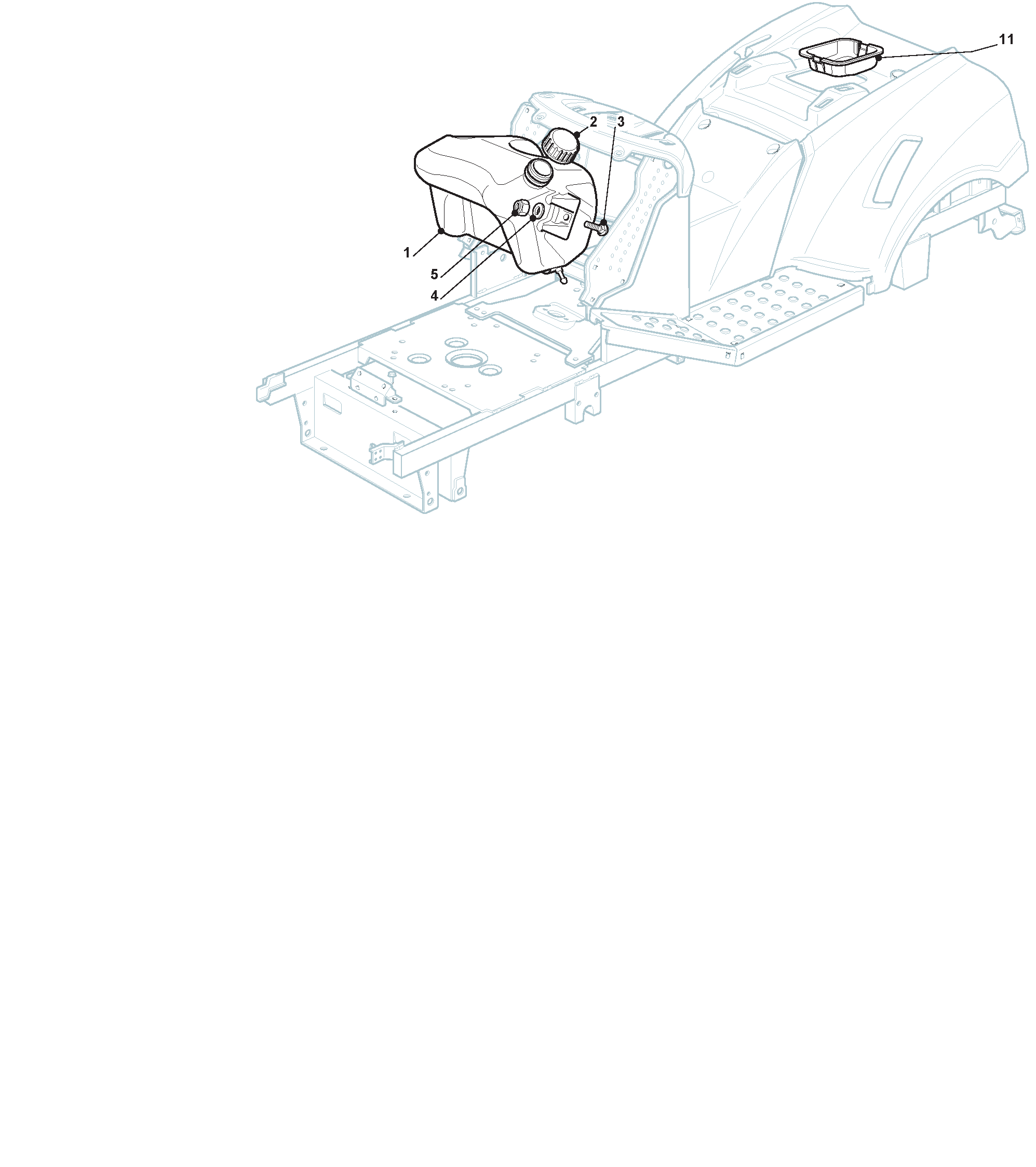

Tank 5,5 Lt

17X1

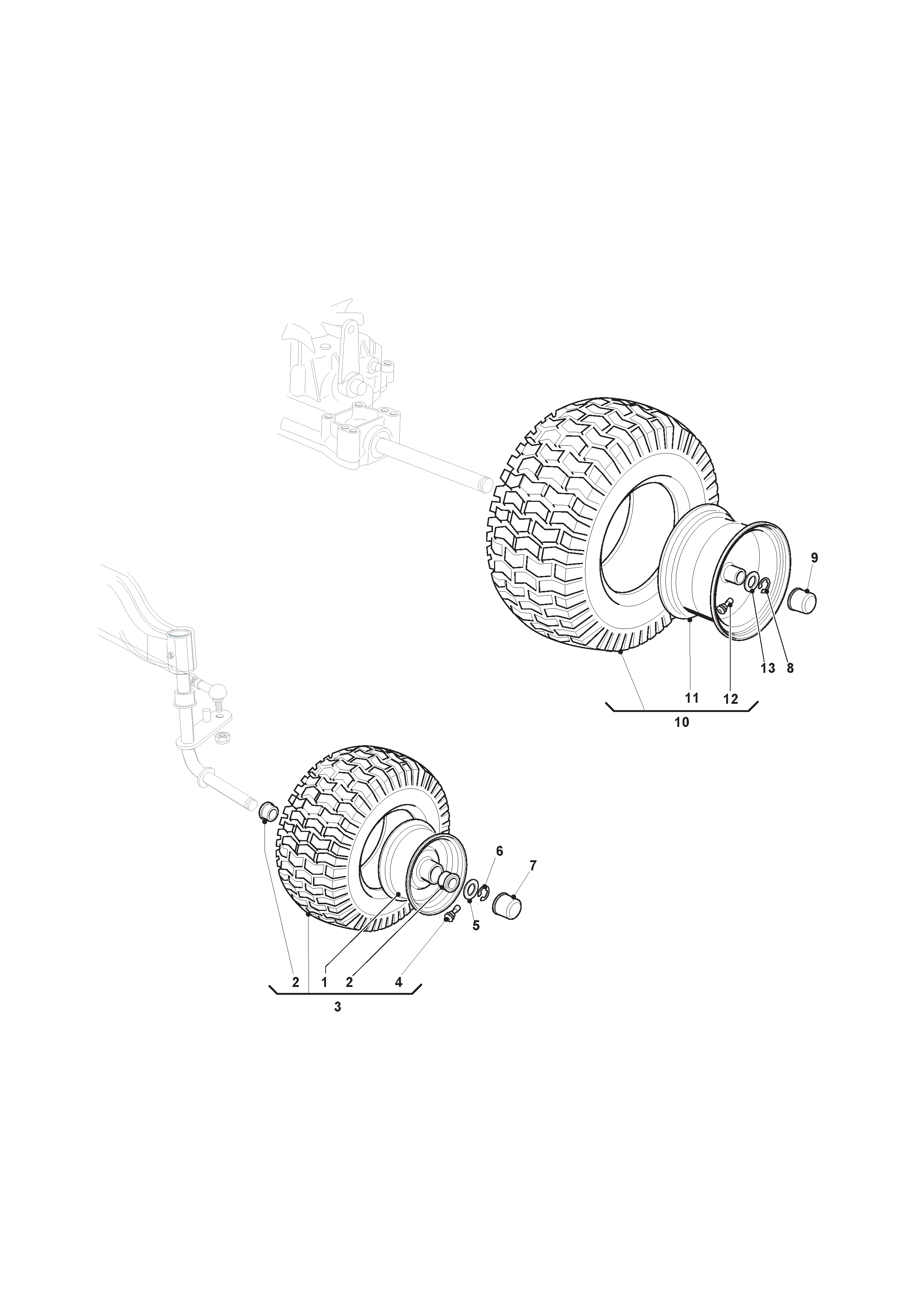

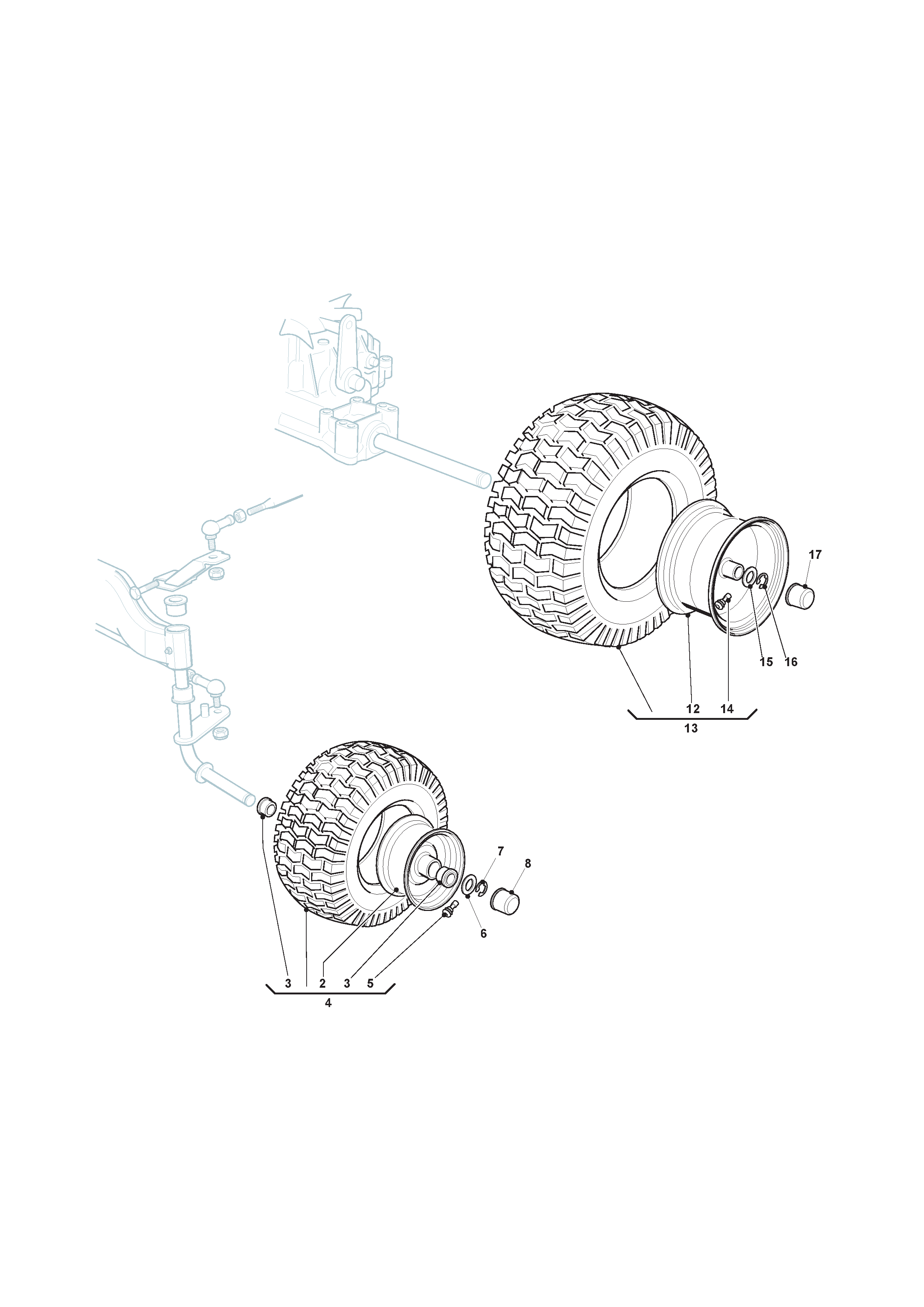

Wheels

2T0785483-M22 [2022-2023]

Body Work

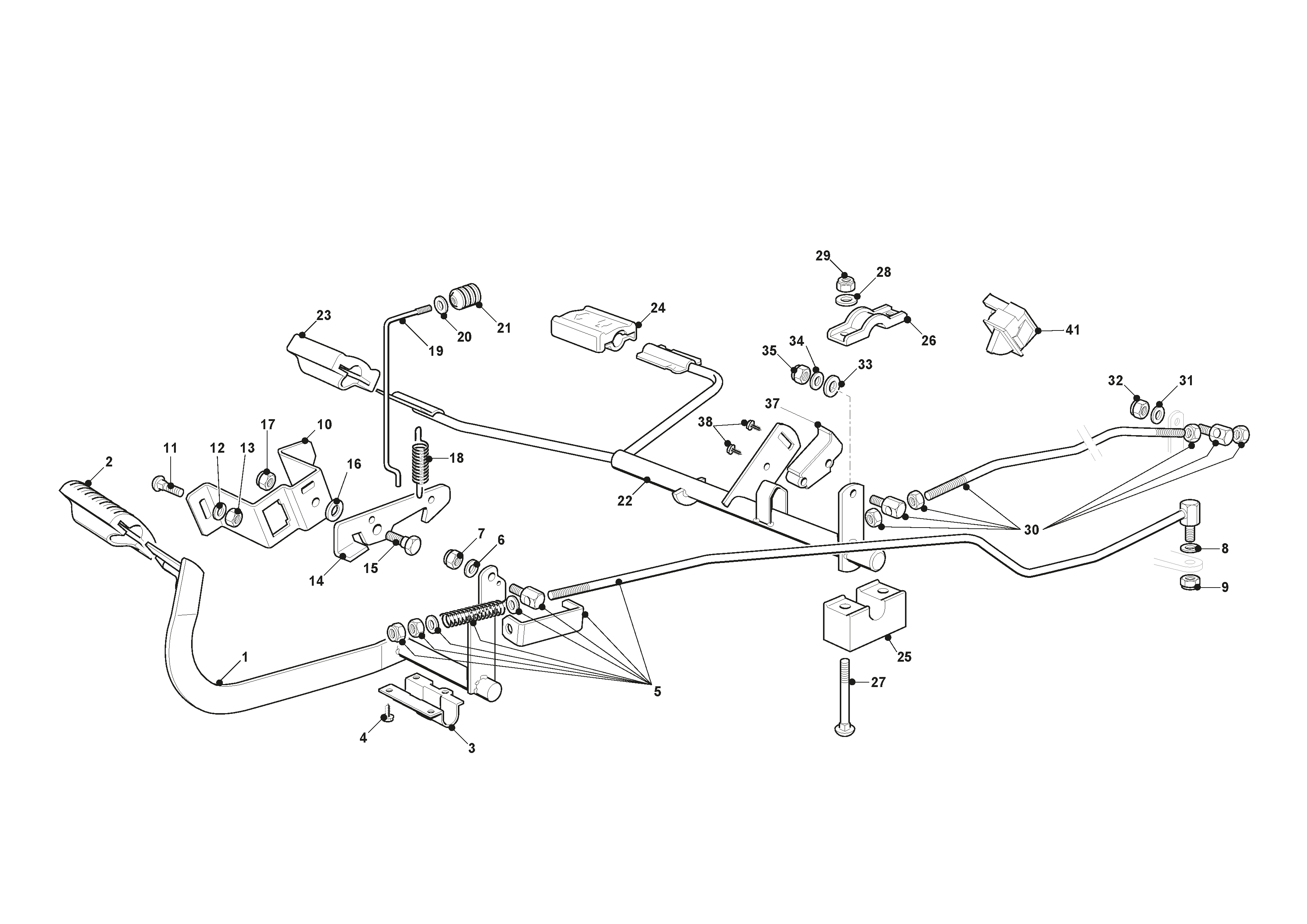

TT

Carburetor, Fuel Pump

Carburetor, Fuel Pump

Cutting Plate Lifting

Cutting Plate Lifting

Cutting Plate

Cylinder Head

Electrical Parts

Electrical Parts

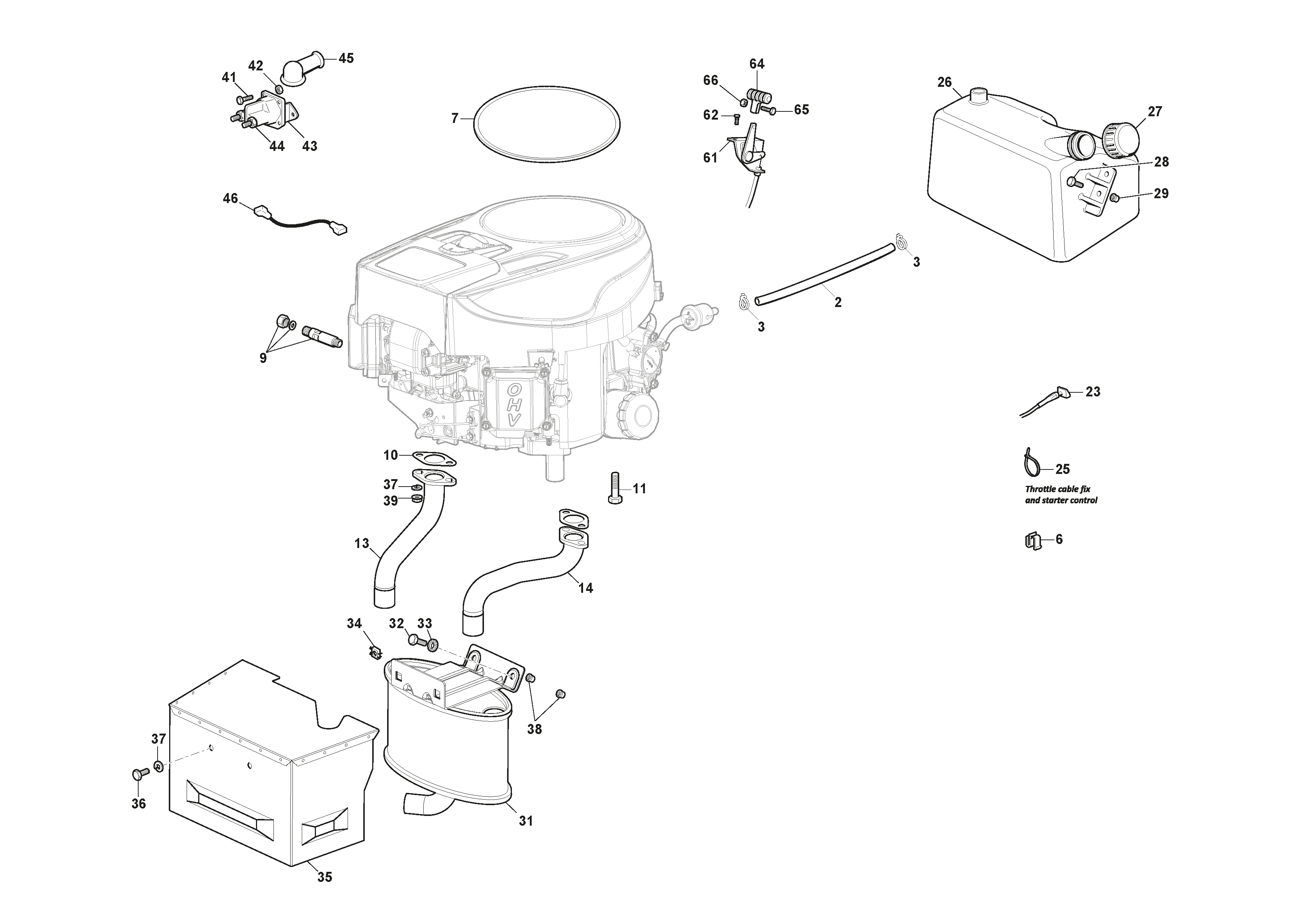

21Hp

Engine, Engine Cover

Engine, Engine Cover

Fan Cover, Air Cleaner

Fan Cover, Air Cleaner

Frame

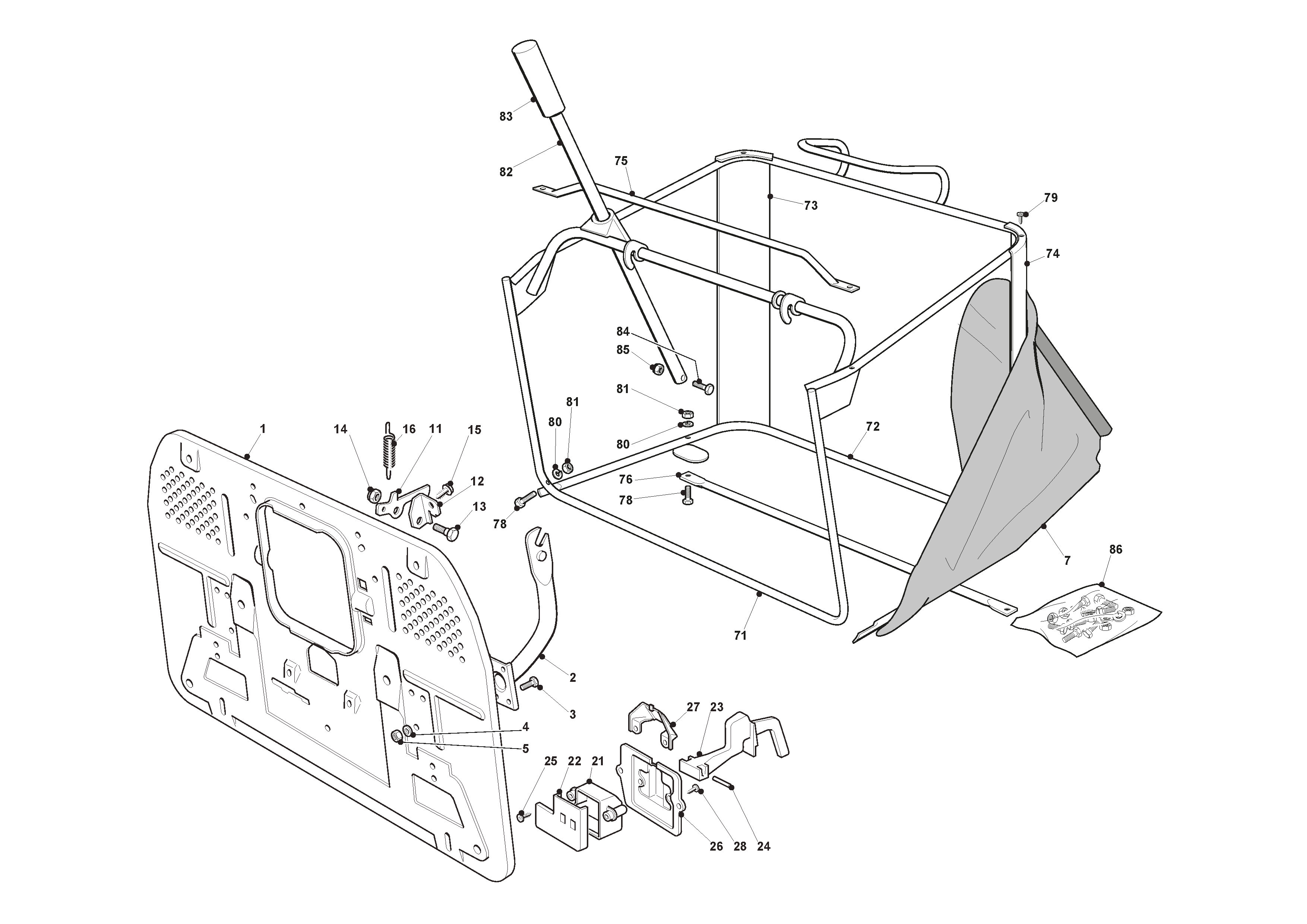

Grasscatcher

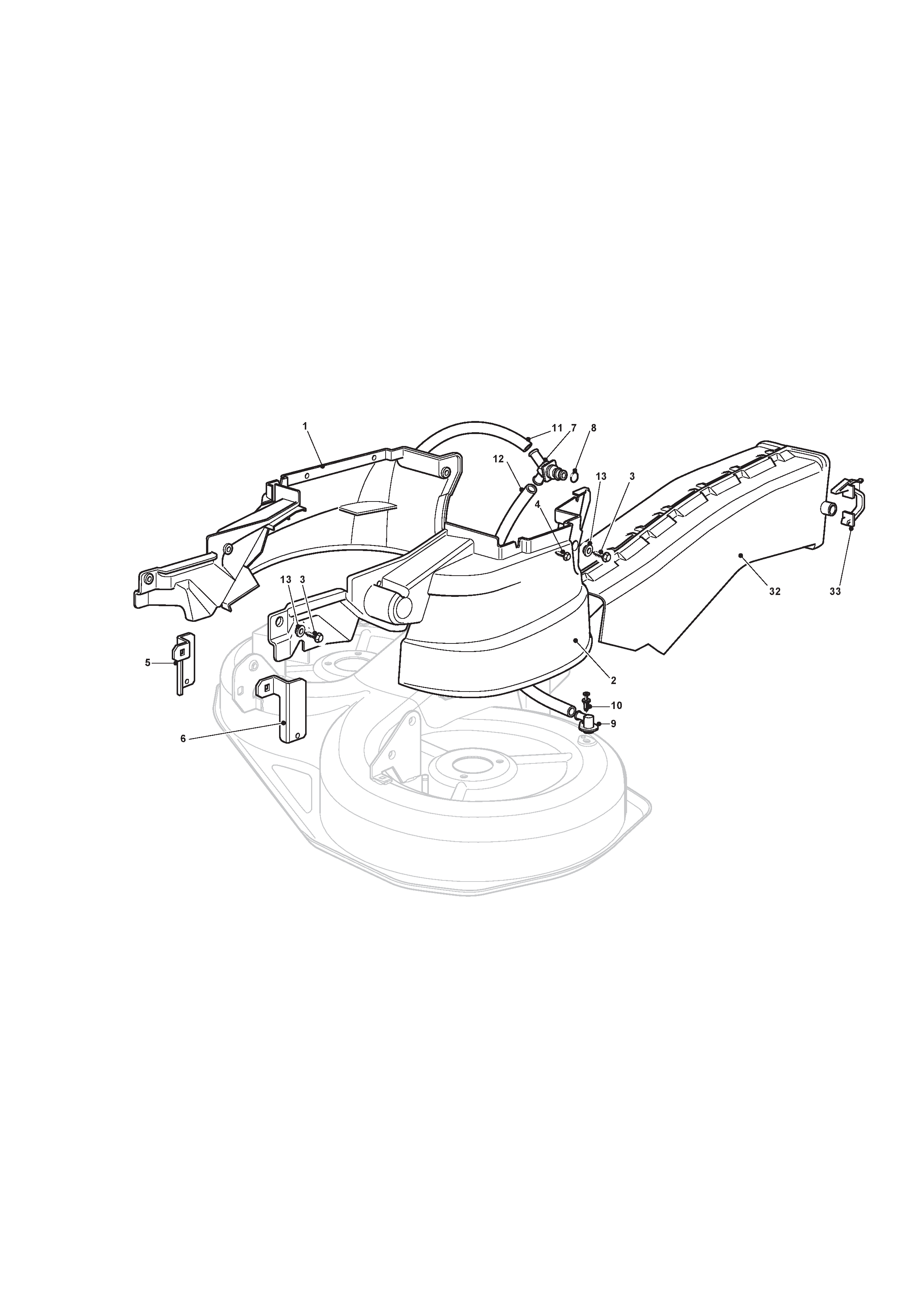

Guards And Conveyor

Guards And Conveyor

Ignition Coil, Starter Motor, Flywheel

Ignition Coil, Starter Motor, Flywheel

9999999)

Labels

Oil Filter

Piston, Crankshaft, Crankcase

Piston, Crankshaft, Crankcase

Seat & Steering Wheel

Seat & Steering Wheel

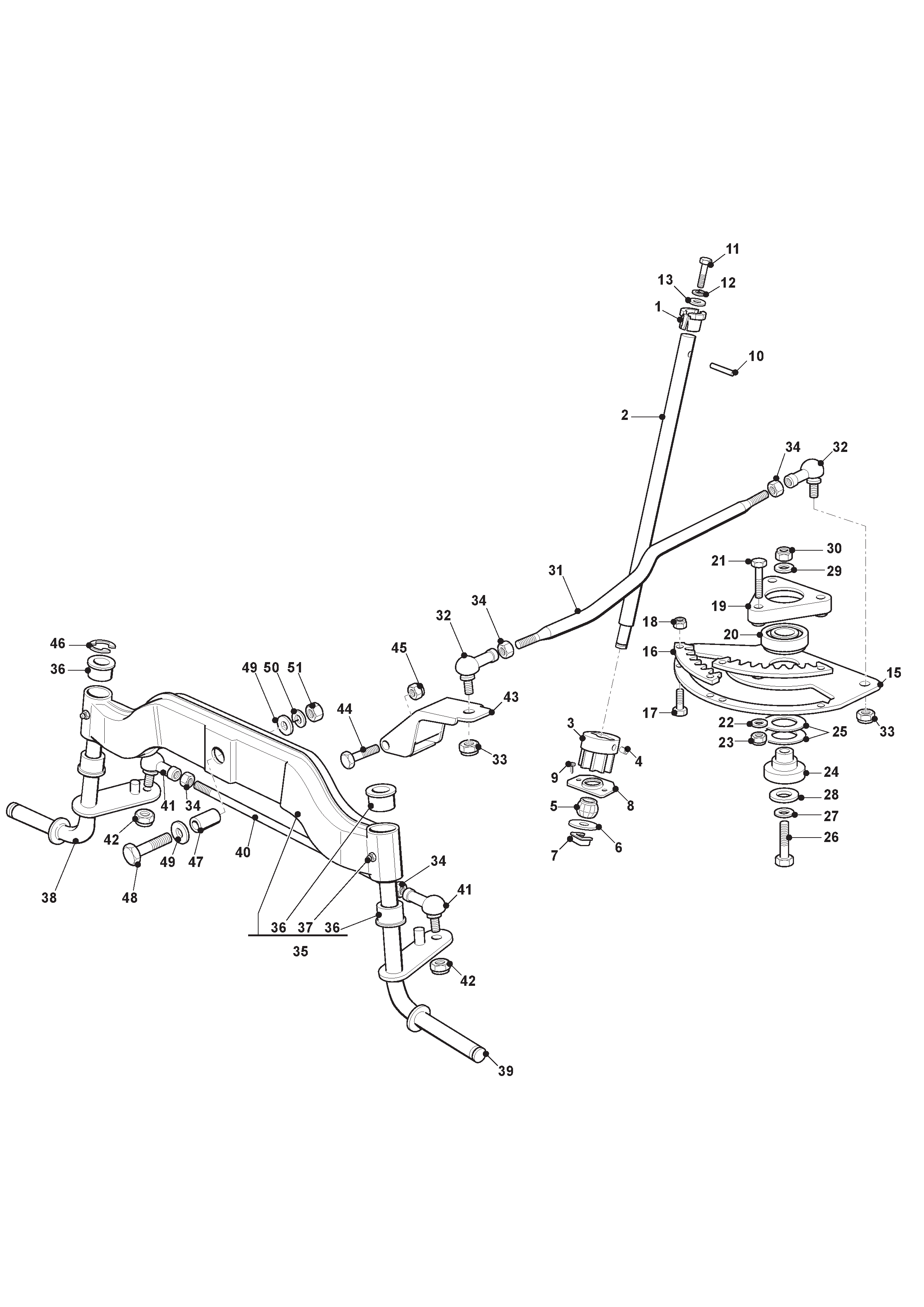

Steering

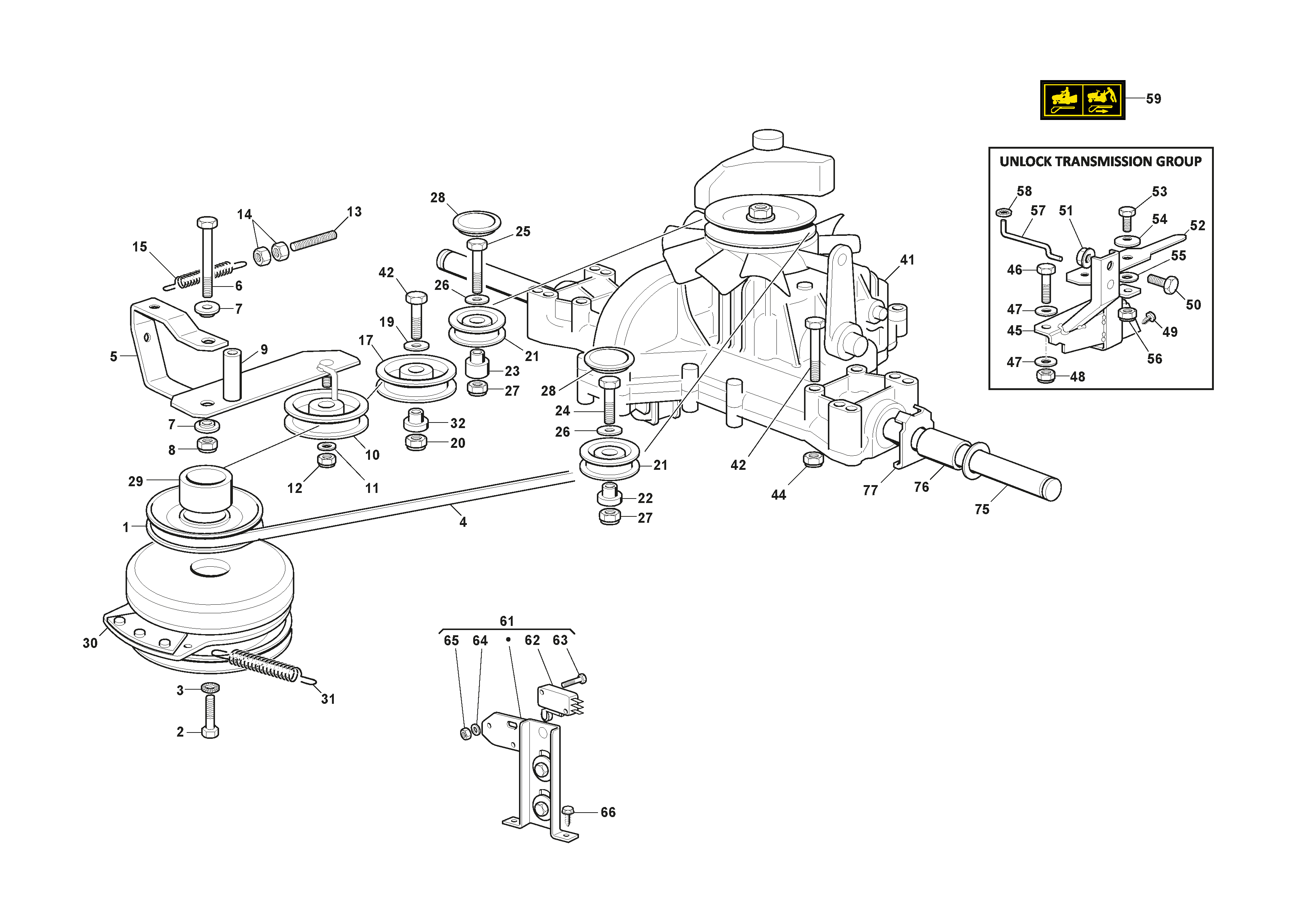

TT Transmission with Ogura Electromagnetic Clutch

TT Transmission with Ogura Electromagnetic Clutch

Wheels

Can't see your part?
