Diagrams for the Mountfield 1538M Lawn Tractor
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Mountfield 1538M Lawn Tractor.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Mountfield 1538M Lawn Tractor
2T2520483-M16 [2016-2019]

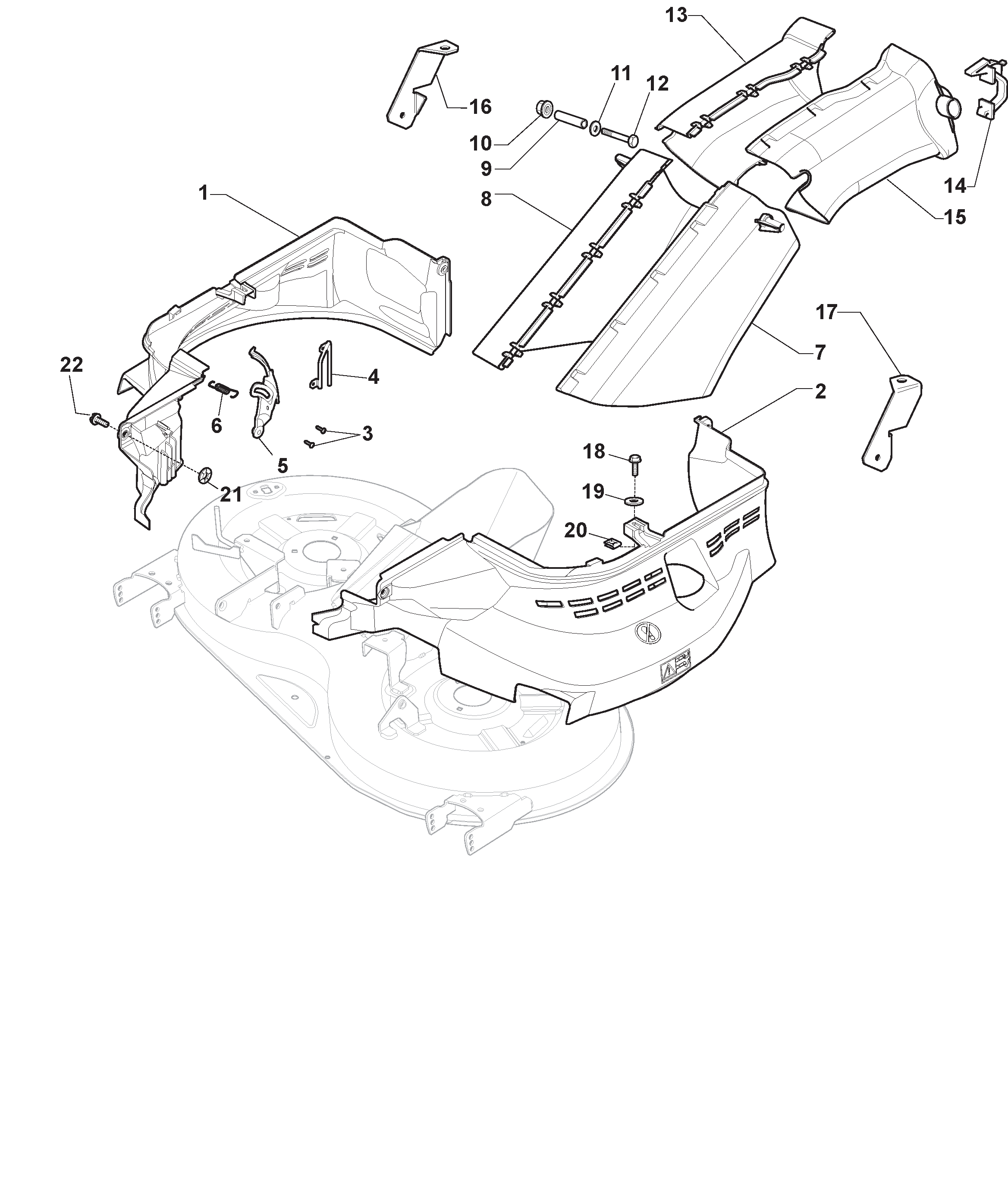

Belt Protection

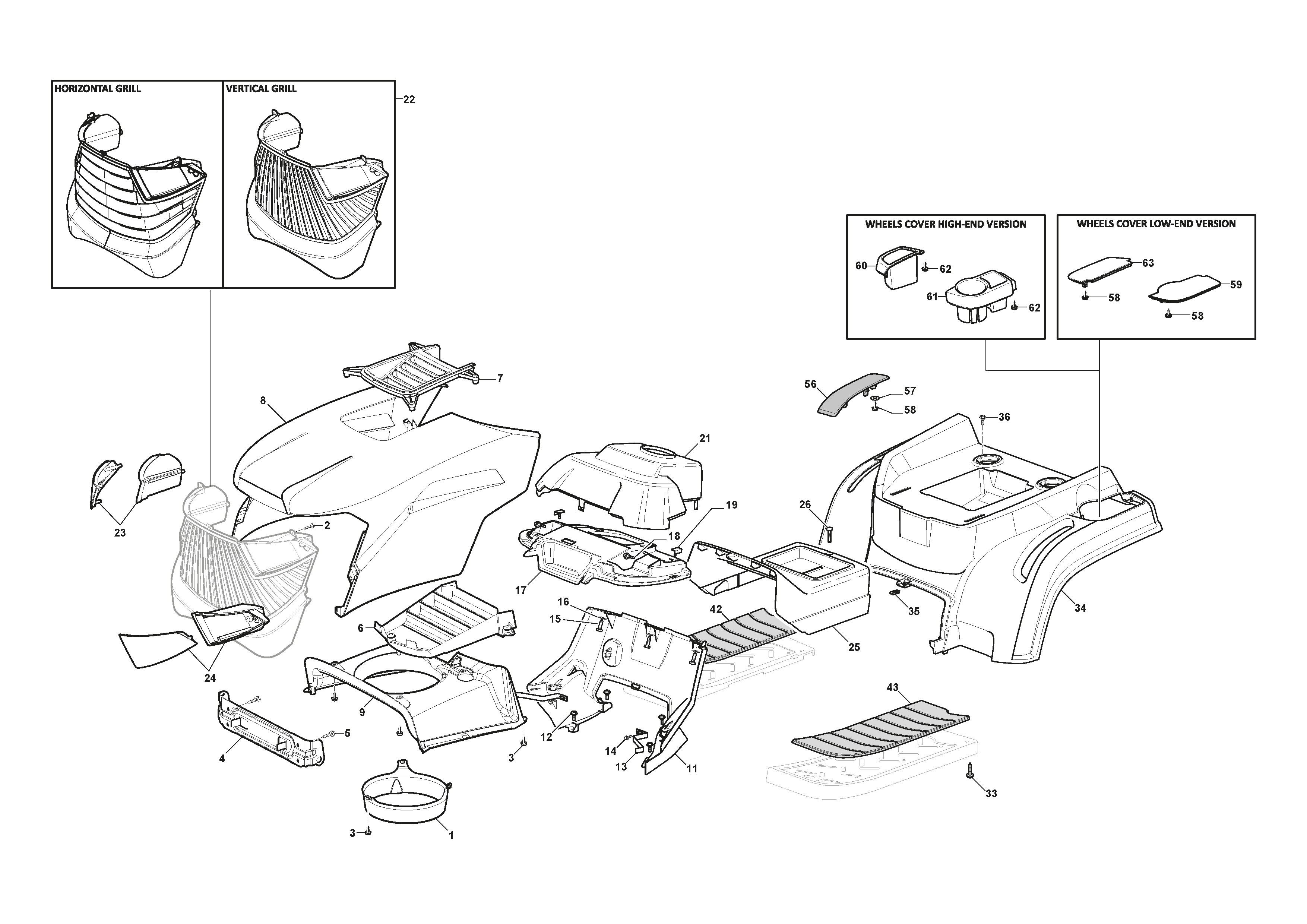

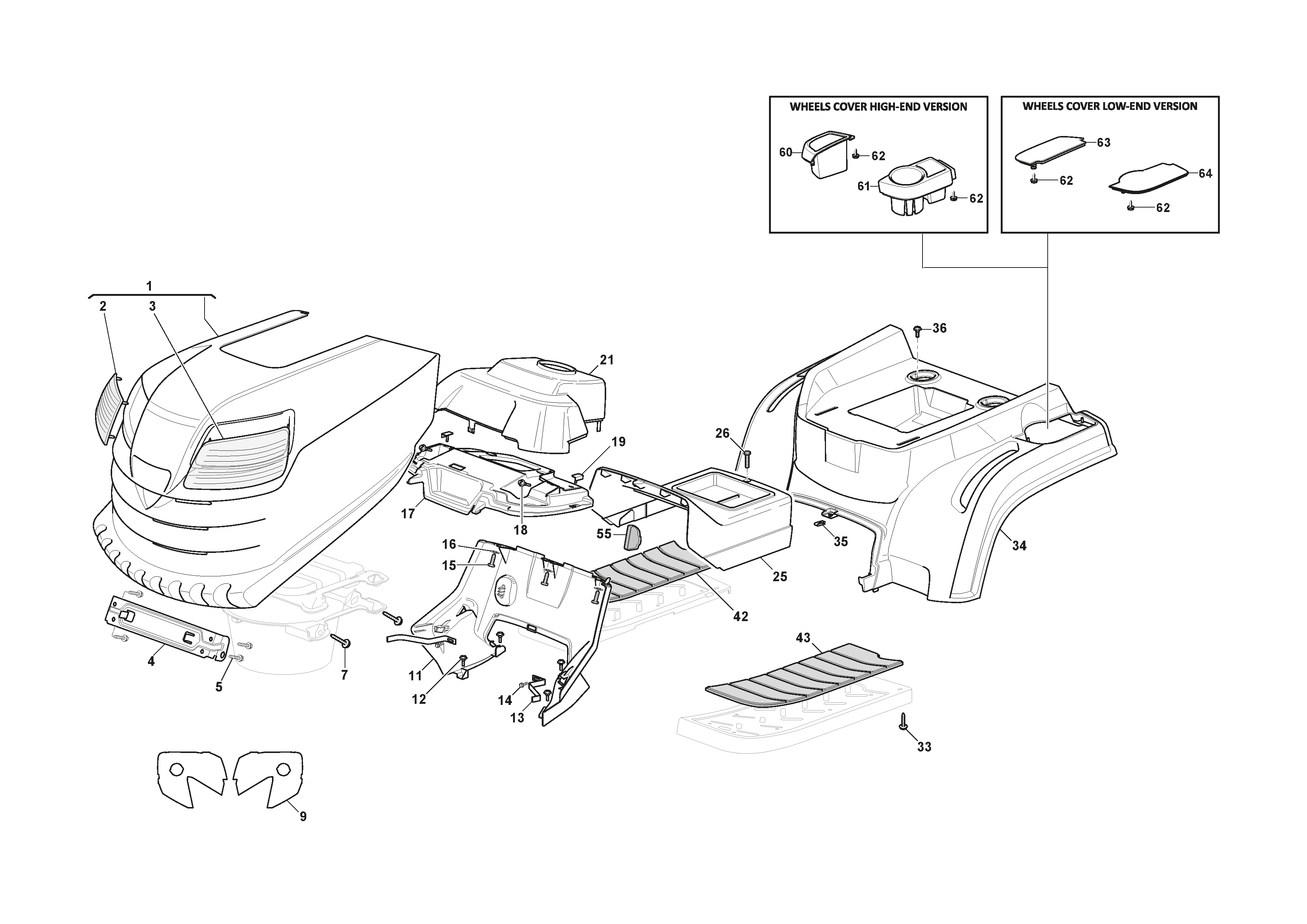

Body Work

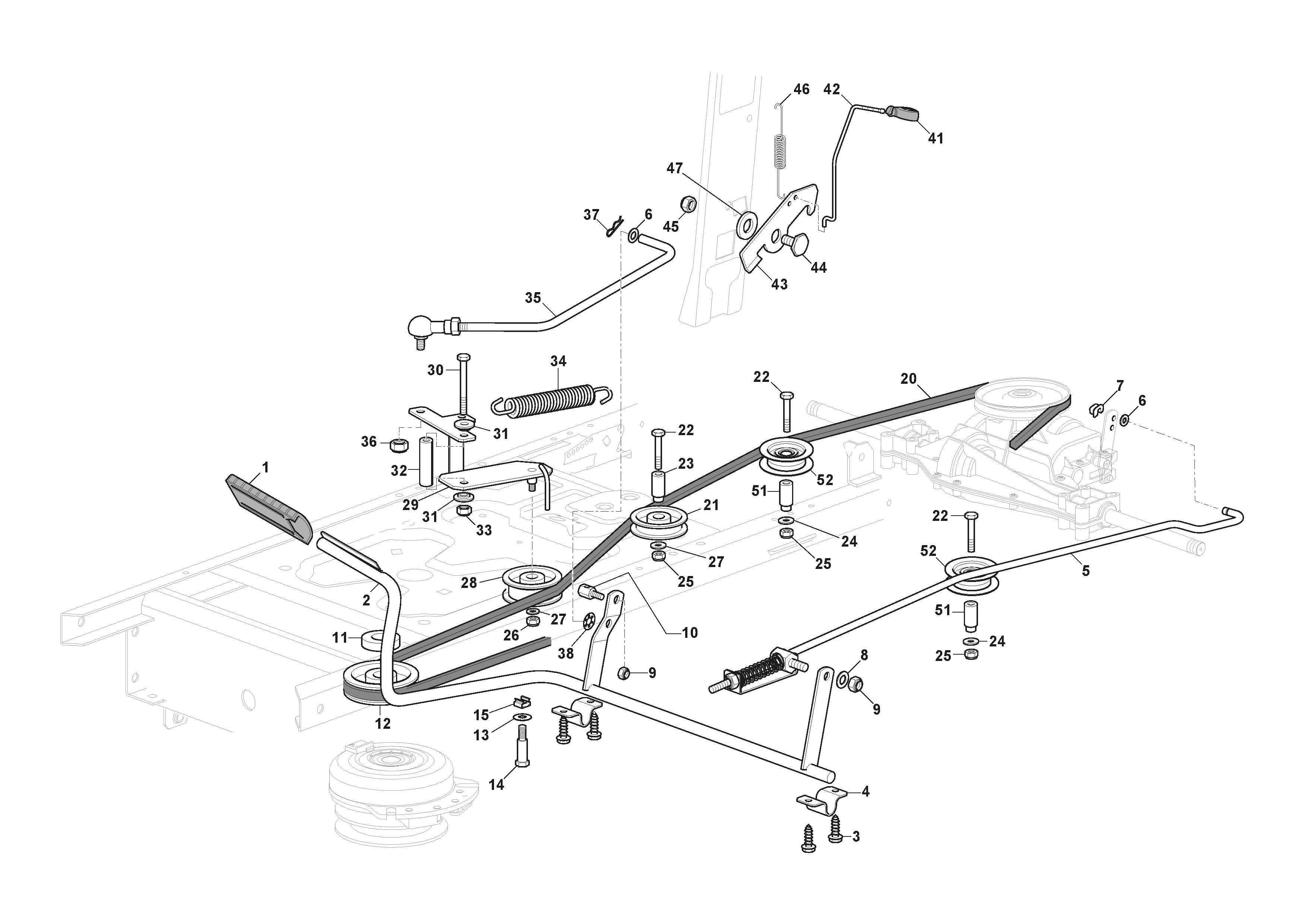

Brake And Gearbox Controls

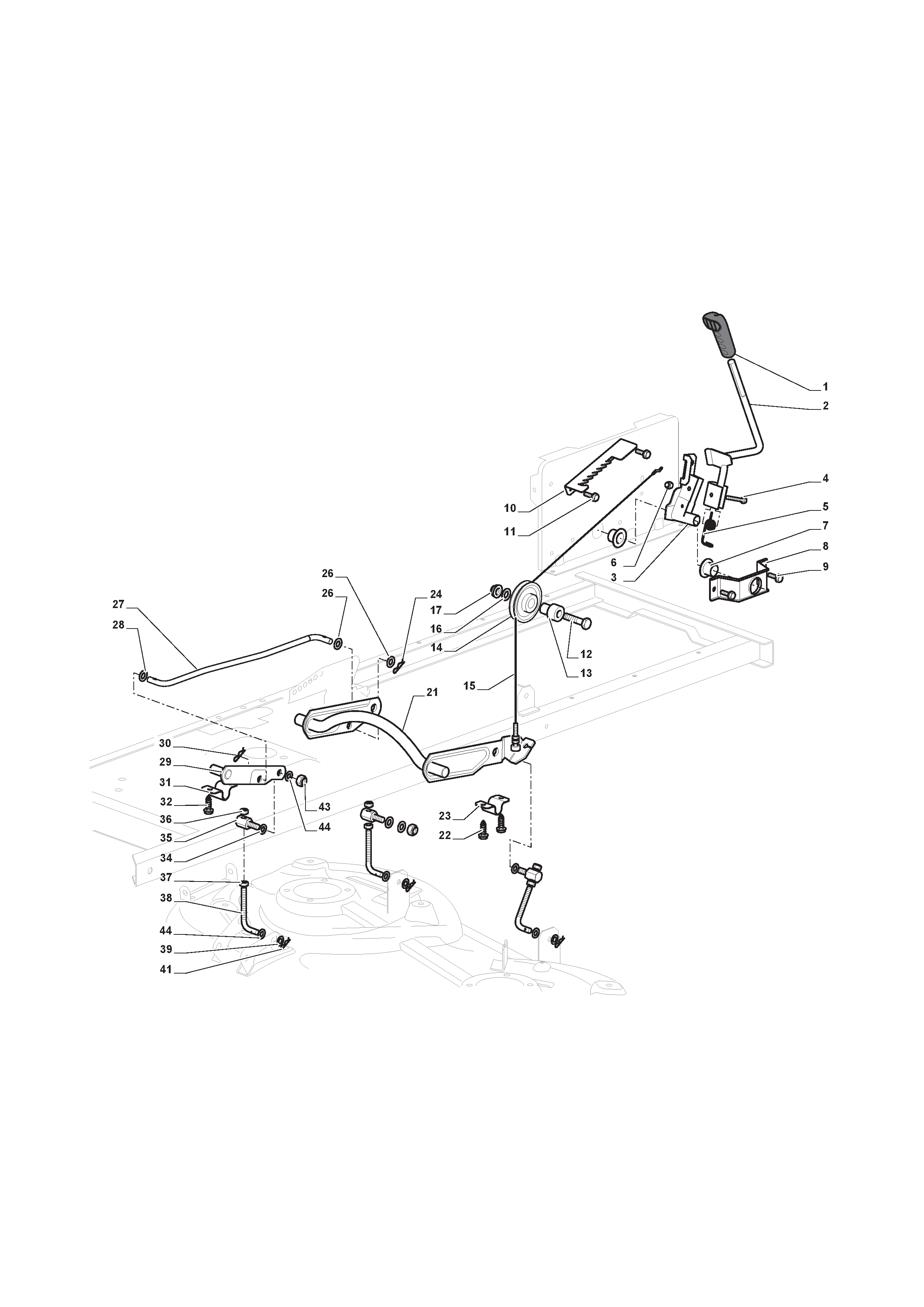

Cutting Plate Lifting

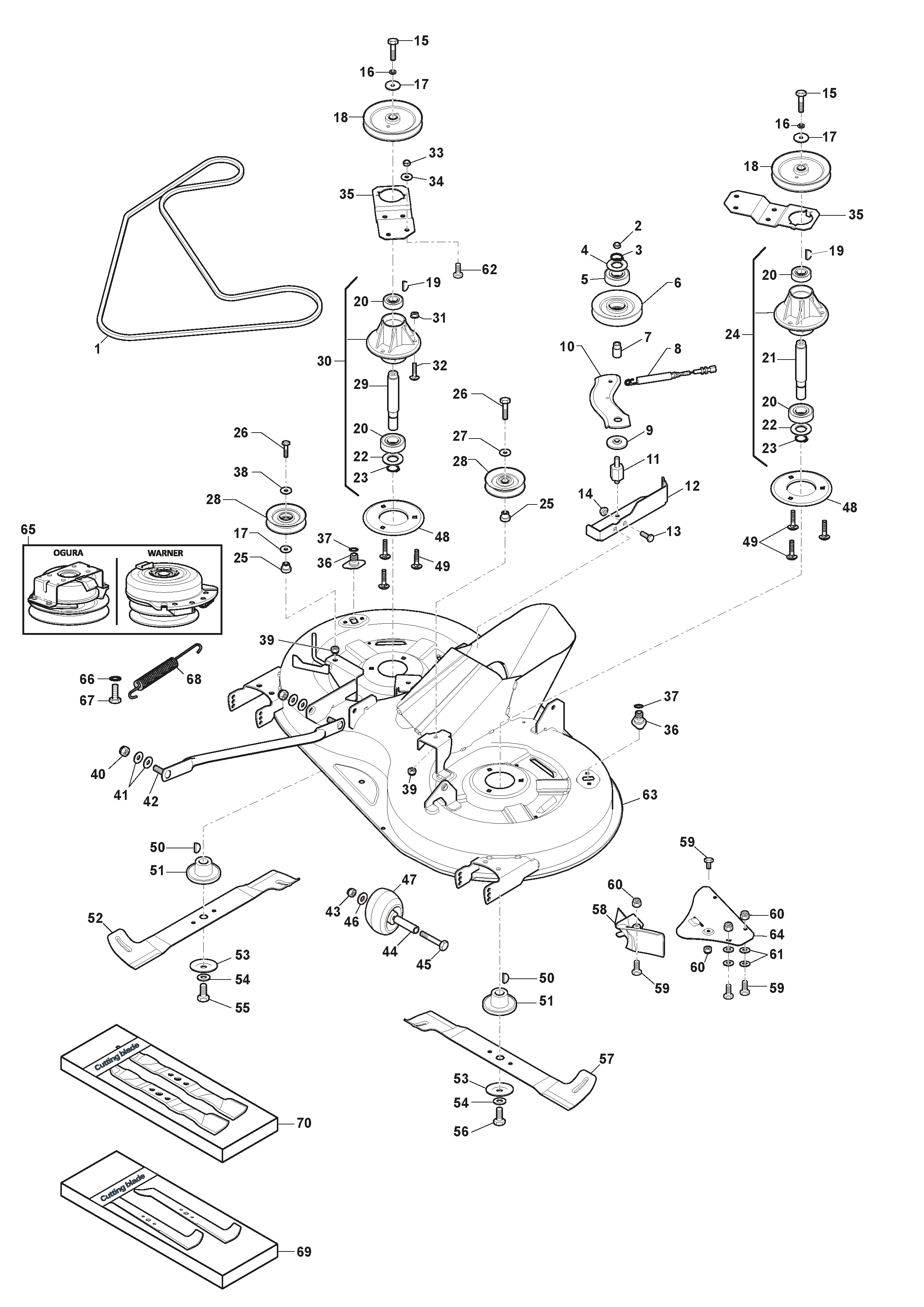

Cutting Plate with Electromagnetic Clutch

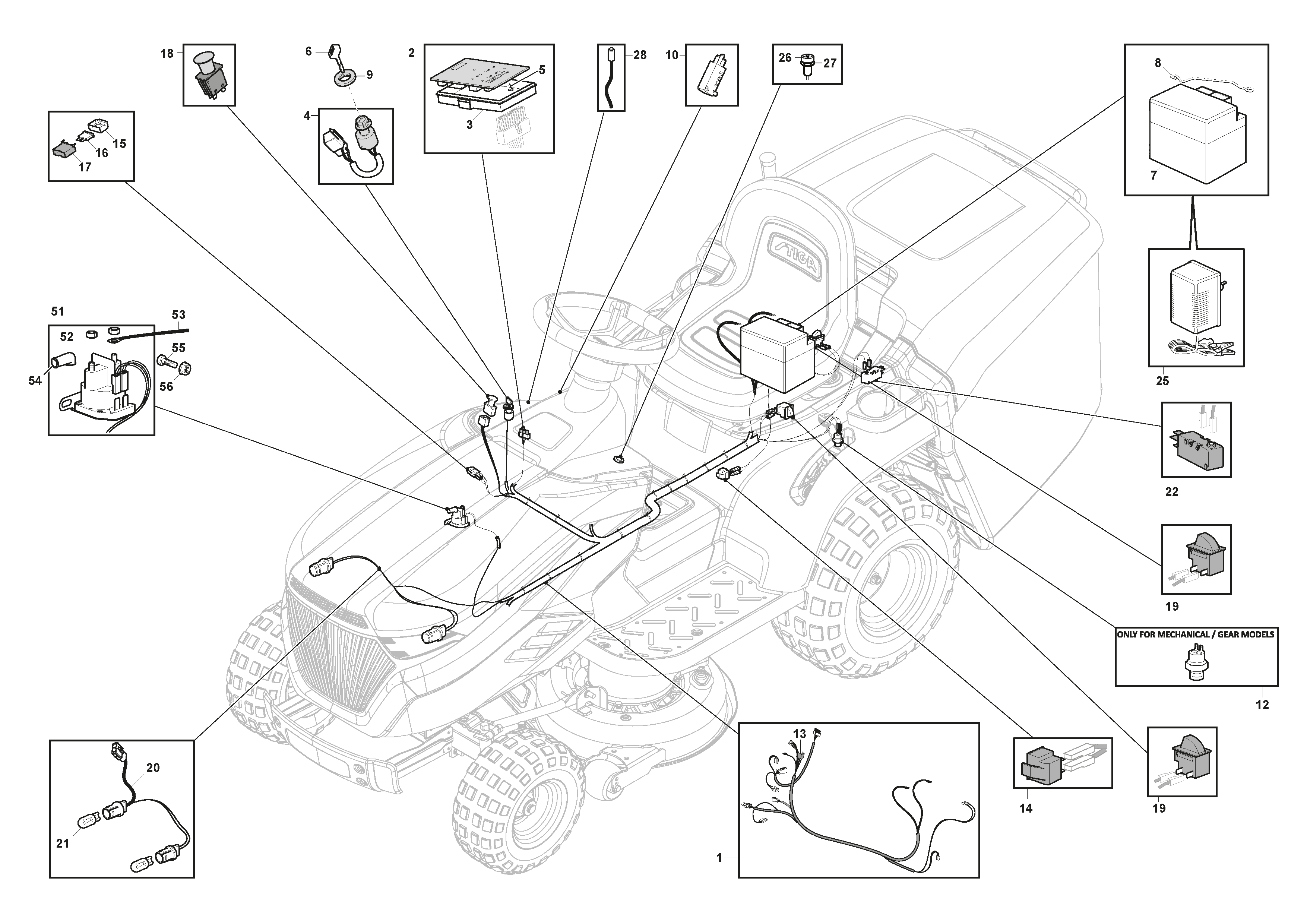

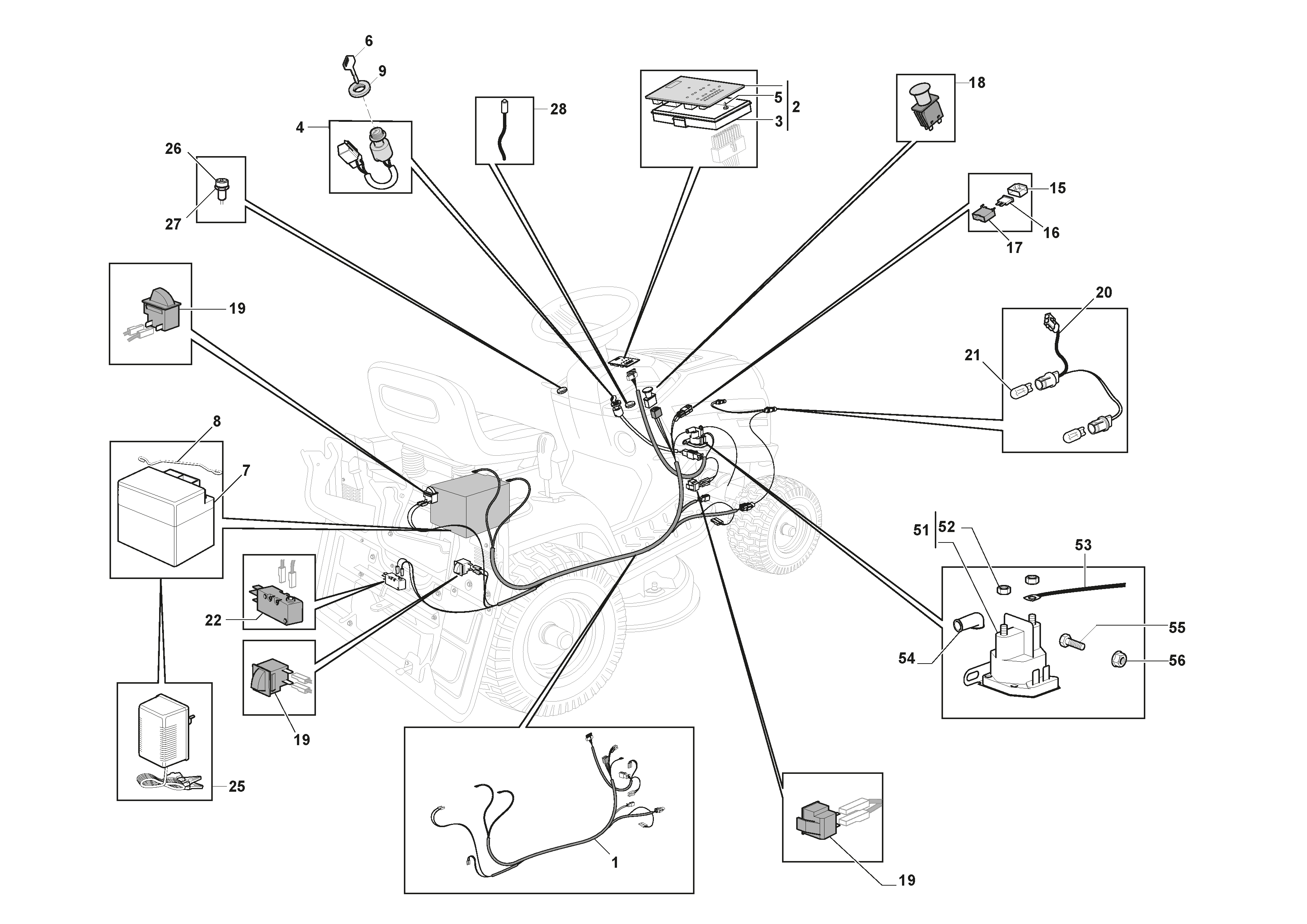

Electrical Parts

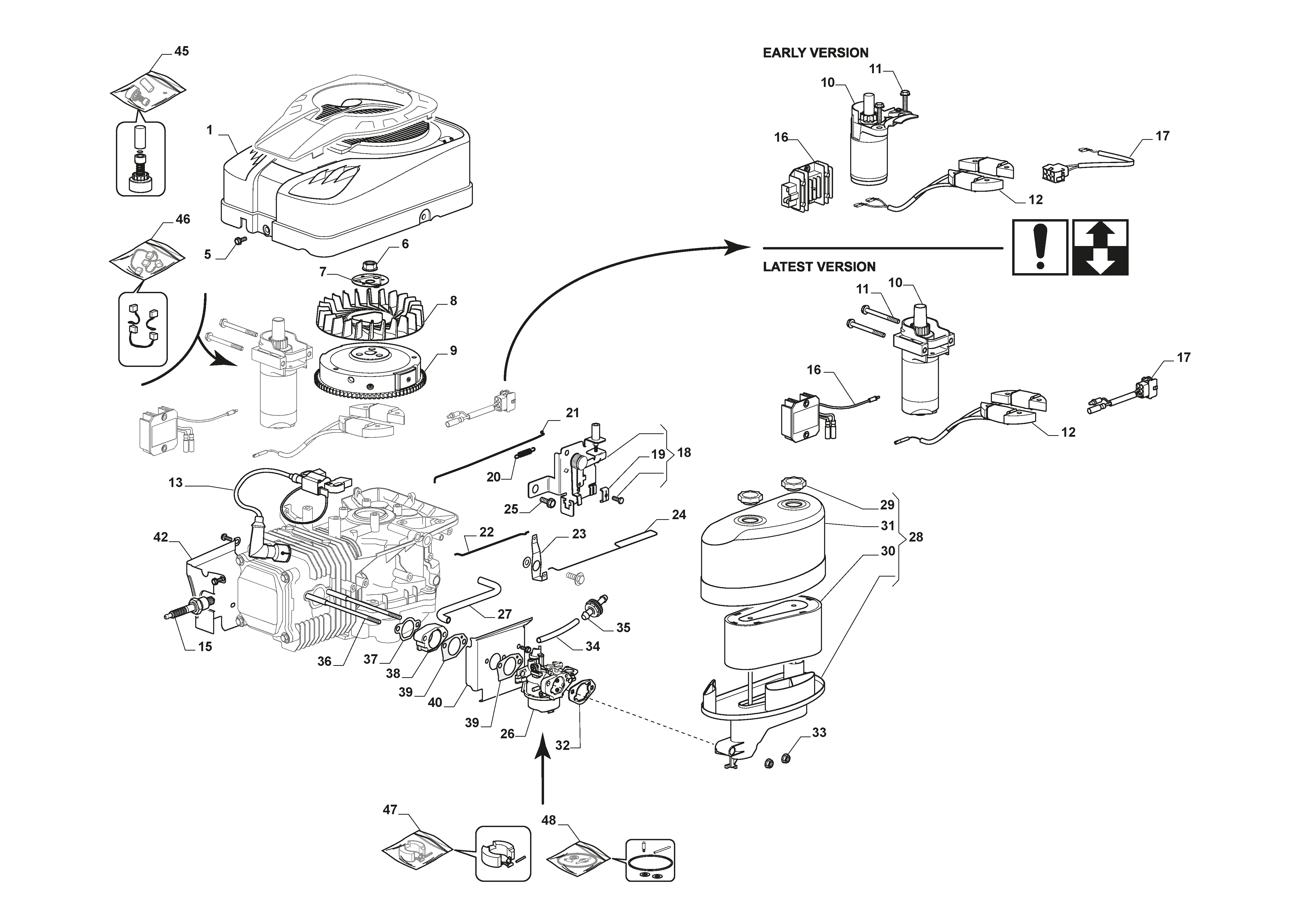

Carburettor, Air Cleaner Assy

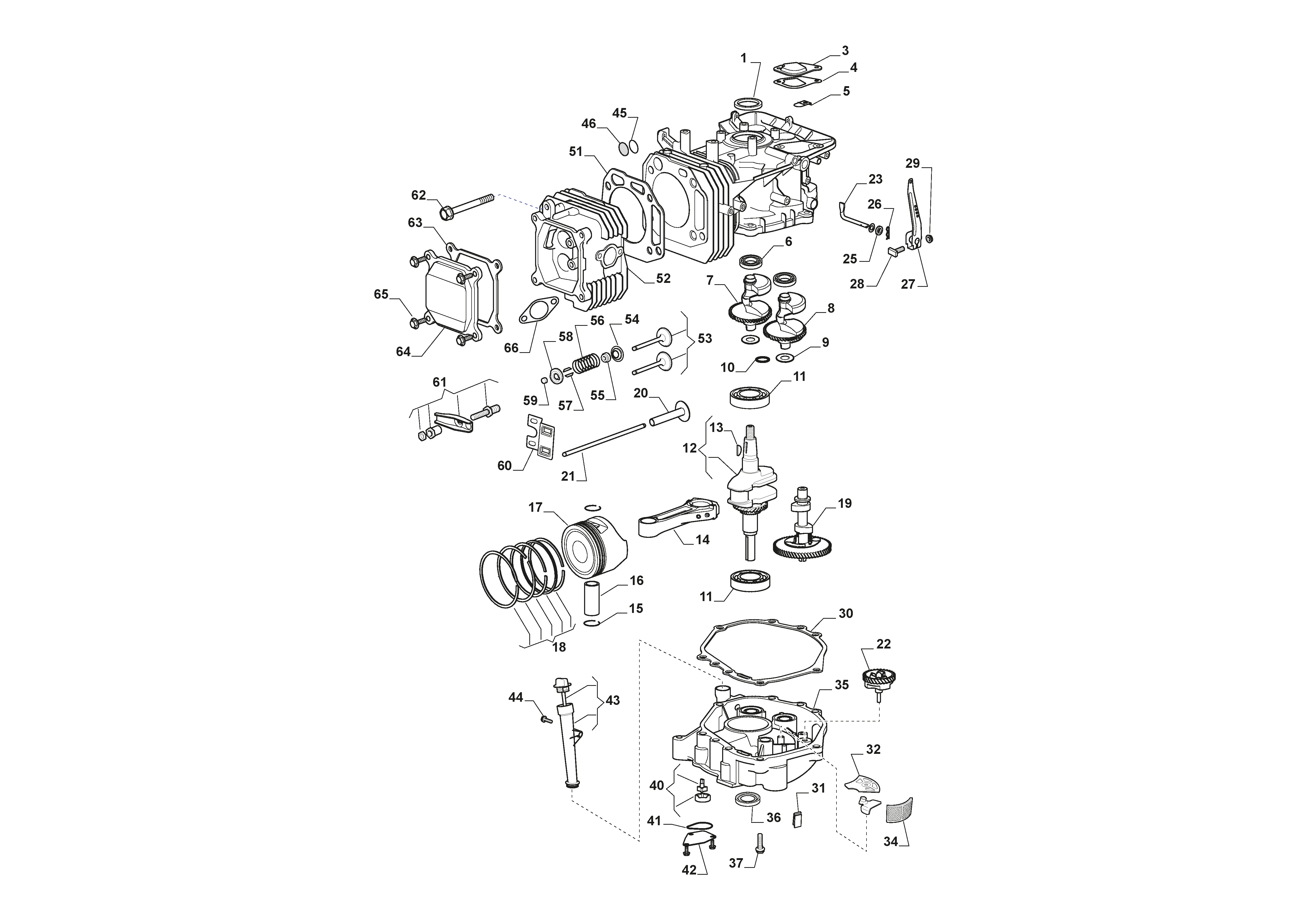

Piston, Crankshaft

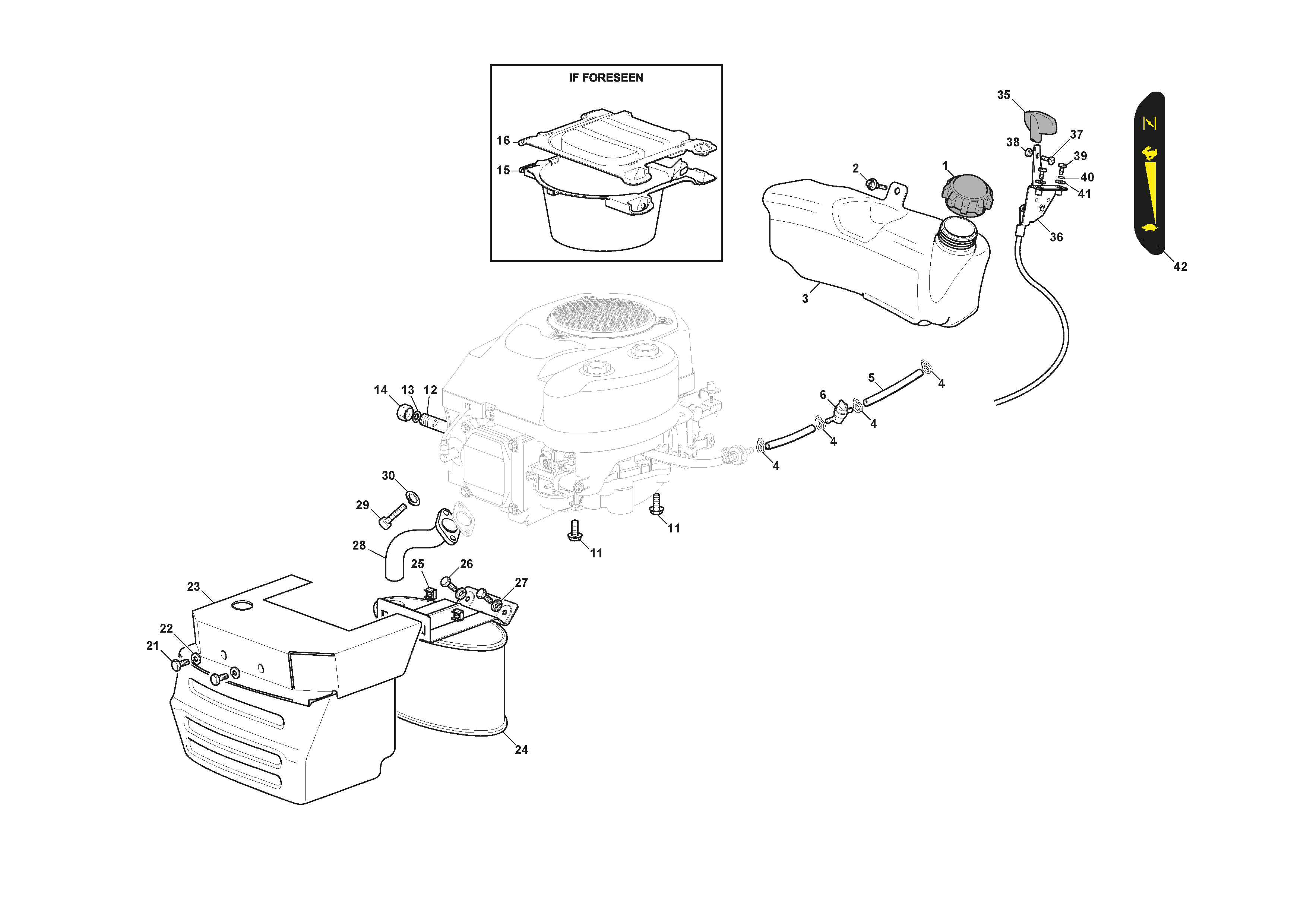

ST.

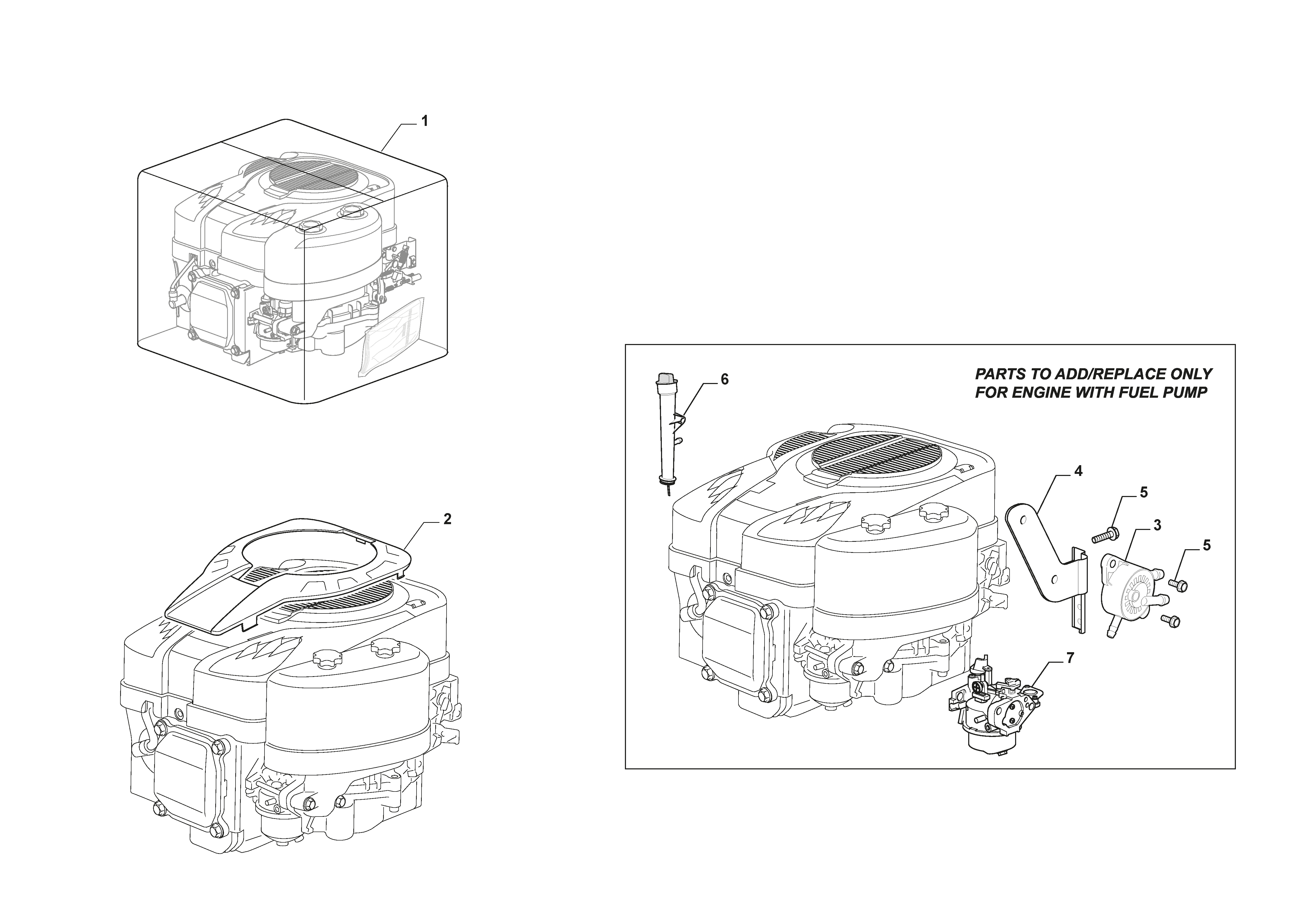

Engine, Fuel Pump

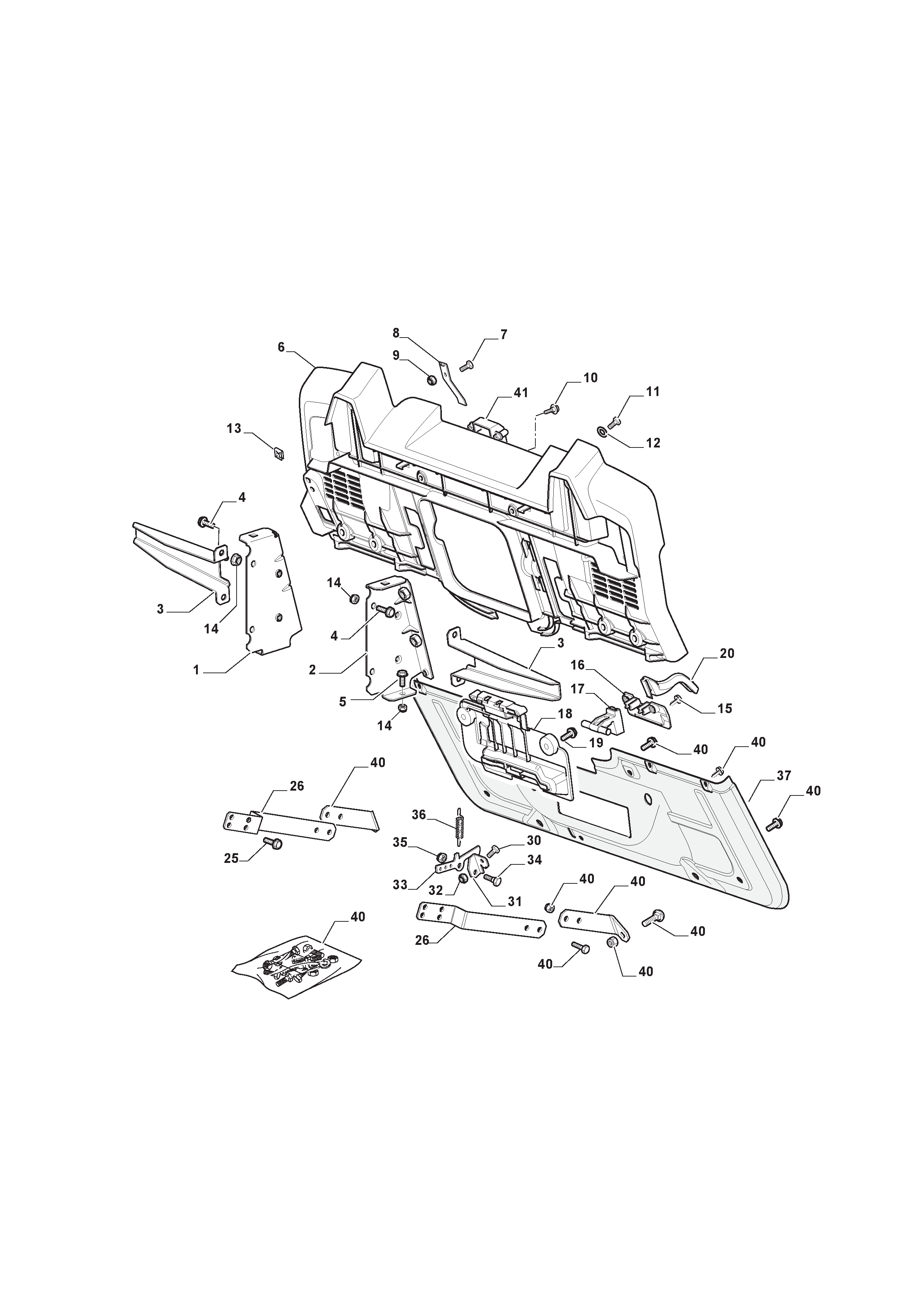

Rear Plate

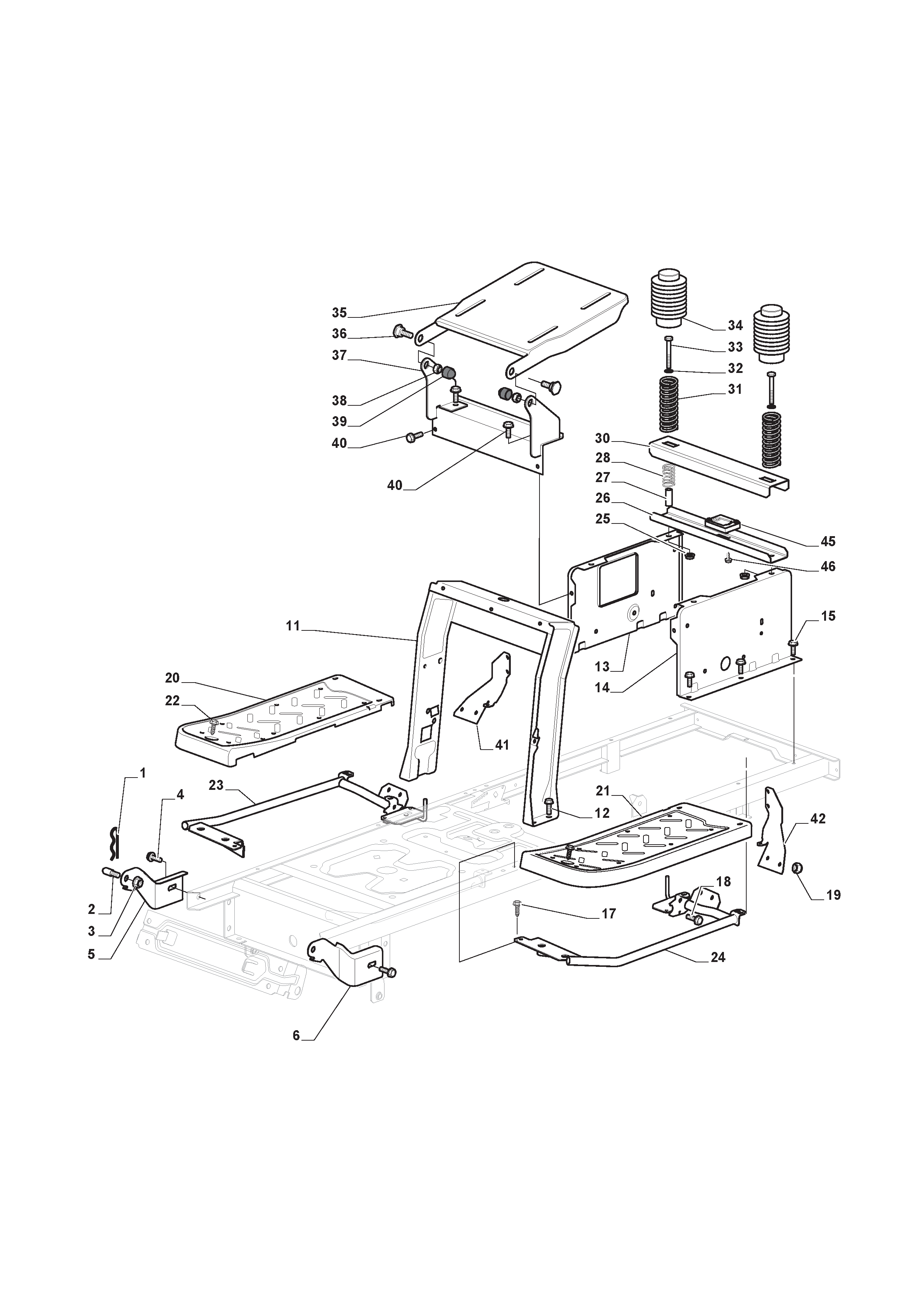

Frame

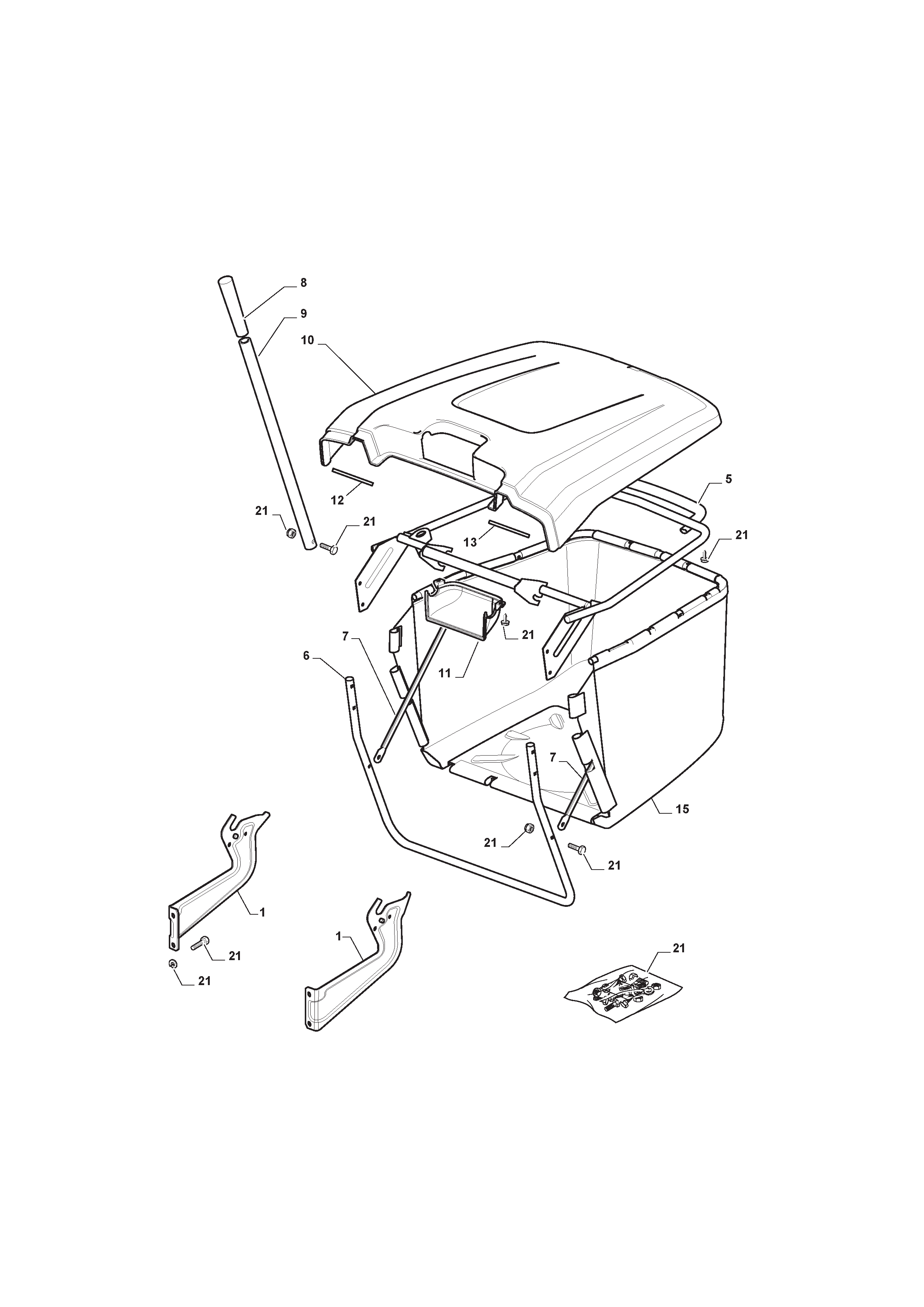

Grasscatcher

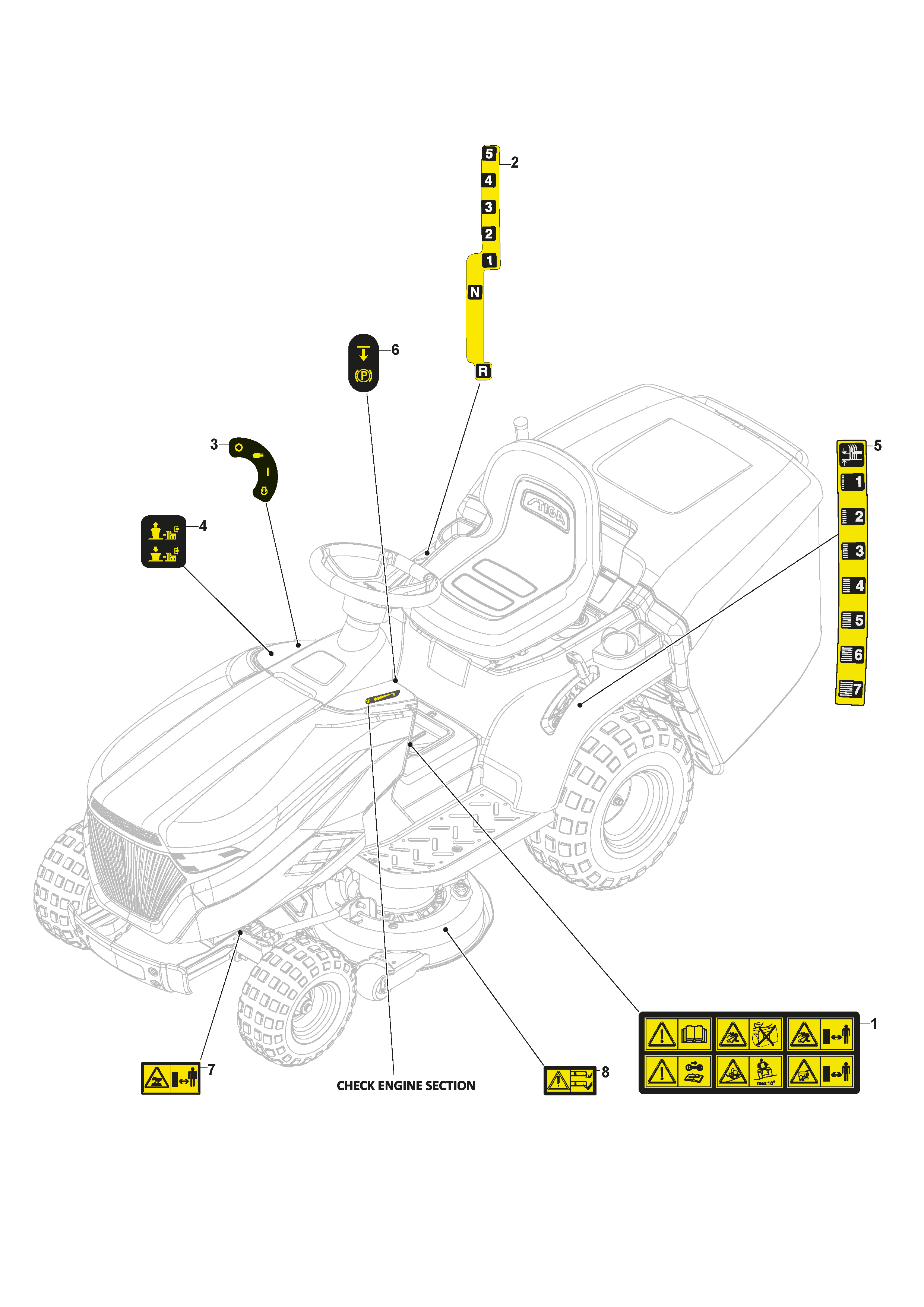

Labels

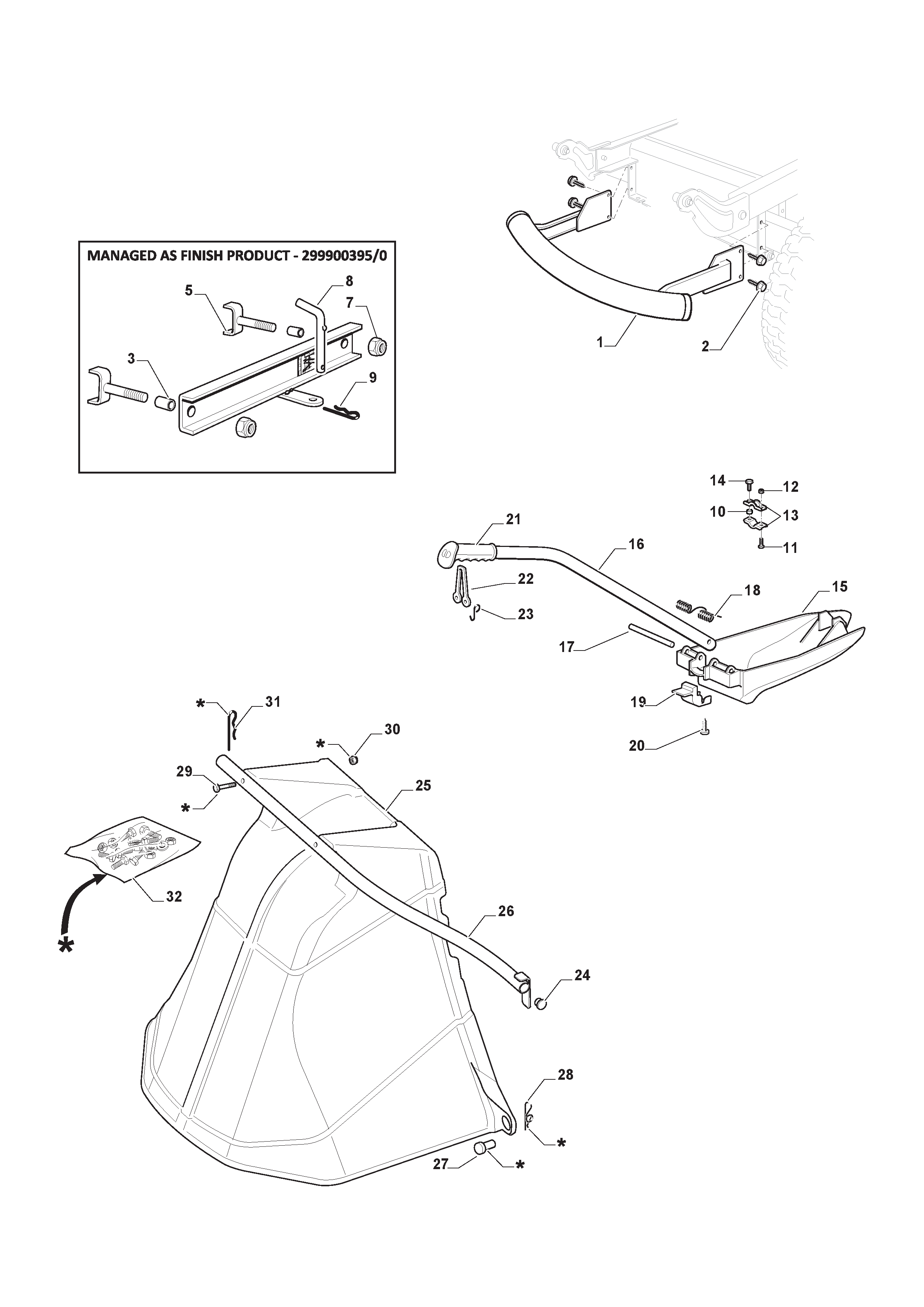

Optionals On Request

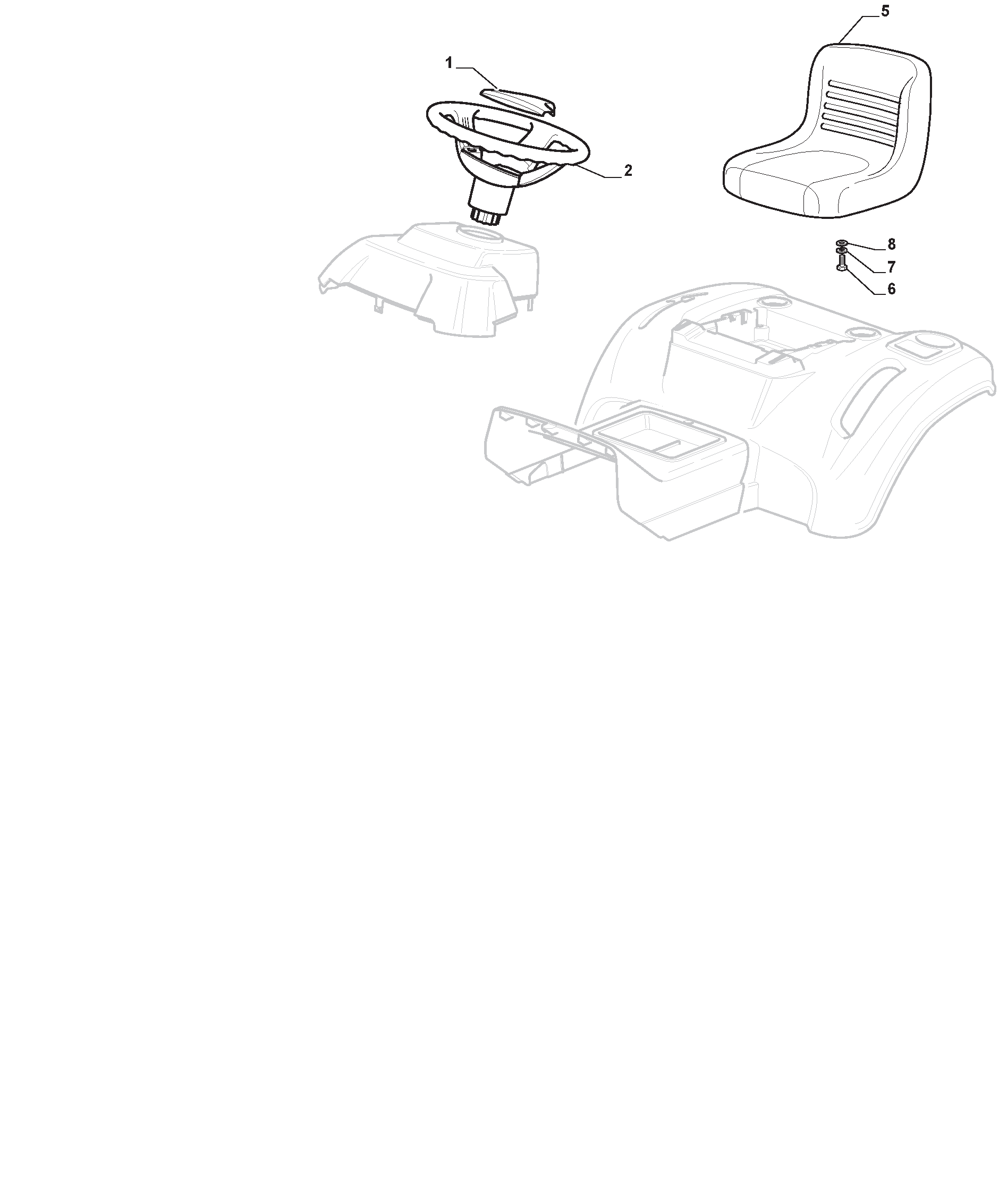

Seat & Steering Wheel

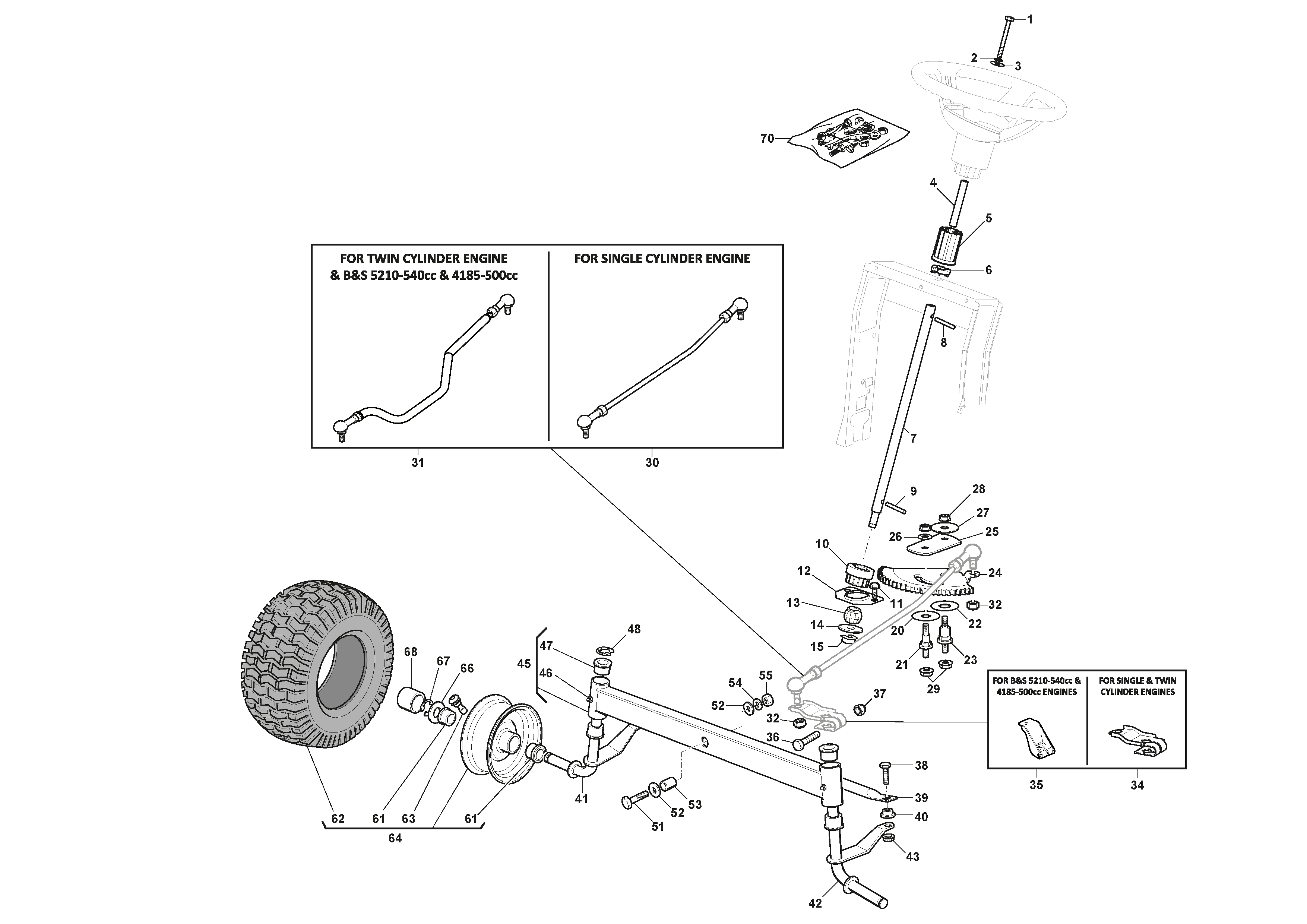

Steering

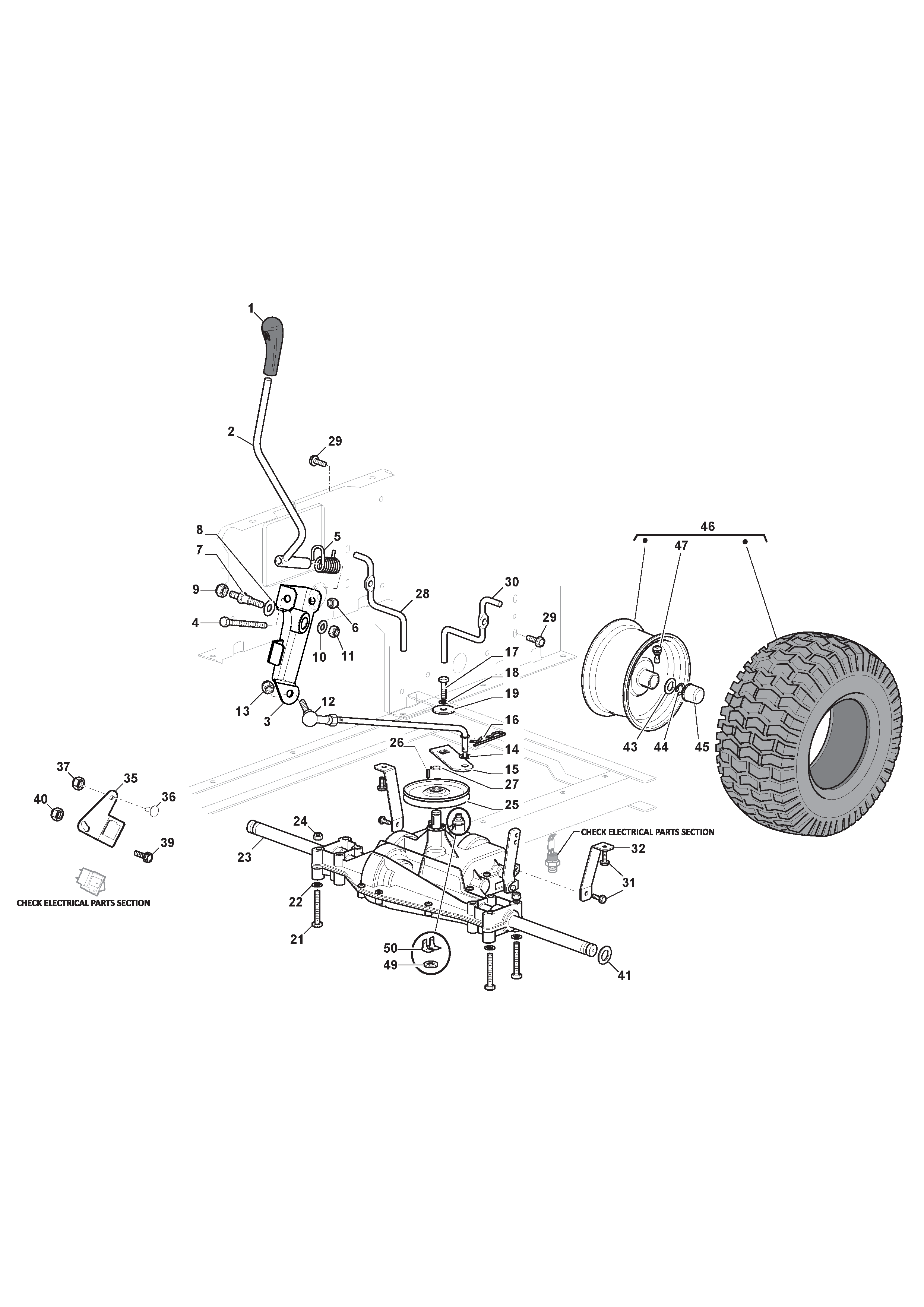

Transmission
2T2520483-M20 [2020]
Belt Protection
Body Work
Brake And Gearbox Controls

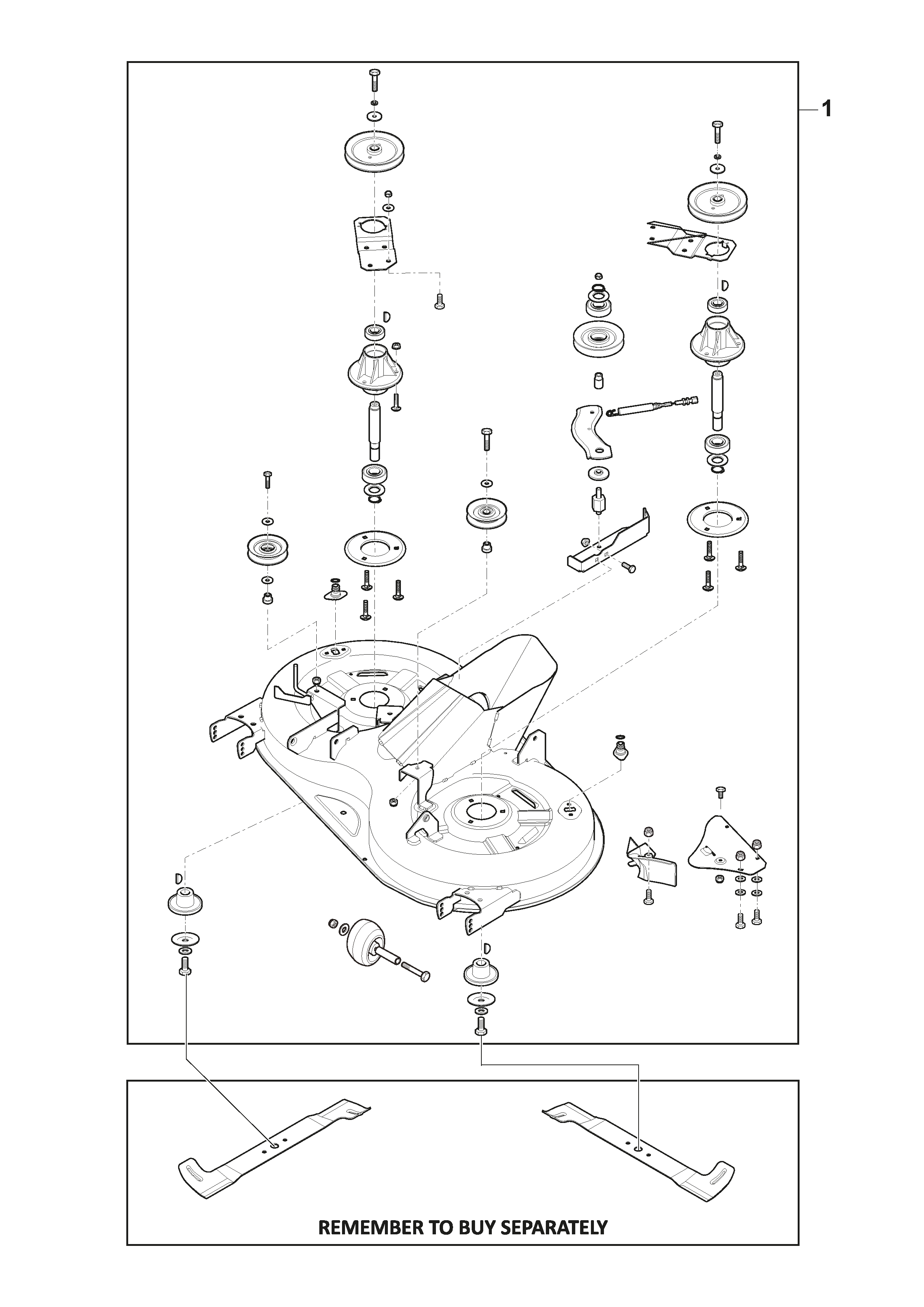

MP98
Cutting Plate Lifting
Cutting Plate with Electromagnetic Clutch
Electrical Parts
Carburettor, Air Cleaner Assy
Piston, Crankshaft
ST.
Engine, Fuel Pump
Rear Plate
Frame
Grasscatcher
Labels
Optionals On Request
Seat & Steering Wheel

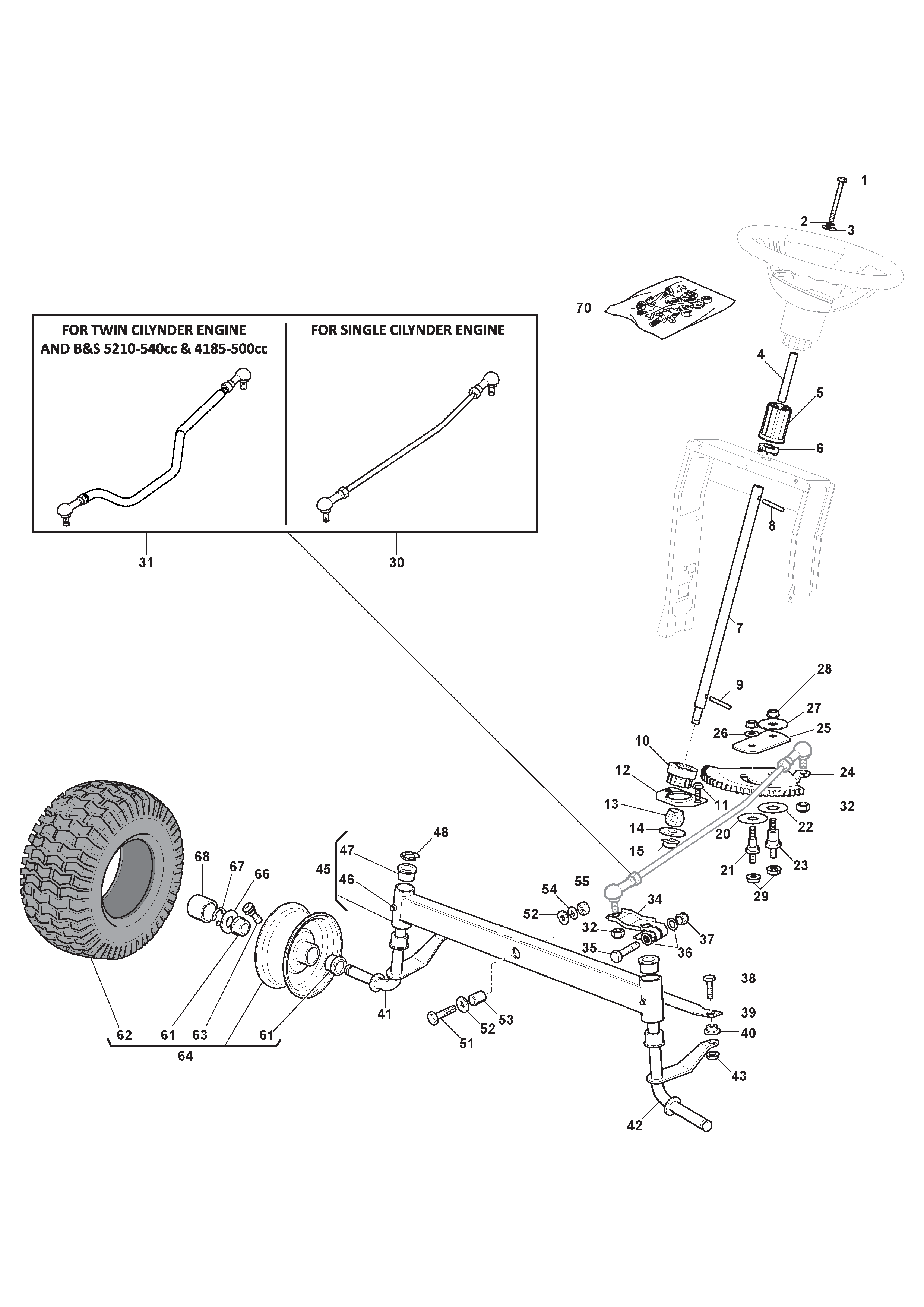

Steering
Transmission
