Diagrams for the Mountfield 625M Ride-on
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Mountfield 625M Ride-on.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Mountfield 625M Ride-on
13-2659-13 [2003]

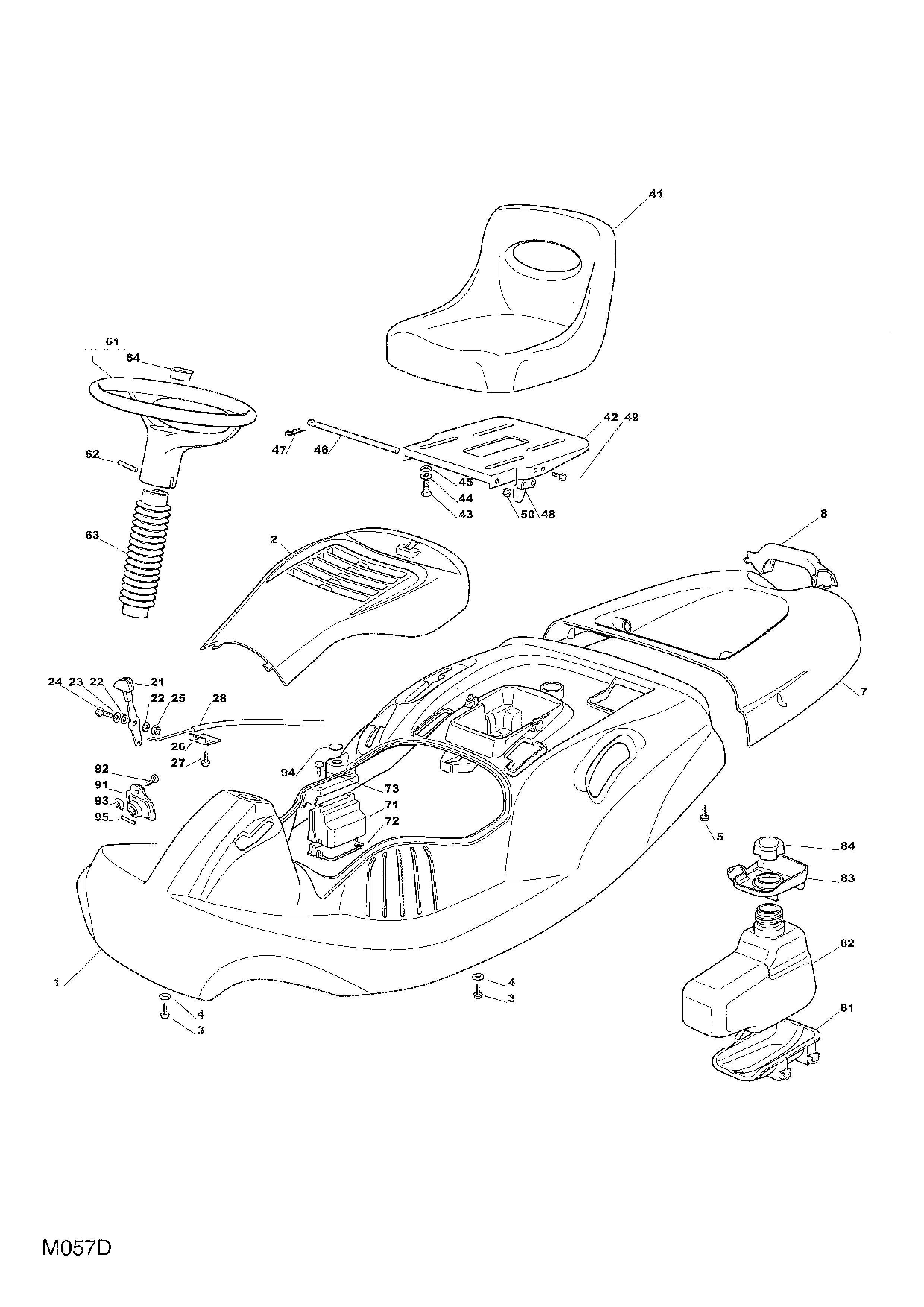

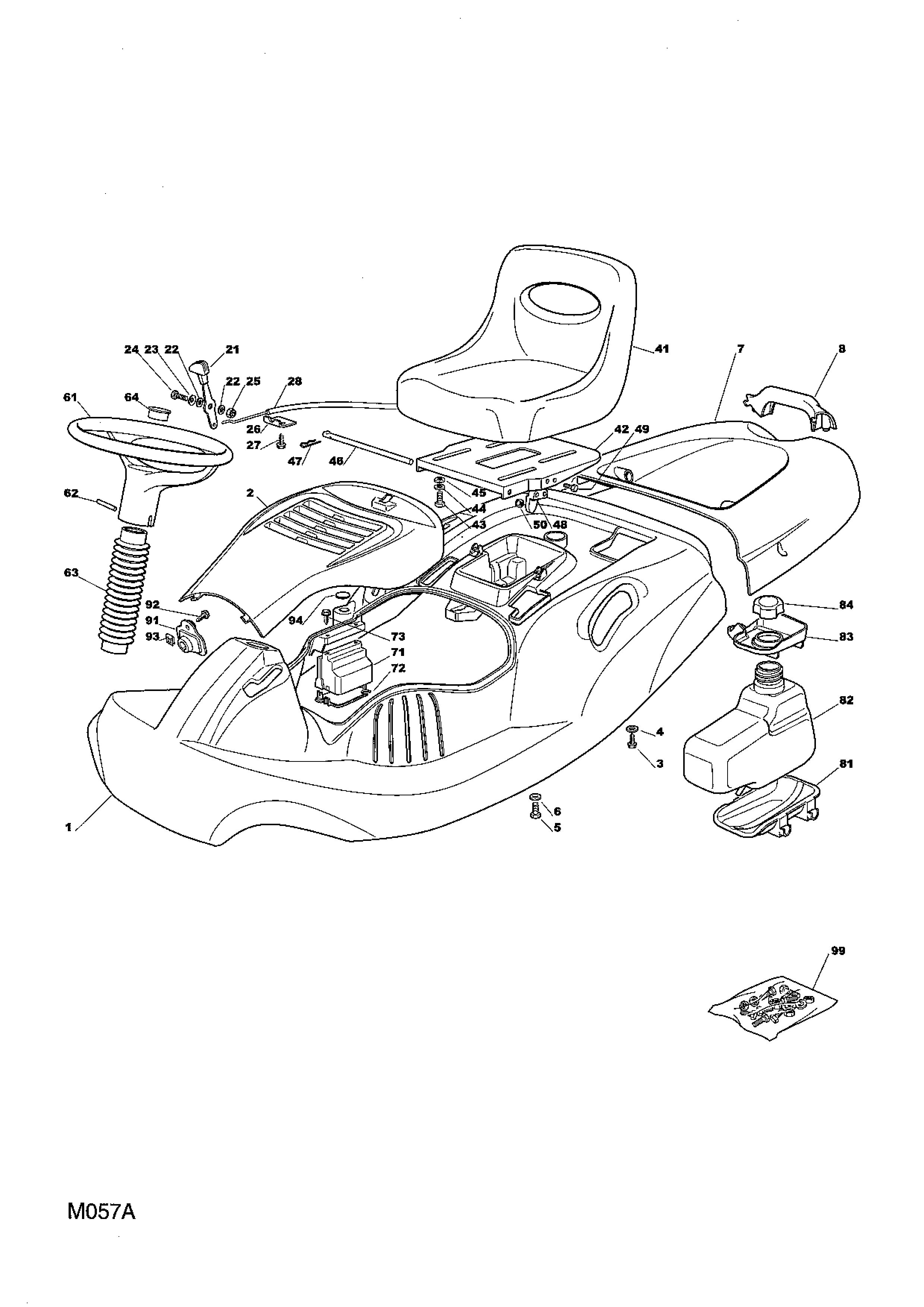

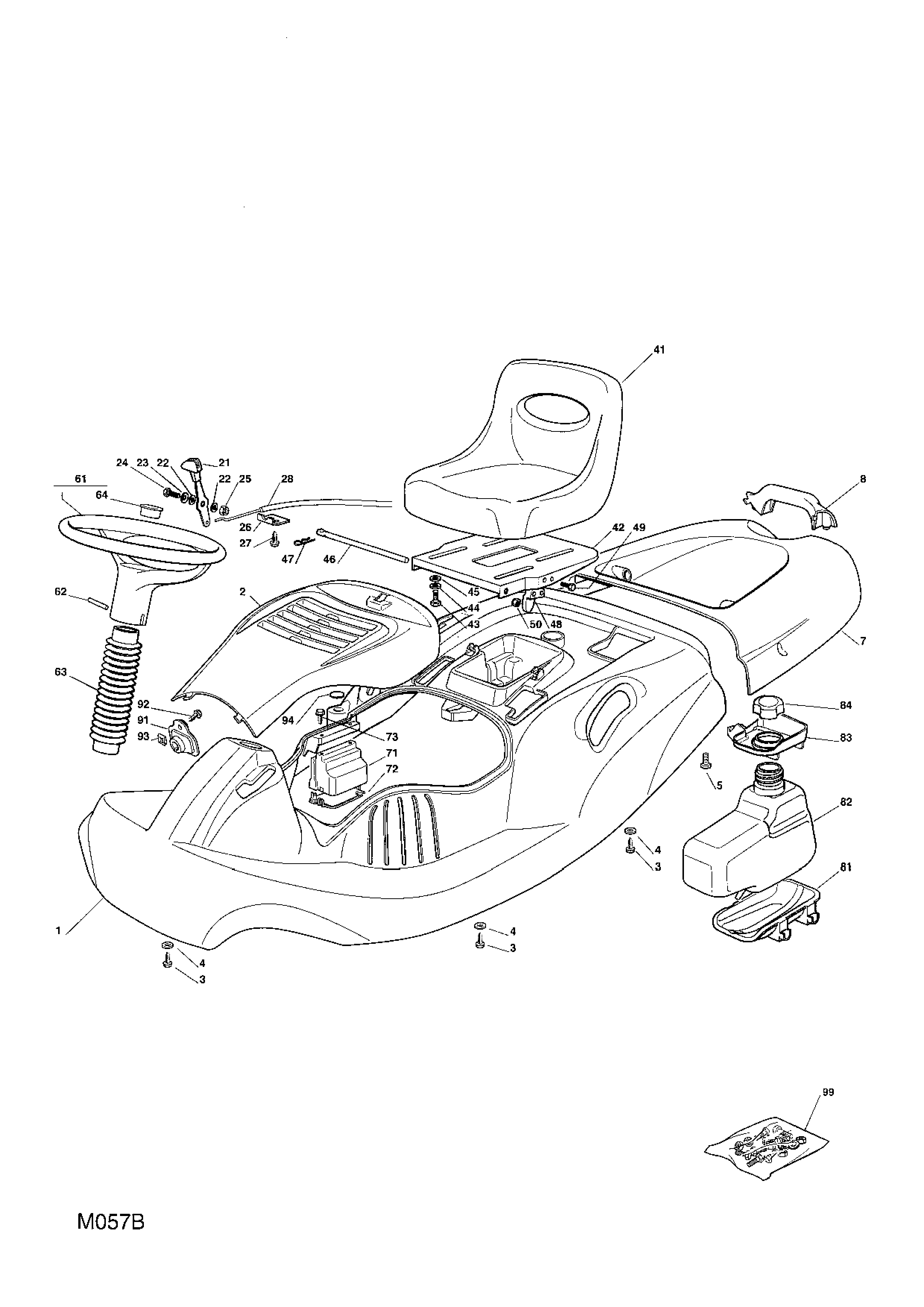

Body Work

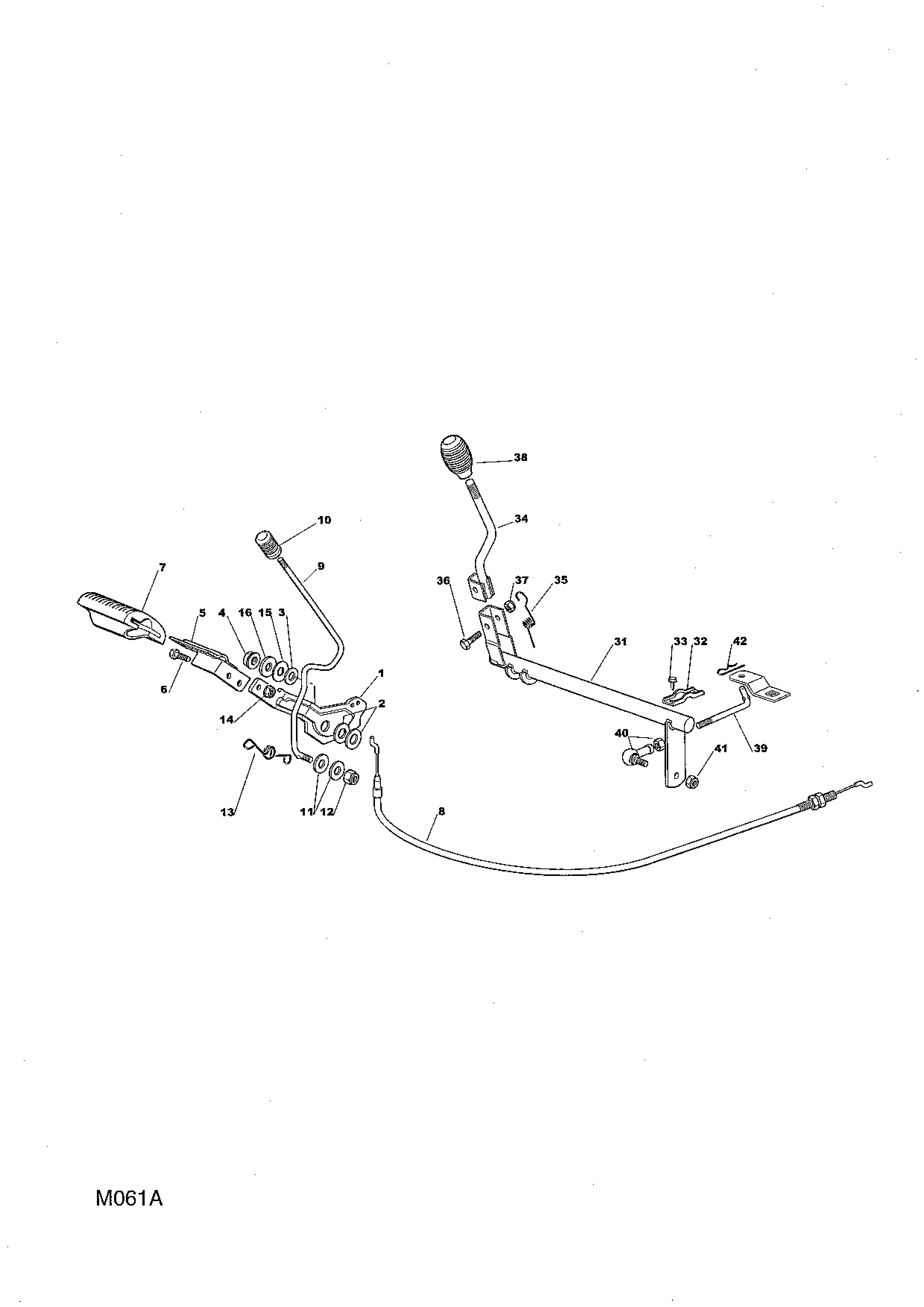

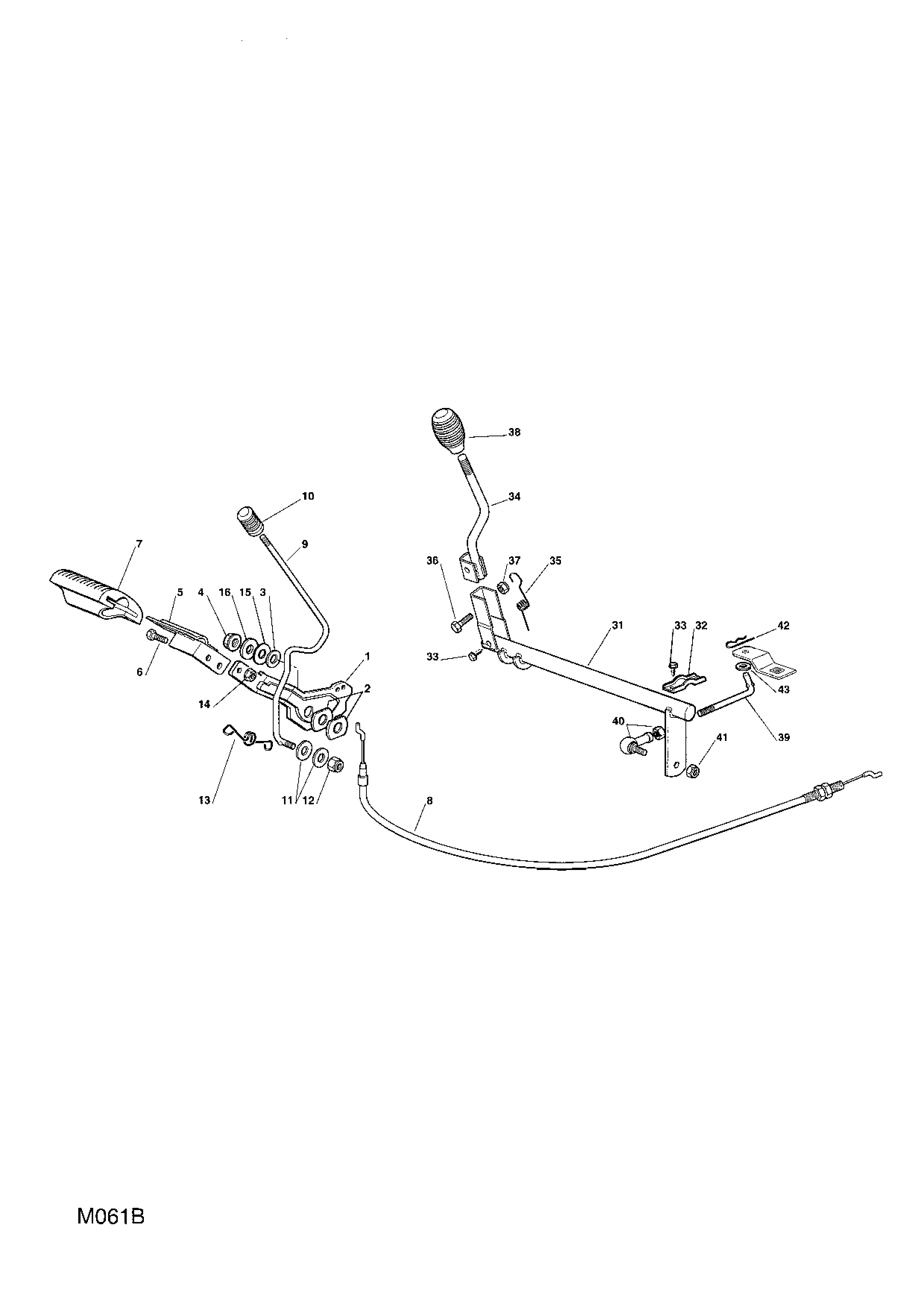

Brake Control Gear Shifter Control

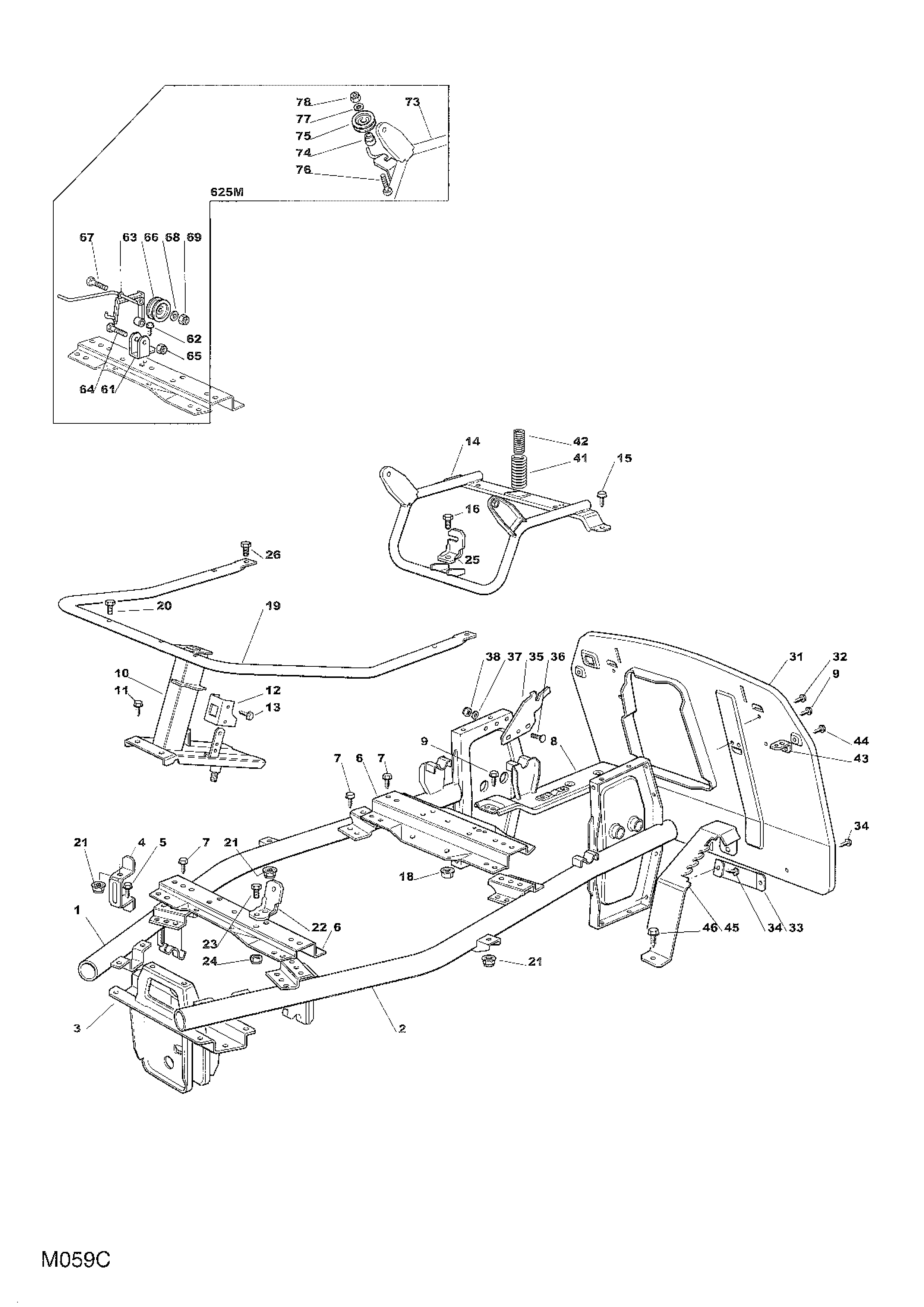

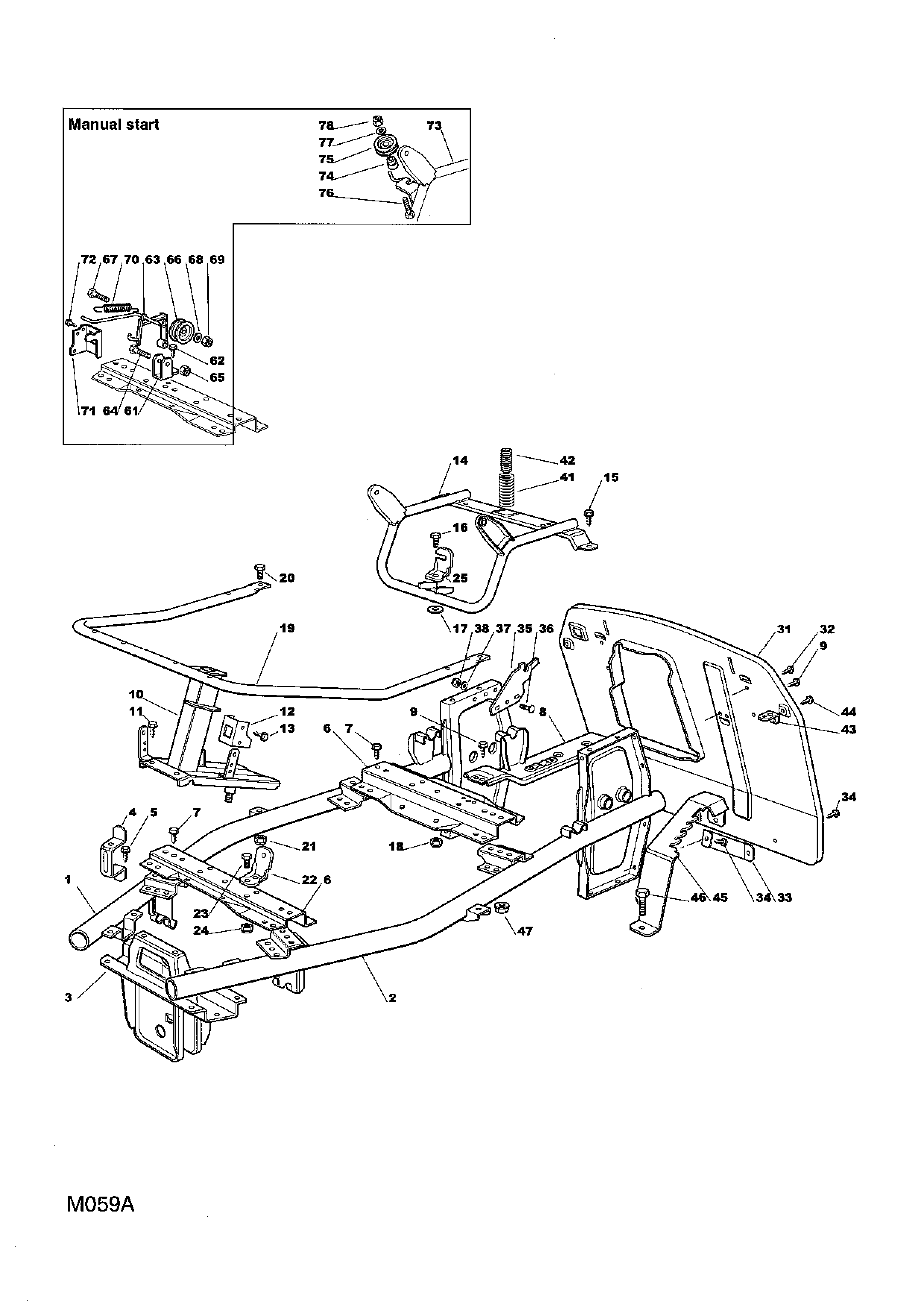

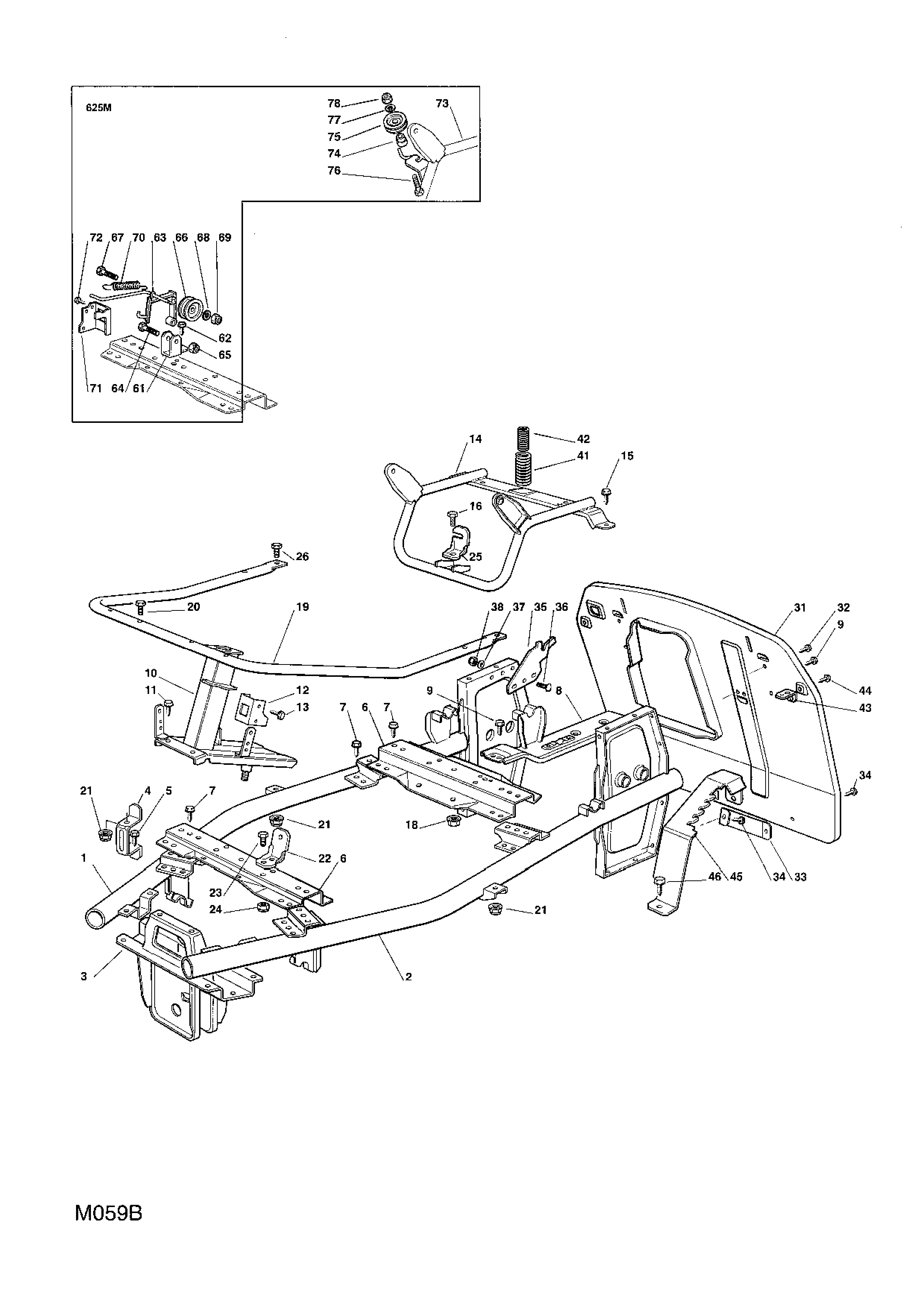

Chassis

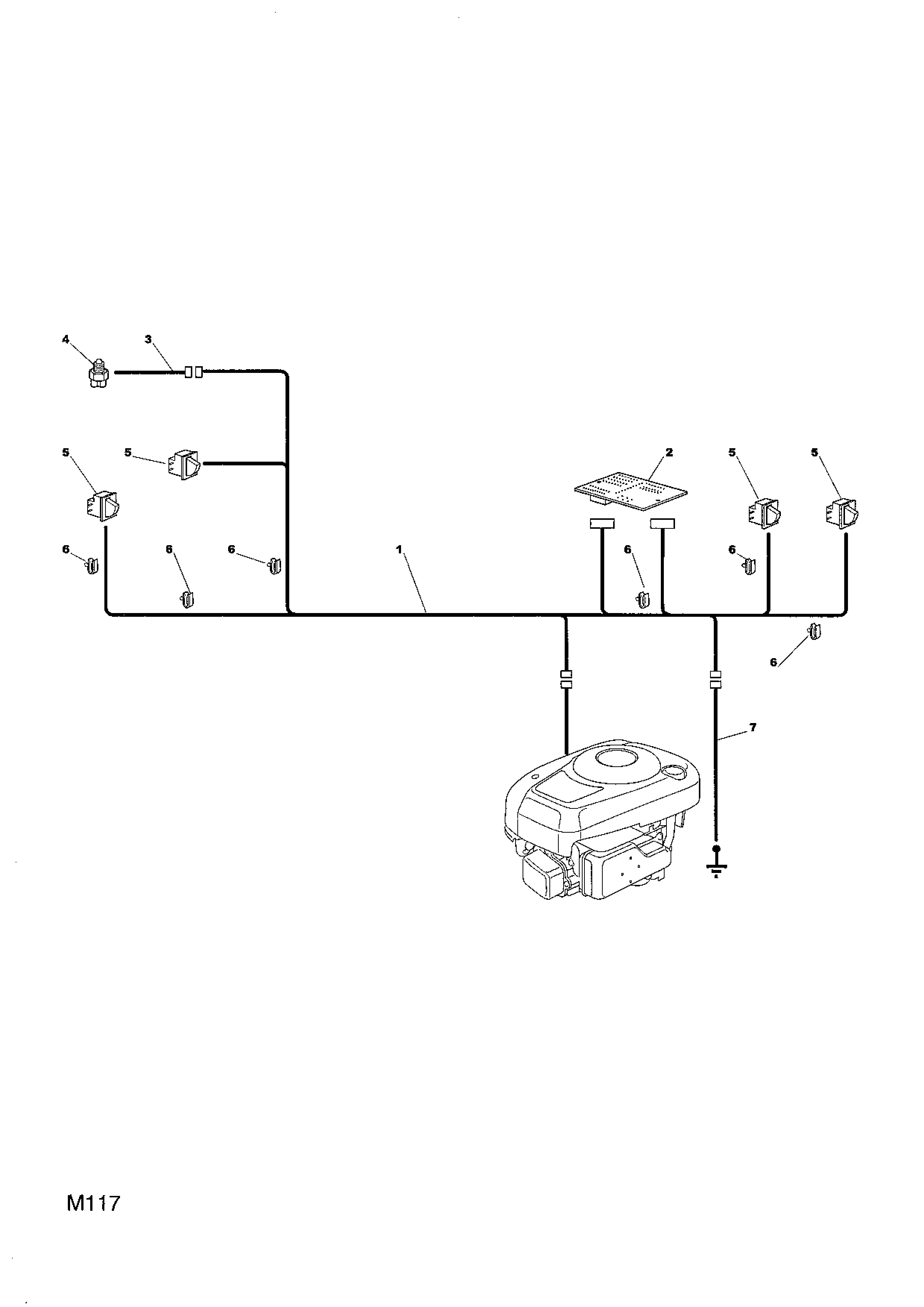

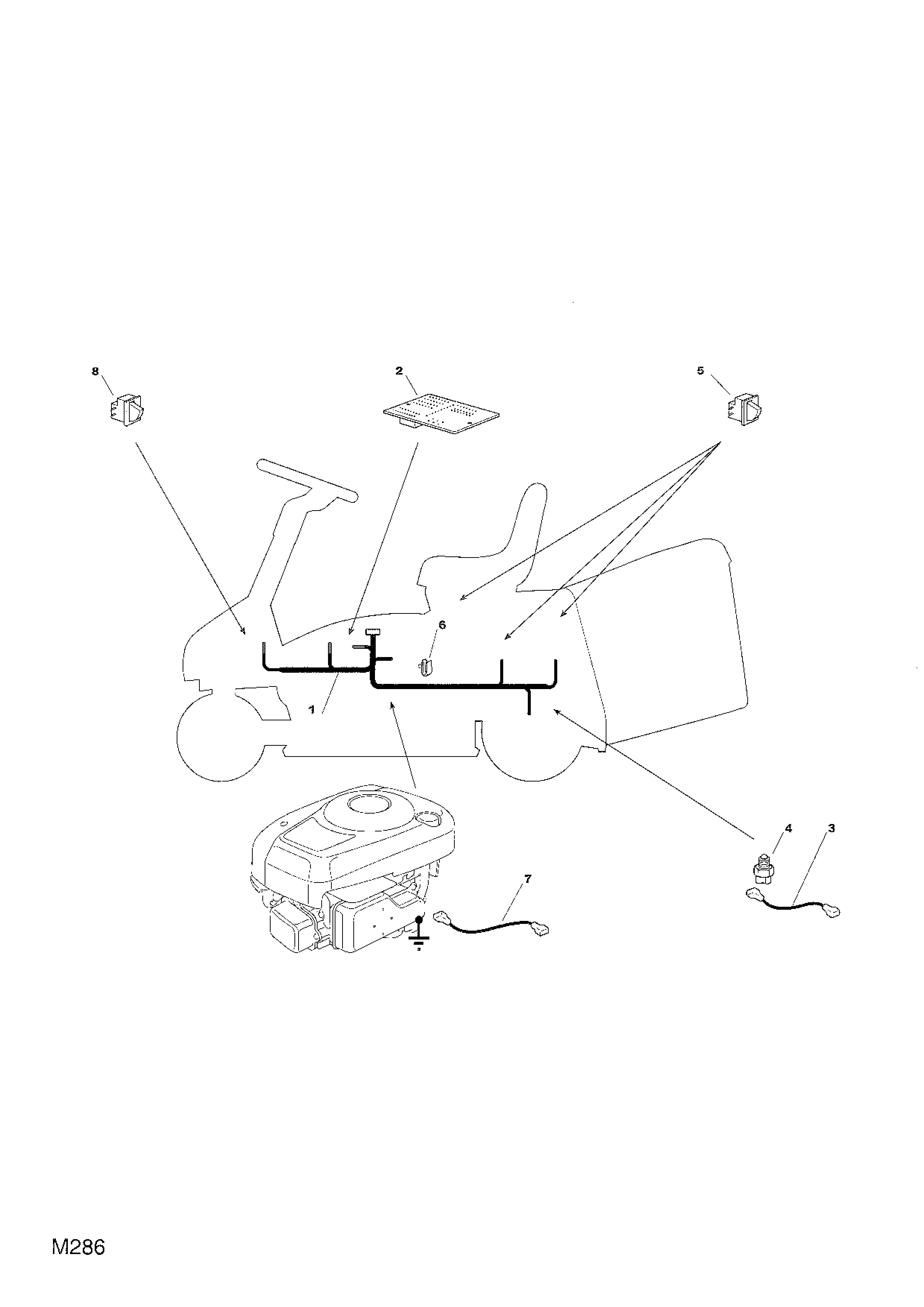

Electric Equipment

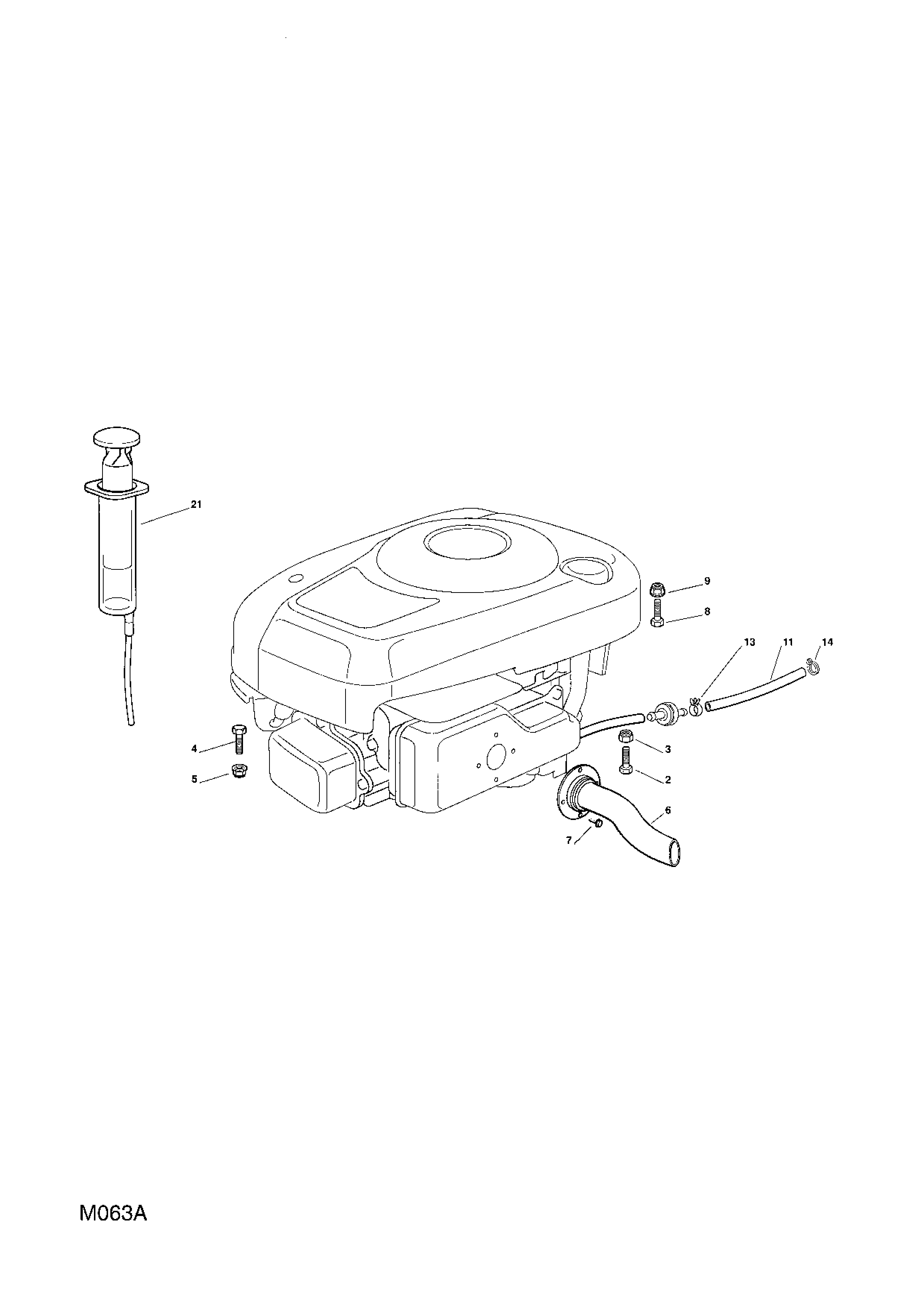

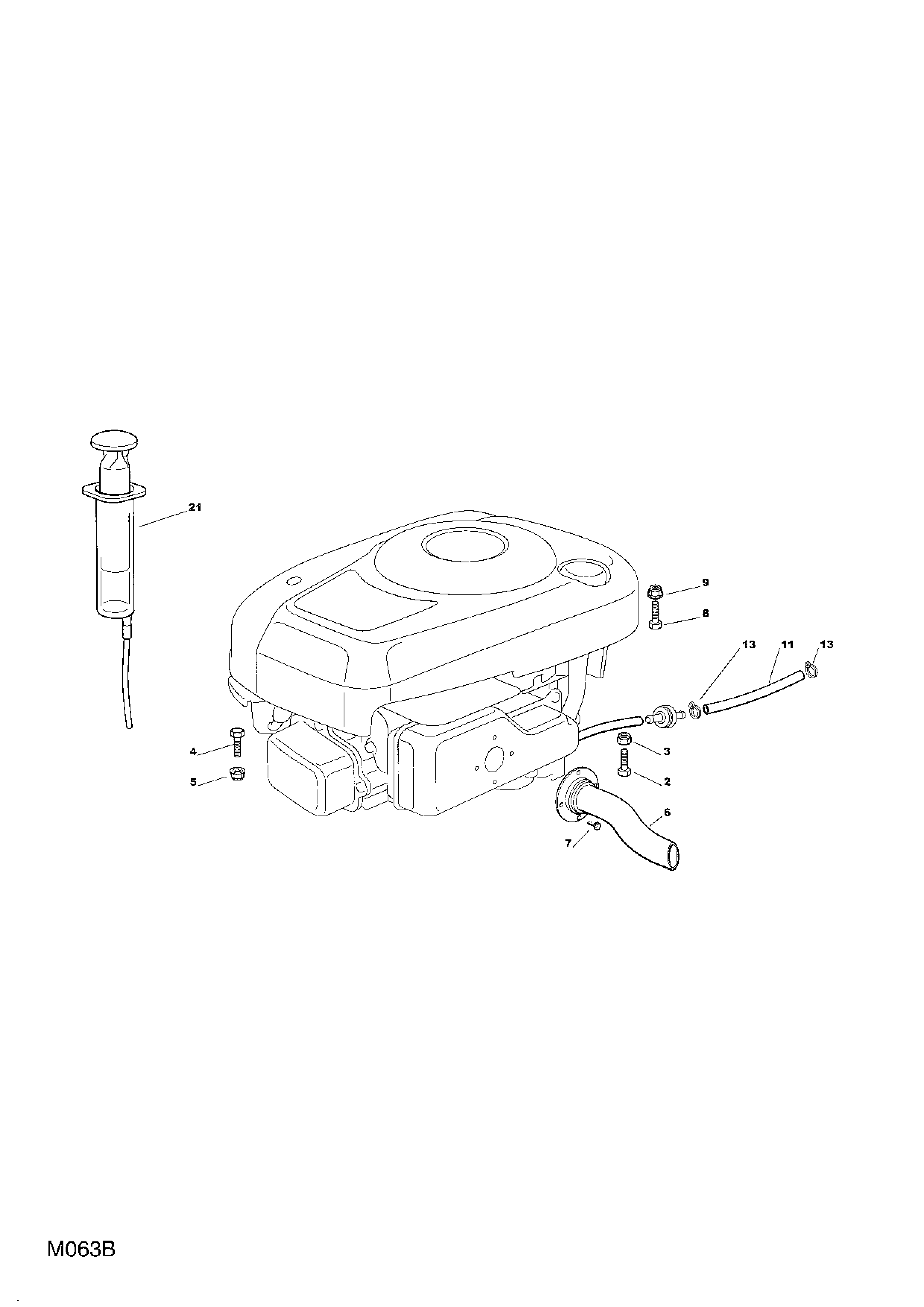

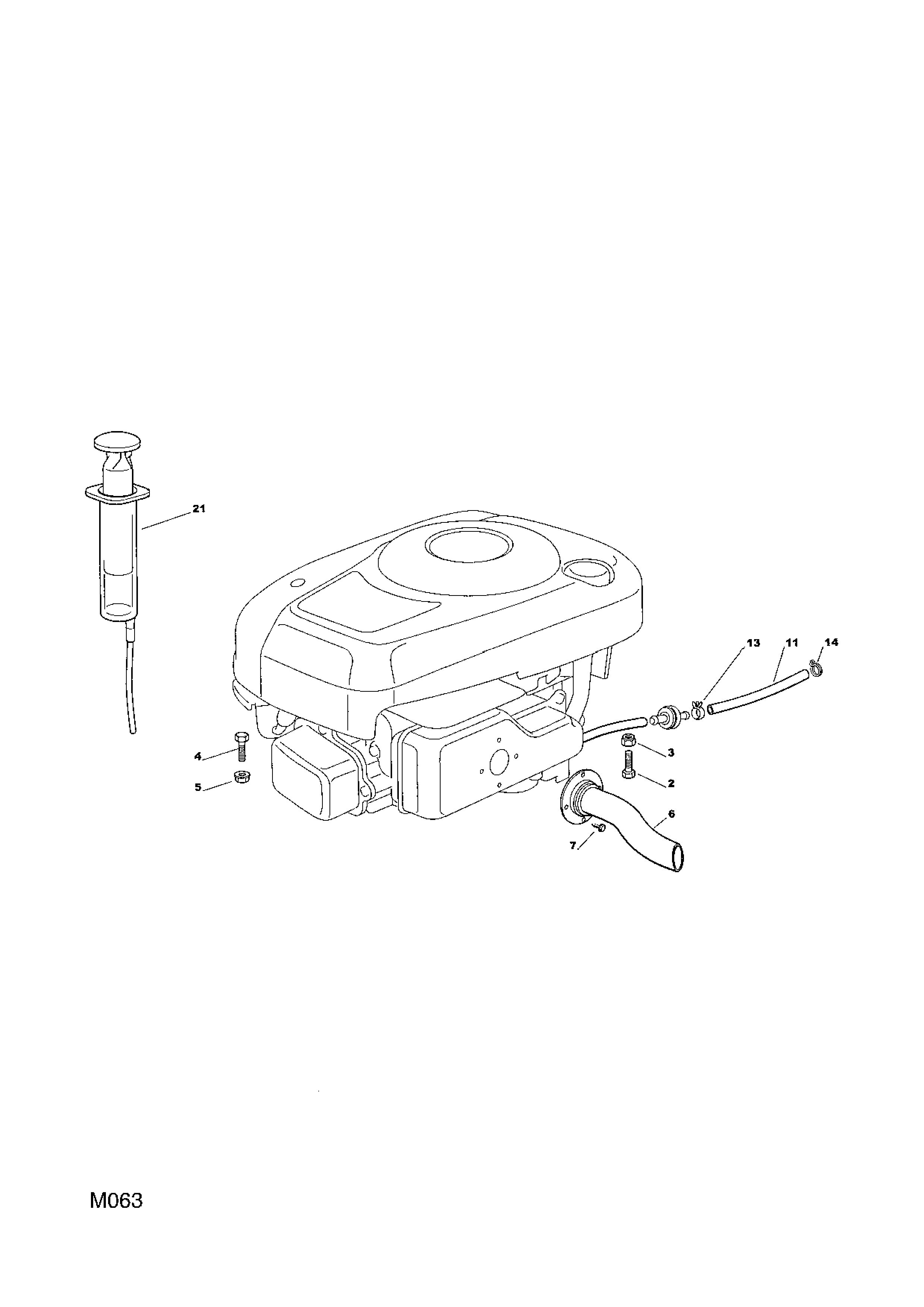

Engine

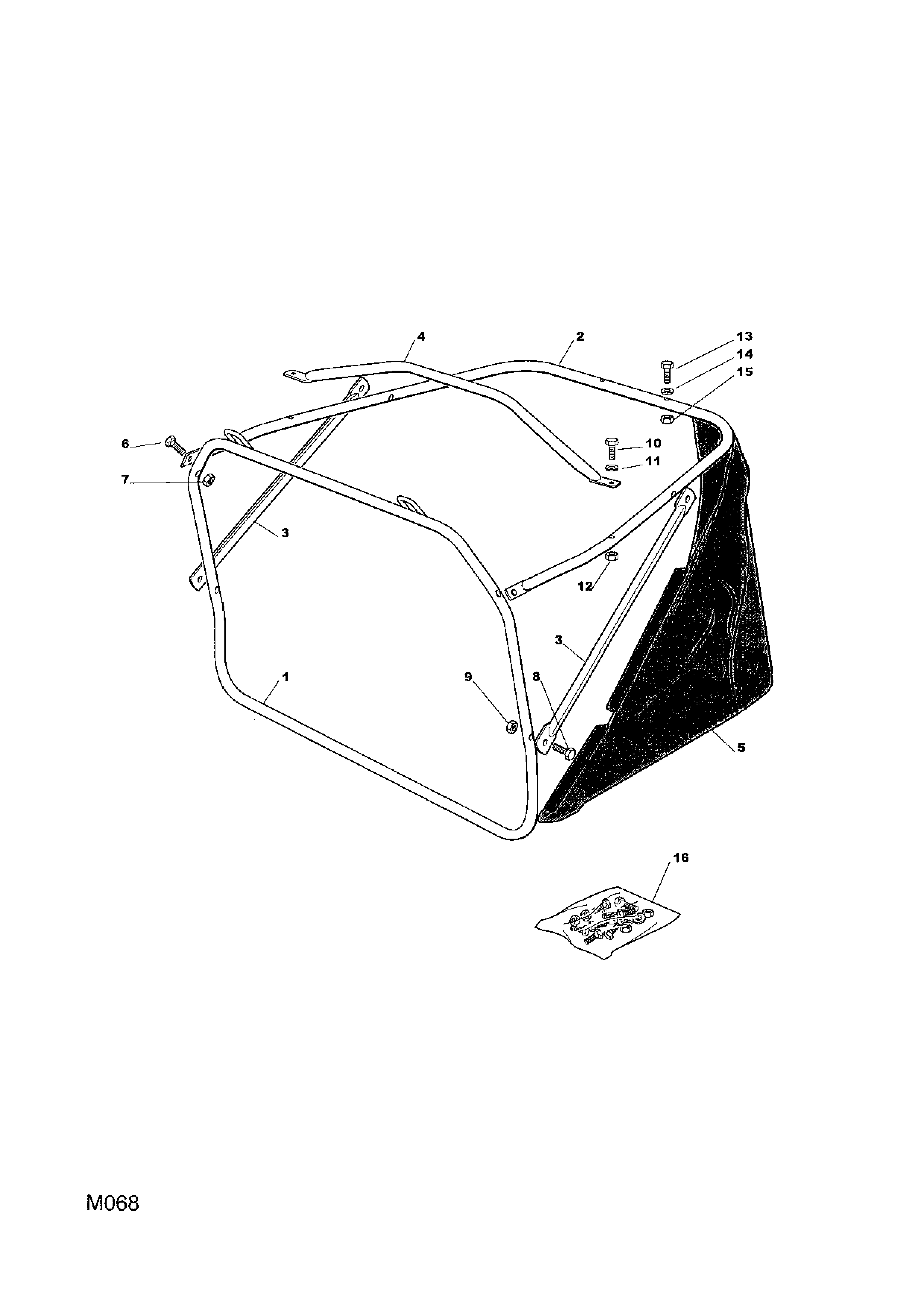

Catcher

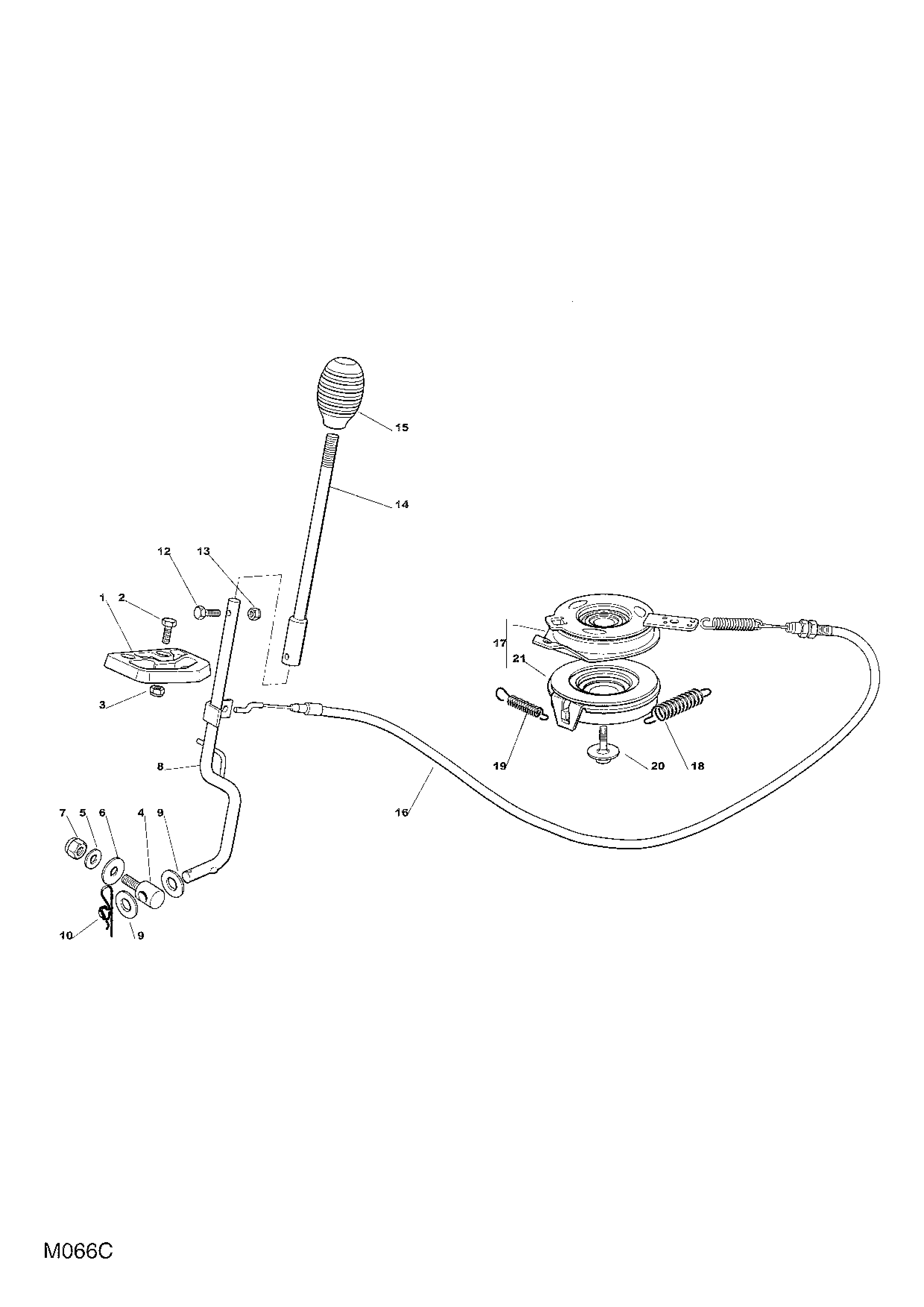

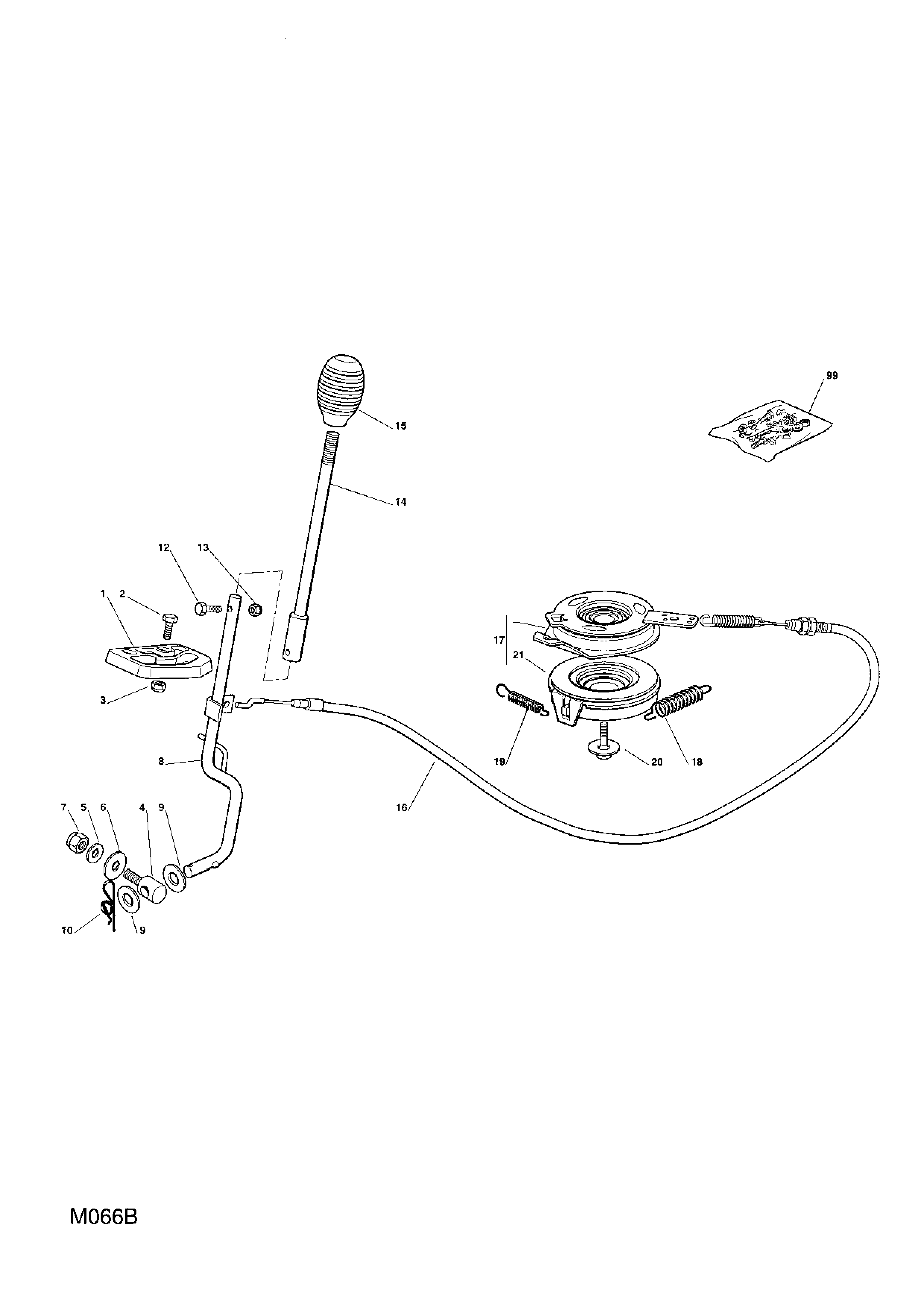

Mower Deck Engagement

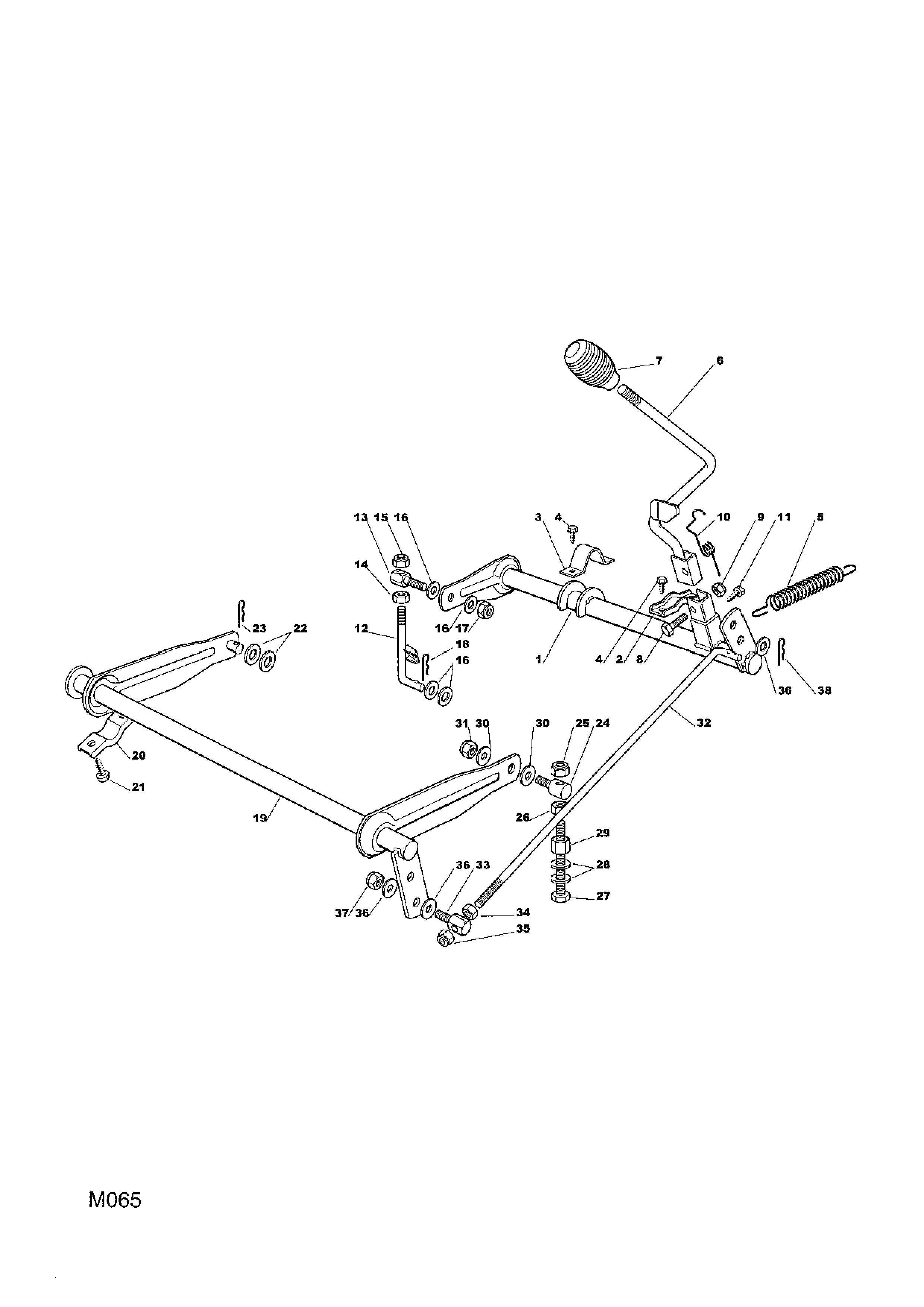

Mower Deck Lift

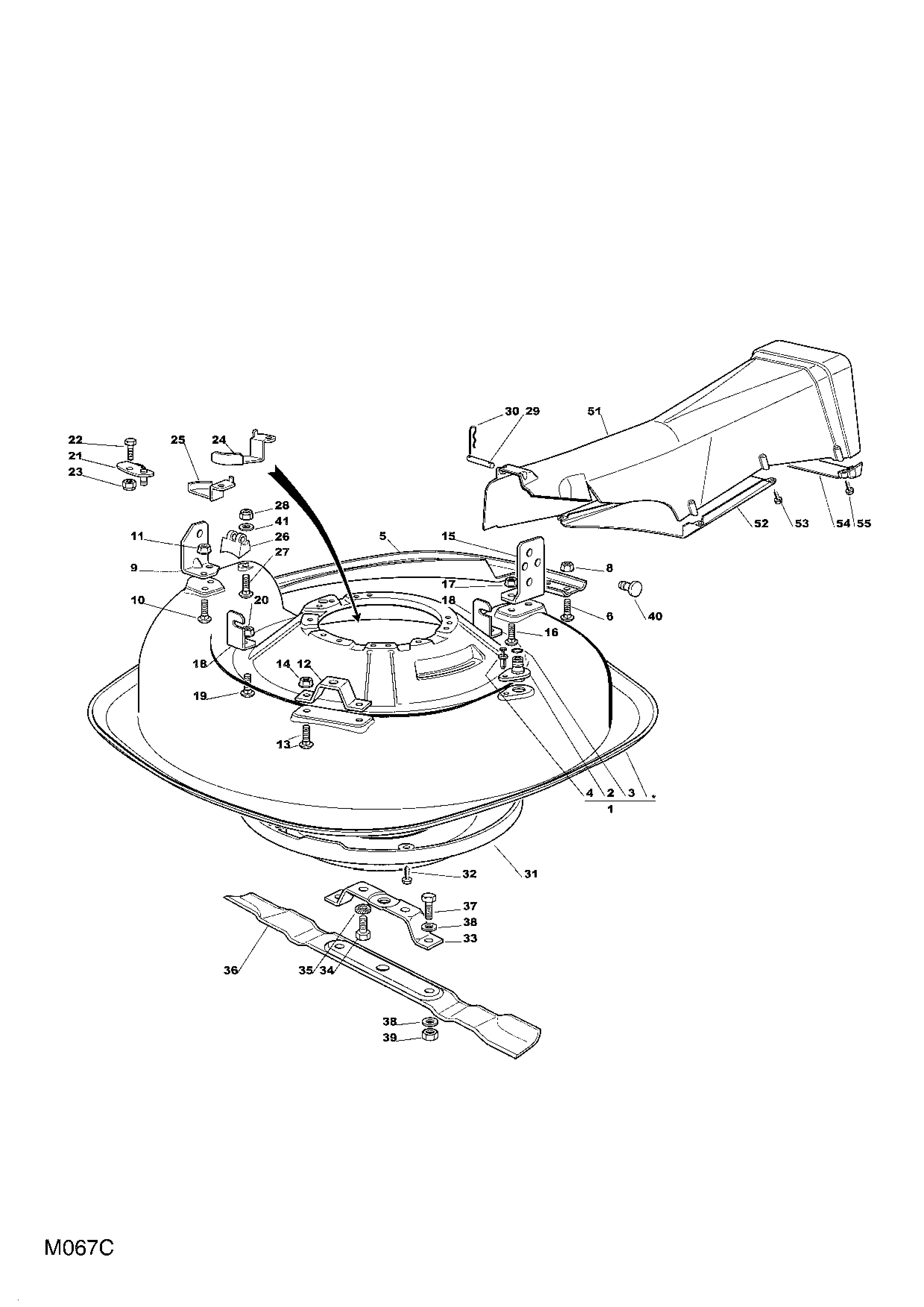

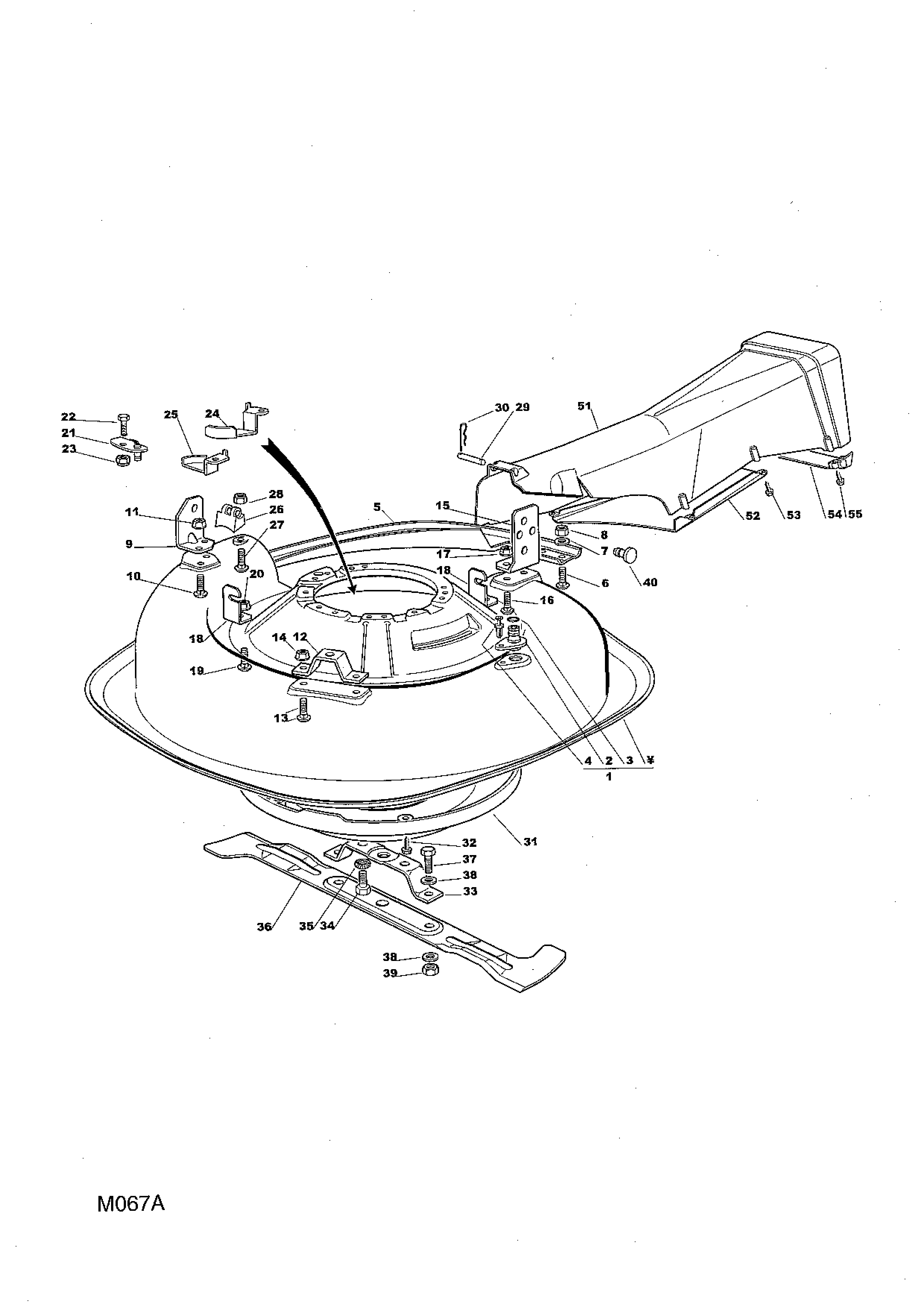

Mower Deck

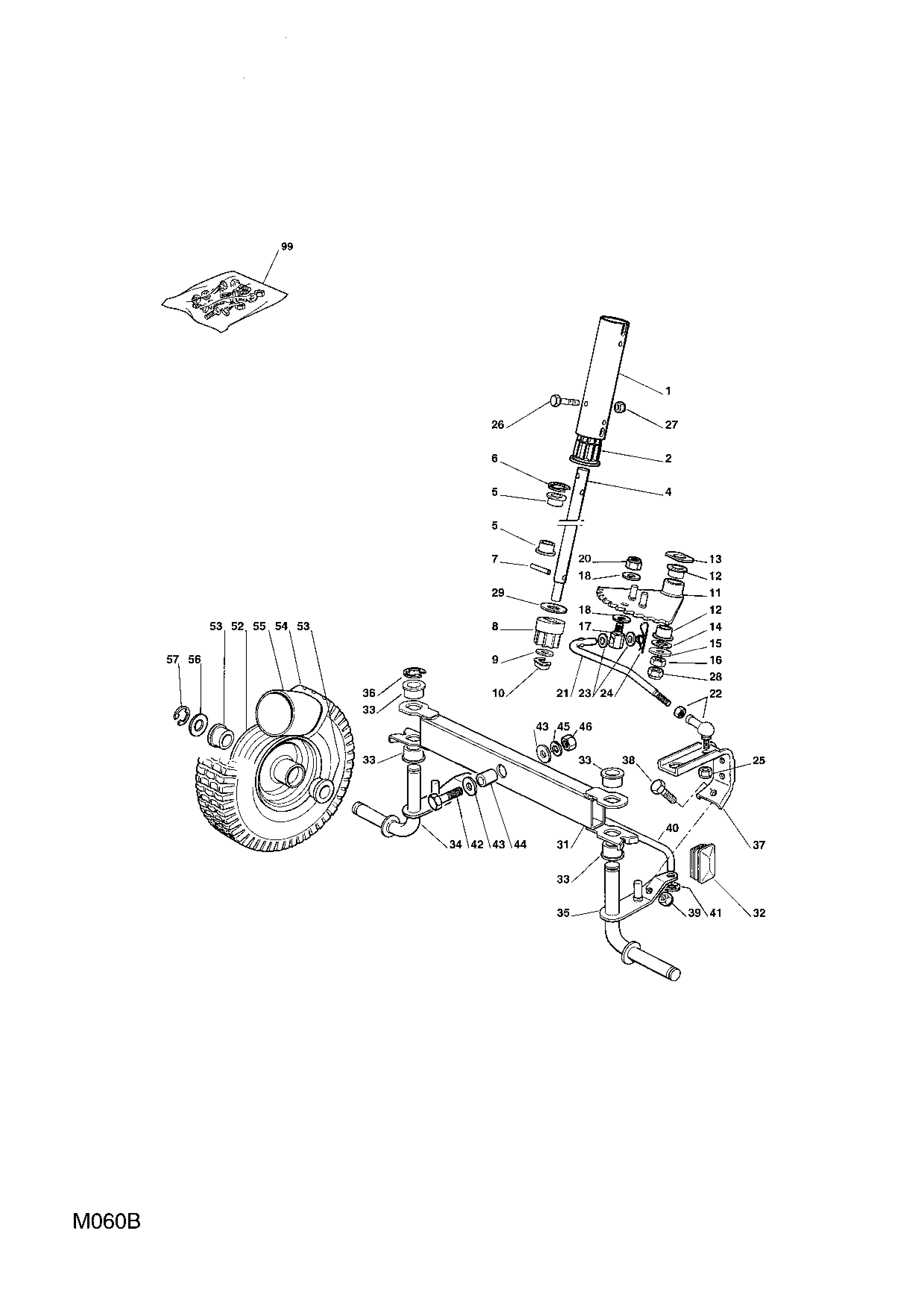

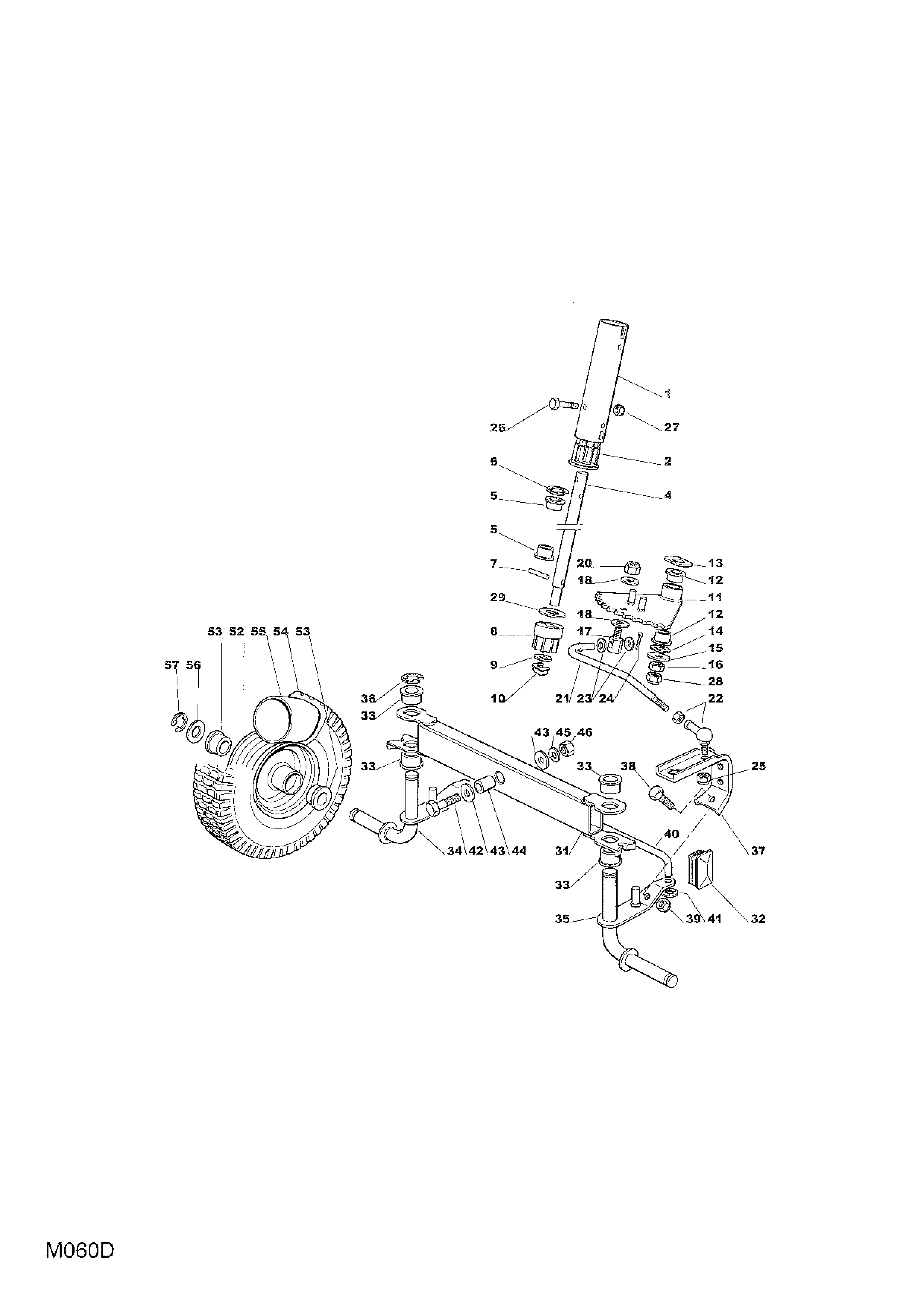

Steering

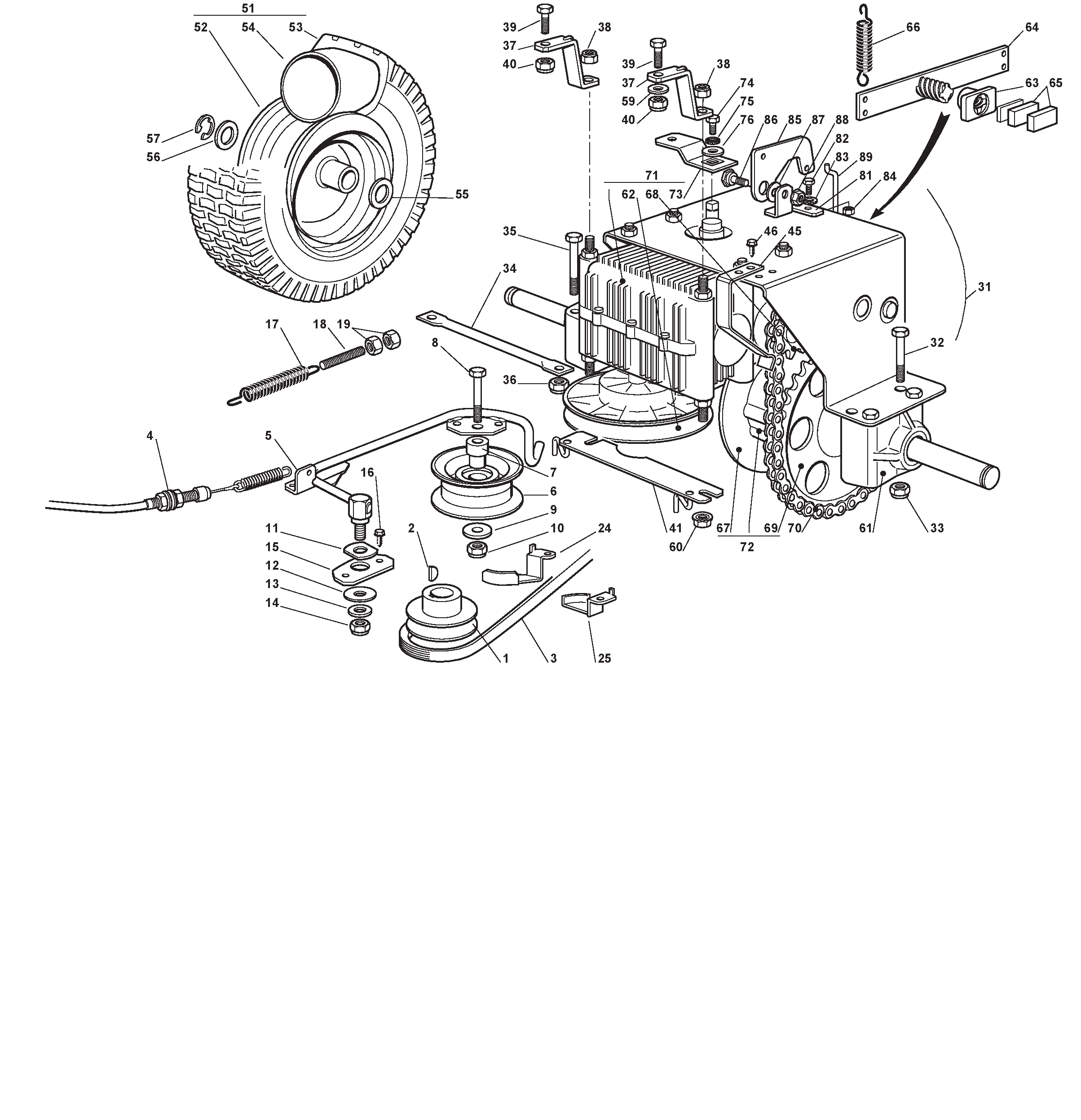

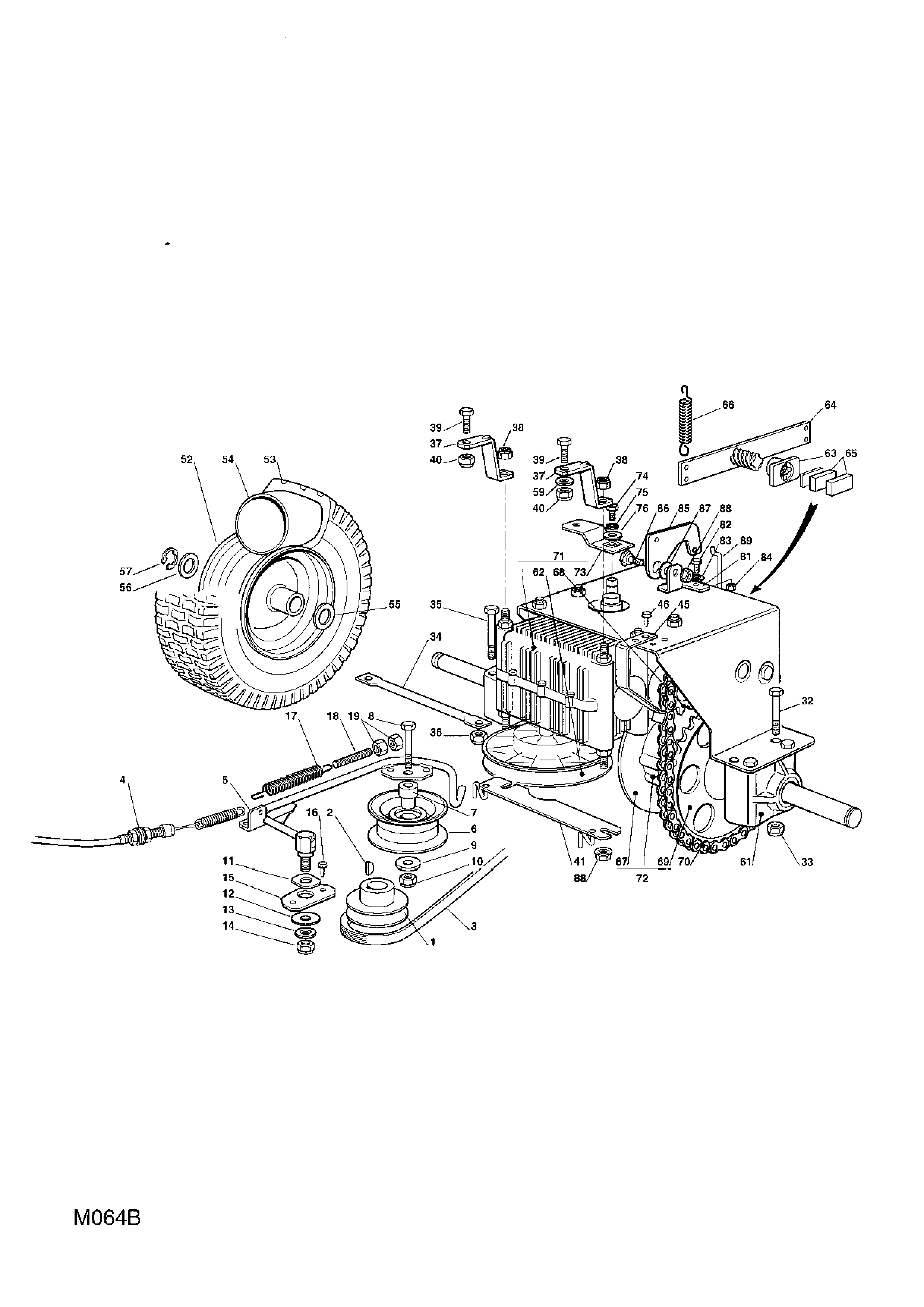

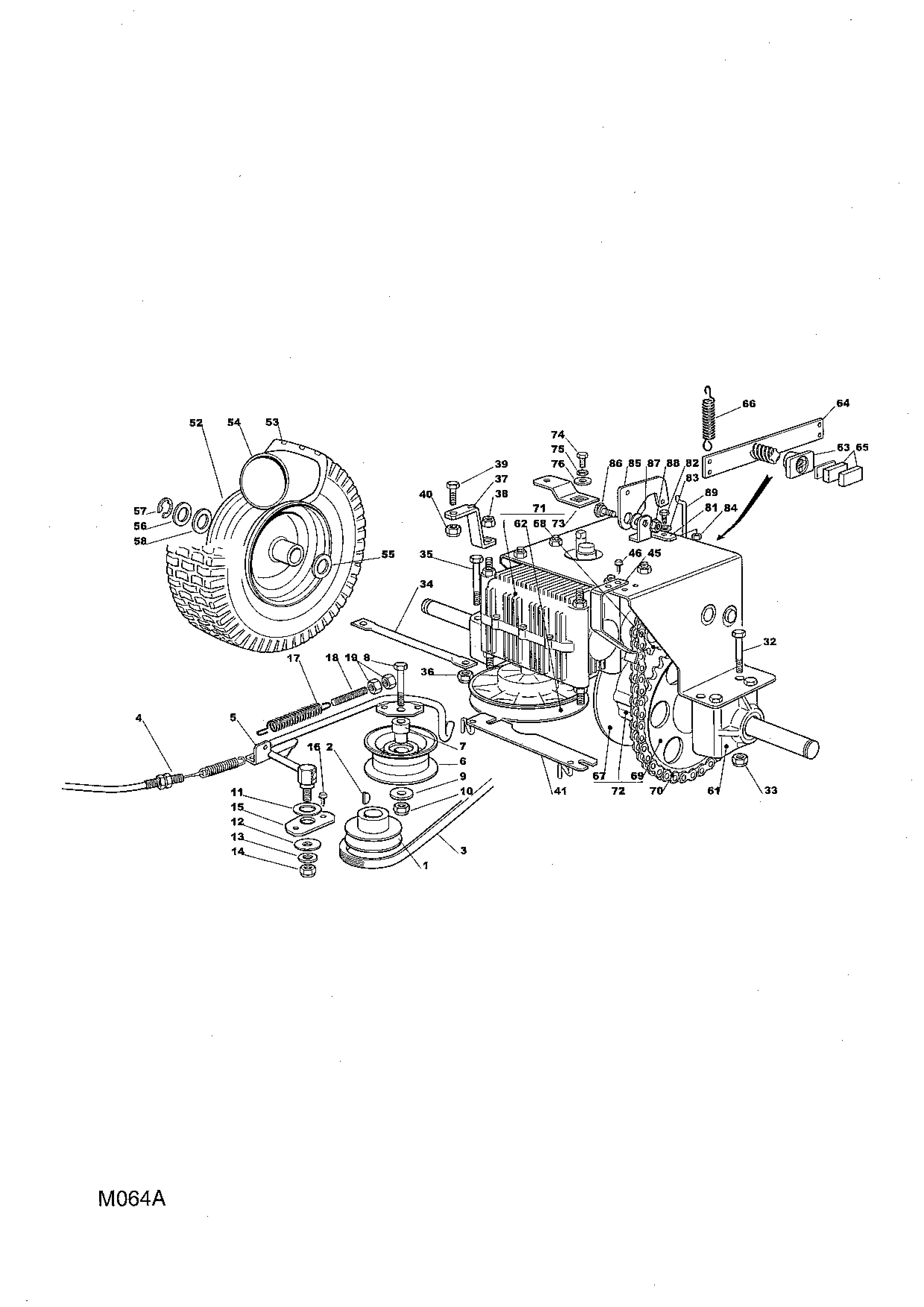

Transmission
13-2659-14 [2004]
Body Work
Brake Control Gear Shifter Control
Chassis
Electric Equipment
Engine
Catcher

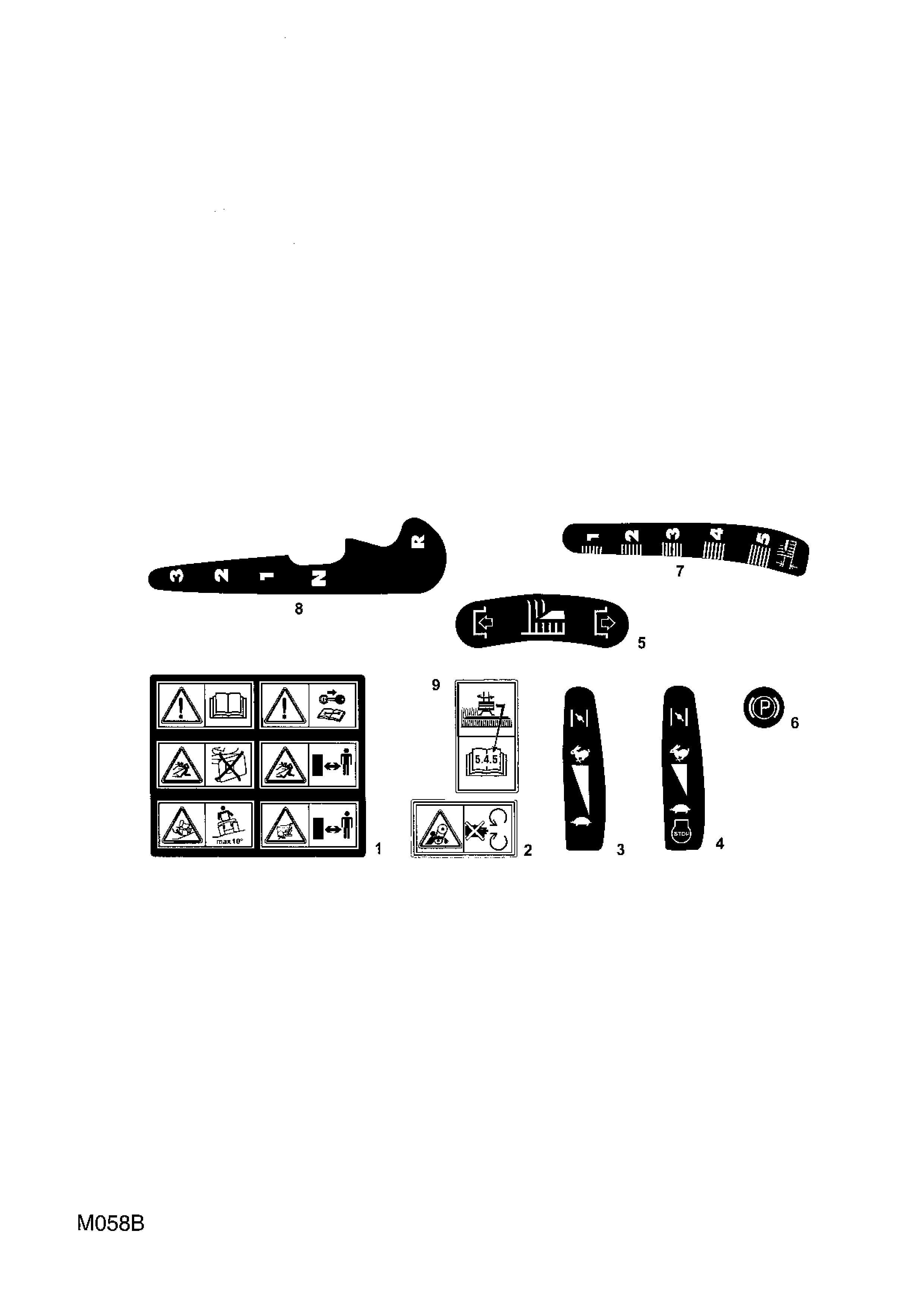

Labels
Mower Deck Engagement
Mower Deck Lift

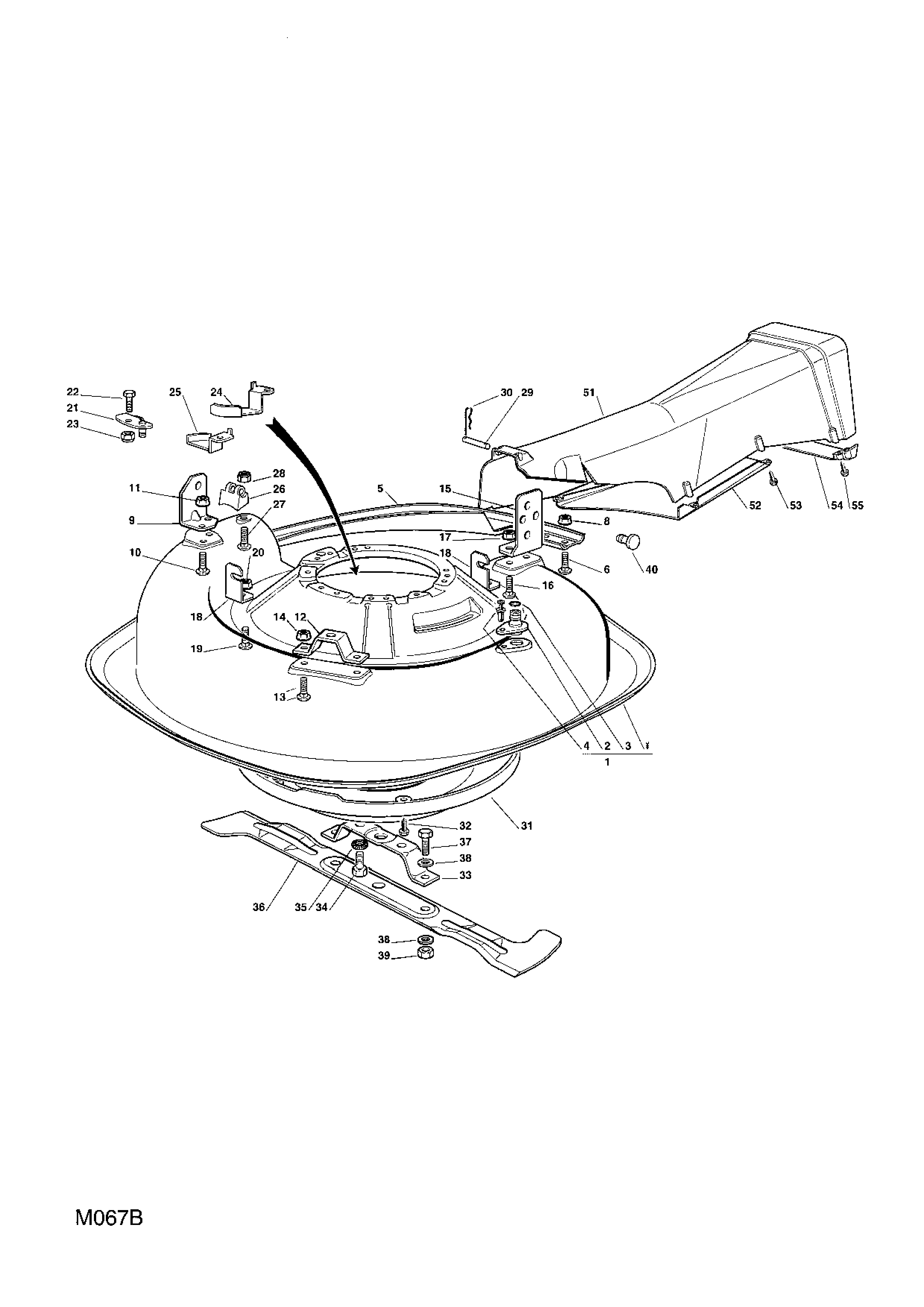

Mower Deck

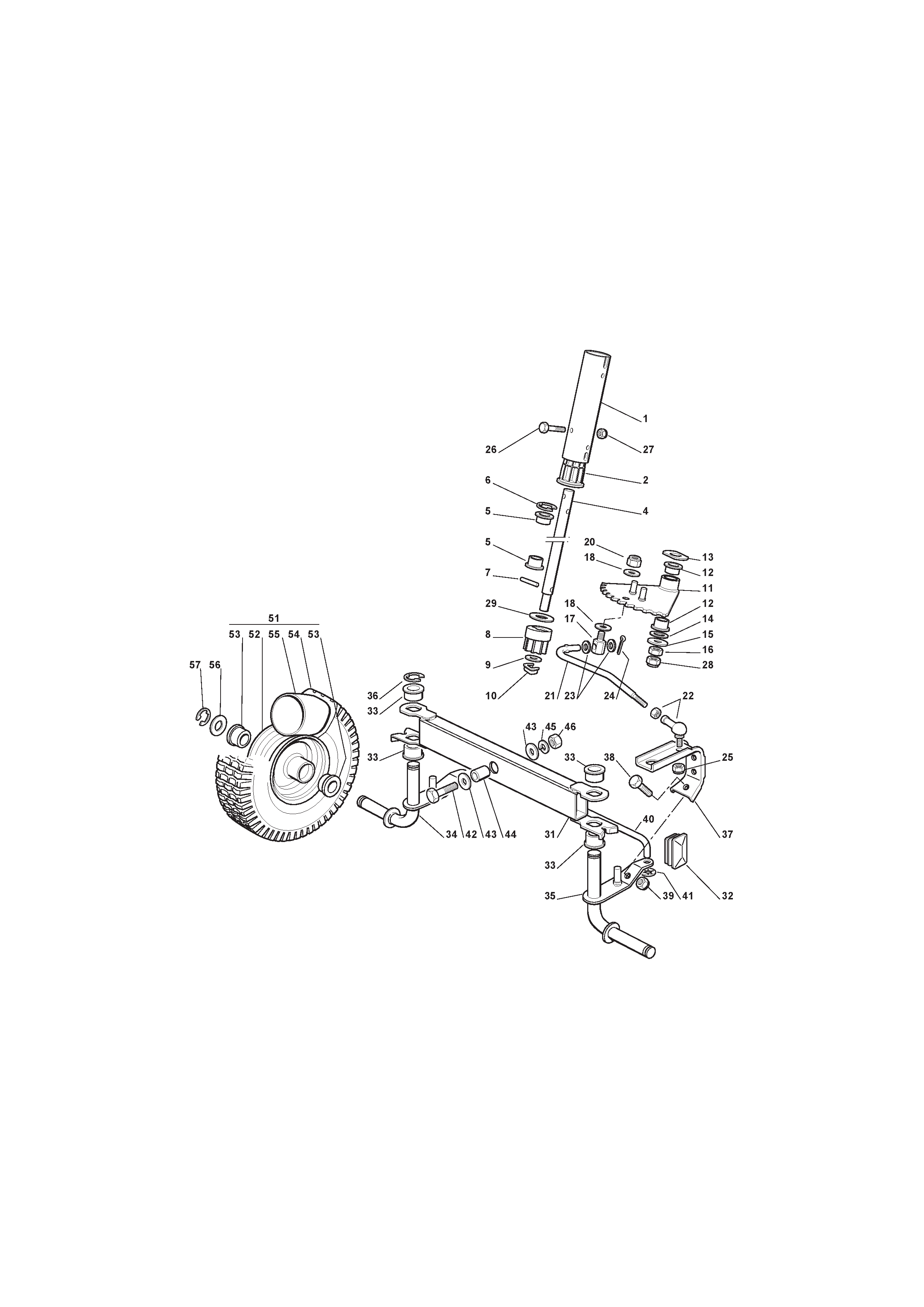

Steering
Transmission
13-2659-15 [2005-2006]

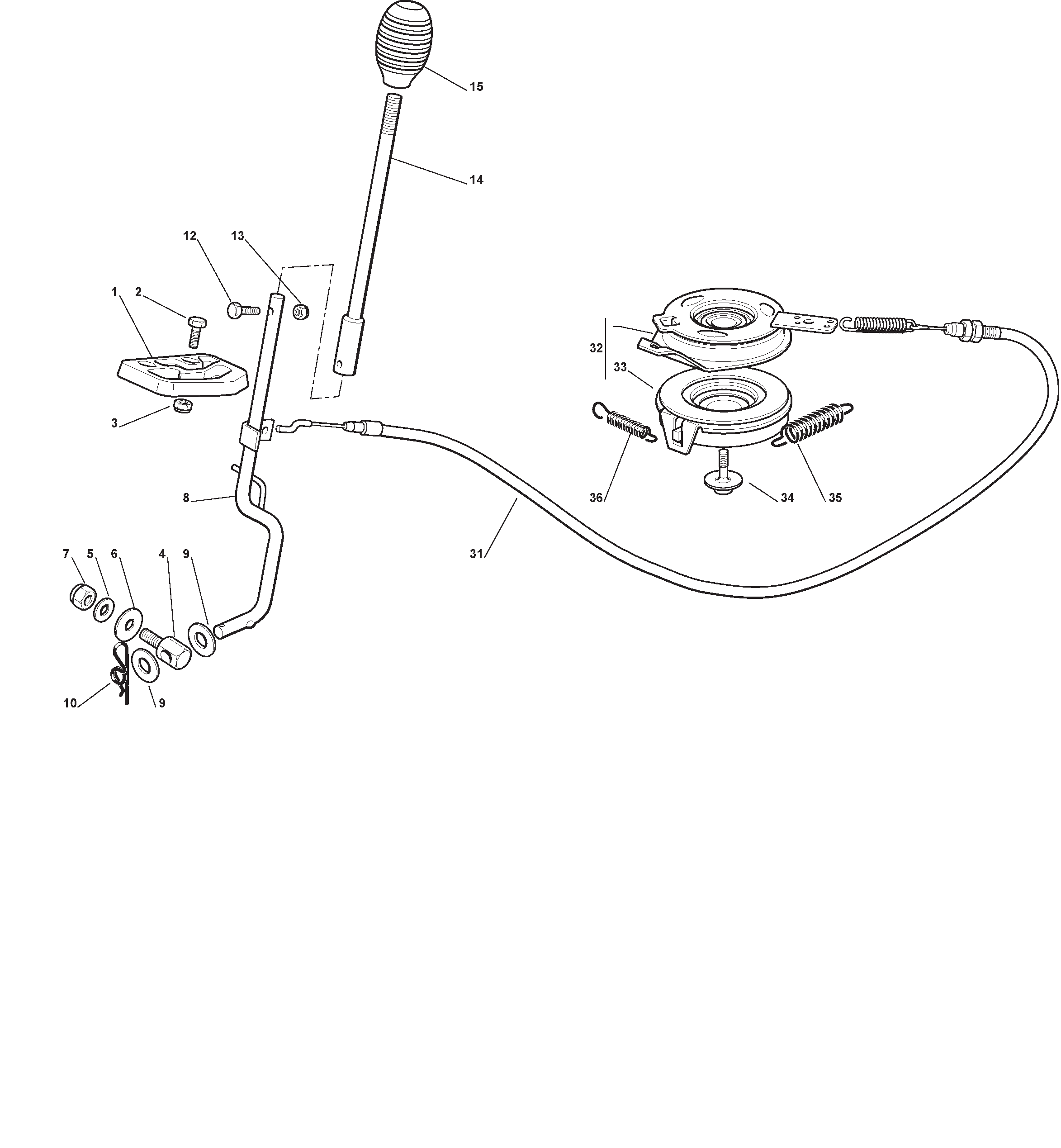

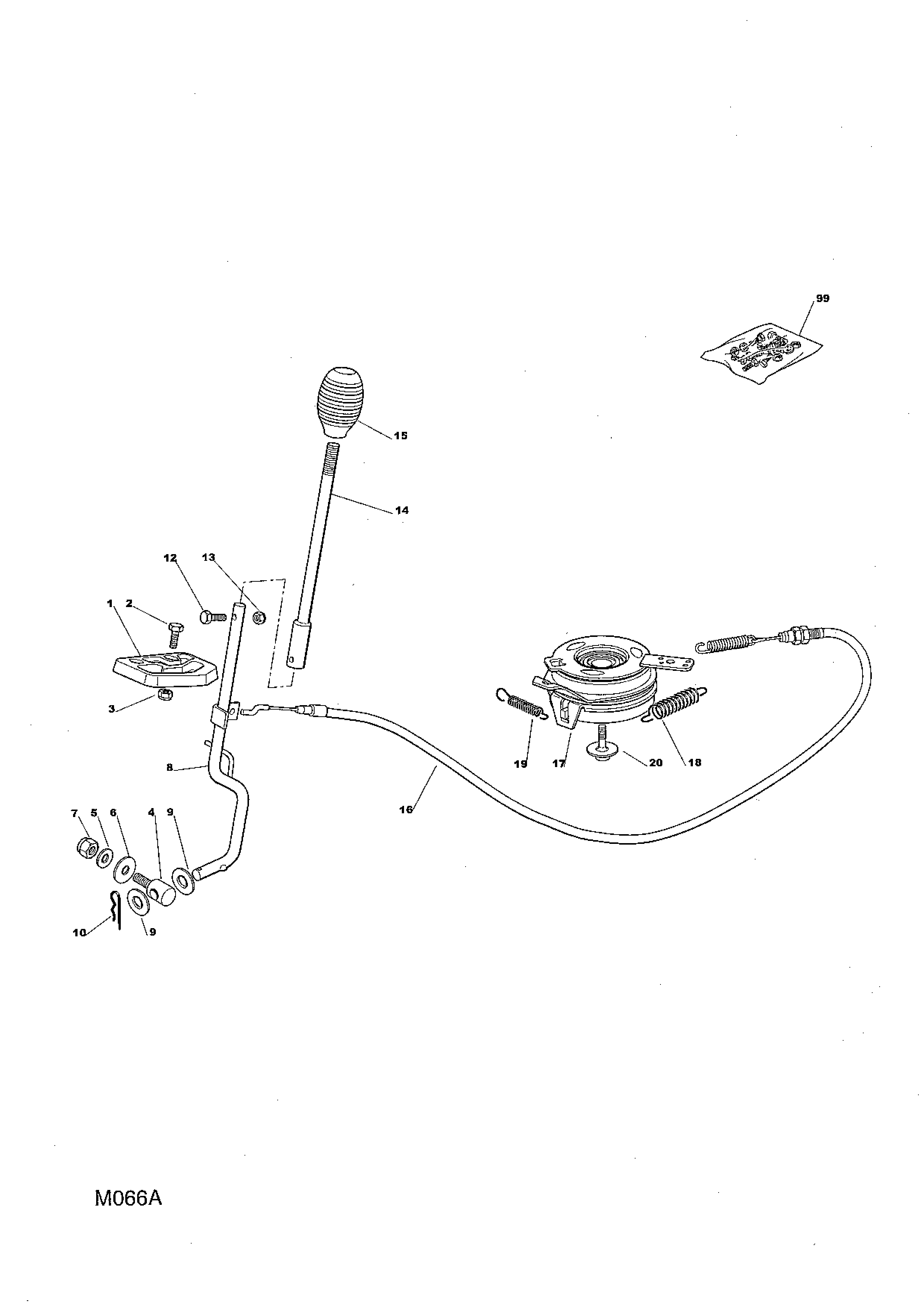

Blades Engagement with Electromagnetic Clutch

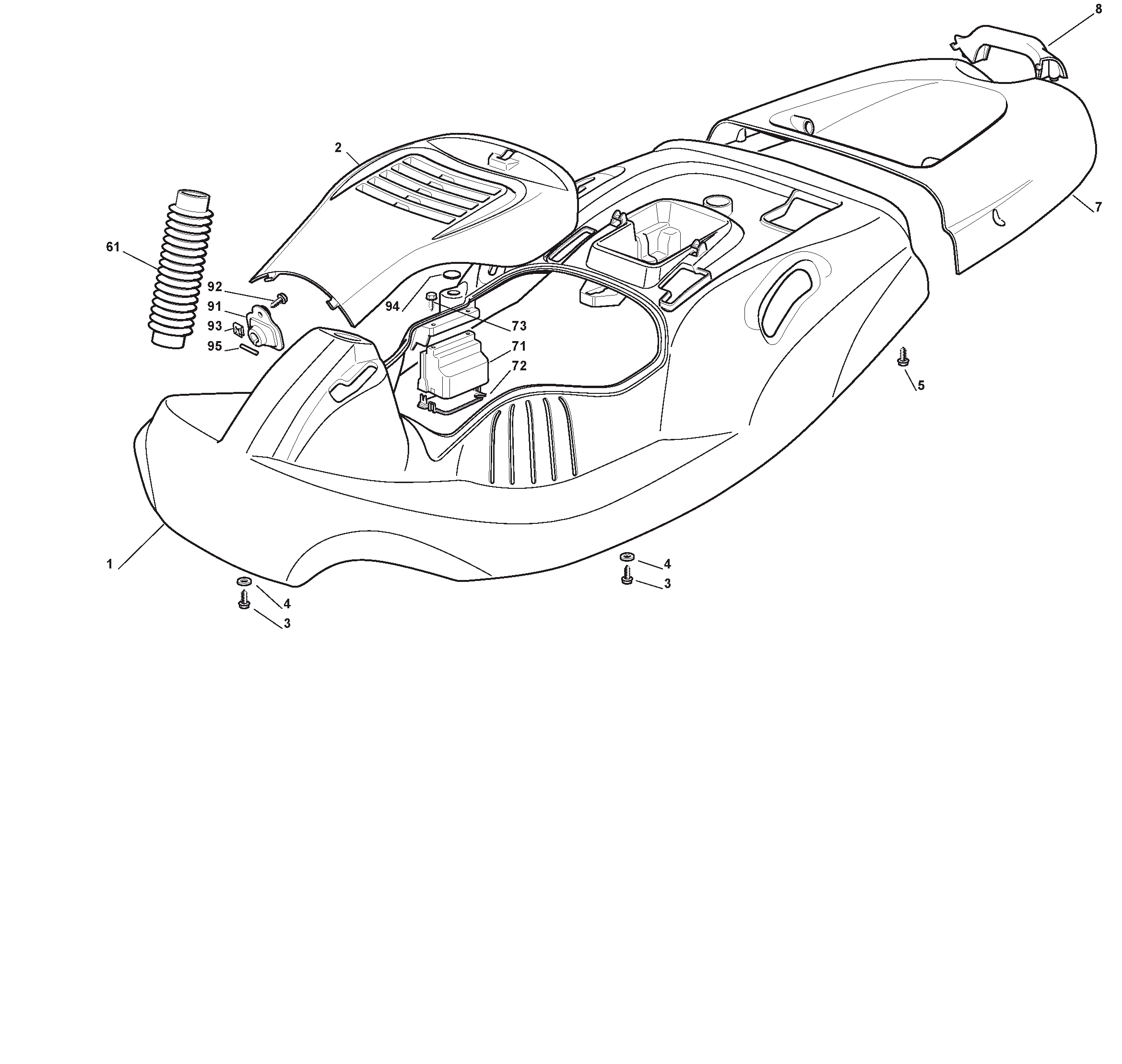

Body

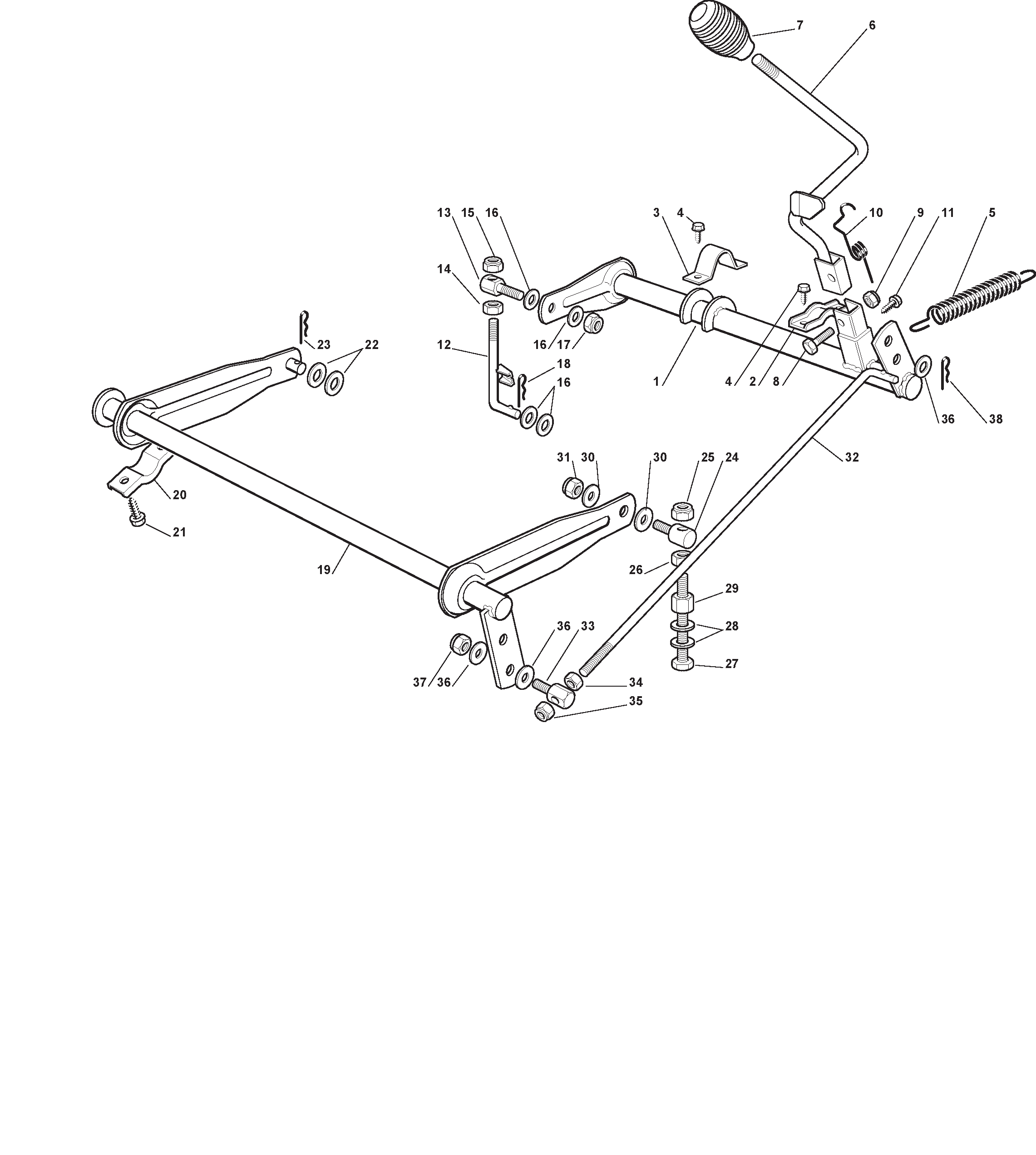

Cutting Plate Lifting

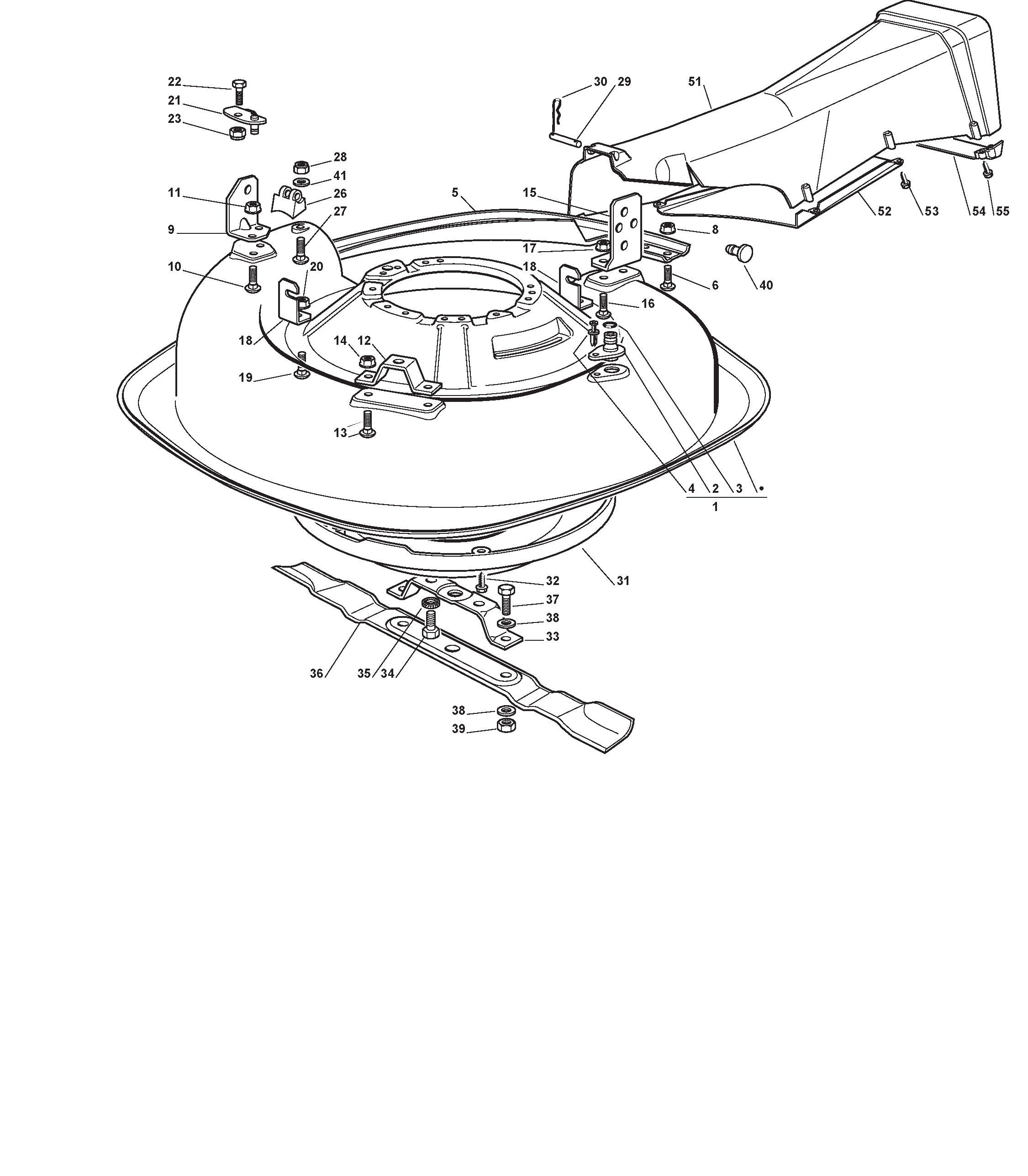

Cutting Plate

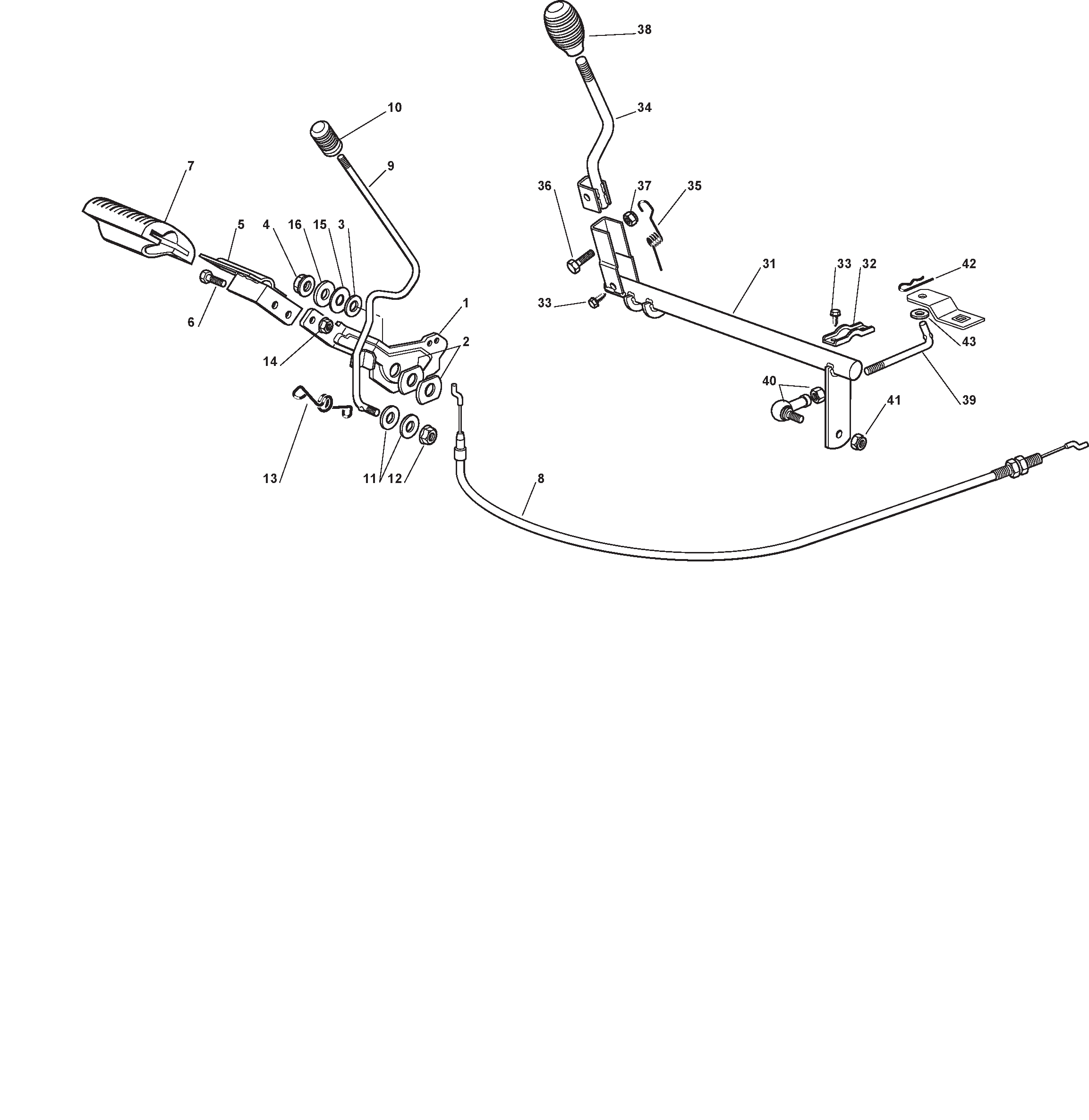

Drive And Brake Controls

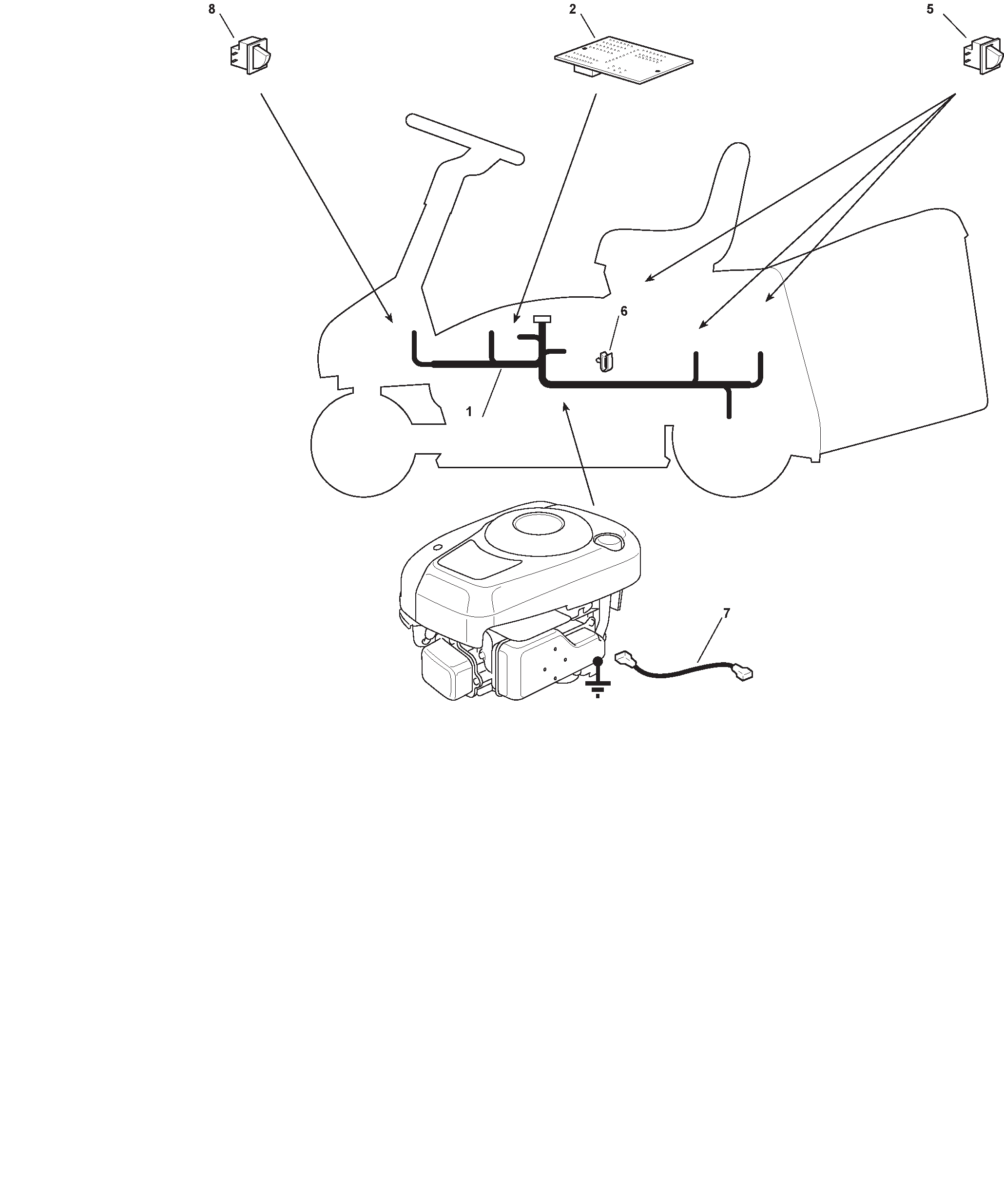

Electrical Parts

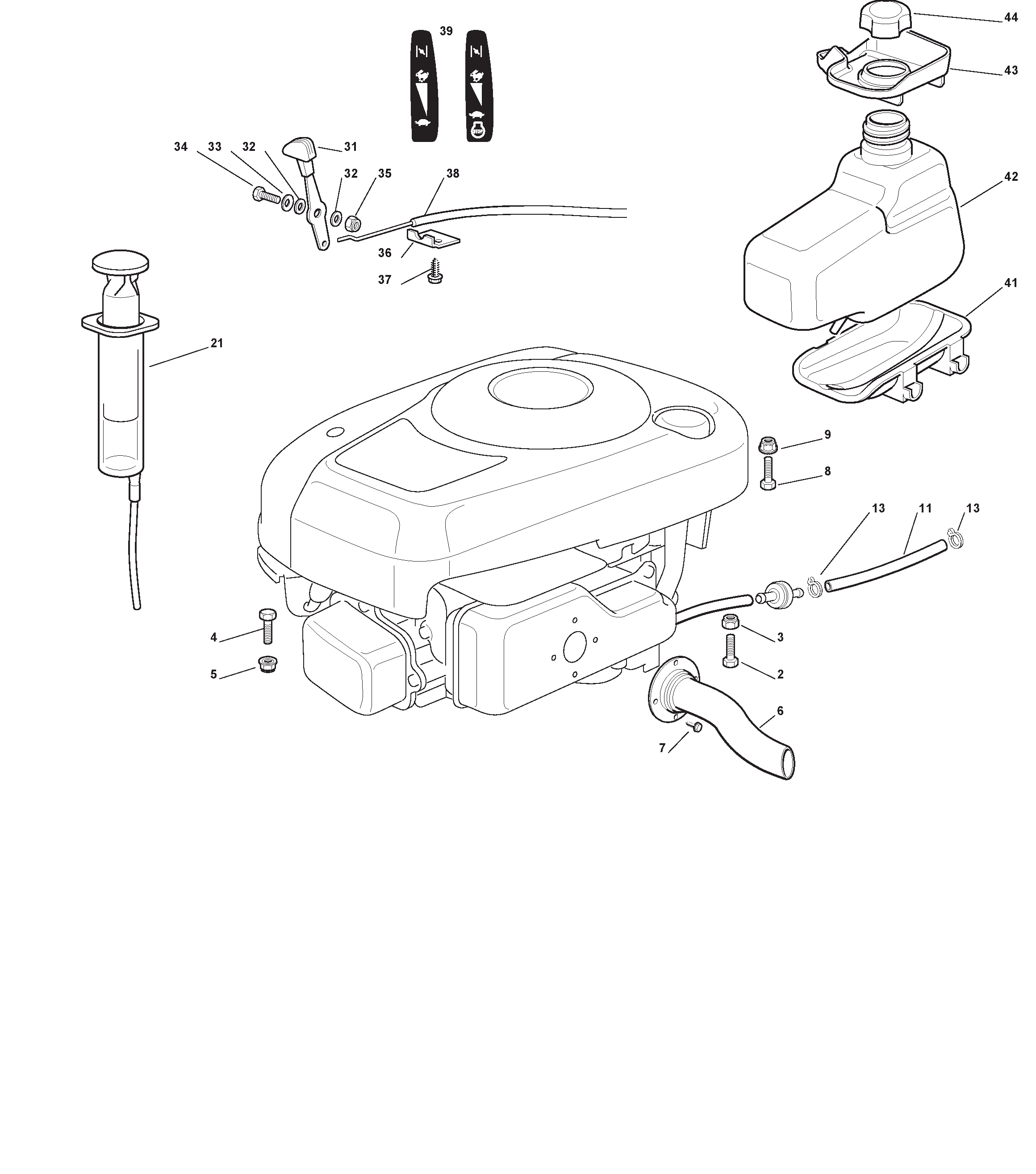

B&S

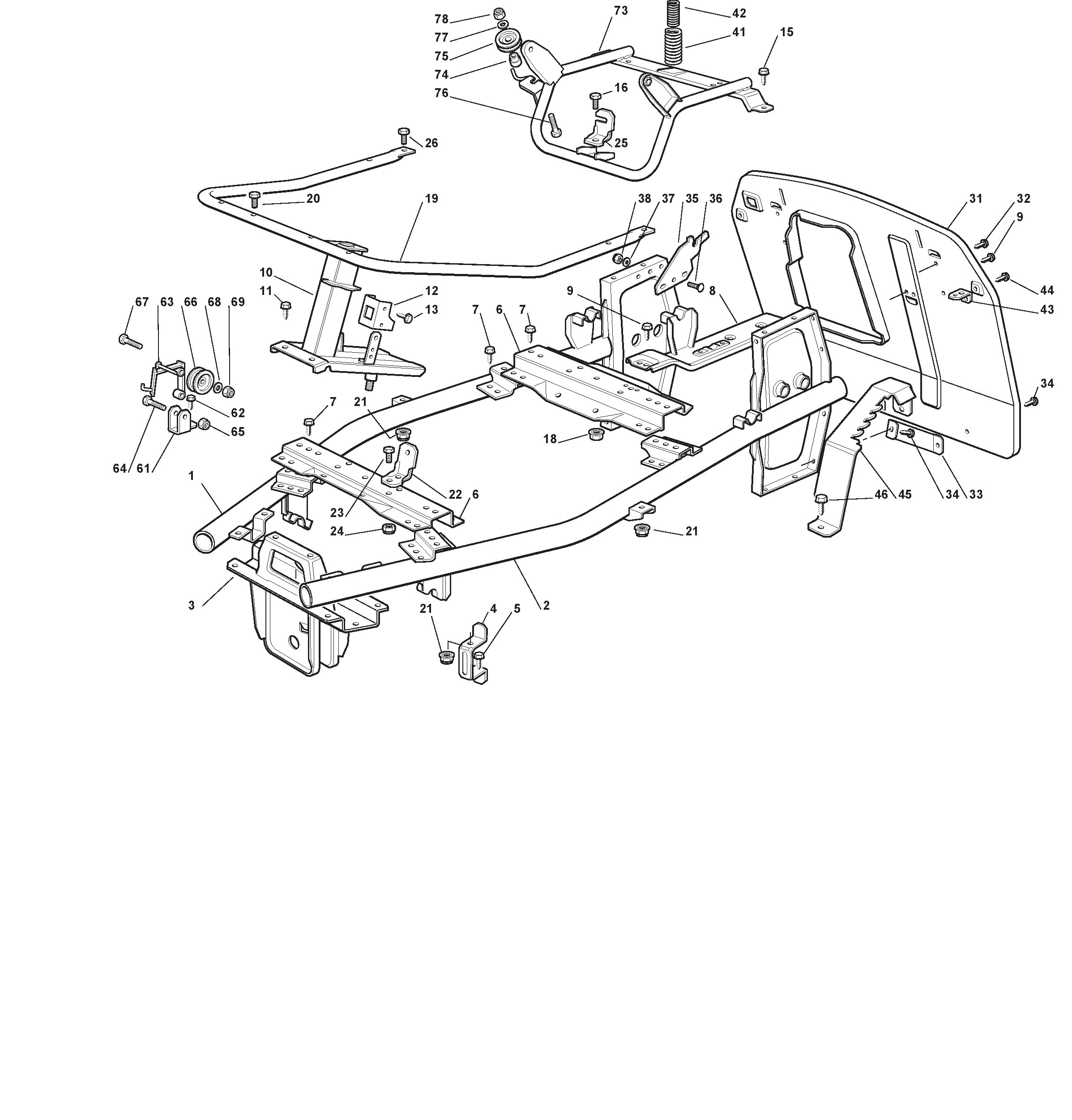

Frame

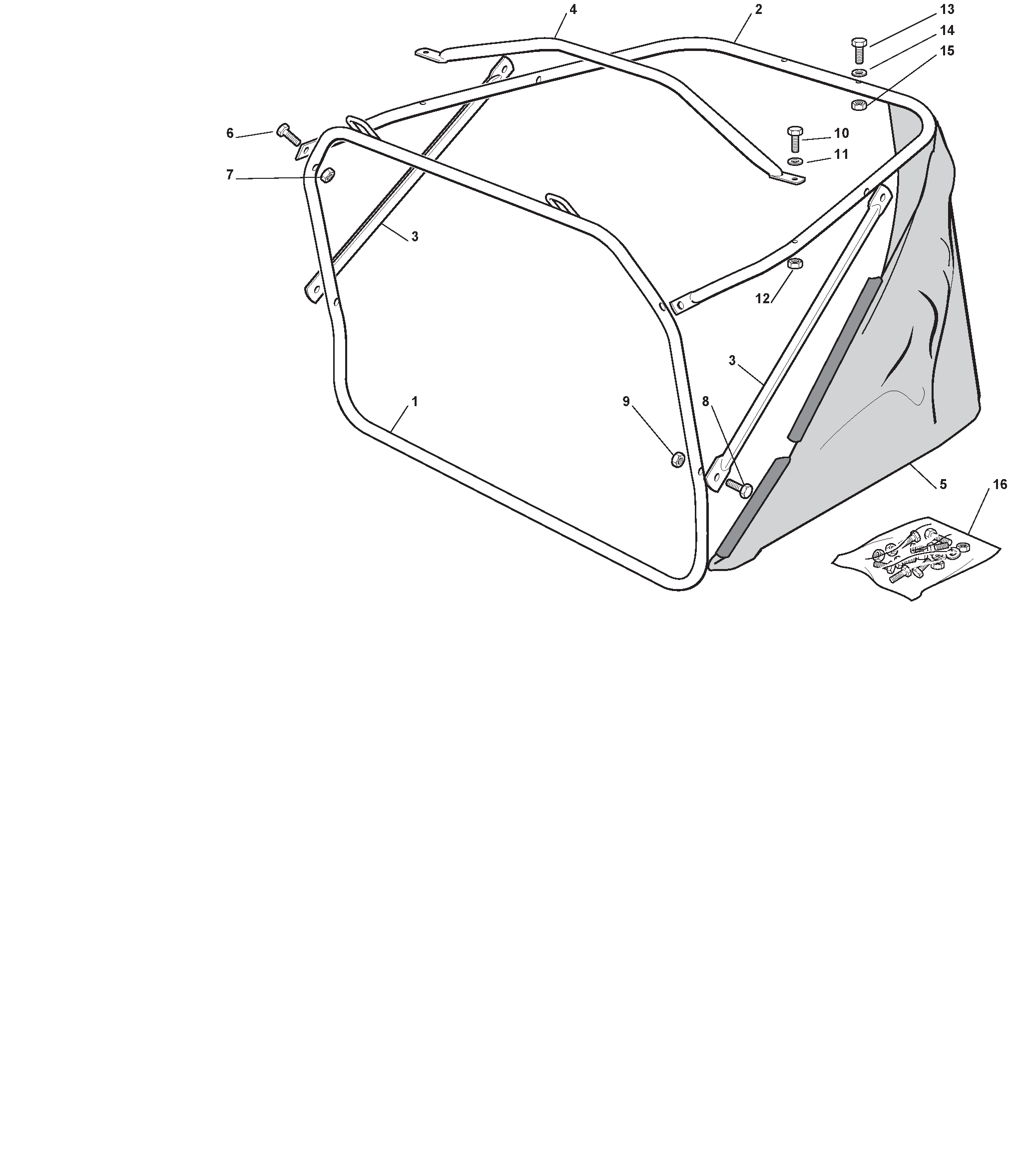

Grasscatcher

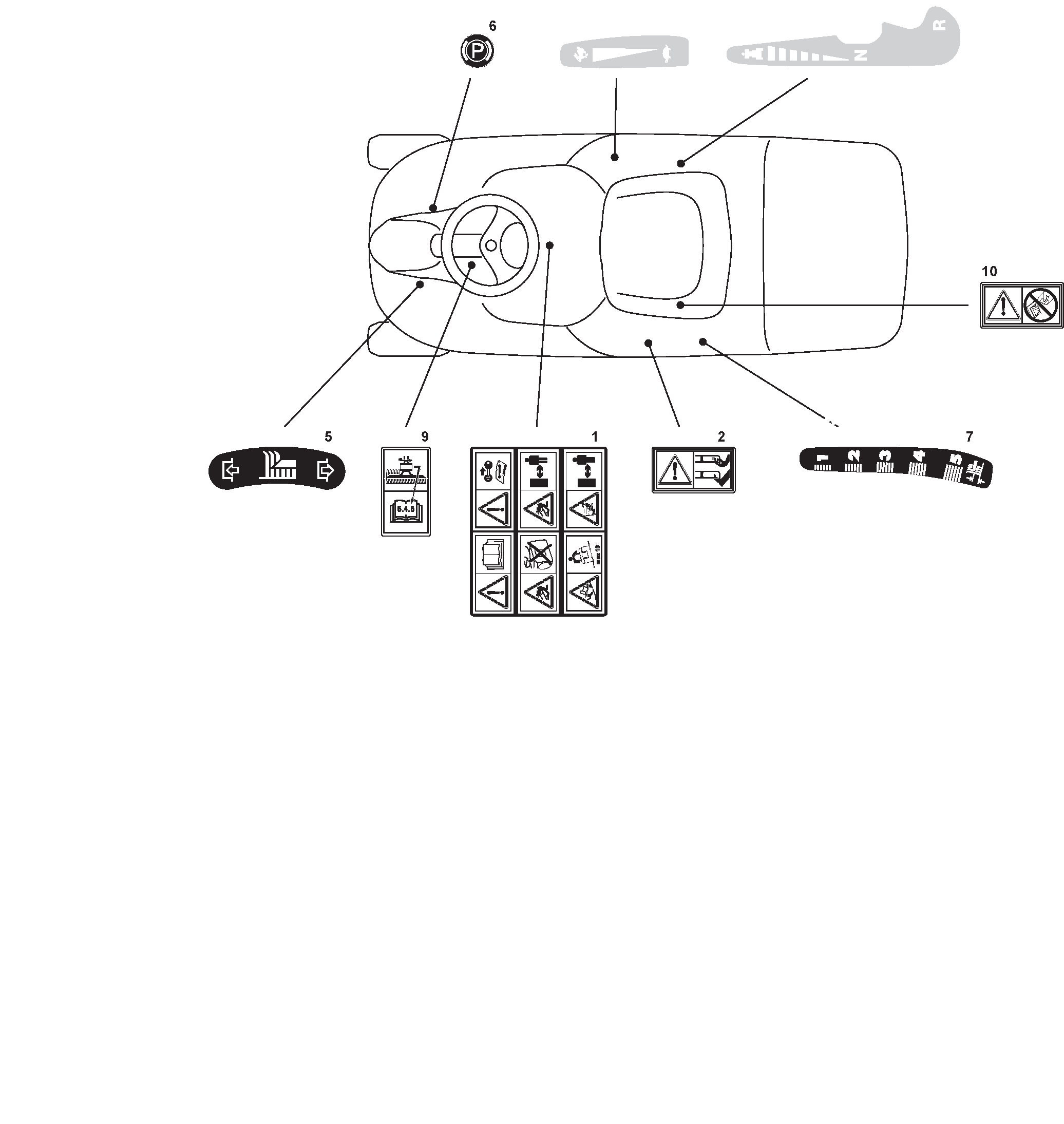

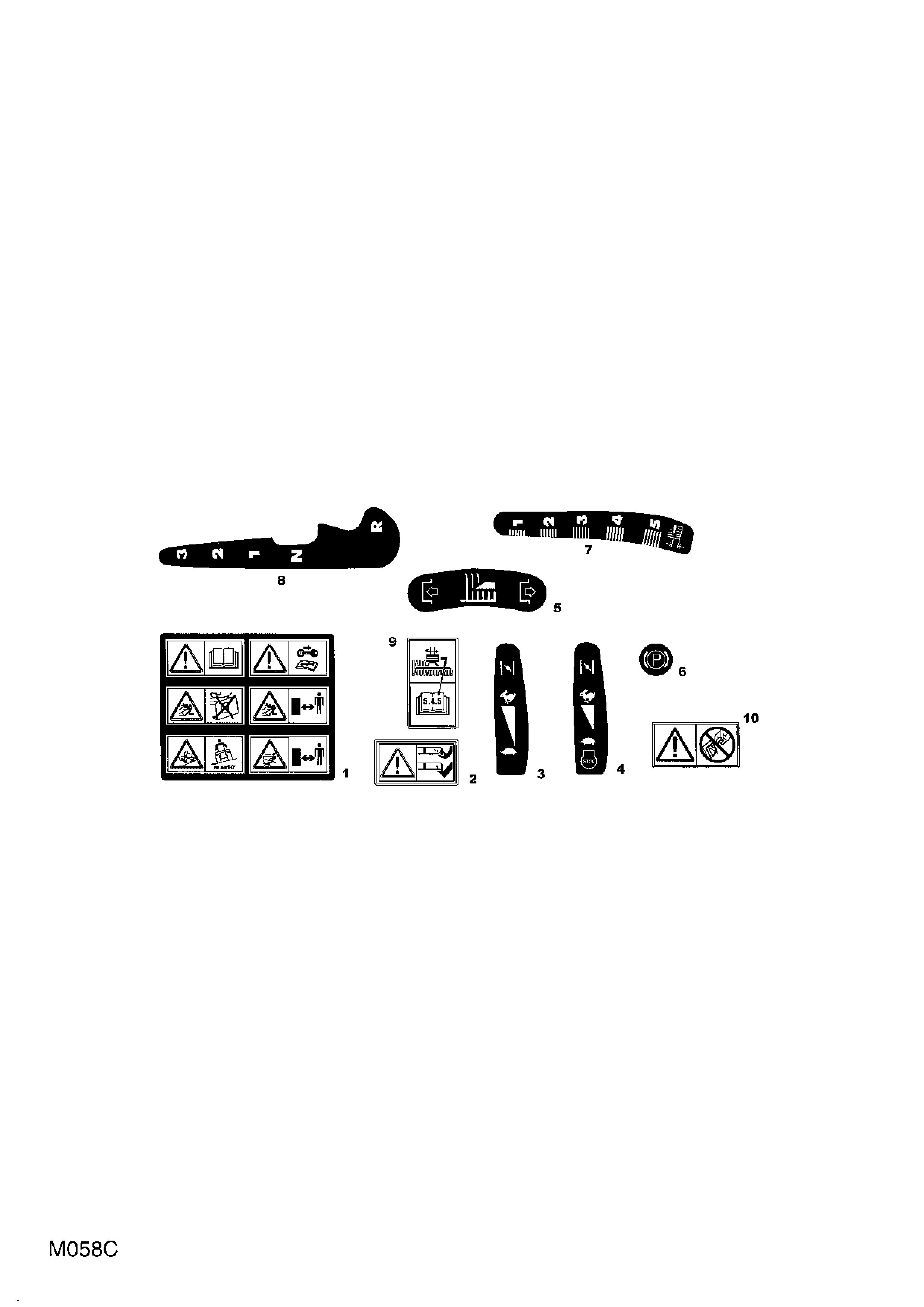

Labels

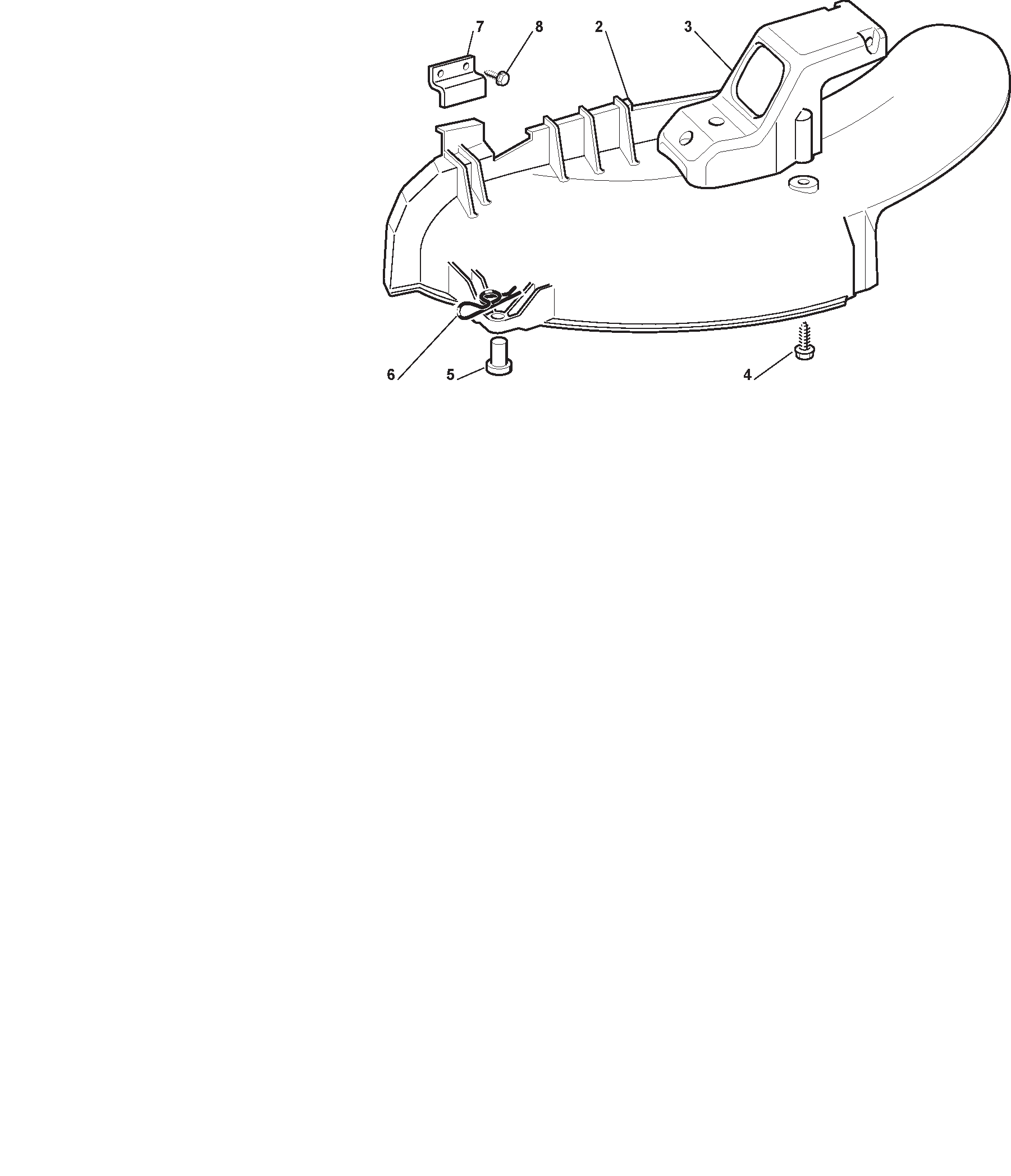

Optionals On Request

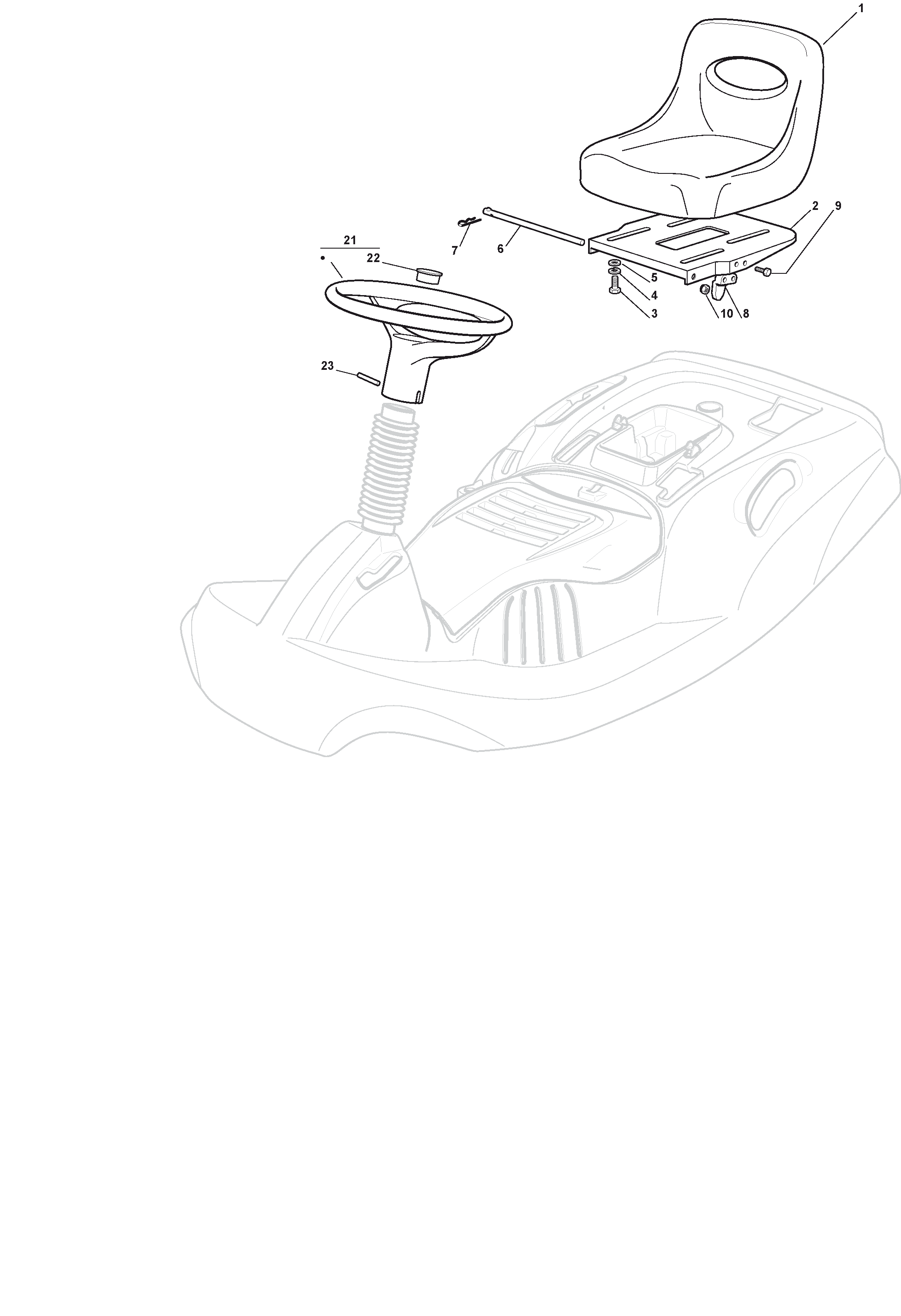

Seat & Steering Wheel

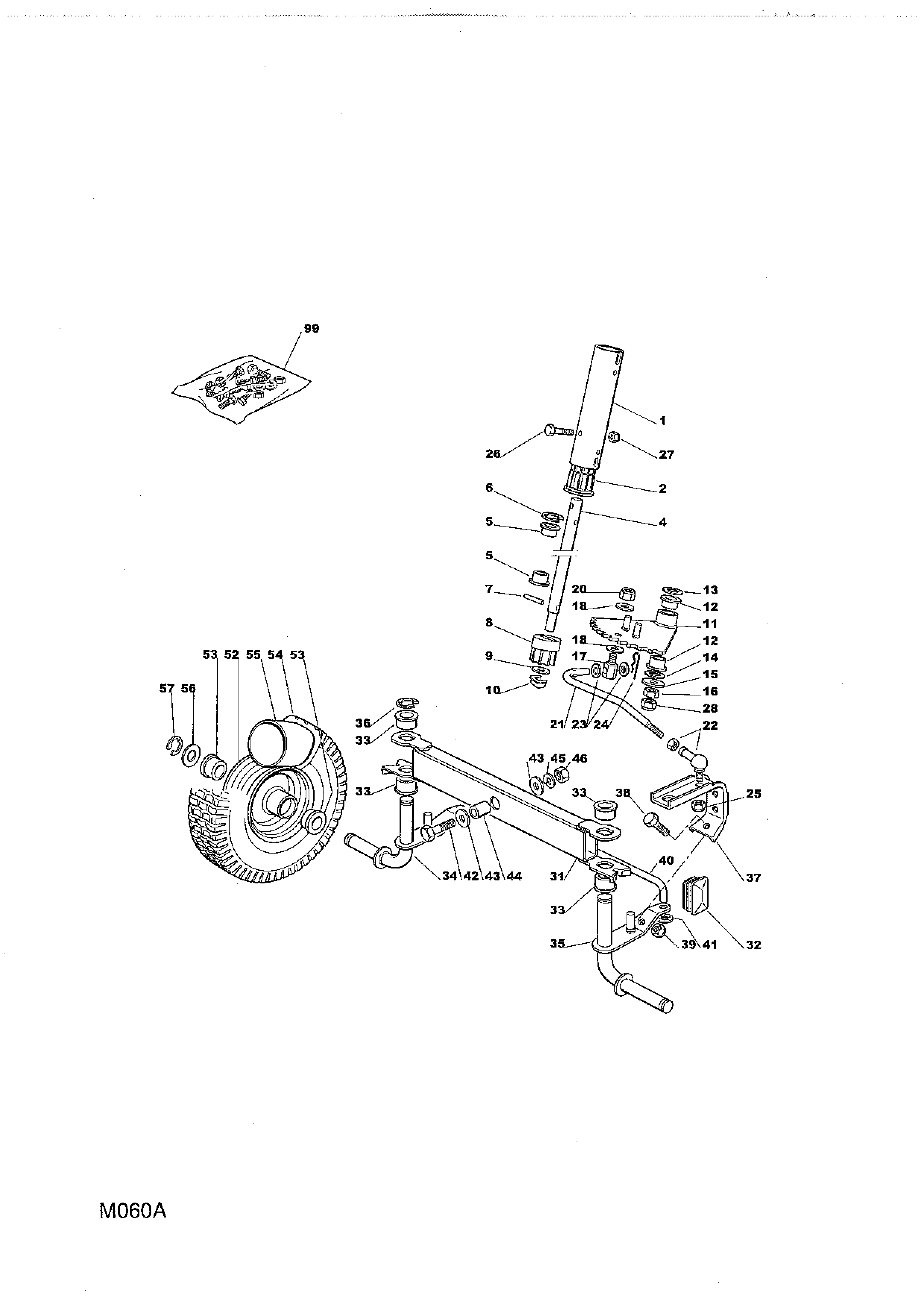

Steering
Transmission
13-2659-16 [2006]
Body Work
Brake Control Gear Shifter Control
Chassis
Electric Equipment
Engine
Catcher
Labels
Mower Deck Engagement
Mower Deck Lift
Mower Deck
Steering
Transmission
