Diagrams for the Mountfield RM70 25 Ride-on
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Mountfield RM70 25 Ride-on.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Mountfield RM70 25 Ride-on
2T0030233-M10 [2010]

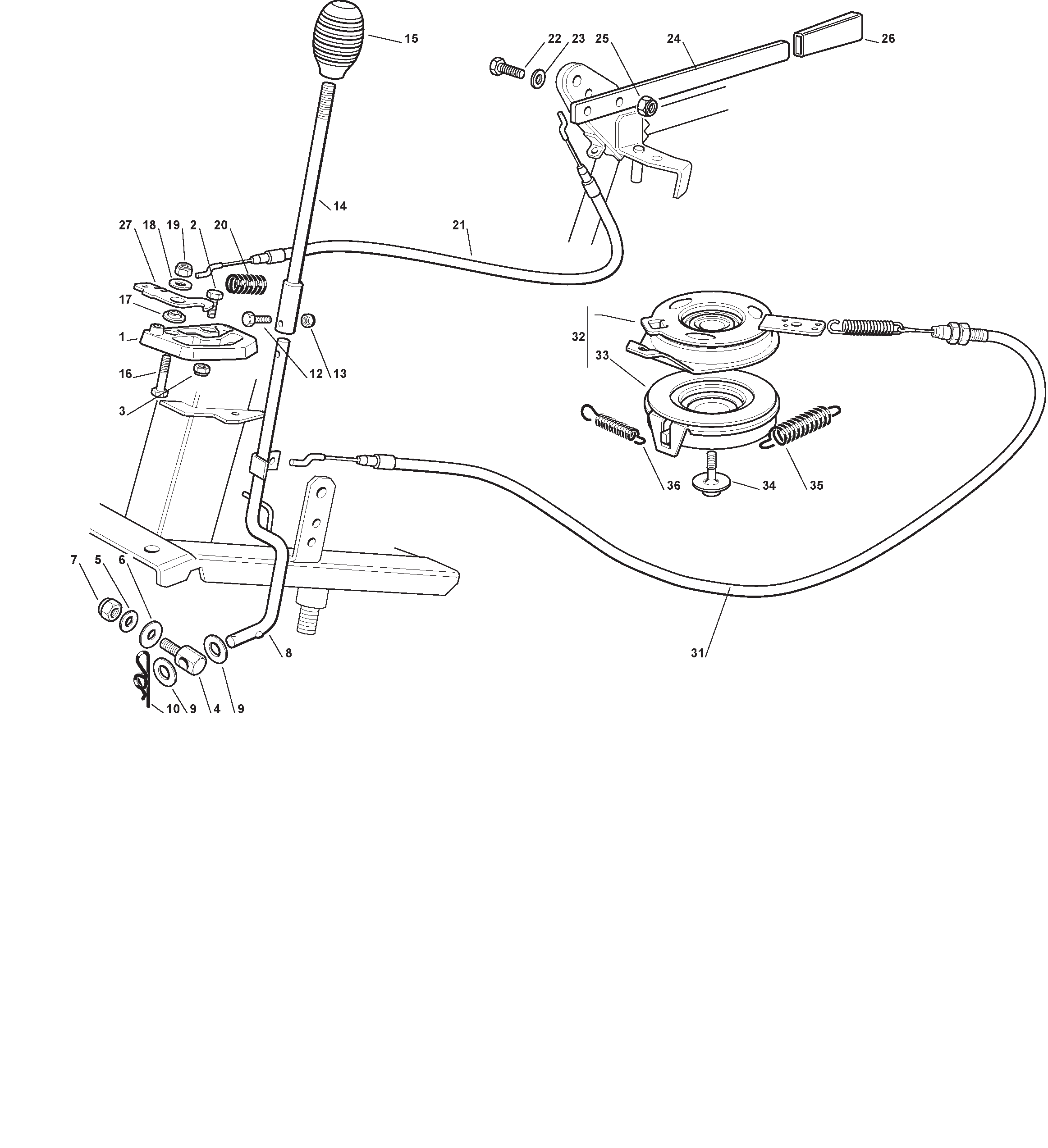

Blades Engagement with Electromagnetic Clutch

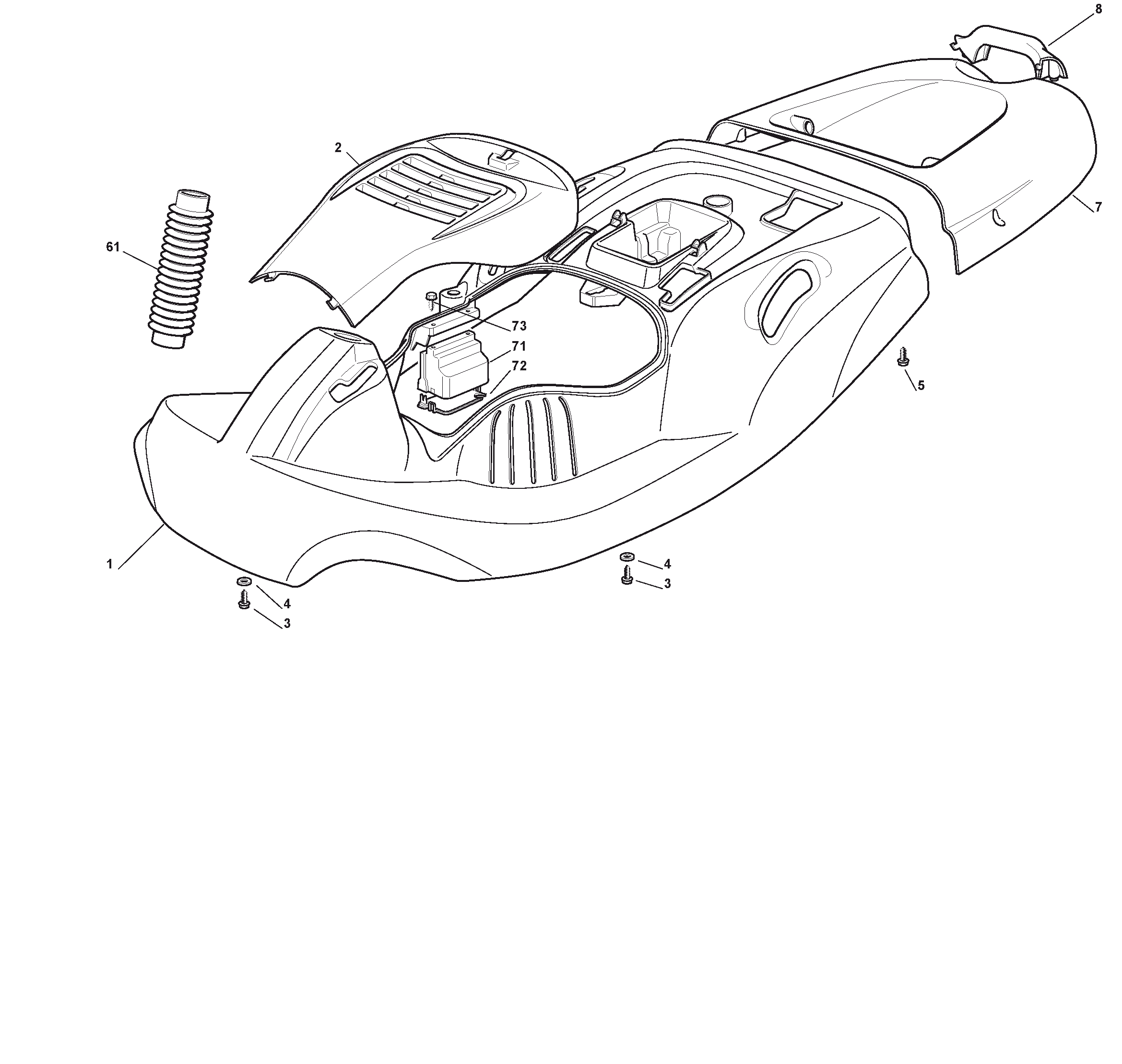

Body

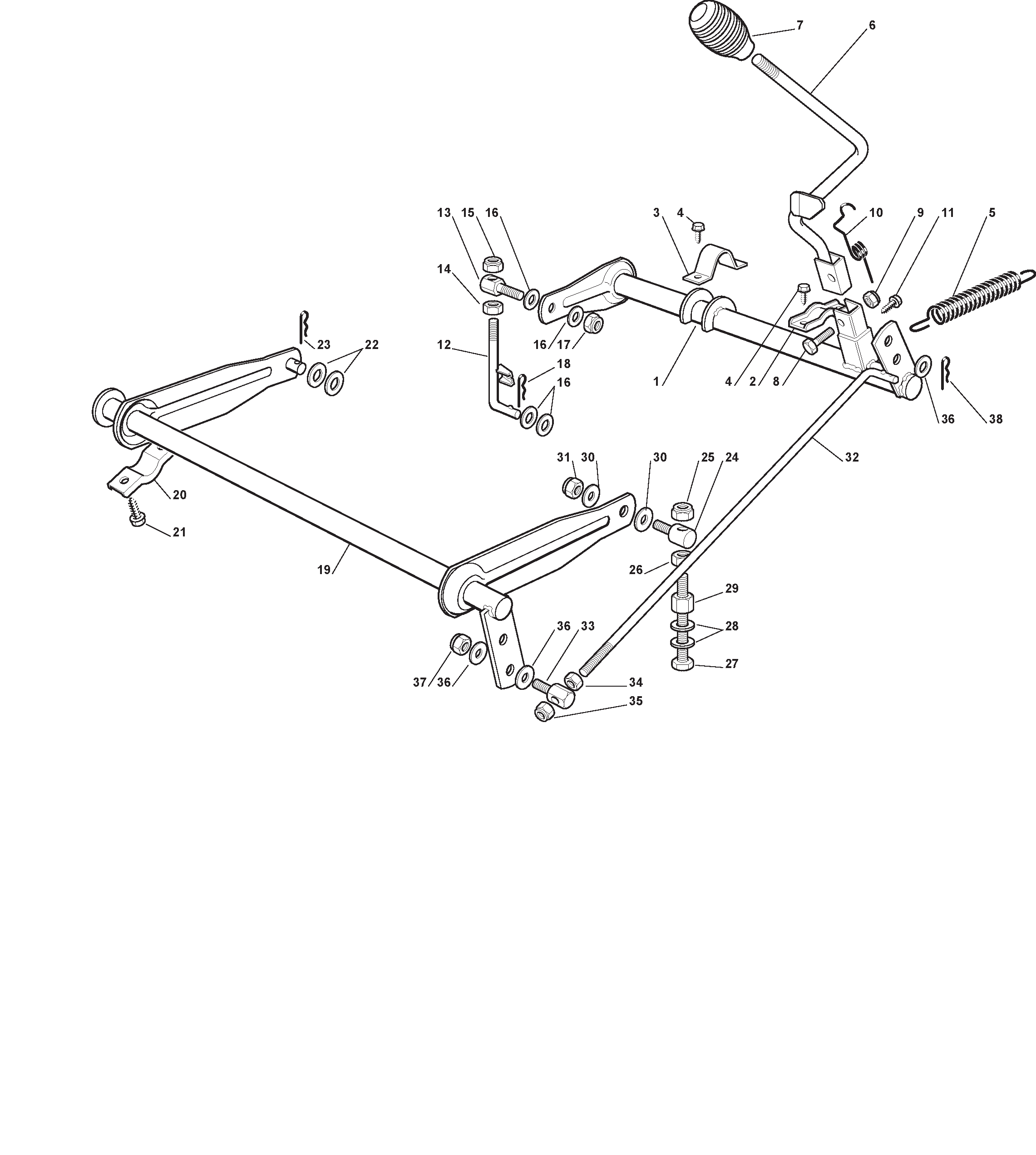

Cutting Plate Lifting

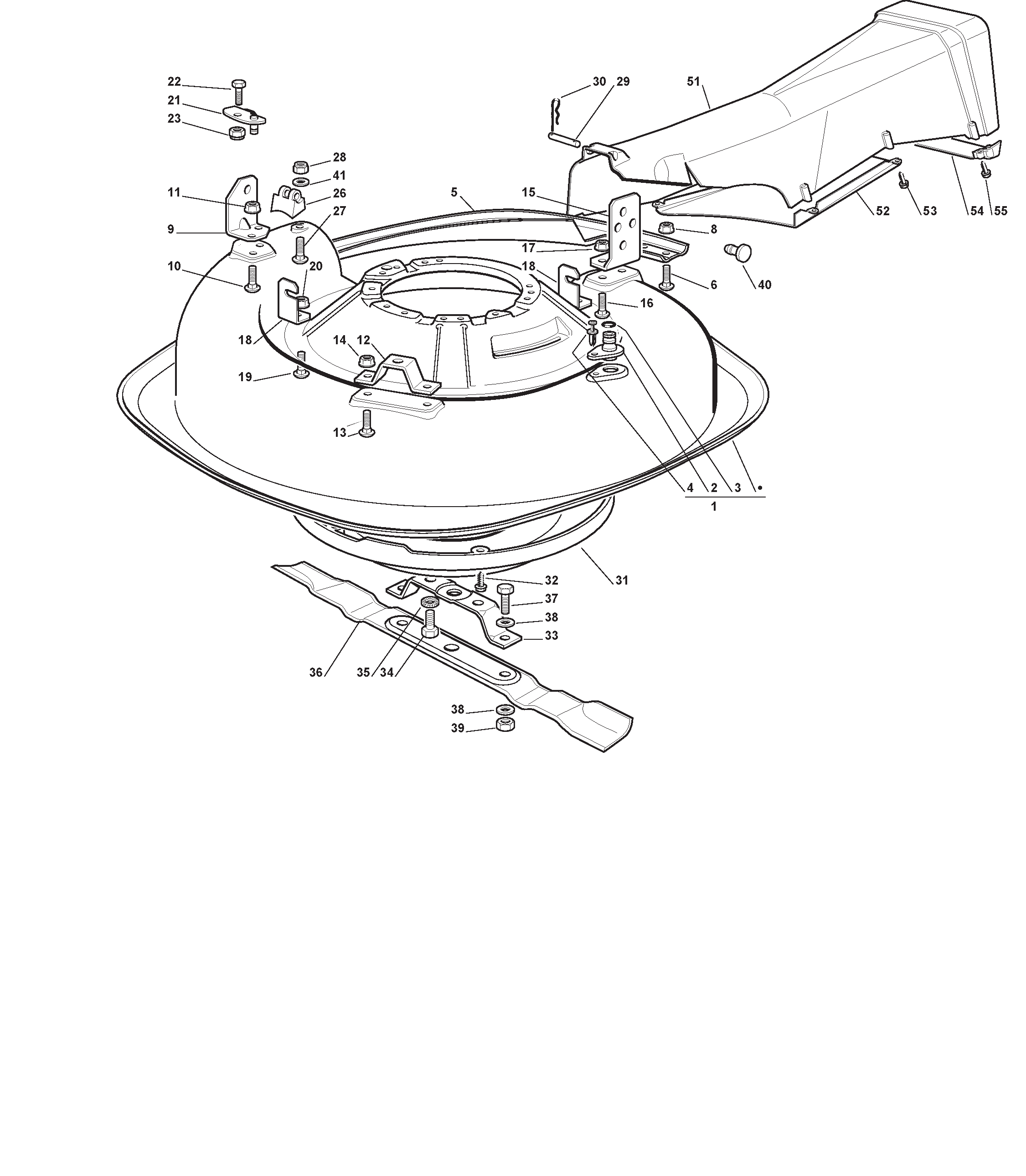

Cutting Plate

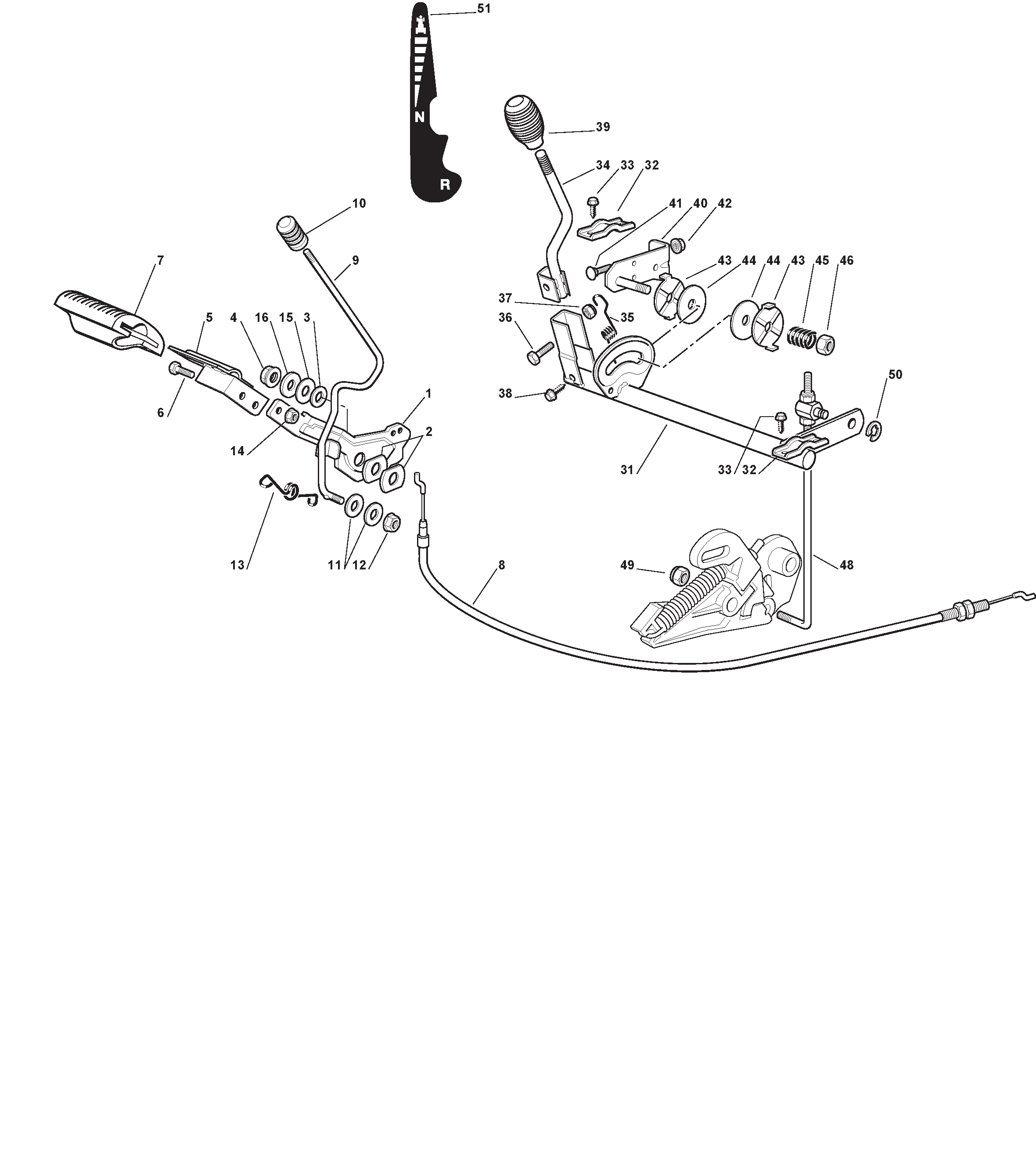

Drive And Brake Controls

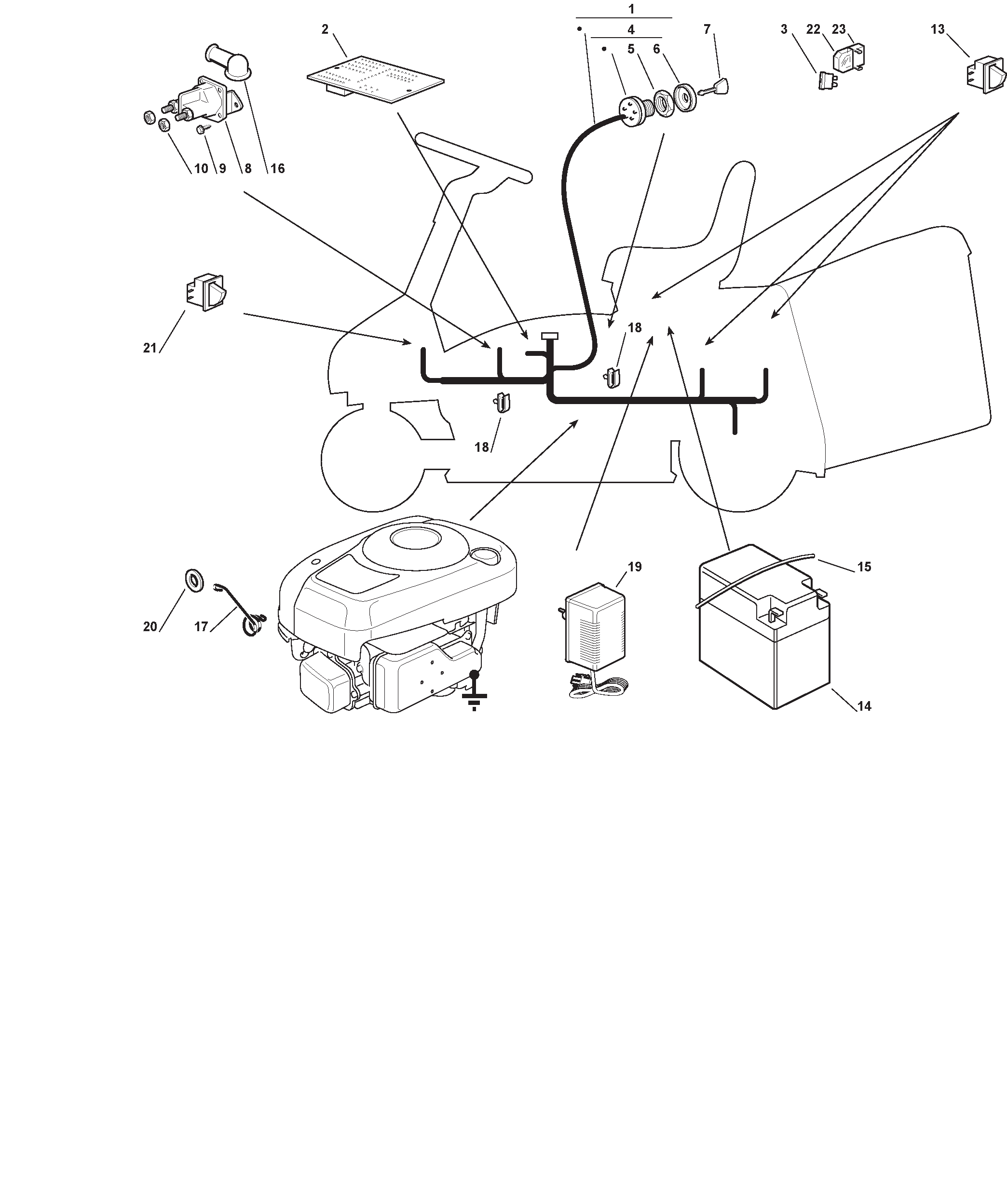

Electrical Parts

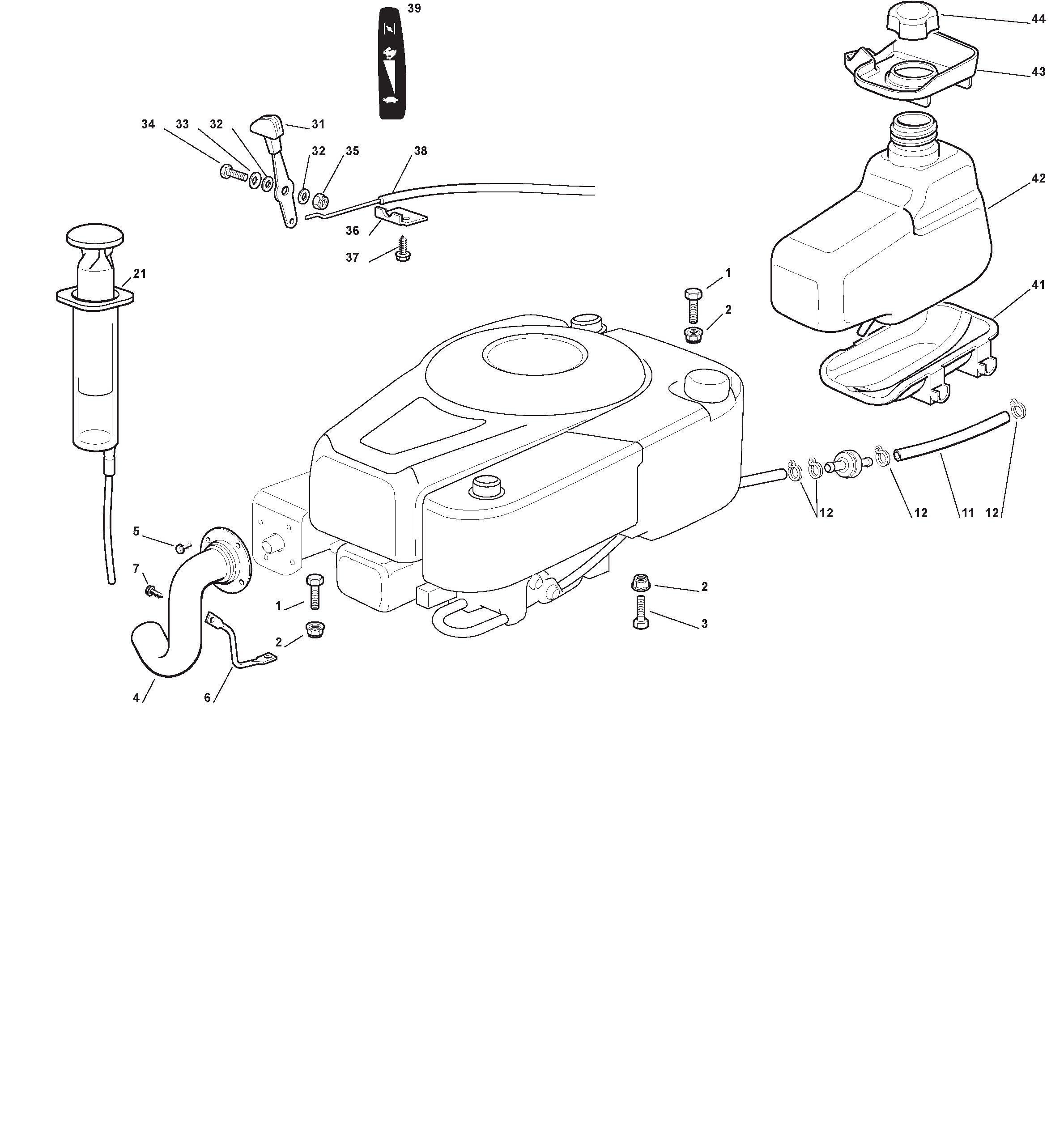

B&S

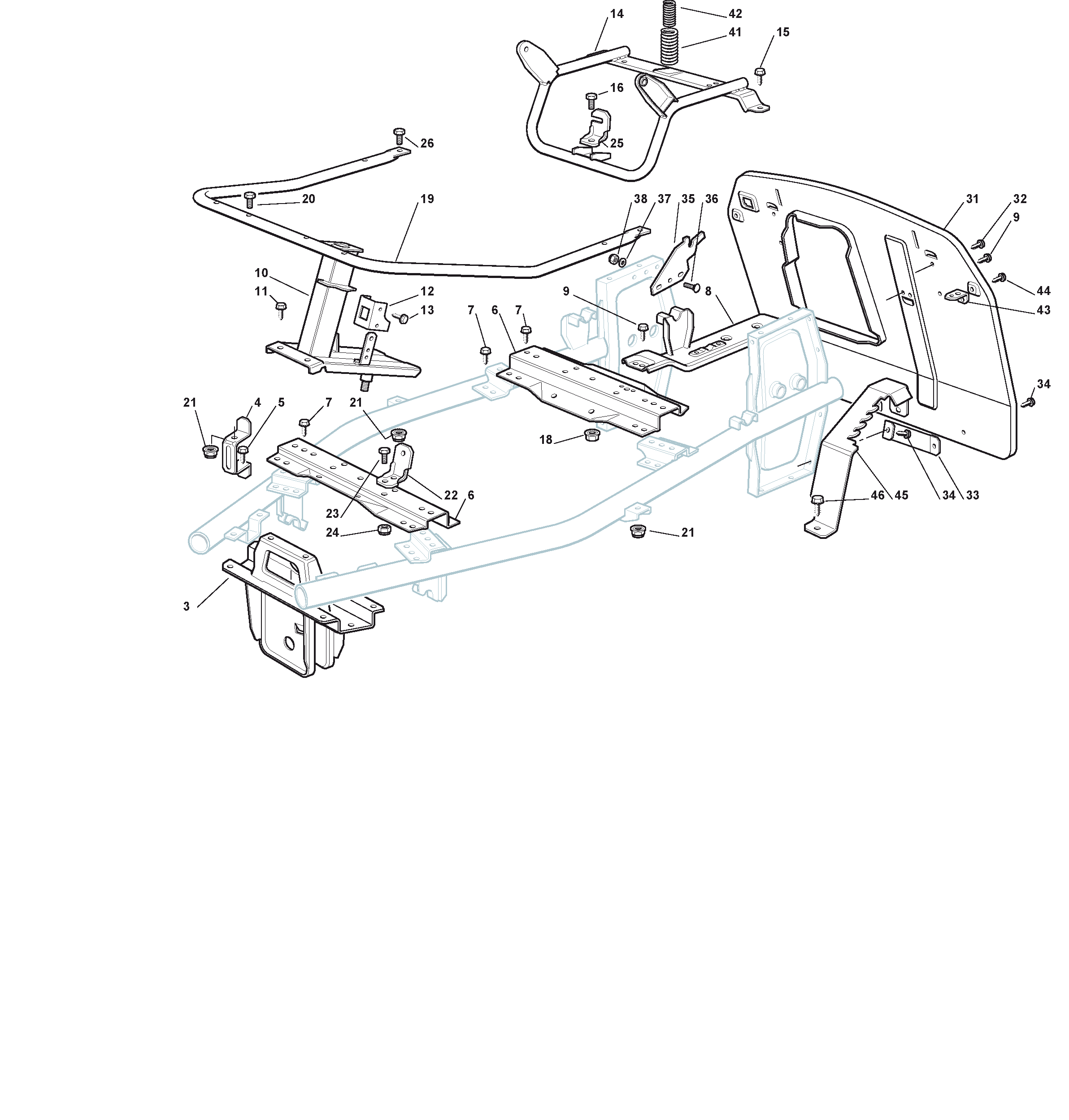

Frame

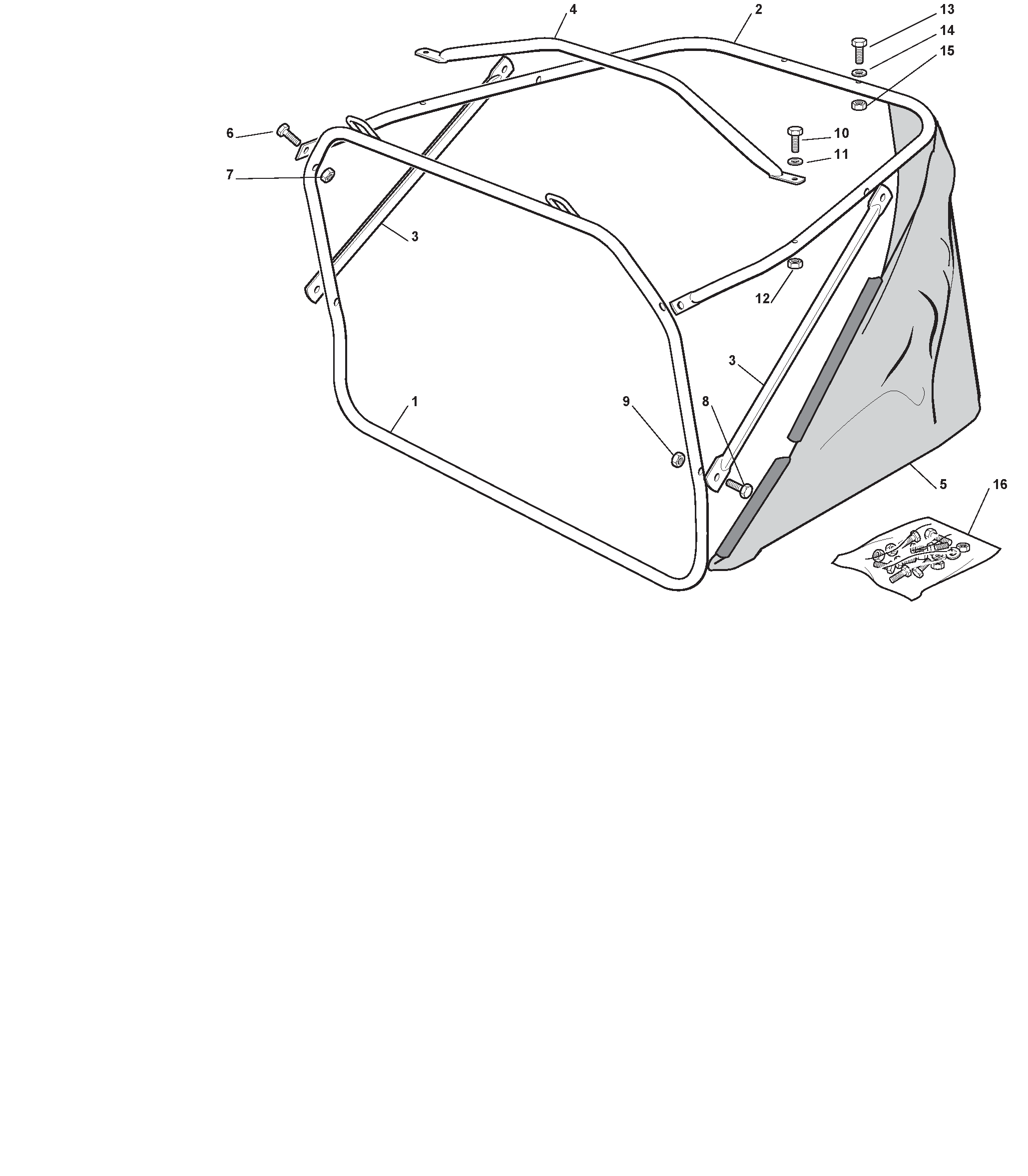

Grasscatcher

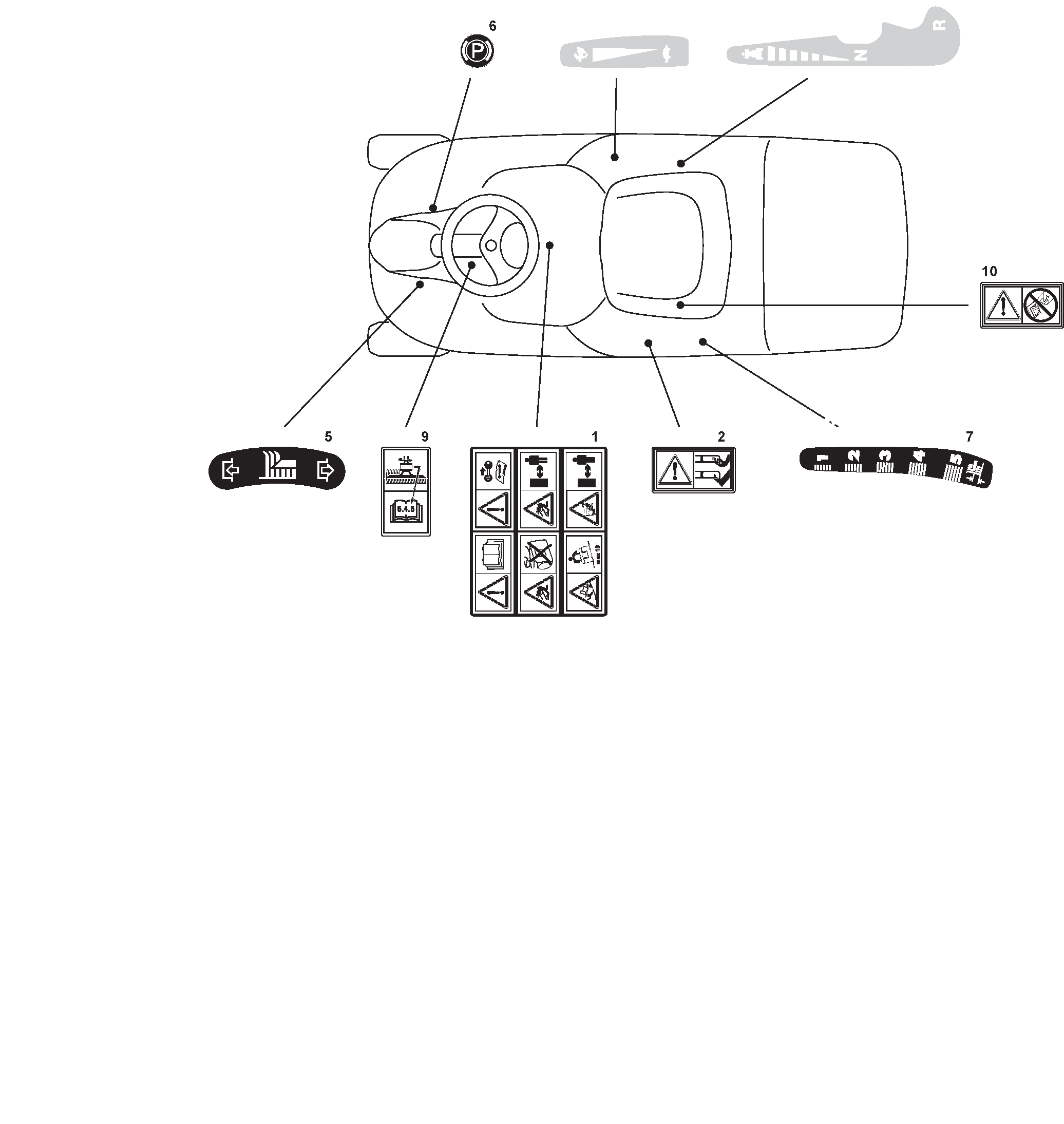

Labels

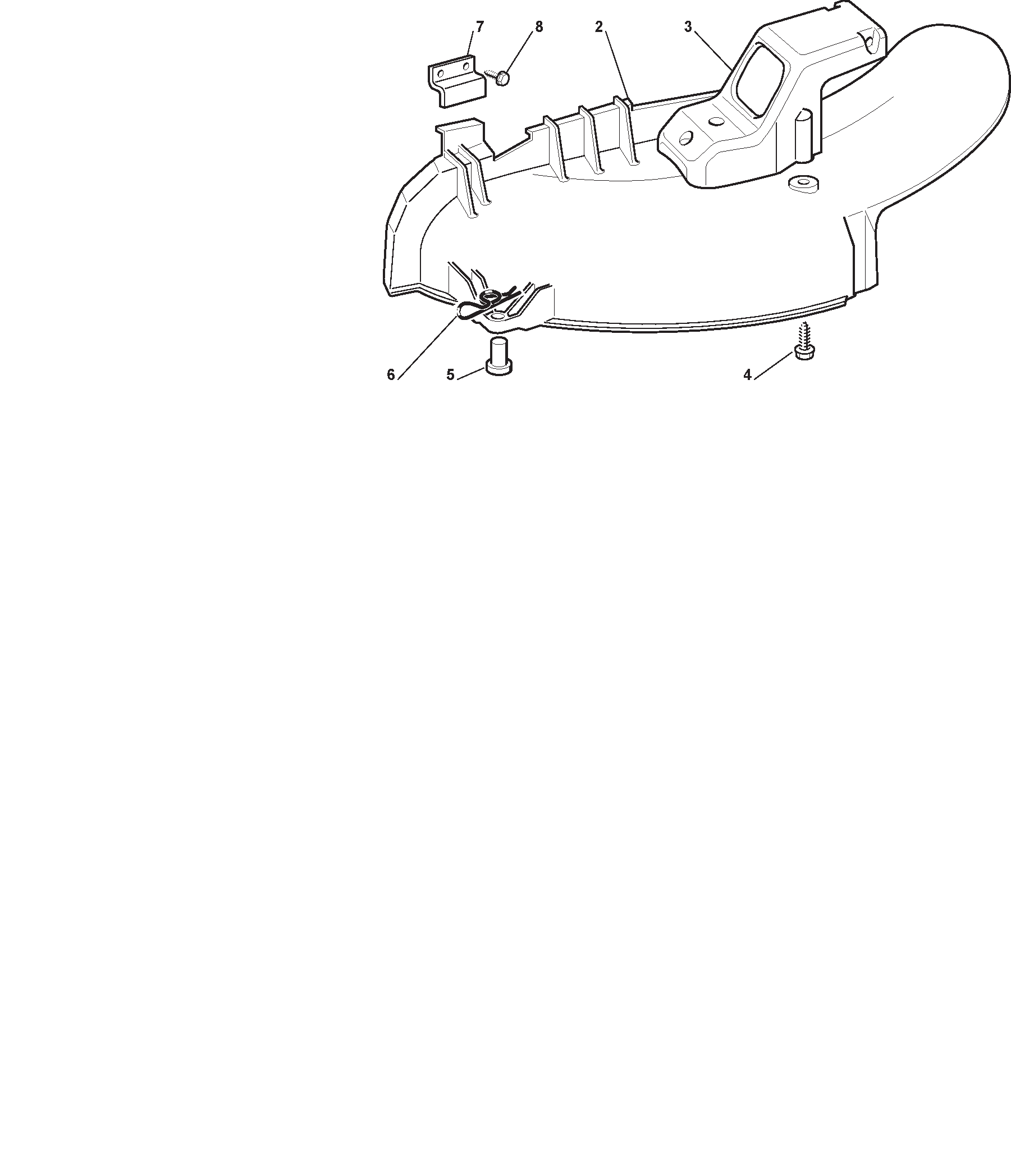

Optionals On Request

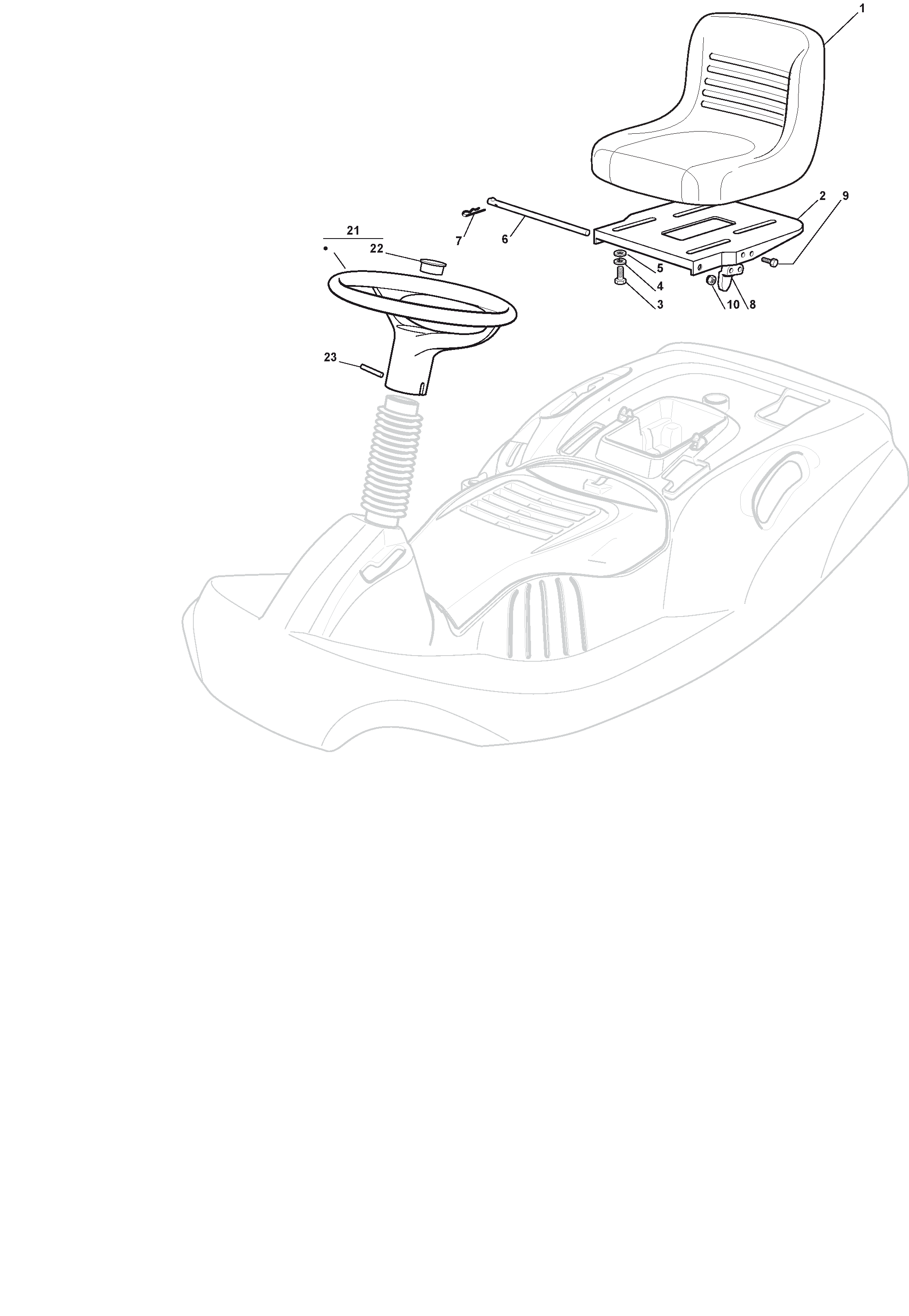

Seat & Steering Wheel

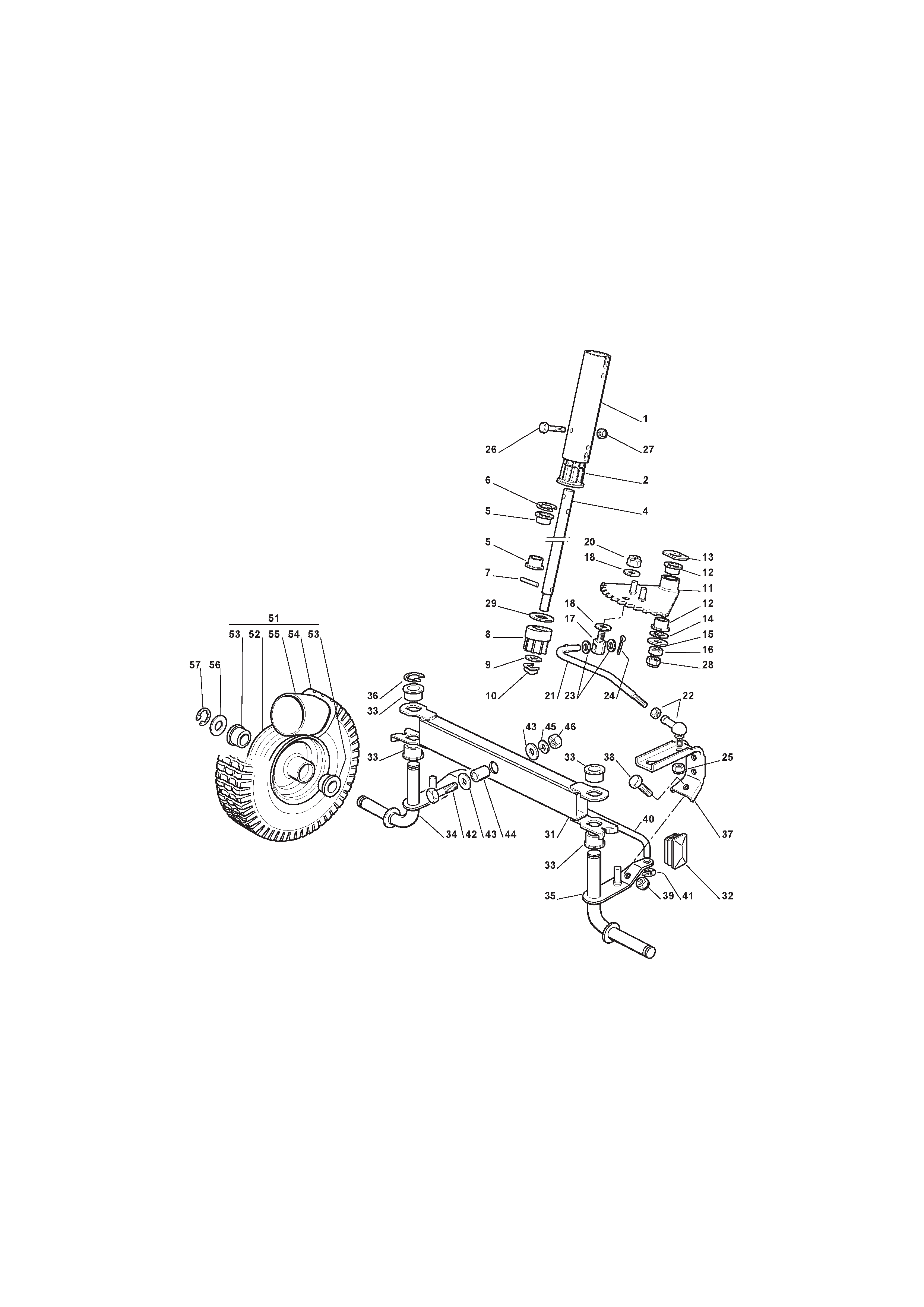

Steering

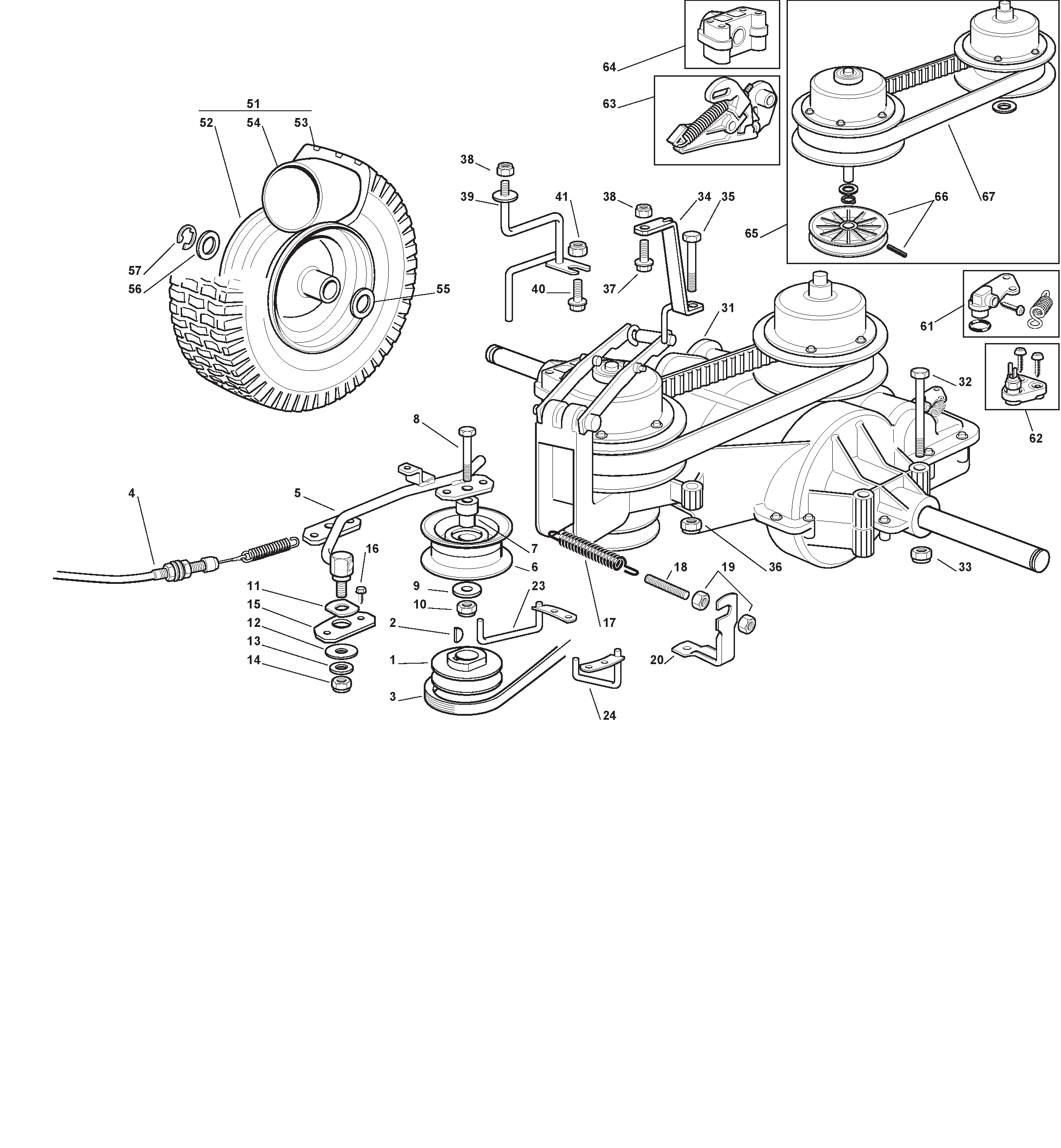

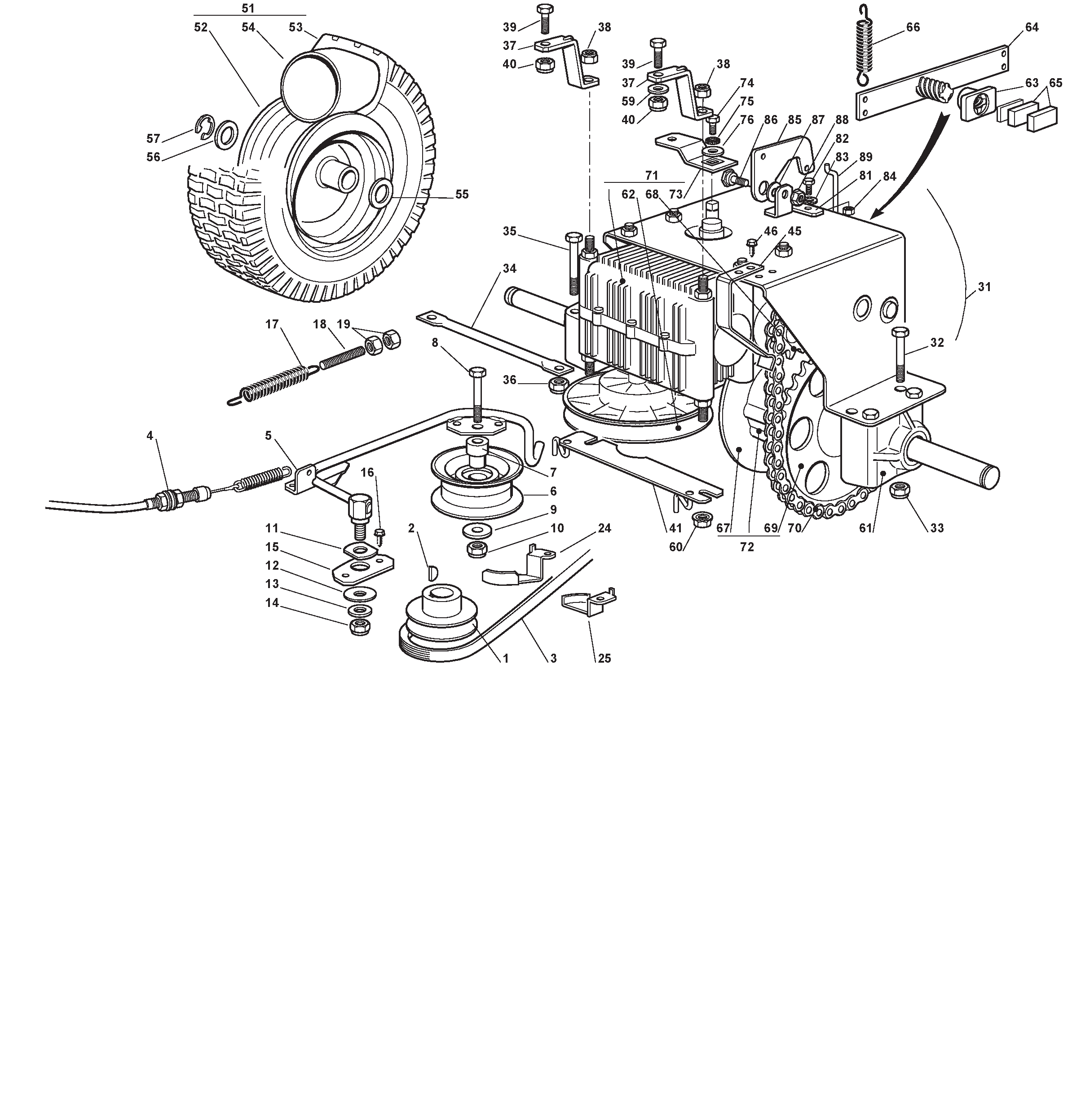

Transmission
