Mountfield MB 28D Petrol Brushcutter [283121003/MO6] (2008) Parts Diagram, Page 3

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Mountfield MB 28D Petrol Brushcutter [283121003/MO6], or refer to the list below.

All Parts for MB 28D Petrol Brushcutter [283121003/MO6]

Mountfield MB 28D Petrol Brushcutter [283121003/MO6] (2008) Parts Diagram, Page 3

#	Part	Price
1	8563830 Mountfield Throttle Handle Assembly		Mountfield Throttle Handle Assembly P/N: 8563830, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
2	2123030 Mountfield Torx Self-Thread Screw	£1.33	Mountfield Torx Self-Thread Screw £1.33 P/N: 2123030, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
3	2135050 Mountfield Torx Screw M5 X 30	£1.33	Mountfield Torx Screw M5 X 30 £1.33 P/N: 2135050, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
4	112154330/0 Mountfield Low Self-Locking Nut M5 Uni7474 Acc.6S	£1.55	Mountfield Low Self-Locking Nut M5 Uni7474 Acc.6S £1.55 P/N: 112154330/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
5	118800202/0 Mountfield Stop Switch	£1.82	Mountfield Stop Switch £1.82 P/N: 118800202/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
6	323315083/0 Mountfield Throttle Lever [Red]	£2.84	Mountfield Throttle Lever [Red] £2.84 P/N: 323315083/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
7	3743441 Mountfield Safety Lever	£1.40	Mountfield Safety Lever £1.40 P/N: 3743441, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
8	1L3654270/1 Mountfield Throttle Lever Spring	£1.40	Mountfield Throttle Lever Spring £1.40 P/N: 1L3654270/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
9	1L3654280/1 Mountfield Safety Lever Spring	£10.08	Mountfield Safety Lever Spring £10.08 P/N: 1L3654280/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
10	4252720 Mountfield Cable Accel. Star 26D/31D 96cm		Mountfield Cable Accel. Star 26D/31D 96cm P/N: 4252720, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
11	3786240 Mountfield Cables Sheath		Mountfield Cables Sheath P/N: 3786240, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
12	3211650 Mountfield Coil-Switch Cable		Mountfield Coil-Switch Cable P/N: 3211650, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
13	3211660 Mountfield Cable Masse		Mountfield Cable Masse P/N: 3211660, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
14	4252710/1 Mountfield Handle Assy Star 26D31D		Mountfield Handle Assy Star 26D31D P/N: 4252710/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
15	3L3744860/1 Mountfield Left Handle Grip	£6.47	Mountfield Left Handle Grip £6.47 P/N: 3L3744860/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
16	8250397 Mountfield Support Assembly Star 26D/		Mountfield Support Assembly Star 26D/ P/N: 8250397, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
17	2135120 Mountfield Screw Tx M5 X 40	£1.40	Mountfield Screw Tx M5 X 40 £1.40 P/N: 2135120, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
18	2312090 Mountfield Flat Washer D=5 X 10 X 1	£1.33	Mountfield Flat Washer D=5 X 10 X 1 £1.33 P/N: 2312090, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
19	112154330/0 Mountfield Low Self-Locking Nut M5 Uni7474 Acc.6S	£1.55	Mountfield Low Self-Locking Nut M5 Uni7474 Acc.6S £1.55 P/N: 112154330/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
20	3721410 Mountfield Rubber Sleeve	£1.38	Mountfield Rubber Sleeve £1.38 P/N: 3721410, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
21	2123110 Mountfield Screw 4.8 X 35	£1.33	Mountfield Screw 4.8 X 35 £1.33 P/N: 2123110, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
22	3657470 Mountfield Handle Lock Duplex		Mountfield Handle Lock Duplex P/N: 3657470, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
23	3744162 Mountfield Silentbloc Manche Star		Mountfield Silentbloc Manche Star P/N: 3744162, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
24	8251211 Mountfield Transmission Pipe Assembly	£112.14	Mountfield Transmission Pipe Assembly £112.14 P/N: 8251211, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
25	4251410 Mountfield Transmission Shaft Assembly		Mountfield Transmission Shaft Assembly P/N: 4251410, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
26	3642221 Mountfield Bearing Hub		Mountfield Bearing Hub P/N: 3642221, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
27	3L4121881/1 Mountfield Clutch Drum		Mountfield Clutch Drum P/N: 3L4121881/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
28	8561600 Mountfield Support Transmission Assembly		Mountfield Support Transmission Assembly P/N: 8561600, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
29	119216038/0 Mountfield Bearing 6201-2RS C3	£5.92	Mountfield Bearing 6201-2RS C3 £5.92 P/N: 119216038/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
30	3353080 Mountfield Circlip D=32mm	£1.40	Mountfield Circlip D=32mm £1.40 P/N: 3353080, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
31	2123140 Mountfield Screw 4.8 X 27		Mountfield Screw 4.8 X 27 P/N: 2123140, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available

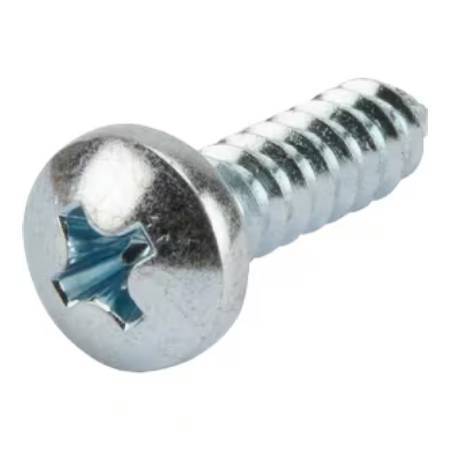

32	112728450/0 Mountfield Self-Tapping Screw 4.8 X 19 Uni 6954 C15	£1.55	Mountfield Self-Tapping Screw 4.8 X 19 Uni 6954 C15 £1.55 P/N: 112728450/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
33	2135160 Mountfield Screw Tx M6 X 19	£1.40	Mountfield Screw Tx M6 X 19 £1.40 P/N: 2135160, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
34	8562512 Mountfield Harness Support Assy		Mountfield Harness Support Assy P/N: 8562512, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
35	2123140 Mountfield Screw 4.8 X 27		Mountfield Screw 4.8 X 27 P/N: 2123140, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
36	3642530 Mountfield Pin		Mountfield Pin P/N: 3642530, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. No longer available
37	3721410 Mountfield Rubber Sleeve	£1.38	Mountfield Rubber Sleeve £1.38 P/N: 3721410, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
38	2312150 Mountfield Washer 5.5 X 15 X 1.5	£1.33	Mountfield Washer 5.5 X 15 X 1.5 £1.33 P/N: 2312150, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
39	2135050 Mountfield Torx Screw M5 X 30	£1.33	Mountfield Torx Screw M5 X 30 £1.33 P/N: 2135050, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
40	2135030 Mountfield Torx Screw M5 X 20	£1.40	Mountfield Torx Screw M5 X 20 £1.40 P/N: 2135030, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
41	3615000 Mountfield Line Cutter	£8.84	Mountfield Line Cutter £8.84 P/N: 3615000, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
42	2432040 Mountfield Nut M5	£1.33	Mountfield Nut M5 £1.33 P/N: 2432040, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
43	2312150 Mountfield Washer 5.5 X 15 X 1.5	£1.33	Mountfield Washer 5.5 X 15 X 1.5 £1.33 P/N: 2312150, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
44	3L8563570/1 Mountfield Safety Cover Assembly	£26.32	Mountfield Safety Cover Assembly £26.32 P/N: 3L8563570/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
45	1911-9259-01 Mountfield Double Harness	£58.54	Mountfield Double Harness £58.54 P/N: 1911-9259-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
