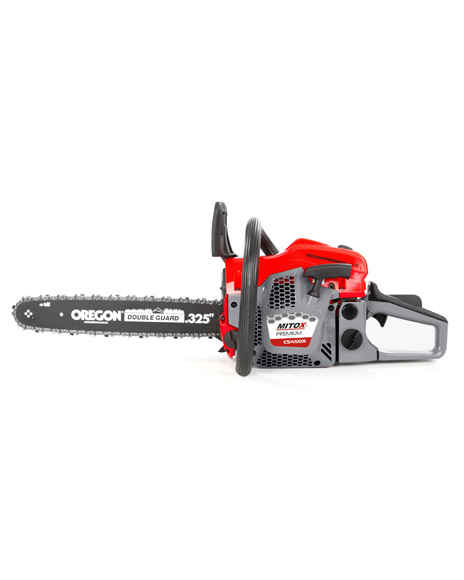

Mitox CS450X 16" Premium Chainsaw (CS450X 16" Premium Chainsaw) Parts Diagram, ENGINE

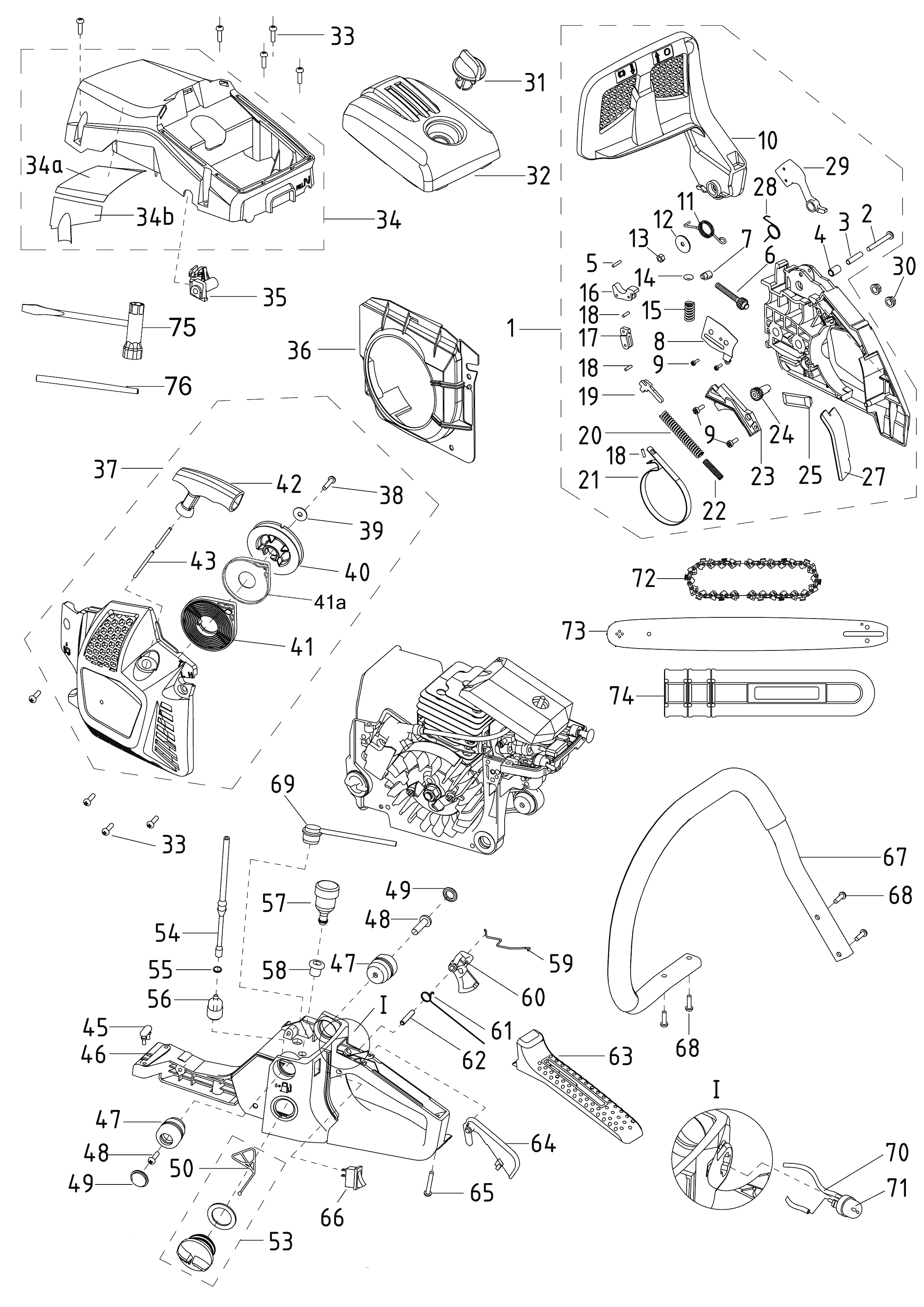

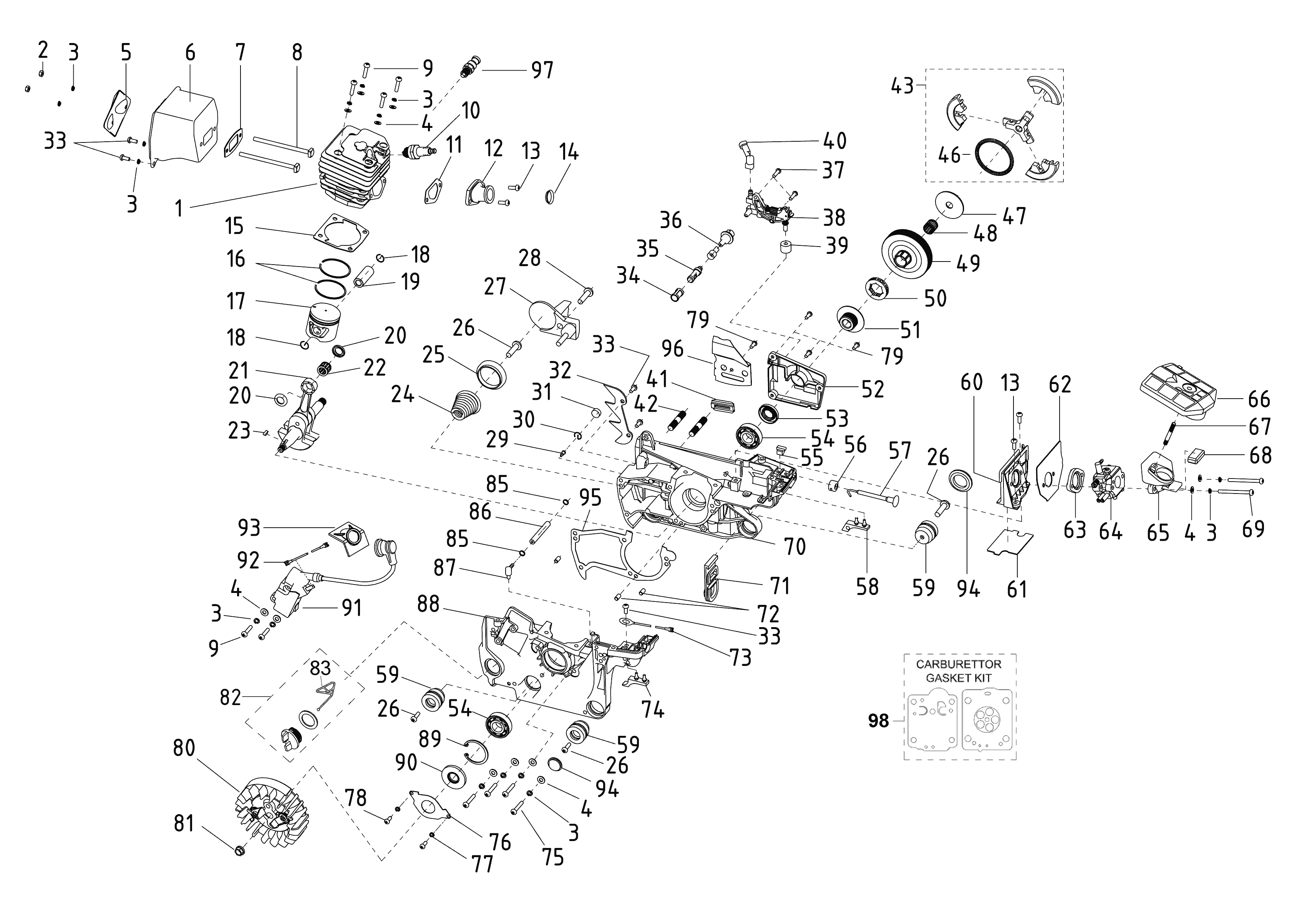

Look at the diagram and find parts that fit a Mitox CS450X 16" Premium Chainsaw, or refer to the list below.
All Parts for CS450X 16" Premium Chainsaw
| # | Part | Price | |
|---|---|---|---|
| 1 |
MIYD45.01.02-1 Mitox Cylinder |
 Mitox Cylinder£48.18
P/N: MIYD45.01.02-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 2 |
MIGB/T6170 M5 Mitox Nut M5 |
Mitox Nut M5£0.60
P/N: MIGB/T6170 M5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 3 |
MIGB/T93 M5 Mitox Spring Washer M5 |
Mitox Spring Washer M5£0.55
P/N: MIGB/T93 M5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 4 |
MIGB/T97.1 M5 Mitox Washer M5 |
Mitox Washer M5£0.55
P/N: MIGB/T97.1 M5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 5 |
MIYD45.01.09-1 Mitox Muffler Cover Plate |
Mitox Muffler Cover Plate£3.71
P/N: MIYD45.01.09-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 6 |
MIYD45.01.09.01-00 Mitox Muffler |
Mitox Muffler£21.67
P/N: MIYD45.01.09.01-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 7 |
MIYD45.01.00-2 Mitox Muffler Gasket |
Mitox Muffler Gasket£1.55
P/N: MIYD45.01.00-2, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 8 |
MIYD45.01.00-24 Mitox Muffler Connecting Screw |
Mitox Muffler Connecting Screw£1.45
P/N: MIYD45.01.00-24, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 9 |
MIGB/T6191 M5X20 Mitox Screw M5x20 |
Mitox Screw M5x20£0.55
P/N: MIGB/T6191 M5X20, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 10 |
SPBPMR7A Mitox SPBPMR7A |
Mitox SPBPMR7A£4.44
P/N: SPBPMR7A, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 11 |
MIYD45.01.02-2 Mitox Air Intake Tube Gasket |
Mitox Air Intake Tube Gasket£0.55
P/N: MIYD45.01.02-2, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 12 |
MIYD45.01.02.01-00 Mitox Air Intake Tube |
Mitox Air Intake Tube£5.11
P/N: MIYD45.01.02.01-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 13 |
MIGB/T2672 M5X12 Mitox Screw M5x12 |
Mitox Screw M5x12£0.55
P/N: MIGB/T2672 M5X12, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 14 |
MIYD45.01.00-17 Mitox O-ring |
Mitox O-ring£0.76
P/N: MIYD45.01.00-17, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 15 |
MIYD45.01.00-1 Mitox Cylinder Gasket |
Mitox Cylinder Gasket£2.02
P/N: MIYD45.01.00-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 16 |
MIYD45.01.03-2 Mitox Piston Ring |
Mitox Piston Ring£4.66
P/N: MIYD45.01.03-2, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 17 |
MIYD45.01.03-1 Mitox Piston |
Mitox Piston£11.64
P/N: MIYD45.01.03-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 18 |
MIYD45.01.03-4 Mitox Piston Pin Circlip |
Mitox Piston Pin Circlip£0.55
P/N: MIYD45.01.03-4, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 19 |
MIYD45.01.03-3 Mitox Piston Pin |
Mitox Piston Pin£3.71
P/N: MIYD45.01.03-3, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 20 |
MIYD45.01.03-5 Mitox Needle Bearing Ring |
Mitox Needle Bearing Ring£1.21
P/N: MIYD45.01.03-5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 21 |
MIYD45.01.03.01-00 Mitox Crankshaft |
Mitox Crankshaft£31.02
P/N: MIYD45.01.03.01-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 22 |
MIYD45.01.03.02-00 Mitox Needle Bearing 11x15x12.5 |
Mitox Needle Bearing 11x15x12.5£5.11
P/N: MIYD45.01.03.02-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 23 |
MIGB/T1099 3X3.5X10 Mitox Semi-circular Key 3x3.5x10 |
Mitox Semi-circular Key 3x3.5x10£0.55
P/N: MIGB/T1099 3X3.5X10, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 24 |
MIYD45.00.00-4 Mitox Conical Anti-viration Spring |
Mitox Conical Anti-viration Spring£3.86
P/N: MIYD45.00.00-4, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 25 |
MIYD45.00.00-3 Mitox Anti-vibration Spring Base |
Mitox Anti-vibration Spring Base£0.55
P/N: MIYD45.00.00-3, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 26 |
MIGB/T845 ST4.8X16 Mitox Tapping Screw St4.8x16 |
Mitox Tapping Screw St4.8x16£0.55
P/N: MIGB/T845 ST4.8X16, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 27 |
MIYD45.00.00.01-00 Mitox Chain Catcher |
Mitox Chain Catcher£3.08
P/N: MIYD45.00.00.01-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 28 |
MIGB/T2672 M5X16 Mitox Screw M5x16 |
Mitox Screw M5x16£0.55
P/N: MIGB/T2672 M5X16, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 29 |
MIYD45.01.01.02-2 Mitox Breather Jet |
Mitox Breather Jet£0.55
P/N: MIYD45.01.01.02-2, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 30 |
MIYD45.01.01.02-3 Mitox Circlip |
Mitox Circlip£0.55
P/N: MIYD45.01.01.02-3, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 31 |
MIYD45.01.00-22 Mitox Sponge Breather |
Mitox Sponge Breather£1.45
P/N: MIYD45.01.00-22, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 32 |
MIYD45.01.00-21 Mitox Felling Spike |
Mitox Felling Spike£5.28
P/N: MIYD45.01.00-21, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 33 |
MIGB/T2672 M5X10 Mitox Screw M5x10 |
Mitox Screw M5x10£0.55
P/N: MIGB/T2672 M5X10, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 34 |
MIYD45.01.00.04-2 Mitox Oil Filter Screen |
Mitox Oil Filter Screen£2.56
P/N: MIYD45.01.00.04-2, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 35 |
MIYD45.01.00.04-1 Mitox Oil Filter |
Mitox Oil Filter£2.47
P/N: MIYD45.01.00.04-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 36 |
MIYD45.01.00-12 Mitox Oil Tube |
Mitox Oil Tube£4.30
P/N: MIYD45.01.00-12, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 37 |
MIGB/T2672 M4X14 Mitox Screw M4x14 |
Mitox Screw M4x14£0.55
P/N: MIGB/T2672 M4X14, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 38 |
MIYD45.01.15-00 Mitox Oil Pump |
Mitox Oil Pump£19.42
P/N: MIYD45.01.15-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 39 |
MIYD45.01.00-23 Mitox Sponge |
Mitox Sponge£0.55
P/N: MIYD45.01.00-23, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 40 |
MIYD45.01.00-13 Mitox Oil Outlet Pipe |
Mitox Oil Outlet Pipe£3.66
P/N: MIYD45.01.00-13, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 41 |
MIYD45.01.00-16 Mitox Chain Guide Block |
Mitox Chain Guide Block£2.47
P/N: MIYD45.01.00-16, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 42 |
MIGB/T900 M8X26-8.8 Mitox Double-screw Bolt Aym8-m8x26-8 |
Mitox Double-screw Bolt Aym8-m8x26-8£1.46
P/N: MIGB/T900 M8X26-8.8, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 43 |
MIYD45.01.13.01-00 Mitox Clutch Assembly |
Mitox Clutch Assembly£27.18
P/N: MIYD45.01.13.01-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 46 |
MIYD45.01.13.01-3 Mitox Clutch Spring |
Mitox Clutch Spring£5.28
P/N: MIYD45.01.13.01-3, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 47 |
MIYD45.01.00-19 Mitox Clutch Adjusting Washer |
Mitox Clutch Adjusting Washer£1.63
P/N: MIYD45.01.00-19, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 48 |
MIYD45.01.00.10-00 Mitox Needle Bearing 12x15x14.5 |
Mitox Needle Bearing 12x15x14.5£5.11
P/N: MIYD45.01.00.10-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 49 |
MIYD45.01.13-1 Mitox Clutch Drum (less Bearing And |
Mitox Clutch Drum (less Bearing And£21.67
P/N: MIYD45.01.13-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 50 |
MIYD45.01.00-26 Mitox Sprocket Rim |
Mitox Sprocket Rim£10.07
P/N: MIYD45.01.00-26, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 51 |
MIYD45.01.00.06-00 Mitox Worm |
Mitox Worm£4.30
P/N: MIYD45.01.00.06-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 52 |
MIYD45.01.00-15 Mitox Cover Plate |
Mitox Cover Plate£3.28
P/N: MIYD45.01.00-15, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 53 |
MIYD45.01.00.09-00 Mitox Oil Seal 15x28x4.5 |
Mitox Oil Seal 15x28x4.5£4.33
P/N: MIYD45.01.00.09-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 54 |
MIGB/T276 6202D Mitox Bearing 6202 Grade D 15x35x11 |
Mitox Bearing 6202 Grade D 15x35x11£4.19
P/N: MIGB/T276 6202D, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 55 |
MIYD45.01.00-8 Mitox Cushion Block |
Mitox Cushion Block£0.76
P/N: MIYD45.01.00-8, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 56 |
MIYD45.01.00-7 Mitox Choke Rod Mounting |
Mitox Choke Rod Mounting£0.55
P/N: MIYD45.01.00-7, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 57 |
MIYD45.01.00.03-00 Mitox Choke Rod |
Mitox Choke Rod£2.33
P/N: MIYD45.01.00.03-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 58 |
MIYD45.01.00-11 Mitox Anti-vibration Mount |
Mitox Anti-vibration Mount£1.55
P/N: MIYD45.01.00-11, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 59 |
MIYD45.01.00.07-00 Mitox Anti-vibration Mount |
Mitox Anti-vibration Mount£3.71
P/N: MIYD45.01.00.07-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 60 |
MIYD45.01.00.01-00 Mitox Air Intake Tube Support |
Mitox Air Intake Tube Support£3.71
P/N: MIYD45.01.00.01-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 61 |
MIYD45.01.00-4 Mitox Tie Plate |
Mitox Tie Plate£1.55
P/N: MIYD45.01.00-4, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 62 |
MIYD45.01.00-3 Mitox Sealing Plate |
Mitox Sealing Plate£1.07
P/N: MIYD45.01.00-3, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 63 |
MIYD45.01.00-14 Mitox Air Intake Tube Gasket |
Mitox Air Intake Tube Gasket£1.07
P/N: MIYD45.01.00-14, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 64 |
MIYD45.01.06-00EU2 Mitox Carb (eu2 Primer Type) |
Mitox Carb (eu2 Primer Type)£54.25
P/N: MIYD45.01.06-00EU2, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 65 |
MIYD45.01.00.02-00 Mitox Air Intake Socket |
Mitox Air Intake Socket£4.19
P/N: MIYD45.01.00.02-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 66 |
MITCS4600.01.08-00 Mitox Air Filter |
Mitox Air Filter£12.16
P/N: MITCS4600.01.08-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 67 |
MIGB/T899 GM5-M5X30 Mitox Double-screw Bolt Gm5-m5x30 |
Mitox Double-screw Bolt Gm5-m5x30£1.16
P/N: MIGB/T899 GM5-M5X30, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 68 |
MIYD45.01.00-5 Mitox Cushion |
Mitox Cushion£0.55
P/N: MIYD45.01.00-5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 69 |
MIGB/T2672 M5X50 Mitox Screw M5x50 |
Mitox Screw M5x50£0.55
P/N: MIGB/T2672 M5X50, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 70 |
MIYD45.01.01.02-1M Mitox R/h Crankcase (mag) |
Mitox R/h Crankcase (mag)£30.43
P/N: MIYD45.01.01.02-1M, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 71 |
MIYD45.01.00-6 Mitox Dust Plate |
Mitox Dust Plate£2.65
P/N: MIYD45.01.00-6, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 72 |
MIGB/T119.2 5X10 Mitox Pin 5x10 |
Mitox Pin 5x10£0.55
P/N: MIGB/T119.2 5X10, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 73 |
MIYD38-3.01.11.03-00 Mitox Ground Wire |
Mitox Ground Wire£1.63
P/N: MIYD38-3.01.11.03-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 74 |
MIYD45.01.00-10 Mitox Anti-Vibration Mount |
Mitox Anti-Vibration Mount£1.46
P/N: MIYD45.01.00-10, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 75 |
MIGB/T6191 M5X25 Mitox Screw M5x25 |
Mitox Screw M5x25£0.55
P/N: MIGB/T6191 M5X25, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 76 |
MIYD45.01.00-20 Mitox Seal Shield |
Mitox Seal Shield£1.07
P/N: MIYD45.01.00-20, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 77 |
MIGB/T93 M4 Mitox Washer M4 |
Mitox Washer M4£0.55
P/N: MIGB/T93 M4, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 78 |
MIGB/T2672 M4X8 Mitox Screw M4x8 |
Mitox Screw M4x8£0.55
P/N: MIGB/T2672 M4X8, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 79 |
MIGB/T2672 M4X10 Mitox Screw M4x10 |
Mitox Screw M4x10£0.55
P/N: MIGB/T2672 M4X10, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 80 |
MIYD45.01.10.01-00A Mitox Flywheel Assembly |
Mitox Flywheel Assembly£31.02
P/N: MIYD45.01.10.01-00A, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 81 |
MIGB/T6177.2 M8X1 Mitox Nut M8x1 |
Mitox Nut M8x1£0.55
P/N: MIGB/T6177.2 M8X1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 82 |
MITCS4600.03.03-00 Mitox Oil Cap Assy |
Mitox Oil Cap Assy£5.32
P/N: MITCS4600.03.03-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 83 |
MIYD38-3.03.02-2 Mitox Retainer |
Mitox Retainer£0.73
P/N: MIYD38-3.03.02-2, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 85 |
MIYD45.01.01.01-3 Mitox Circlip |
Mitox Circlip£2.56
P/N: MIYD45.01.01.01-3, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 86 |
MIYD45.01.01.01-2 Mitox Pipe 2.5x6x105 |
Mitox Pipe 2.5x6x105£2.33
P/N: MIYD45.01.01.01-2, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 87 |
MIYD45.01.01.03-00 Mitox Vacuum Joint |
Mitox Vacuum Joint£2.33
P/N: MIYD45.01.01.03-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 88 |
MIYD45.01.01.01-1M Mitox L/h Crankcase (mag) |
Mitox L/h Crankcase (mag)£30.43
P/N: MIYD45.01.01.01-1M, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 89 |
MIGB/T893.1 35 Mitox Circlip (size 35) |
Mitox Circlip (size 35)£0.55
P/N: MIGB/T893.1 35, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 90 |
MIYD45.01.00.08-00 Mitox Oil Seal 15x35x4.5 |
Mitox Oil Seal 15x35x4.5£5.11
P/N: MIYD45.01.00.08-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 91 |
MIYD45.01.11.01-00 Mitox Ignition Coil |
Mitox Ignition Coil£27.18
P/N: MIYD45.01.11.01-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 92 |
MIYD45-7.01.11.02-00 Mitox Ground Wire |
Mitox Ground Wire£3.04
P/N: MIYD45-7.01.11.02-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 93 |
MITCS4600.01.11-3 Mitox Ignition Shield |
Mitox Ignition Shield£3.04
P/N: MITCS4600.01.11-3, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 94 |
MIYD45.00.00-9 Mitox Dust Cover |
Mitox Dust Cover£0.55
P/N: MIYD45.00.00-9, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 95 |
MIYD45.01.01-1 Mitox Crankcase Gasket |
Mitox Crankcase Gasket£3.28
P/N: MIYD45.01.01-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 96 |
MIYD45.01.00-18 Mitox Damper |
Mitox Damper£3.71
P/N: MIYD45.01.00-18, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 97 |
MIYD06.06.186 Mitox Decompressor |
Mitox Decompressor£15.48
P/N: MIYD06.06.186, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 98 |
D20-WAT Mitox Carb kit |
Mitox Carb kit
P/N: D20-WAT, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
