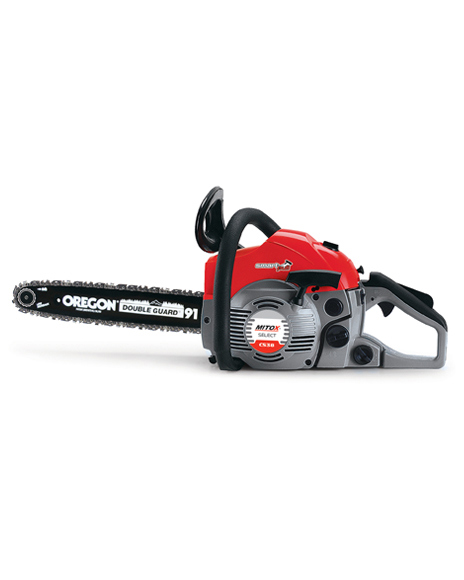

Mitox CS38 14" Select Chainsaw (CS38 14" Select Chainsaw) Parts Diagram, BODY

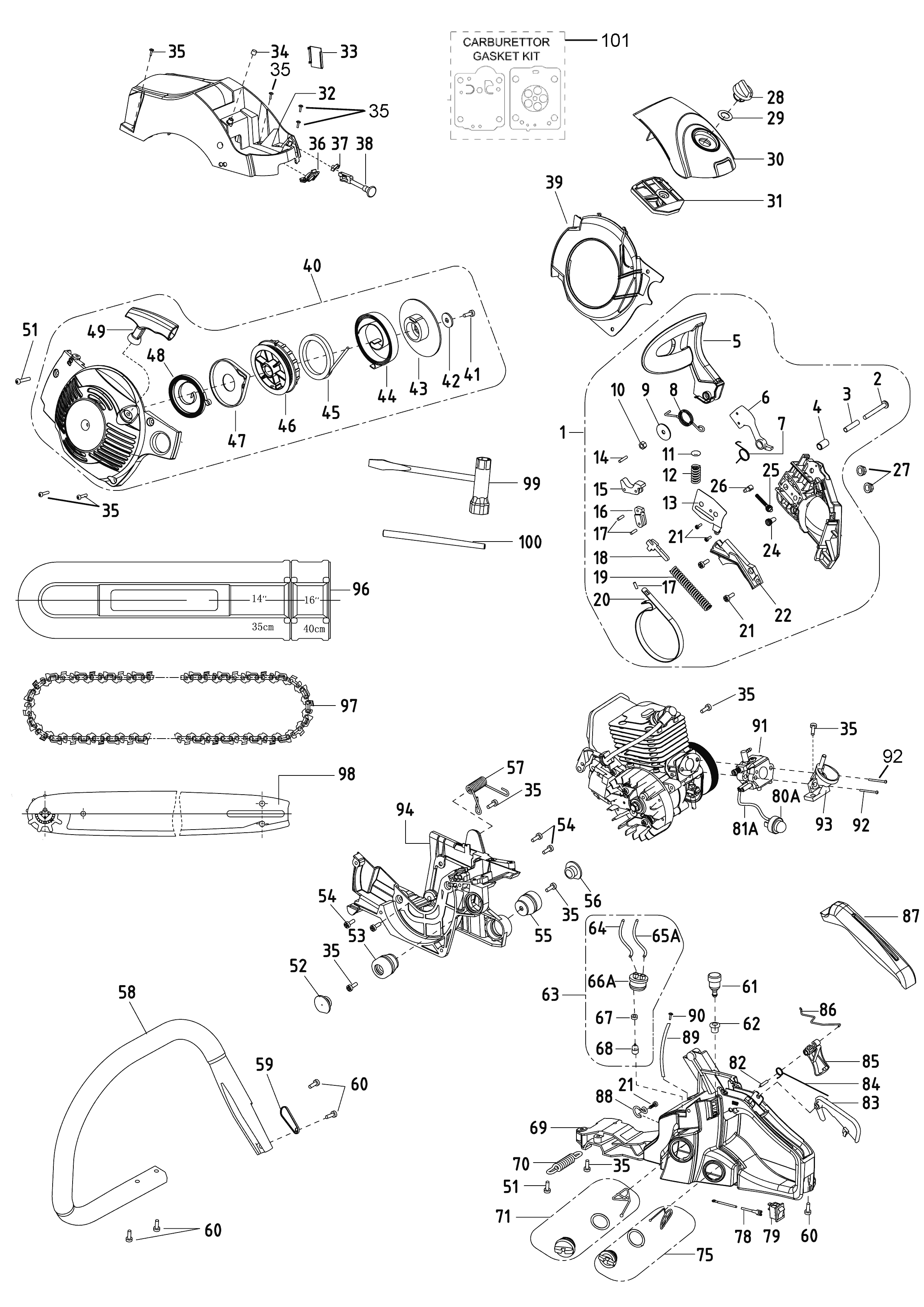

Look at the diagram and find parts that fit a Mitox CS38 14" Select Chainsaw, or refer to the list below.
All Parts for CS38 14" Select Chainsaw
| # | Part | Price | |
|---|---|---|---|
| 1 |
MIYD38-5.04.00-00A Mitox Chain Brake Assy (side Adj) |
 Mitox Chain Brake Assy (side Adj)£46.57
P/N: MIYD38-5.04.00-00A, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 2 |
MIYD38-3.04.00-16 Mitox Screw M5x40 |
Mitox Screw M5x40£0.73
P/N: MIYD38-3.04.00-16, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 3 |
MIYD38-3.04.00-13 Mitox Sleeve |
Mitox Sleeve£0.91
P/N: MIYD38-3.04.00-13, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 4 |
MIYD38-3.04.00-12 Mitox Sleeve |
Mitox Sleeve£0.55
P/N: MIYD38-3.04.00-12, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 5 |
MIYD38-5.04.00-2 Mitox Chain Brake Lever |
Mitox Chain Brake Lever£7.69
P/N: MIYD38-5.04.00-2, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 6 |
MIYD38-3.04.02-00 Mitox Bracket |
Mitox Bracket£3.28
P/N: MIYD38-3.04.02-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 7 |
MIYD38-3.04.00-7 Mitox Spring |
Mitox Spring£0.55
P/N: MIYD38-3.04.00-7, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 8 |
MIYD38-3.04.00-9 Mitox Chain Brake Torsion Spring |
Mitox Chain Brake Torsion Spring£1.79
P/N: MIYD38-3.04.00-9, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 9 |
MIYD38-3.04.00-14 Mitox Washer 5.2x23x1.2 |
Mitox Washer 5.2x23x1.2£0.55
P/N: MIYD38-3.04.00-14, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 10 |
MIGB/T6183.1 M5 Mitox Nut M5 |
Mitox Nut M5£0.55
P/N: MIGB/T6183.1 M5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 11 |
MIYD38-3.04.00-6 Mitox Cap |
Mitox Cap£0.55
P/N: MIYD38-3.04.00-6, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 12 |
MIYD38-3.04.00-5 Mitox Compression Spring |
Mitox Compression Spring£1.21
P/N: MIYD38-3.04.00-5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 13 |
MIYD38-3.04.00-15 Mitox Tensioner Cover Plate |
Mitox Tensioner Cover Plate£3.71
P/N: MIYD38-3.04.00-15, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 14 |
MIGB/T119.2 3X14 Mitox Pin 3x14 |
Mitox Pin 3x14£1.09
P/N: MIGB/T119.2 3X14, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 15 |
MIYD38-3.04.00-4 Mitox Block |
Mitox Block£2.56
P/N: MIYD38-3.04.00-4, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 16 |
MIYD38-3.04.00-3 Mitox Actuator |
Mitox Actuator£2.56
P/N: MIYD38-3.04.00-3, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 17 |
MIGB/T119.2 3X9 Mitox Pin 3x9 |
Mitox Pin 3x9£0.55
P/N: MIGB/T119.2 3X9, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 18 |
MIYD38-3.04.00-11 Mitox Brake Control Rod |
Mitox Brake Control Rod£1.79
P/N: MIYD38-3.04.00-11, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 19 |
MIYD38-3.04.00-8 Mitox Brake Spring |
Mitox Brake Spring£2.47
P/N: MIYD38-3.04.00-8, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 20 |
MIYD45-3.04.00-10 Mitox Chain Brake Band |
Mitox Chain Brake Band£7.69
P/N: MIYD45-3.04.00-10, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 21 |
MIGB/T845 ST4.2X9.5 Mitox Tapping Screw St4.2x9.5 |
Mitox Tapping Screw St4.2x9.5£0.55
P/N: MIGB/T845 ST4.2X9.5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 22 |
MIYD38-3.04.00-1 Mitox Cover Plate |
Mitox Cover Plate£1.79
P/N: MIYD38-3.04.00-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 24 |
MIYD45.04.00-26 Mitox Tensioner Gear |
Mitox Tensioner Gear£3.71
P/N: MIYD45.04.00-26, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 25 |
MIYD45.04.00-24 Mitox Tensioner Screw |
Mitox Tensioner Screw£1.07
P/N: MIYD45.04.00-24, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 26 |
MIYD45.04.00-25 Mitox Tensioner Pawl |
Mitox Tensioner Pawl£1.21
P/N: MIYD45.04.00-25, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 27 |
MIGB/T6177.1 M8 Mitox Nut M8 |
Mitox Nut M8£0.55
P/N: MIGB/T6177.1 M8, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 28 |
MIYD38-3.05.01-00 Mitox Air Filter Lock Nut |
Mitox Air Filter Lock Nut£2.21
P/N: MIYD38-3.05.01-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 29 |
MIYD38-3.05.00-6 Mitox Lock Nut Washer 15x26x1 |
Mitox Lock Nut Washer 15x26x1£0.55
P/N: MIYD38-3.05.00-6, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 30 |
MIYD38-5.05.00-2 Mitox Air Filter Cover |
Mitox Air Filter Cover£5.83
P/N: MIYD38-5.05.00-2, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 31 |
MIYD38.01.08.00-00 Mitox Air Filter |
Mitox Air Filter£7.69
P/N: MIYD38.01.08.00-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 32 |
MIYD38-5.05.00-1 Mitox Upper Cover Plate |
Mitox Upper Cover Plate£9.24
P/N: MIYD38-5.05.00-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 33 |
MIYD38-3.05.00-5 Mitox Vent Baffle |
Mitox Vent Baffle£0.55
P/N: MIYD38-3.05.00-5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 34 |
MIYD38-3.05.00-4 Mitox Cushion |
Mitox Cushion£0.55
P/N: MIYD38-3.05.00-4, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 35 |
MIGB/T845 ST4.8X16 Mitox Tapping Screw St4.8x16 |
Mitox Tapping Screw St4.8x16£0.55
P/N: MIGB/T845 ST4.8X16, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 36 |
MIYD38-3.00.00-7 Mitox Dust Shield |
Mitox Dust Shield£0.73
P/N: MIYD38-3.00.00-7, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 37 |
MIYD38-3.00.00-11 Mitox Choke Lever Retaining Bracket |
Mitox Choke Lever Retaining Bracket£0.55
P/N: MIYD38-3.00.00-11, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 38 |
MIYD38-3.00.00-10 Mitox Choke Lever |
Mitox Choke Lever£2.02
P/N: MIYD38-3.00.00-10, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 39 |
MIYD38-5.02.00-1 Mitox Side Plate |
Mitox Side Plate£7.31
P/N: MIYD38-5.02.00-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 40 |
MIYD38-5.12.00-00 Mitox Recoil Starter Assembly |
Mitox Recoil Starter Assembly£54.32
P/N: MIYD38-5.12.00-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 41 |
MIGB/T845 ST4.8X13 Mitox Tapping Screw St4.8x13 |
Mitox Tapping Screw St4.8x13£0.55
P/N: MIGB/T845 ST4.8X13, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 42 |
MIGB/T96 M5 Mitox Washer M5 |
Mitox Washer M5£0.55
P/N: MIGB/T96 M5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 43 |
MIYD38-5.12.00-6 Mitox Retainer |
Mitox Retainer£4.33
P/N: MIYD38-5.12.00-6, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 44 |
MIYD38-5.12.00-5 Mitox Tension Spring |
Mitox Tension Spring£6.14
P/N: MIYD38-5.12.00-5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 45 |
MIYD38-3.02.00-6 Mitox Recoil Rope 3x920 |
Mitox Recoil Rope 3x920£3.71
P/N: MIYD38-3.02.00-6, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 46 |
MIYD38-7.02.00-4 Mitox Starter Pulley (new Style) |
Mitox Starter Pulley (new Style)£4.37
P/N: MIYD38-7.02.00-4, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 47 |
MIYD36.02.01-2 Mitox Recoil Spring Holder |
Mitox Recoil Spring Holder£4.30
P/N: MIYD36.02.01-2, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 48 |
MIYD36.02.01-4 Mitox Recoil Spring |
Mitox Recoil Spring£5.83
P/N: MIYD36.02.01-4, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 49 |
MIYD38-5.02.00-4 Mitox Recoil Handle |
Mitox Recoil Handle£3.71
P/N: MIYD38-5.02.00-4, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 51 |
MIGB/T845 ST4.8X19 Mitox Tapping Screw St4.8x19 |
Mitox Tapping Screw St4.8x19£0.55
P/N: MIGB/T845 ST4.8X19, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 52 |
MIYD38-3.00.00-9 Mitox Dust Cover |
Mitox Dust Cover£0.55
P/N: MIYD38-3.00.00-9, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 53 |
MIYD38-3.06.04-00 Mitox Anti-vibration Rubber |
Mitox Anti-vibration Rubber£3.71
P/N: MIYD38-3.06.04-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 54 |
MIGB/T2672 M5X14 Mitox Screw M5x14 |
Mitox Screw M5x14£0.55
P/N: MIGB/T2672 M5X14, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 55 |
MIYD38-3.06.03-00 Mitox Anti-vibration Rubber |
Mitox Anti-vibration Rubber£3.71
P/N: MIYD38-3.06.03-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 56 |
MIYD38-3.00.00-8 Mitox Dust Cover |
Mitox Dust Cover£0.76
P/N: MIYD38-3.00.00-8, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 57 |
MIYD38-3.00.00-4 Mitox Anti-vibration Spring |
Mitox Anti-vibration Spring£3.28
P/N: MIYD38-3.00.00-4, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 58 |
MIYD38-3.00.00-1 Mitox Loop Handle |
Mitox Loop Handle£17.02
P/N: MIYD38-3.00.00-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 59 |
MIYD38-3.00.00-13 Mitox Cover Plate |
Mitox Cover Plate£0.73
P/N: MIYD38-3.00.00-13, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 60 |
MIGB/T845 ST4.8X25 Mitox Tapping Screw St4.8x25 |
Mitox Tapping Screw St4.8x25£0.55
P/N: MIGB/T845 ST4.8X25, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 61 |
MIYD45.03.00-5 Mitox Breather |
Mitox Breather£3.46
P/N: MIYD45.03.00-5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 62 |
MIYD38-3.03.00-3 Mitox Breather Grommet |
Mitox Breather Grommet£0.76
P/N: MIYD38-3.03.00-3, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 63 |
MIYD38-3.03.05-00 Mitox Fuel Pipe Assembly |
Mitox Fuel Pipe Assembly£13.91
P/N: MIYD38-3.03.05-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 64 |
MIYD38-3.03.00-1 Mitox Fuel Pipe |
Mitox Fuel Pipe£2.65
P/N: MIYD38-3.03.00-1, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 65A |
MIYD38-3.03.00-1A Mitox Fuel Return Pipe |
Mitox Fuel Return Pipe£4.30
P/N: MIYD38-3.03.00-1A, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 66A |
MIYD38-3.03.00-2A Mitox Grommet - 2 Hole |
Mitox Grommet - 2 Hole£2.47
P/N: MIYD38-3.03.00-2A, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 67 |
MIYD38-3.03.00-12 Mitox Weight |
Mitox Weight£1.21
P/N: MIYD38-3.03.00-12, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 68 |
MIYD38-3.03.04-00 Mitox Fuel Filter |
Mitox Fuel Filter£5.42
P/N: MIYD38-3.03.04-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 69 |
MIYD38-5.03.01-00 Mitox Rear Handle |
Mitox Rear Handle£27.90
P/N: MIYD38-5.03.01-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 70 |
MIYD38-3.00.00-5 Mitox Anti-vibration Spring |
Mitox Anti-vibration Spring£2.47
P/N: MIYD38-3.00.00-5, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 71 |
MIYD38-6.03.02-00 Mitox Fuel Cap Assembly |
Mitox Fuel Cap Assembly£5.11
P/N: MIYD38-6.03.02-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 75 |
MIYD38-6.03.03-00 Mitox Oil Cap Assembly |
Mitox Oil Cap Assembly£5.11
P/N: MIYD38-6.03.03-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 78 |
MIYD38-3.01.11.03-00 Mitox Ground Wire |
Mitox Ground Wire£1.63
P/N: MIYD38-3.01.11.03-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 79 |
MIYD38-3.01.11.04-00 Mitox On/off Switch |
Mitox On/off Switch£4.60
P/N: MIYD38-3.01.11.04-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 80A |
MIYD38-3.03.00-4A Mitox Primer Assy |
Mitox Primer Assy£6.14
P/N: MIYD38-3.03.00-4A, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 81A |
MIYD45-4.03.00-13 Mitox Fuel Pipe 203mm X 6mm X 3mm |
Mitox Fuel Pipe 203mm X 6mm X 3mm£4.30
P/N: MIYD45-4.03.00-13, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 82 |
MIGB/T119.2 5X24 Mitox Pin 5x24 |
Mitox Pin 5x24£0.55
P/N: MIGB/T119.2 5X24, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 83 |
MIYD38-5.03.00-9 Mitox Safety Lock Trigger |
Mitox Safety Lock Trigger£2.33
P/N: MIYD38-5.03.00-9, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 84 |
MIYD38-3.03.00-8 Mitox Safety Lock Spring |
Mitox Safety Lock Spring£2.02
P/N: MIYD38-3.03.00-8, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 85 |
MIYD38-3.03.00-7 Mitox Throttle Trigger |
Mitox Throttle Trigger£2.33
P/N: MIYD38-3.03.00-7, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 86 |
MIYD38-5.00.00-6 Mitox Throttle Link |
Mitox Throttle Link£3.86
P/N: MIYD38-5.00.00-6, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 87 |
MIYD38-5.03.00-10 Mitox Handle Cover |
Mitox Handle Cover£5.11
P/N: MIYD38-5.03.00-10, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 88 |
MIYD38-3.03.00-16 Mitox Retaining Clip |
Mitox Retaining Clip£0.73
P/N: MIYD38-3.03.00-16, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 89 |
MIYD38-3.01.00-13 Mitox Oil Feed Pipe 3x6.5x80 |
Mitox Oil Feed Pipe 3x6.5x80£2.47
P/N: MIYD38-3.01.00-13, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 90 |
MIGB/T845 ST4.2X14 Mitox Tapping Screw St4.2x14 |
Mitox Tapping Screw St4.2x14£0.55
P/N: MIGB/T845 ST4.2X14, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 91 |
MIYD38-3.01.06.00-00 Mitox Walbro (japan) Carburetor |
Mitox Walbro (japan) Carburetor£54.25
P/N: MIYD38-3.01.06.00-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 92 |
MIYD38-3.01.00.03-00 Mitox Intake Screw |
Mitox Intake Screw£1.07
P/N: MIYD38-3.01.00.03-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 93 |
MIYD38-3.01.00.02-00 Mitox Air Intake Support |
Mitox Air Intake Support£5.05
P/N: MIYD38-3.01.00.02-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 94 |
MIYD38-5.06.01-00 Mitox Engine Base |
Mitox Engine Base£15.48
P/N: MIYD38-5.06.01-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 96 |
MIYD38-3.07.00-00 Mitox Guide Bar Cover 14/16 |
Mitox Guide Bar Cover 14/16£5.83
P/N: MIYD38-3.07.00-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 97 |
MIYD07.04.1.00661 Mitox Oregon Saw Chain 91vxl053x |
Mitox Oregon Saw Chain 91vxl053x£30.94
P/N: MIYD07.04.1.00661, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 98 |
MIYD07.04.1.00101 Mitox Guide Bar - 140sdea041 |
Mitox Guide Bar - 140sdea041£42.06
P/N: MIYD07.04.1.00101, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 99 |
MIYD38-3.08.01-00 Mitox Plug Spanner 13x19 Wide Flat |
Mitox Plug Spanner 13x19 Wide Flat£4.19
P/N: MIYD38-3.08.01-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 100 |
MIYD38-3.08.04-00 Mitox 5/32 File |
Mitox 5/32 File£2.02
P/N: MIYD38-3.08.04-00, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
|
| 101 |
D20-WAT Mitox Carb kit |
Mitox Carb kit
P/N: D20-WAT, Genuine OEM spare part. Find other Mitox spares, parts and accessories.
No longer available
|
