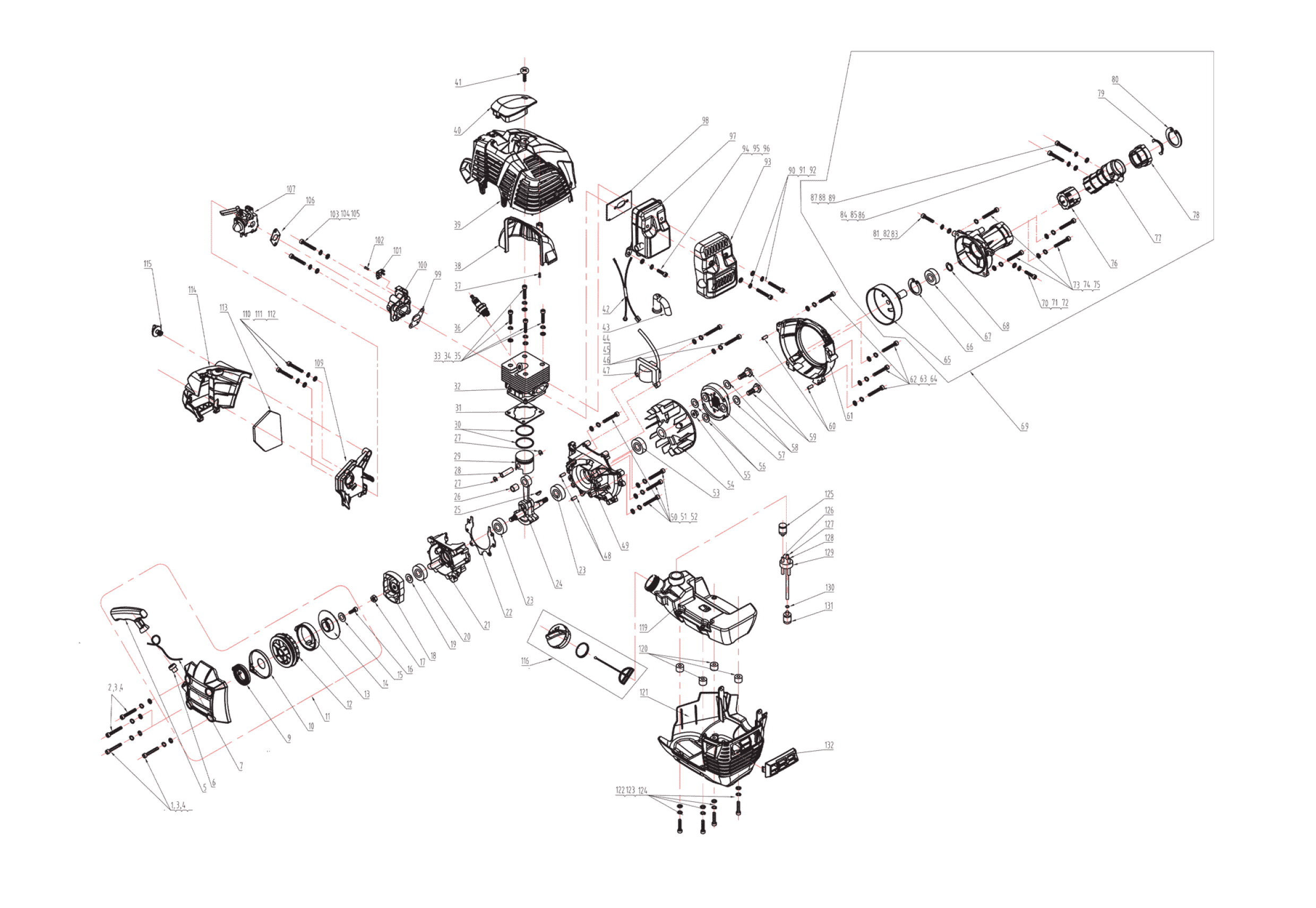

Mitox 450UX Premium+ Brushcutter (450UX Premium+ Brushcutter) Parts Diagram, Engine

Look at the diagram and find parts that fit a Mitox 450UX Premium+ Brushcutter, or refer to the list below.

All Parts for 450UX Premium+ Brushcutter

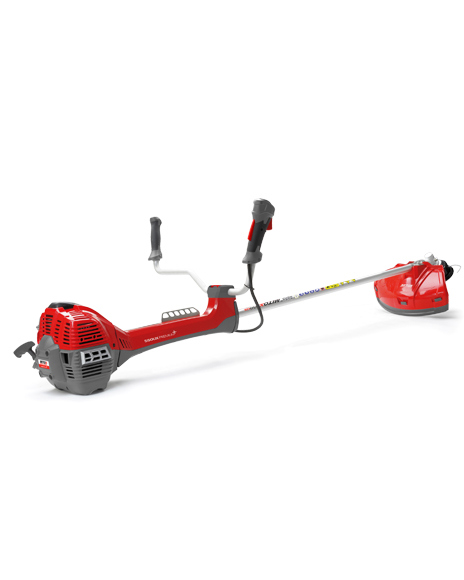

450UX Premium+ Brushcutter
Mitox 450UX Premium+ Brushcutter (450UX Premium+ Brushcutter) Parts Diagram, Engine
# Part Price
1 MIGB/T2671.2 M5X25
Mitox Screw M5x25
2 MIGB/T2671.2 M5X20
Mitox Screw M5x20
3 MIGB/T93 M5
Mitox Spring Washer M5
4 MIGB/T97.1 M5
Mitox Washer M5
5 MIYD62.02.00-3
Mitox Starter Handle
6 MIYD25.02.01-2
Mitox Rope Guide
7 MITBC430D.01.12.00-2
Mitox Starter Rope
9 MIYD36.07.01-4
Mitox Recoil Spring
10 MITBC243D.01.12.00-4
Mitox Recoil Spring Cover
11 TBC243D.01.12.00-00
Mitox Starter Assembly
12 MITBC243D.01.12.00-3
Mitox Start Pulley
13 MITBC243D.01.12.00-5
Mitox Coil Spriing Start
14 MITBC243D.01.12.00-6
Mitox Ratchet Wheel
15 MIGB/T9074.19 ST4.8X19
Mitox ST SCREW 4.8X19
16 MIGB/T9074.19 5X16X1
Mitox Plate Washer 5x16x1
17 MIGB/T6187 M8
Mitox Flange Nut M8
18 MITBC430D.01.00.02-00
Mitox STARTER RATCHET ASSY
19 MIGB/T97.1 M8
Mitox Flat Washer M8
20 MIYD38-3.01.01.02-00
Mitox Oil Seal 12x22x7
21 MITBC243D.01.01.00-2
Mitox Crankcase Rh
22 MITBC430D.01.01.00-3
Mitox Gasket - Crankcase
23 MIGB/T276 6202
Mitox Ball Bearing 6202-2z
24 MITBC431D.01.03.01-00
Mitox CRANK SHAFT ASS'Y
25 MIGB/T1099 3X5X13
Mitox Key 3x5x13
26 MITBC430D.01.03.03-00
Mitox BEARING ?10X13X16
27 MIYD38-3.01.03.00-4
Mitox Piston Pin Circlip 12mm
28 MITBC430D.01.03.00-2
Mitox Piston Pin
29 MITBC430D.01.03.02-00
Mitox PISTON
30 MITBC430D.01.03.00-1
Mitox Piston Ring
31 MITBC430D.01.00.00-2
Mitox Gasket - Cylinder
32 MITBC243D.01.00.00-1
Mitox Cylinder
33 MIGB/T2671.2 M5X20
Mitox Screw M5x20
34 MIGB/T93 M5
Mitox Spring Washer M5
35 MIGB/T97.1 M5
Mitox Washer M5
36 SPBPMR7A
Mitox SPBPMR7A
37 MIGB/T845 ST4.2X10
Mitox St Screw 4.2x10
38 MITBC243D.01.00.00-15
Mitox COVER
39 MITBC243D.01.00.00-11
Mitox ENGINE COVER - UPPER
40 MITBC243D.01.00.00-14
Mitox PLUG COVER
41 MIGB/T845 ST4.8X13
Mitox Tapping Screw St4.8x13
42 MITBC243D.01.11.02-00
Mitox WIRE
43 MITBC243D.01.11.00-1
Mitox Spark Plug Cover
44 MIGB/T2671.2 M5X25
Mitox Screw M5x25
46 MIGB/T97.1 M5
Mitox Washer M5
47 MITBC243D.01.11.01-00
Mitox IGNITION
48 MIGB/T119.2 5X10
Mitox Pin 5x10
49 MITBC430D.01.01.00-1
Mitox Crankcase Lh
50 MIGB/T2671.2 M5X30
Mitox Screw M5x30
51 MIGB/T93 M5
Mitox Spring Washer M5
52 MIGB/T97.1 M5
Mitox Washer M5
53 MITBC430D.01.00.03-00
Mitox OIL-SEAL 15X30X7
54 MITBC521D.01.10.00-00
Mitox MAGNETO ROTOR
55 MIGB/T6187 M8
Mitox Flange Nut M8
56 MITBC430D.01.00.00-9
Mitox Flat Washer 8x16x1.5
57 MITBC430D.01.00.04-00
Mitox CLUTCH ASSEMBLY
58 MIGB/T755 M10
Mitox Spring Washer 10
59 MITBC430D.01.00.00-8
Mitox Bolt - Clutch
60 MIGB/T119.2 5X10
Mitox Pin 5x10
61 MITBC430D.01.01.00-4
Mitox Fan Cover
62 MIGB/T2671.2 M5X25
Mitox Screw M5x25
63 MIGB/T93 M5
Mitox Spring Washer M5
64 MIGB/T97.1 M5
Mitox Washer M5
65 TBC430D.01.14.01-00
Mitox Clutch Drum
66 MIGB/T893.1 35
Mitox Circlip (size 35)
67 MIGB/T276 6202-2Z
Mitox Bearing 6202
68 MIGB/T894.1 15
Mitox Circlip 15
69 MITBC243D.01.14.00-1
Mitox Clutch Drum Housing (bare)
70 MIGB/T2671.2 M5X16
Mitox Screw M5x16
71 MIGB/T93 M5
Mitox Spring Washer M5
72 MIGB/T97.1 M5
Mitox Washer M5
73 MIGB/T2671.2 M6X20
Mitox Screw M6x20
74 MIGB/T93 M6
Mitox Lock Washer M6
75 MIGB/T97.1 M6
Mitox Flat Washer M6
76 MITBC243D.01.14.00-3
Mitox Isolator
77 MITBC243D.01.14.00-4
Mitox Isolator
78 MITBC243D.01.14.00-2
Mitox Cap
79 MITBC243D.01.14.00-5
Mitox Retainer
80 MIGB/T893.1 45
Mitox Circlip 45
81 MIGB/T2671.2 M5X16
Mitox Screw M5x16
82 MIGB/T93 M5
Mitox Spring Washer M5
83 MIGB/T97.1 M5
Mitox Washer M5
84 MIGB/T2671.2 M6X12
Mitox Screw M6x12
85 MIGB/T93 M5
Mitox Spring Washer M5
86 MIGB/T97.1 M5
Mitox Washer M5
87 MIGB/T2671.2 M6X25
Mitox Screw M6x25
88 MIGB/T93 M6
Mitox Lock Washer M6
89 MIGB/T97.1 M6
Mitox Flat Washer M6
90 MIGB/T2671.2 M6X55
Mitox Screw M6x55
91 MIGB/T93 M6
Mitox Lock Washer M6
92 MIGB/T97.1 M6
Mitox Flat Washer M6
93 MITBC243D.01.00.00-7
Mitox Muffler Cover
94 MIGB/T2671.2 M5X12
Mitox Screw M5x12
95 MIGB/T93 M5
Mitox Spring Washer M5
96 MIGB/T97.1 M5
Mitox Washer M5
97 MITBC243D.01.09.00-00
Mitox MUFFLER
98 MITBC430D.01.00.00-5
Mitox Gasket - Muffler
99 MITBC430D.01.00.00-3
Mitox Gasket
100 MITBC431D.01.00.01-00
Mitox MANIFOLD
101 TBC431D.01.00.00-12A
Mitox Strap - New Style
102 MIGB/T845 ST3.5X9.5
Mitox St Screw 3.5x9.5
103 MIGB/T2671.2 M5X25
Mitox Screw M5x25
104 MIGB/T93 M5
Mitox Spring Washer M5
105 MIGB/T97.1 M5
Mitox Washer M5
106 MIYD38-3.01.00-8
Mitox Carb Gasket
107 MITBC431D.01.06.00-00
Mitox CARBURETOR
109 MITBC243D.01.08.00-1
Mitox Air Box Base
110 MIGB/T2671.2 M5X45
Mitox Screw M5x45
111 MIGB/T93 M5
Mitox Spring Washer M5
112 MIGB/T97.1 M5
Mitox Washer M5
113 MITBC233D.1.1-2
Mitox Air Filter
114 MITBC243D.01.08.00-2
Mitox Air Box Cover
115 MITBC243D.01.08.00-4
Mitox Knob
116 MITBC431D.01.13.01
Mitox Fuel Cap Assy
119 MITBC243D.01.13.00-1
Mitox Fuel Tank
120 MITBC431D.01.13.00-2
Mitox Fuel Tank Rubber
121 MITBC243D.01.00.00-10
Mitox ENGINE COVER - LOWER
122 MIGB/T2671.2 M5X25
Mitox Screw M5x25
123 MIGB/T93 M5
Mitox Spring Washer M5
124 MIGB/T97.1 M5
Mitox Washer M5
125 MIYD45.03.00-5
Mitox Breather
126 MITBC431D.01.13.00-6
Mitox Breather Pipe
127 MITBC431D.01.13.00-4
Mitox Fuel Pipe 240mm X 5mm X 3mm
128 MITBC431D.01.13.00-5
Mitox Fuel Pipe 210mm X 5mm X 3mm
129 MITBC431D.01.13.00-3
Mitox Grommet 3 Hole
130 MIYD45.01.01.01-3
Mitox Circlip
131 MIYD38-3.03.04-00
Mitox Fuel Filter
132 MITBC243D.01.00.00-13
Mitox GRILL
